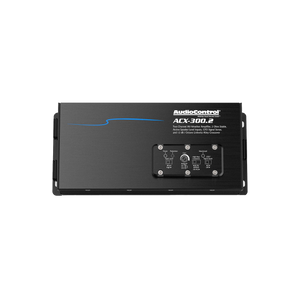

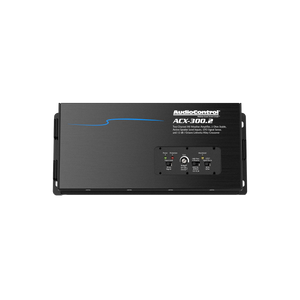

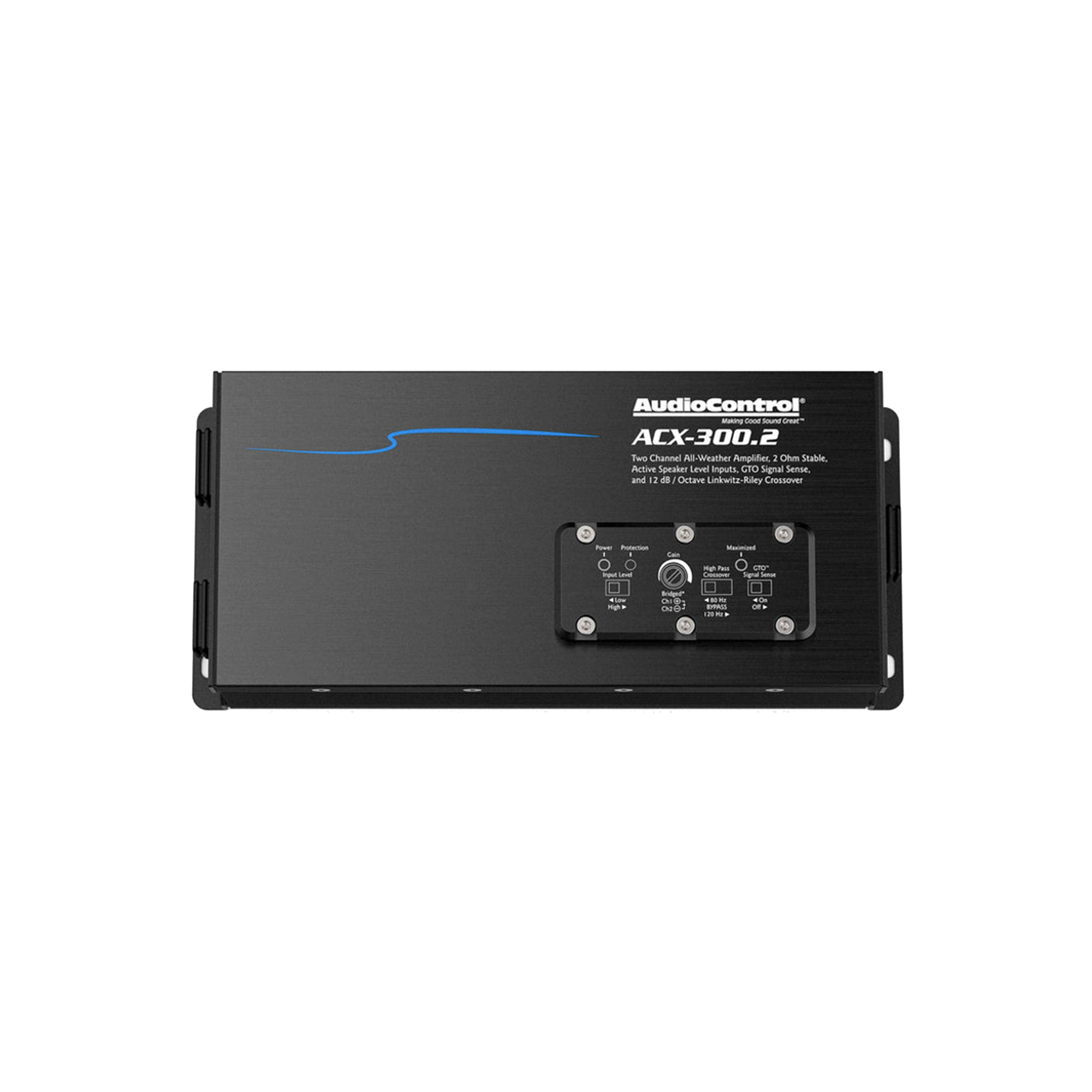

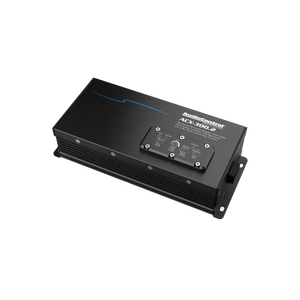

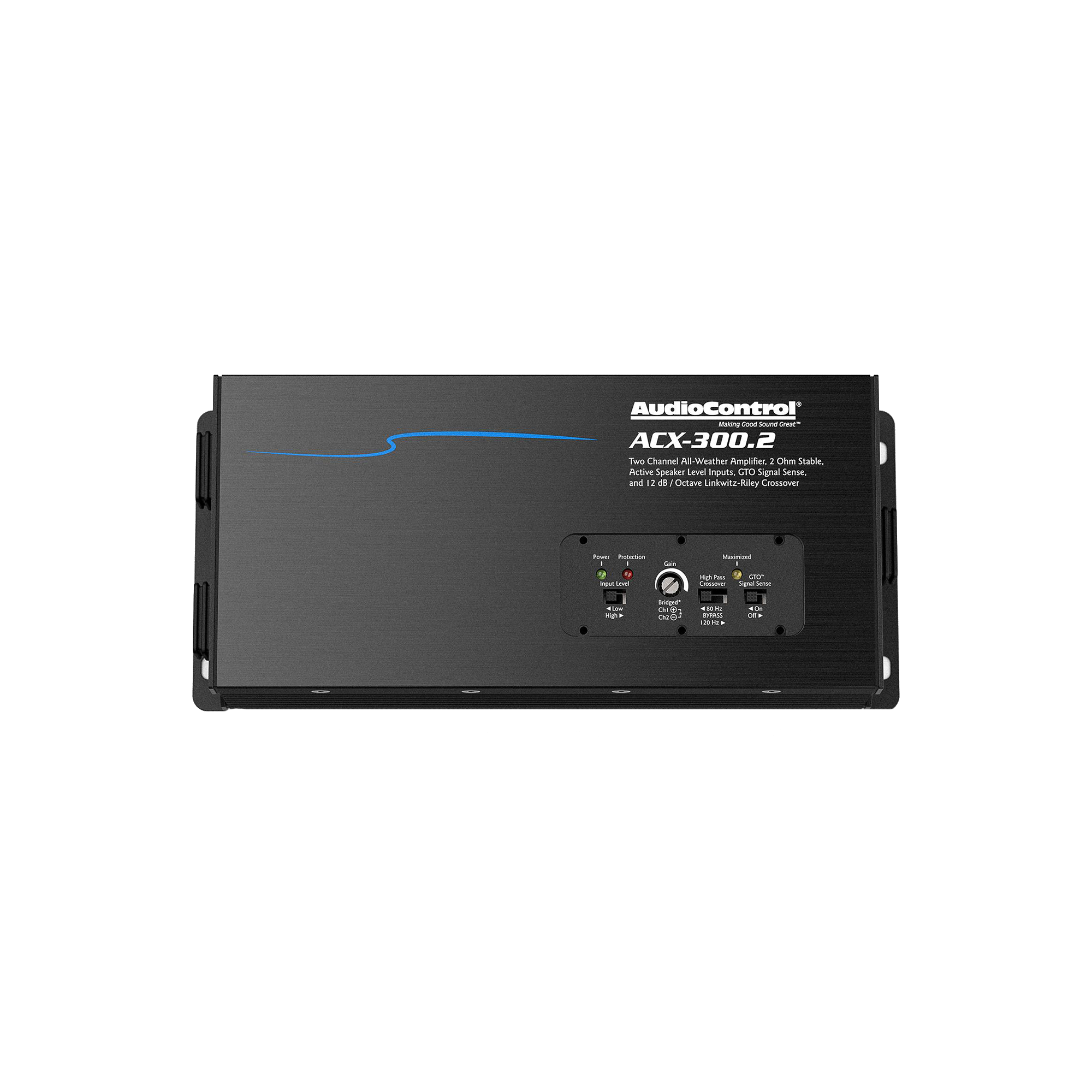

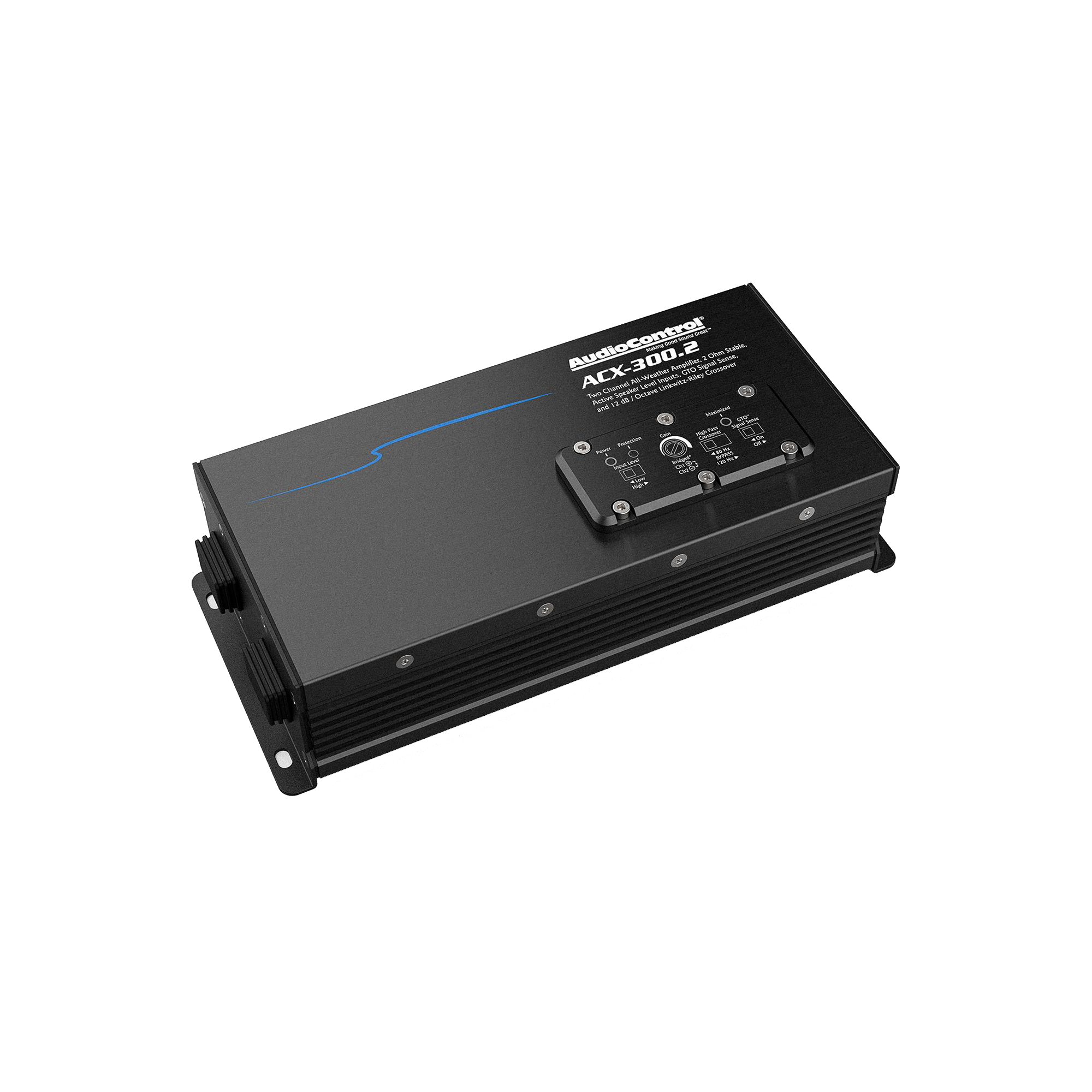

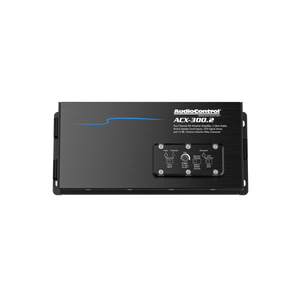

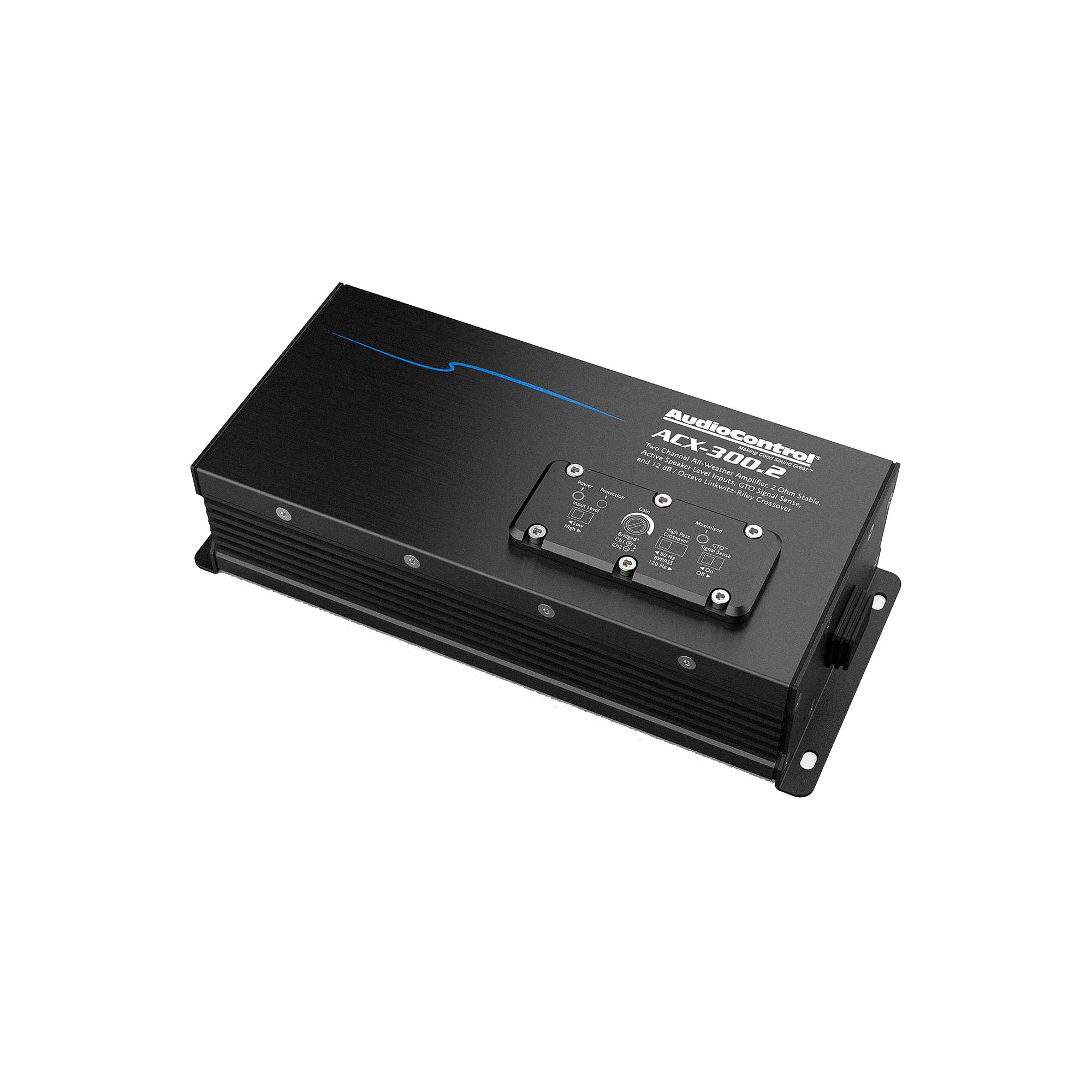

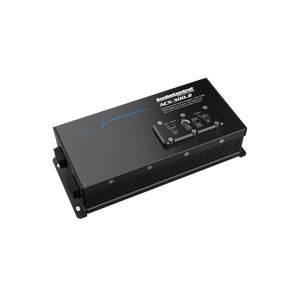

ACX-300.2 All-Weather 2-Channel Amplifier, 300W RMS
ACX-300.2 All-Weather 2-Channel Amplifier, 300W RMS
ACX-300.2 All-Weather 2-Channel Amplifier, 300W RMS
Description
AudioControl’s ACX-300.2 all-weather amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. The ACX-300.2 will ensure your open-air speakers and subwoofers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-300.2 all-weather amplifier the perfect solution for your next adventure.
Features
- 2 x 75 watts @ 4 ohms
- 2 x 150 watts @ 2 ohms
- 1 x 300 watts @ 4 ohms bridged
- IPX6 Rated
- GTOTM Signal Sense
- High and low input modes
- Linkwitz-Riley Crossover
- Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)
The Kaos Run Down
| Part Number | ACX-300.2 |
|---|---|
| UPC | 850038647179 |
| Specification | INPUTS |
| Preamp/Speaker Level Inputs | 2 |
| Input Voltage Low | 500 mV – 6 Vrms |
| Input Voltage Range High | 1 Vrms – 12 Vrms |
| Specification | OUTPUTS |
| Rated Continuous (RMS) Power at 14.4V | |
| Specification | 4 Ω – 75 W x 2 |
| Specification | 2 Ω – 150 W x 2 |
| Specification | Bridged 4 Ω – 300 W x 1 |
| Specification | PERFORMANCE |
| Frequency Response | 26 Hz – 22 kHz |
| Signal to Noise | 102 dBA, Ref 50 W @ 4 Ohm |
| THD+N | < 0.05% |
| Crossover | 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass |
| IP Rating | IPX6 |
| Specification | GENERAL |
| Recommended Fuse Rating | 30A |
| Dimensions | 8.89″W x 3.86″D x 2.36″H |
| Weight | 3.15 lbs. (1.43 kg) |
| IN THE BOX | ACX-300.2, Manual, Warranty |
