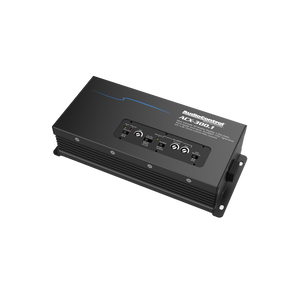

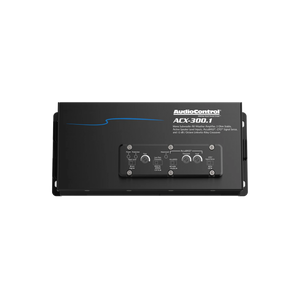

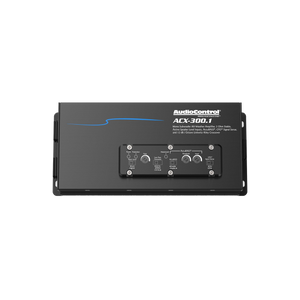

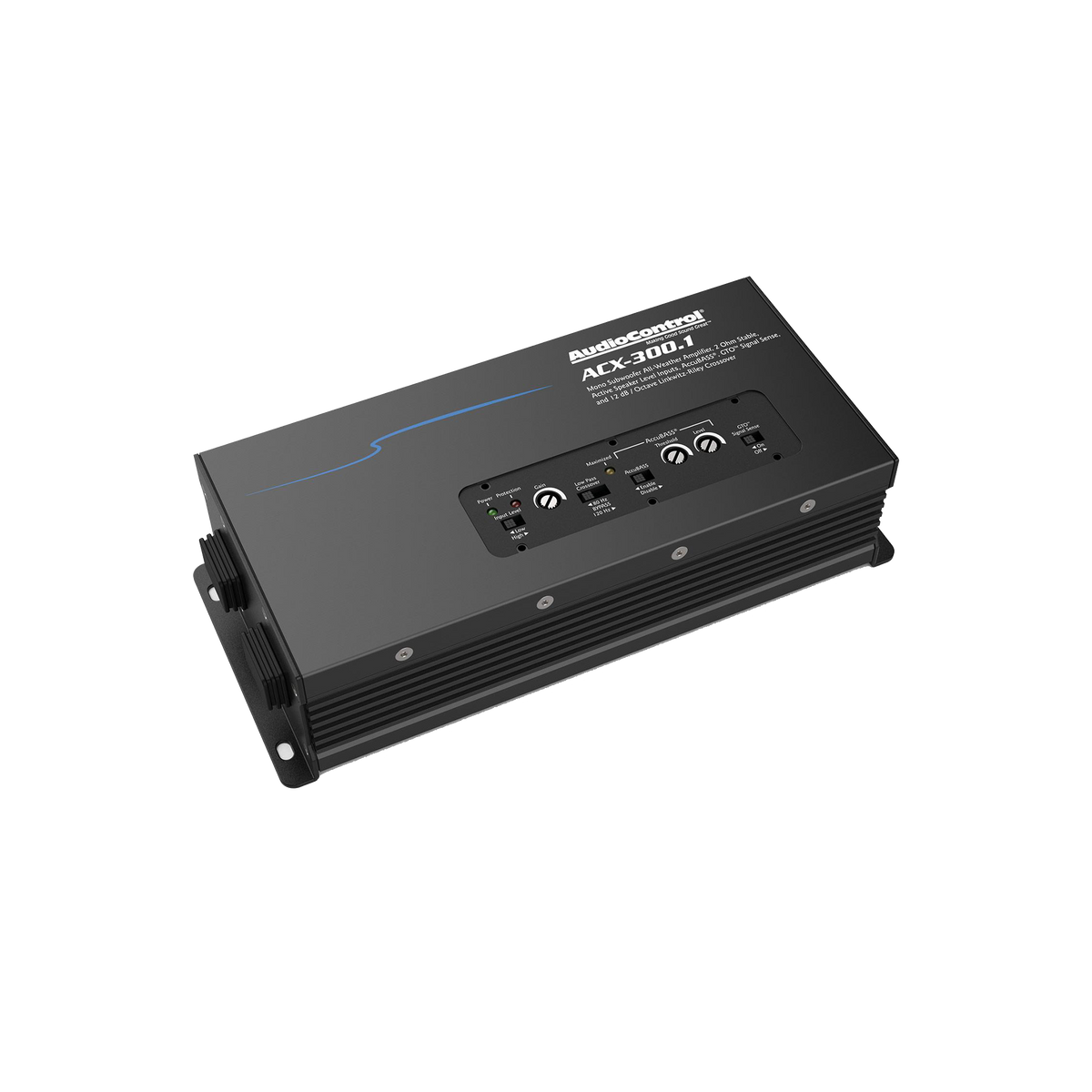

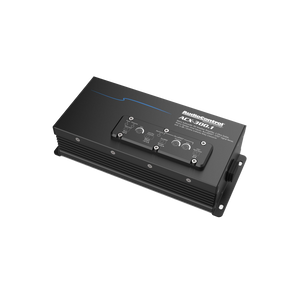

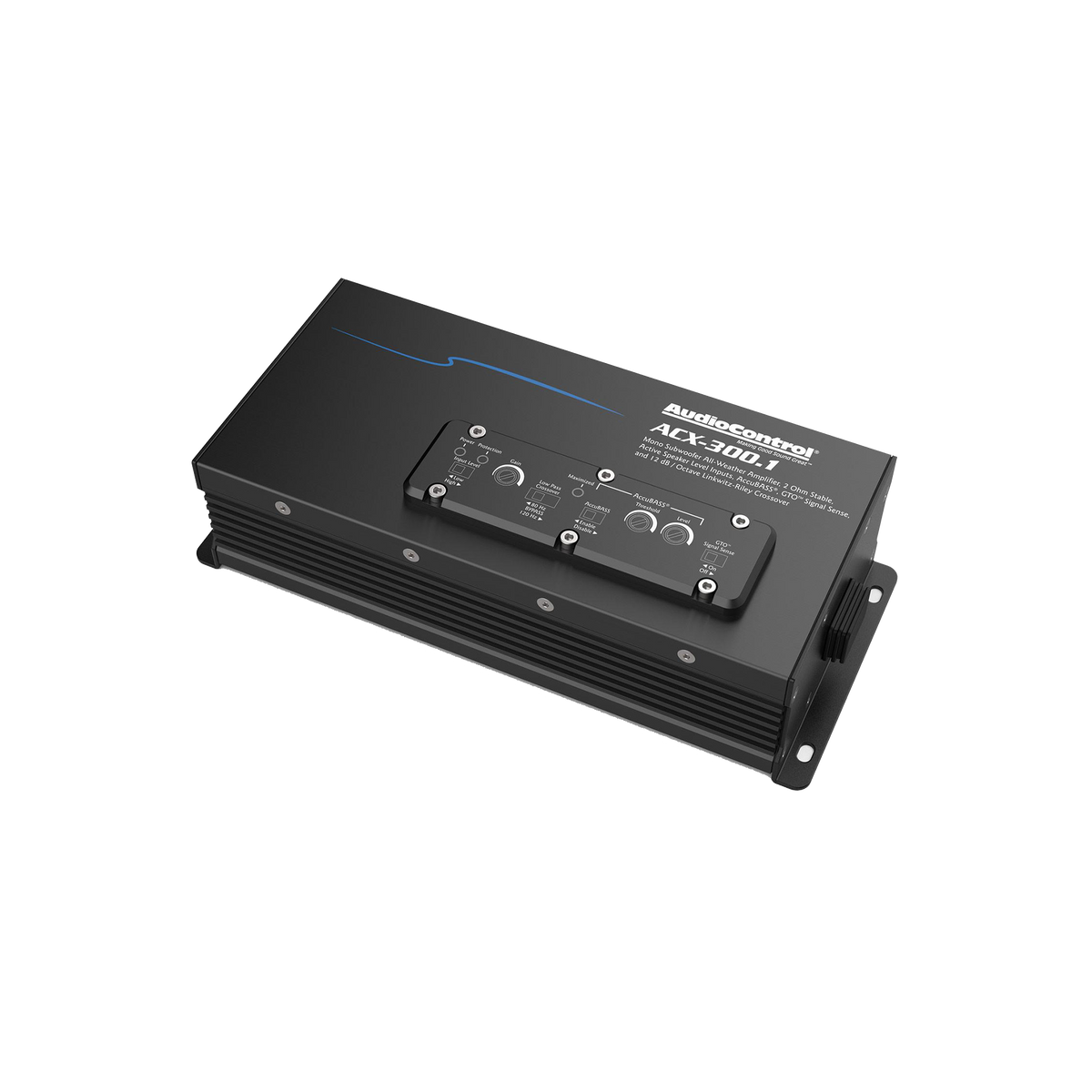

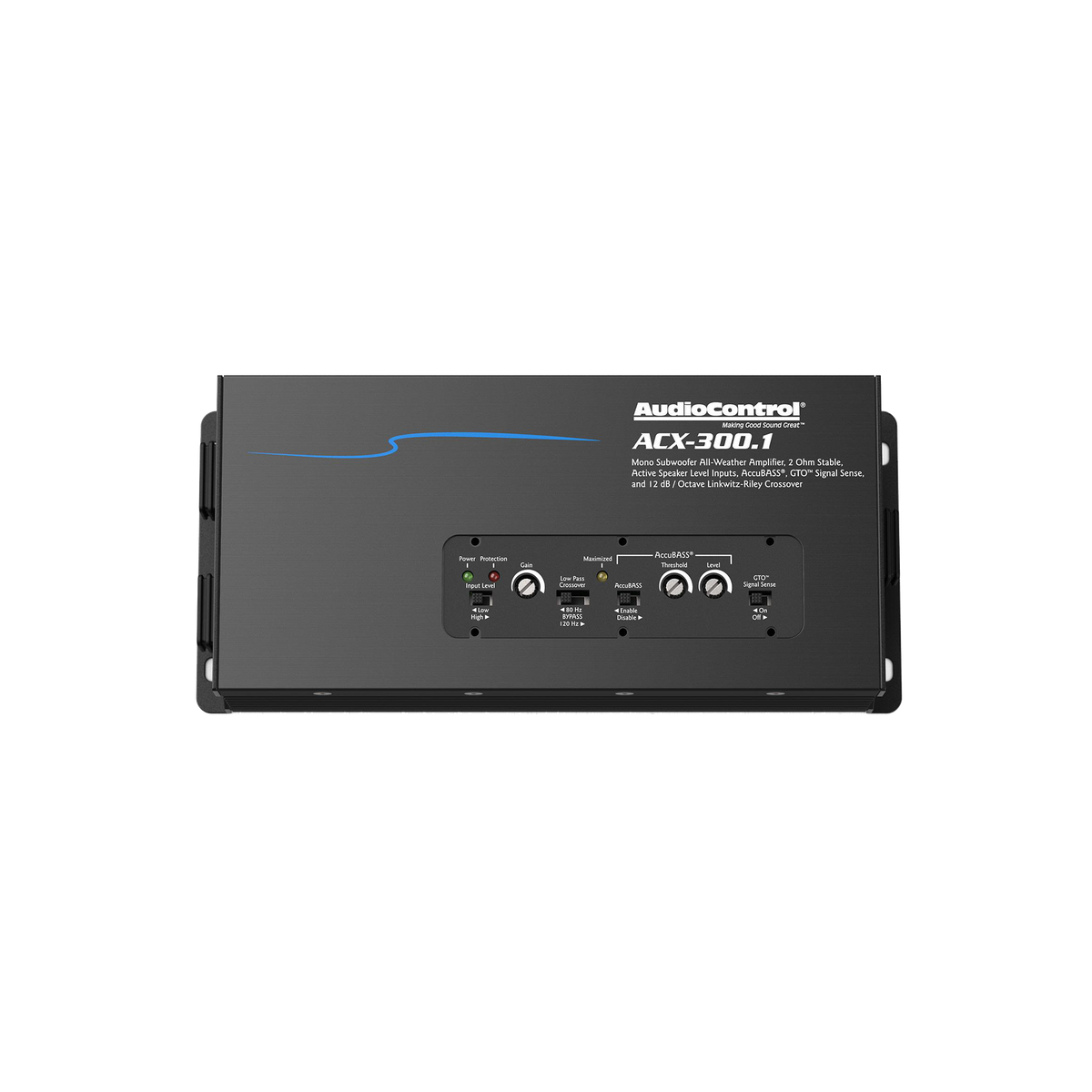

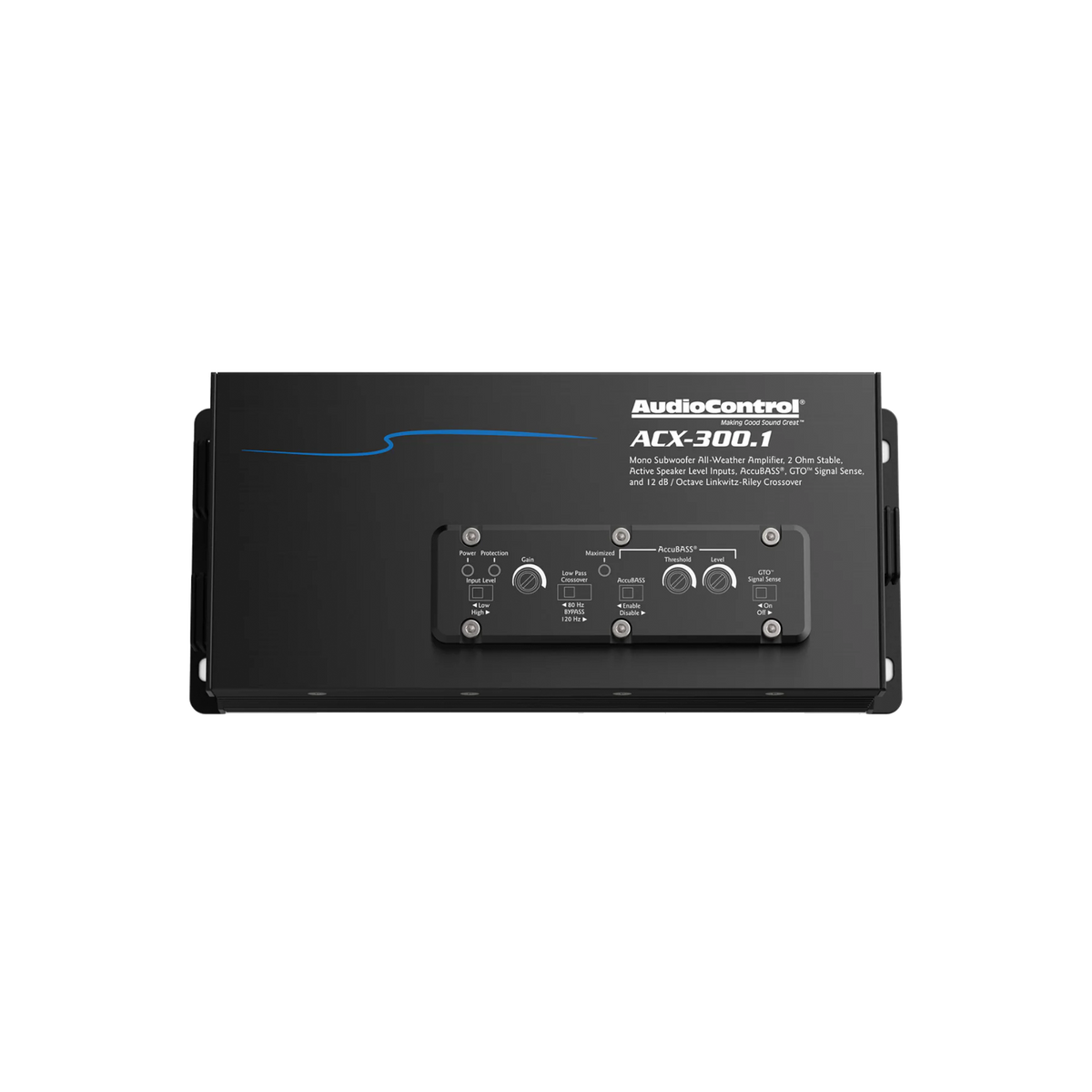

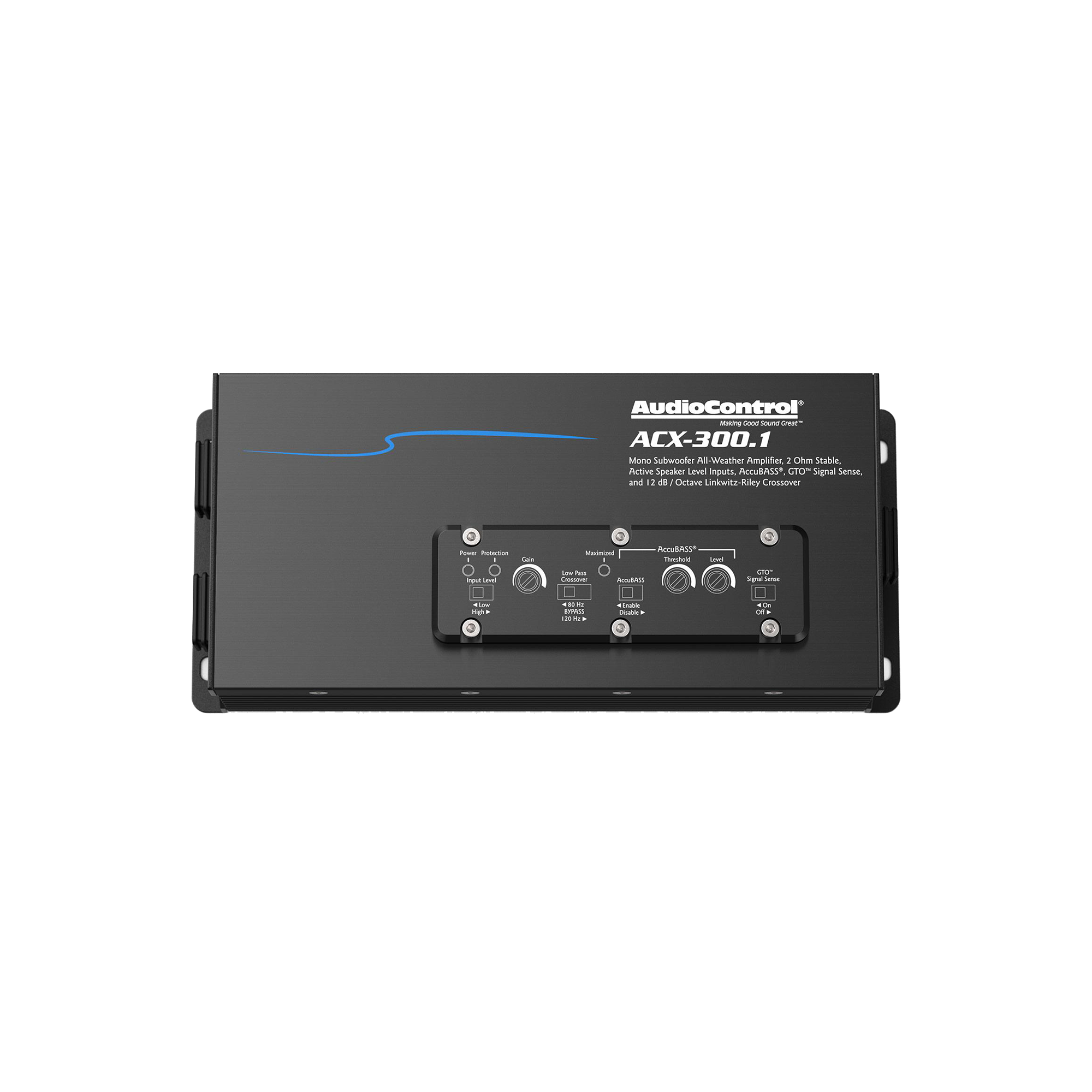

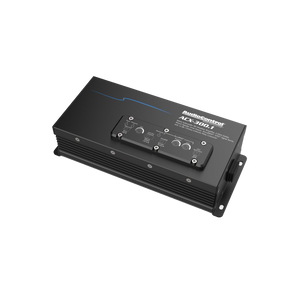

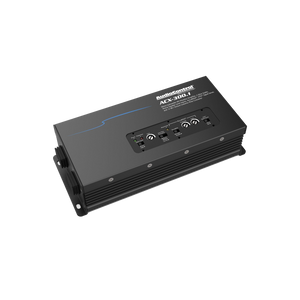

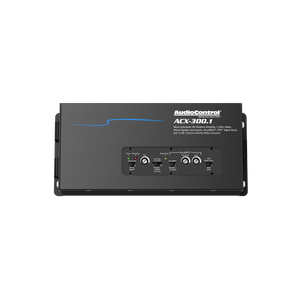

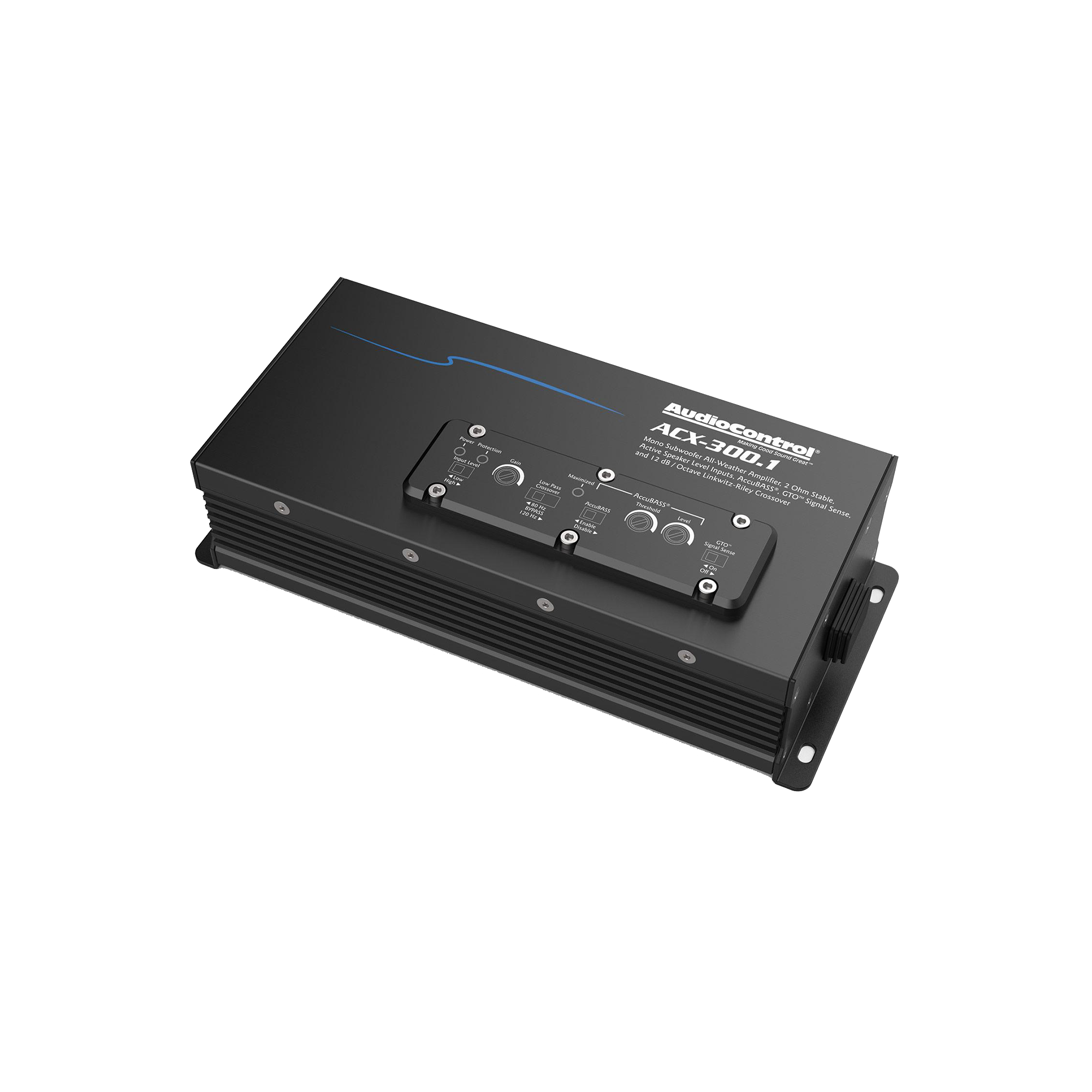

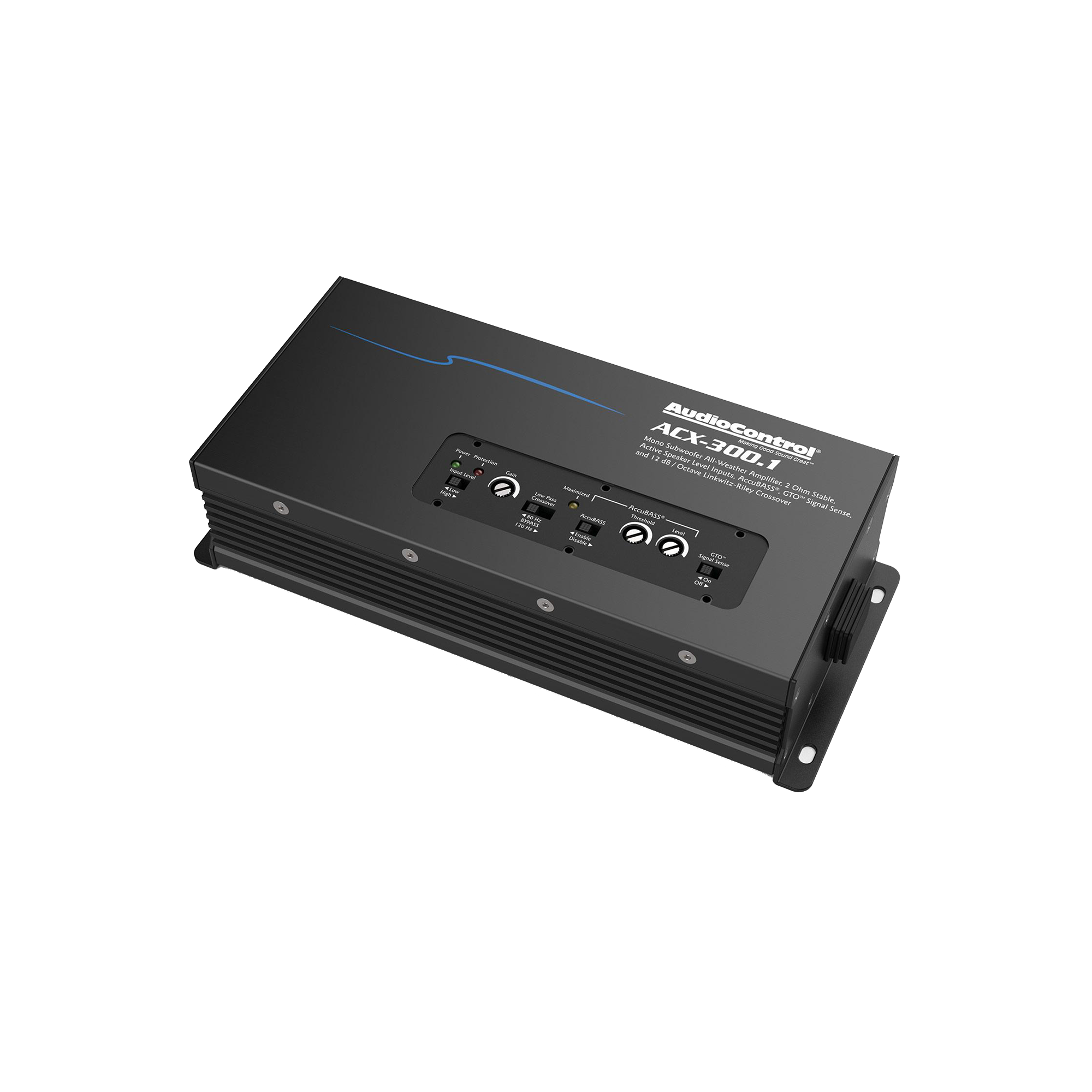

ACX-300.1 All-Weather Monoblock Amplifier, 300W RMS
ACX-300.1 All-Weather Monoblock Amplifier, 300W RMS
ACX-300.1 All-Weather Monoblock Amplifier, 300W RMS
Description
AudioControl’s ACX-300.1 all-weather monoblock subwoofer amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. The ACX-300.1 will ensure your open-air speakers and subwoofers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-300.1 all-weather monoblock amplifier the perfect solution for your next adventure.
Features
- 1 x 300 watts @ 2 ohms
- 1 x 175 watts @ 4 ohms
- IPX6 Rated
- AccuBASS® bass management
- GTOTM Signal Sense
- High and low input modes
- Linkwitz-Riley Crossover
- Optional ACR-1 dash remote control
- Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)
The Kaos Run Down
| Part Number | ACX-300.1 |
|---|---|
| UPC | 851523007829 |
| Specification | INPUTS |
| Preamp/Speaker Level Inputs | 2 |
| Input Voltage Low | 500 mV – 6 Vrms |
| Input Voltage Range High | 1 Vrms – 12 Vrms |
| Specification | OUTPUTS |
| Rated Continuous (RMS) Power at 14.4V | |
| Specification | 4 Ω – 175 W x 1 RMS |
| Specification | 2 Ω – 300 W x 1 RMS |
| Specification | PERFORMANCE |
| Frequency Response | 26 Hz – 22 kHz |
| Signal to Noise | 102 dBA, Ref 50 W @ 4 Ohm |
| THD+N | < 0.05% |
| Crossover | 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass |
| IP Rating | IPX6 |
| Specification | GENERAL |
| Recommended Fuse Rating | 30A |
| Dimensions | 9.0″W x 3.875″D x 2.25″H |
| Weight | 7.2 lbs. (3.3 kg) |
| IN THE BOX | ACX-300.1, Manual, Warranty |
