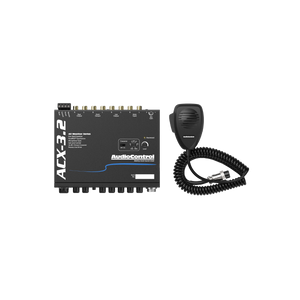

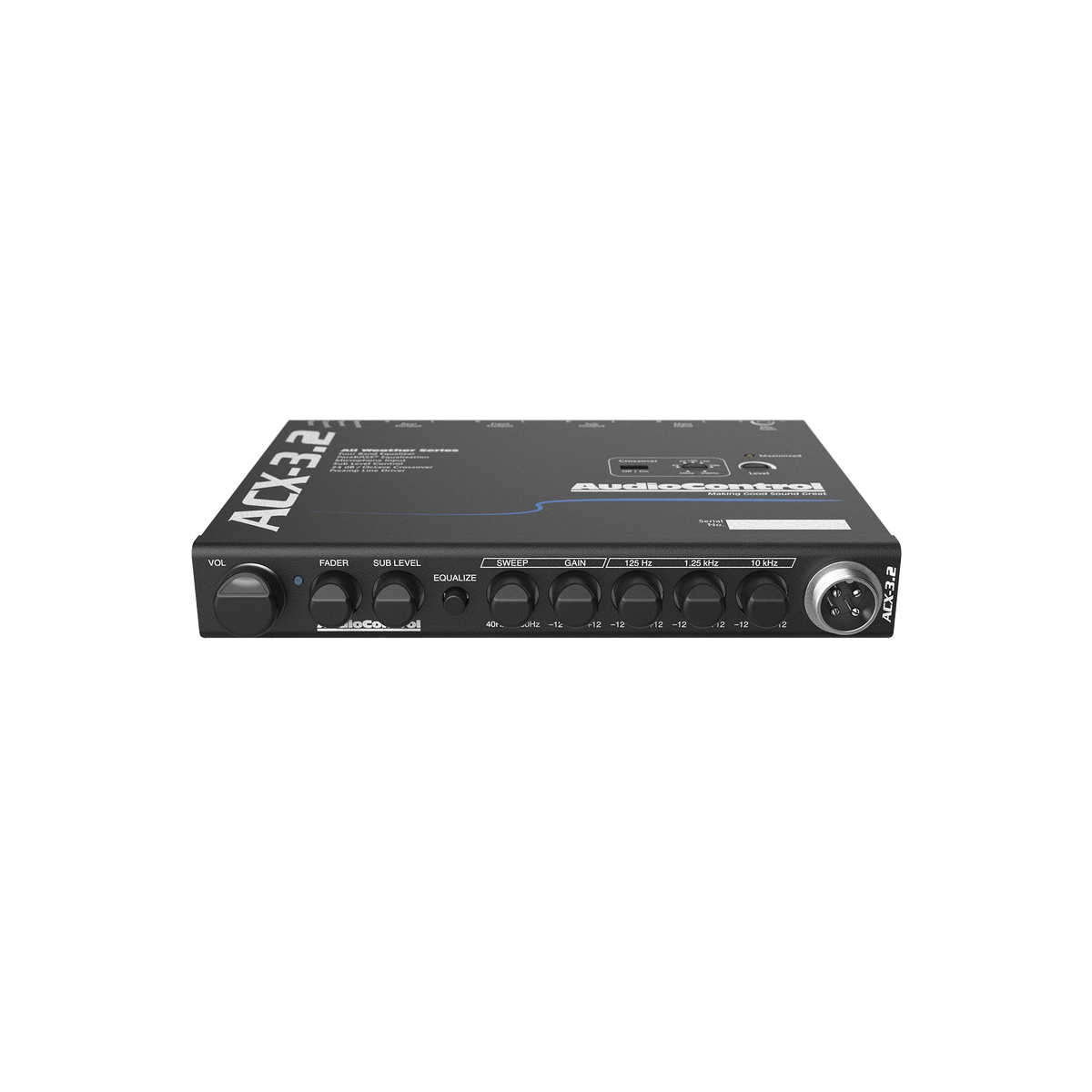

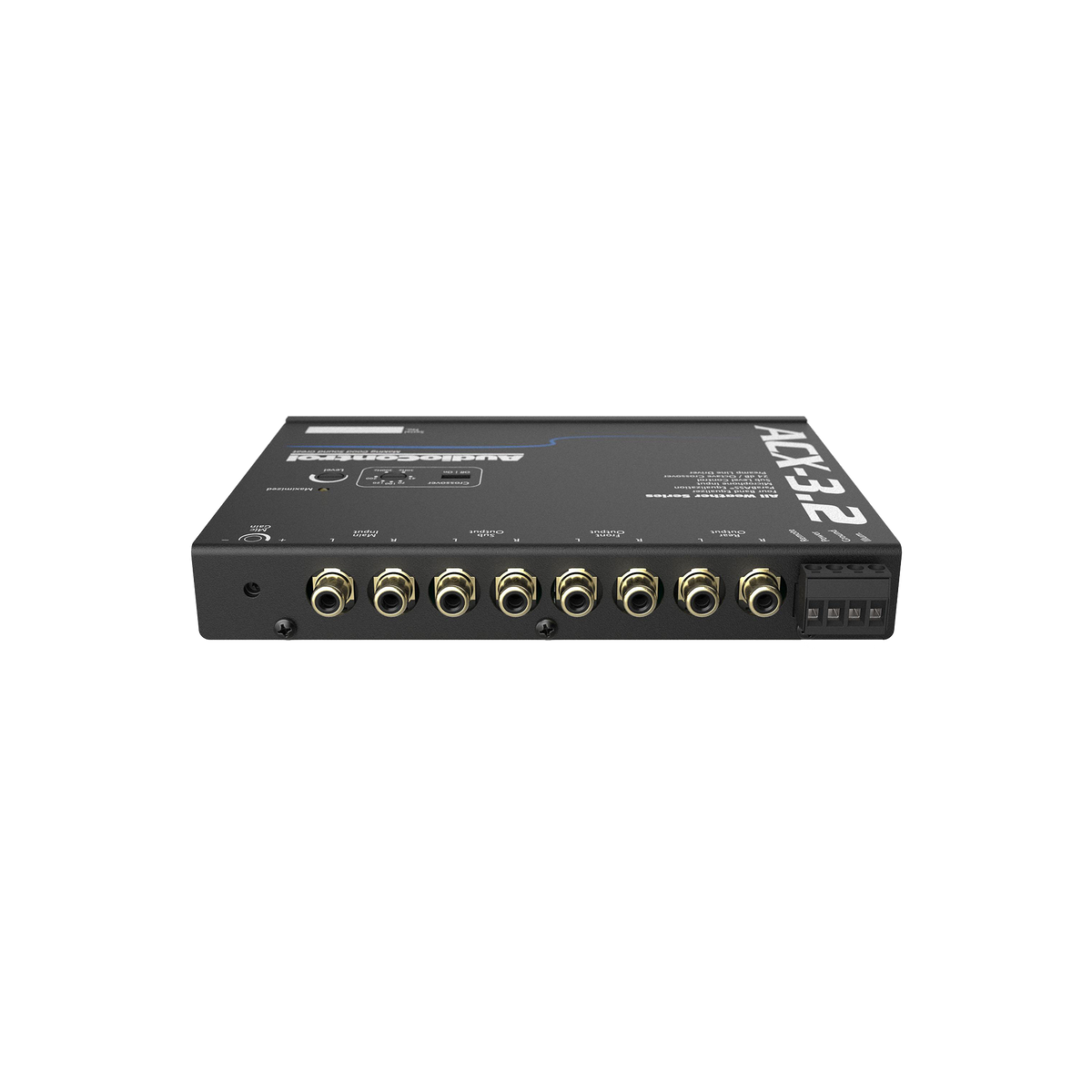

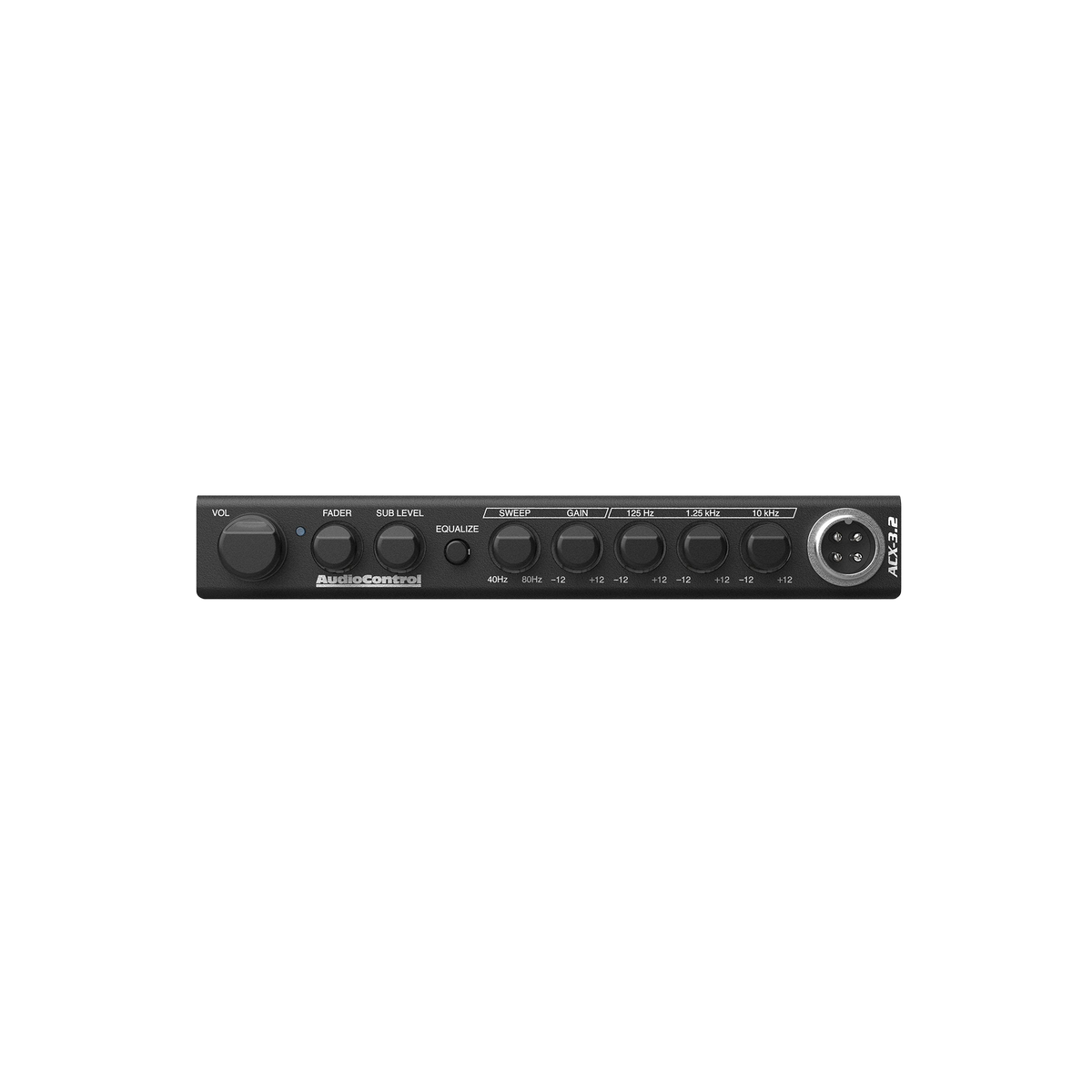

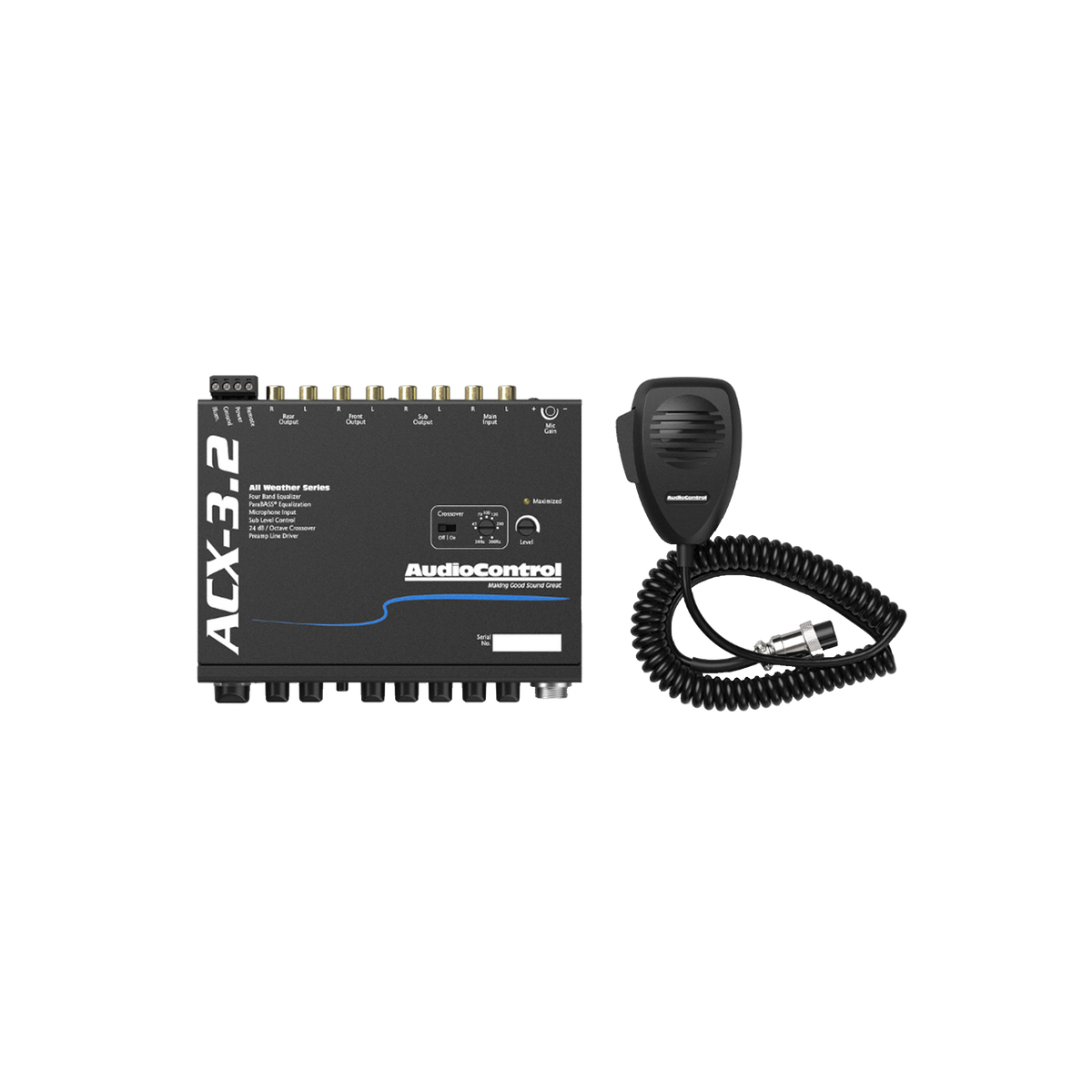

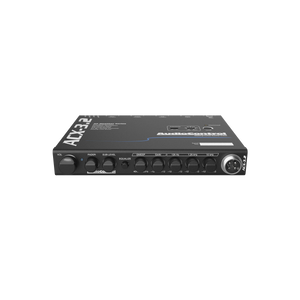

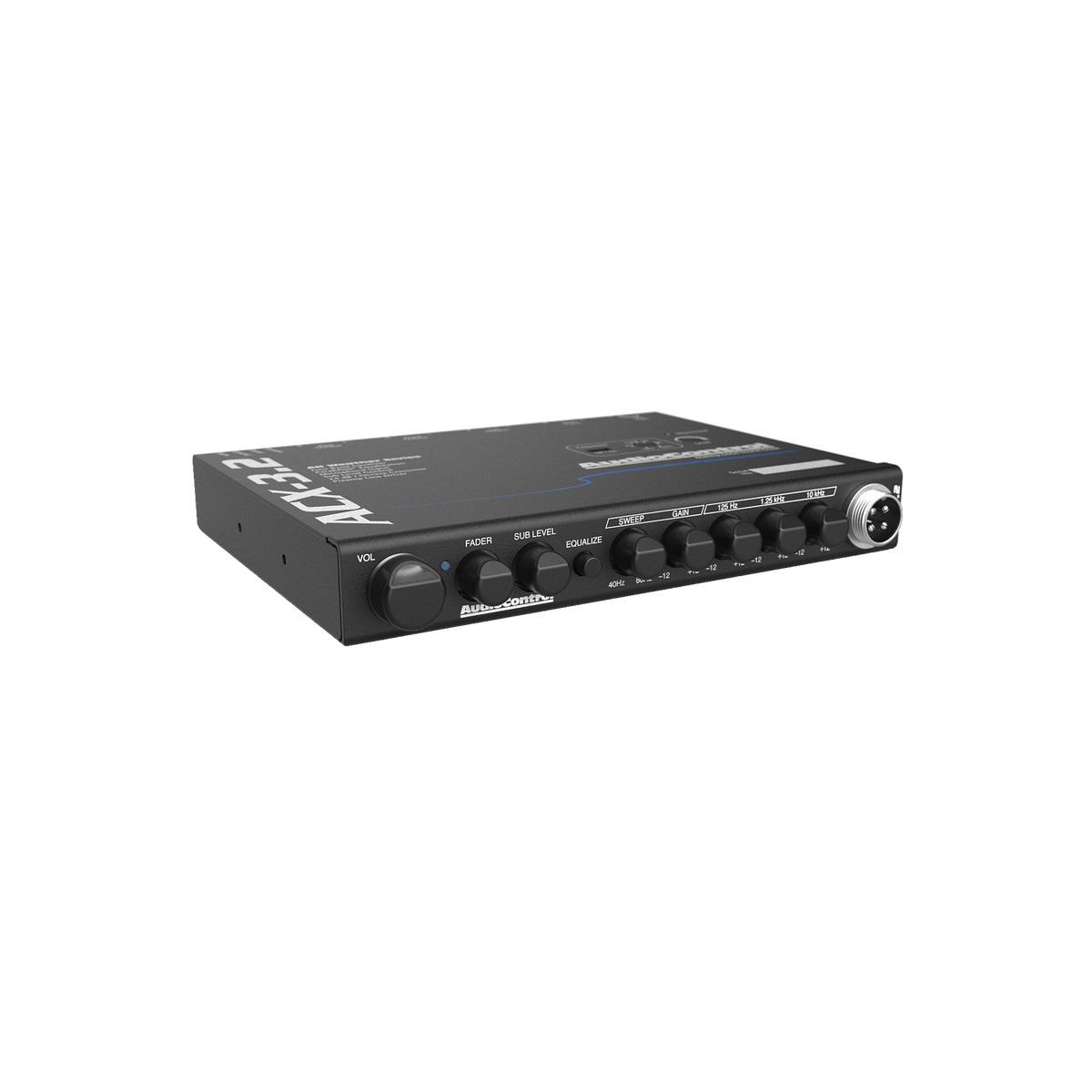

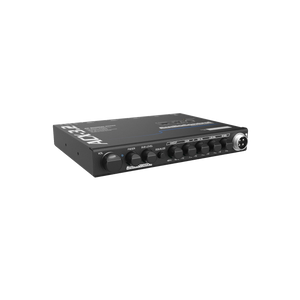

ACX-3.2 All-Weather Equalizer & Crossover with Paging Mic
ACX-3.2 All-Weather Equalizer & Crossover with Paging Mic
ACX-3.2 All-Weather Equalizer & Crossover with Paging Mic
ACX-3.2 All-Weather Equalizer & Crossover with Paging Mic
ACX-3.2 All-Weather Equalizer & Crossover with Paging Mic
Sold out
ACX-3.2 All-Weather Equalizer & Crossover with Paging Mic
ACX-3.2 All-Weather Equalizer & Crossover with Paging Mic
ACX-3.2 All-Weather Equalizer & Crossover with Paging Mic
ACX-3.2 All-Weather Equalizer & Crossover with Paging Mic
ACX-3.2 All-Weather Equalizer & Crossover with Paging Mic

ACX-3.2 All-Weather Equalizer & Crossover with Paging Mic

Availability: Out of stock SKU: ACX-3.2
Sale price $529.00

Notify me if back in stock

Enter your email address to be notified if the product becomes available again.

Description

The ACX-3.2 all-weather sound processor is a high-output pre-amp, for all systems on-road, off-road, or off-shore. The ACX-3.2 can serve as the main control unit in your audio system allowing you to control the output to all of your amplifiers. It features a 4-band graphic equalizer that can be used to tweak your system, depending upon your mood or music selection. The built-in crossover gives you the ability to separate high and low frequencies, and send them to the appropriate amplifier and speakers, maximizing the performance of your system. Adding an ACX-3.2 to your system gives you the assurance that your system can play longer, louder, and cleaner with less distortion.

The low-profile ACX-3.2 takes your experience to another level by combining all of its audio features with a PA microphone!
If you are out on your boat ACX-3.2 allows you to play music and communicate with the person wakeboarding or tubing behind you. Own a food truck? This is great for playing music inside for the cooks, outside for the patrons, and allowing you the ability to call out an order number for a waiting customer.

The ACX-3.2 is a game changer, by offering a quality real-world solution for all of those unique installation needs. This multi-functional piece is part of our all-weather line-up making it the perfect solution for any adventure.

Features

  • 4-Band Stereo Graphic EQ
  • Parabass® Low-Frequency Contouring
  • Variable 24 Db/Octave Linkwitz-Riley Crossover
  • Front, Rear, and Subwoofer Outputs
  • Master Volume, Fader, and Sub-Level Control
  • Parabass® Bass Control
  • High-Gain Input Stage
  • Line Driver: 13-Volts Peak Output
  • Dash or Console-Mountable
  • Included Paging Microphone
  • Selectable Illumination (red or blue)

The Kaos Run Down

Part Number ACX-3.2
UPC 851523007966
Specification INPUTS
Preamp Inputs 1 (2 channels)
Input Gain 0-20 dB
Input Impedance 20 kΩ
Specification OUTPUTS
Preamp Outputs 6
Maximum Output Level 7.5 Vrms / 9.5 V Peak
Output Impedance 150 Ω
Specification PERFORMANCE
Frequency Response 20Hz-20kHz ±.01dB
Total Harmonic Distortion 0.03%
Signal to Noise 123 dB (inputs set to Balanced)
EQ Frequencies 40 Hz – 80 Hz (parametric), 125 Hz, 1.25 kHz, 10 kHz
EQ Cut/Boost ±10 dB
Crossover type 24 dB/octave Linkwitz-Riley
Factory Crossover Setting 100 Hz
Microphone Frequency Response 100 Hz – 6 kHz
Microphone Maximum SPL 123 dB
Specification CONTROL
Specification Remote In
Specification GENERAL
Power Supply High Headroom PWM Switching
Current Draw 300mA
Recommended Fuse Rating 1A
Dimensions 6.75”W x 5”D x 1”H
Weight 1.6lbs
IN THE BOX ACX-3.2, Paging Mic, Mounting Brackets, Power Connector, Manual, Warranty
