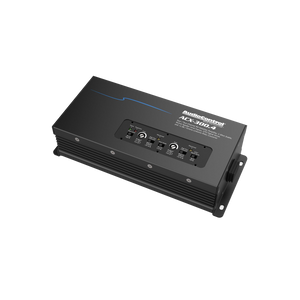

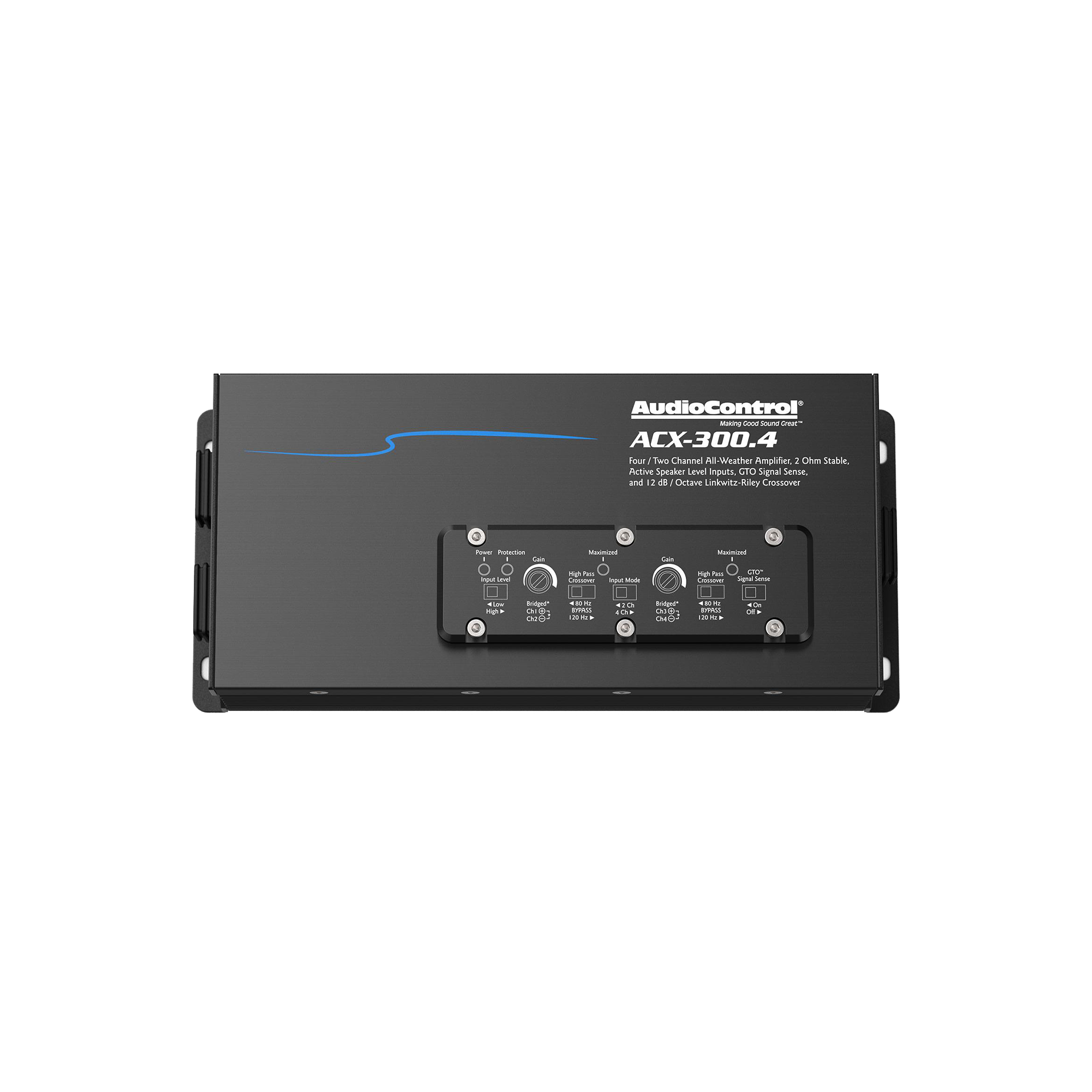

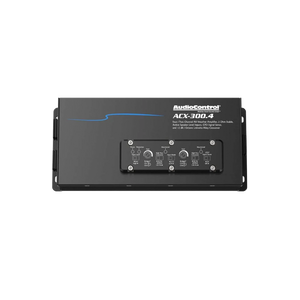

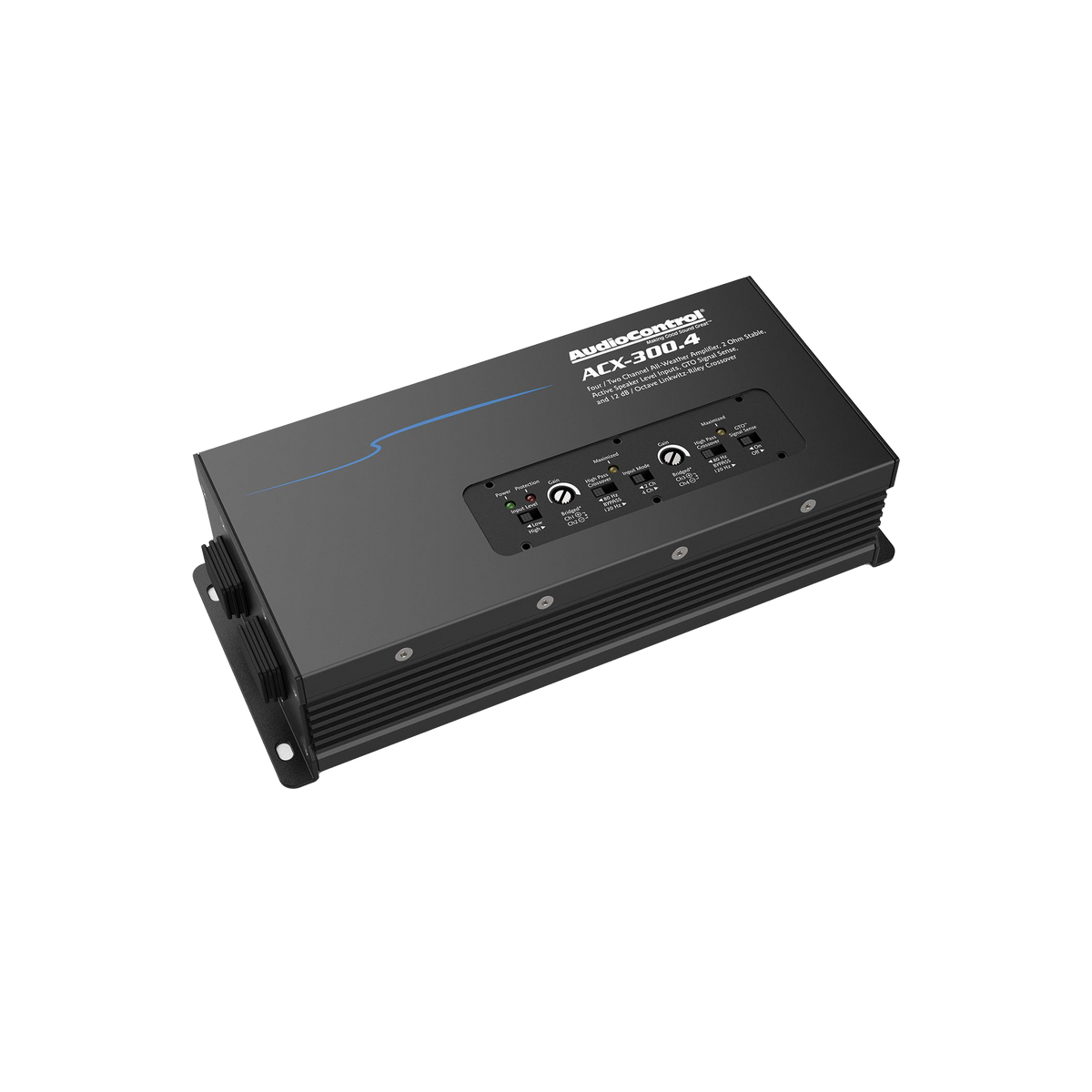

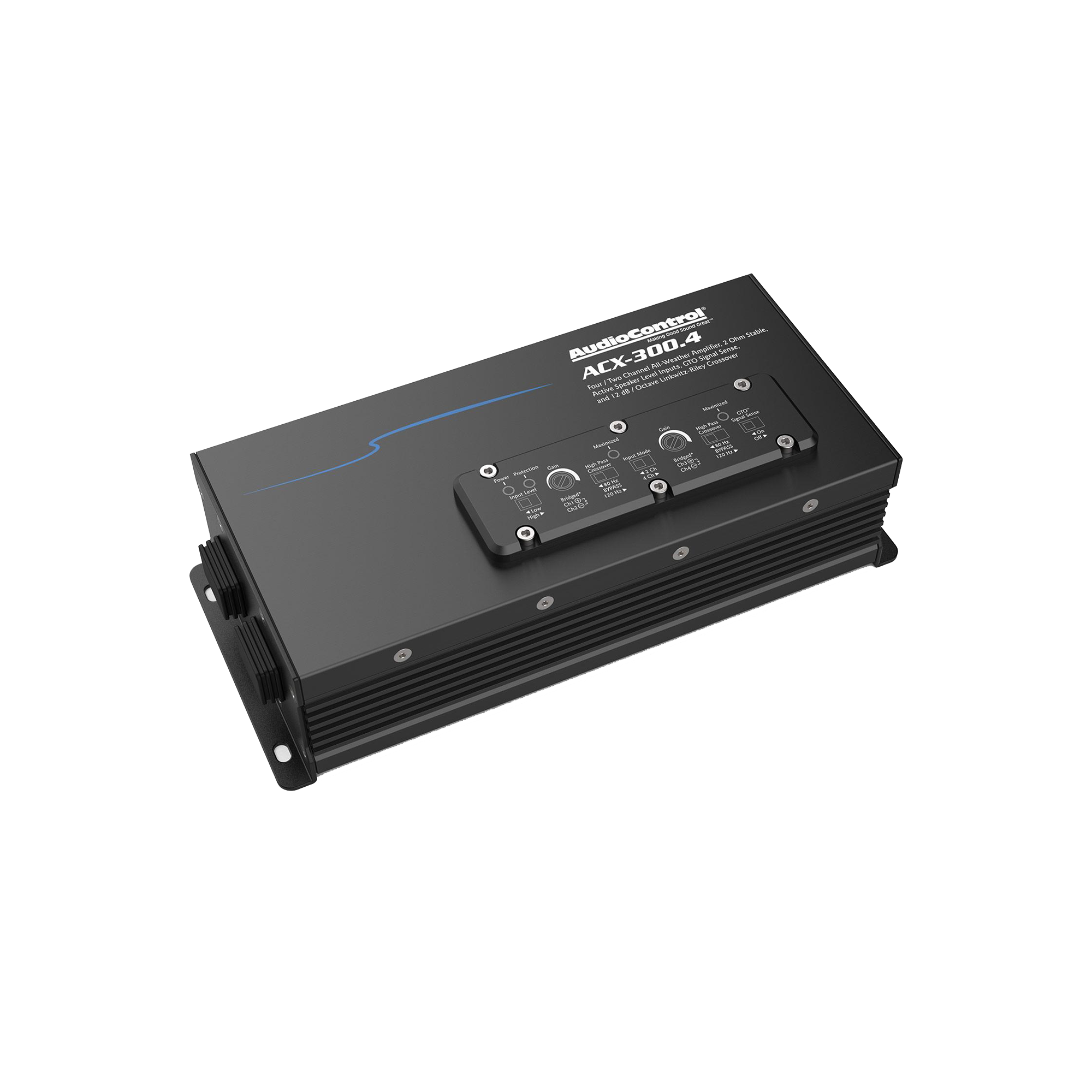

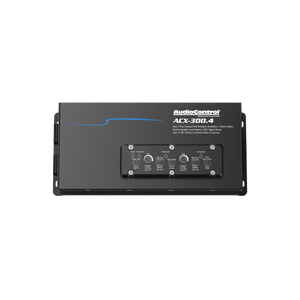

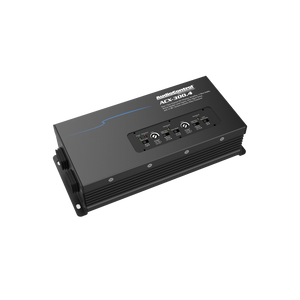

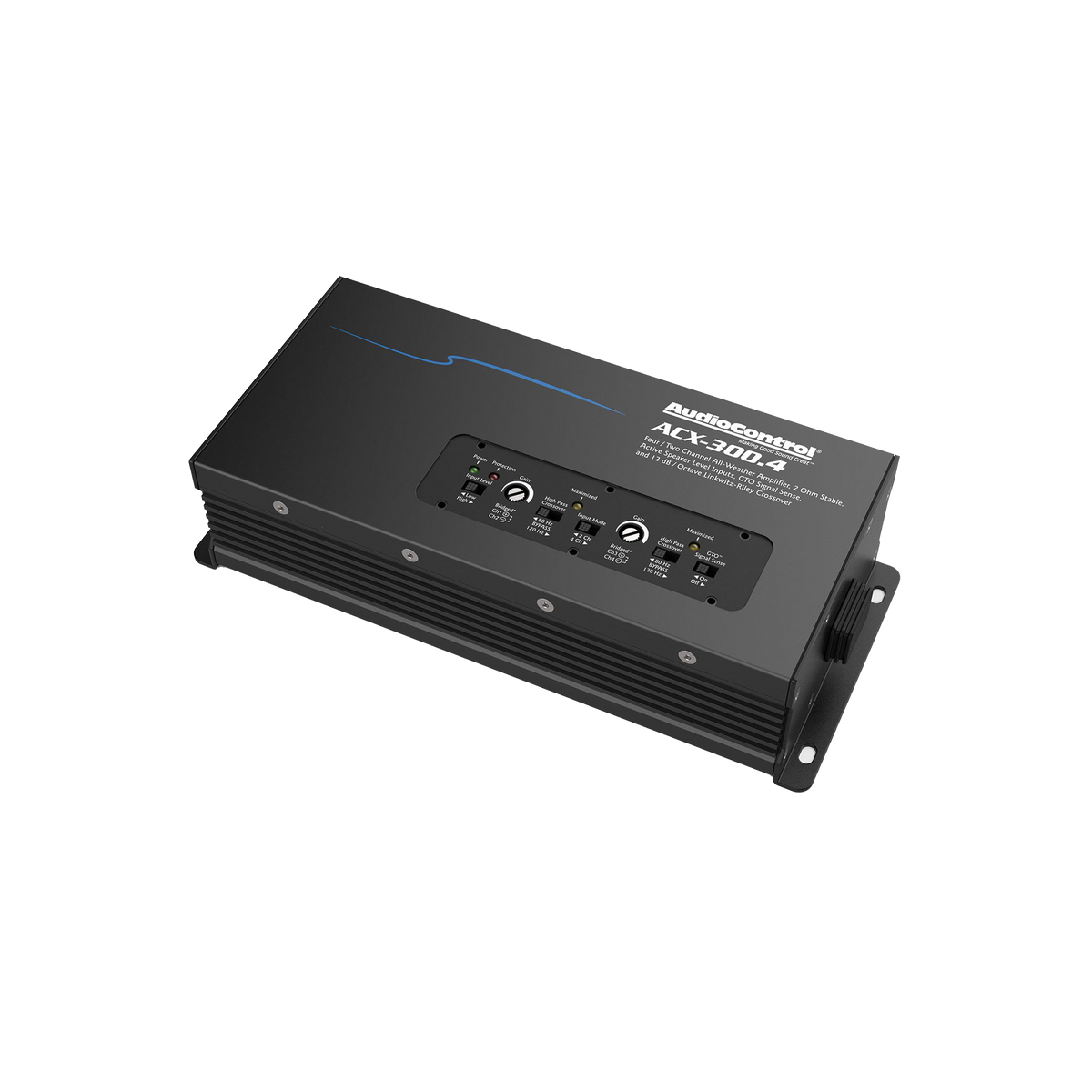

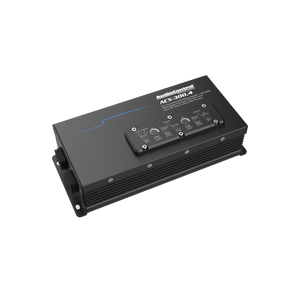

ACX-300.4 All-Weather 4-Channel Amplifier, 300W RMS
Description
AudioControl’s ACX-300.4 all-weather amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. for a two or four channel system, the ACX-300.4 will ensure your open-air speakers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-300.4 all-weather amplifier the perfect solution for your next adventure.
Features
- 4 x 75 watts @ 2 ohms
- 4 x 50 watts @ 4 ohms
- 150 watts @ 4 ohms bridged
- IPX6 Rated
- GTOTM Signal Sense
- High and low input modes
- 4 and 2 channel input modes
- Linkwitz-Riley Crossover
- Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)
The Kaos Run Down
| Part Number | ACX-300.4 |
|---|---|
| UPC | 851523007836 |
| Specification | INPUTS |
| Preamp/Speaker Level Inputs | 4 |
| Input Voltage Low | 500 mV – 6 Vrms |
| Input Voltage Range High | 1 Vrms – 12 Vrms |
| Specification | OUTPUTS |
| Rated Continuous (RMS) Power at 14.4V | |
| Specification | 4 Ω – 50 W x 4 RMS |
| Specification | 2 Ω – 75 W x 4 RMS |
| Specification | Bridged 4 Ω – 150 W RMS |
| Specification | PERFORMANCE |
| Frequency Response | 26 Hz – 22 kHz |
| Signal to Noise | 106 dBA, Ref 50 W @ 4 Ohm |
| THD+N | < 0.2% |
| Crossover | 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass |
| IP Rating | IPX6 |
| Specification | GENERAL |
| Recommended Fuse Rating | 30A |
| Dimensions | 9.0″W x 3.875″D x 2.25″H |
| Weight | 7.2 lbs. (3.3 kg) |
| IN THE BOX | ACX-300.4, Manual, Warranty |
