Yamaha Viking Plow Pro Snow Plow

Take Winter Head On

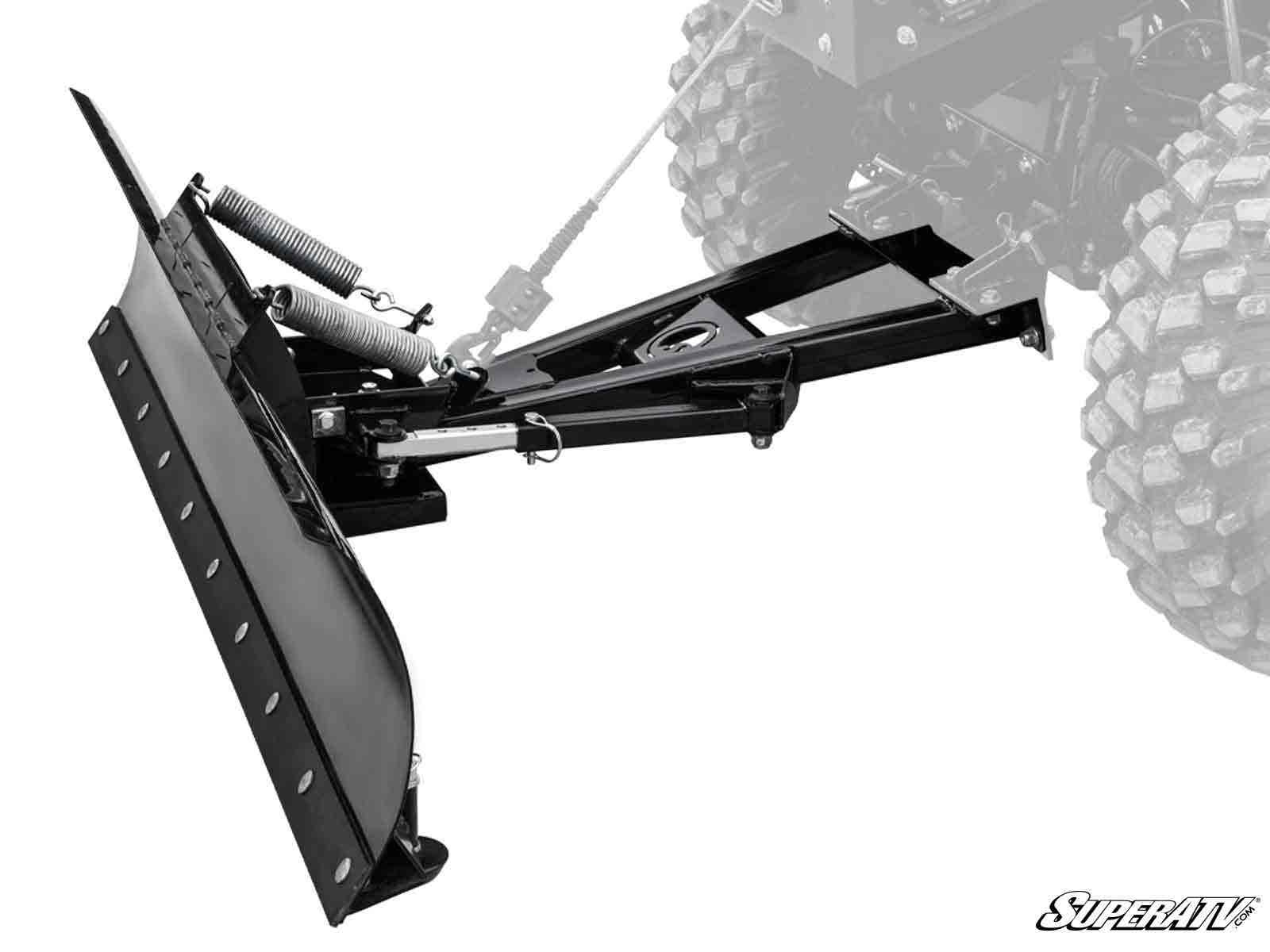

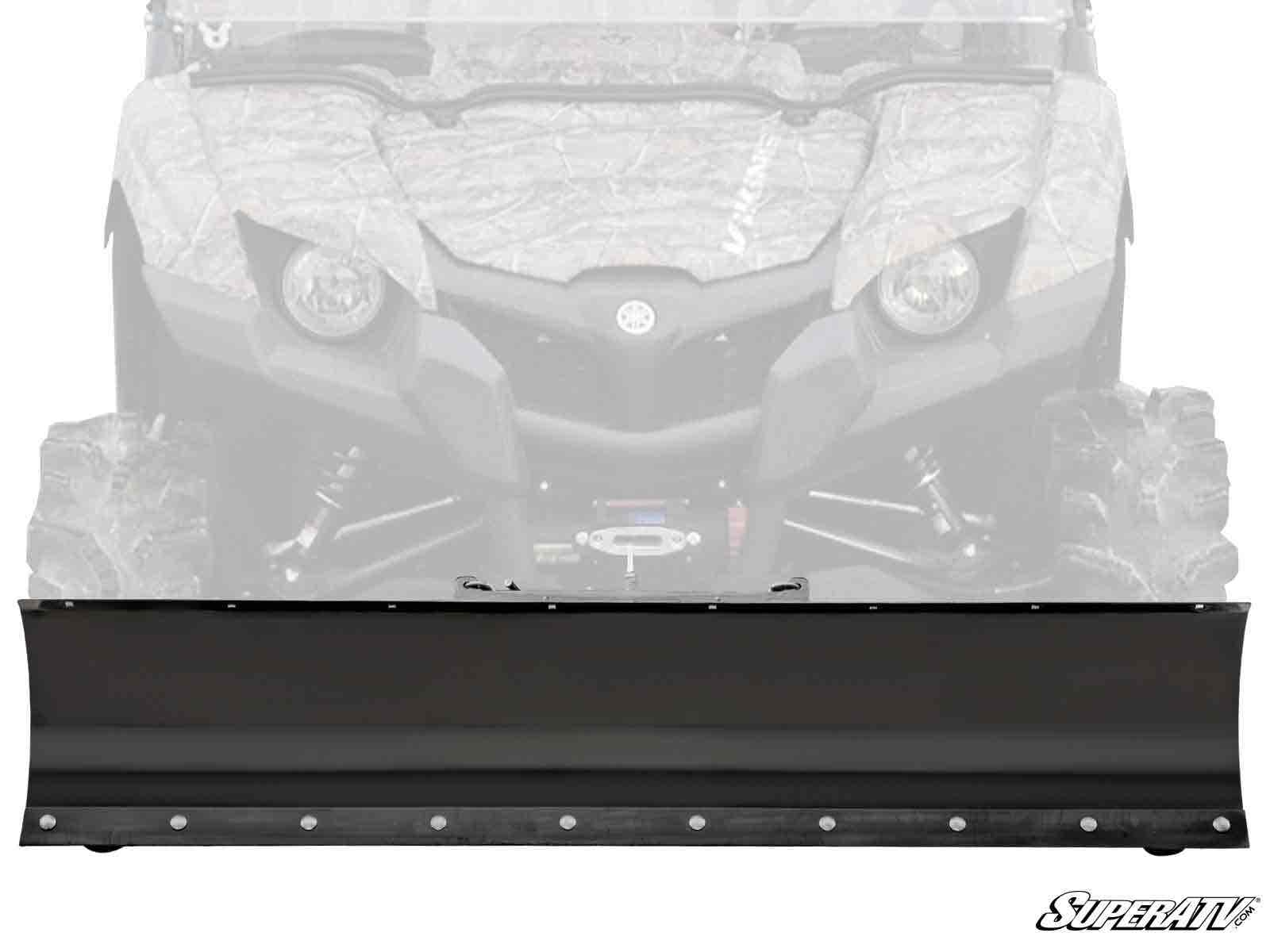

By the end of winter, everybody says the same thing: “We’re just tired of all the snow.” But with SuperATV’s Plow Pro Snow Plow installed on your Yamaha Viking, you’ll forget that snow was ever a chore. You can attach and remove the 72” blade using the quick-connect mount in minutes, and the seven adjustable plowing angles make the job even more efficient. Plus, the whole thing bolts on easily. You’ll be done plowing in no time.

Built for Punishment
Breaking up snow and ice and pushing it off the road is no easy task. That’s why we use 10-gauge steel for the blade and a 4-gauge advanced steel alloy for the cutting edge. Then we reinforce the whole blade with support ribs. That strength is backed up by shock absorbing springs and a tilt-forward design to protect against surprise impacts. Then the whole thing is powder coated to prevent corrosion.

• 10-gauge steel blade
• 4-gauge leading edge
• Flip-forward design
• Two 4-gauge vertical ribs support high-impact areas
• 10-guage horizontal support reinforces the leading edge

Smooth Adjustment
This winch-operated Yamaha Viking snow plow can be run at any of seven different operating angles ranging from 0 to 30 degrees left or right of center. This lets you move all the snow you want in the space you have. The tilt is also adjustable so you get a perfect angle of attack even with up to 3” of lift. Using the winch to lift the blade is smooth and fast so you don’t have to stop for ages every time you want to reposition.

• Seven adjustable plowing angles:
• 0°, 10°, 20°, & 30° left or right of center
• 52° to 65° adjustable attack angle
• Height-adjustable skid shoes

Installation Is Easy!
Attaching the quick-connect mount is a piece of cake and doesn’t require any drilling. Just bolt it on, assemble the blade, and you’re ready to plow at a moments notice. When you’re done plowing, the blade removes easily, and you can leave the mount on all winter long—it stays out of the way.

Upgrade to Our Deluxe Accessory Kit
Add our deluxe accessory kit to your winch for more convenience and functionality. It includes side shields, plow markers, a deflector, and a plow angle actuator. Our 3/16” steel side shields help keep your plowing line clean. The 23” plow markers make the edges of your plow visible. The 1/8” LDPE deflector keeps snow from coming over the top of the blade. The plow angle actuator controls the plow angle with a dash-mounted switch and an 1,800 lb. actuator—stay warm in your cab and get the perfect plowing angle.

NOTE:

• A winch is required to operate this snow plow.
• At stock height, it is only recommended to lift the plow up to 30” off the ground when running at a 30° angle.

Kit Includes:

• 72” snow plow blade
• Quick-connect snow plow mount
• Snow plow frame

Deluxe Accessory Kit Includes:

• (2) Snow plow side shields
• Deflector and marker kit
• Plow angle actuator kit

• Yamaha Viking : 2014-2021
• Yamaha Viking EPS : 2014-2021
• Yamaha Viking EPS Ranch Edition : 2018-2021
• Yamaha Viking EPS SE : 2015-2021
• Yamaha Viking VI : 2015-2021
• Yamaha Viking VI EPS : 2015-2021
• Yamaha Viking VI EPS Ranch Edition : 2016-2021
• Yamaha Viking VI EPS SE : 2015-2016

NOTE: Machines with more than 3” of lift require our Plow Pro Snow Plow drop bracket: SPB-DB-001

• 10-gauge steel blade
• 4-gauge steel leading edge
• 72” wide blade
• 16.25” scoop
• Seven adjustable plowing angles:
• 0°, 10°, 20°, & 30° left or right of center
• 52° to 65° adjustable attack angle accommodates stock and lifted machines up to 3”
• Two 4-gauge vertical ribs support high-impact areas
• 10-guage horizontal support reinforces the leading edge
• Height-adjustable skid shoes
• Bolt-on quick-connect mount is easy to install
• Winch-operated frame
• Powder-coated mounting components are weather resistant

Deluxe Accessory Kit Features:

• Side shields use 3/16” steel plating
• Plow markers are 23” tall
• Deflector made with 1/8” LDPE
• Plow angle actuator has a 7-7/8” stroke
• Capable of 1,800 pounds of force
• Actuator turns plow blade up to 30 degrees left or right of center
• Sealed actuator uses IP67 rated solenoid and water-resistant connectors
• 3/4” chrome-plated cylinder shaft
• Easy to install—hardware and color instructions included
