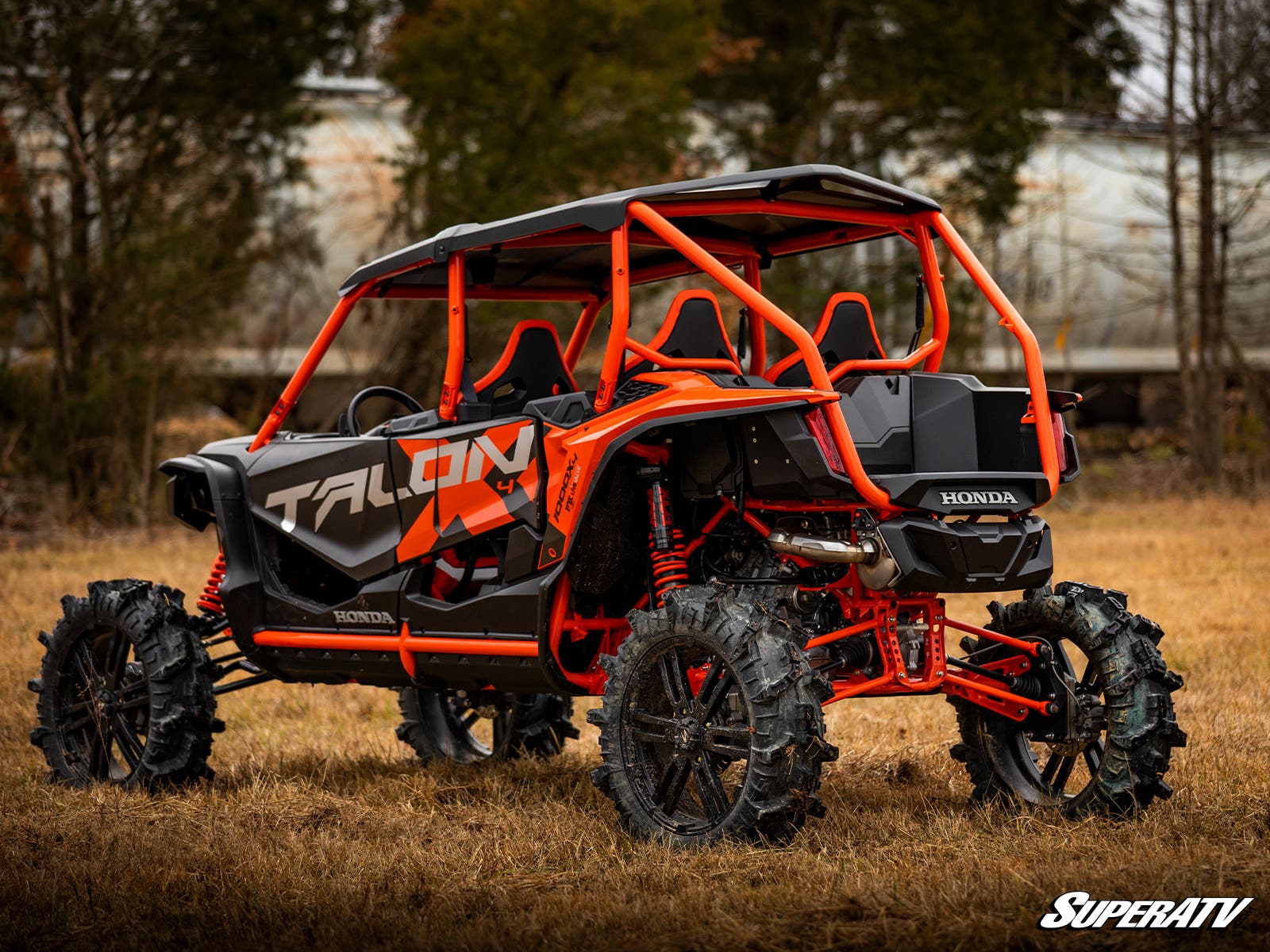

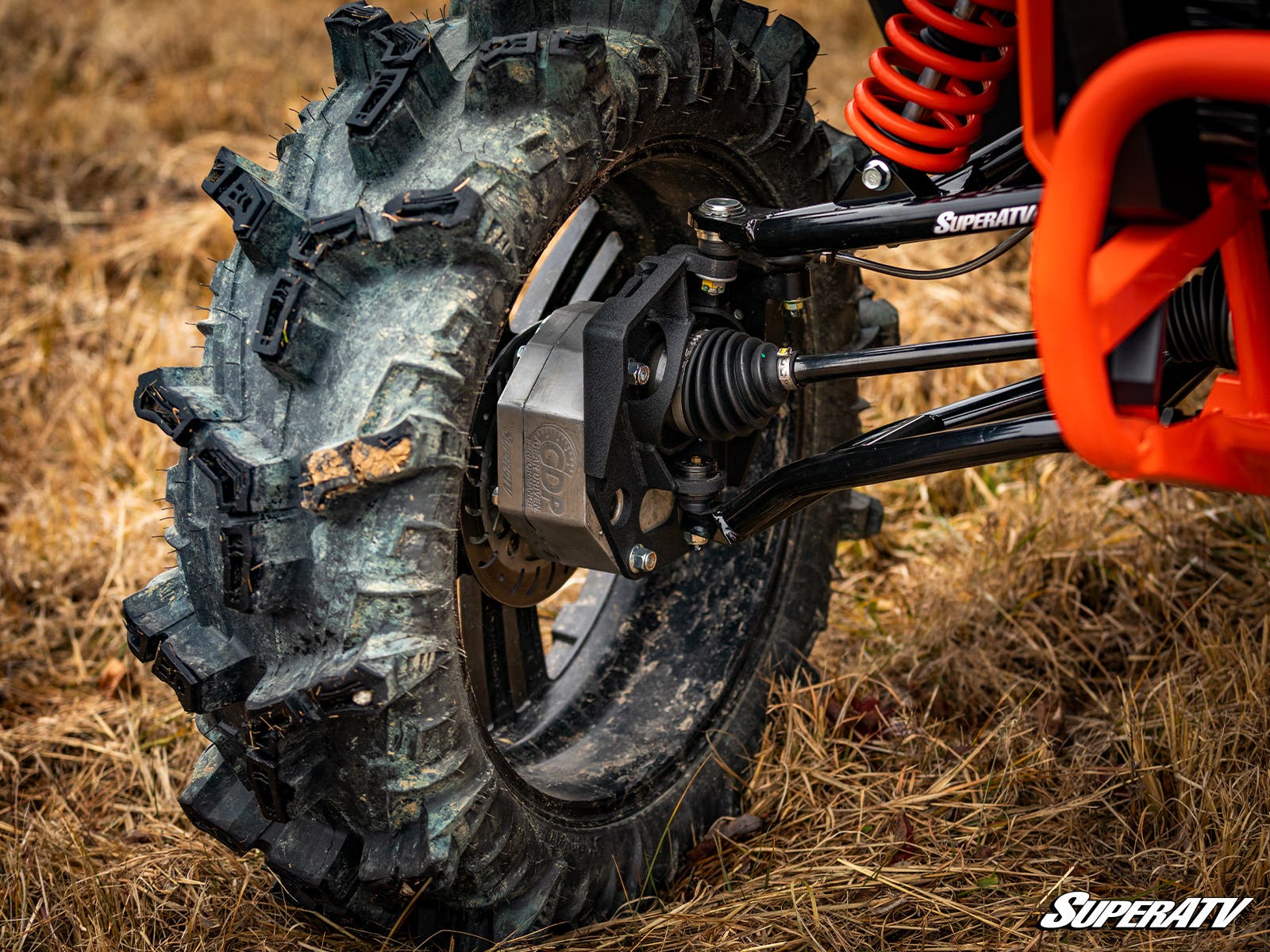

Honda Talon 1000X 4" Portal Gear Lift

GDP Portals Are Changing the Game
We don’t like putting anyone in a box. Riding is personal and you should be able to customize your machine to suit your riding style. That’s why we give you options with our GDP portals. Get SuperATV’s 4” Portal Gear Lift for your Honda Talon 1000X and decide what kind of housings you get (cast or billet aluminum) and how much gear reduction your portals will have. If you’re into maximum torque and big tires, a 30% gear reduction should fit you just right. Or maybe you want to hit the trails with a smoother and more precise ride—opt for a 15% gear reduction. For ultimate strength, opt for dual idlers. No matter your style, our portals are a game changer.

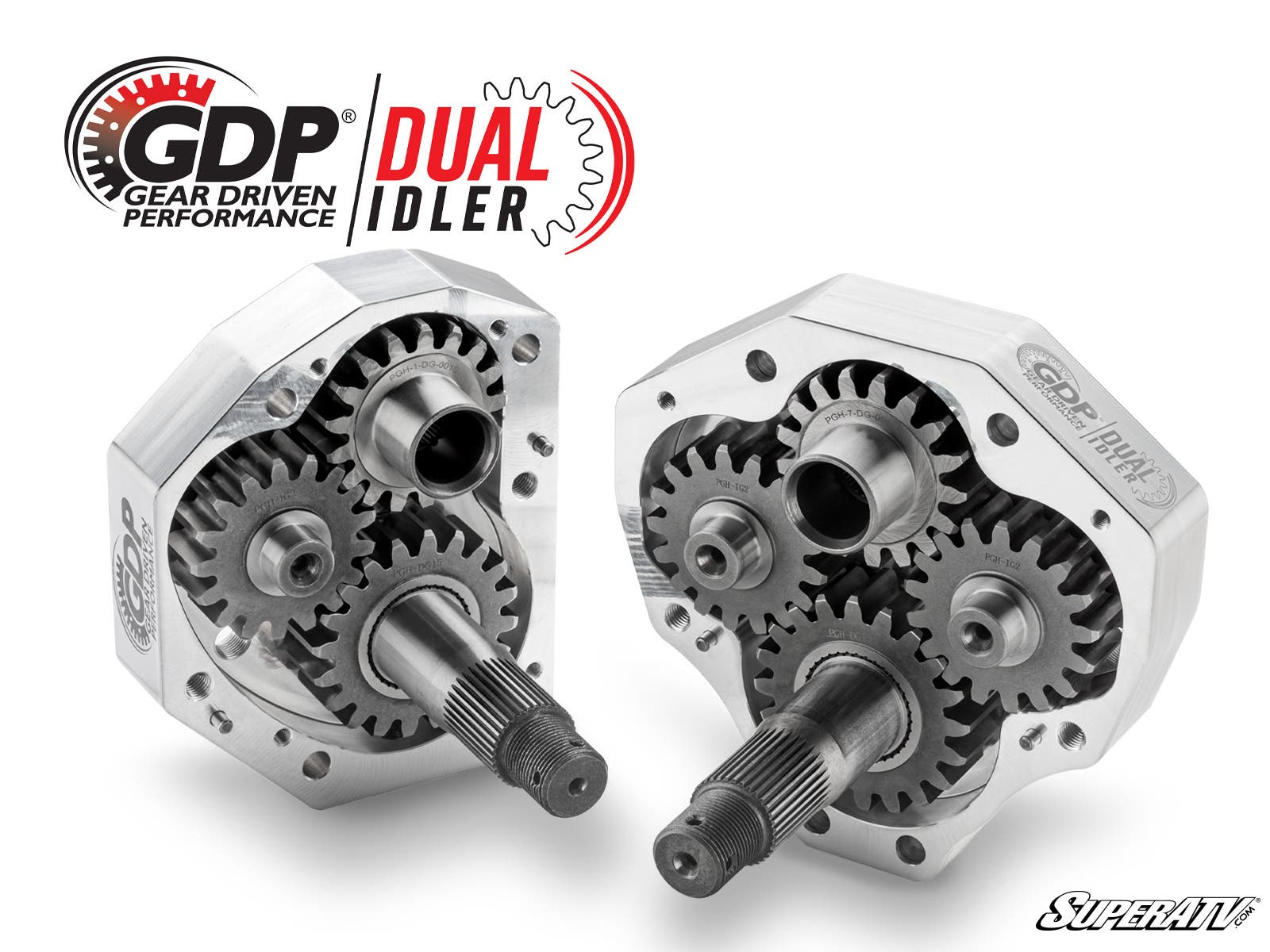

What Is a Dual Idler®?
Perfection takes time. After years of research and development, we’ve made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don’t do a thing if they’re not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industry’s toughest 9310 steel alloy. Didn’t think dual idlers mattered? With GDP’s quality and experience, they finally do.

Perfect for Any Rider
Riding on our GDP portals with a 30% gear reduction allows you to experience mud like never before. With bigger tires and more torque, you’ll chew through the thick mud that used to slow you down. Our 30% gear reduction is great everywhere, but if you want the fastest lifted Talon you can get, go with 15%. It gives you punchy power and a higher top speed.

A Gear Reduction That Protects Your Drivetrain
Our portal gear lifts put the gear reduction right in the hub, which greatly reduces the amount of stress placed on some of your vehicle’s most critical parts. You’ll be able to ride harder and without worry knowing that your axles, differential, prop shaft, and transmission are in good hands. Your driveshaft will thank you.

Strength Through and Through
We’ve done enough research on portals to understand what can make or break them. That’s why you won’t find housings or backing plates stronger than what we use for our GDP portals. You get the choice of cast or billet aluminum housings to go with you 5/16” advanced alloy backing plates. No matter what, you get unmatched strength and reliability.

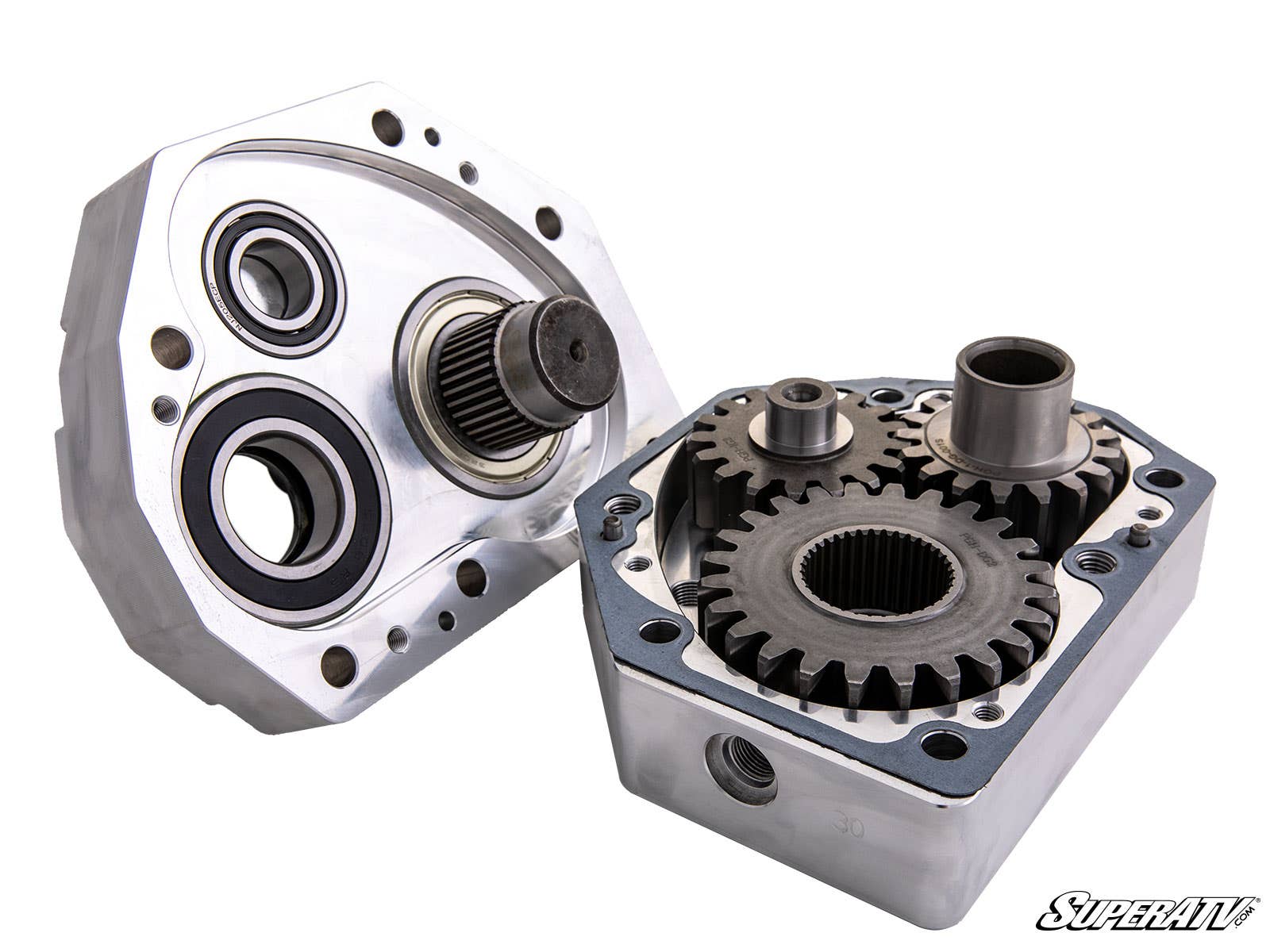

• Our housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly
• Enhance with Portal Blood—gear oil formulated for GDP Portals
• There are no gimmicks and no vents because vents do more harm than good—we know because we tested them

Advanced Gaskets, Seals, and Bearings
Our portals use:

• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing

Reinforce Your UTV with a Frame Stiffener
Your Talon 1000X is built for power and speed. Add a 4” portal gear lift on top of that and you’ve got a lot riding on that frame. For this reason, we recommend installing a frame stiffener with your portals. It offers the reinforcement you need to ride with confidence.

Top-Rated Customer Service
Still need a little help getting exactly what you need? We’ve got a dedicated team just for portal support. Give us a call so we can get the perfect set of portals in your hands today.

4” Portal Gear Lift Includes:

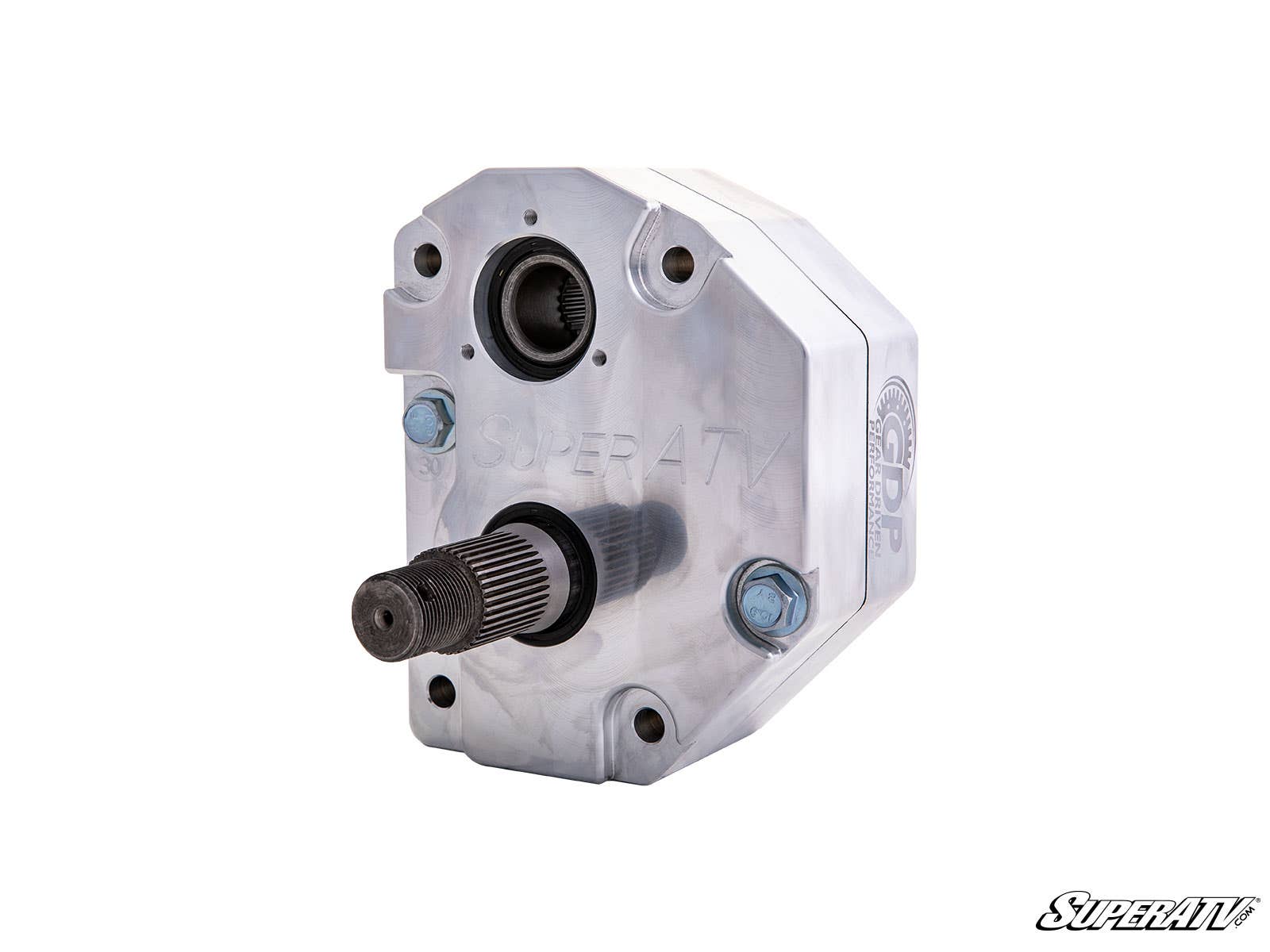

(4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings

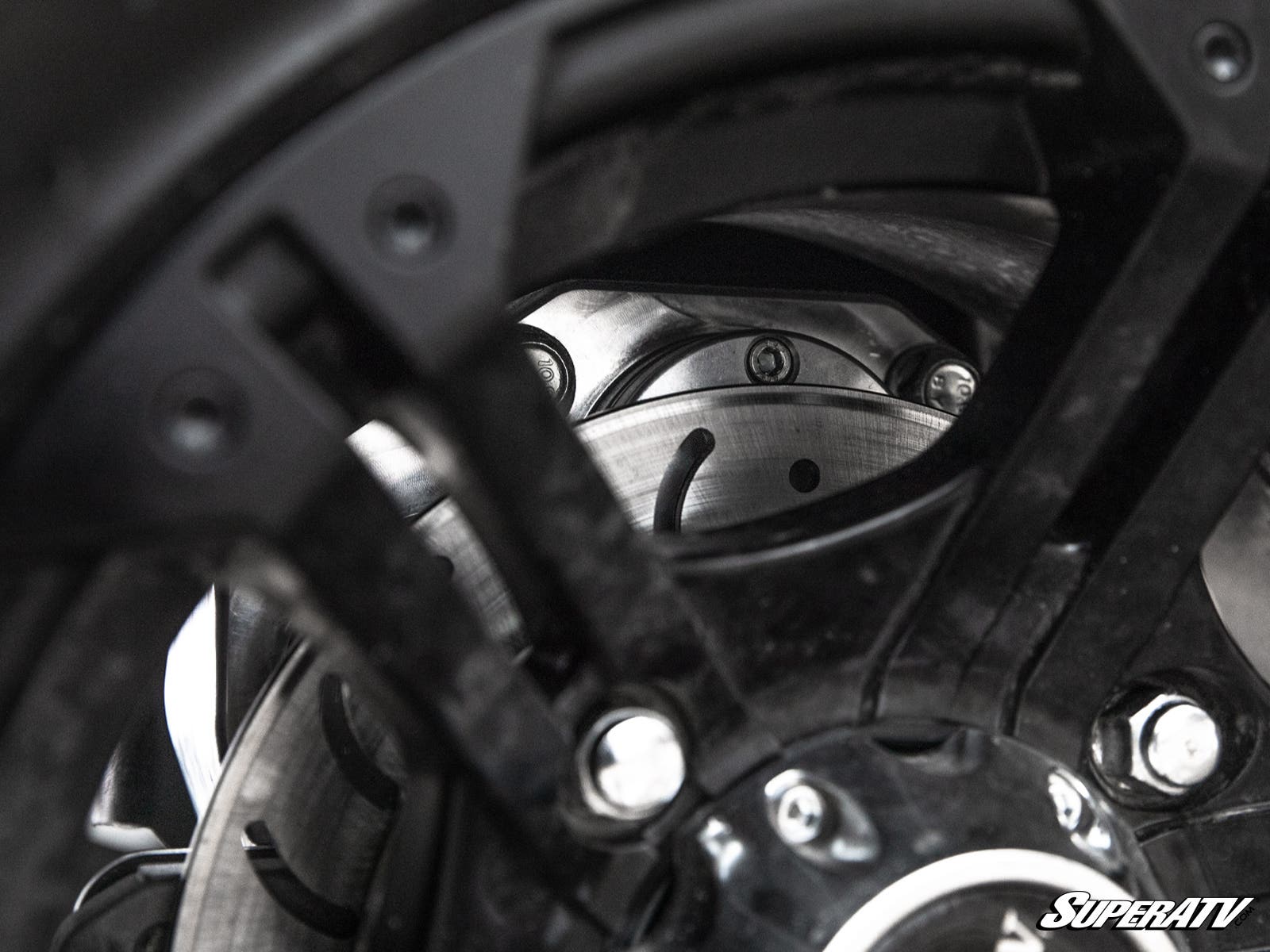

(4) Universal hubs and precision-ground stainless steel slotted rotors with lugs
(4) Specialized steel alloy backing plates
(4) Steel caliper mounting plates
(8) Caliper mounting plate shims
(2) Steel steering arms
(2) Rear adapter plates
(2) Preinstalled lower ball joints
Extended brake lines
All required hardware, including recessed castle nut socket
Frame stiffener (optional)

Honda Talon 1000X Portal Gear Reduction Recommendations
Max Tire Size	Required Suspension Setup with 4” Portals
32"	Stock
32"	2" Lift Kit
34"	1.5" Forward Offset A-Arms
34"	1.5" Forward Offset A-Arms and 2" Lift Kit
If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator.
Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used.

Patent # 11,299,042

Patent # 11,318,787

• Honda Talon 1000X : 2018+
• Honda Talon 1000X-4 : 2020+

NOTE: These portals are not compatible with models that have 24mm axle nuts

Wheel Requirements:

• Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer
• 14” or larger wheel required
• Cannot exceed 5” backspacing
• Not compatible with dual beadlock wheels

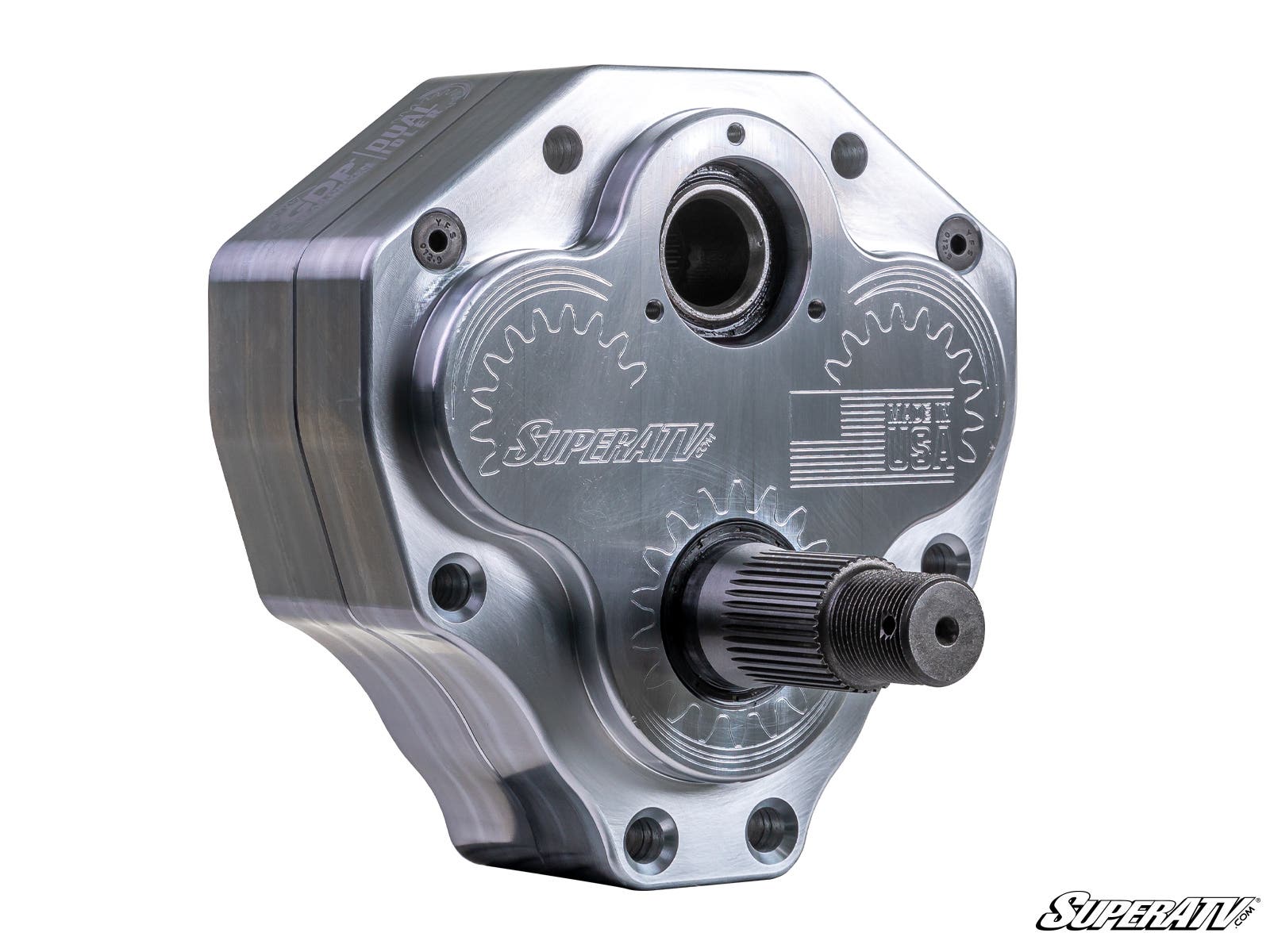

• Available with billet or cast aluminum housings
• Dual idler gear configuration maximizes strength
• Cool, quiet, precision-ground gears made from 9310 alloy billet steel
• Increases width by 4 in. per side (8 in. total)
• 1.5 in. diameter 4340 hardened steel driveshaft
• Housings use advanced gaskets that don’t let anything through
• Universal hub fits all major bolt patterns
• Gear reduction reduces stress on your drivetrain
• Dual idler gear configuration adds a 1” offset
• Lighter than the competition
