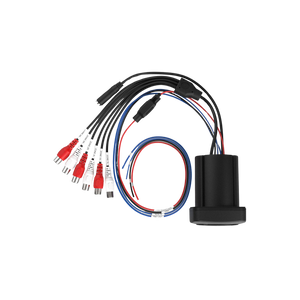

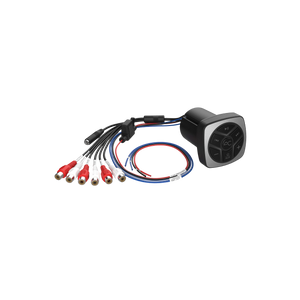

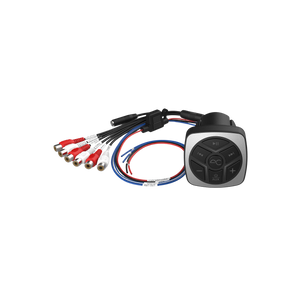

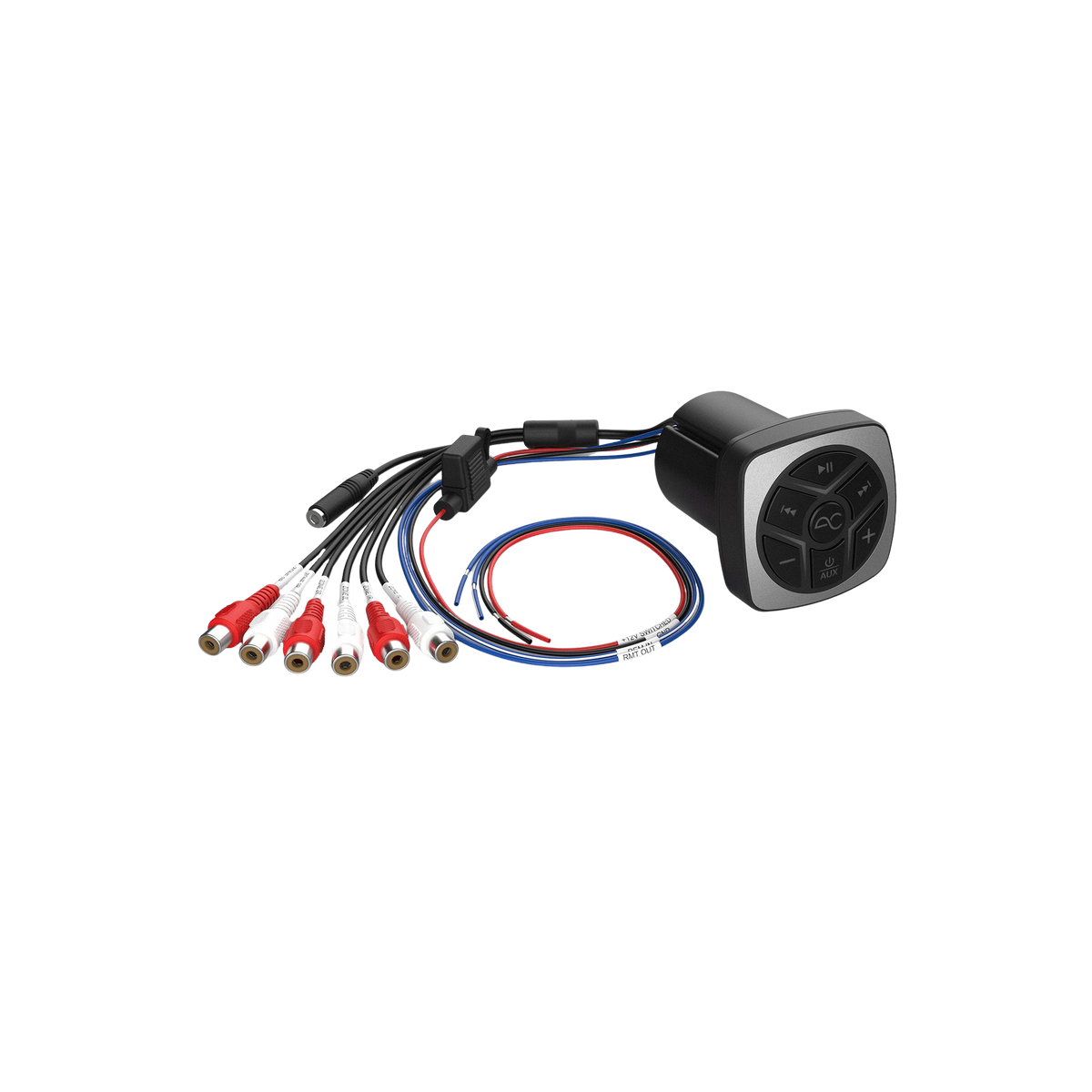

ACX-BT3 All-Weather Bluetooth Controller
Description
The ACX-BT3 is an all-weather Bluetooth® receiver and 3-zone controller designed for the rigors of marine and powersports applications.
Beyond an ordinary Bluetooth® receiver, the ACX-BT3 features three stereo RCA outputs and is a zone controller, providing quick access to volume control over 3 separate zones at the touch of a button. With the added flexibility of an auxiliary input, the ACX-BT3 is the perfect solution as a primary or secondary source for any audio system. aptX™ HD support coupled with robust 4 Vrms outputs provides the best possible audio quality.
Integrated mounting holes allow for easy custom installation to a dashboard, or other flat panel in a car, side-by-side, boat, or vehicle of your choice. And the all-weather ACX-BT3 is IPX6 rated against splashes, wind and spray, ensuring your music will play on wherever your next adventure takes you.
Features
- High Definition Low-Latency Audio Streaming
- aptXTM HD Support
- 24 bit / 48 kHz Audio Streaming from Devices with aptX Codec
- IPX6 rated enclosure
- Built in fuse
The Kaos Run Down
| Part Number | ACX-BT3 |
|---|---|
| UPC | 850038647063 |
| Specification | Bluetooth |
| Version | 5.1 |
| Specification | aptX HD Compatible |
| Specification | OUTPUT |
| Preamp Outputs | 3 (6 channels) |
| Maximum Output Level | 4 Vrms |
| Specification | PERFORMANCE |
| Signal to Noise Ratio | 95 dB |
| Maximum Data Rate | 3 Mbps (typical 1.6 Mbps) |
| Operating Range | 10+ meters (depending on environment) |
| Specification | GENERAL |
| Current Draw | 100 mA |
| Fuse Rating | 2 A |
| Dimensions (enclosure) | 2.51″L x 2.51″L x 3.17″D |
| Weight | 0.43 lbs. (194 g) |
| IN THE BOX | ACX-BT3, Mounting Screws, Warranty, User Manual |
