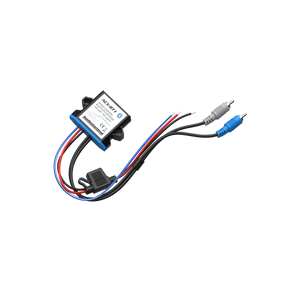

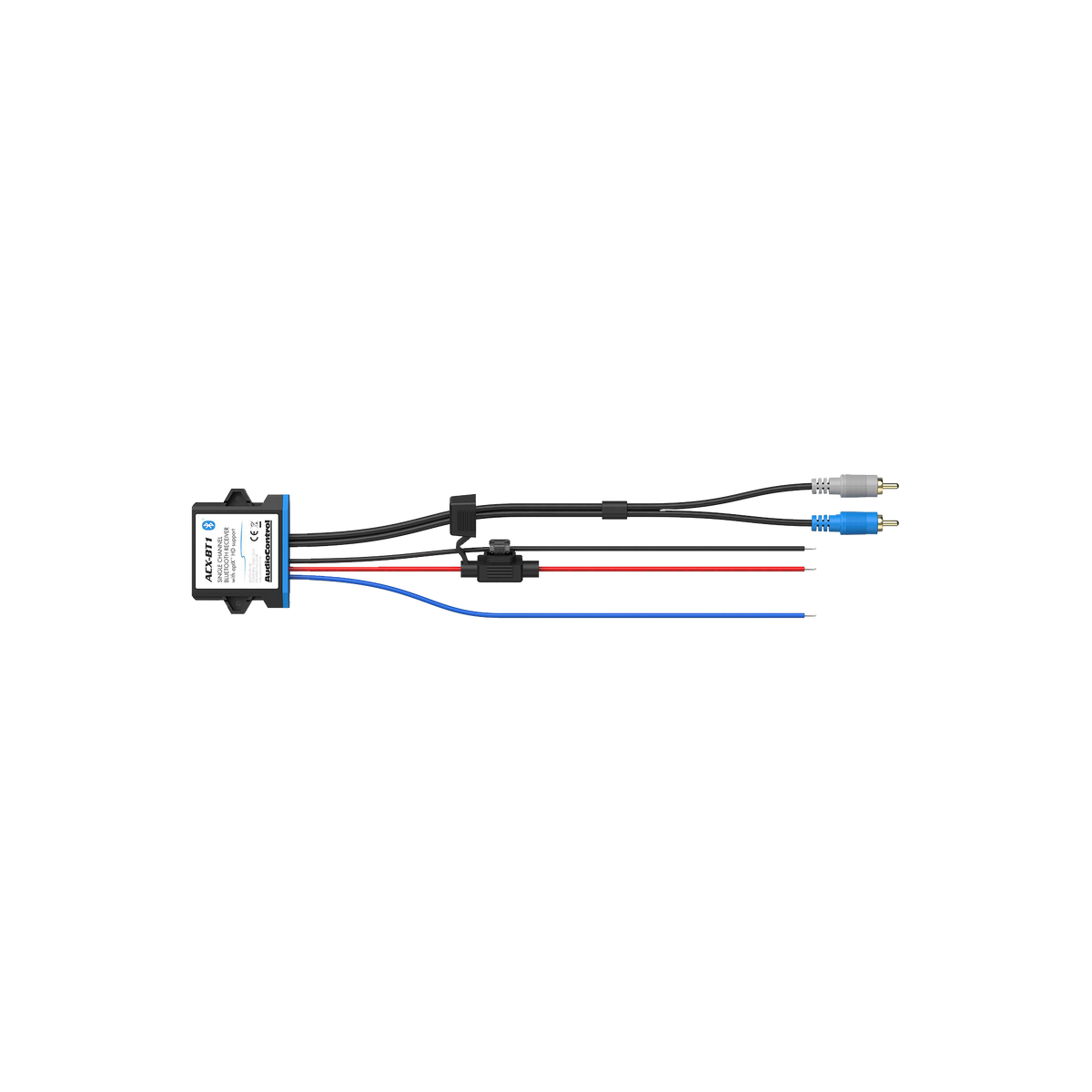

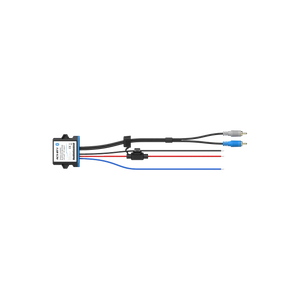

ACX-BT1 All-Weather Bluetooth HD Audio Streamer
ACX-BT1 All-Weather Bluetooth HD Audio Streamer
ACX-BT1 All-Weather Bluetooth HD Audio Streamer
Description
The AudioControl ACX-BT1 is the ultimate solution for giving your audio system Bluetooth connectivity. The ACX-BT1 features the latest Bluetooth 4.1 and aptX HD support, delivering 24-bit clarity, lower noise, faster initial connection and more reliable streaming from a greater distance. The ACX-BT1 is IPX5 rated for marine and motorsports applications, so it will withstand the rigors of all-weather conditions, including as a standalone (no head unit) solution common to side-by-sides, jet skis and more. Installers will appreciate the unique remote turn-on output circuit that triggers downstream amplifier(s) only when audio is being played over the Bluetooth connection.
Features
- High Definition Low-Latency Audio Streaming
- aptXTM HD Support
- 24 bit / 48 kHz Audio Streaming from Devices with aptX Codec
- IPX5 rated enclosure
- Built in fuse
The Kaos Run Down
| Part Number | ACX-BT1 |
|---|---|
| UPC | 851523007928 |
| Specification | Bluetooth |
| Version | 4.1 |
| Specification | aptX HD Compatible |
| Specification | OUTPUT |
| Specification | Dual Line Level RCA |
| Nominal Output Level | 1.5 Vrms |
| Specification | PERFORMANCE |
| Signal to Noise Ratio | 95 dB |
| Maximum Data Rate | 3 Mbps (typical 1.6 Mbps) |
| Operating Range | 10+ meters (depending on environment) |
| Specification | GENERAL |
| Current Draw | 35 mA |
| Fuse Rating | 2 A |
| Dimensions (enclosure) | 2.0”L x 2.5”W x 0.7”H |
| Weight | 0.2 lbs. (91 g) |
| IN THE BOX | ACX-BT1, Warranty, User Manual |
