Product Overview

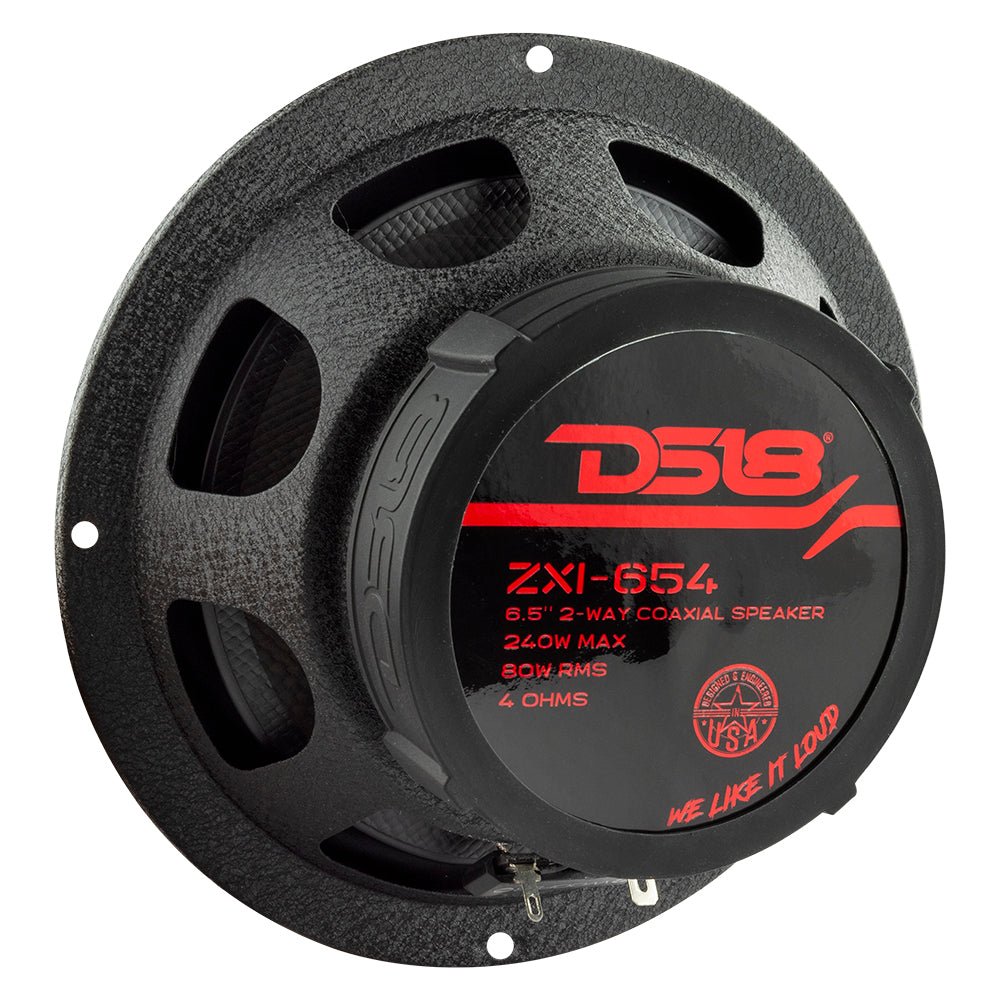

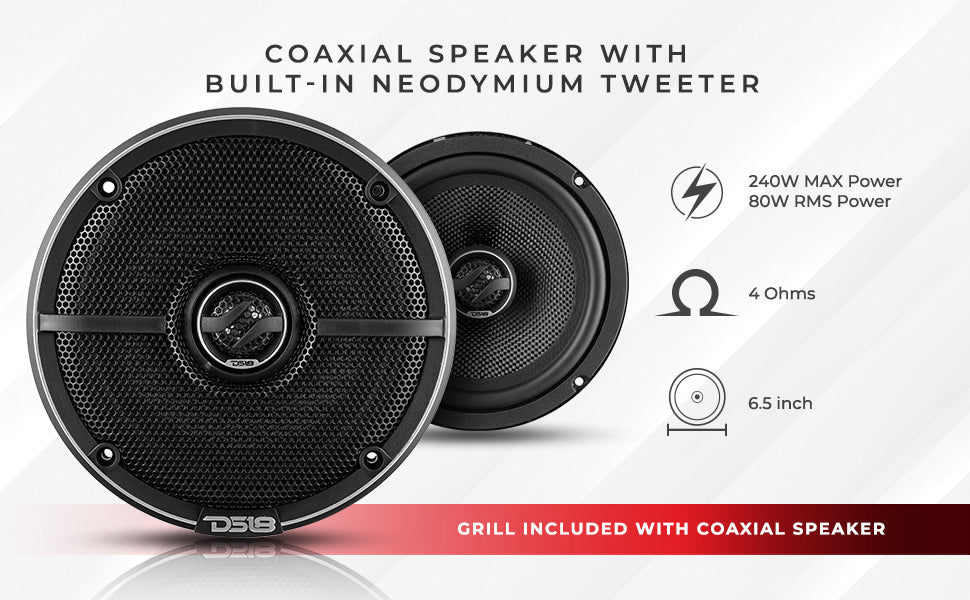

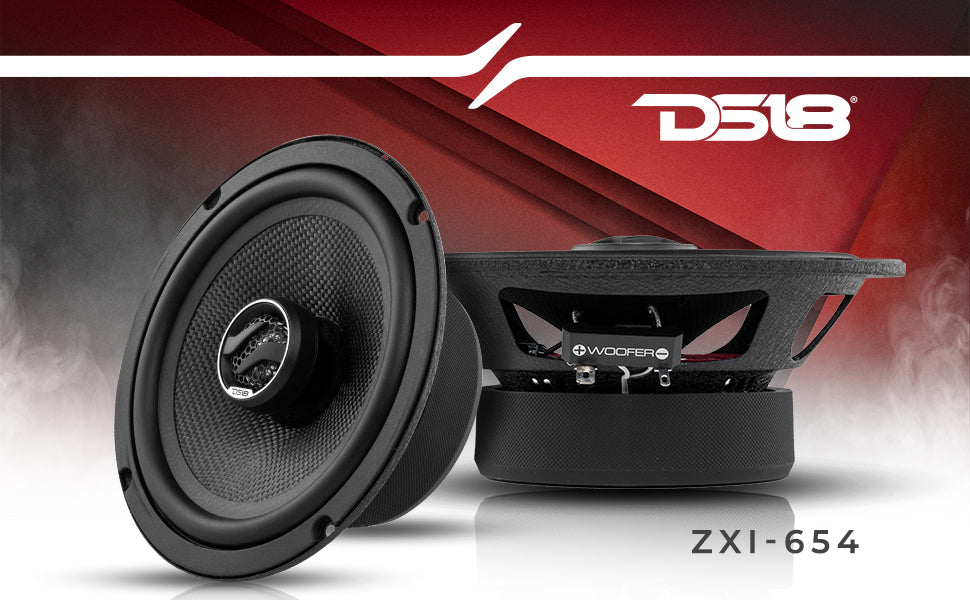

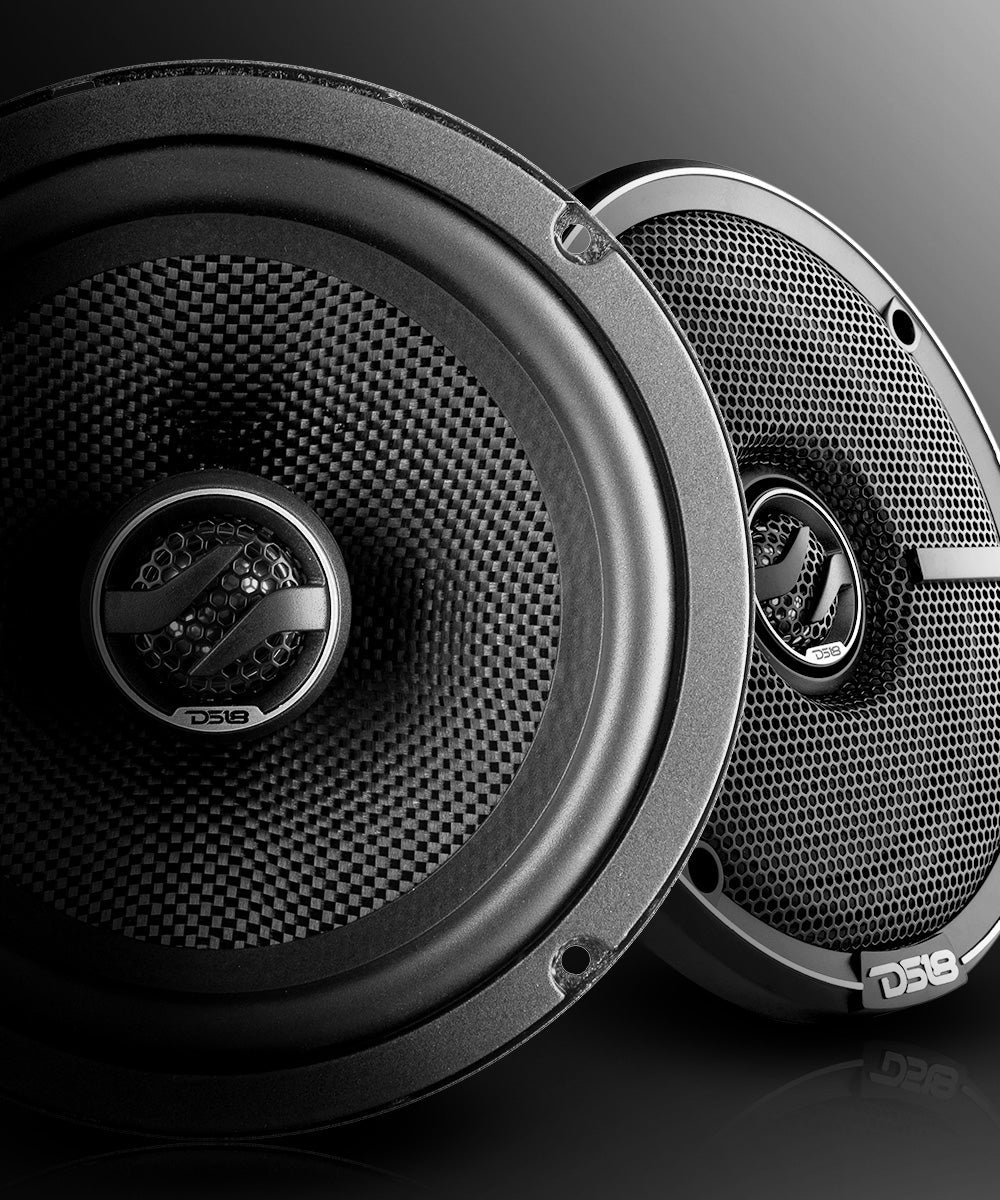

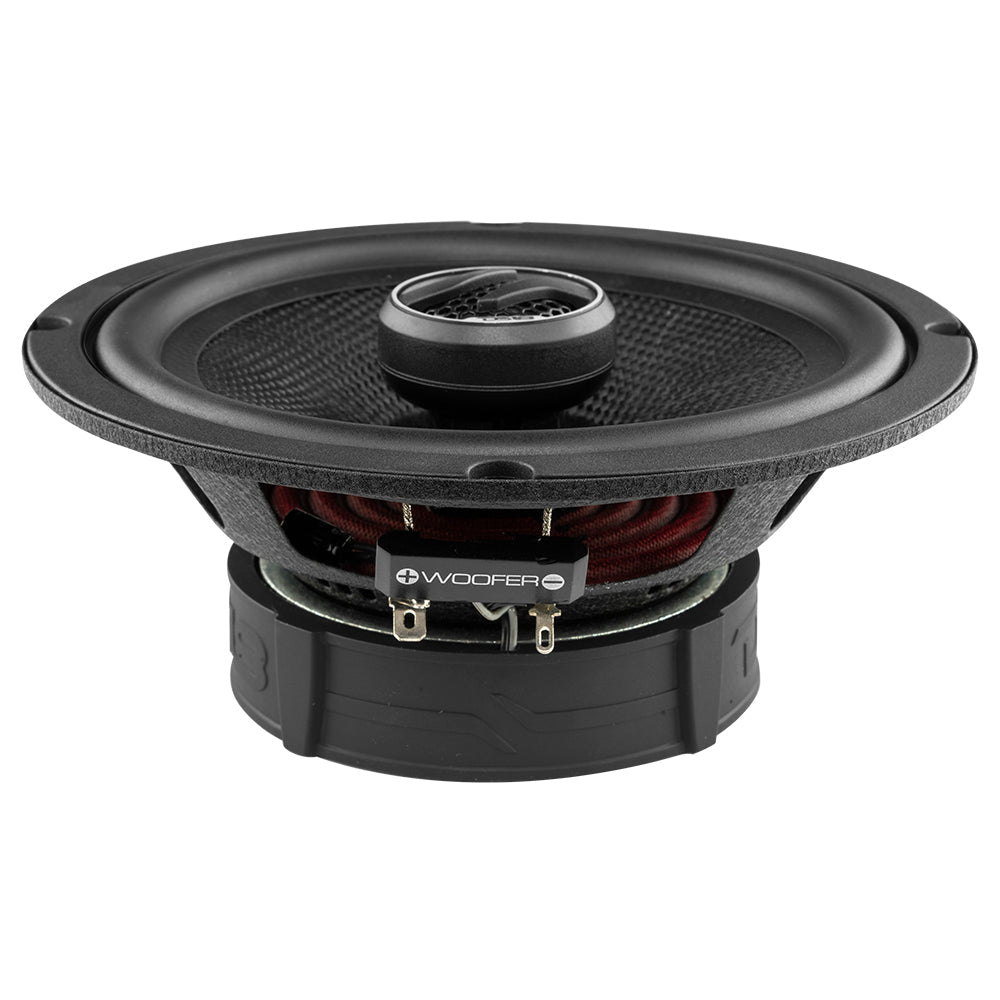

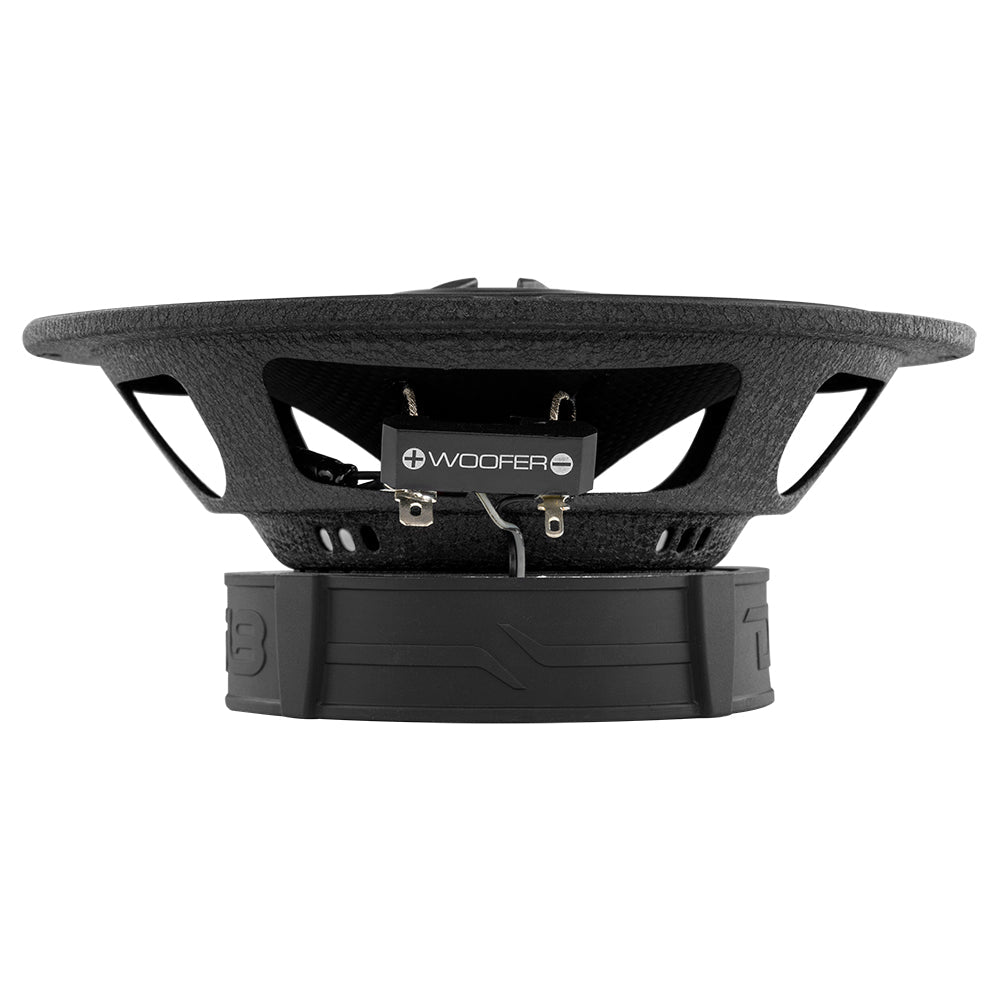

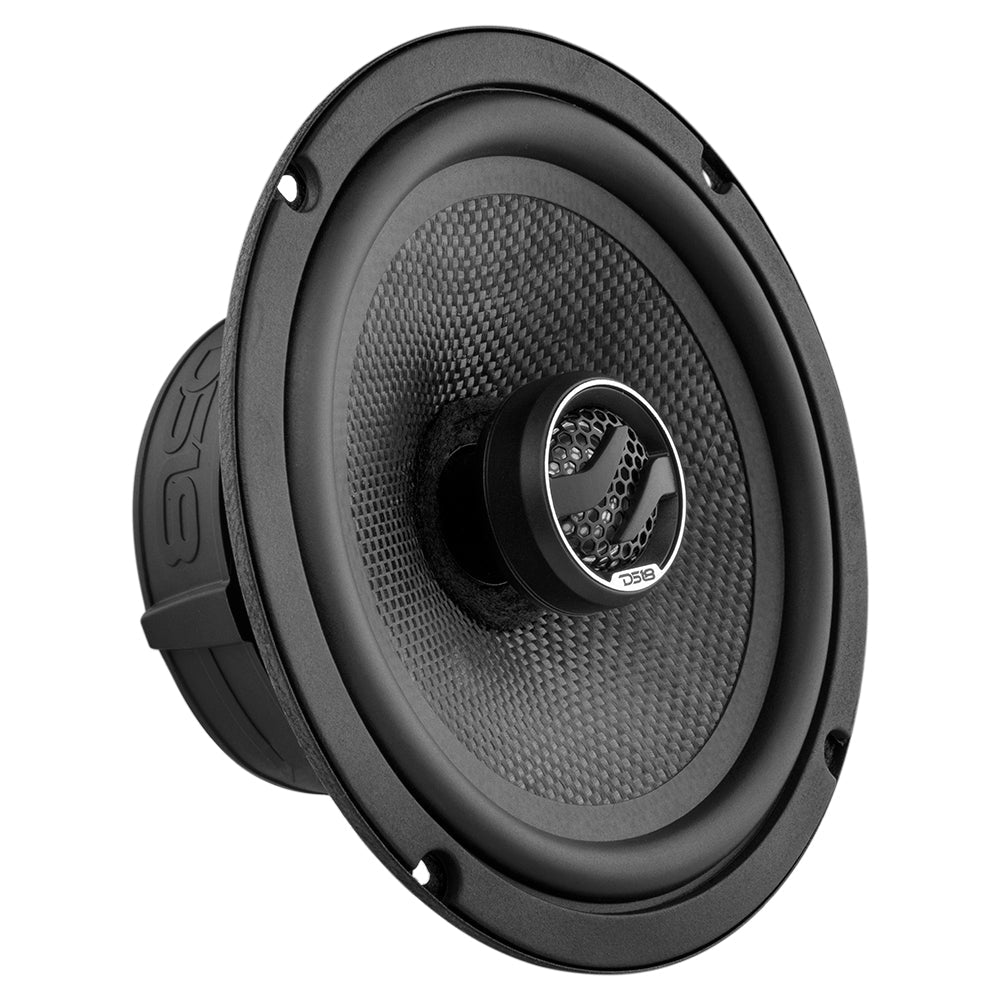

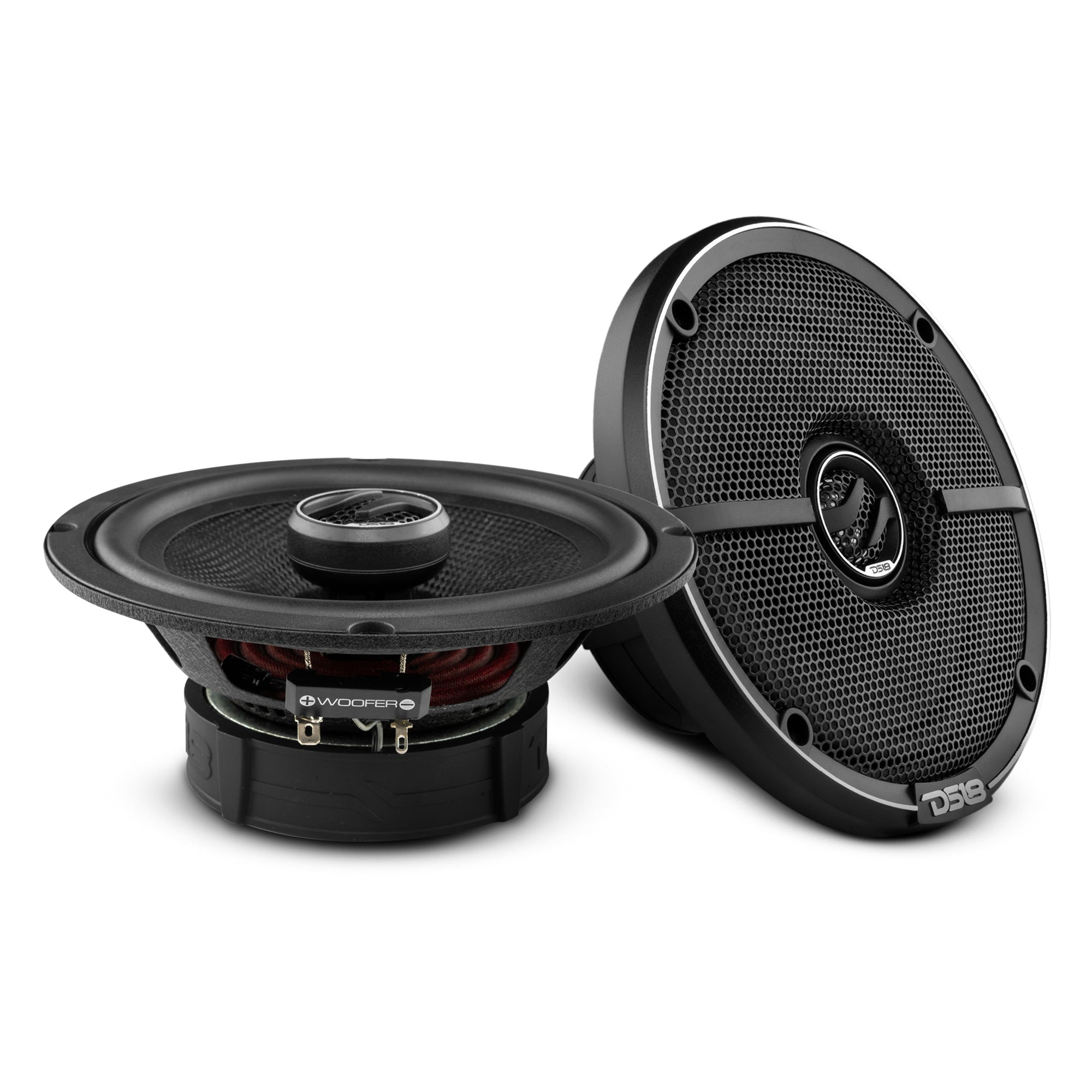

DS18 ZXI-654 Glass Fiber Cone 6.5" 2-Way Coaxial Car Speaker 240 Watts 4-Ohm
DS18's ZXI line is both highly innovative and intuitive making it a very versatile audio line that will bring you loud and clear music on demand. This 2-way 6.5" takes 80w RMS and 240w Max and with a 89 dB sensitivity rating, you don't need a lot of power to bring these very loud speakers to extremely high volumes. These speakers are an amazing choice for your average every day to extreme audiophile!
Highlights
- Highly durable and extremely loud design built for the average to extreme audio systems.

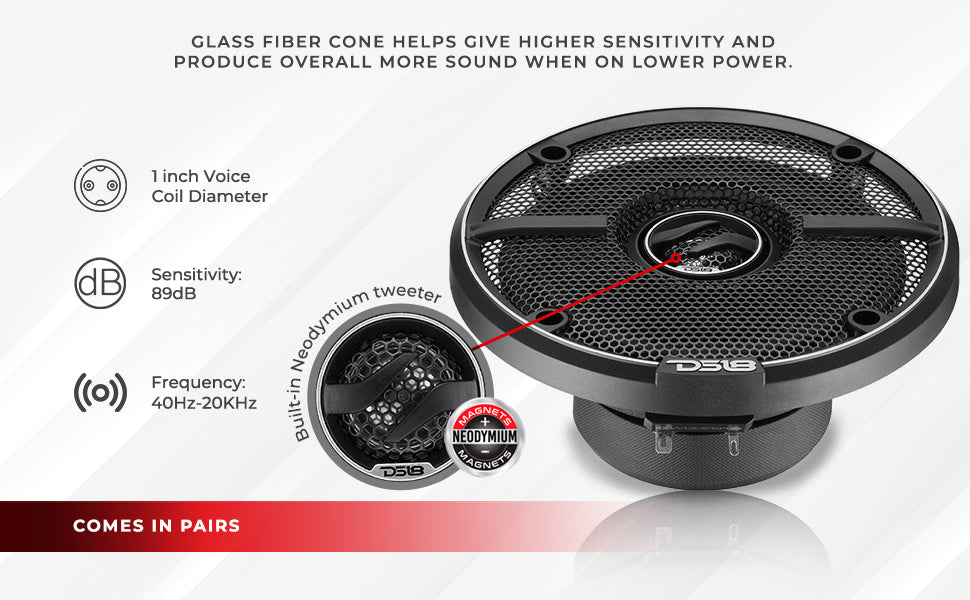

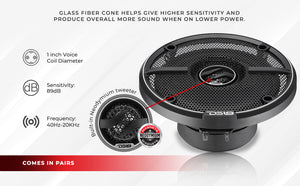

- Glass fiber cone helps give higher sensitivity and produce overall more sound when on lower power.
- 2 - way design will bring a full range of frequencies to your ears and with great sound quality.
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 6.5” |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 80 Watts |
| MAX Power Handling | 240 Watts |
| Sensitivity (1w/1m) | 89dB |
| Frequency Response | 40Hz - 20KHz |
| Recommended HI Pass Crossover | 60Hz |
| Speaker Type | 2-Way |
| MOTOR | |
| Voice Coil Diameter | 1” / 25.5mm |
| Voice Coil Former Material | KSV |
| Winding Material | EISV |
| Cone Material | Glass fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Barium Ferrite |
| Magnet Weight | 14.46 oz / 410g |
| TWEETER | |
| Nominal Diameter | 1" / 25.4mm |
| Voice Coil Diameter | 0.8" / o20.4mm |
| Voice Coil Former Material | KSV |
| Winding Material | EISVM |
| Diaphragm Material | PEI |
| Magnet Material | Neodymium |
| Magnet Weight | 0.3 oz / 8.5g |
| Equivalent Volume | 10.84L |
| Excursion (one way) | 2.7mm |
| Free Air Resonance | 64Hz |
| Mechanical Factor | 9.44 |
| Electrical Factor | 0.79 |
| Total Factor | 0.73 |
| Mechanical Mass | 13.72g |
| Mechanical Compliance | 444mm/N |
| BL Factor | 5.1 |
| Voice Coil Inductance | 228mH |
| Cone Area | 131cm2 |
| DC Resistance | 3.5 ohm |
| Mechanical Mass w/o air | 12g |

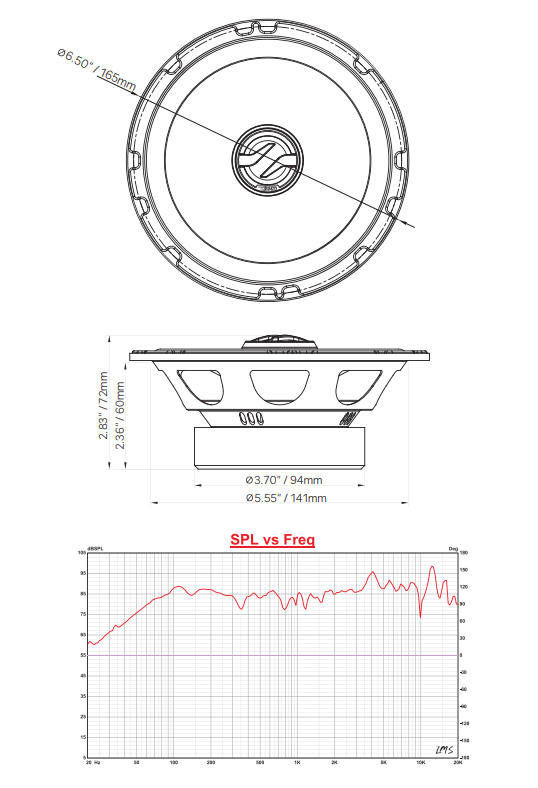

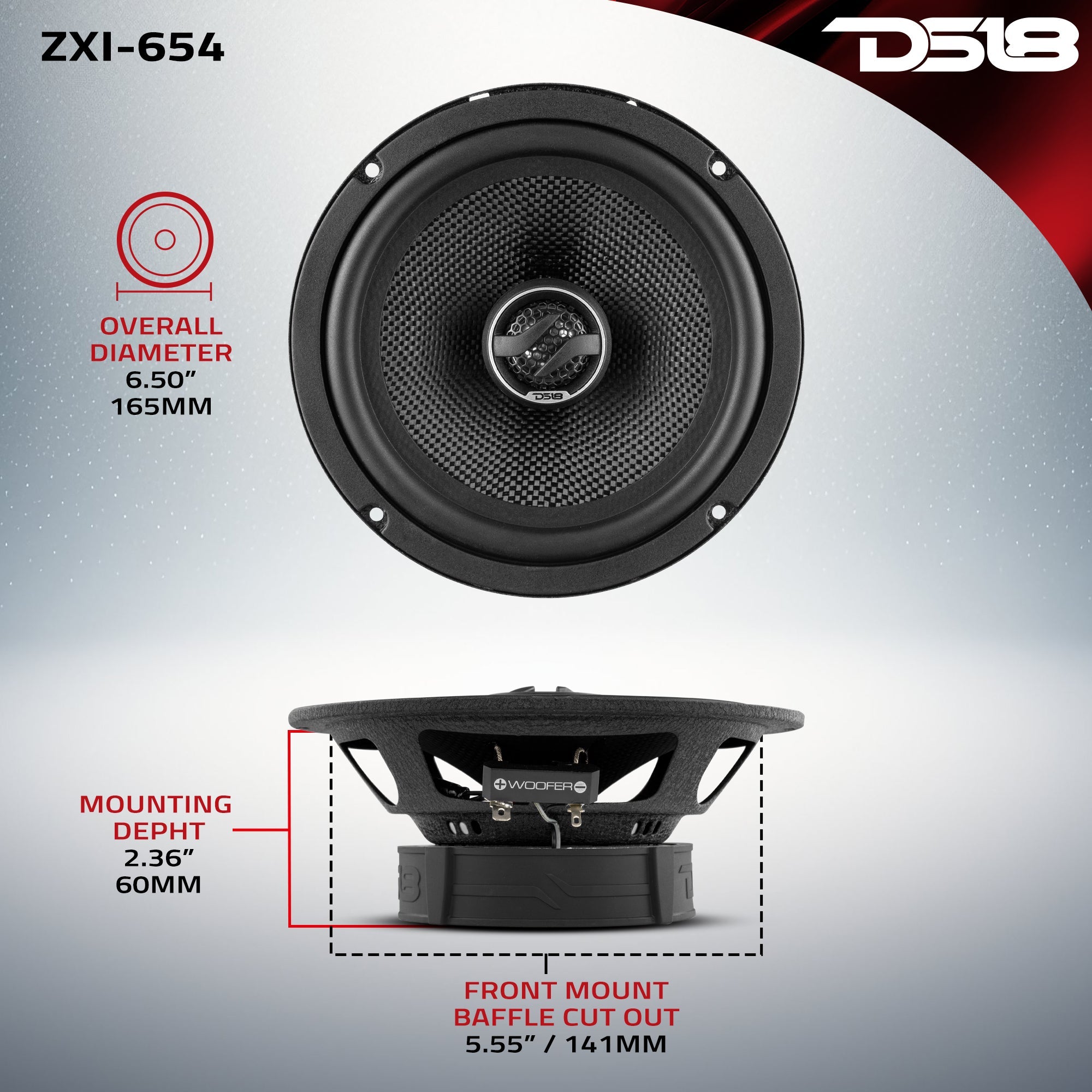

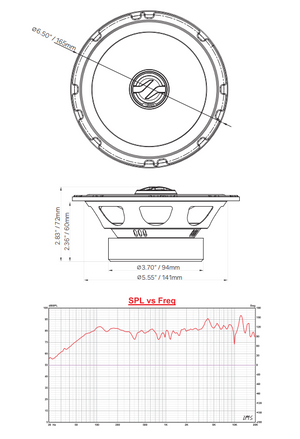

| MEASUREMENTS | |
| Overall Diameter | 6.50” / 165mm |
| Overall Depth | 2.83” / 72mm |
| Front Mount Baffle Cutout | 5.55” / 141mm |
| Mounting Depth | 2.36” / 60mm |
| Motor Diameter | 3.70” / 94mm |
Key Features
- 6.5" 2-Way Coaxial
- MAX Power: 240 Watts
- RMS Power: 80 Watts
- Impedance: 4 Ohm
- Barium Ferrite & Neodymium Magnets
- Pair ~ 87dB
Specifications
| SKU | ZXI-654 |
|---|---|
| Nominal Diameter | 6.5 Inches / 25.4 mm (1 inch) |
| Nominal Impedance | 4 ohm |
| RMS Power Handing | 80 WATTS |
| MAX Power Handing | 240 WATTS |
| Sensitivity | 89 dB |
| Frequency Response | 40 Hz - 20 KHz |
| Recommended HI Pass | 60 Hz |
| Speaker Type | 2-Way |
| Voice Coil Diameter | 25.5 mm (1 inch) / 20.4 mm (0.8 inch) |
| Voice Coil Former Material | KSV |
| Winding Material | EISV / EISVM |
| Cone Material | Glass fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Barium Ferrite / Neodymium |
| Magnet Weight | 14.46 oz / 410 g / 8.5 g / 0.3 oz |
| Diaphragm Material | PEI |
| Vas | 10.84 LTR |
| Xmax | 2.7 mm |
| Fs | 64 Hz |
| Qms | 9.44 |
| Qes | 0.79 |
| Qts | 0.73 |
| Mms | 13.72 g |
| Cms | 444 mm / N |
| BL | 5.1 |
| Le | 228 mH |
| Sd | 131 cm2 |
| Re | 3.5 ohm |
| Mmd | 12 g |
| Overall Diameter | 6.50 inch (165 mm) |
| Overall Depth | 72 mm (2.83 inch) |
| Front Mount Baffle Cutout | 141 mm (5.55 inch) |
| Mounting Depth | 60 mm (2.36 inch) |
| Motor Diameter | 94 mm (3.70 inch) |
| Product Weight | 5.5 lbs |
| Product Dimensions | 15.75 x 7.75 x 3.75 |
| M/C Weight | 35 lbs |
| M/C Dimensions | 16.5 x 16.75 x 12.25 |
| M/C QTY | 6 |
| Sold In | Pair |
