ZXI 6x9” 2-Way Component Speakers with Glass Fiber Cone | 120W RMS 4-Ohm

Product Overview

6x9” 2-Way Component Set – 120W RMS / 360W MAX – 4 Ohm

The ZXi-692C is a premium 6x9” 2-way component speaker system rated at 120W RMS and 360W MAX with a 4-ohm impedance, engineered for listeners who want strong midbass impact, clean midrange detail, and crisp, controlled highs. By separating the woofer and tweeter, this system delivers improved sound staging, clarity, and accuracy compared to traditional coaxial designs.

Component Design for Enhanced Imaging

Unlike coaxial speakers, the ZXi-692C’s true component design allows independent placement of the woofer and tweeter, creating a wider soundstage and more precise imaging. This results in vocals and instruments sounding more natural and positioned correctly across the cabin, bringing your music to life.

Powerful Midbass with Controlled Response

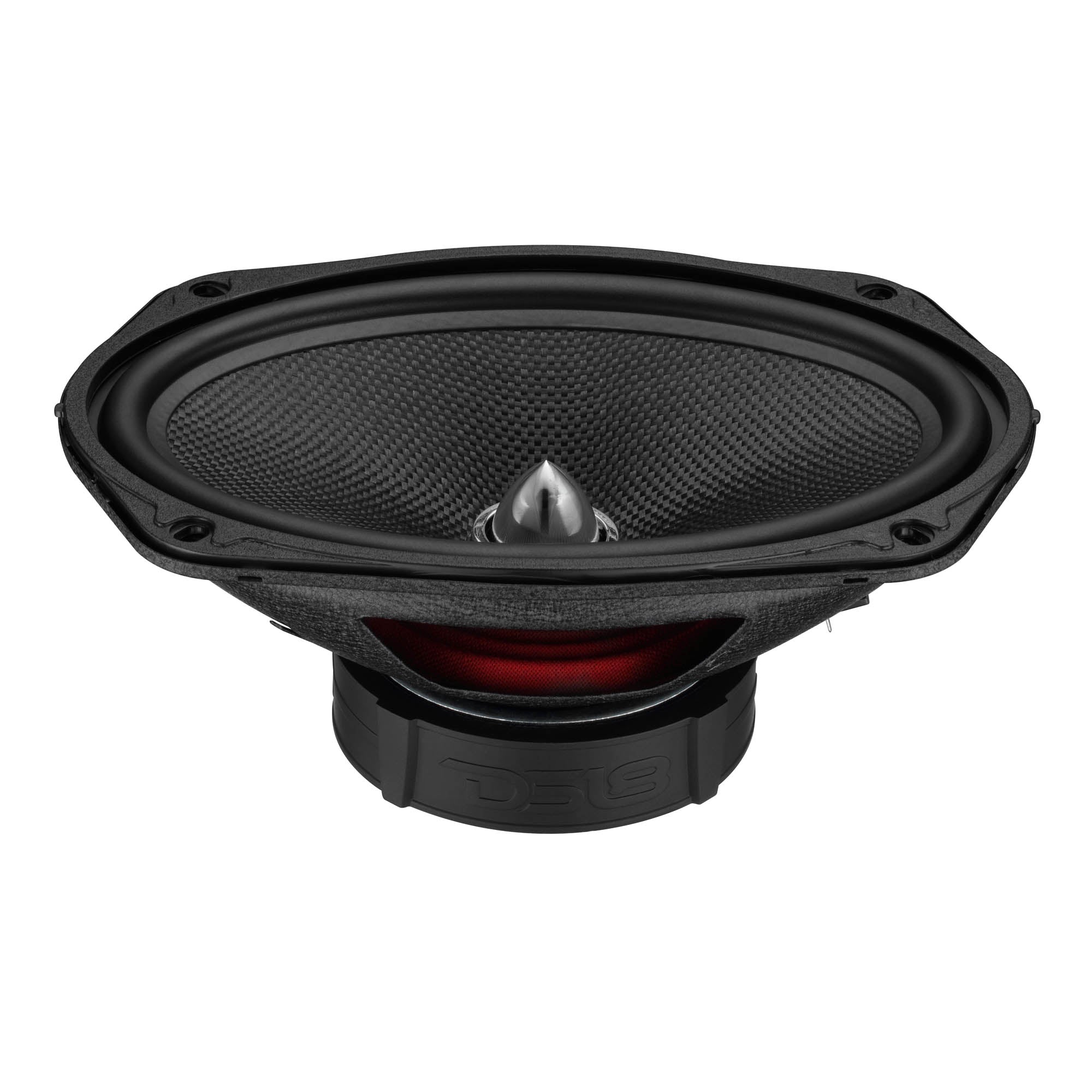

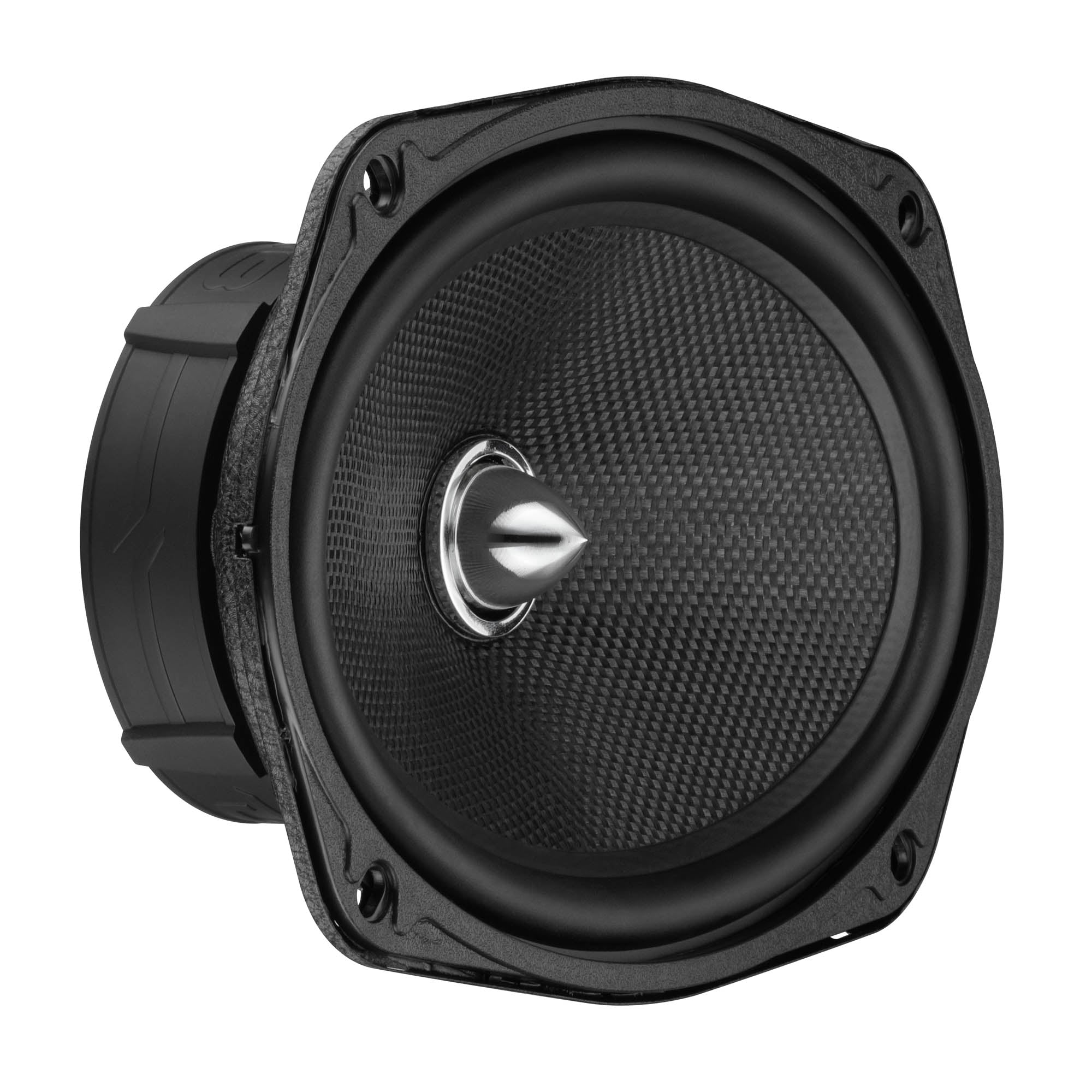

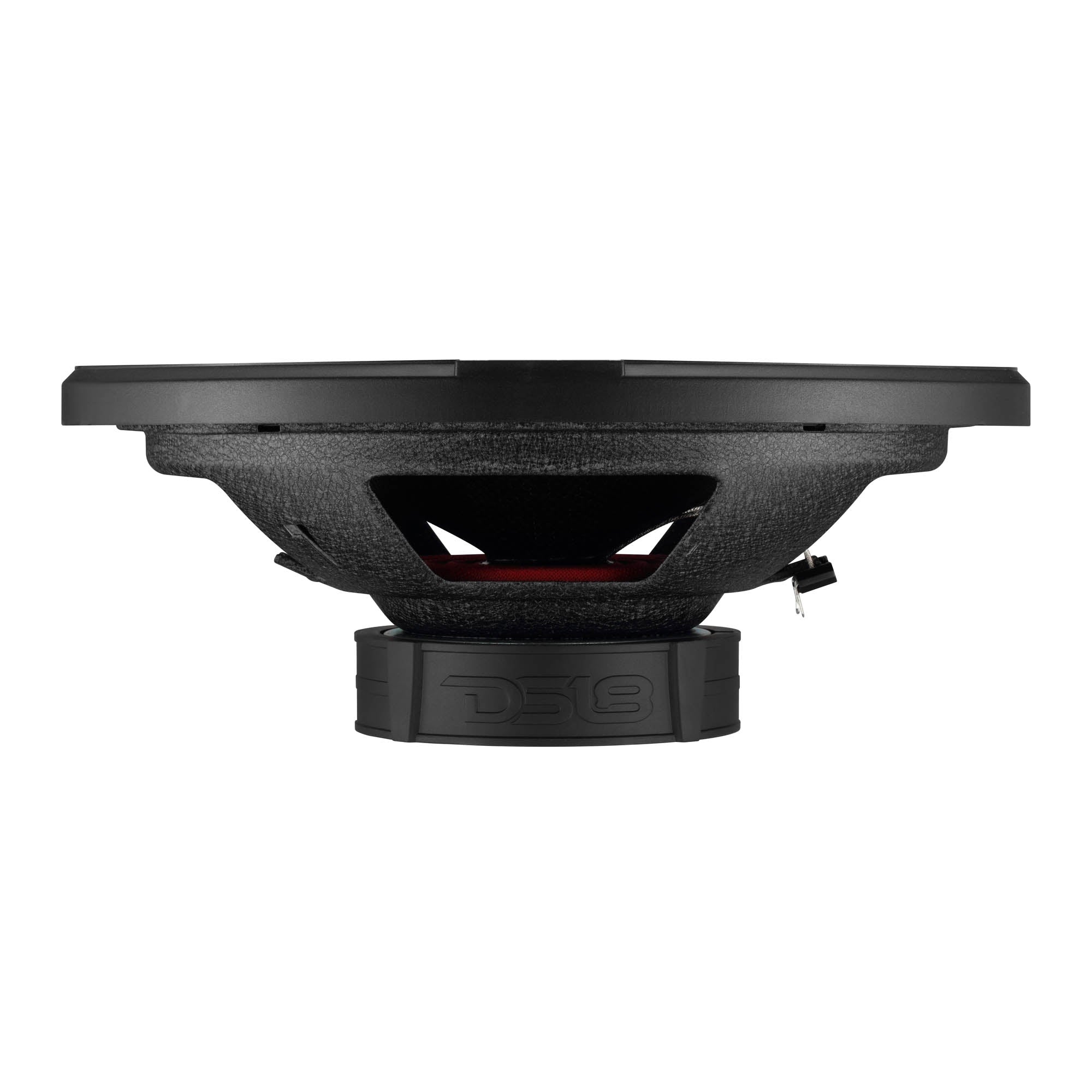

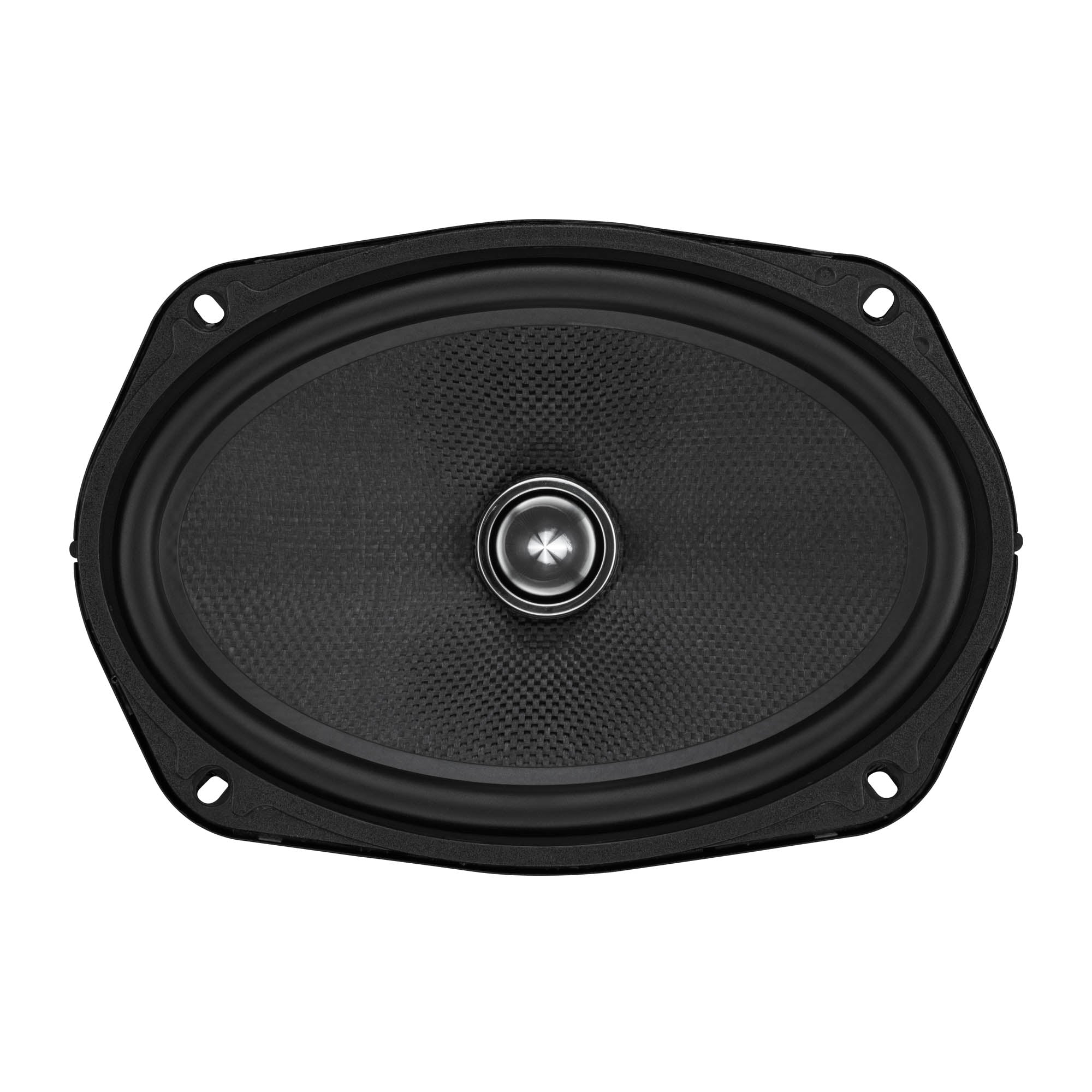

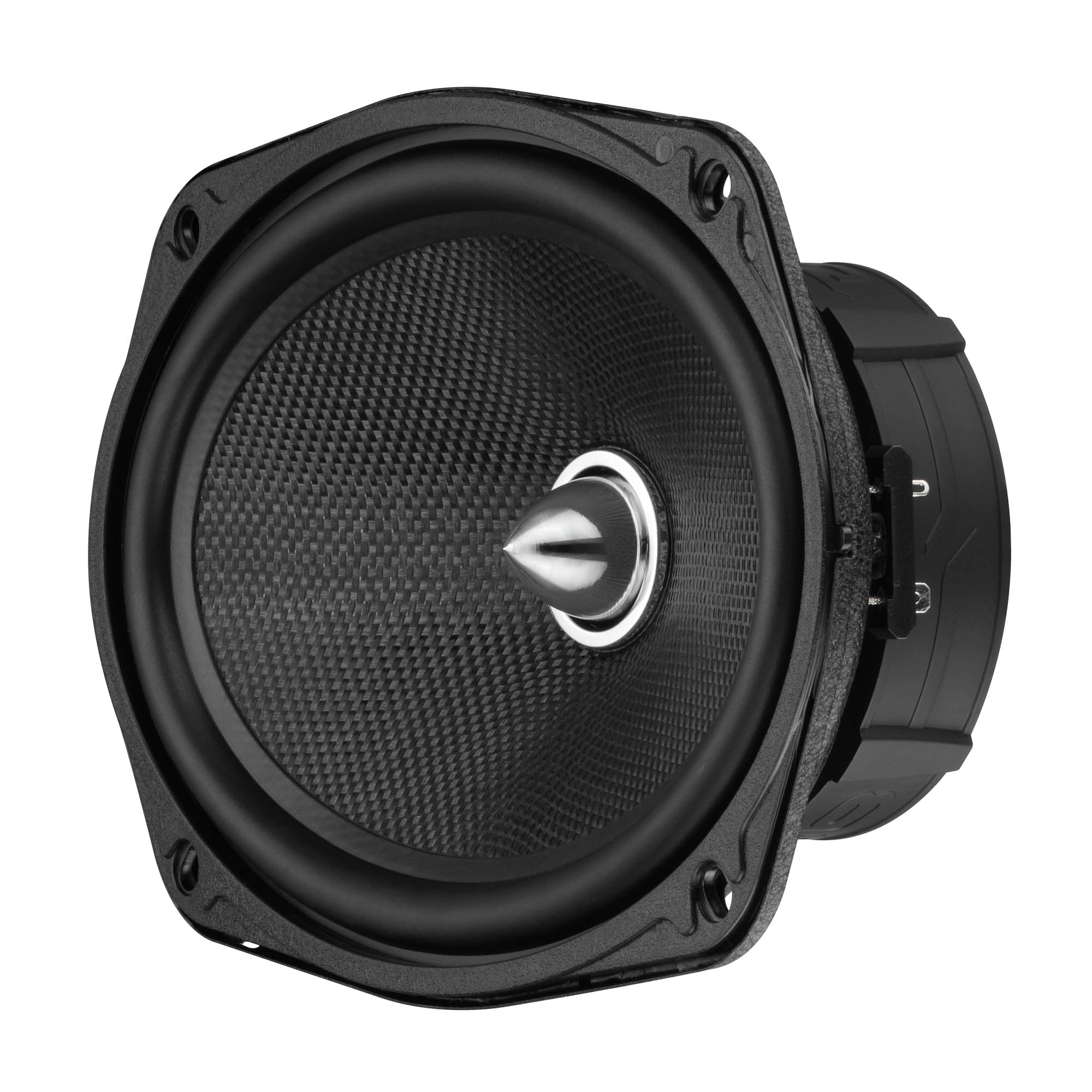

The 6x9” woofers are built with glass fiber curvilinear cones, rubber surrounds, and a rigid steel basket to produce tight, punchy midbass without distortion. This construction ensures durability while maintaining excellent cone control, even at higher volumes.

Crisp Highs with Adjustable Control

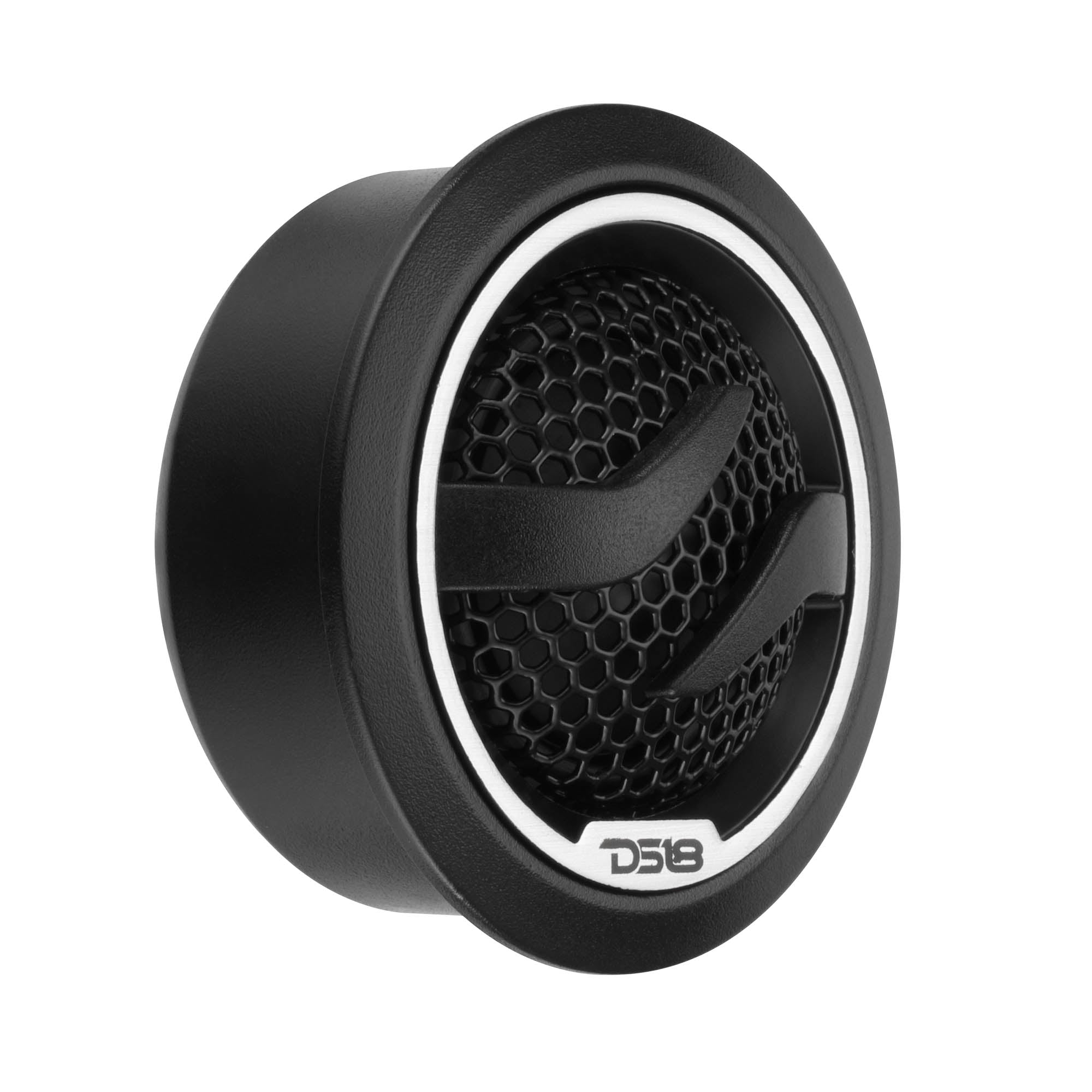

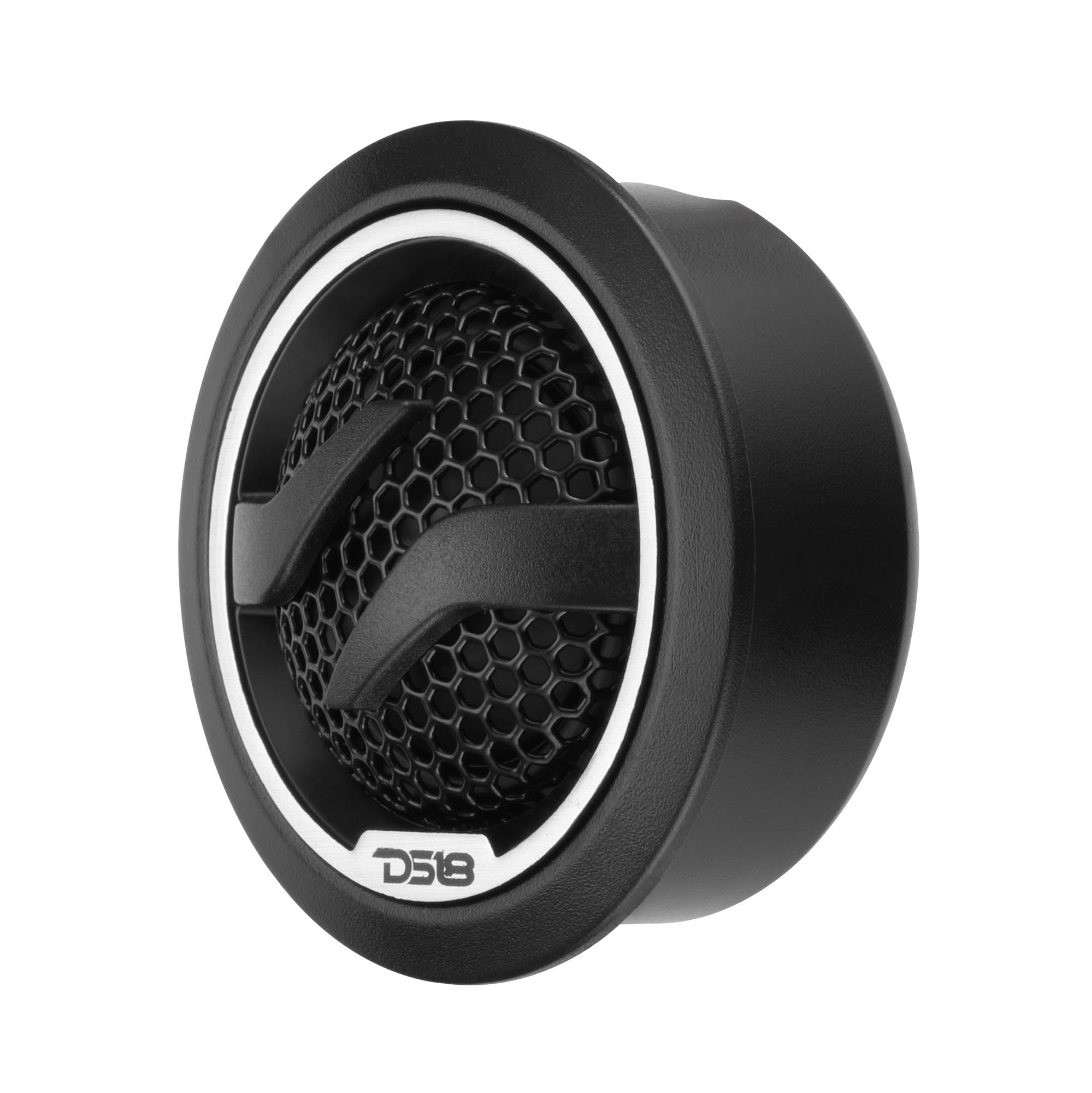

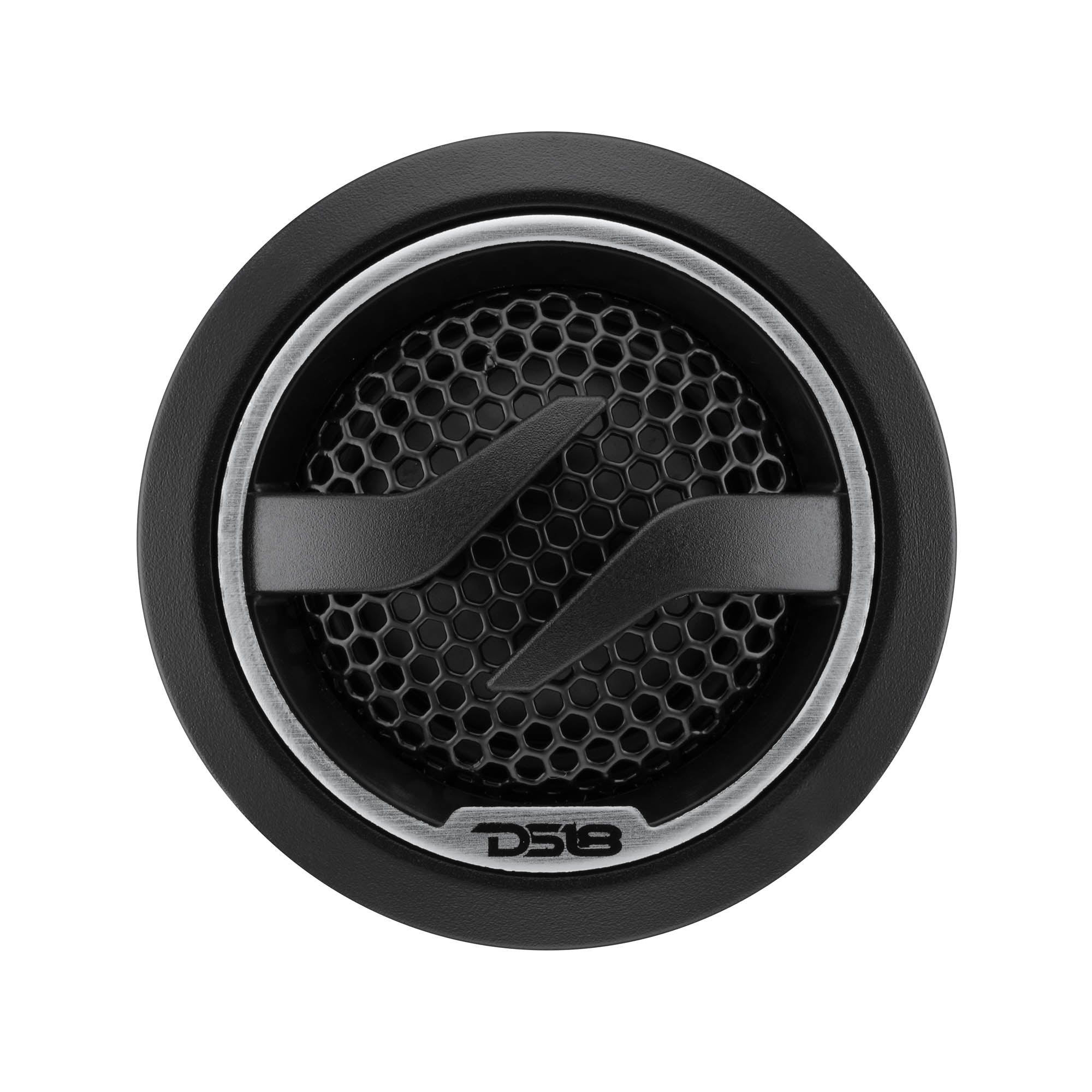

High frequencies are handled by 1” tweeters featuring a PEI diaphragm and neodymium magnet, delivering smooth, detailed highs without harshness. External passive crossovers are included with adjustable tweeter attenuation (+/- 3dB), allowing you to fine-tune the sound to match your vehicle acoustics and personal listening preference.

Complete Component Solution

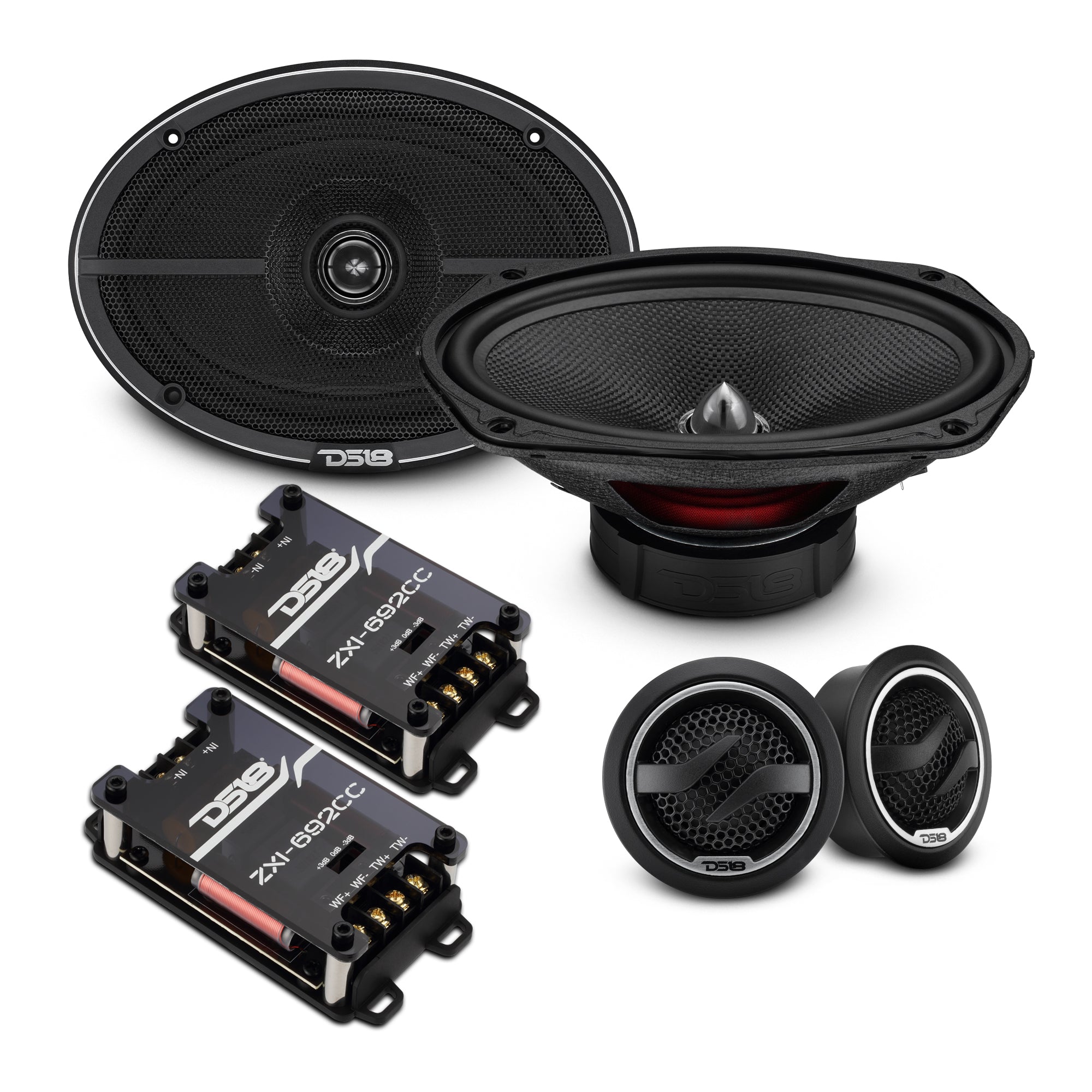

The ZXi-692C includes woofers, tweeters, and external crossovers, providing a full component system ready to integrate with aftermarket amplifiers or upgraded factory systems. Whether you’re building a sound-quality-focused system or a powerful daily driver setup, this kit delivers flexibility and performance.

Upgrade your listening experience with the clarity, control, and output of DS18’s ZXi-692C component speaker system.

Key Features

• 6x9” 2-way component speaker system

• 120W RMS / 360W MAX power handling

• 4-ohm impedance

• Glass fiber curvilinear cone woofers for tight midbass

• Rubber surround and steel basket construction

• 1” tweeters with PEI diaphragm and neodymium magnet

• External 2-way passive crossovers included

• Adjustable tweeter attenuation (+/- 3dB)

• Complete system with woofers, tweeters, and crossovers

General Specifications

Nominal Size: 6x9” / 152 x 228mm
Nominal Impedance: 4 Ohms
RMS Power Handling: 120 Watts
MAX Power Handling: 360 Watts
Sensitivity (1W/1M): 90 dB
Frequency Response: 35Hz – 20KHz
Recommended High-Pass Crossover: 50Hz
Number of Ways: 2-Way
Sold As: Pair

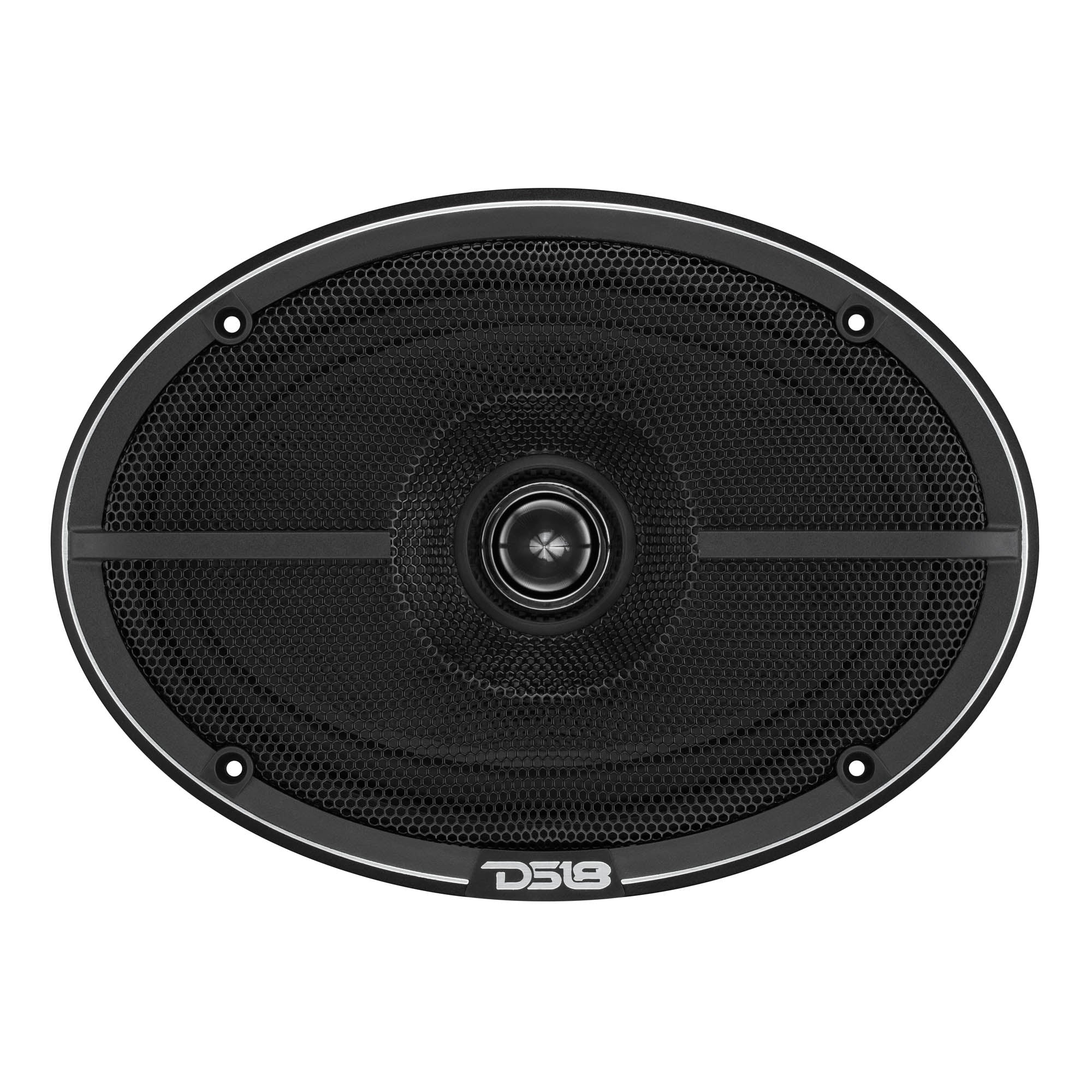

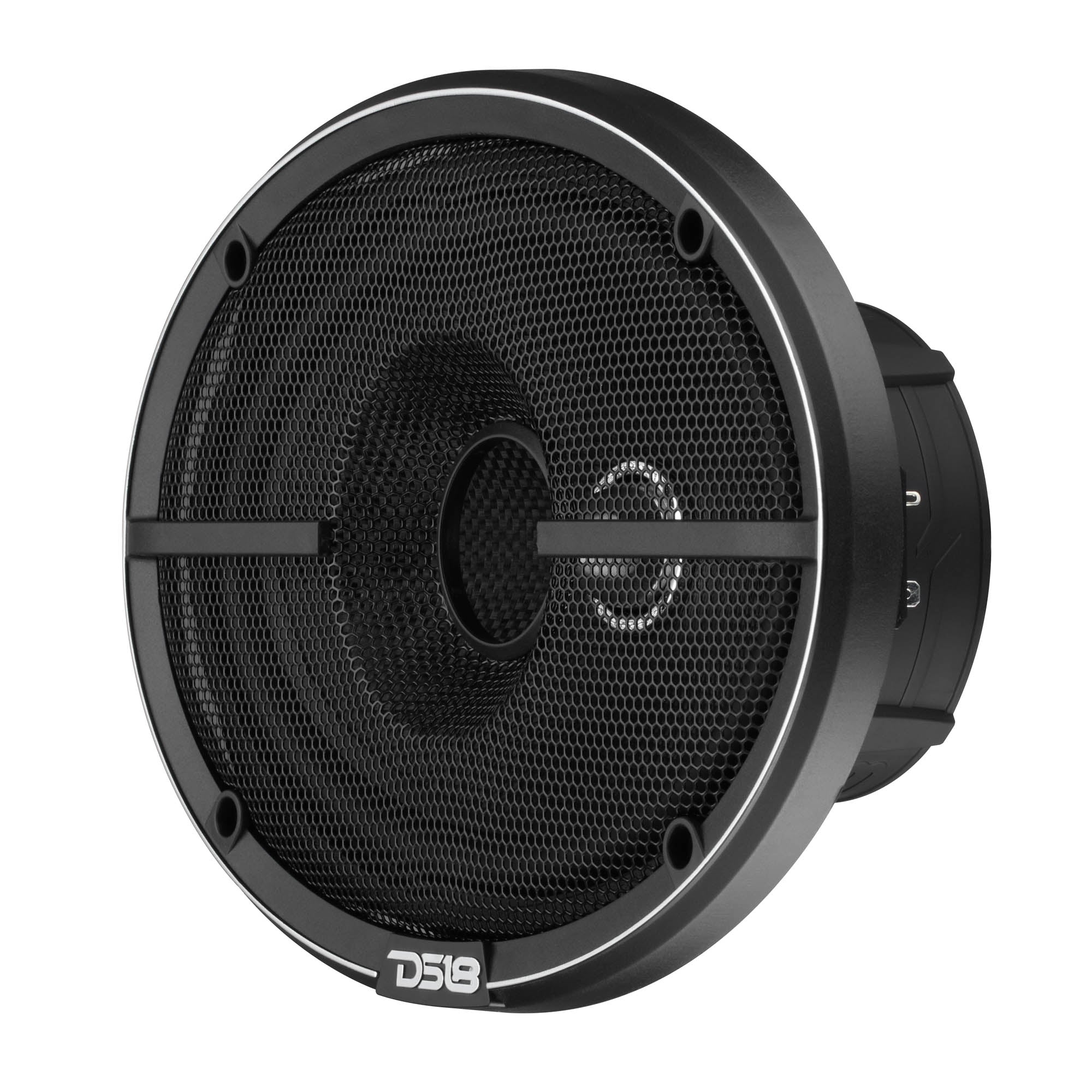

Grille Included: Yes

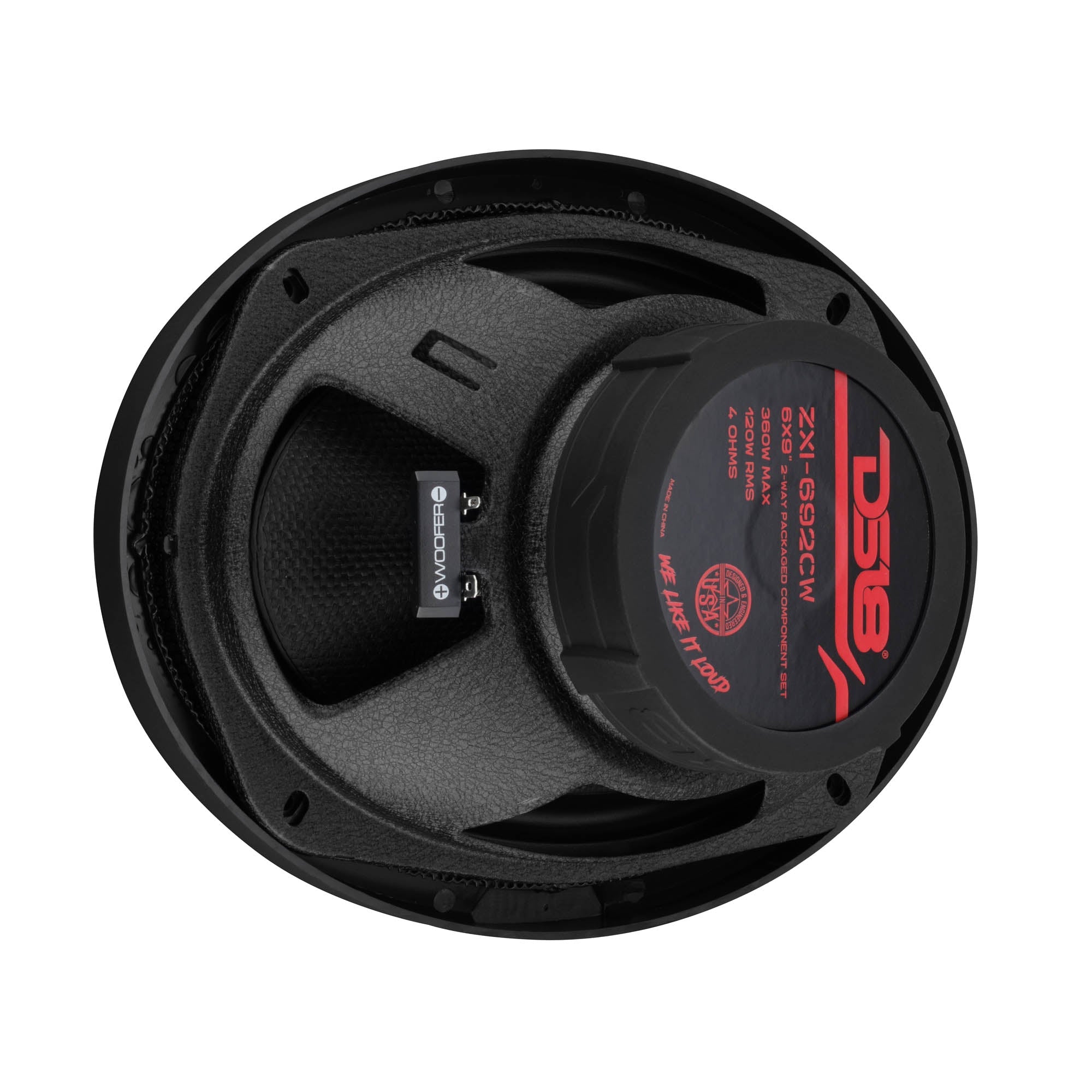

Woofer Specifications

Voice Coil Diameter: 1.25” / 30.5mm
Voice Coil Former Material: KSV
Winding Material: EISV
Cone Material: Glass Fiber
Cone Shape: Curvilinear
Surround Material: Rubber
Basket Material: Steel
Basket Finish: Matte Black
Magnet Material: Barium Ferrite
Magnet Weight: 19.4 Oz
Speaker Terminals: Spade

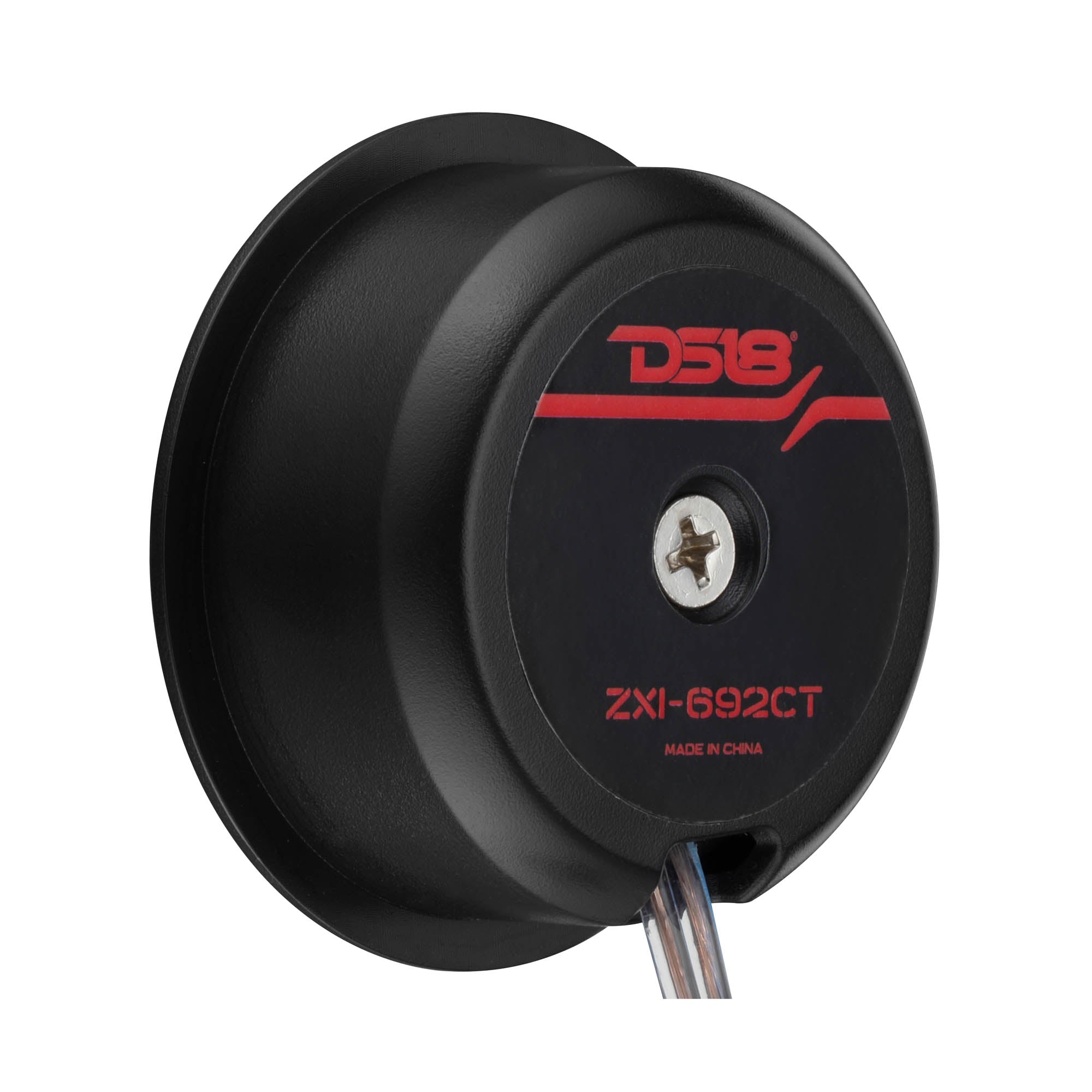

Tweeter Specifications

Nominal Diameter: 1” / 25.4mm
VC Former Material: KSV
Winding Material: EISVM
Diaphragm Material: PEI
Magnet Material: Neodymium
Magnet Weight: 13g
Body Material / Color: ABS / Black

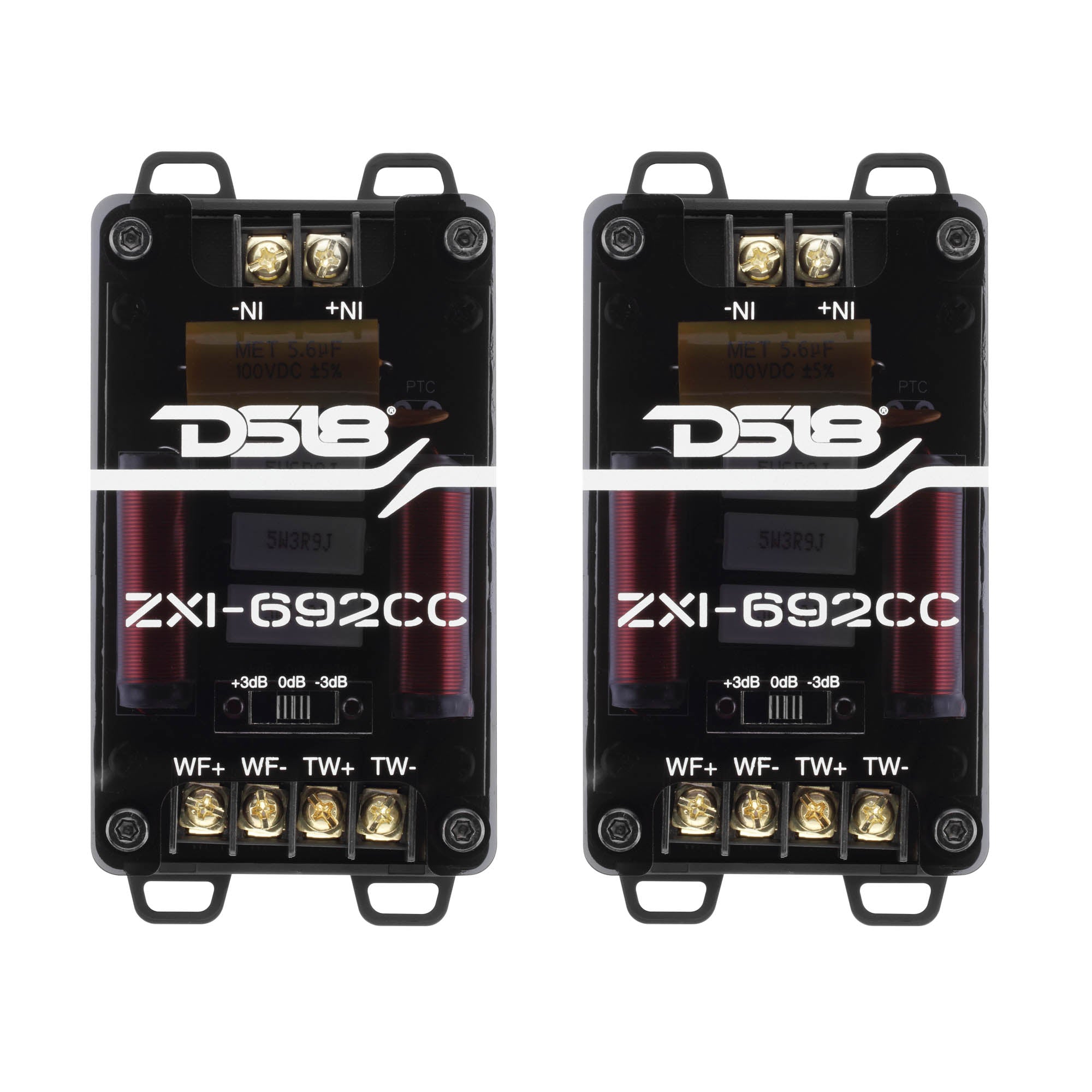

Crossover Specifications

Passive Crossover: 2-Way
Crossover Point: 3.5kHz
Power Handling: Up to 300W
Slope: 12 dB/Oct
Tweeter Attenuation: +/- 3dB
Capacitor Type: NP
Coil Type: KSV
Terminal Type: Screw-On
Housing Material: ABS / Acrylic
Extra Features: Tweeter Protection

Thiele & Small Parameters

Equivalent Volume (Vas): 23.7L / 0.83 ft³
Excursion (One Way) Xmax: 2.7mm
Free Air Resonance (Fs): 60Hz
Mechanical Factor (Qms): 7.03
Electrical Factor (Qes): 1.4
Total Factor (Qts): 1.16
Mechanical Mass (Mms): 19.57g
Mechanical Compliance (Cms): 0.35 mm/N
BL Factor: 3.22
Voice Coil Inductance (Le): 0.16mH
Cone Area (Sd): 219.04 cm²
DC Resistance (Re): 3.9 Ohms

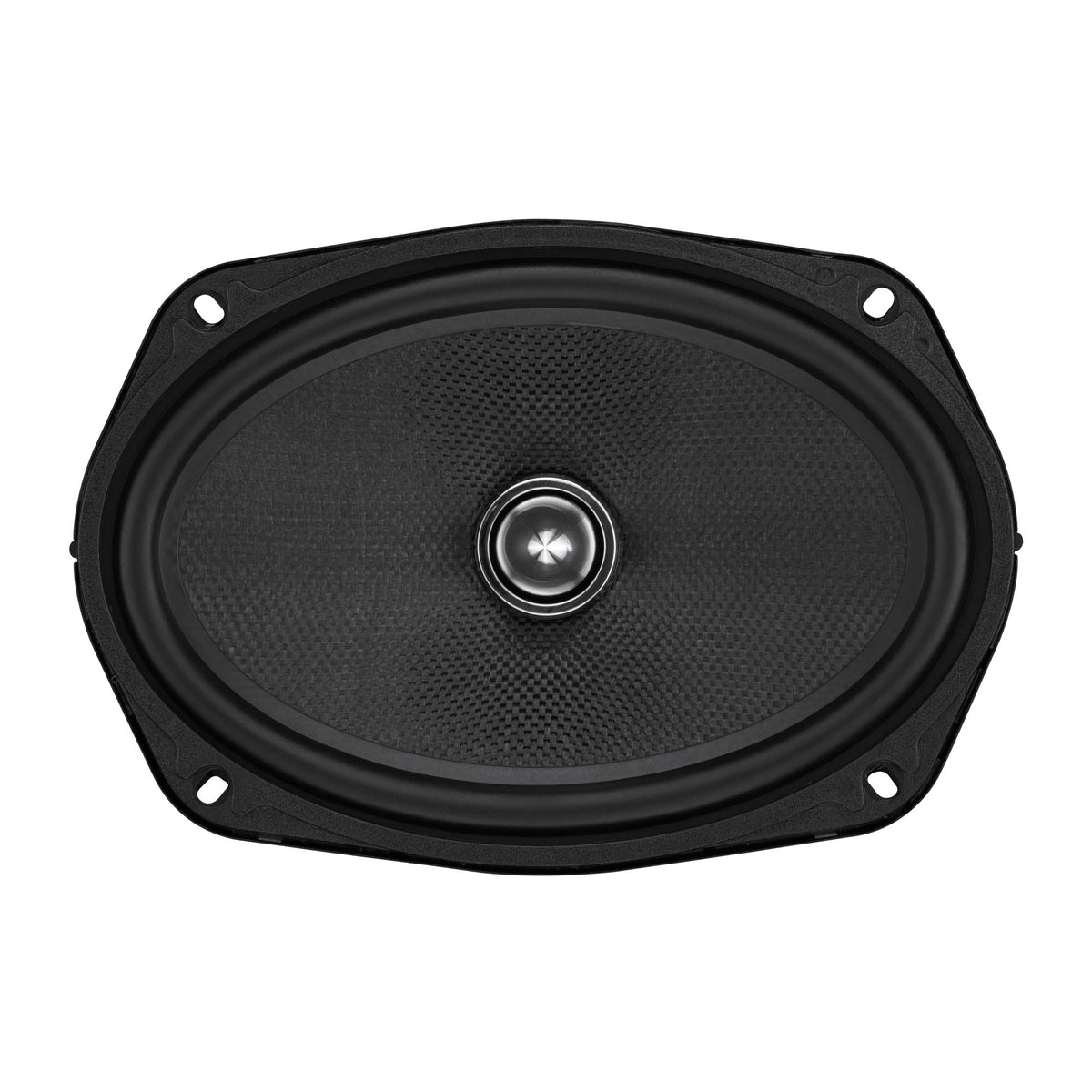

Woofer Measurements

Overall Diameter (Without Grille): 6.4 x 9.2” / 164 x 234mm
Overall Depth (Without Grille): 3.6” / 92mm

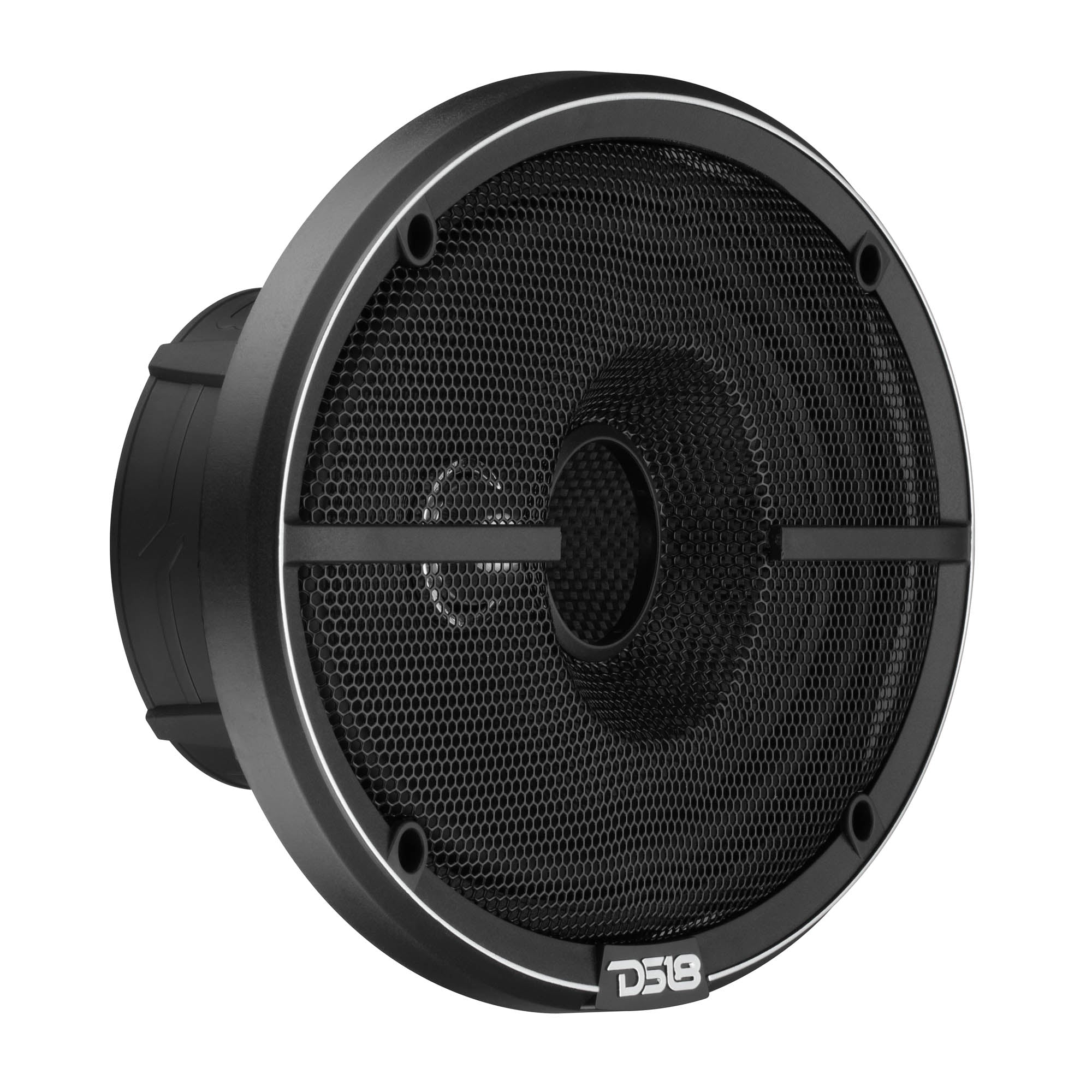

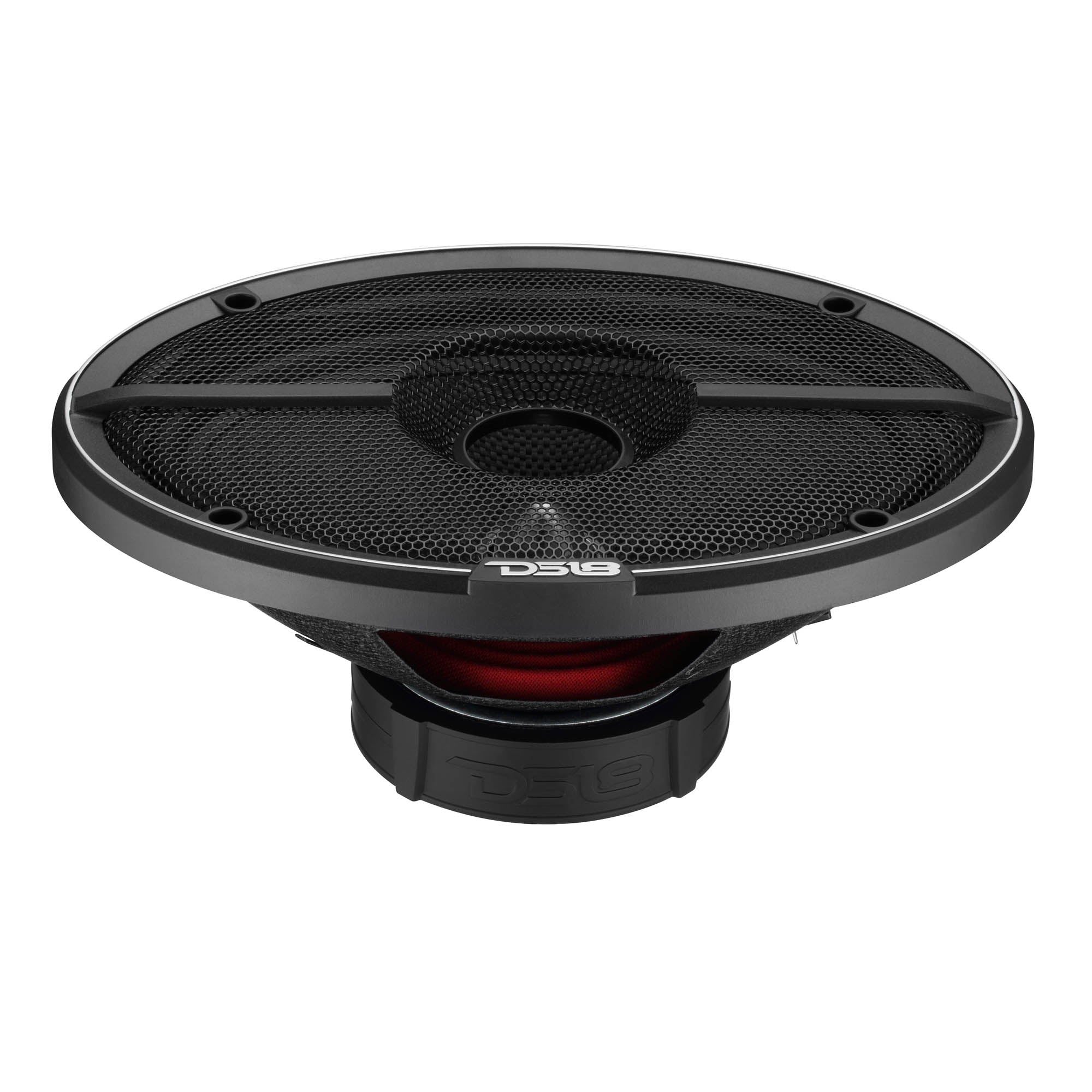

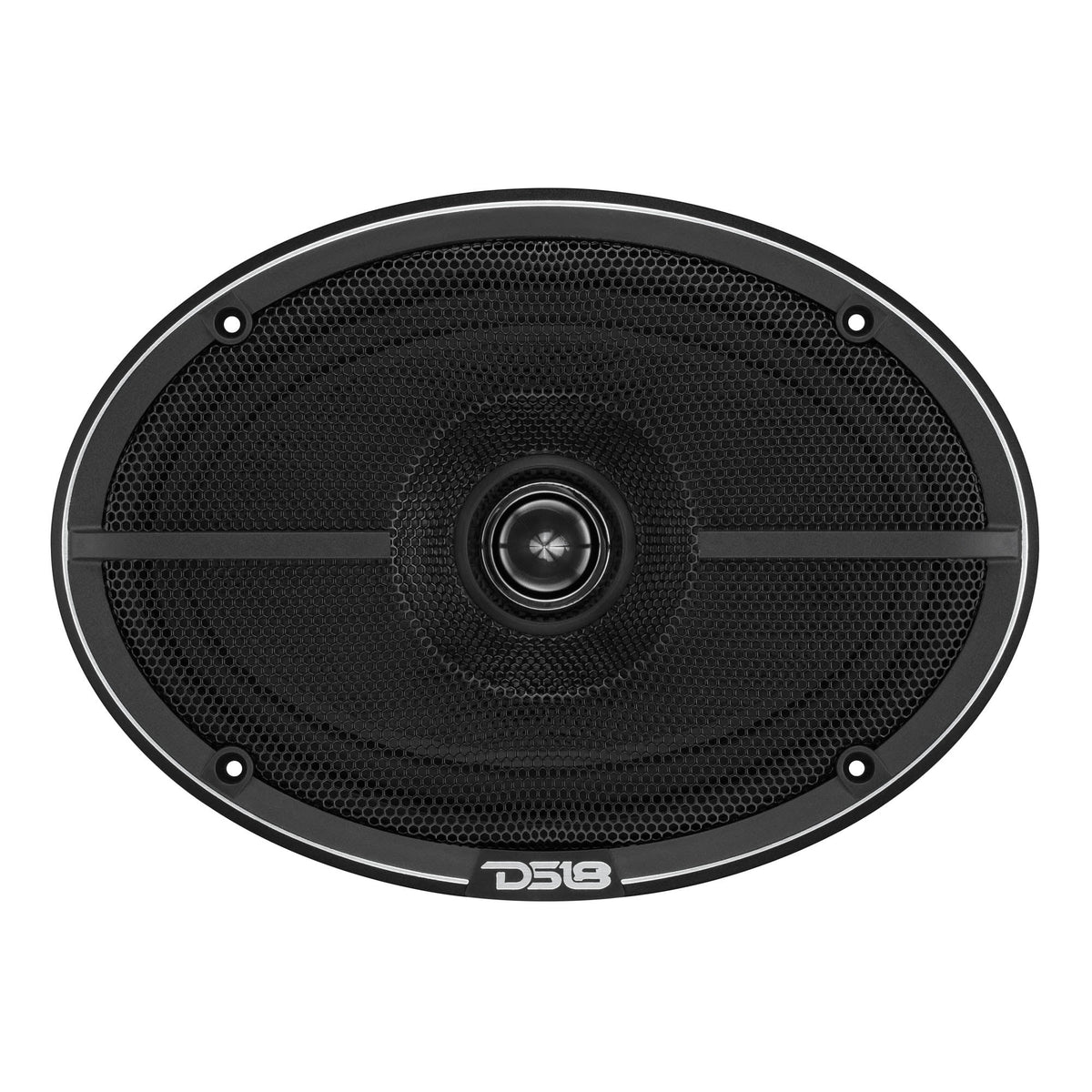

Overall Diameter (With Grille): 10.4 x 7.5” / 265 x 191mm
Overall Depth (With Grille): 4.16” / 107mm
Front Mount Baffle Cutout: 6 x 8.7” / 153 x 221mm
Mounting Depth: 3.2” / 82mm
Motor Diameter: 4” / 100mm

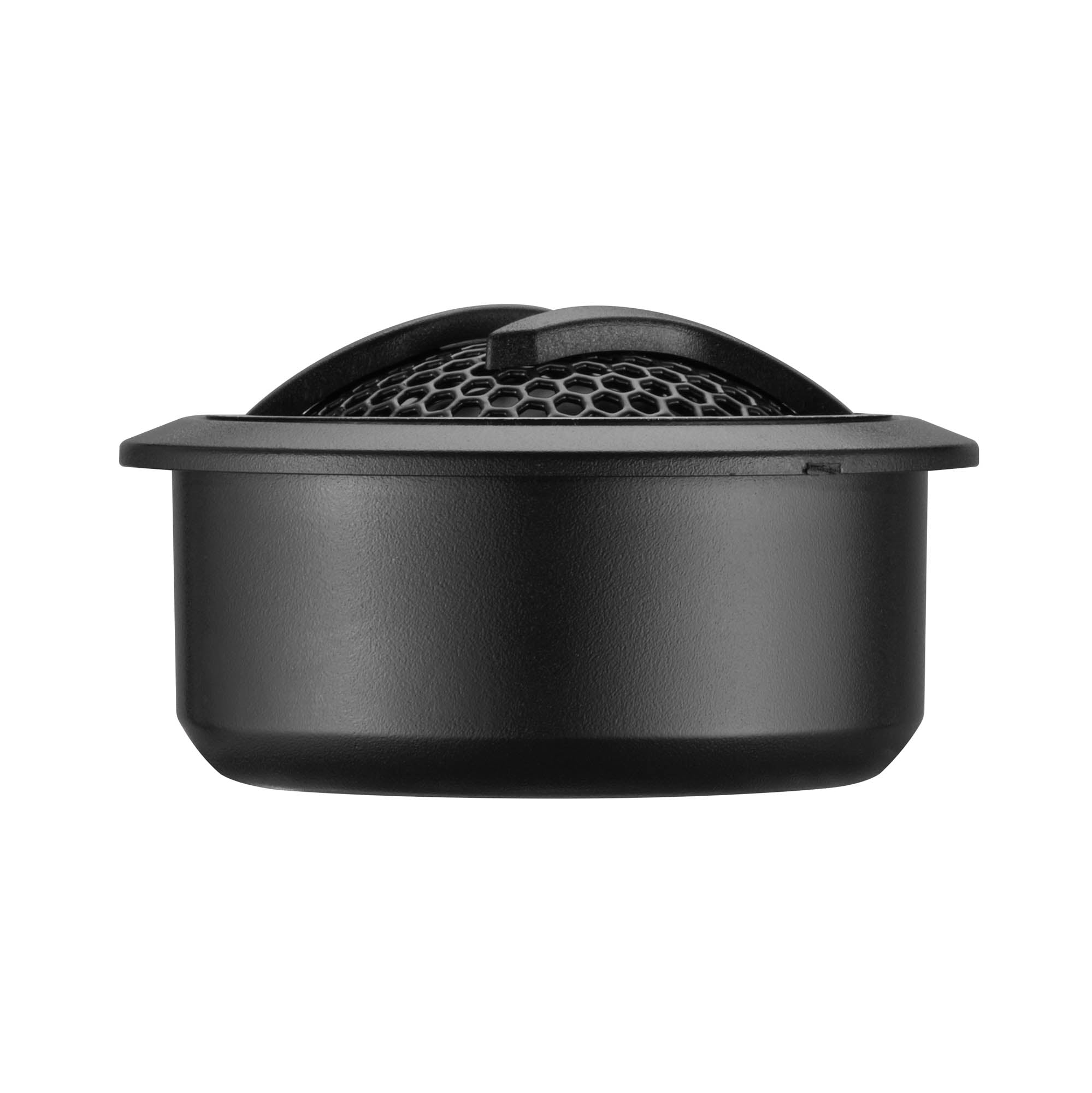

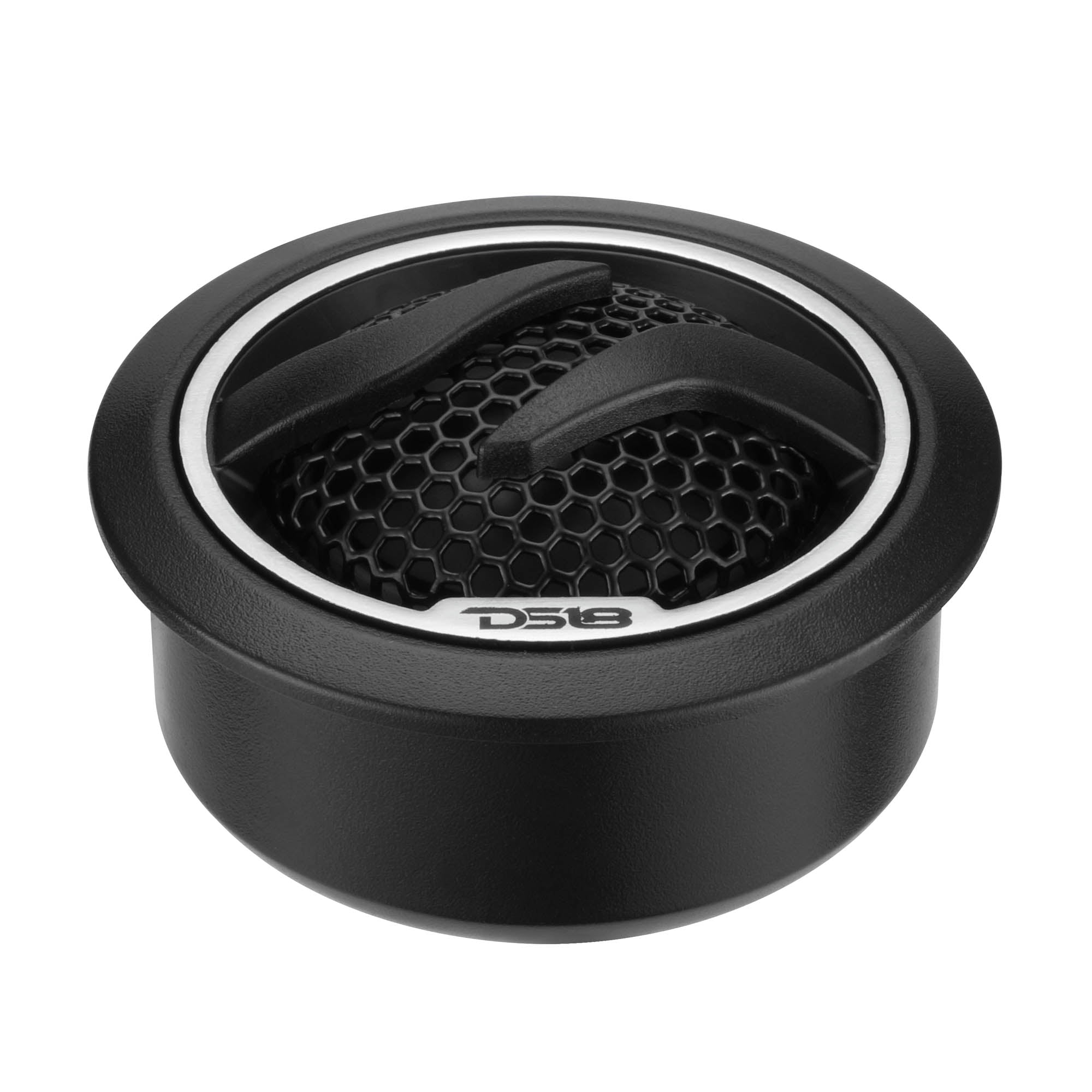

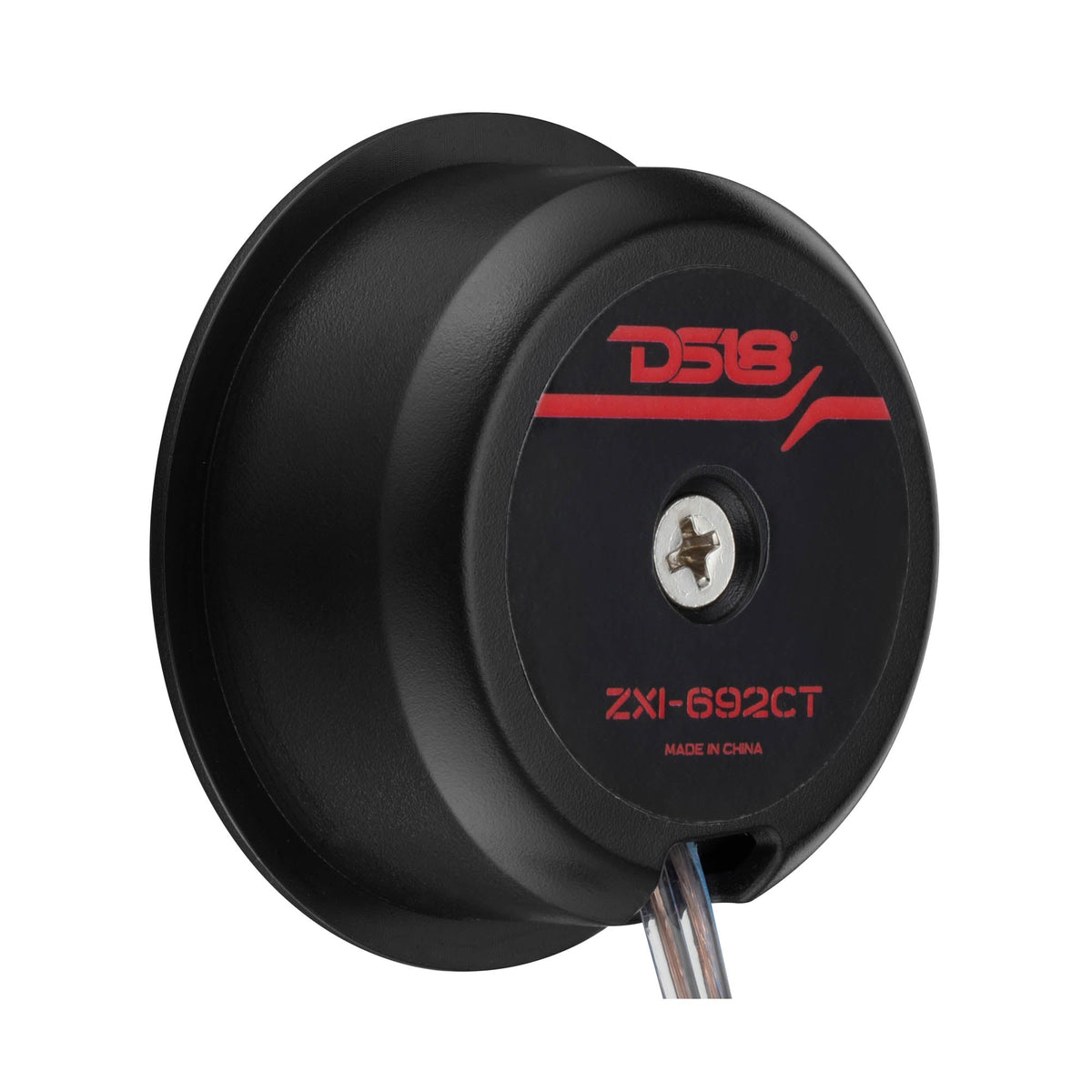

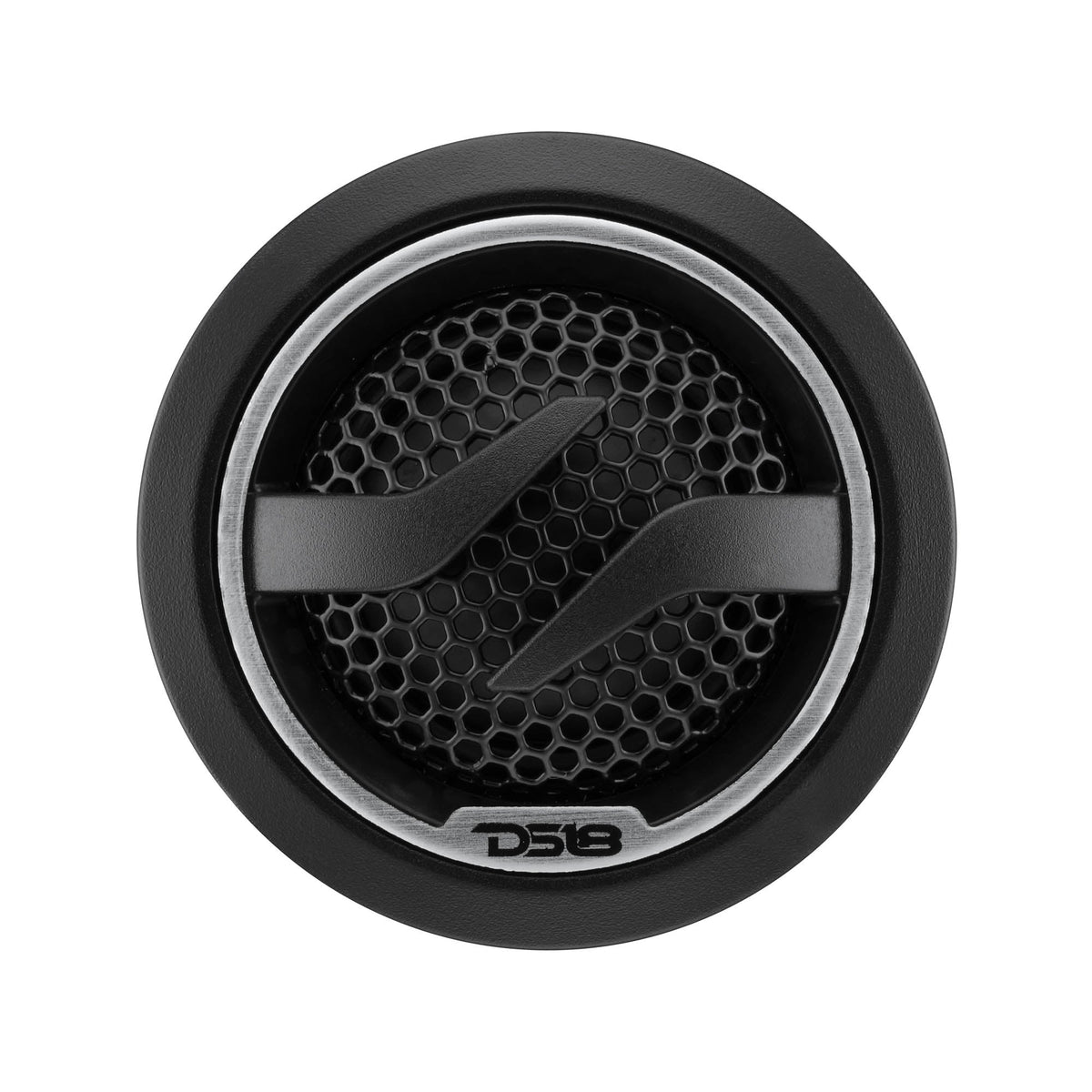

Tweeter Measurements

Overall Diameter: 2.17” / 55mm
Overall Depth: 1.2” / 30mm
Front Mount Baffle Cutout: 1.9” / 48mm
Mounting Depth: 0.8” / 20mm

Crossover Measurements

Overall Length: 2.5” / 65mm
Overall Depth: 5” / 128mm
Overall Height: 1.4” / 35.8mm
