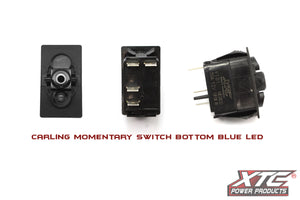

(ON)-OFF SPST Momentary Rocker Switch with Blue Bottom LED
(ON)-OFF SPST Momentary Rocker Switch with Blue Bottom LED
(ON)-OFF SPST Momentary Rocker Switch with Blue Bottom LED
(ON)-OFF SPST Momentary Rocker Switch with Blue Bottom LED from XTC Power Products.
Features and specifications
- Blue LED
- Contura V Switch Body w/ 4 Terminals
- SPST Momentary (ON)/OFF Switch 20A 12V
- No Upper LED
- Lower Blue LED is independently wired
- No rear barriers between terminals
- System compatibility: Power Control Systems all models
- Insulated 1/4″ female quick disconnect terminals can also be used
Application notes
- sold separately . There are multiple LED color options to choose from, including red/red, red/blue, blue/blue, amber/amber, and none lit. The Switch Bodies are a standard rocker switch cut-out size that comes integrated on most UTV’s OE Dash. Although the Switch body is rated for 20 Amps of current, it should be used with a relay whenever the load exceeds 15 Amps to prolong the switch’s life.
