1,000 Watt Can-Am X3 MAX Rear Subwoofer Solution (Gen-3)

Overview

Purpose Built ATV audio exclusively for select Can-Am® X3 MAX models. Dual rear subwoofer kit provides next level bass performance. Upgrade your UTV audio with Rockford Fosgate.

Features

• Uses factory mounting locations for easy install

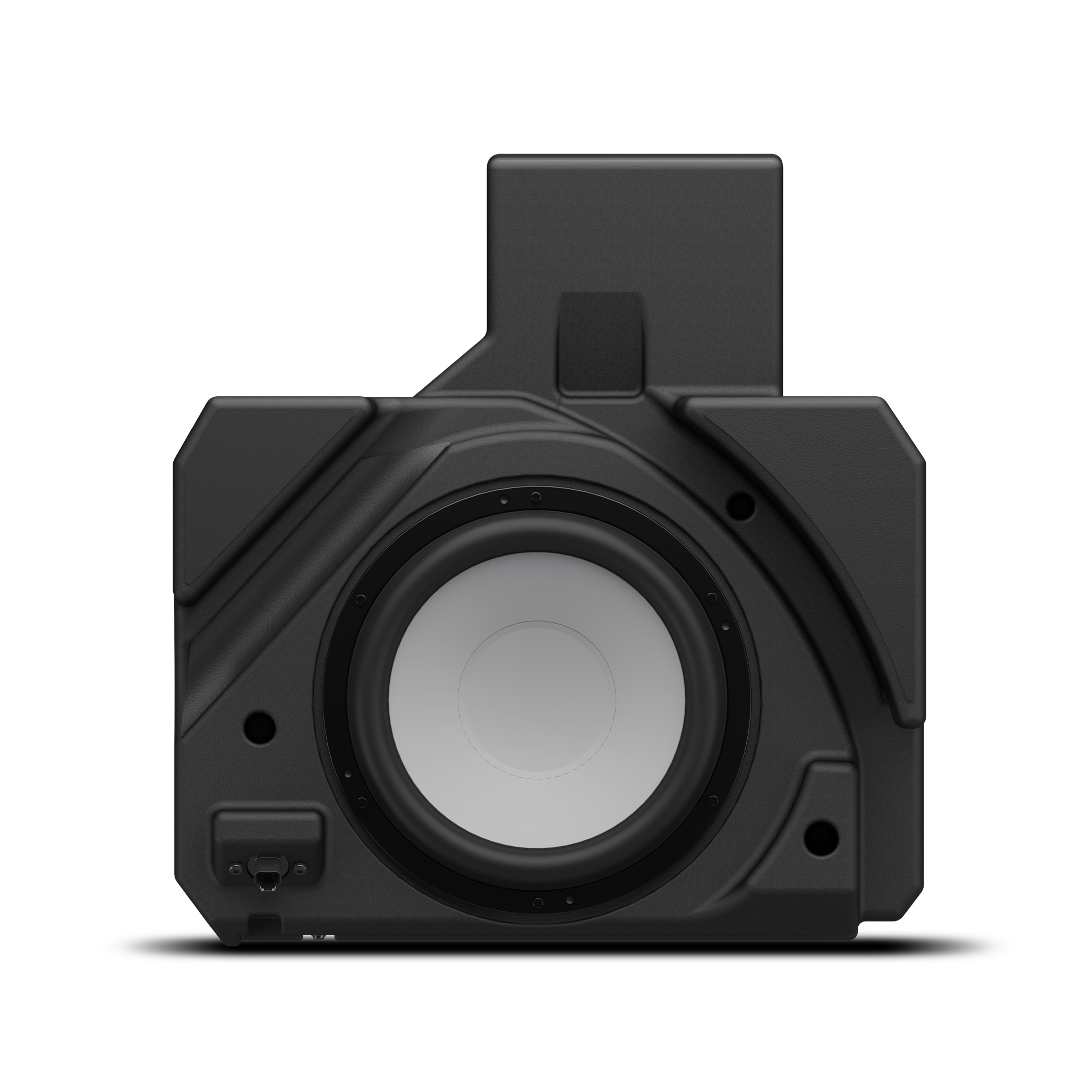

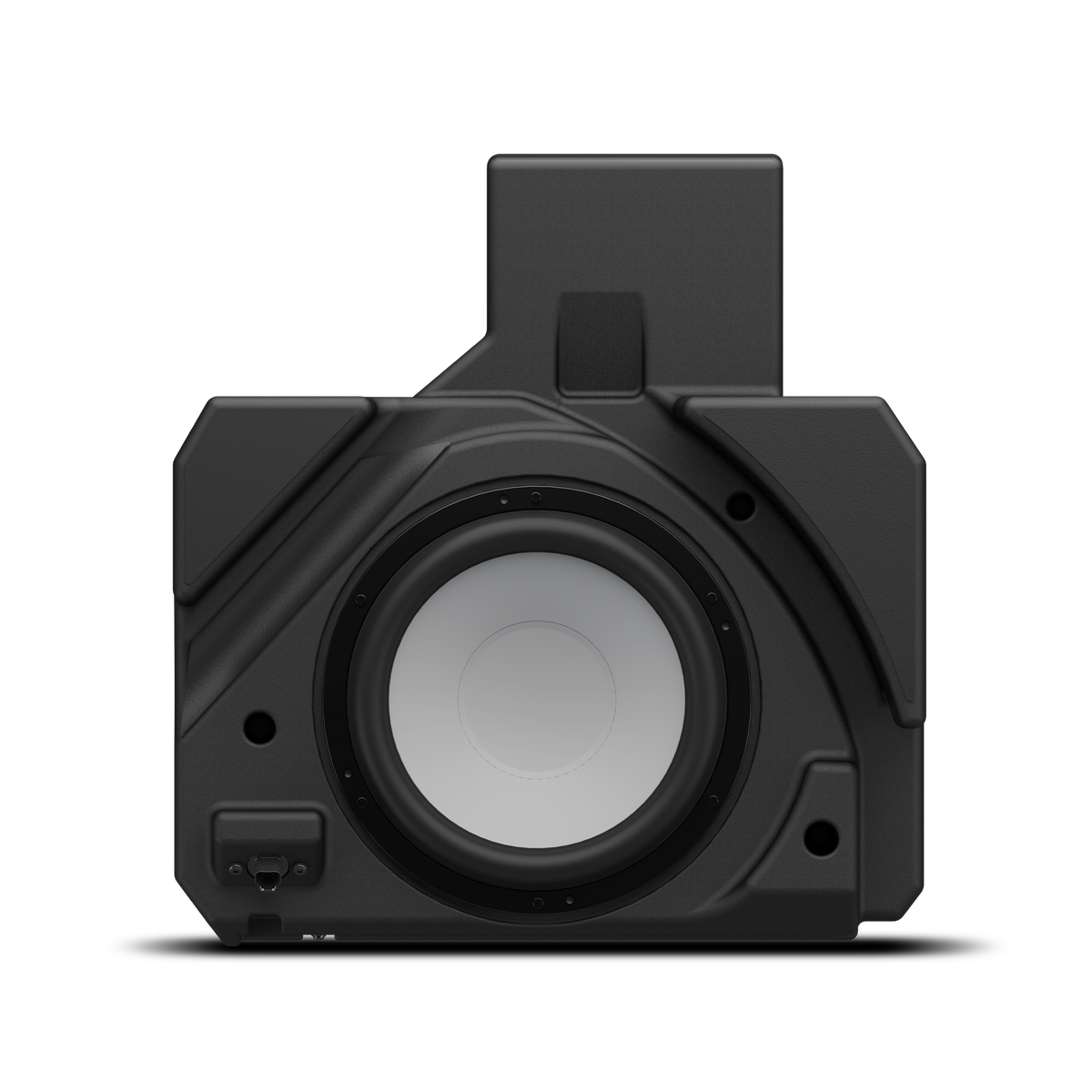

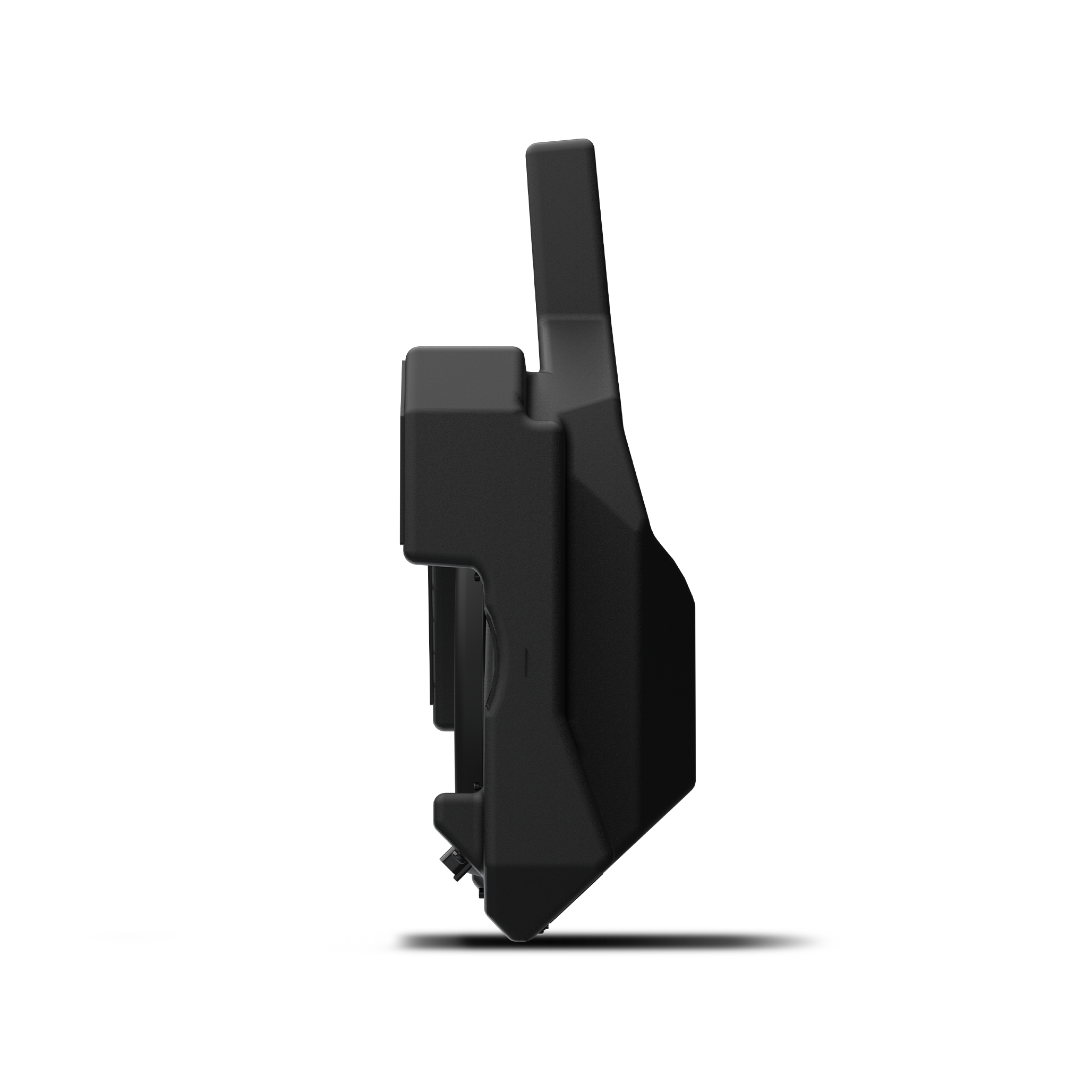

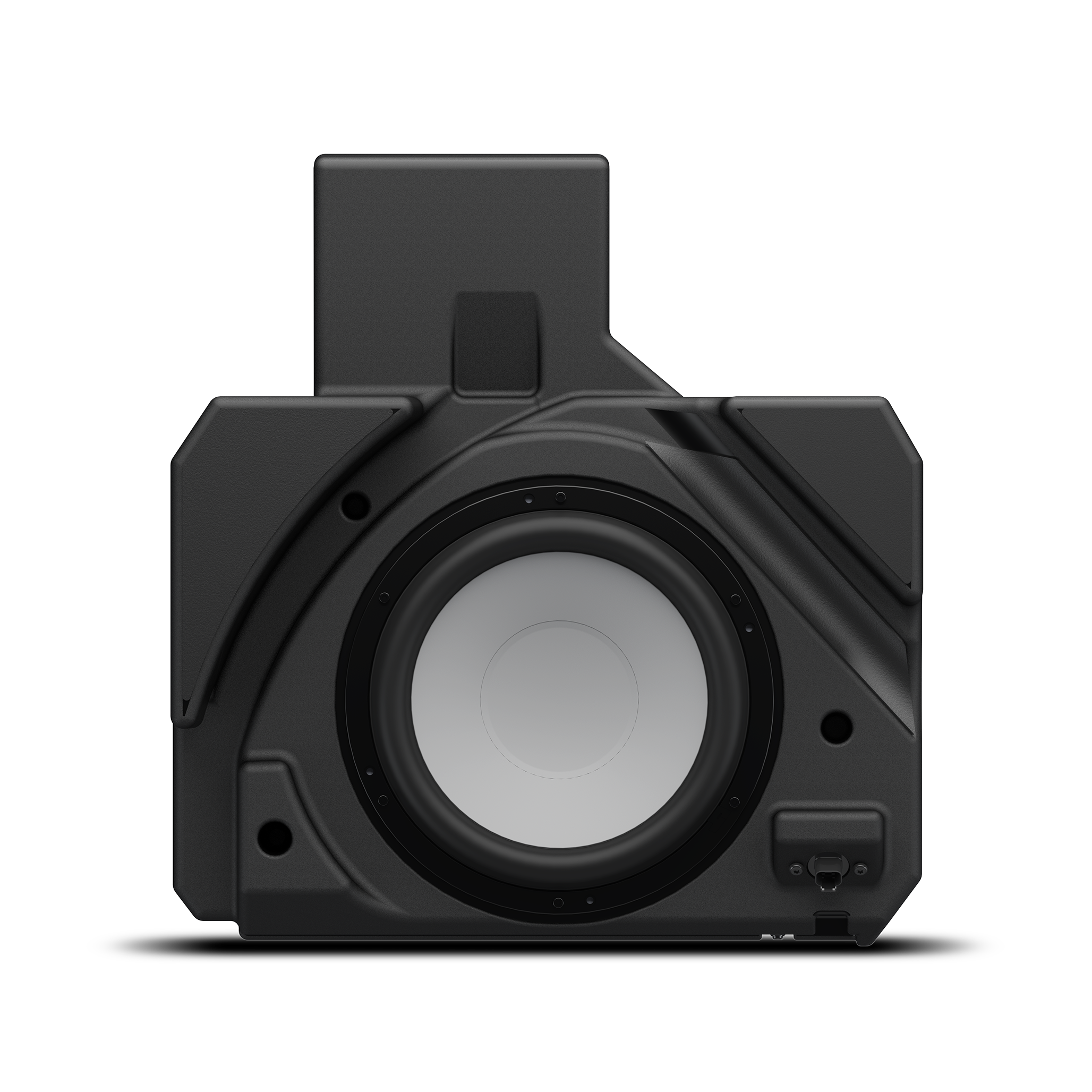

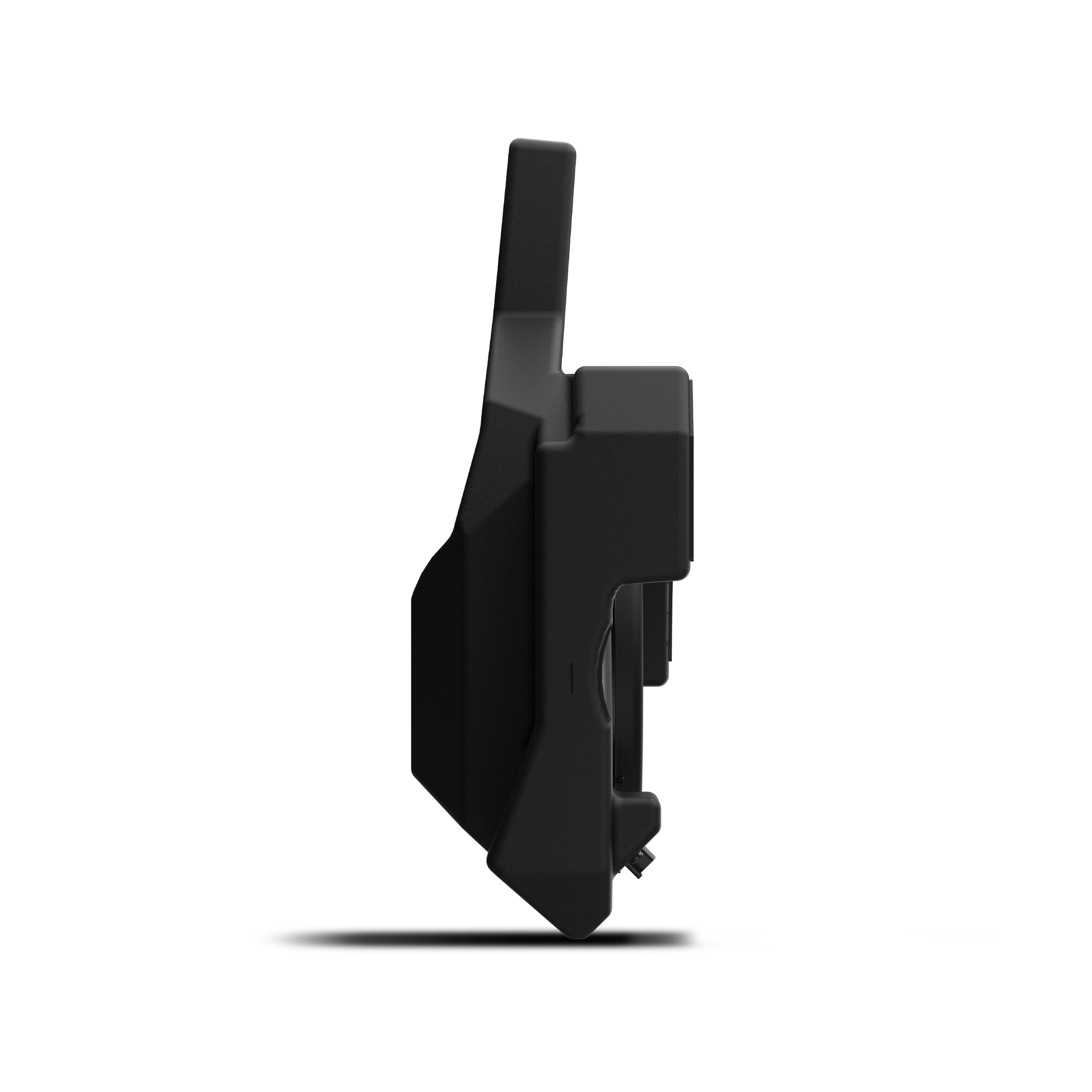

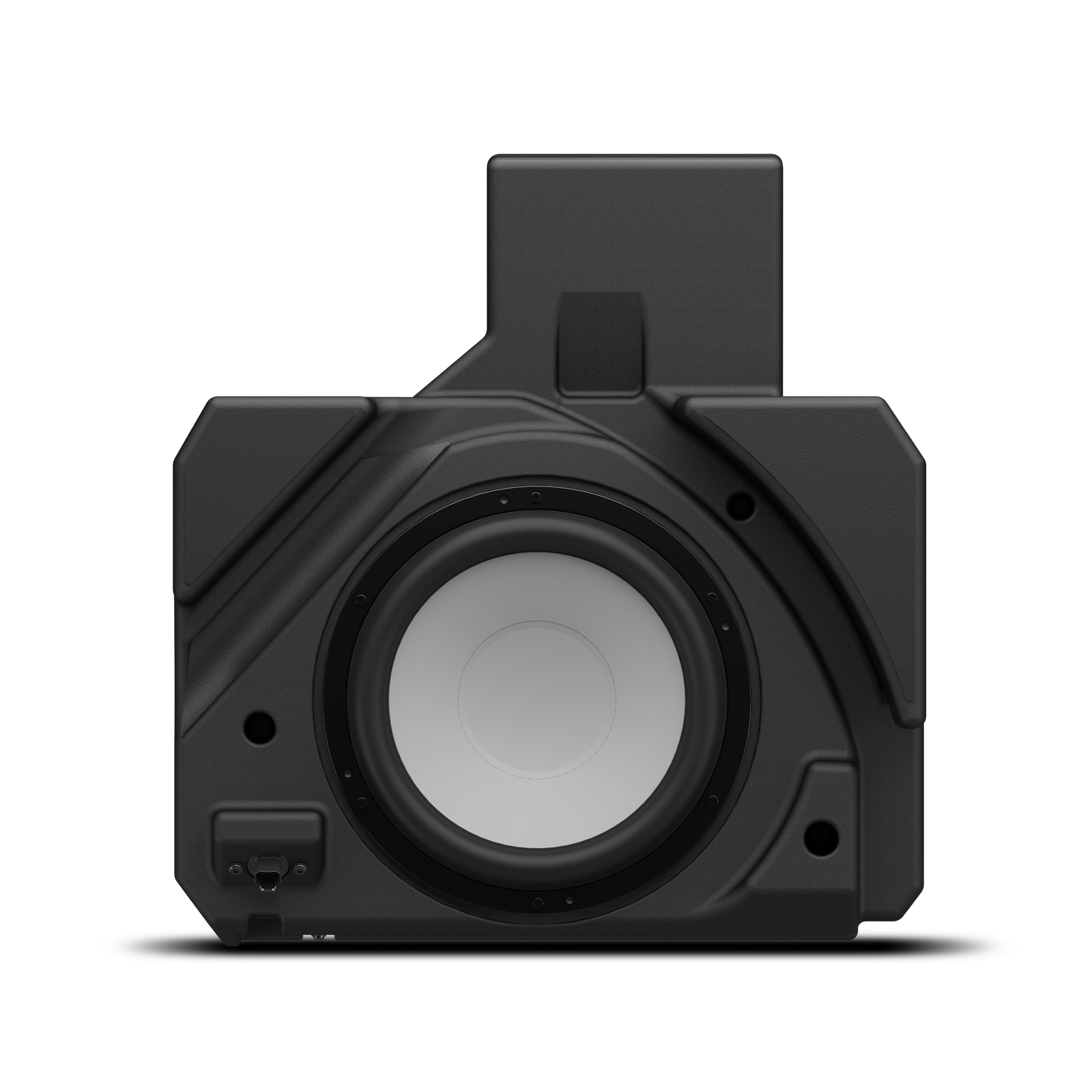

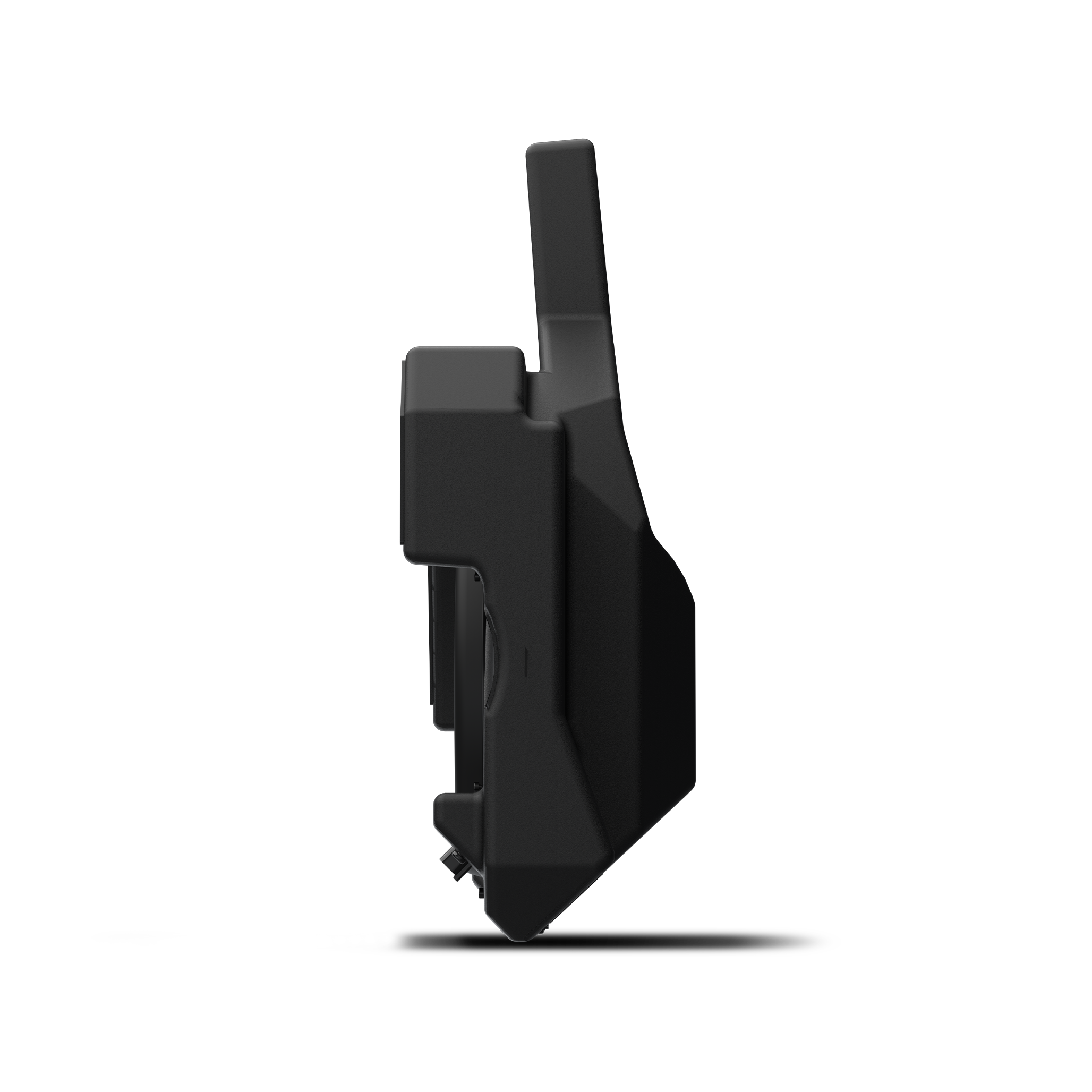

• Custom fit left and right sealed subwoofer enclosures
• Bass upgrade for select Can-Am stage kits
• Vehicle specific wiring harness and mounting plate for amplifier
• Enclosure textured to match factory finish
• Down firing configuration for improved performance

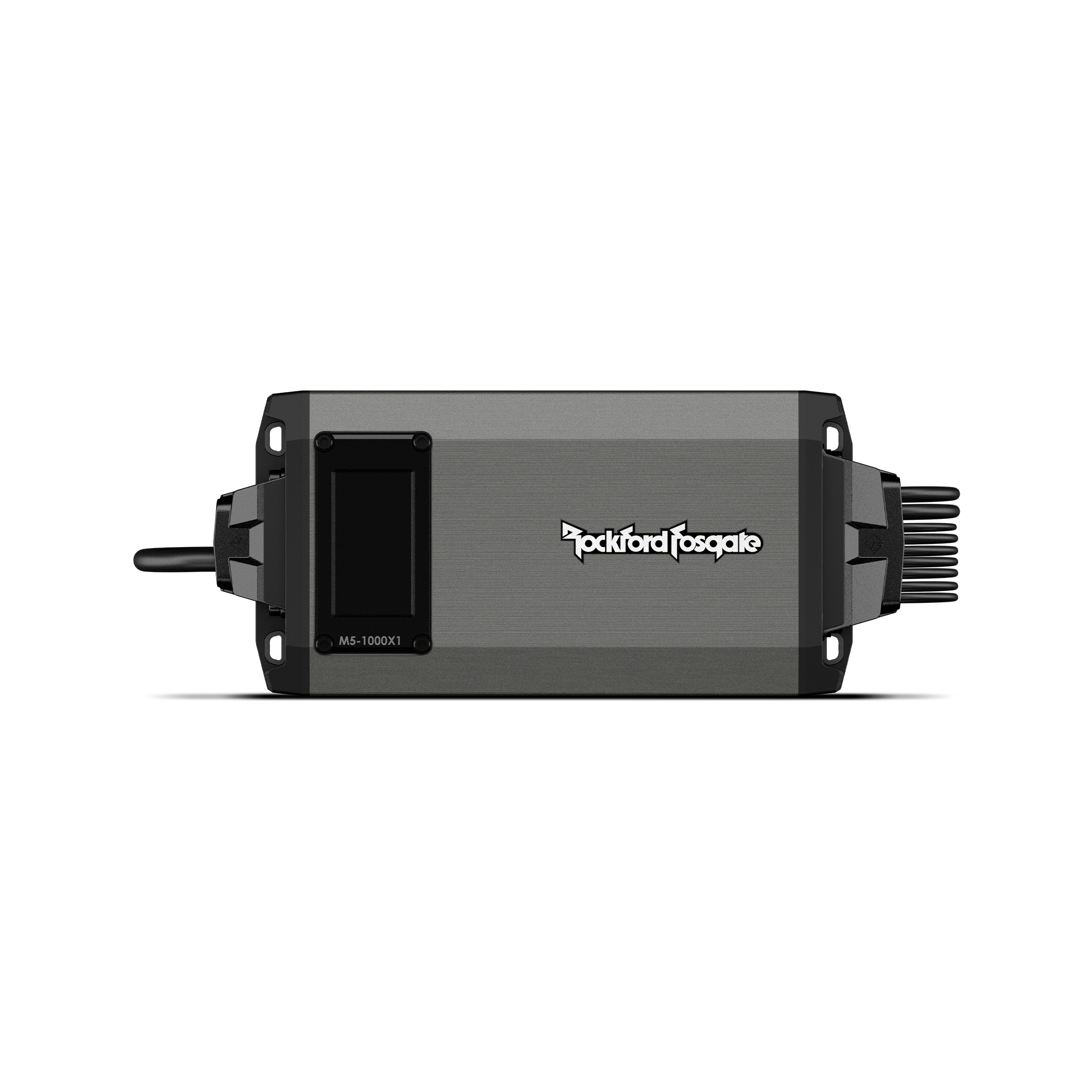

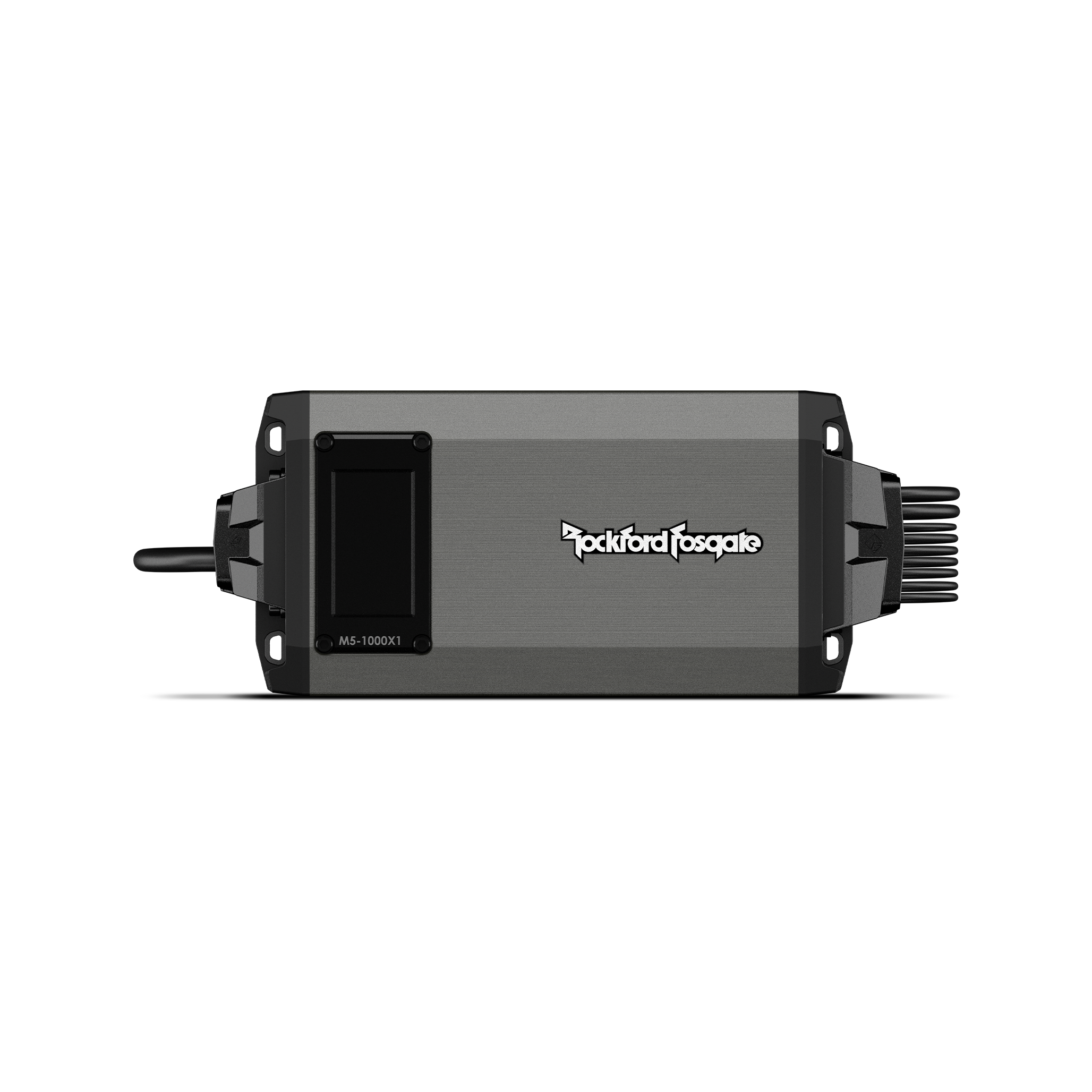

• M5-1000X1: 1,000-watt mono IPX6 Element Ready™ amplifier
• PRESET removes the need to set-up and tune the amp when used with Rockford Fosgate UTV audio kits
• 2-Year Warranty
• Roto-mold design for lightweight and durable seamless construction

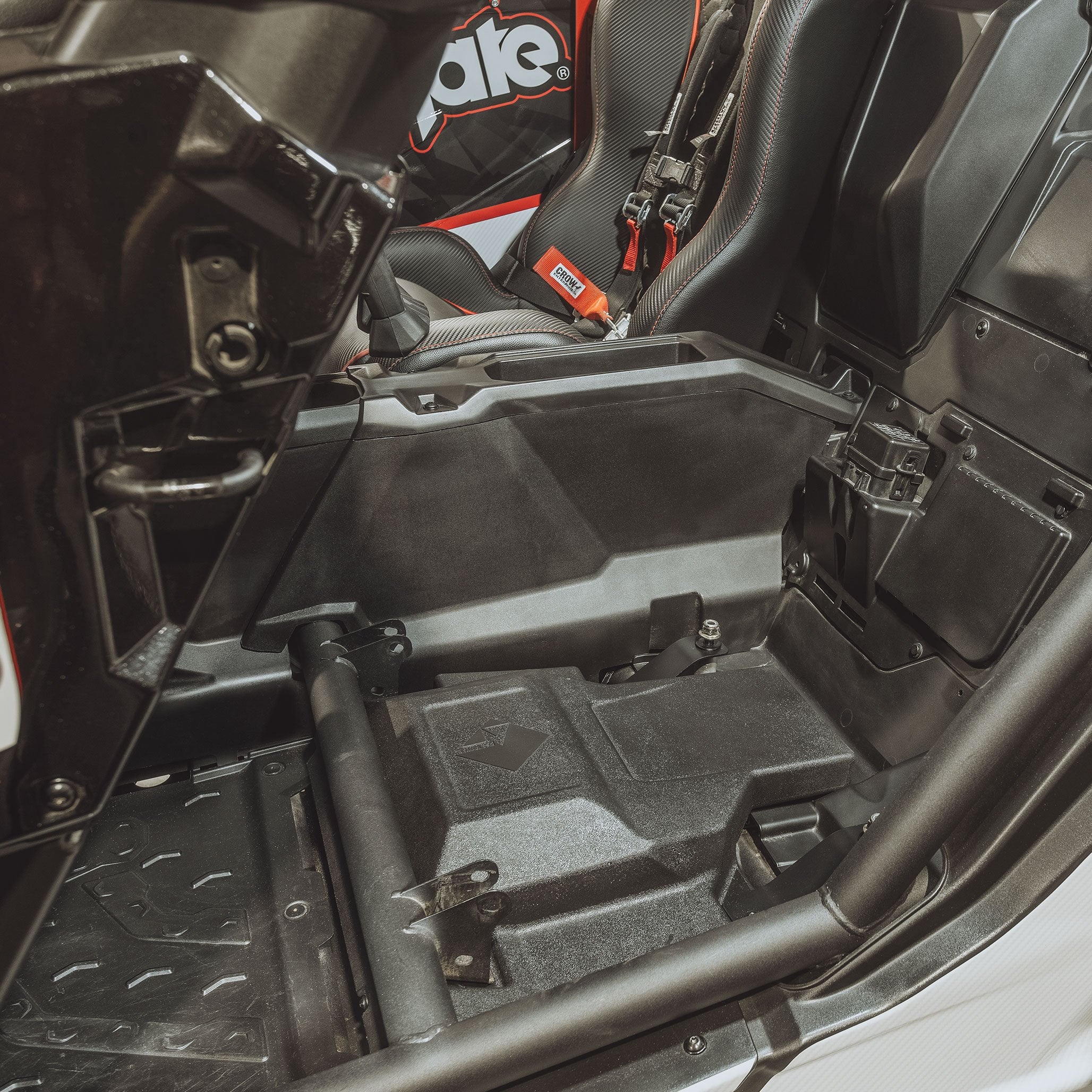

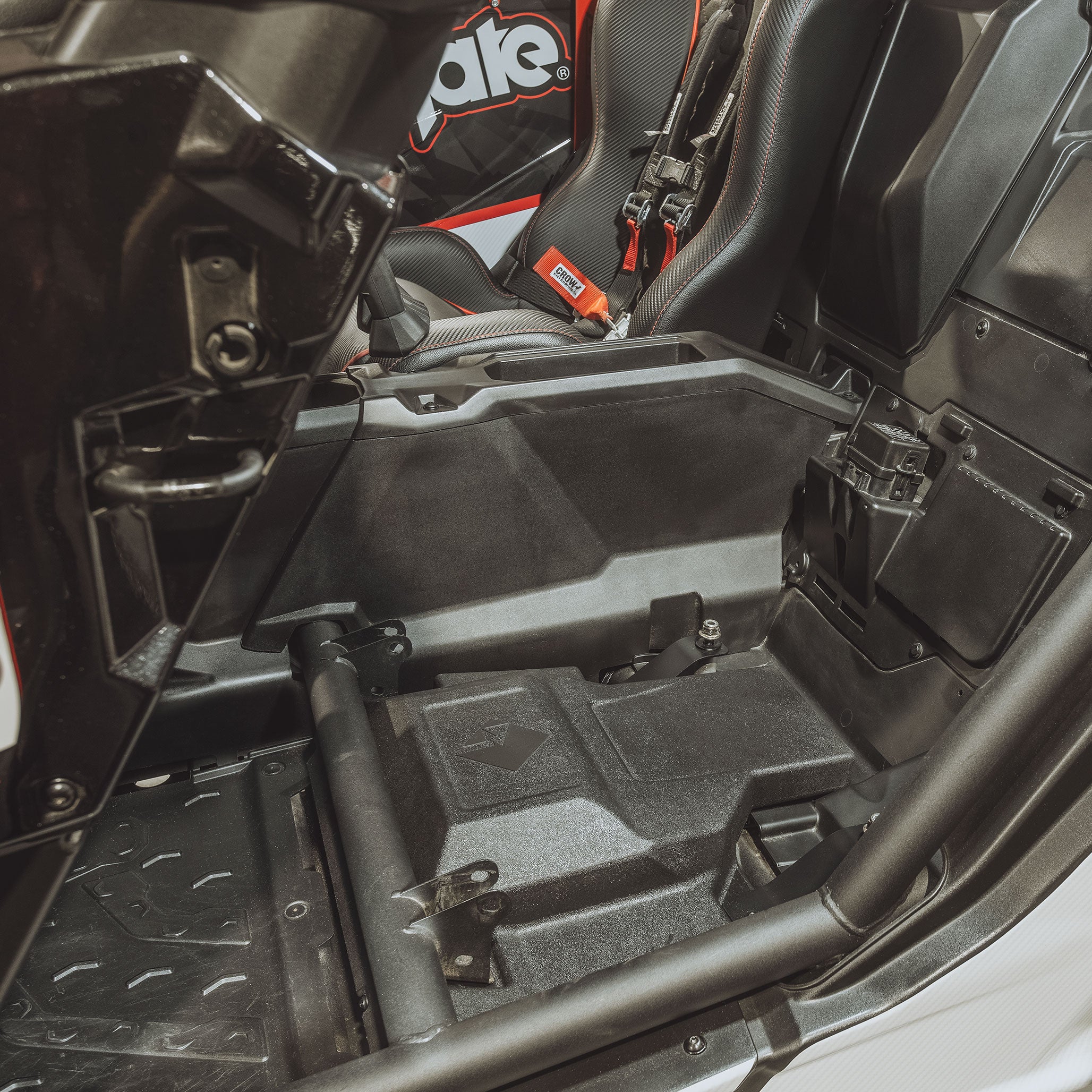

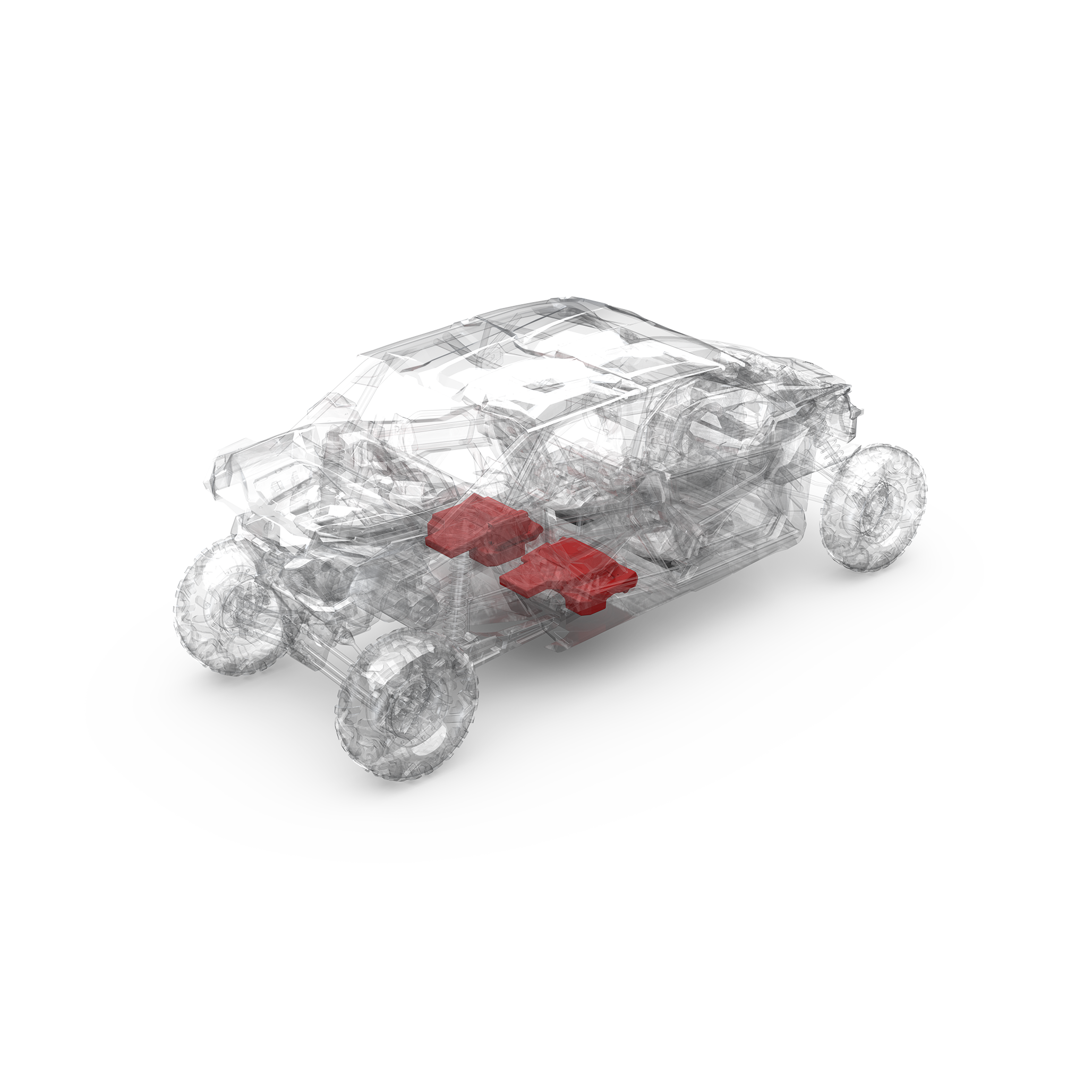

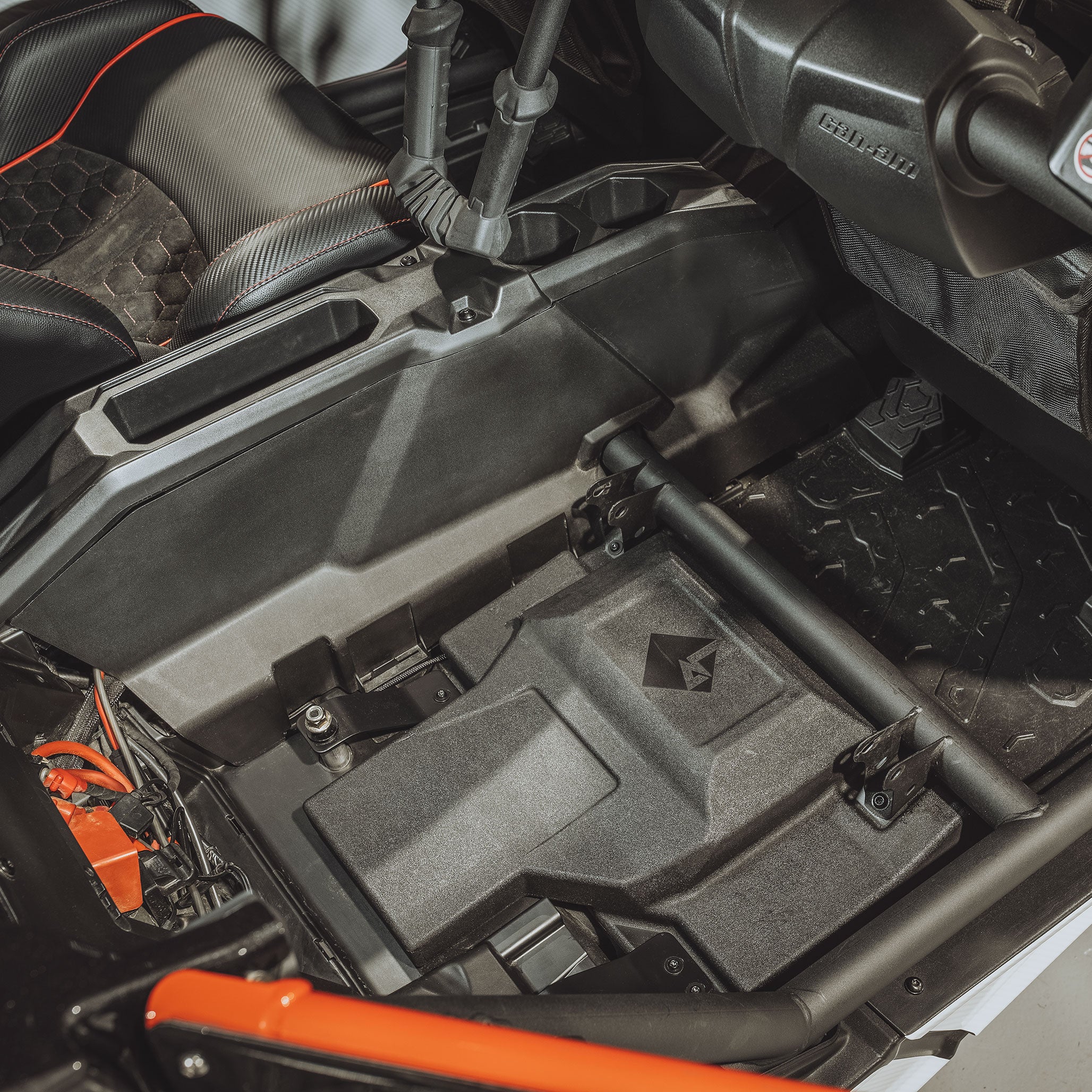

• M2 10” IPX6 Element Ready™ loaded subwoofers in enclosures under rear seats

Technologies

• Maximum Bass Performance: With 1,000 watts of output, the Element Ready™ amplifier and dual subwoofers deliver that next level of off-road bass performance.
• Element Ready™ | Motorsports: All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
• Plug & Play: This product is designed for rapid installation using pre-configured wiring harnesses and quick connect terminals.
• Rockford Factory Fit & Finish: Designed and engineered to Complement the factory fit and finish of your vehicle. These components are purpose-built to the exact specifications to ensure best-in-class fitment and look.

Specifications

CEA-2031 Compliant
Woofer Quantity	2
Woofer Series	M2D2-10IB
Woofer Size	10"
Nominal Impedance (ea)	2Ω (4Ω each enclosure wired in parallel to create a 2Ω amp load)
Frequency Response	20 Hz – 750 Hz
Sensitivity	90.3 dB
Power Handling (Watts RMS)	500 Watts RMS 1,000 Watts Peak
Crossover Type	Infrasonic: 30 Hz @ 12dB/Octave
Enclosure Type	Sealed
Enclosure Material	Roto-molded HDPE
Speaker Connector	2-pin DeutschTM/AmphenolTM

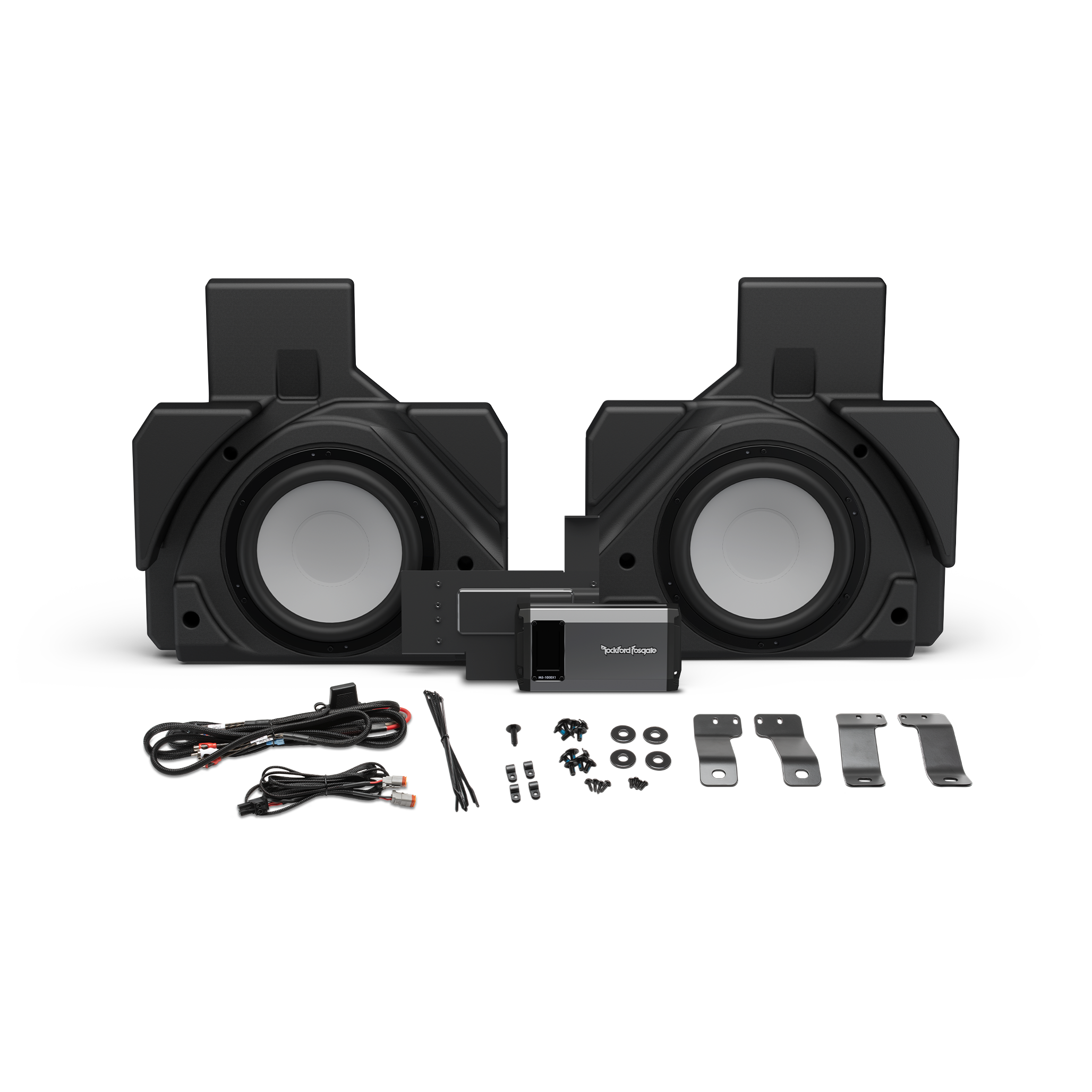

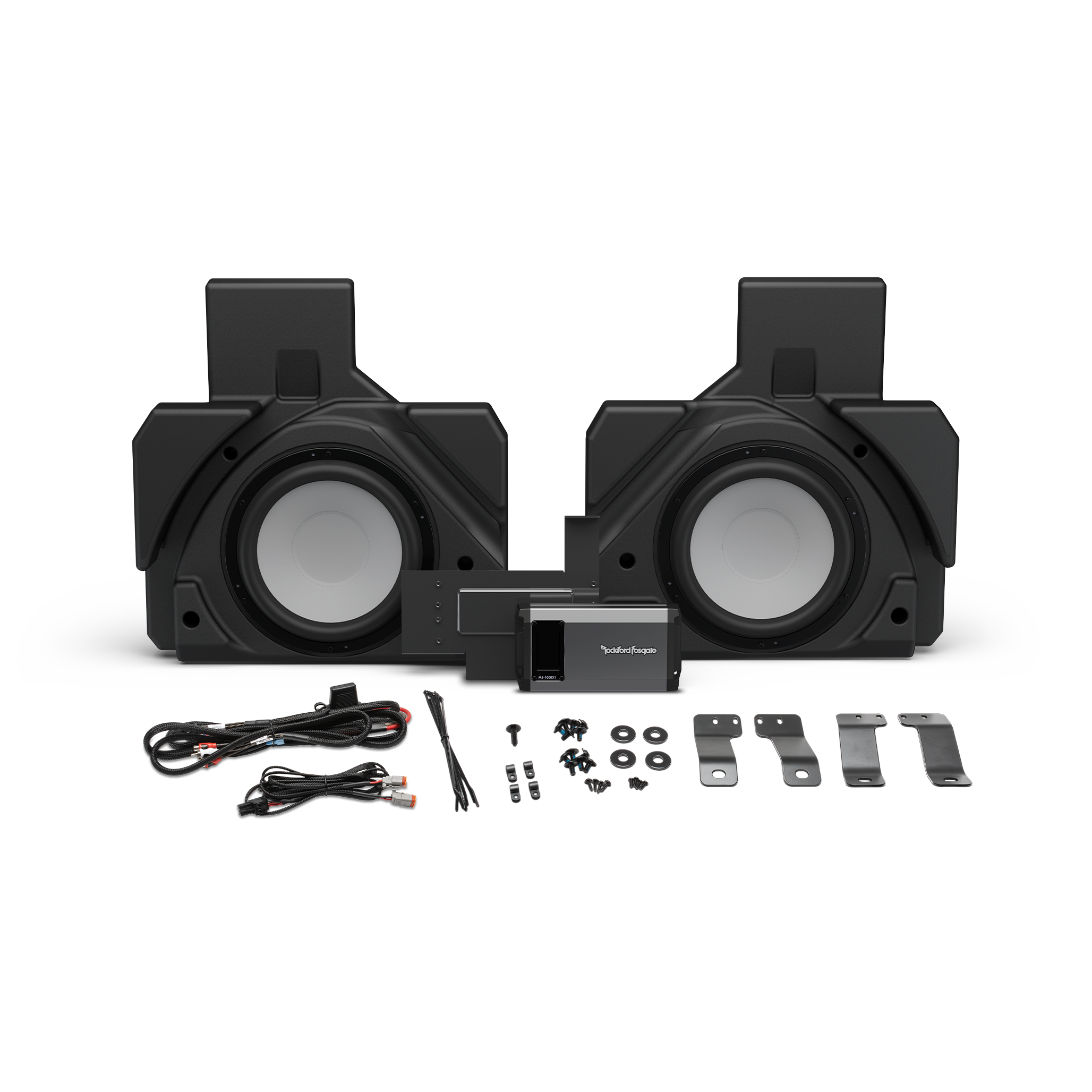

In The Box	(1) M5-1000X1 amplifier (2) 10" pre-loaded subwoofer enclosures (4) Enclosure mounting brackets (4) Spacer washers (12) Bracket and enclosure mounting screws (4) Amp mounting screws (1) Amp plate mounting push clip (1) Amp Bracket (6) Zip ties (1) Enclosure speaker harness (1) Amp power and input signal harness
Dimensions Box (H x W x D) Wedge (H x W x D1 x D2)	19.97” x 18.82” x 8.06” (each enclosure) (608 cm x 573 cm x 245 cm)
Shipping Weight	50 lb (22.67 Kg)

Videos

• X317MAX-RSS | Installation - The installation tutorial covers the aftermarket Rockford Fosgate X317MAX-RSS rear subwoofer solution for select 2017+ Can-Am® MAVERICK X3 MAX models. Verify compatibility before purchase.
