Product Overview
Dual 8” + Dual 4” Tweeter Ported Voceteo Enclosure | Speakon-Ready

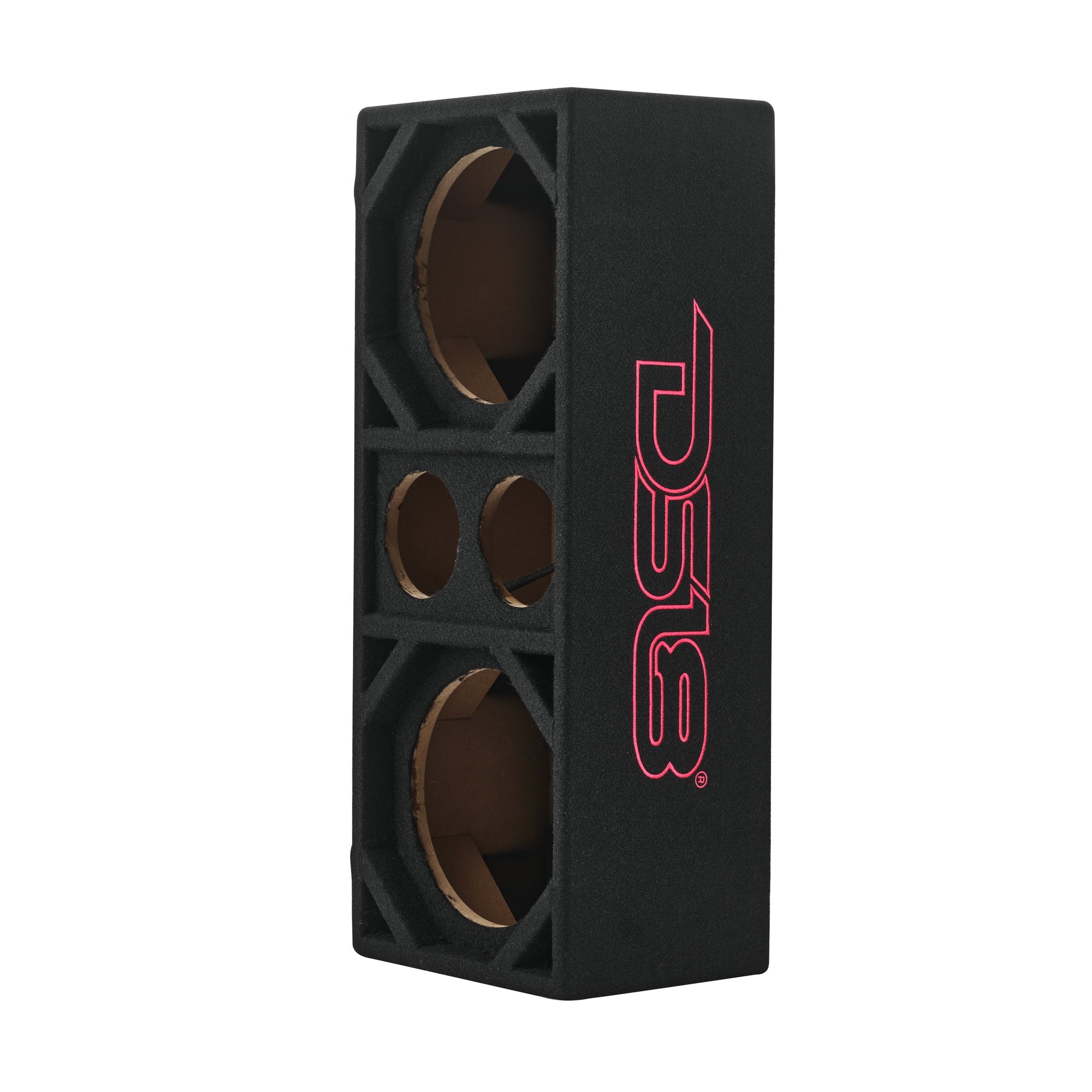

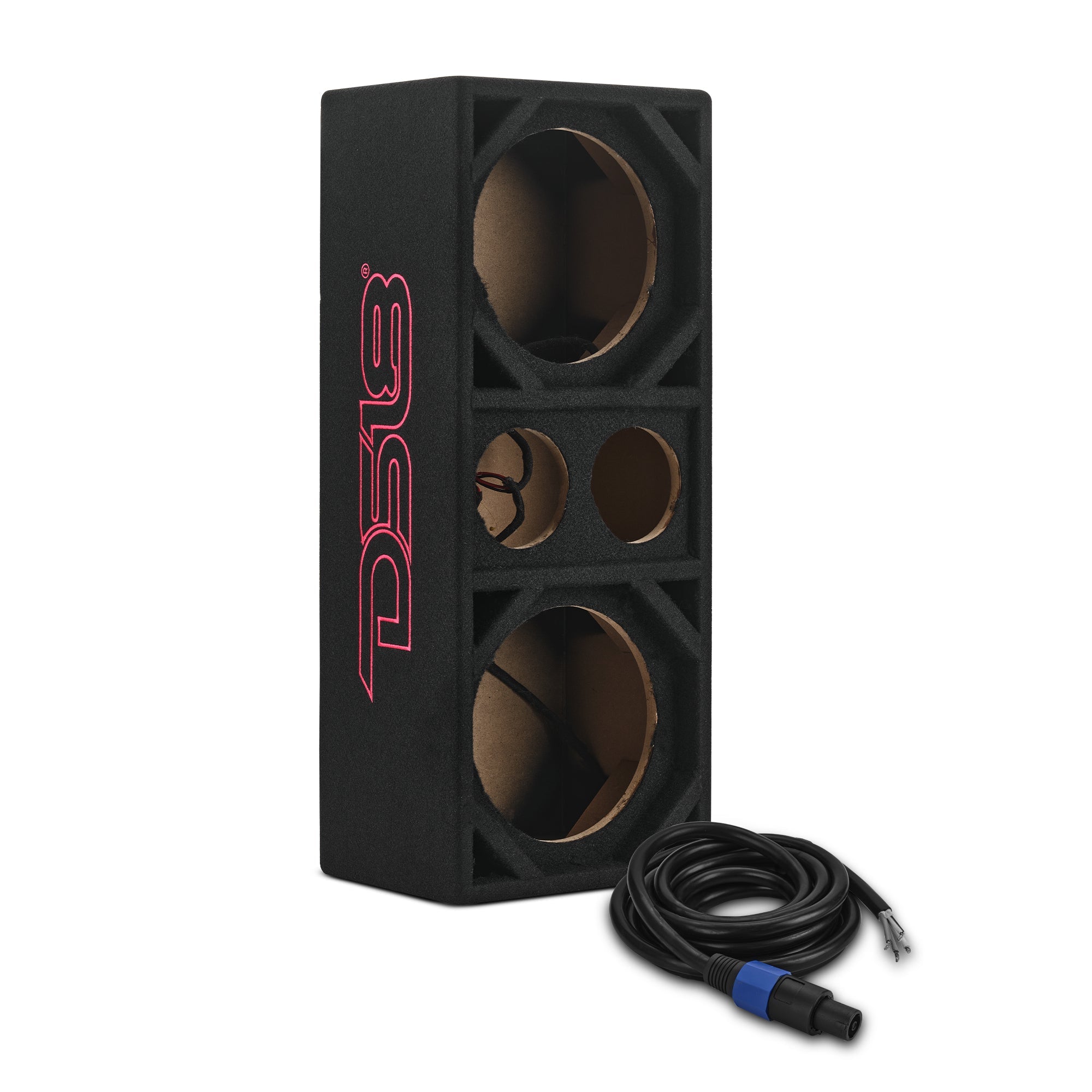

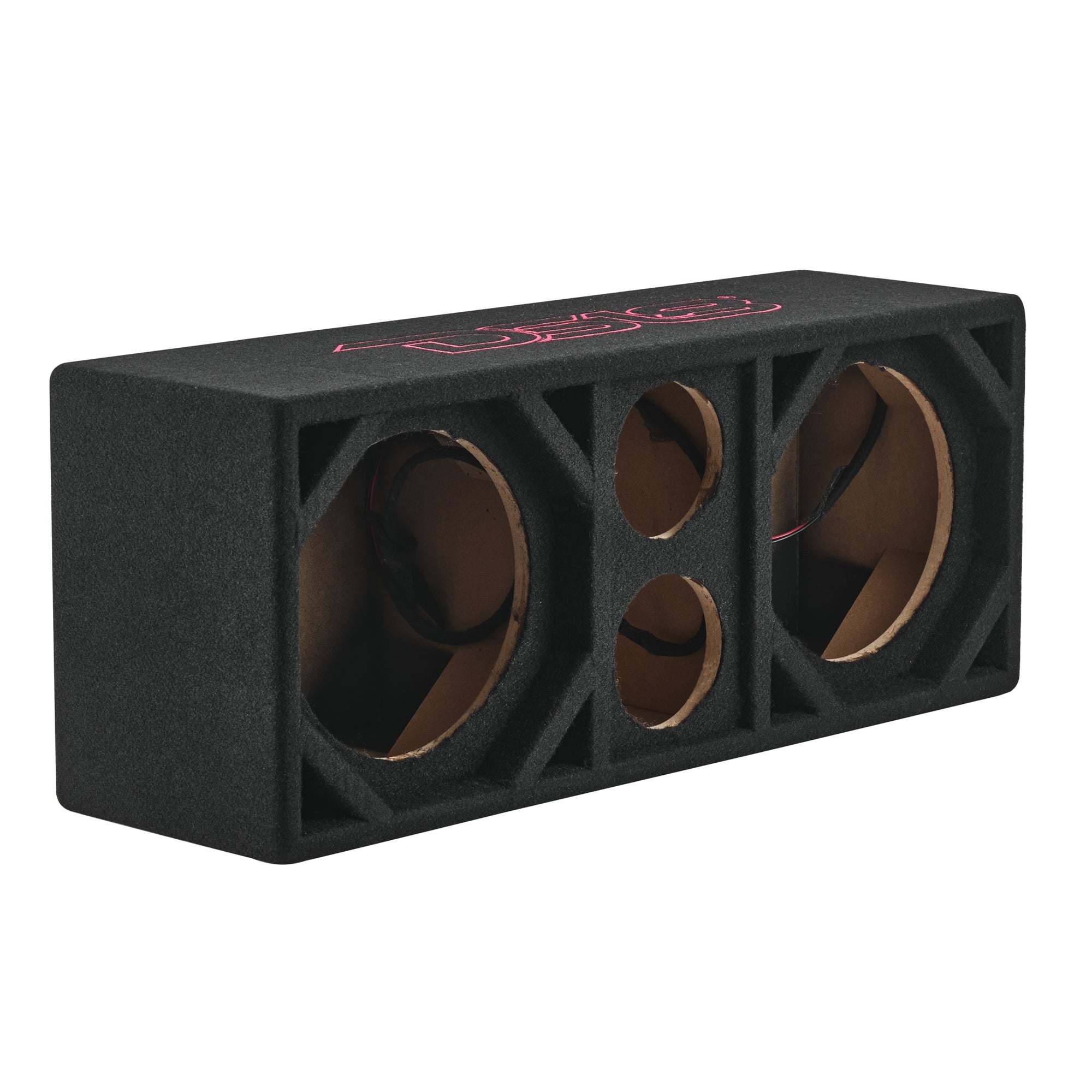

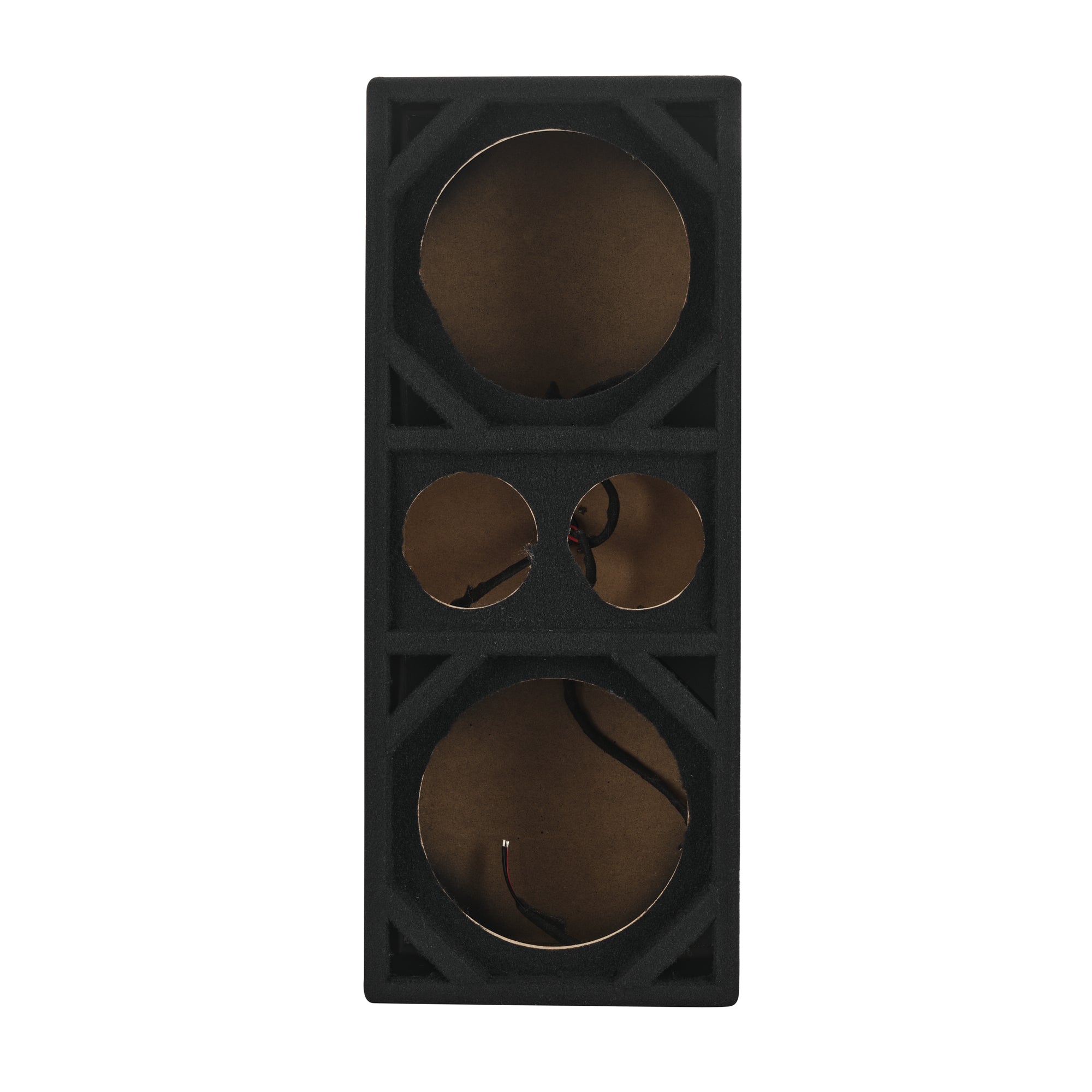

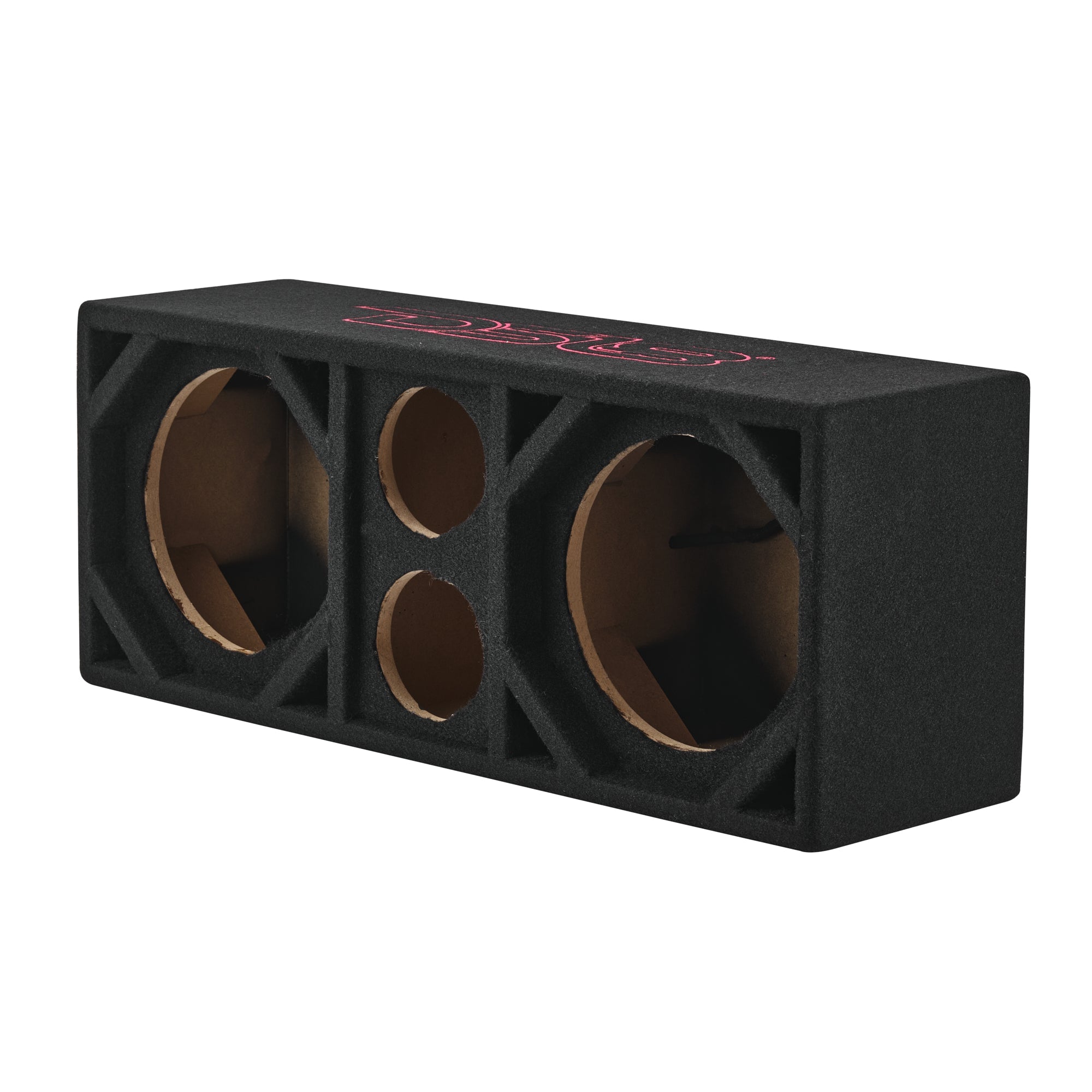

DS18’s VOC8PRO is a compact, ported enclosure engineered to deliver ultra-clear vocals and highs in any build. Designed to house two 8” midrange speakers and two 4” tweeters, this ported enclosure is perfect for vocal-heavy setups where space is limited but volume can’t be compromised.
Designed for Easy Wiring

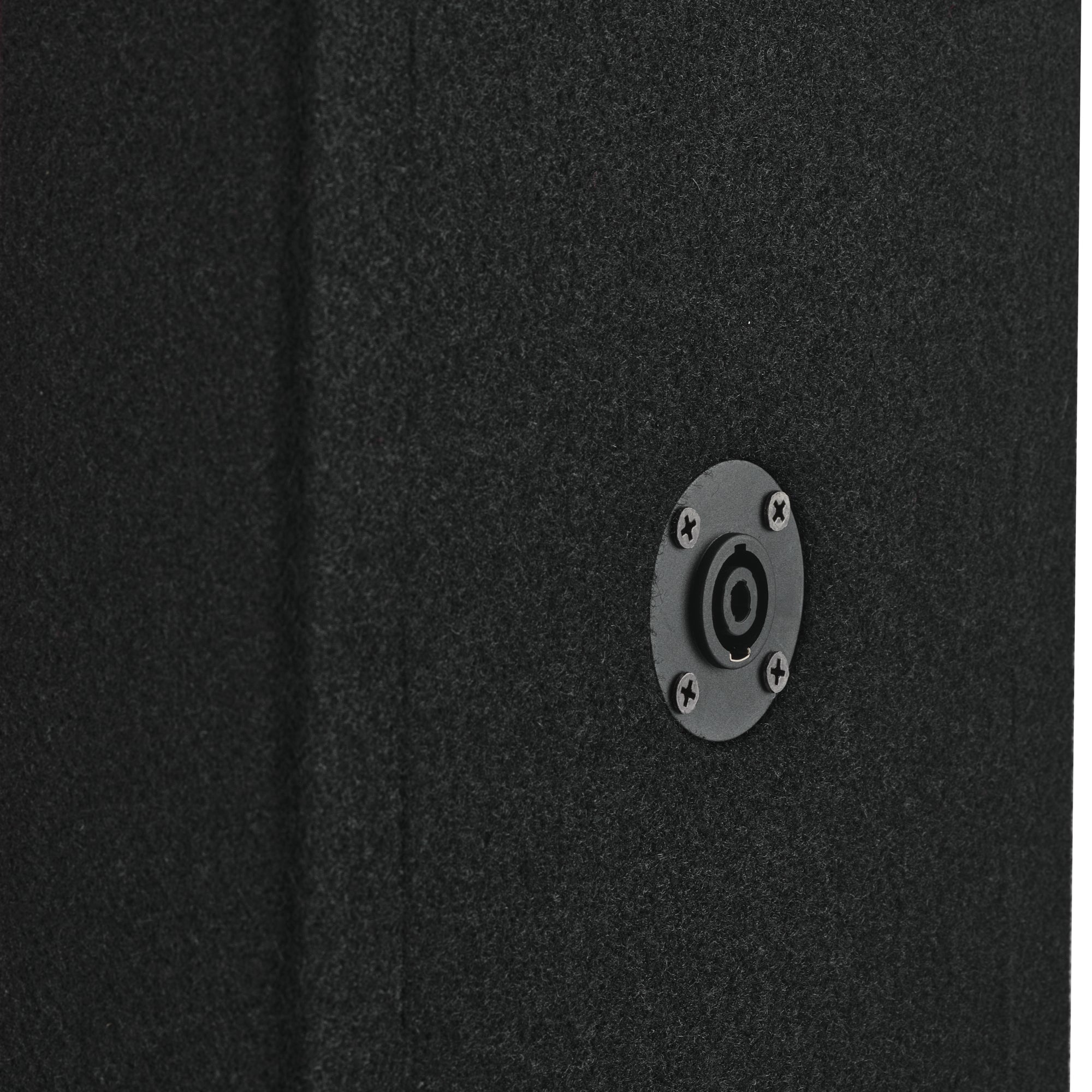

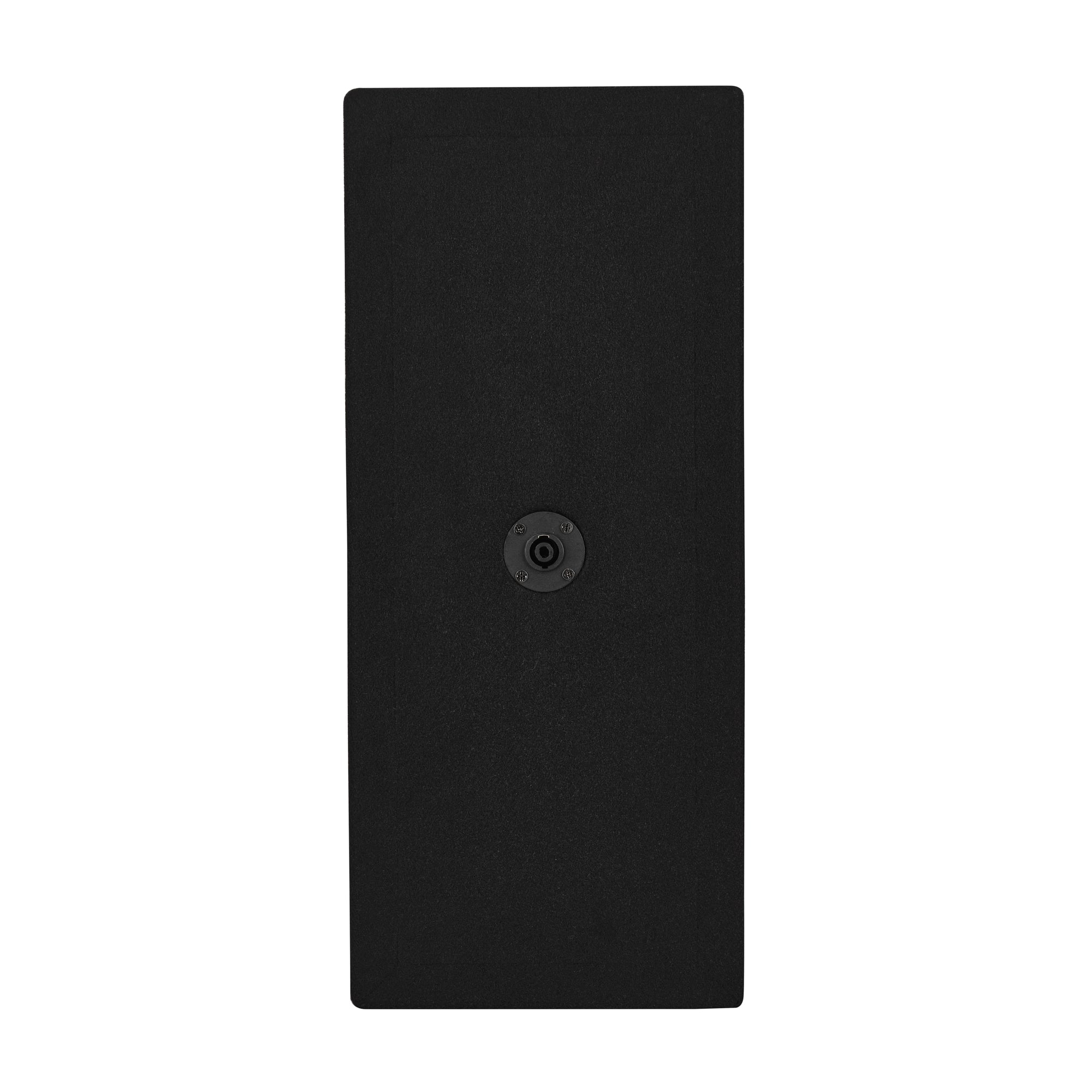

With a built-in Speakon terminal and included 12ft OFC Speakon cable, the VOC8PRO lets you plug and play straight into your amp system. The midrange drivers are wired in parallel, while the tweeters are connected in series—a setup optimized for consistent power handling and frequency response.
Lightweight, Loud, and Ready to Mount
Constructed from ½” MDF and wrapped in black carpet, this box is lightweight but tough enough for mobile or static sound systems. The internal volume of 0.648 ft³ ensures your mids perform with clarity, while the ported design enhances projection.
Key Features
- Fits: 2 x 8” Midrange Speakers
- Fits: 2 x 4” Tweeters
- Enclosure Type: Ported
- Material: ½” MDF with Black Carpet

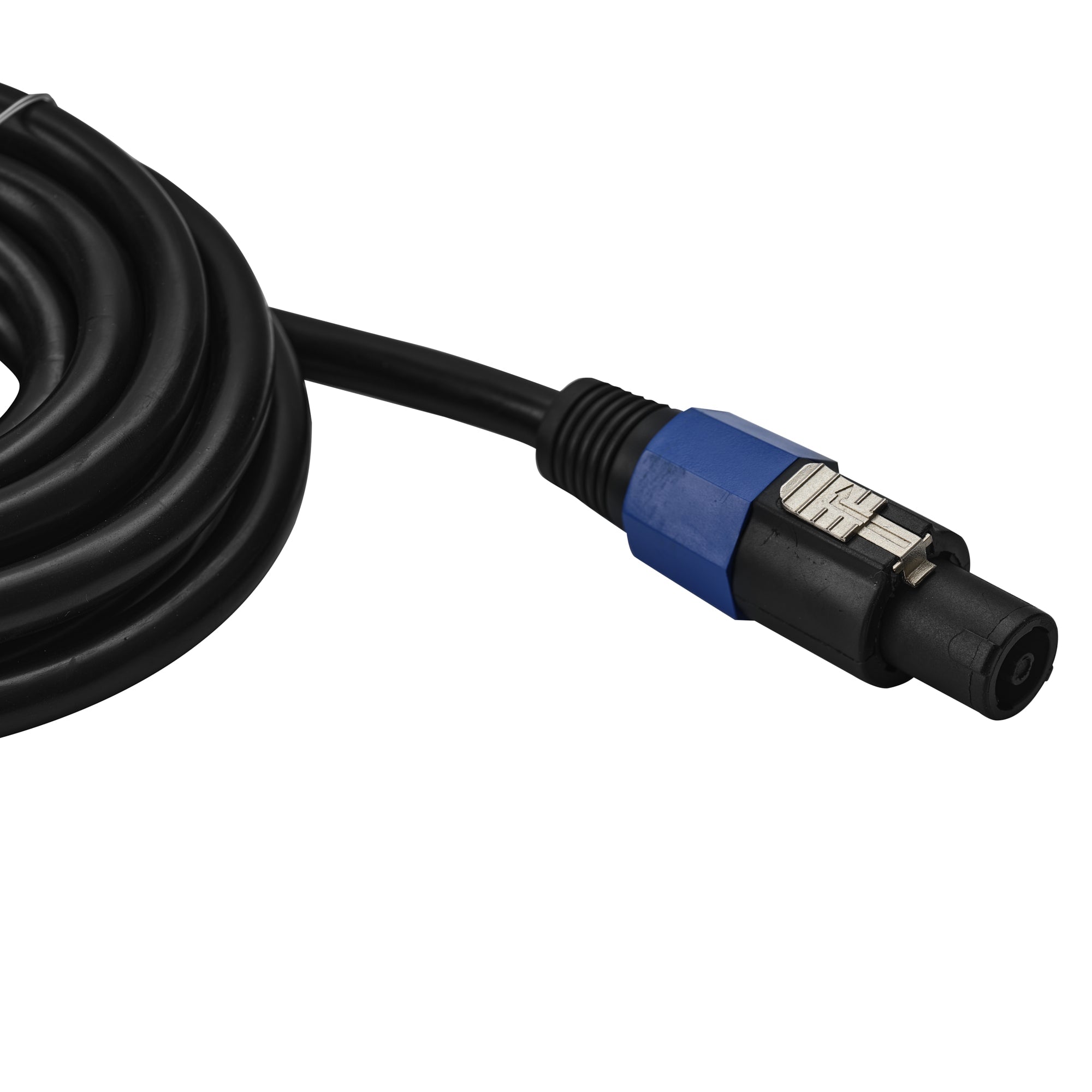

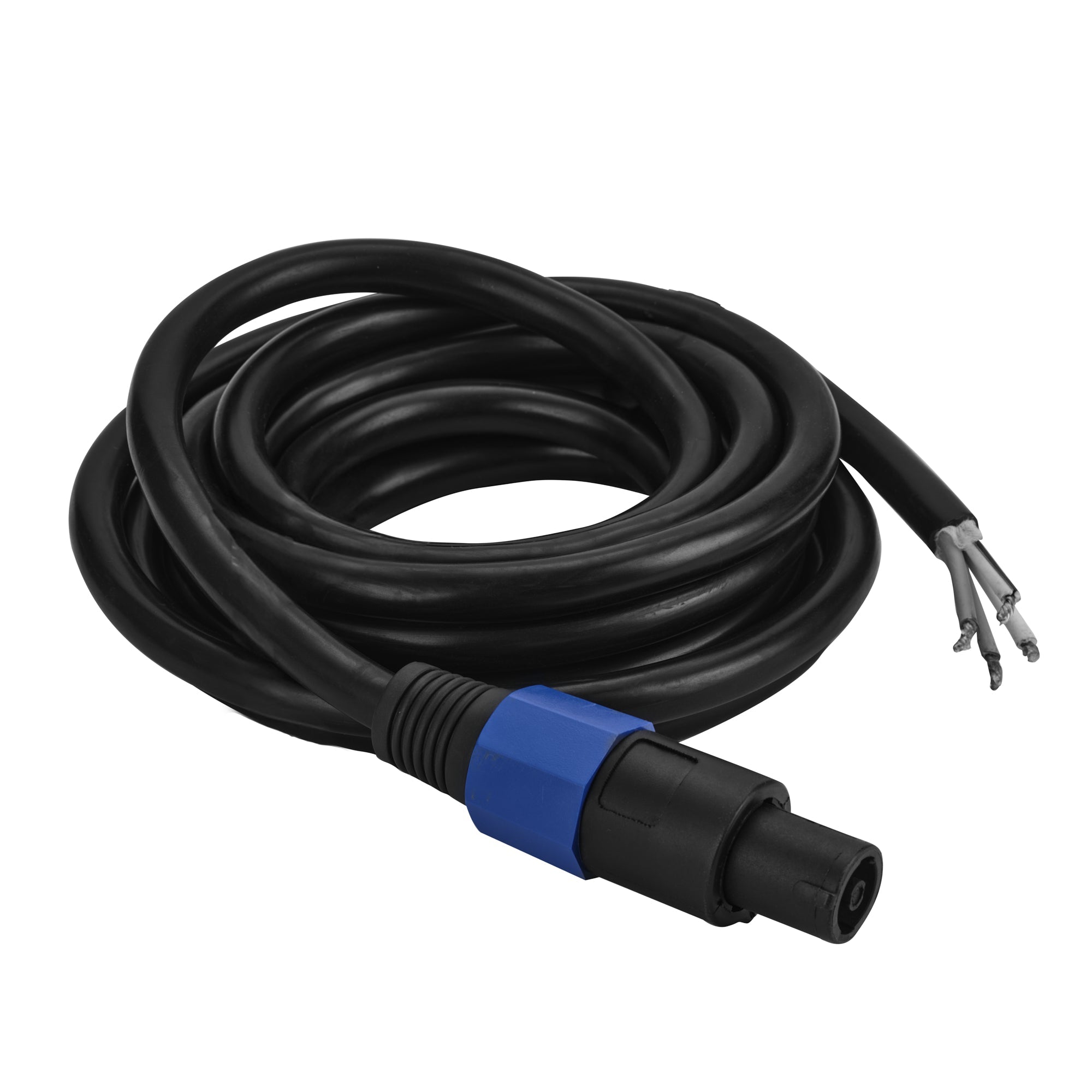

- Includes: Speakon terminal + 12ft OFC 4-conductor Speakon cable
Specifications
| Fits | 2 x 8” Midrange Speakers (Mount Depth: 4.75”) 2 x 4” Tweeters (Mount Depth: 5.5”) |
|---|---|
| Internal Volume | 8.36L / 0.648ft3 |
| Load Configuration | WF: Parallel ~ TW: Series |
| Enclosure Type | Ported |
| Enclosure Material | 1/2" / 15mm MDF |
| Finish Material | Black Carpet |
| Height | 25" / 625mm |
| Width | 9.8" / 250mm |
| Depth | 7.5" / 190mm |
| Speaker Front Mount Baffle Cutout | 7.3" / 185mm |
| Speaker Mounting Depth | 4.75" / 121mm |
| Tweeter Front Mount Baffle Cutout | 3.6" / 91mm |
| Tweeter Mounting Depth | 5.5" / 140mm |
| Type | Speakon (Male) |
| Total Length | 12ft / 3.6m |
| Conductor Material | Copper (OFC) |
| Number of Conductors | 4 |
| Gauge | 14 AWG |
| Nominal Outside Diameter | 8mm |
| Cable Construction Type | Stranded / Multi-Twist |
| Shield Material / Color | PVC / Black |
