Product Overview

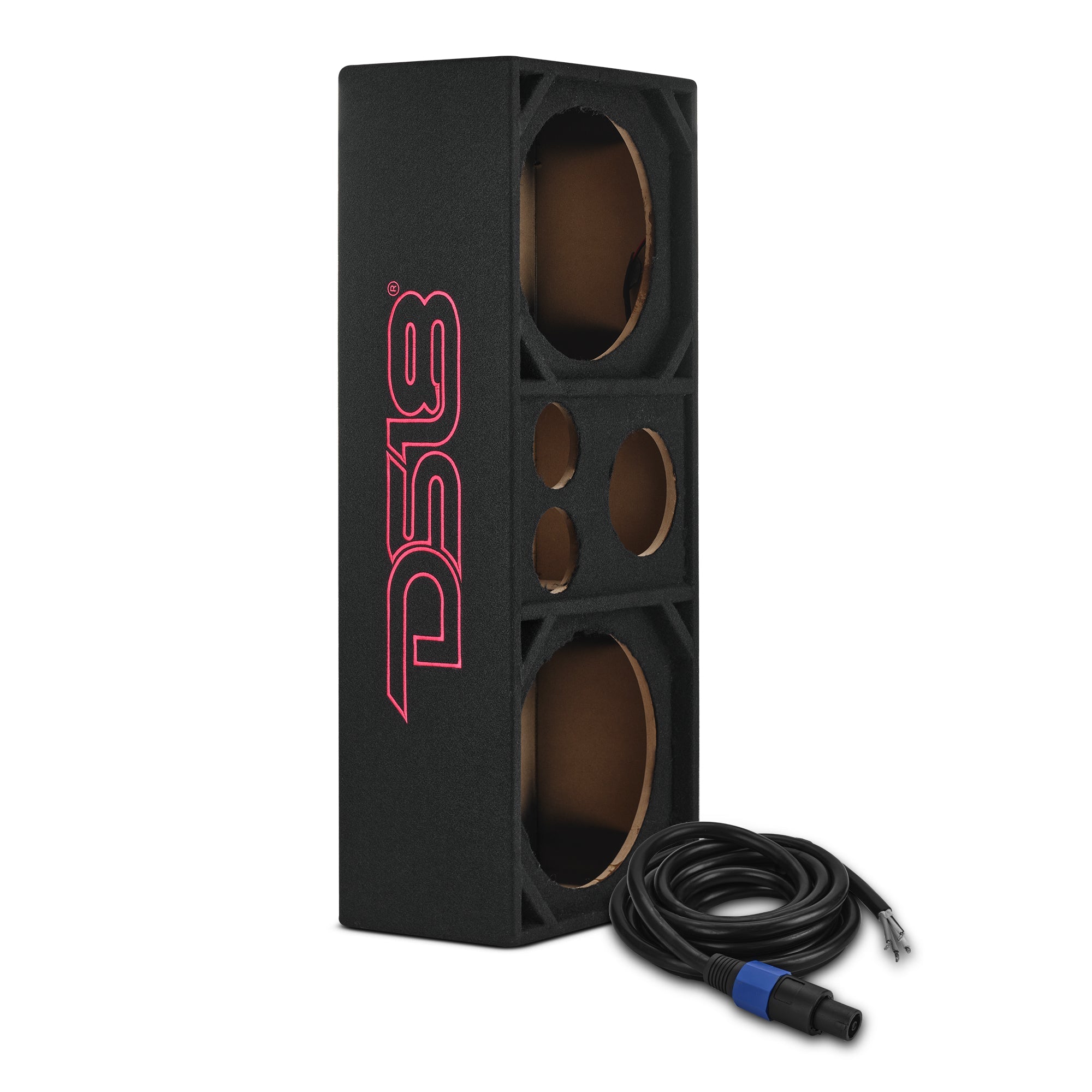

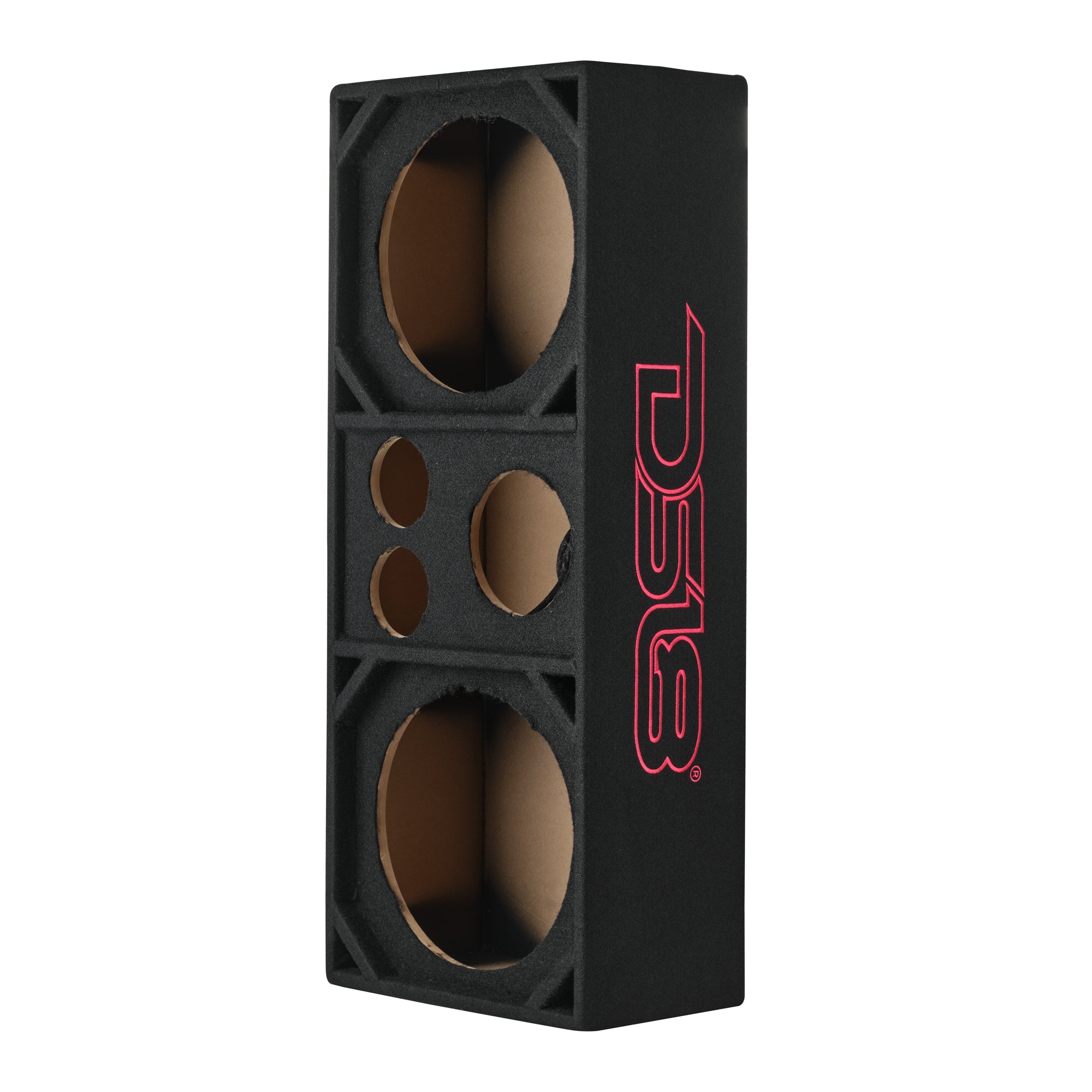

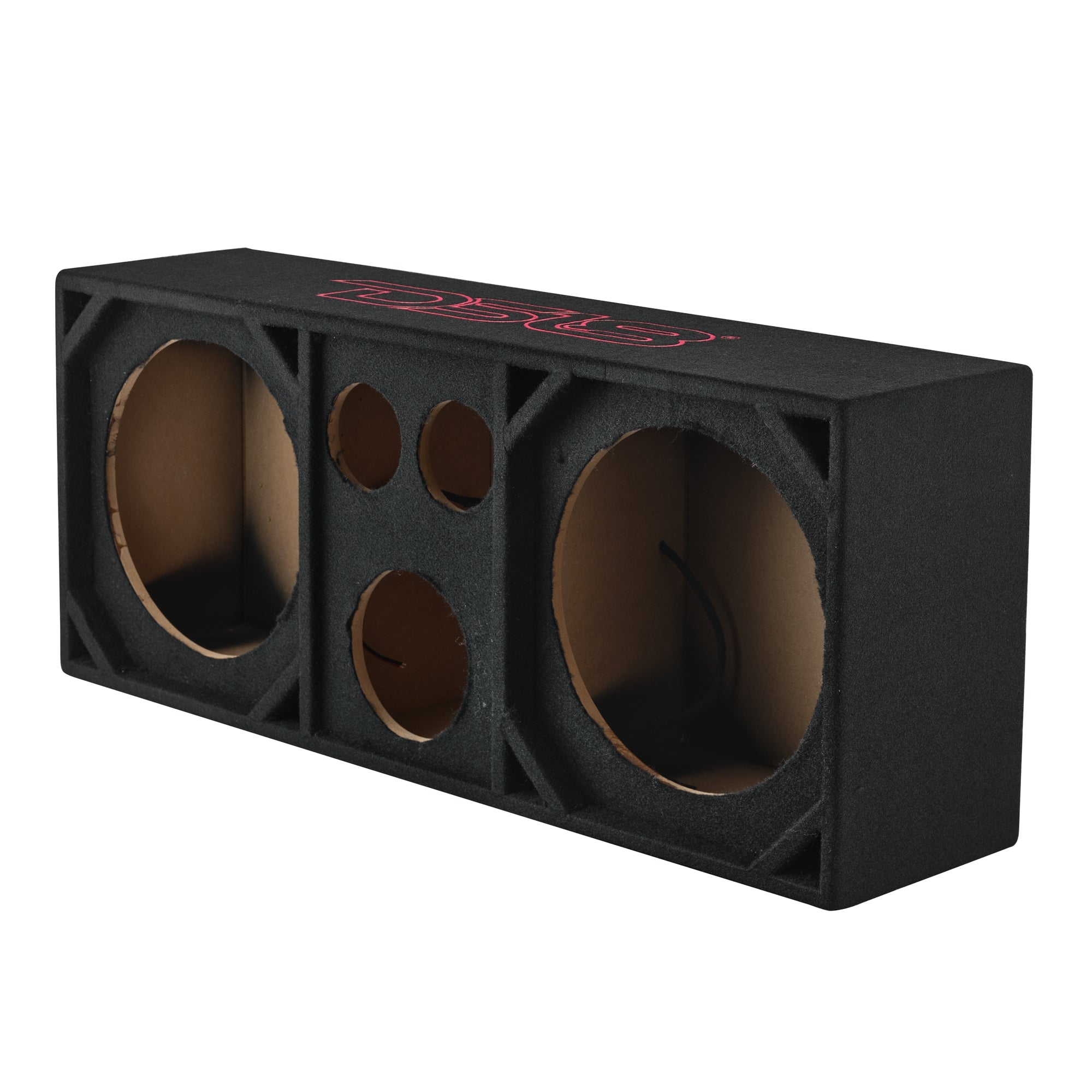

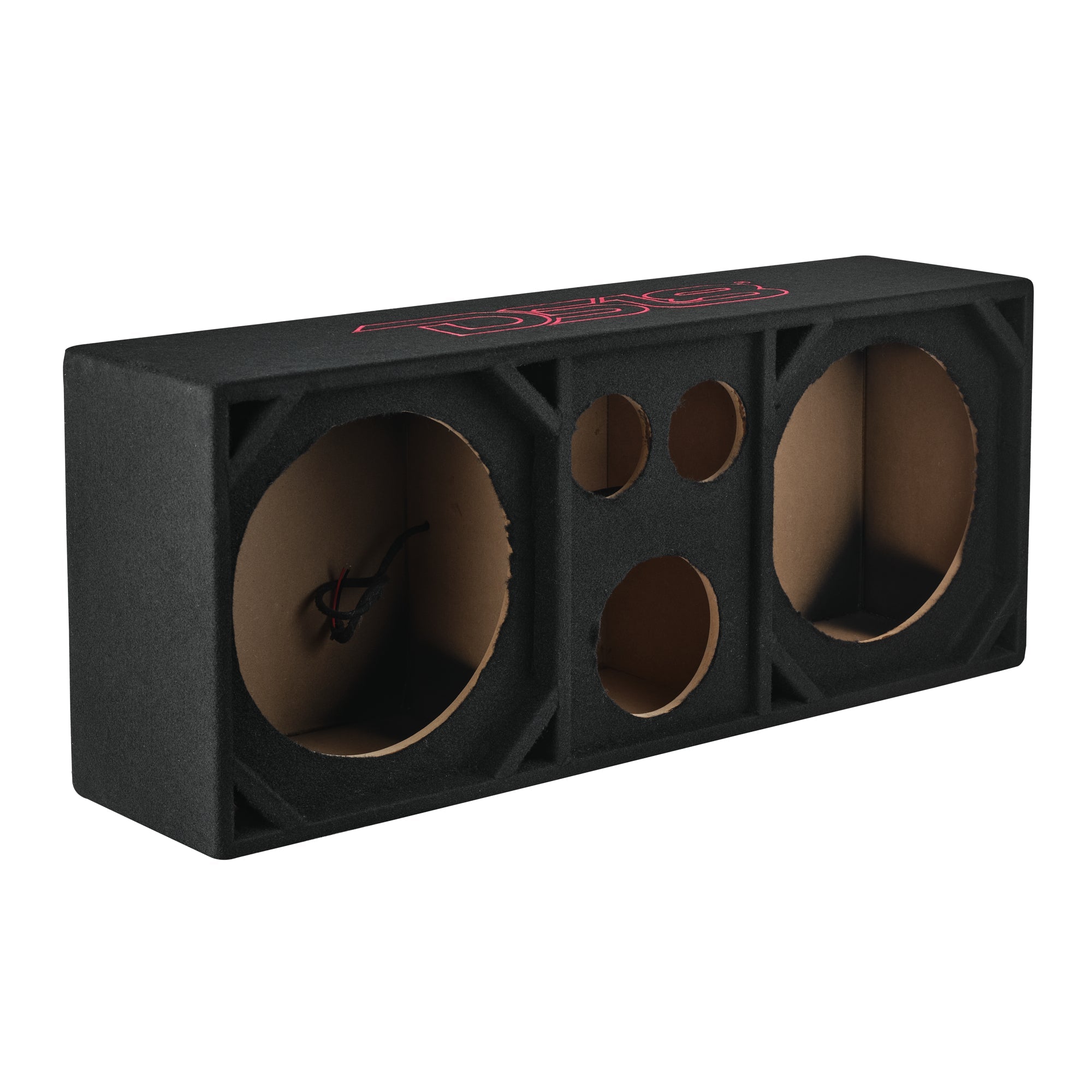

DS18 VOC12PRO
Dual 12” + Dual 4” Tweeter + 2” Driver Ported Voceteo Enclosure | Speakon-Ready
The VOC12PRO is the heavyweight in DS18’s voceteo enclosure line—made to hold dual 12” mid-bass speakers, two 4” tweeters, and a 2” compression driver for full-spectrum vocal power. If you're building for distance and clarity, this box brings the noise.
Built for the Streets

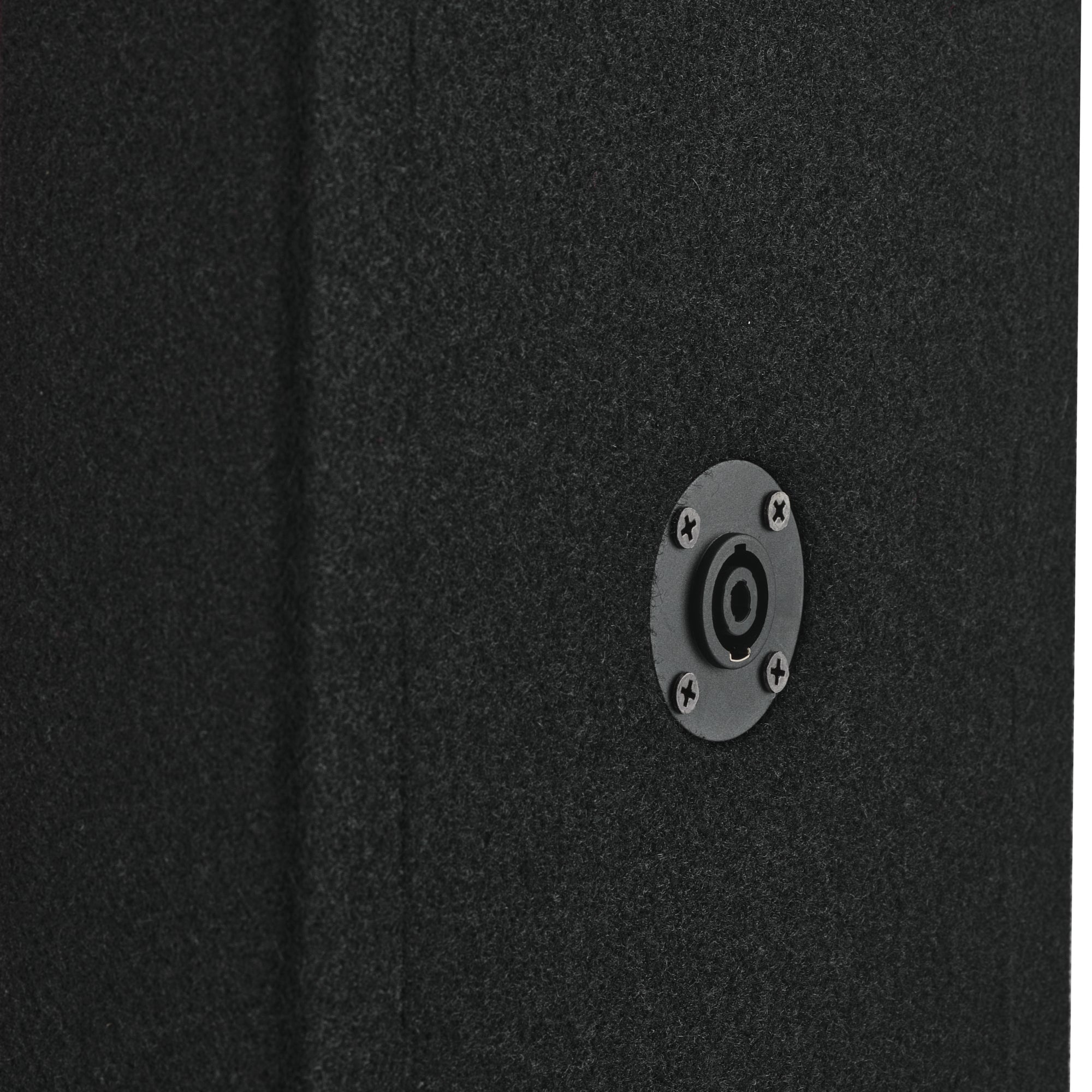

With 1.89 ft³ of internal airspace, the ported design provides powerful mid-bass punch while keeping highs crystal clear. The enclosure comes pre-wired and Speakon-ready, with midrange speakers in parallel, and tweeter/driver in a series-parallel configuration for balanced load and output.
Built To Last
Crafted from ½” MDF and finished in durable black carpet, the VOC12PRO is made to take abuse from transport, vibration, and output pressure. Add it to a custom mobile setup or static stage build for unmatched performance.
Key Features
- Fits: 2 x 12" Midrange Speakers
- Fits: 2 x 4" Tweeters
- Fits: 1 x 2" Driver
- Enclosure Type: Ported
- Material: ½” MDF with Black Carpet

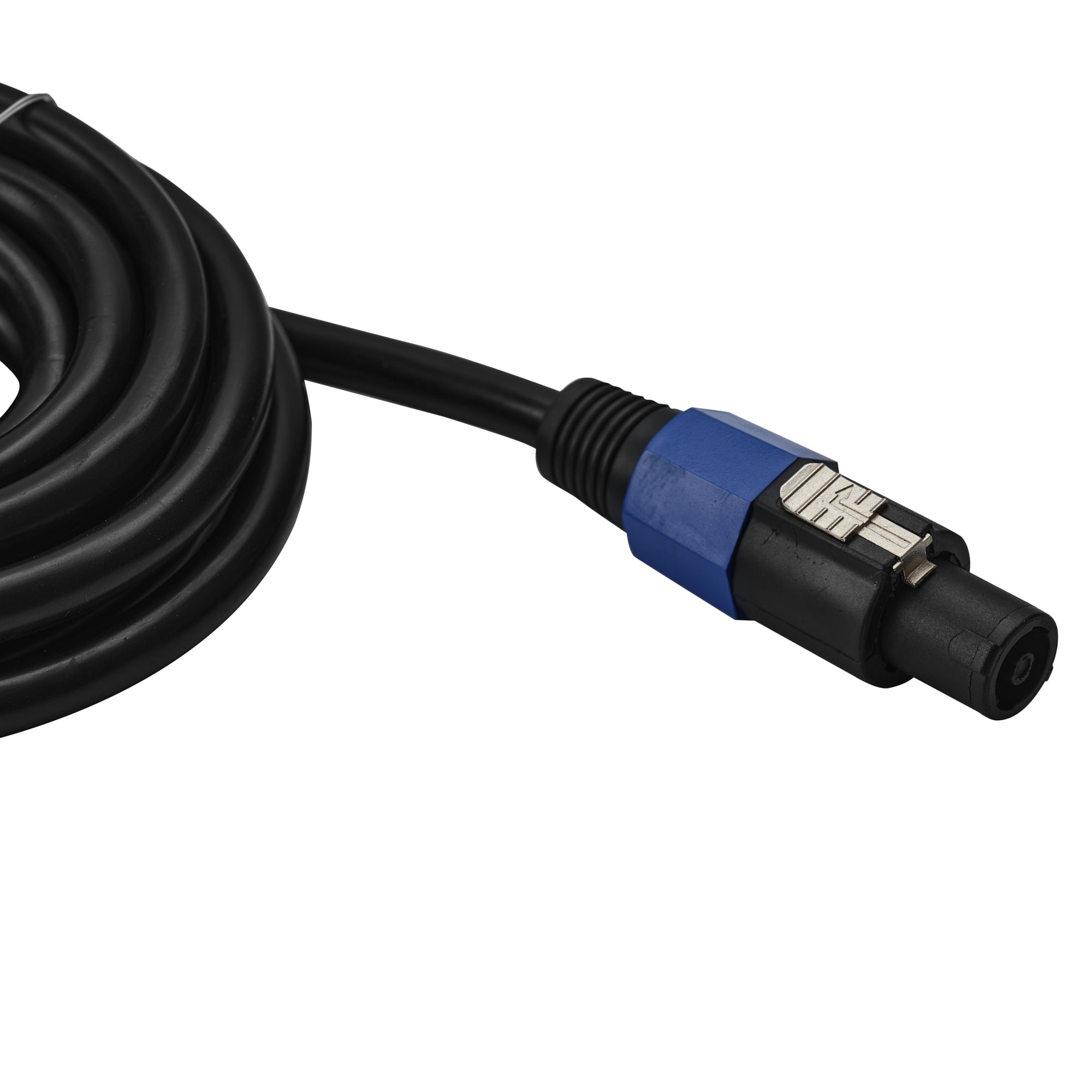

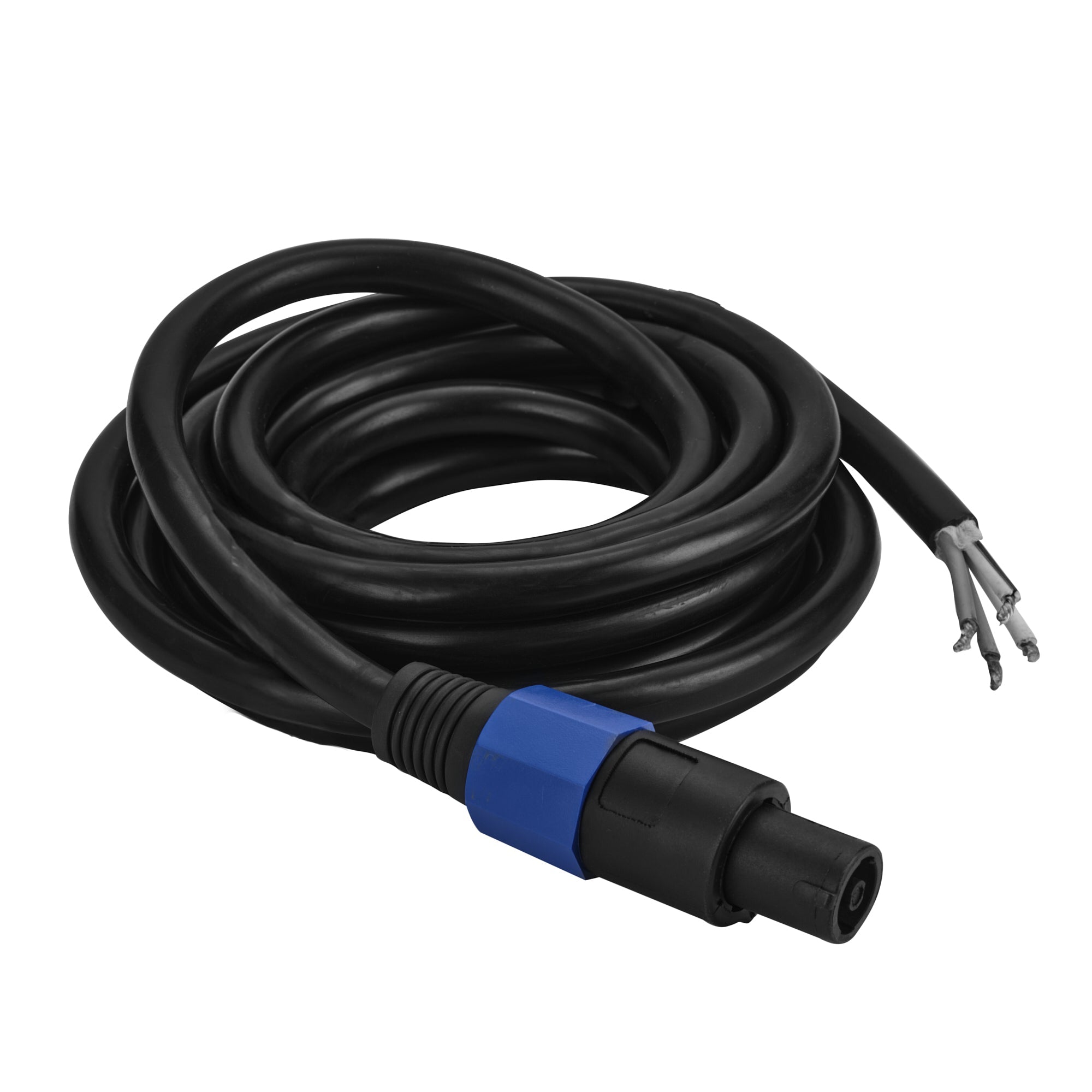

- Includes: Speakon terminal + 12ft OFC 4-conductor Speakon cable
Specifications
| Internal Volume | 53.56L / 1.89ft3 |
|---|---|
| Load Configuration | WF - Parallel / TW-DR - Series/Parallel |
| Enclosure Type | Ported |
| Enclosure Material | 1/2" (15mm) MDF |
| Finish Material | Black Carpet |
| Height | 36" / 920mm |
| Width | 15" / 375mm |
| Depth | 9"" / 225mm |

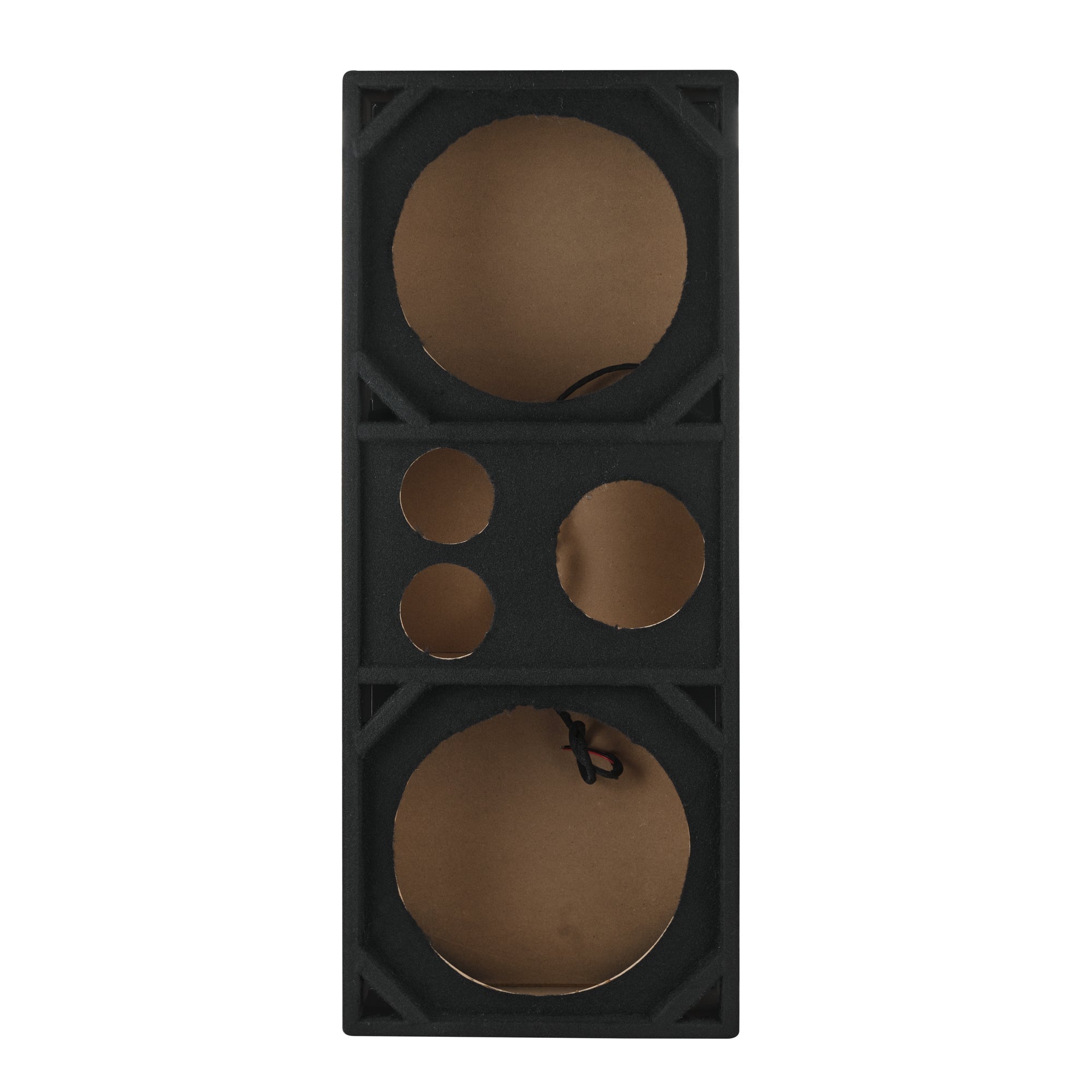

| Speaker Front Mount Baffle Cutout | 11" / 279mm |
| Speaker Mounting Depth | 5.75" / 146mm |
| Tweeter Front Mount Baffle Cutout | 3.6" / 91mm |
| Tweeter Mounting Depth | 6.25" / 159mm |
| Driver Front Mount Baffle Cutout | 5.7" / 145mm |
| Driver Mounting Depth | 6.25" / 160mm |
| Type | Speakon (Male) |
| Total Length | 12ft / 3.6m |
| Conductor Material | Copper (OFC) |
| Number of Conductors | 4 |
| Gauge | 14 AWG |
| Nominal Outside Diameter | 8mm |
| Cable Construction Type | Stranded / Multi-Twist |
| Shield Material / Color | PVC / Black |
