Product Overview
DS18 VOC10PRO

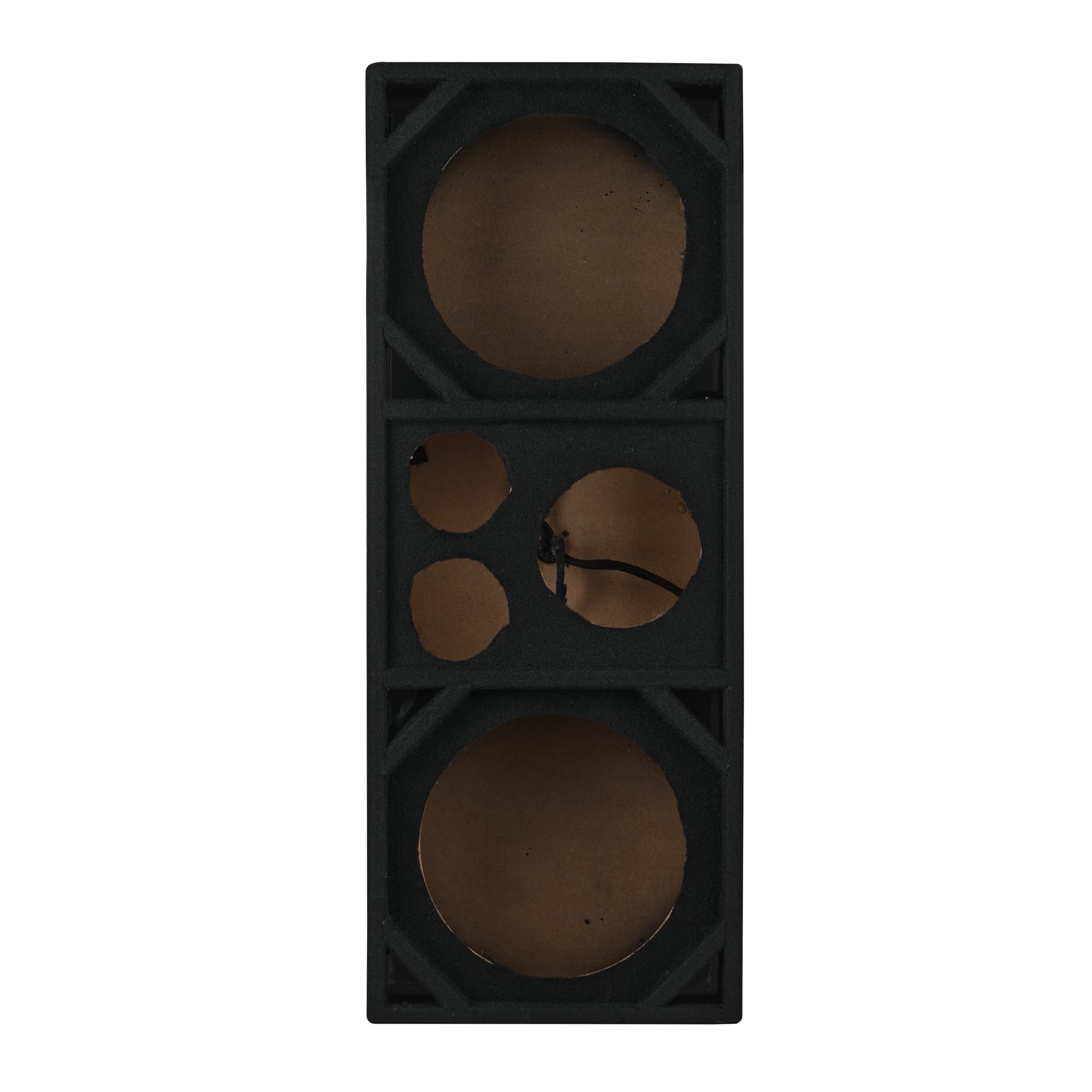

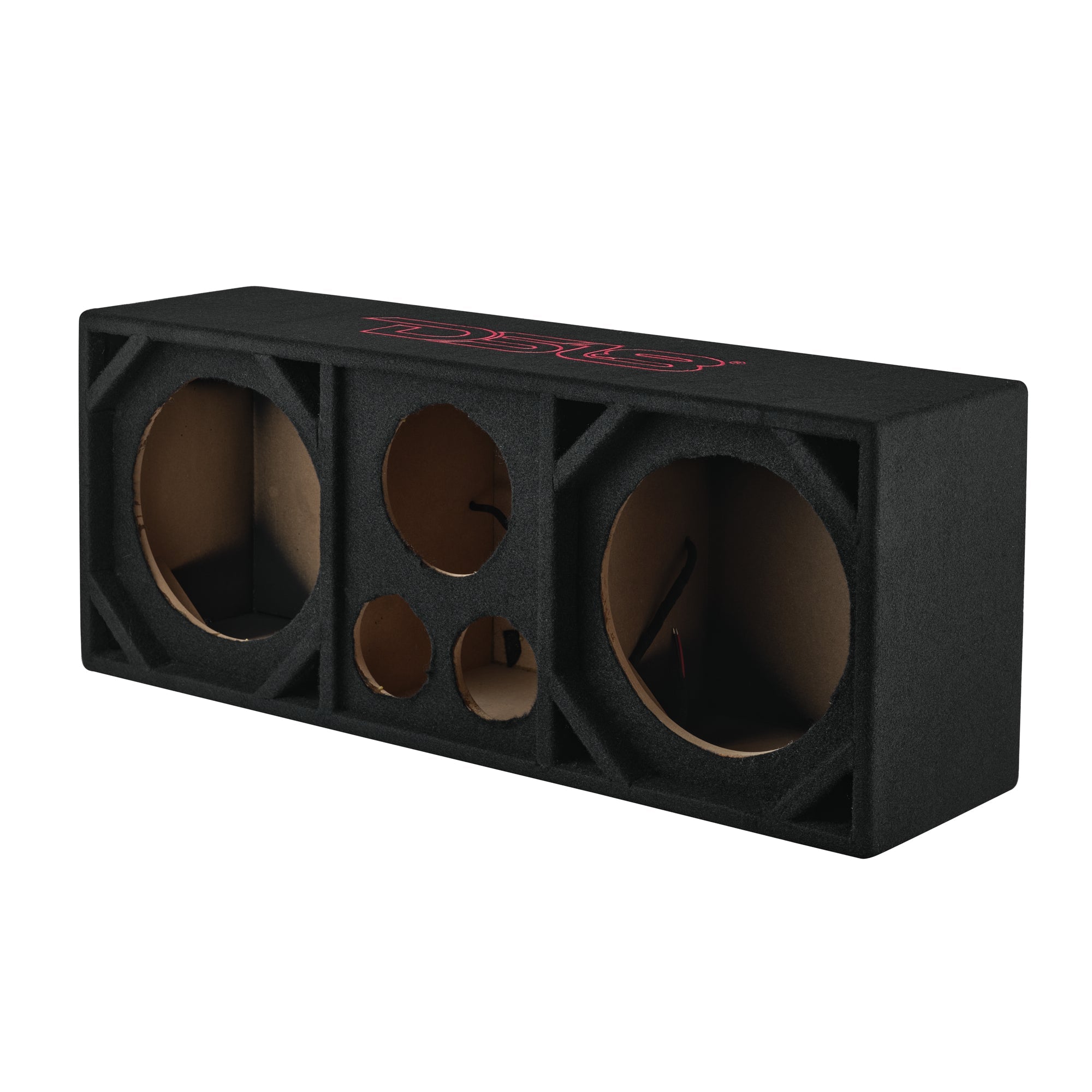

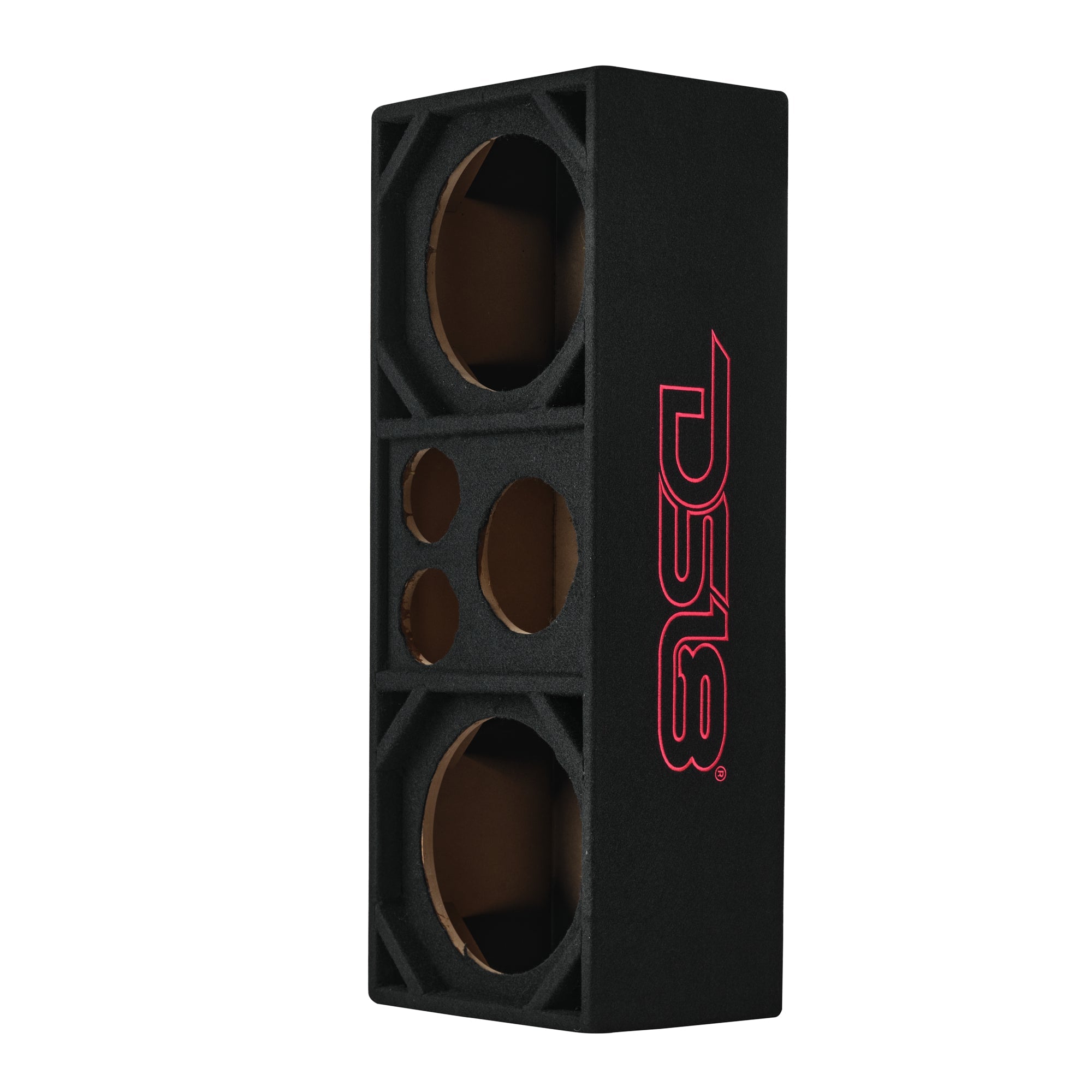

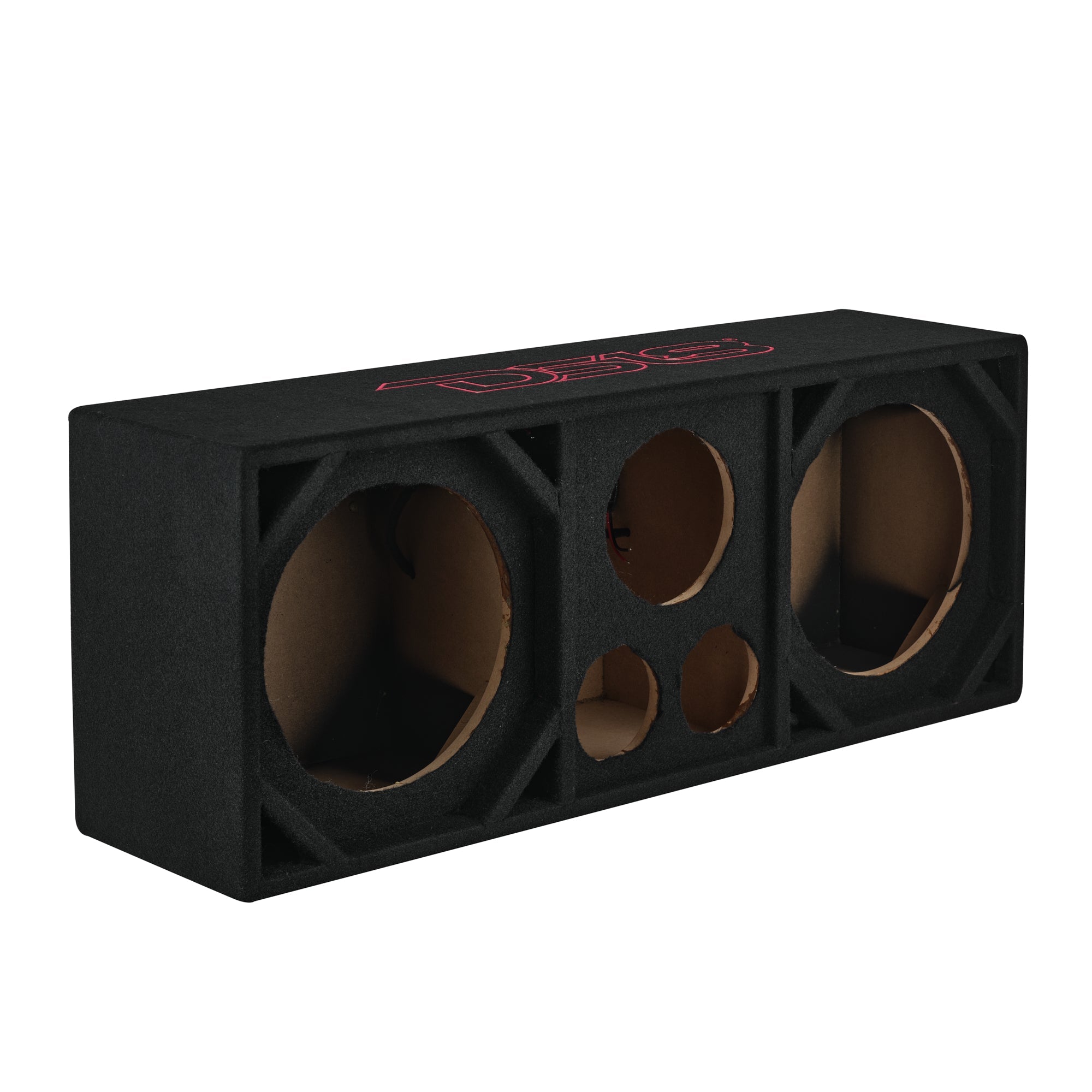

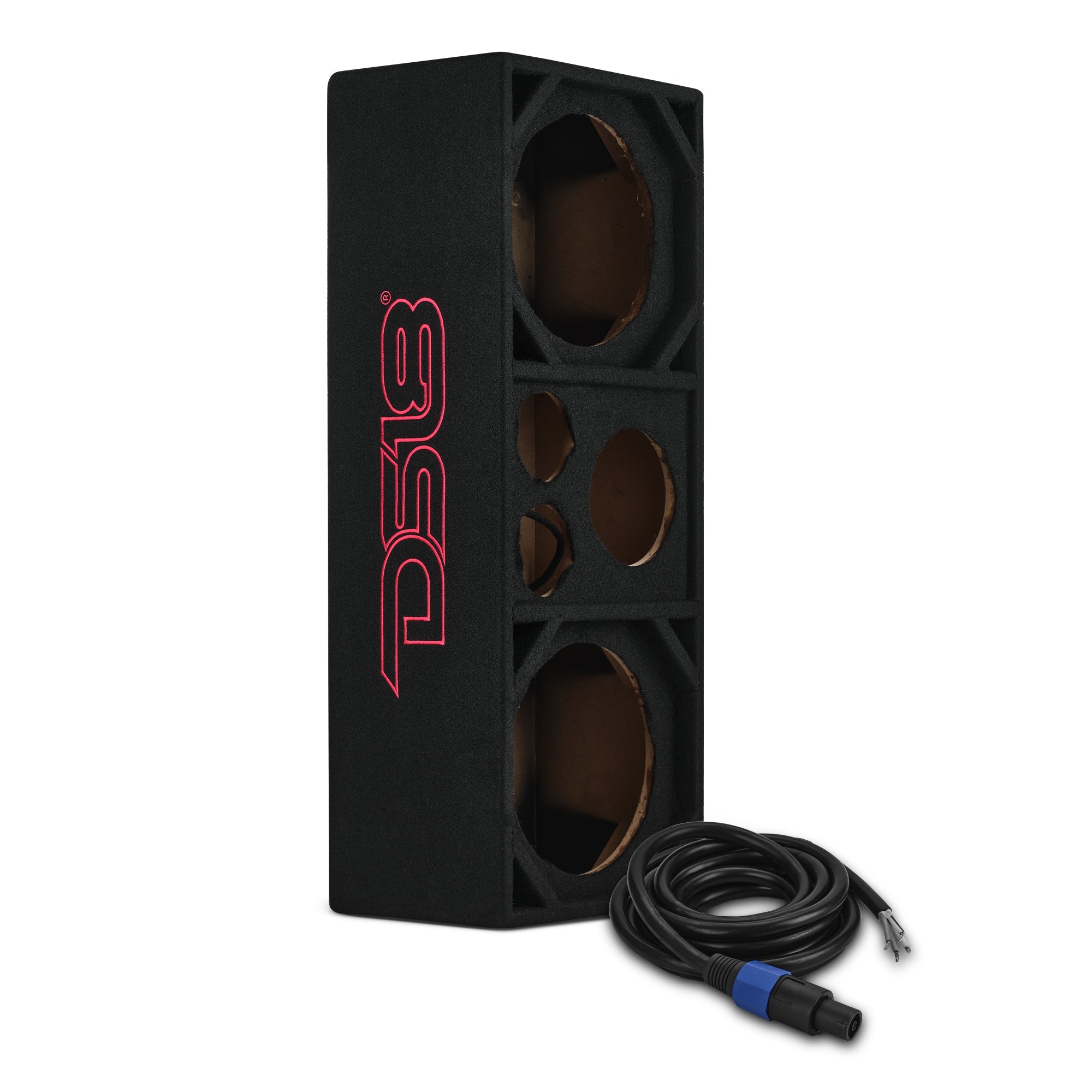

Dual 10” + Dual 4” Tweeter + 2” Driver Ported Voceteo Enclosure | Speakon-Ready
The VOC10PRO takes your vocals and highs to show-level quality by adding space for dual 10” mids, dual 4” tweeters, and a 2” driver slot. This is the enclosure you want when your system needs to scream over the streets—or the competition.
Tuned for Max Output
With 1.45 ft³ of internal airspace, the VOC10PRO’s ported design pushes midrange clarity while supporting high SPL. It’s pre-wired for performance, featuring a Speakon connector, 12ft OFC cable, and pre-configured wiring: mids in parallel, tweeters and driver in series/parallel.
Tough and Tuned

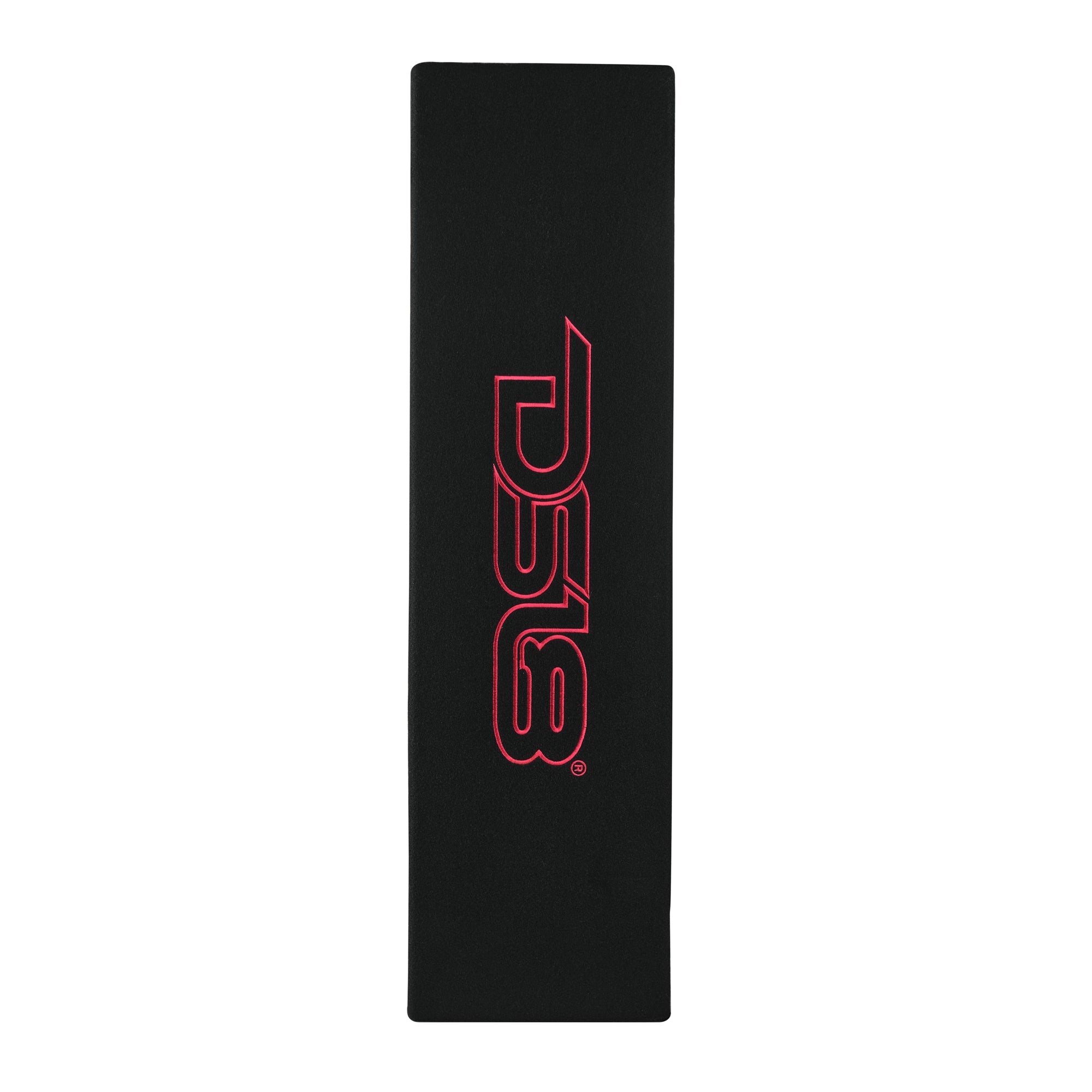

Made from ½” MDF and wrapped in black carpet, this enclosure delivers strength without excess weight. Add this enclosure to a mobile wall or a stage rig and the VOC10PRO leads your system with clean, screaming sound.
Key Features
- Fits: 2 x 10" Midrange Speakers
- Fits: 2 x 4" Tweeters
- Fits: 1 x 2" Driver
- Enclosure Type: Ported
- Material: ½” MDF with Black Carpet

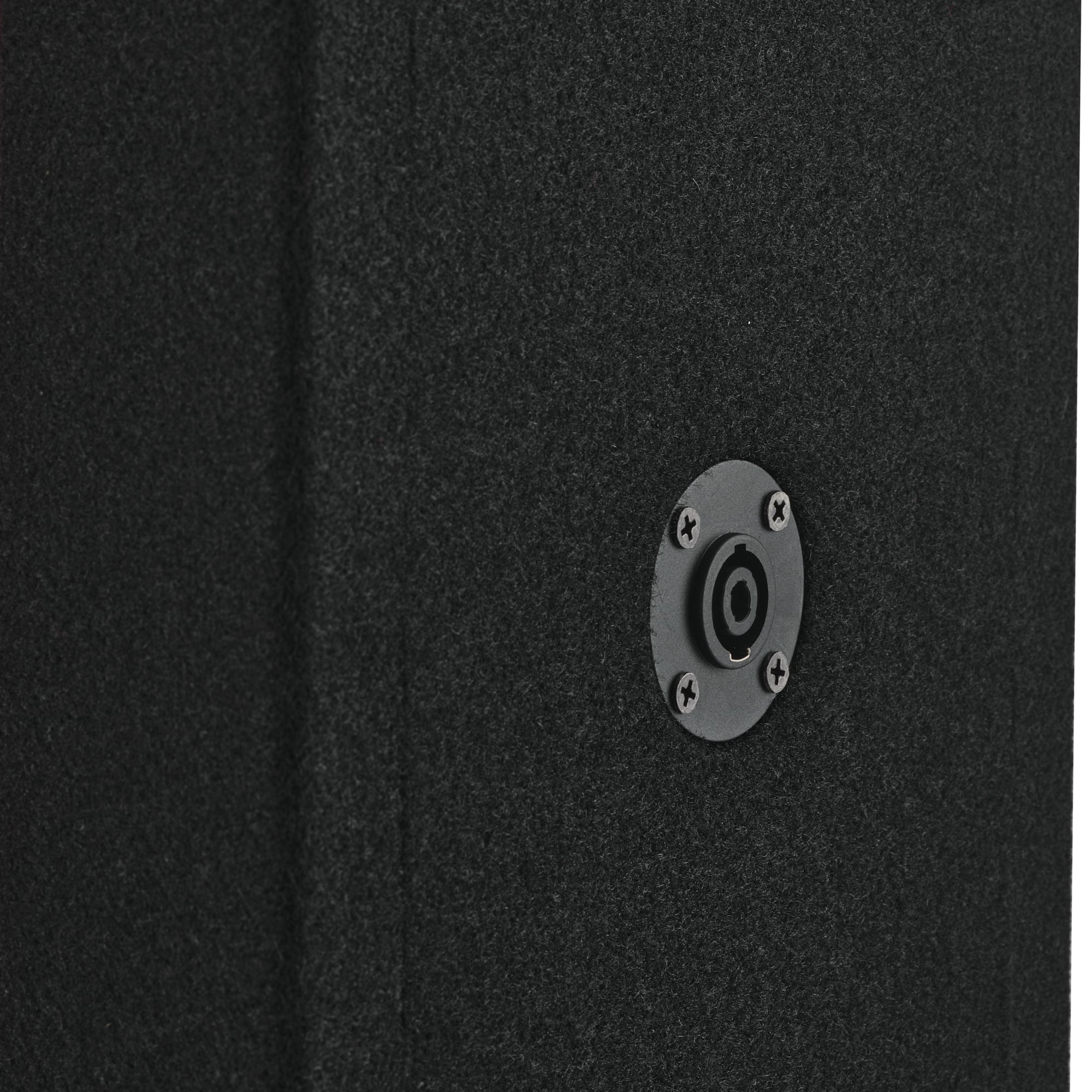

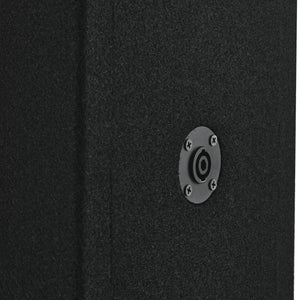

- Includes: Speakon terminal + 12ft OFC 4-conductor Speakon cable
Specifications
| Fits | 2 x 10” Midrange Speakers (Mount Depth: 5.25”) 2 x 4” Tweeters (Mount Depth: 6.25”) 1 x 2” Driver (Mount Depth: 6.25”) |
|---|---|
| Internal Volume | 41.05L / 1.45ft3 |
| Load Configuration | WF - Parallel / TW-DR - Series/Parallel |
| Enclosure Type | Ported |
| Enclosure Material | 1/2" (15mm) MDF |
| Finish Material | Black Carpet |
| Height | 33" / 830mm |
| Width | 12.7" / 323mm |
| Depth | 8.9" / 225mm |
| Speaker Front Mount Baffle Cutout | 9.25" / 234mm |
| Speaker Mounting Depth | 5.25" / 133mm |
| Tweeter Front Mount Baffle Cutout | 3.6" / 91mm |
| Tweeter Mounting Depth | 6.25" / 159mm |
| Driver Front Mount Baffle Cutout | 5.7" / 145mm |
| Driver Mounting Depth | 6.25" / 160mm |

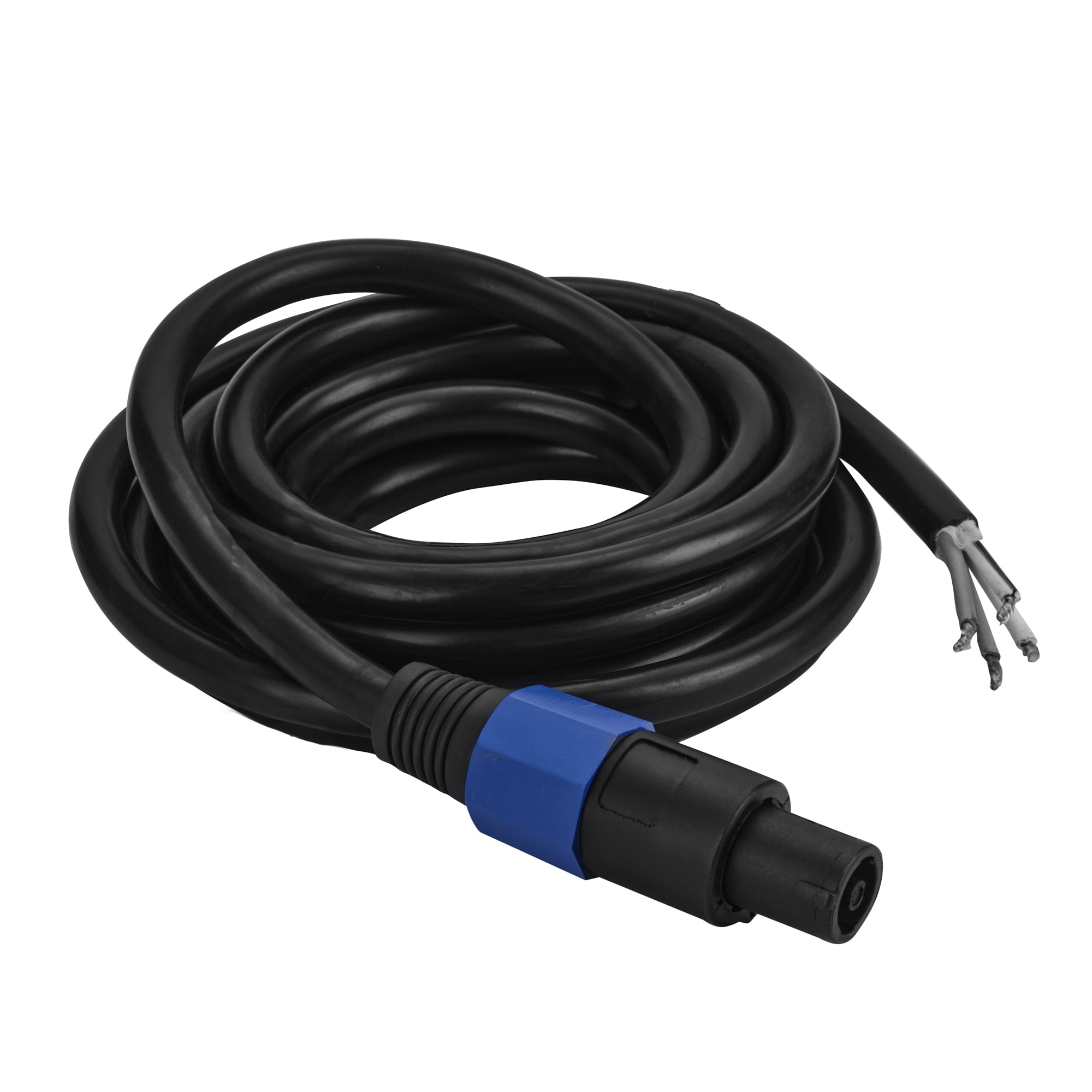

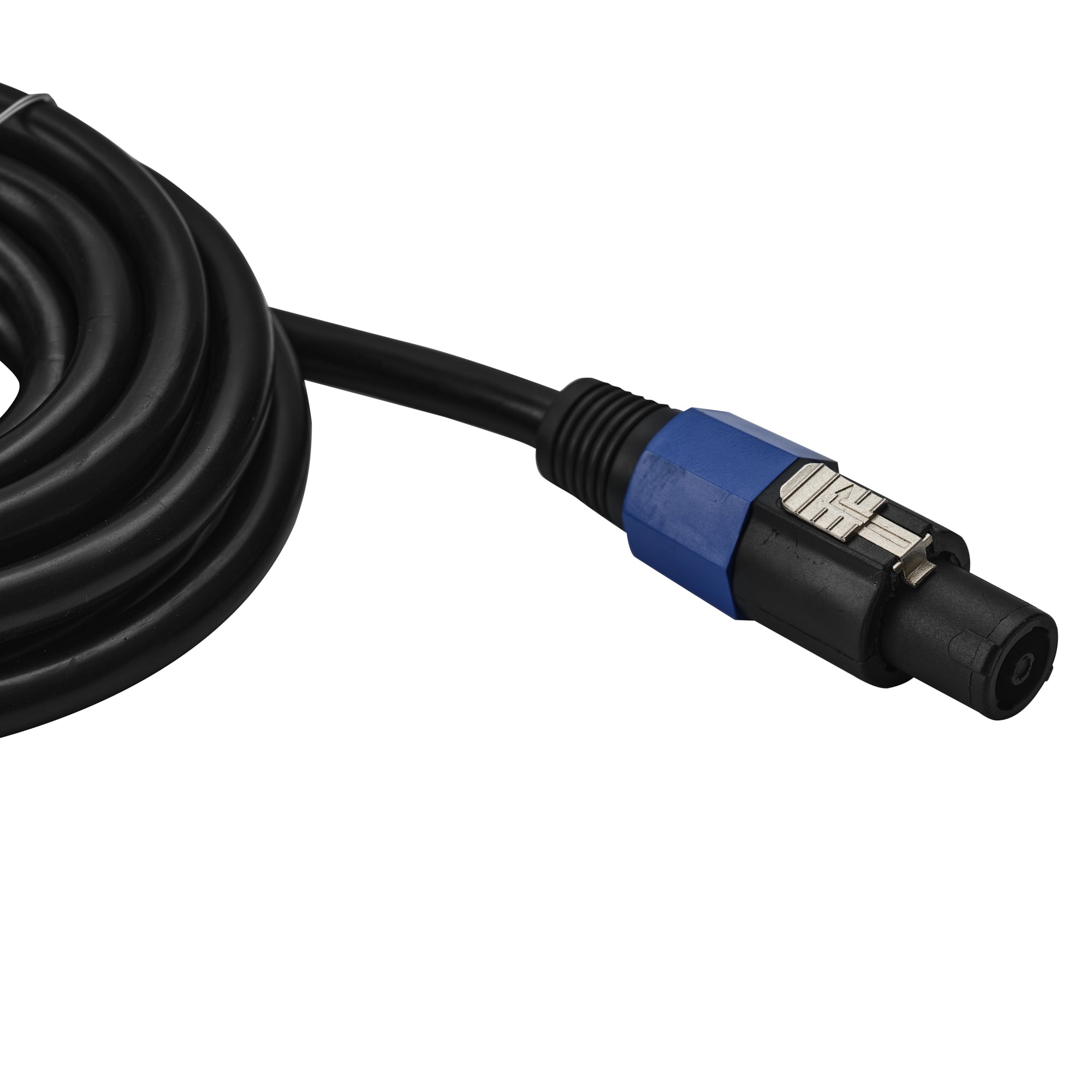

| Type | Speakon (Male) |
| Total Length | 12ft / 3.6m |
| Conductor Material | Copper (OFC) |
| Number of Conductors | 4 |
| Gauge | 14 AWG |
| Nominal Outside Diameter | 8mm |
| Cable Construction Type | Stranded / Multi-Twist |
| Shield Material / Color | PVC / Black |
