Jeep JLU 2018–2023 Ultimate Package – Loaded Sound Bar, Door Panels, Subwoofers & Amplifiers
Product Overview Elevate your sound with the Ultimate JL/JLU Package. This fully loaded set is specially designed...
Vendor:
DS18
Manufacturer SKU
ULTIMATE JLU PACKAGE
Availability:
In Stock
Product Type:
Audio Packages
- $4,392.35
- $4,392.35
- Unit price
- per
Subtotal:
$4,392.35
Couldn't load pickup availability
10 in stock
Product Overview

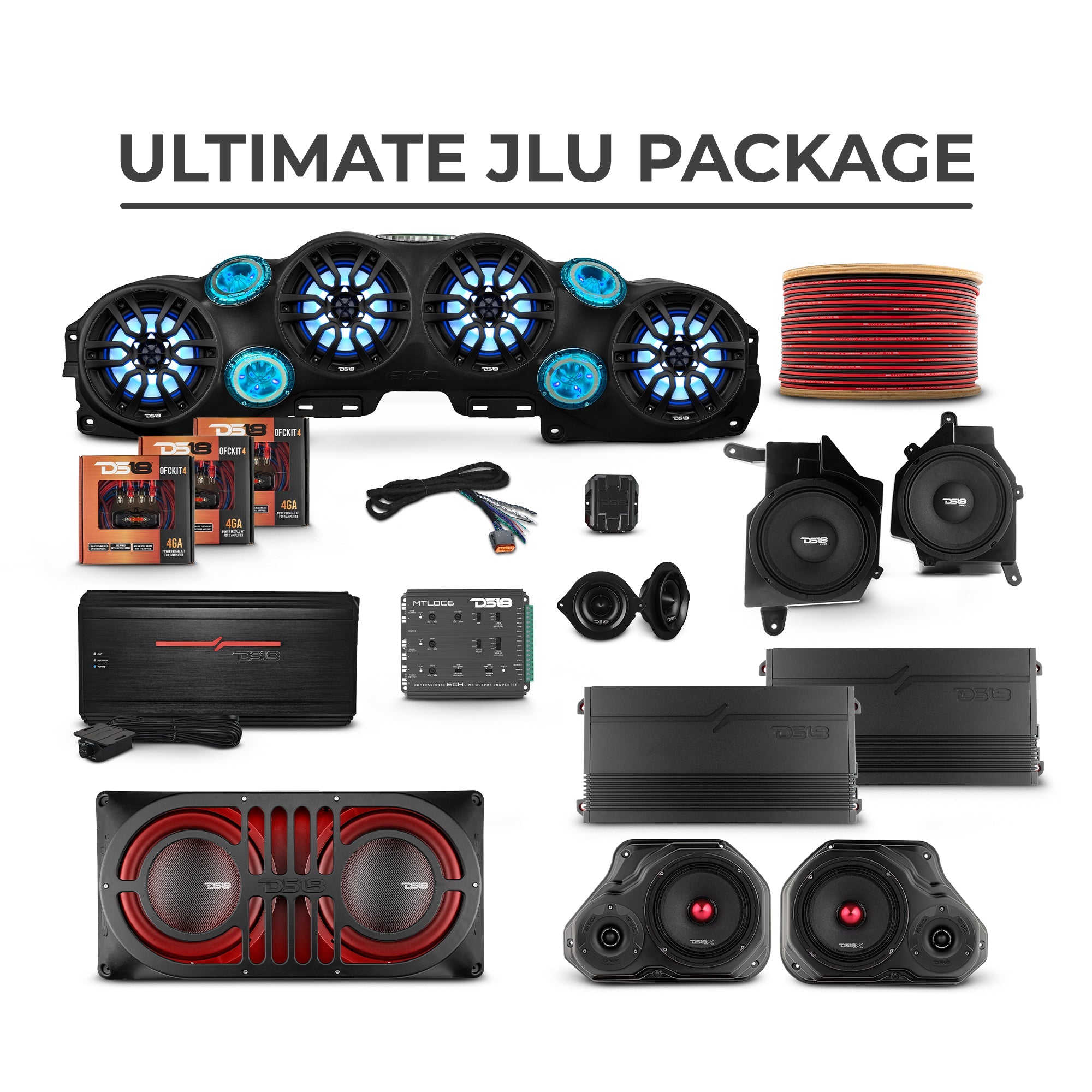

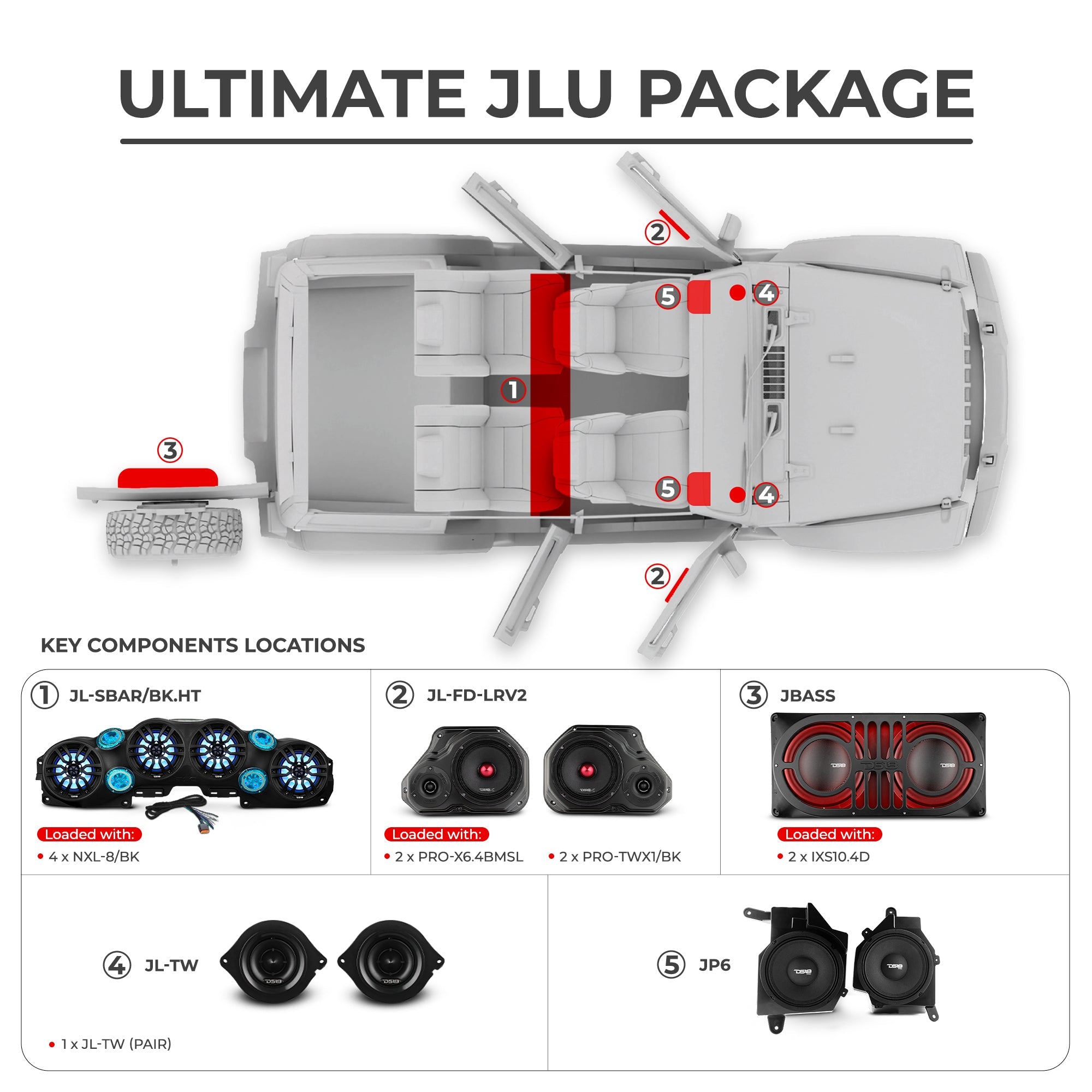

Elevate your sound with the Ultimate JL/JLU Package. This fully loaded set is specially designed for Jeep JL/JLU models, with everything you need to upgrade your sound system. From the front to the back, and everywhere in-between, there’s no better way to play it loud and keep the music pumping than with the Ultimate JL/JLU Package.

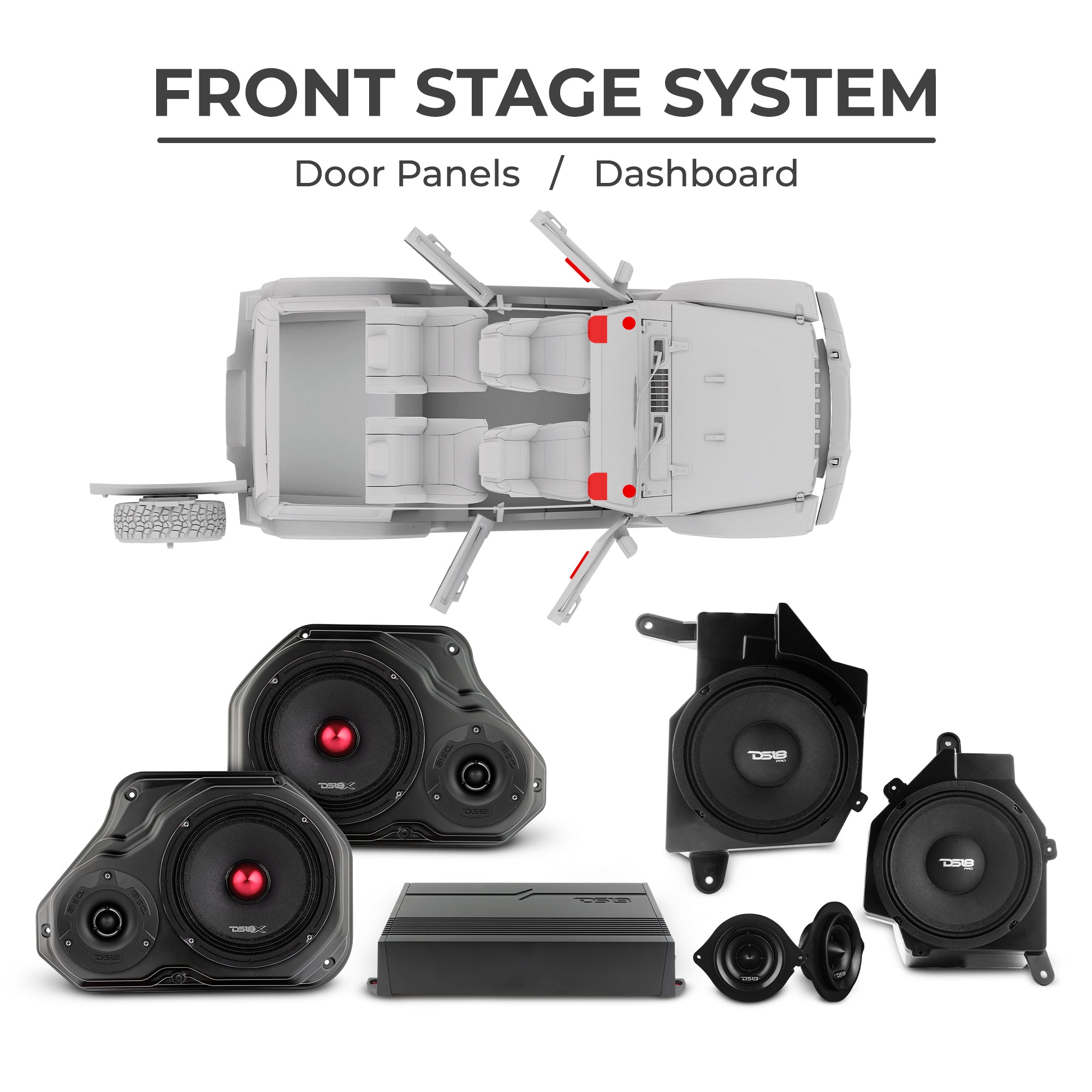

Front Stage System: Keep the music going on both sides with the JL-FD-LRV2 front door panels, which come in pairs (for driver and passenger side) and are compatible with Jeep JL/JLU short armrest models.
This package comes with two PRO-X6.4BMSL loudspeakers for the door panels, each one featuring a Kapton voice coil for better durability and an 200W RMS / 400W MAX power rating for optimal power. Complementing this system are a pair of PRO-TWX1/BK super bullet tweeters that install seamlessly into the panels. They provide pristine sound with an aluminum voice coil and aluminum diaphragm, along with a 120W RMS / 240W MAX power rating.
For sounds from the dash, the JP6 enclosures (for driver and passenger side) are loaded with PRO-JP6NEO neodymium speakers. These speakers have a 150W RMS / 300W MAX power rating that gives you high-quality audio with plenty of power. Balancing out those lows are a pair of JL-TW tweeters that integrate into the factory location in your Jeep JL/JLU dashboard. They feature an OEM plug for direct connection and an impedance of 98dB that keeps high notes crisp and clear.
All front door panel and dashboard systems are powered by the G1800.4D amplifier. This amp is 4-channels, letting it connect to both the front door panel speakers and the dashboard speakers.

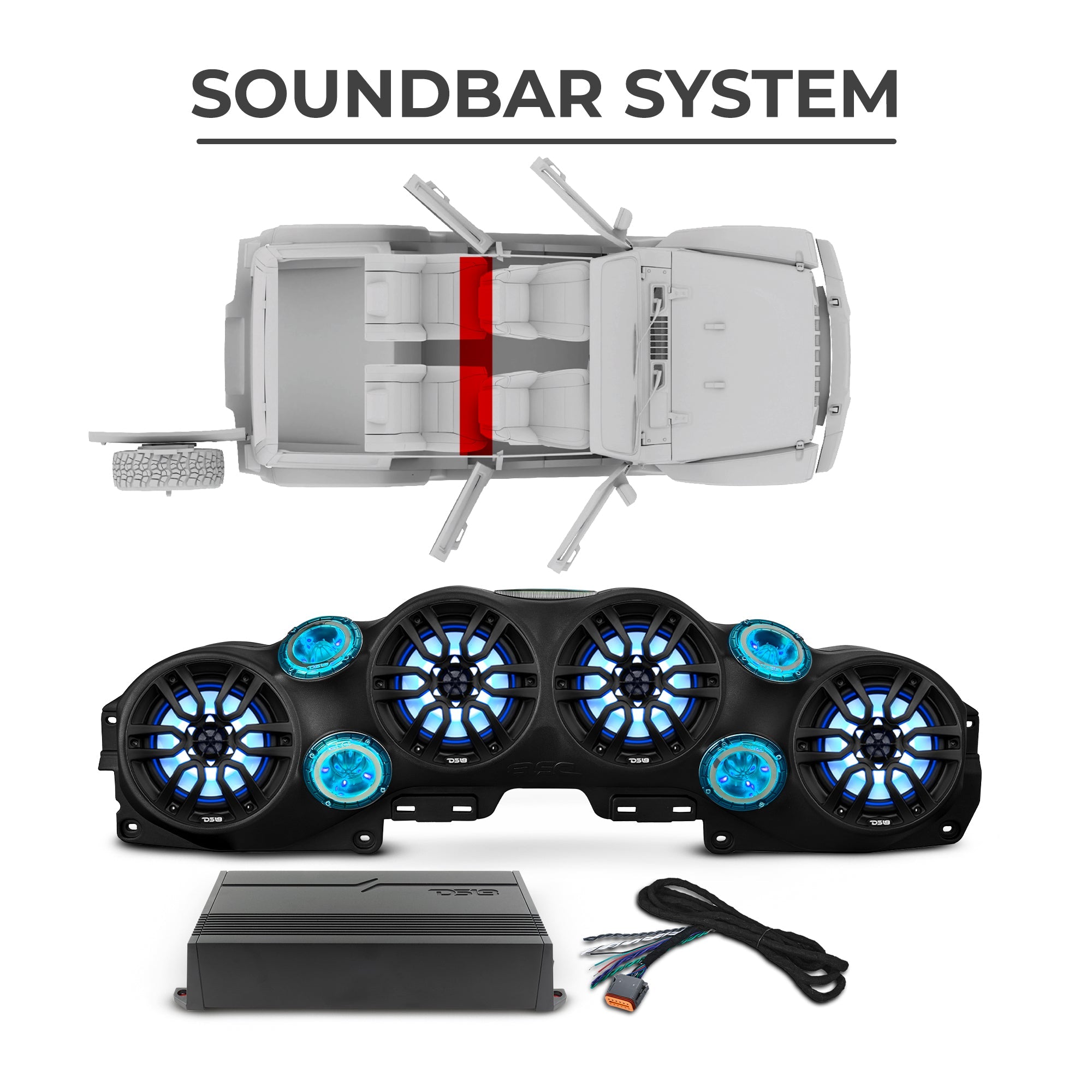

Soundbar System: Sitting nicely in the heart of your Jeep, the JL-SBAR/BK.HT soundbar ensures your Jeep is jumping. The soundbar comes integrated with four PRO-TW4L tweeters that keep the high notes clear. It also includes a pair of NXL-8/BK with a 125W RMS / 375W MAX power rating and 93dB sensitivity. Both tweeters and speakers come with RGB LED lights, so you can set the mood no matter where you are. Powering up this soundbar is the G1800.4D Class D amplifier, bringing clean power and advanced protective features.

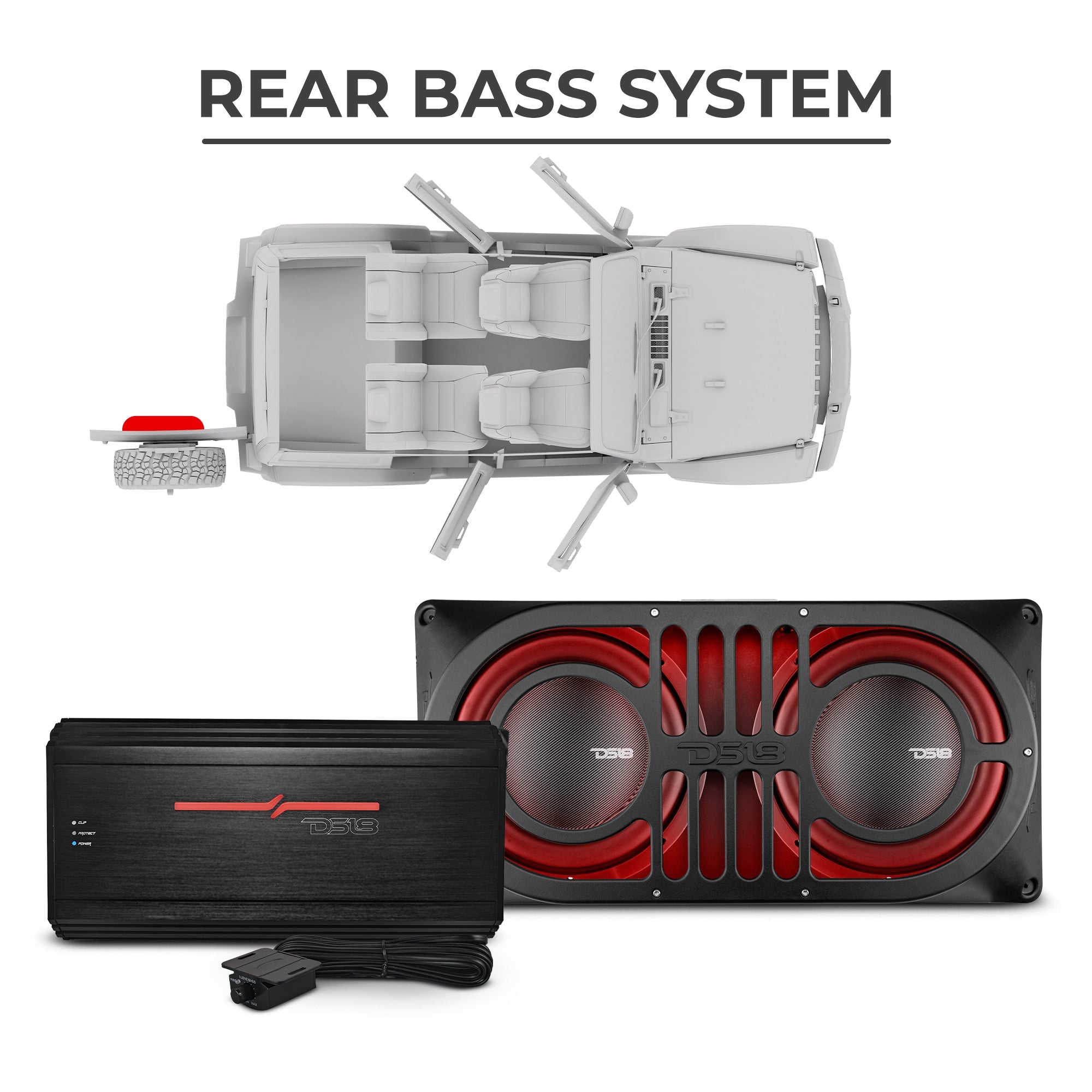

Rear Bass System: The JBASS tail gate subwoofer enclosure makes sure the bass never stops when you’re on the road. It houses two IXS10.4D shallow mount subwoofers that cover a frequency output ranging from 20 to 800Hz, along with having a sensitivity rating of 84dB. The ZR1500.1D Class D amplifier gives you superior heat dissipation while giving you high-performance with a peak output of 4500W.

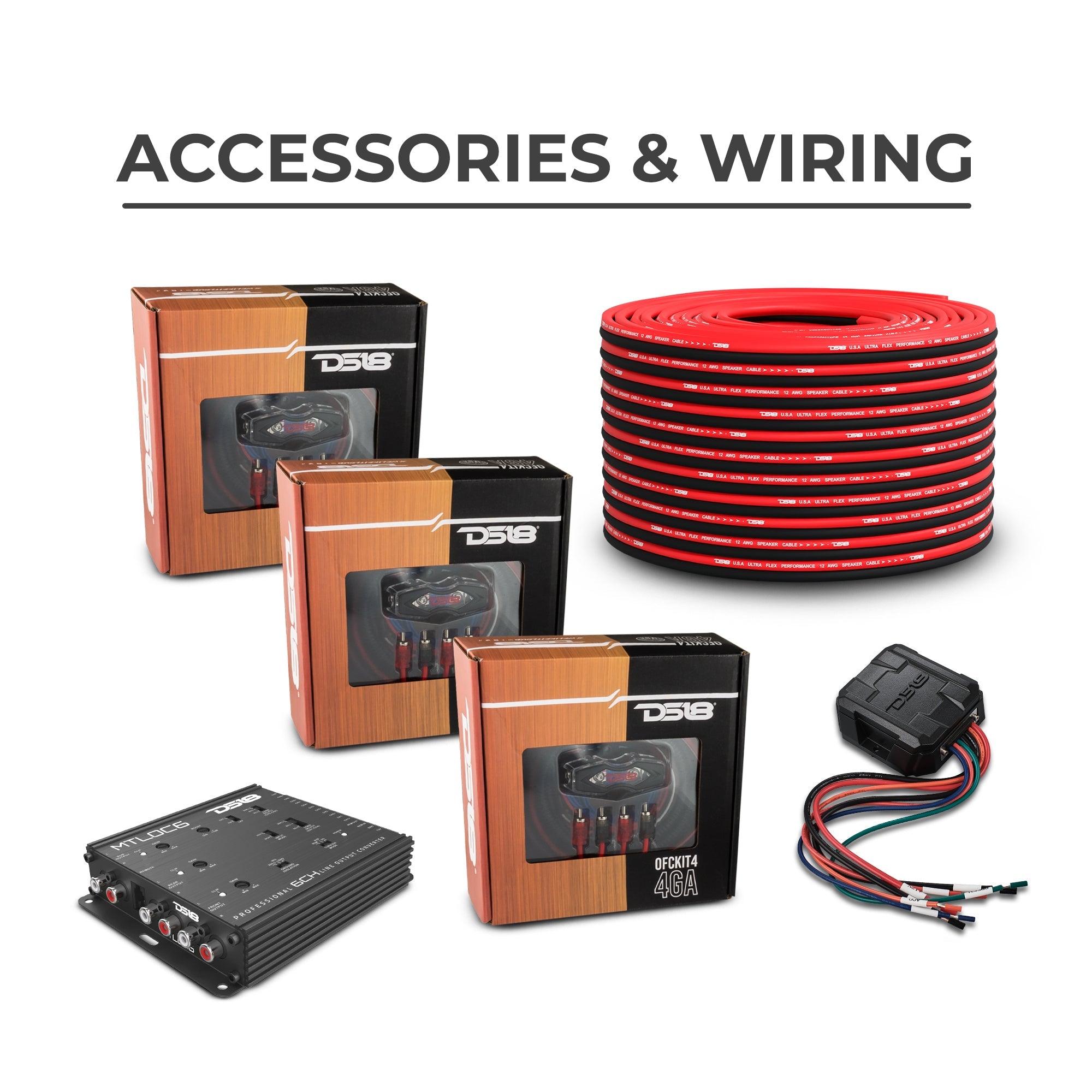

Accessories and Wiring: Included in this ultimate package are three sets of OFCKIT4 100% copper amplifier installation kits (one for each amplifier included in this package). Each kit comes with 150 Amp Fuse, a 6-foot 4-GA Loom Tube, a rubber grommet, a 17-foot red power cable, and a 3-foot black ground cable. This package also comes with 100 feet of SW-12GA-100RB Ultra Flex CCA Speaker wire. For sound conversion, there’s the MTLOC6 High-to-Low Level Line Output Converter, which lets you take control of your robust sound system. And for controlling all your speaker’s RGB LED lights, the LC-RGB Bluetooth controller lets you do it directly from your phone via the DS18 LC app (available on Android and iOS).
Raise the bar with the Ultimate JL/JLU Package from DS18.
Key Features
- Complete audio upgrade for Jeep JL/JLU models 2018–2023
- Includes front door, dash, soundbar, and bass systems
- Loaded with speakers, tweeters, subwoofers, and amplifiers
- RGB LED lighting with Bluetooth app control
- Tailgate subwoofer enclosure for powerful bass
- Wiring kits and installation accessories included
- Built for loud, clear, full-range sound
Specifications
| Overhead Sound Bar System | JL-SBAR |
|---|---|
| Tailgate Subwoofer Enclosure | JBASS / Mounts 2x 10" Subwoofer |
| Front Door Panels | JL-FD-LRV2 / Mounts 2x 6.5" Speakers / 2x 3" Tweeters |
| Back Door Panels | JL-BD-LR / Mounts 2x 6.5" Speakers / 2x 1" Tweeters |
| 4x 2-Way Coaxial Marine Speaker | NXL-8/BK |
| 2x 10" Fiber Glass Subwoofer | IXS10.4D |
| 4x Mid-Range Bullet Loudspeaker | PRO-X6.4BMSL |
| 4x Super Bullet RGB Tweeter | PRO-TW4L |
| 4x Neodymium Super Bullet Tweeter | PRO-TW820 |
| 2x Super Bullet Tweeter | PRO-TWX1 |
| 2x Amplifier 4-Channel | G1800.4D |
| 1x Amplifier Monoblock 1-Channel | ZR1500.1D |
| 3x Amplifier Installation Kit 4GA | OFCKIT4 |
| 1x Hi/Lo Converter 4-Channel | V4HLV2 |
| 1x Distribution Fuse Holder | FHDB3ANL-150A |
| 1x Plug and Play Harness | JL-HARNESS |
| 1x RGB LED Lights Bluetooth Control | LC-RGB |
| 2x Adapter Abs Ring for Tweeters | PRO-TWR3 |
| Speaker Wire 500ft 16GA OFC | SW-OFC16GA-500RB |
| 2x 6.5" Dash Enclosure JT Left and Right | JP6 |
| High-to-Low Level Line Output Converter | MTLOC6 |
| Overhead Sound Bar | Designed for JL/JLU, JT Gladiator Jeeps. Hold 4x 8" Speakers and 2x 3.72" Large Tweeters |
| Loaded Dash Enclosure | Comes with 2x Neo 6.5" Speakers 125W RMS, 300W Peak |
| 8" Coaxial 2-Way Marine Speaker | 125W RMS, 375W Peak, 4 Ohm, RGB LED |
| 10" Fiber Glass Subwoofer | 600W RMS, 1200W Peak, 4+4 Ohm, Shallow Mount |
| 6.5" Shallow Mid-Range Bullet Loudspeaker | 250W RMS, 500W Peak, 4 Ohm |
| 2.3" High Compression Neodymium Super Bullet Tweeter | 100W RMS, 200W Peak, 4 Ohm |
| 3.8" Super Bullet Tweeter | 120W RMS, 240W Peak, 4 Ohm |
| 4.5" Super Bullet RGB Tweeter | 280W RMS, 560W Peak, 4 Ohm |
| Class D 4-Channel Amplifier | 2 ~ 4 Ohm Stable 4 x 150 Watts @ 4 Ohm Power/Protection/Clip Indicator |
| Class D 1-Channel Amplifier | 1 ~ 4 Ohm Stable 1 x 1500 Watts @ 1 Ohm Clip/Protection Indicator |
| Speaker Wire 500 Feet | 16GA OFC, Ultraflex, Black/Red |
| Adapter Abs Ring for Tweeters | 3" Adapter for Tweeter |
| Hi/Lo Converter 6-Channel with Speaker Emulator | 6-Channel High-to-Low Conversion Selectable Impedance & Input Modes Auto Turn-On (Audio / DC / Remote) |
| OFC Amplifier Installation Kit | Convenient package with the right tools (fuse holder, ground/power cable, RCA cable, rubbers grommet, terminals, cable ties) |
| Distribution Fuse Holder | 1x 0-GA In 3x 4-GA Out, Fuse 150A |
| Plug and Play Harness | Harness kit OFC with all factory style connectors and terminals |
| RGB LED Lights Bluetooth Control | Works with android and iPhone, Waterproof IP65 |
