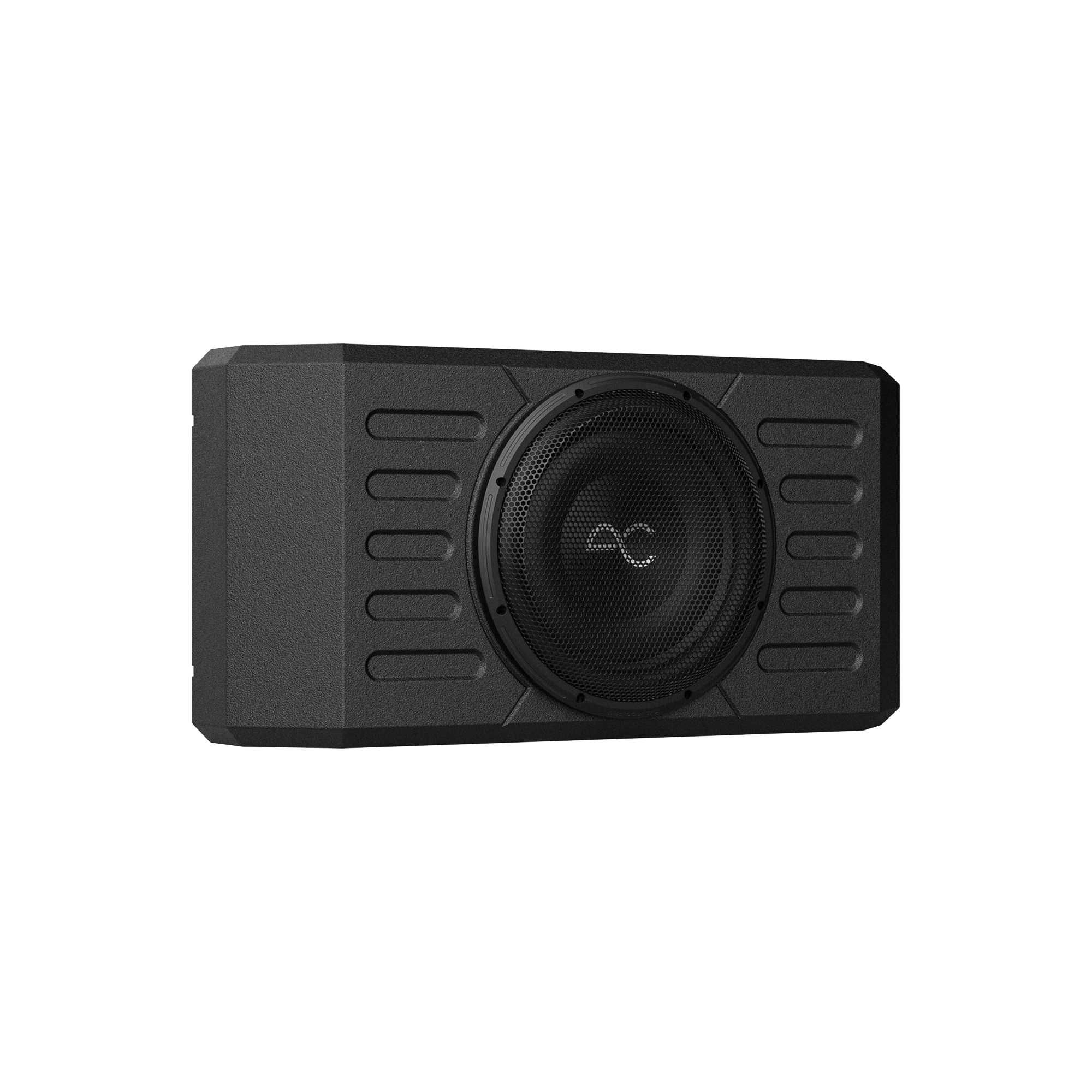

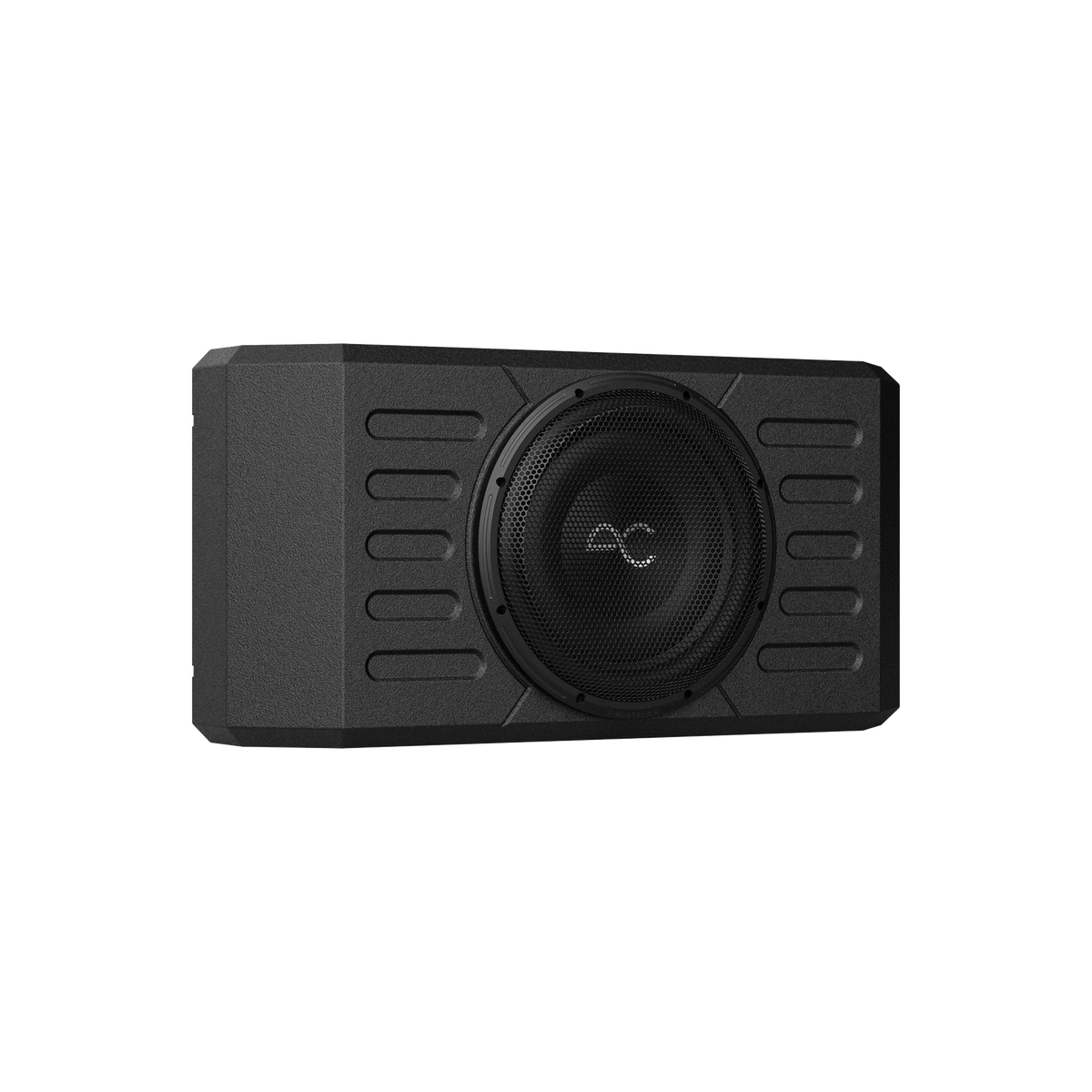

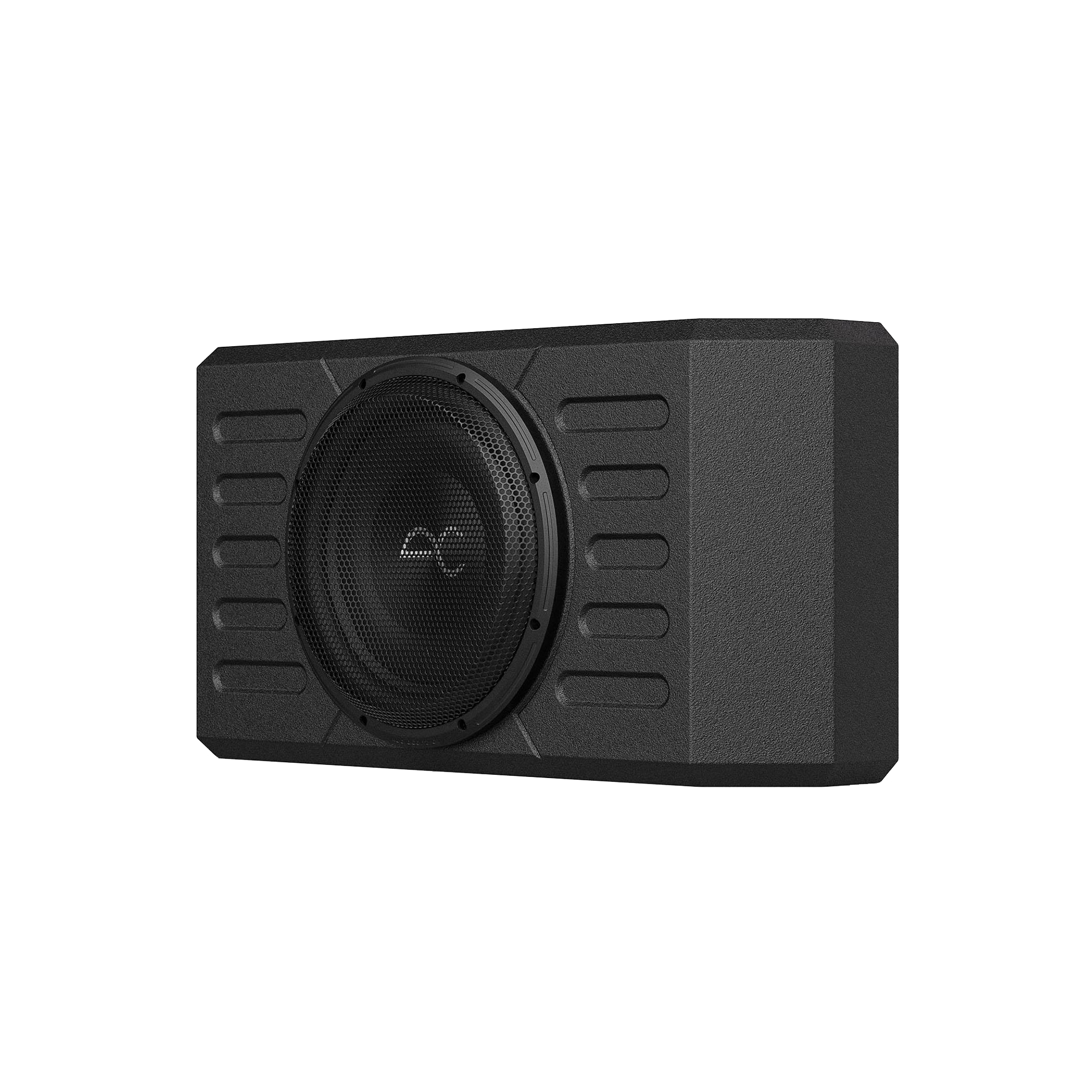

TXJWB12 Jeep Wrangler JK/JL (2007-25) 12" Swing Gate Loaded Subwoofer Enclosure
DescriptionFor Jeep Wrangler 2-Door and 4-Door JK/JL Models 2007-2025. Built tough and made to fit your Jeep...
Vendor:
AudioControl
Manufacturer SKU
TXJWB12
Availability:
Available Online — Not Stocked In Store
Product Type:
Subwoofer
- $569.00
$629.00- $569.00
- Unit price
- per
Subtotal:
$569.00
Couldn't load pickup availability
Description

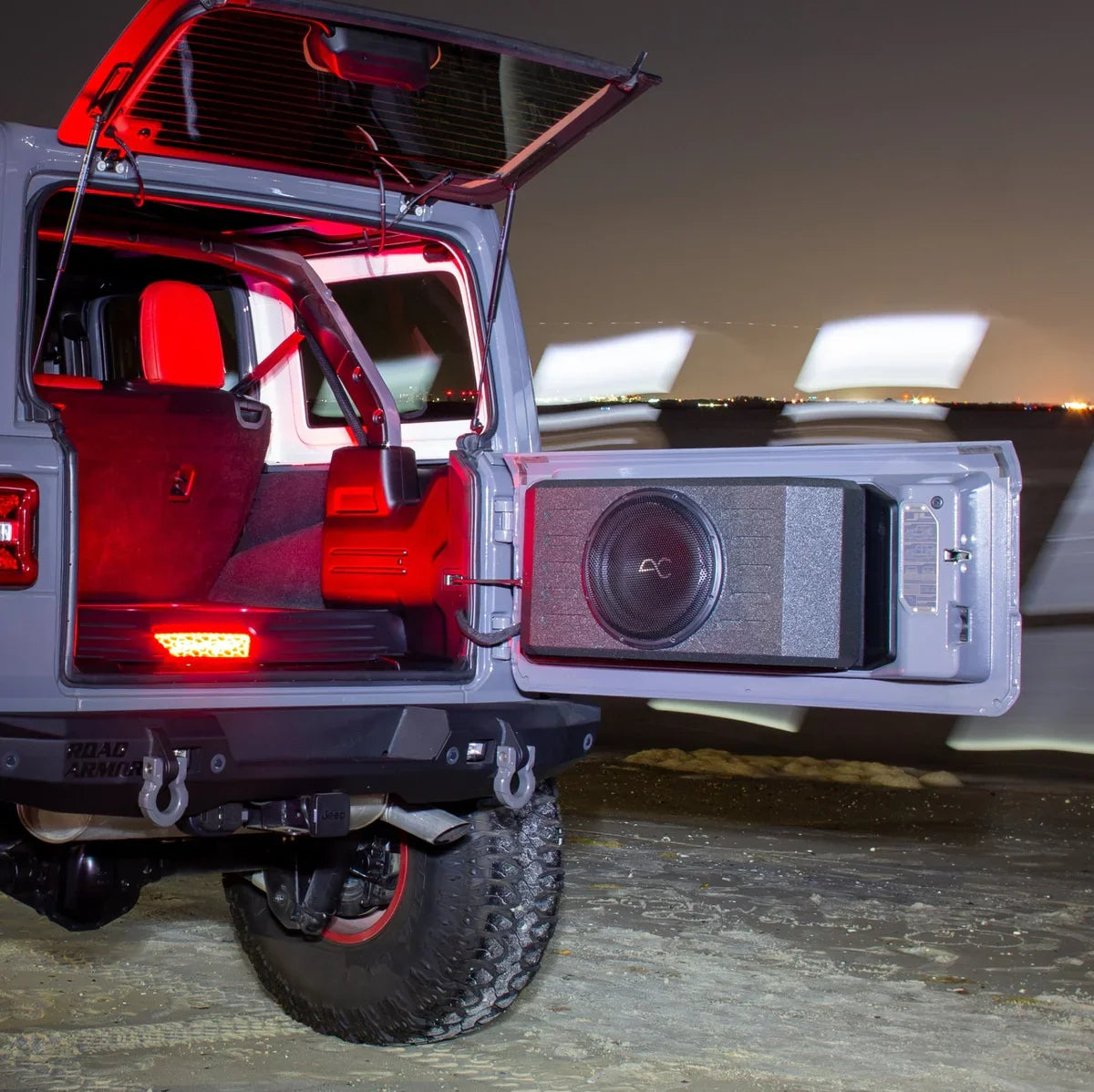

For Jeep Wrangler 2-Door and 4-Door JK/JL Models 2007-2025. Built tough and made to fit your Jeep Wrangler’s tailgate, this 12” bass enclosure offers a quick and easy way to add a high-powered subwoofer to your audio system. The subwoofer enclosure utilizes the tailgate for mounting, saving space while also being rugged and weatherproof. AudioControl designed a subwoofer specifically for this enclosure to maximize performance and deliver deep, accurate bass. Get ready to enhance your next adventure with the addition of this custom subwoofer solution.
*For JK/JKU vehicles with factory subwoofer, remove the factory subwoofer for clearance. Once removed, two OEM replacement subwoofer delete panels can be ordered online or acquired from a local Jeep dealer to retain the OEM look.
400 Watt RMS / 800 Watt Max. User Manual.
ENCLOSURE FEATURES
- Roadkill-Armor Coat
- Permanent Heat Bonded EPM (Elastomeric Polyurethane Molecule) Enclosure Coating
- Weather-Resistant for Harsh Outdoor Environments
- Sound Dampening Properties for Resonance Reduction
- Scratch, Crack, and Peel-Resistant
- Chemical and Stain-Resistant
- Impact Absorption
- UV Protection
- Provides Leak and Corrosion Prevention
- Heavy Duty 11-Layer High-Density Plywood Construction
- Poly-Fill Included to Absorb Standing Waves and Reduce Distortion
- Durable, Coated Steel Subwoofer Grille for Extra Protection
SUBWOOFER FEATURES
- 12” 2Ω Space Series Subwoofer
- 200W-600W Power Range (400W Ideal)
- Weather-Resistant Design
- Fiber Matrix Injection Molded Polypropylene Cone for Optimum Sound Reproduction
- Durable Isoprene Polymer Surround
- Powder-Coated Frame
- Wrap-Sealed Rubber Gasket to Protect Enclosure Interior
Thermal & Mechanical Elements
- 2.5” Black Anodized Voice Coil Former for Superior Heat Dissipation
- Air-Cooled Ventilated Motor Topology for Providing Optimal Thermal Efficiency
- High Tension Stitched Lead Wires for Increased Flexibility at High Excursion
- Shallow Cone Design
- Efficient Motor Design via Magentic FEA Technology
- Micro Level Bonding Adhesive for Increased Strength
- High-Density Ferrite Magnet
- Push Type Terminals Provide Consistent Tension For a Reliable Connection
- Grille Included
- High-Quality Mounting Hardware
The Kaos Run Down
| Part Number | TXJWB12 |
|---|---|
| UPC | 609098836142 |
| Specification | Speaker Model SPC-12S2 |
| Specification | Subwoofer Size 12” |
| Specification | Voice Coil Single 2 ohm |
| Specification | DC Resistance (Re) 2 ohm |
| Specification | Sensitivity 1W/M (SPL) 87 dB |
| Specification | Frequency Response 20Hz – 250Hz |
| Specification | RMS Power 400 watts |
| Specification | Speaker Displacement 0.06 cu ft / 1.82 Ltr |
| Specification | Speaker Weight 12.5 lbs |
| Specification | ENCLOSURE DIMENSIONS |
| Specification | Internal Volume 0.87 cu ft. / 24.7 Ltr |
| Specification | Enclosure Weight 17.5 lbs |
| Specification | Height 14in / 35.56cm |
| Specification | Width 28.5in / 72.39cm |
| Specification | Depth 6.1in / 15.5cm |
| Specification | Depth (w. Speaker & Grill) 7.3in / 18.59cm |
| Specification | California Proposition 65 |
| To our California customers | Please view your Proposition 65 warning here. |
