Product Overview

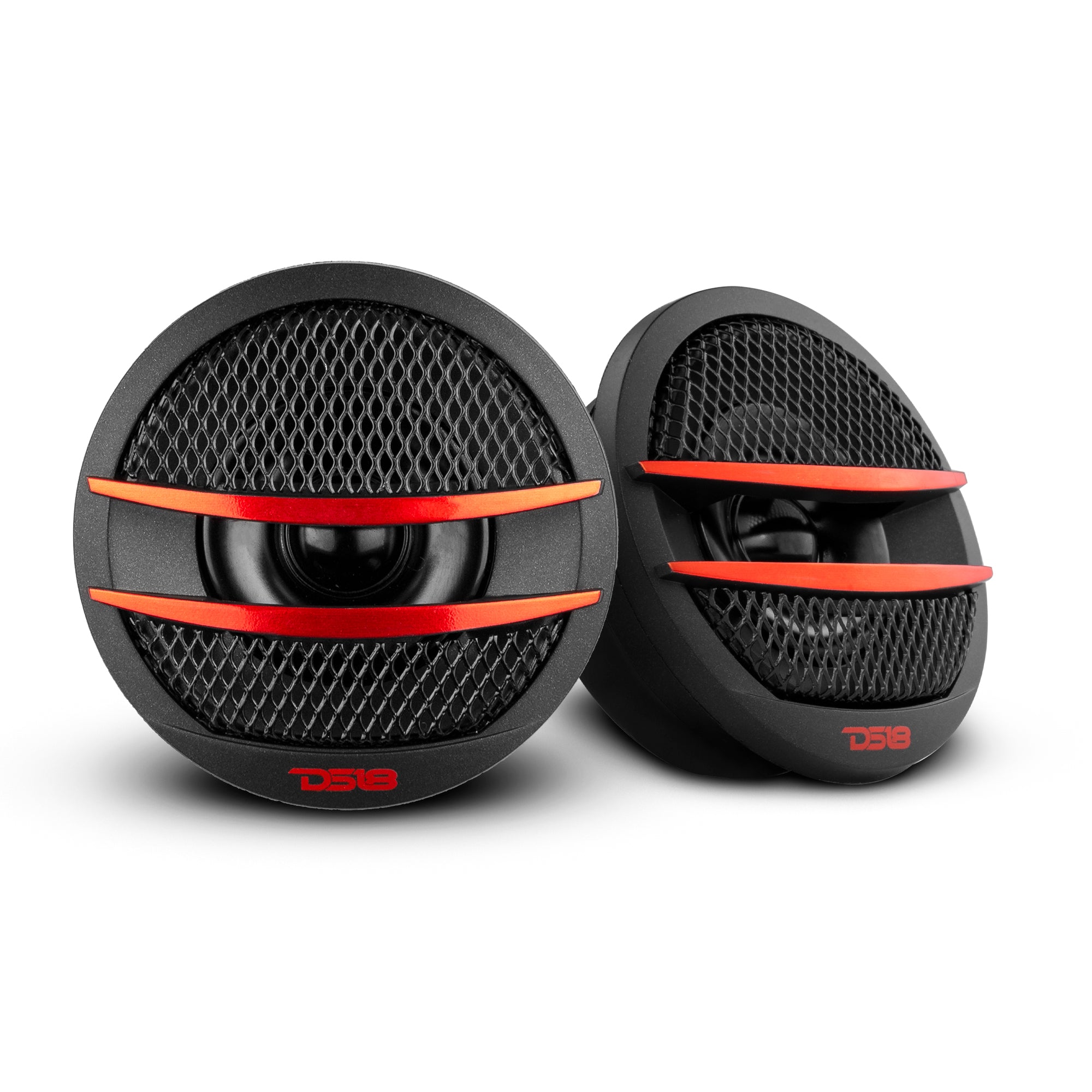

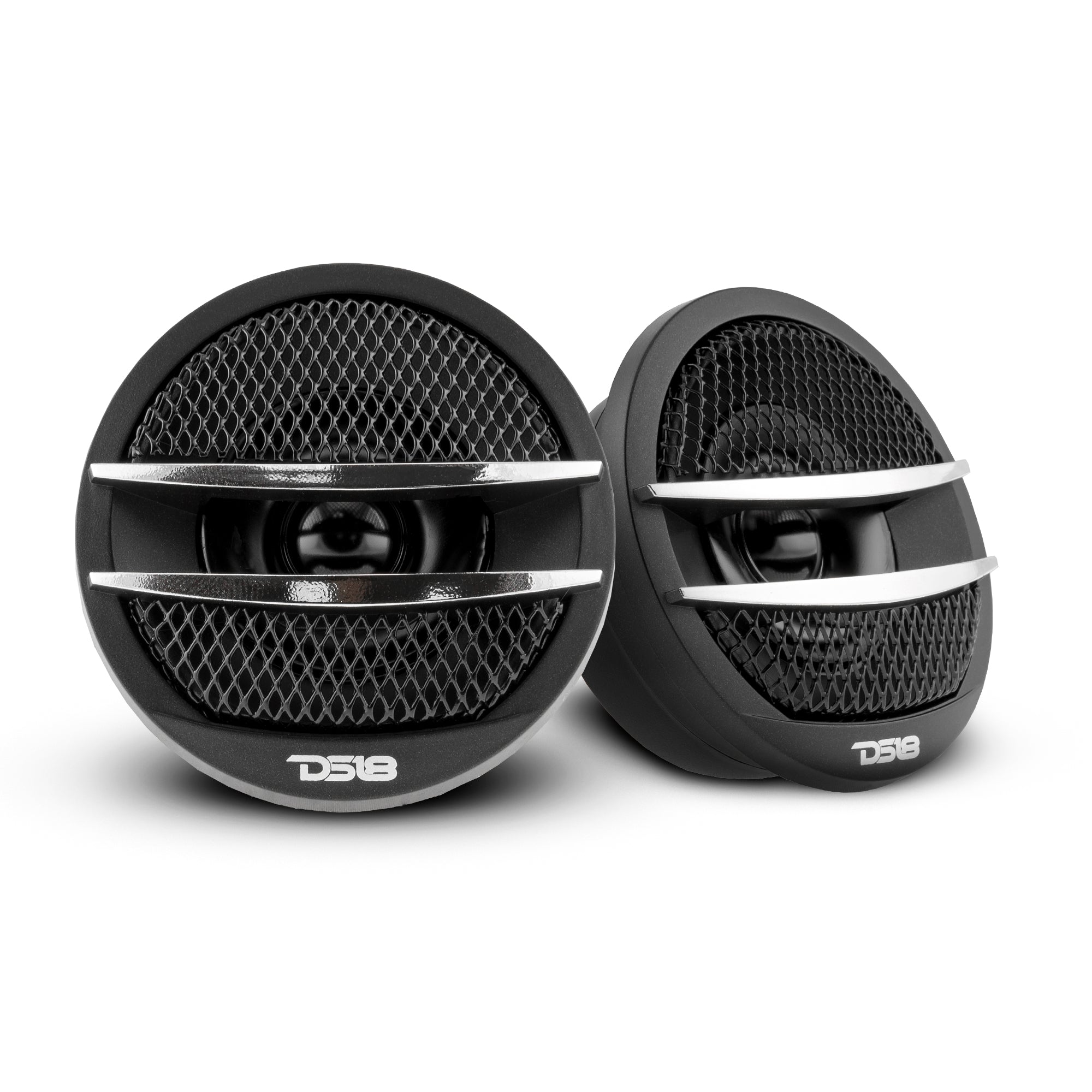

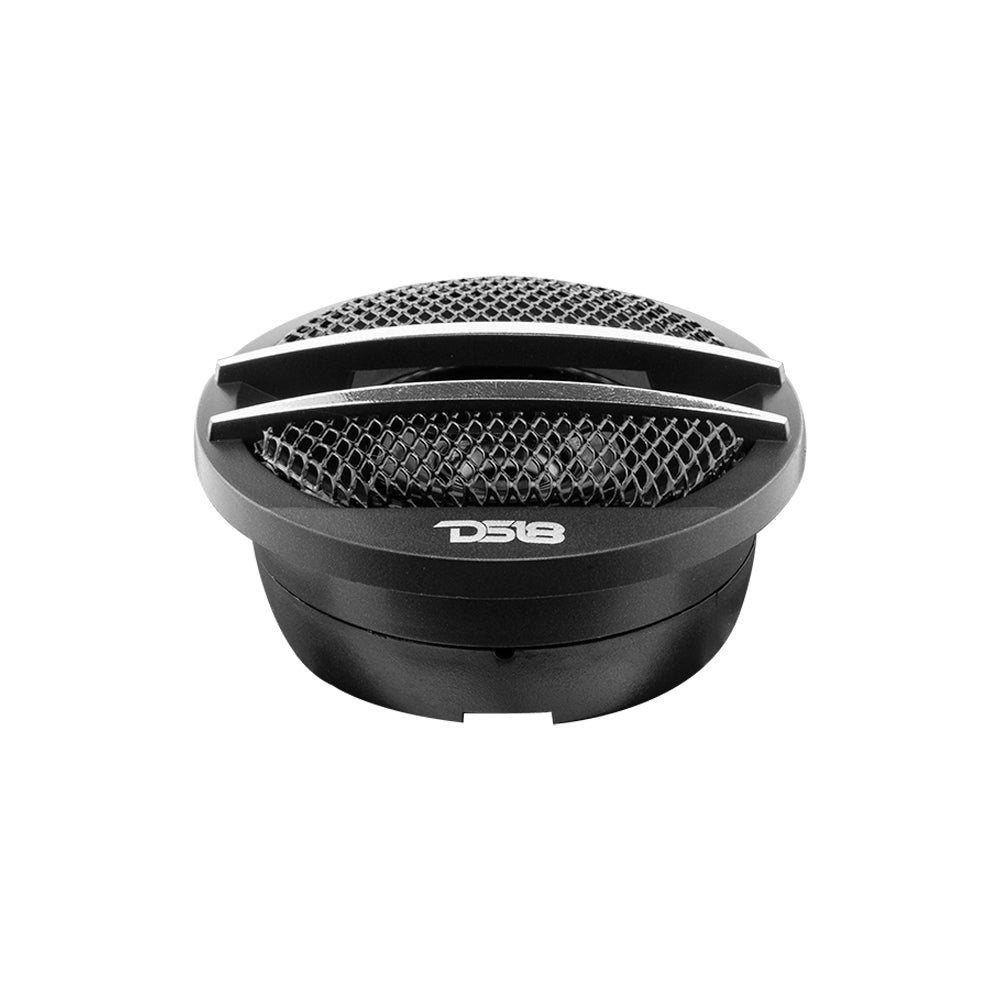

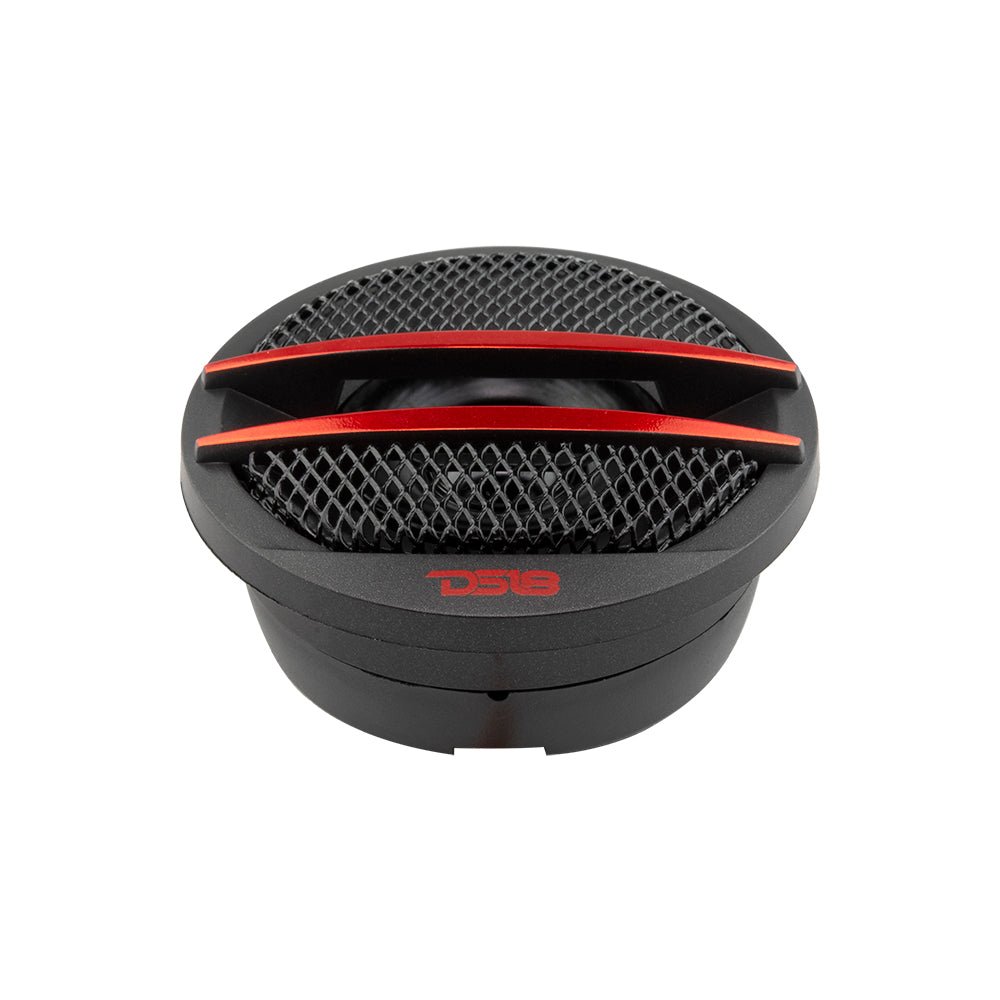

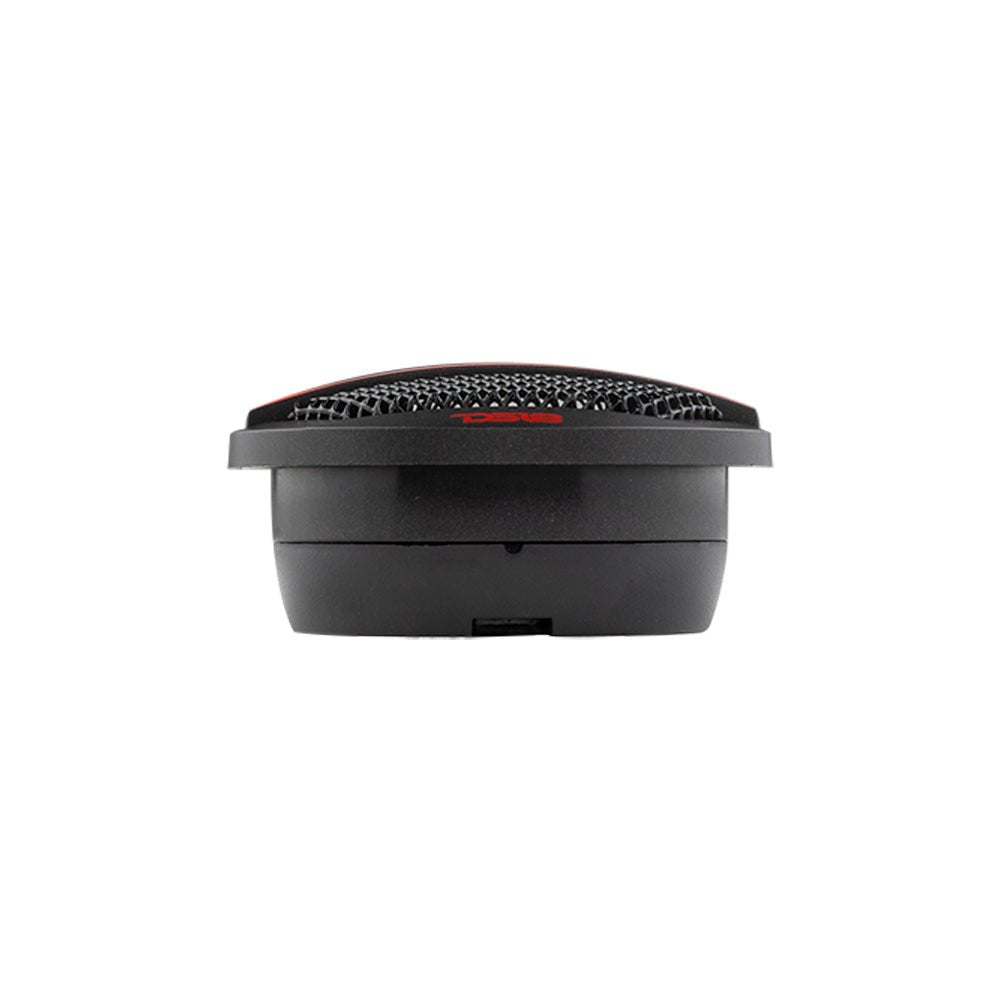

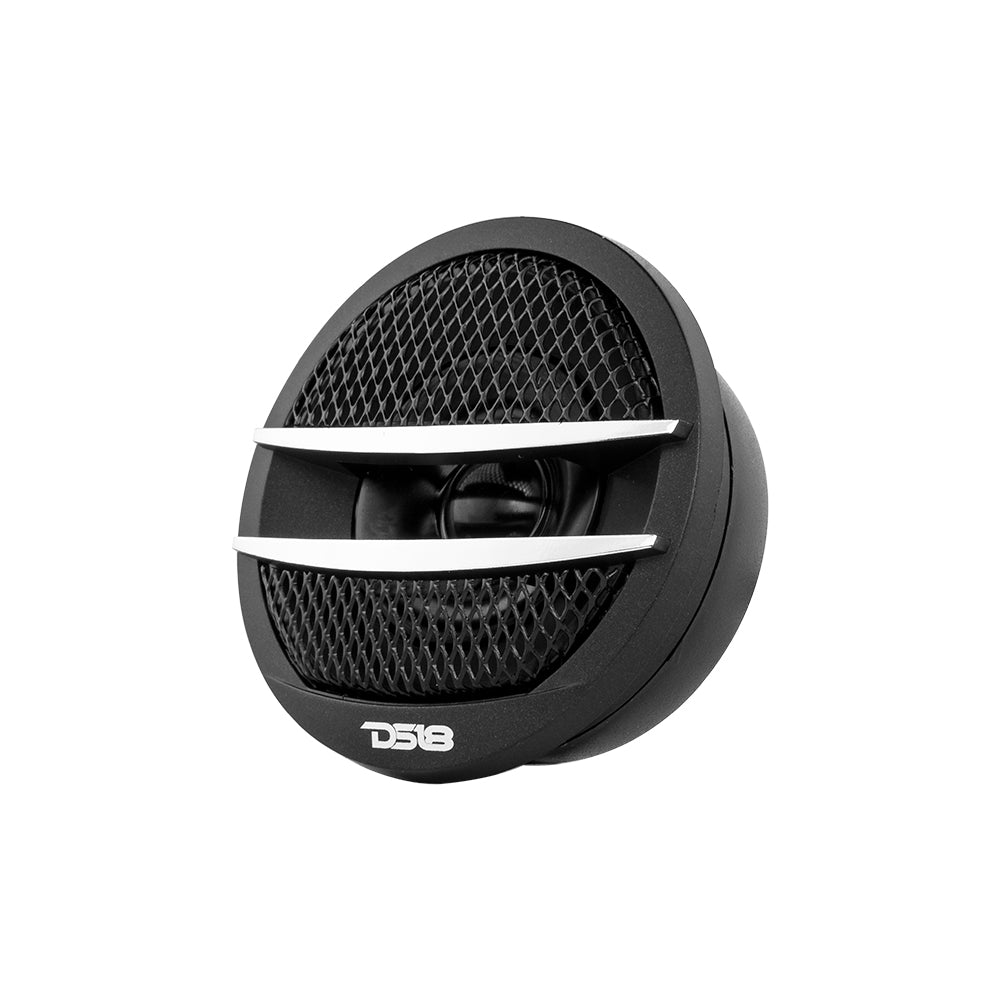

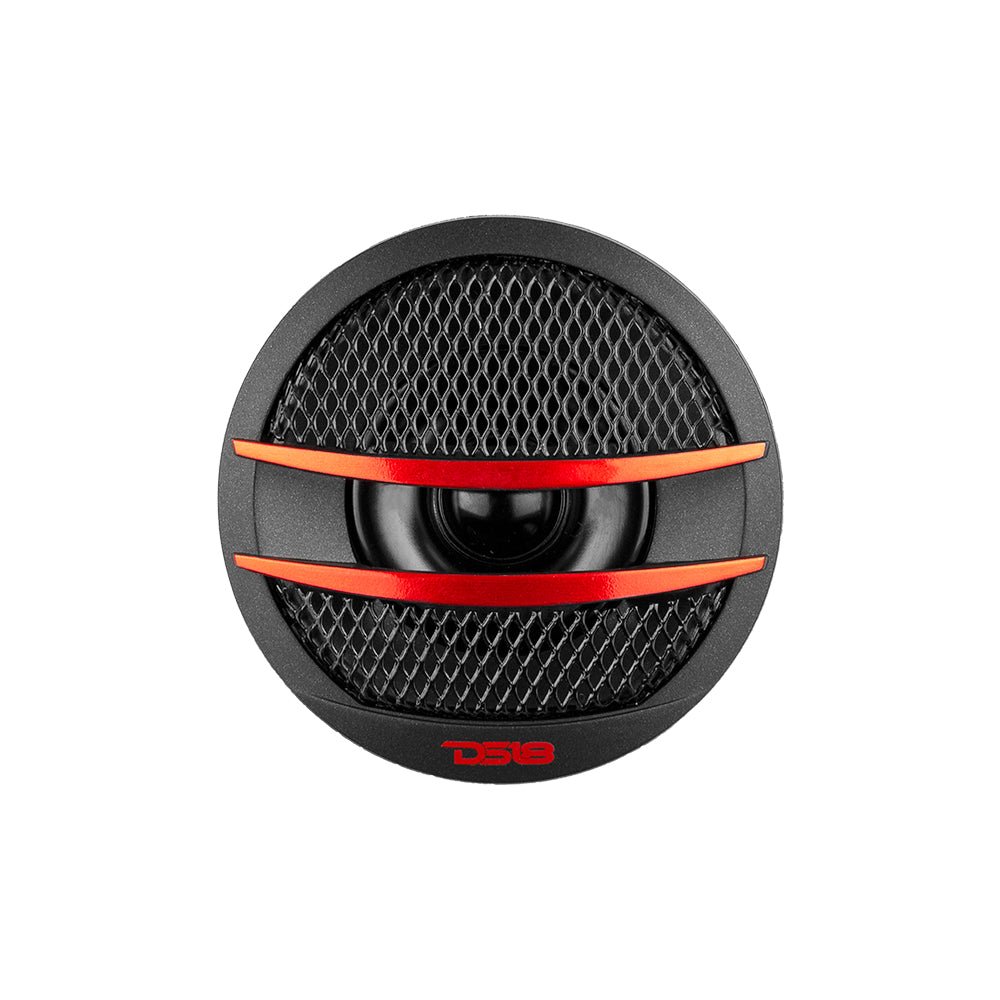

DS18 TX1 2" PEI Dome Ferrite Tweeter 0.5" VC 200 Watts
|
Engineered and designed in the USA by DS18, the TX1 is a 2-inches PEI Dome Ferrite Tweeter, the perfect addition to help get the most out of your music. Sold as a pair, these 2 dome tweeters are powerful. The accuracy of the high frequencies reproduced by these tweeters has no comparison; making them the top choice among audio enthusiasts. Highlights
|
Technical Details
| Model: | TX1 |
| Type: | PEI Dome Tweeter |
| Peak Power Handling | 200 Watts |
| Program Power Handling | 50 Watts |
| AES Power Handling | 25 Watts |
| Sensitivity: | 88dB w/m |
| Voice Coil Size | 0.5" |
| Impedance | 4 Ohms |
| Frequency Response: | 2KHz-20KHz |
| Package Quantity: | 2 |

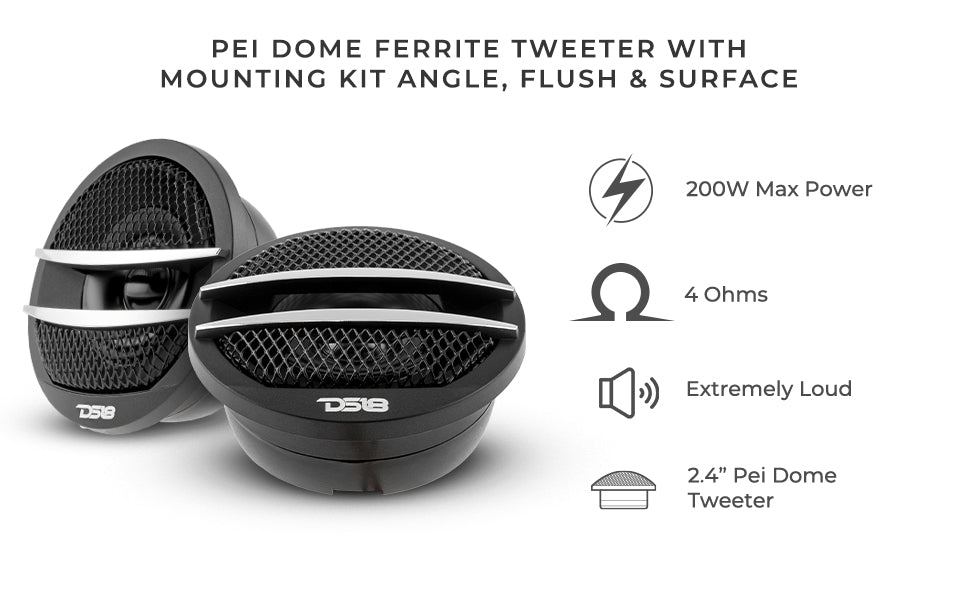

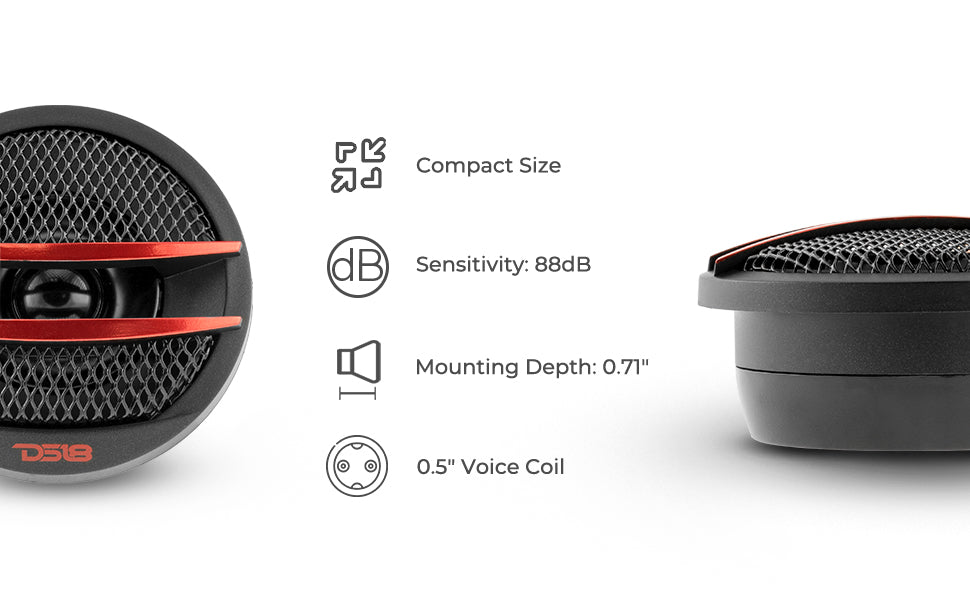

Key Features
- 2" PEI Dome Tweeter
- RMS Power: 50 Watts(200 Watts Peak)
- Impedance: 4 Ohm ~ 88dB
- Ferrite Magnet
- Red ~ Silver
- Pair
Specifications
| SKU | TX1 |
|---|---|
| Nominal Diameter | 2" |
| Nominal Impedance | 4 OHMS |
| AES Power Handling | 25W |
| Program Power Handling | 50W |
| Peak Power Handling | 200W |
| Sensitivity (1w/1m) | 88 dB |
| Frequency Response | 2K-20KHz |
| Recommended Hi Pass Crossover | 3KHz |
| Pair | Yes |
| Voice Coil Diameter | 0.5" |
| Voice Coil Former Material | KSV |
| Diaphragm Material | PEI Dome |
| Magnet Material | Ferrite |
| Body Material | Plastic |

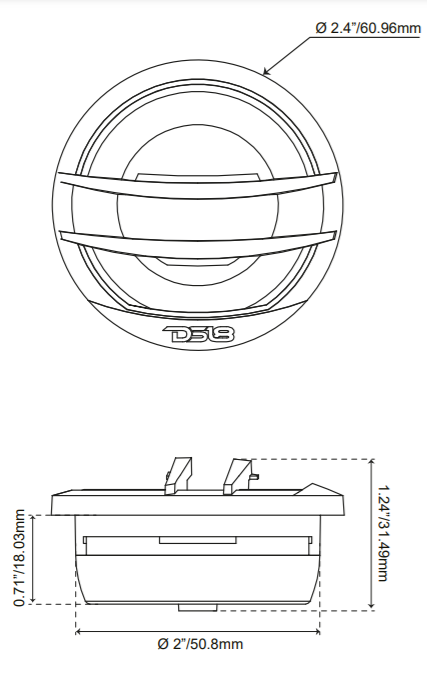

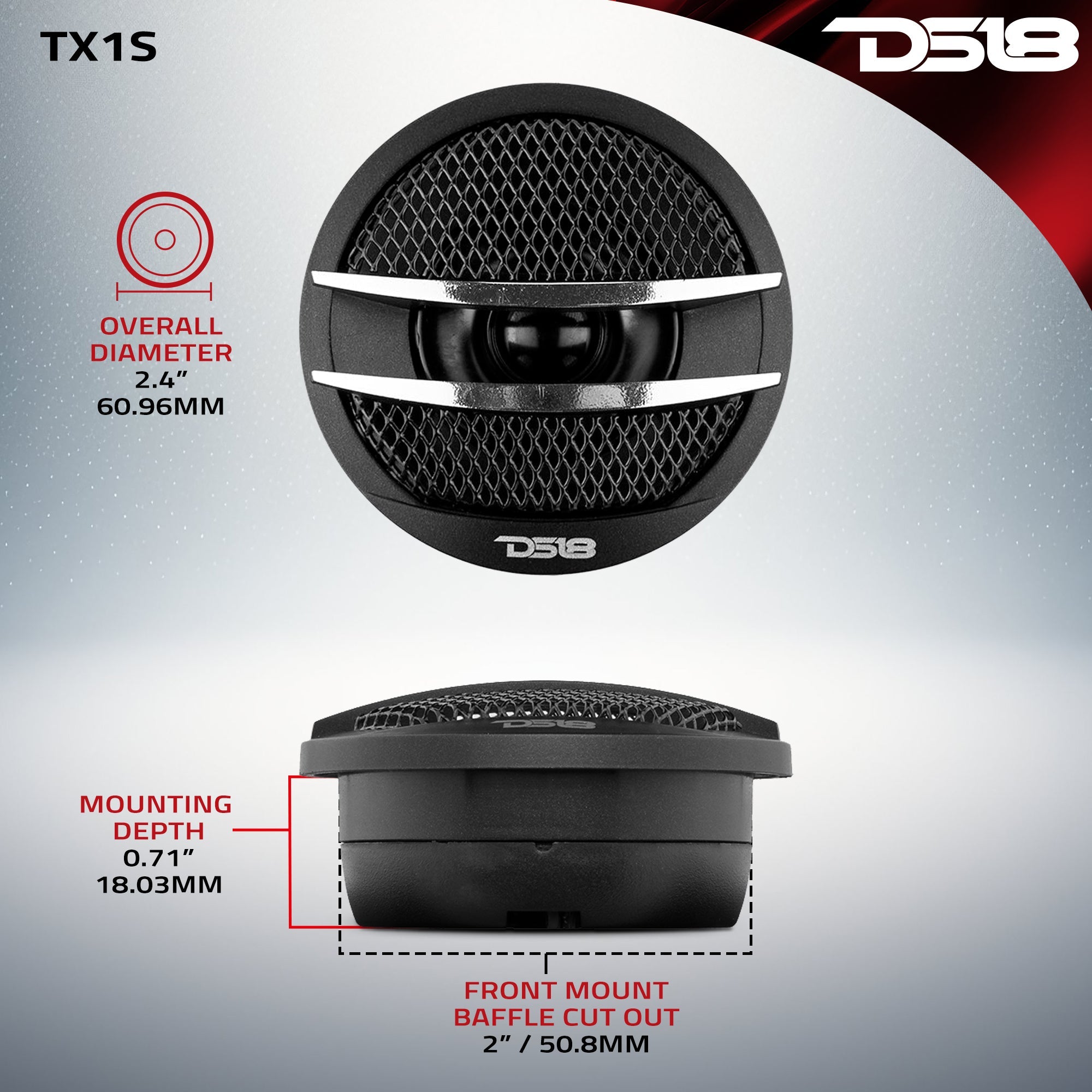

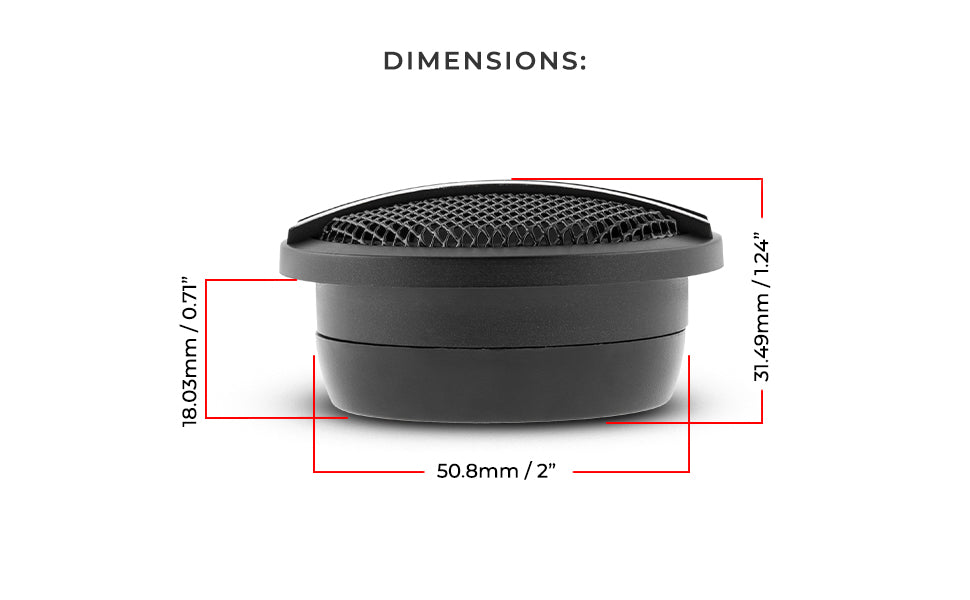

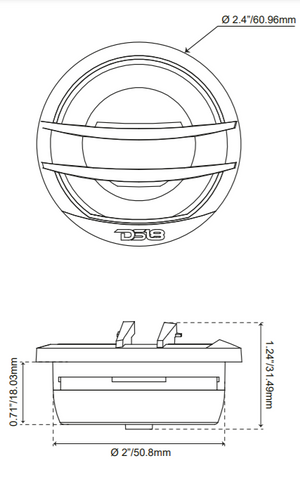

| Overall Diameter | 2.4" / 60.96mm |
| Overall Height | 1.24" / 31.49mm |
| Front Mount Baffle Cutout | 2" / 50.8mm |
| Mounting Depth | 0.71" / 18.03mm |
| Product Weight | 0.5 lbs |
| Product Dimensions | 8 x 5 x 1.75 |
| M/C Weight | 21 lbs |
| M/C Dimensions | 16.5 x 15.75 x 10.25 |
| M/C QTY | 30 |
| Sold In | Pair |
