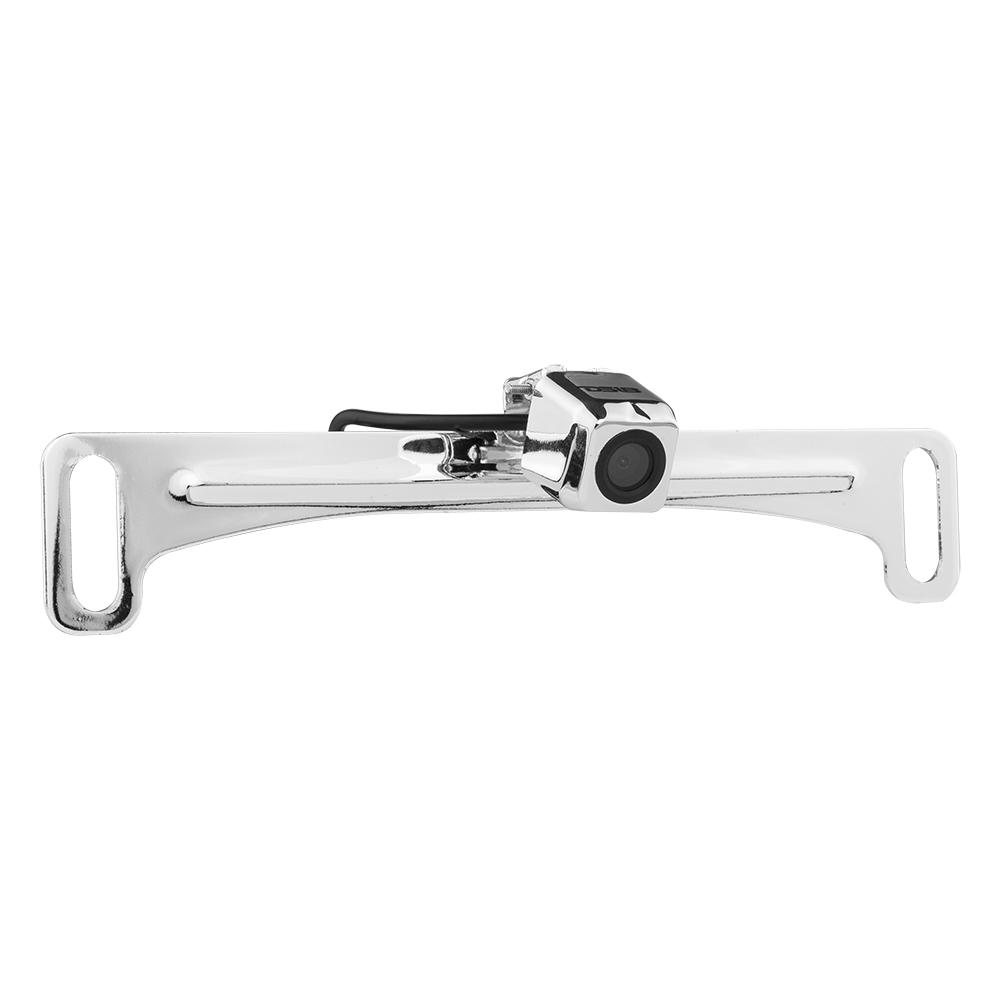

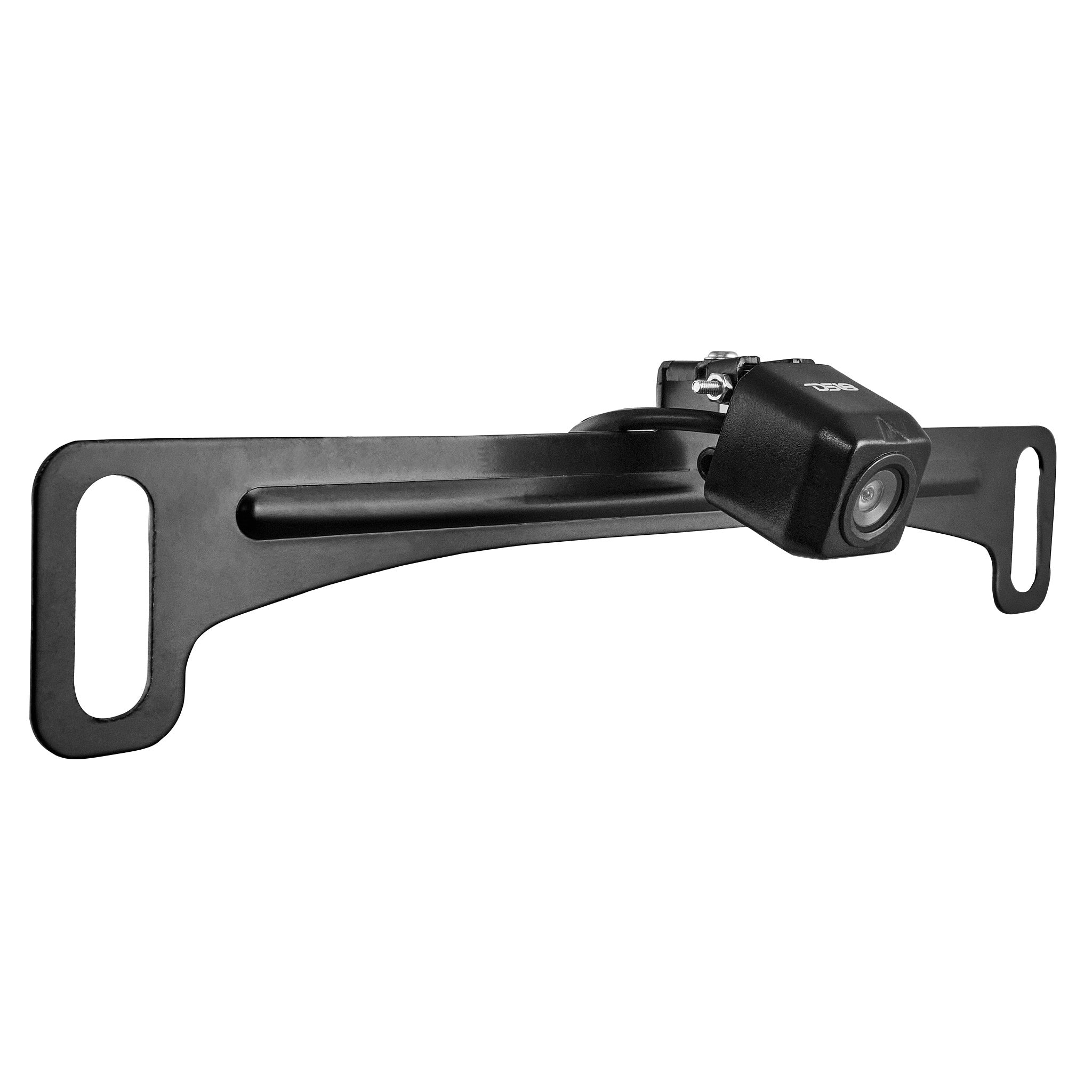

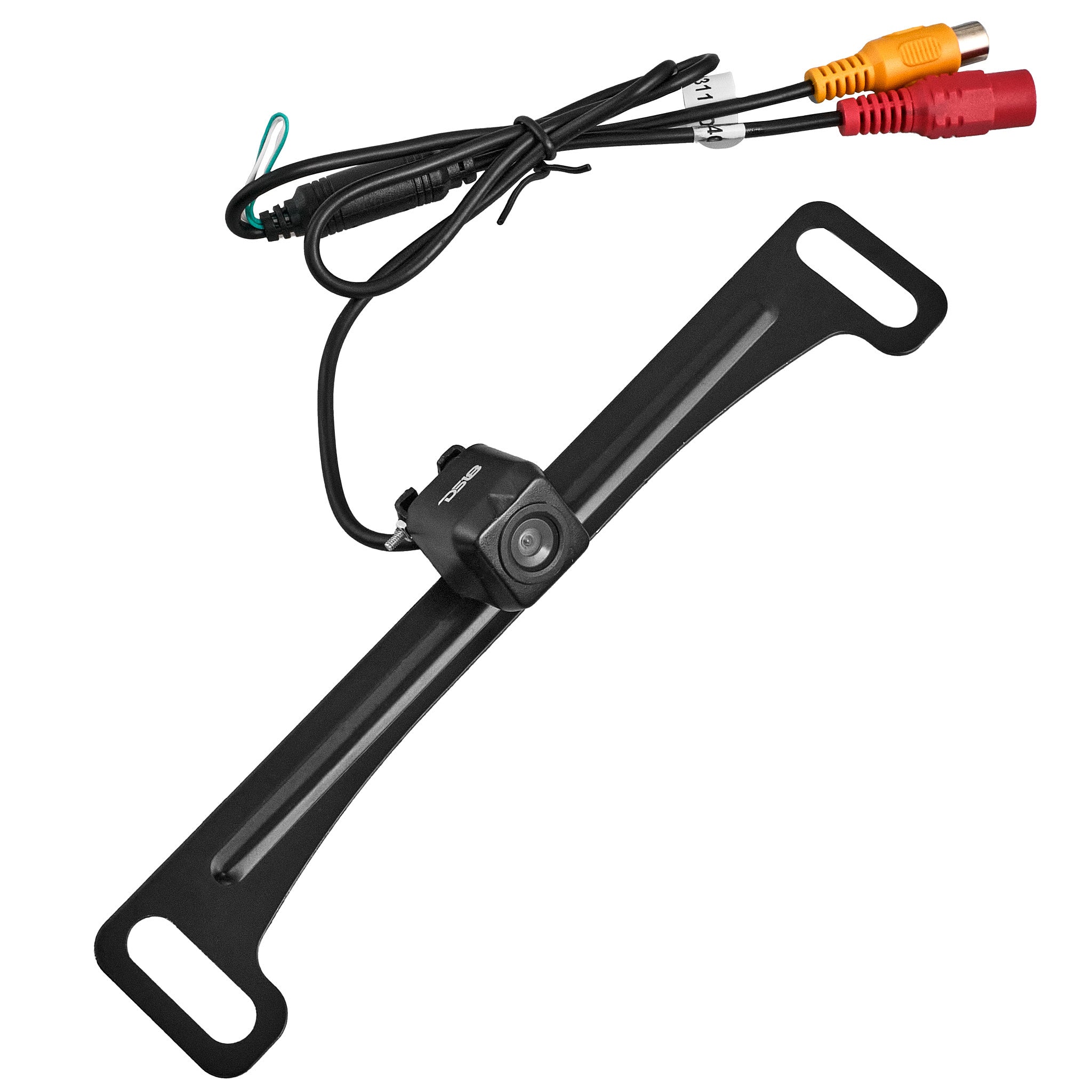

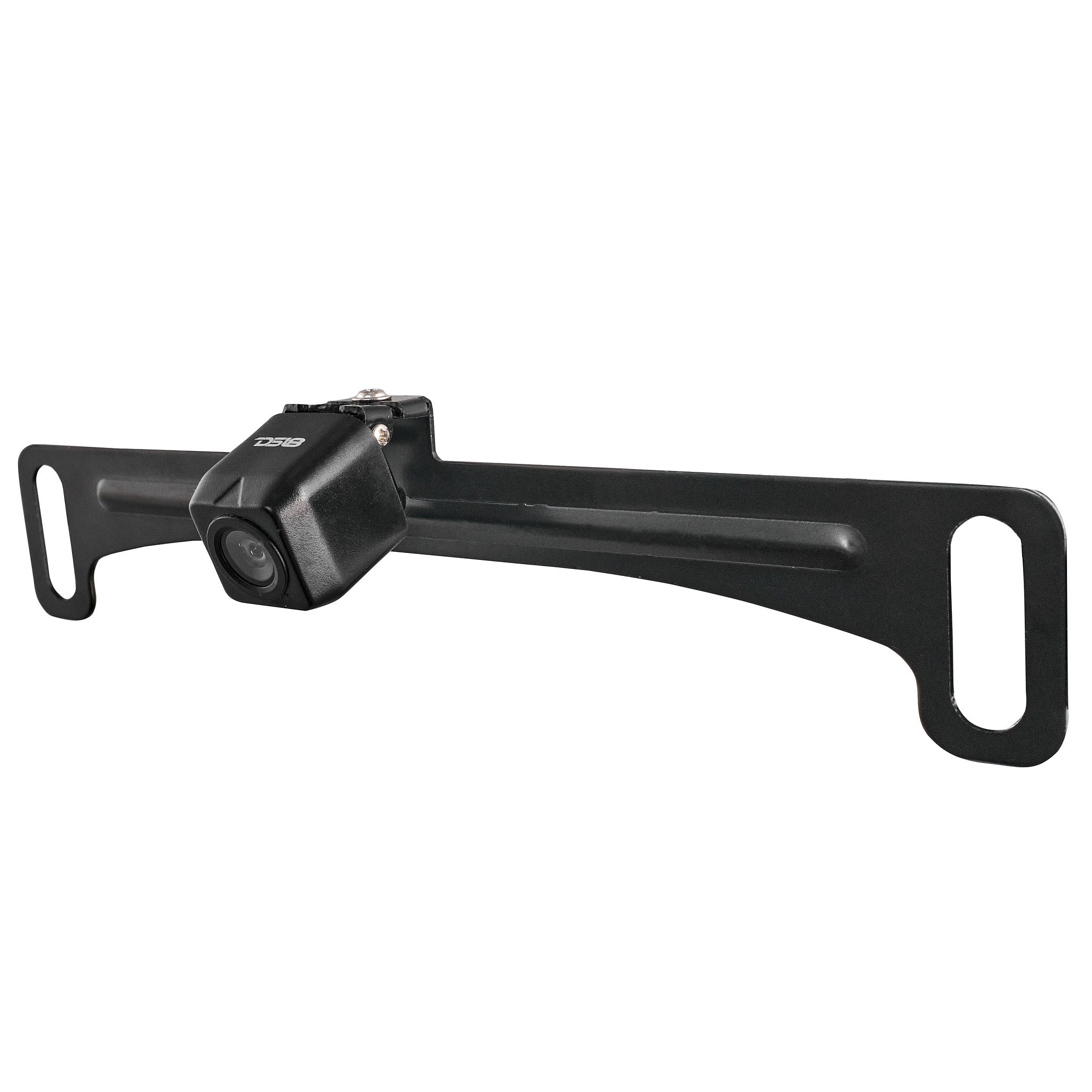

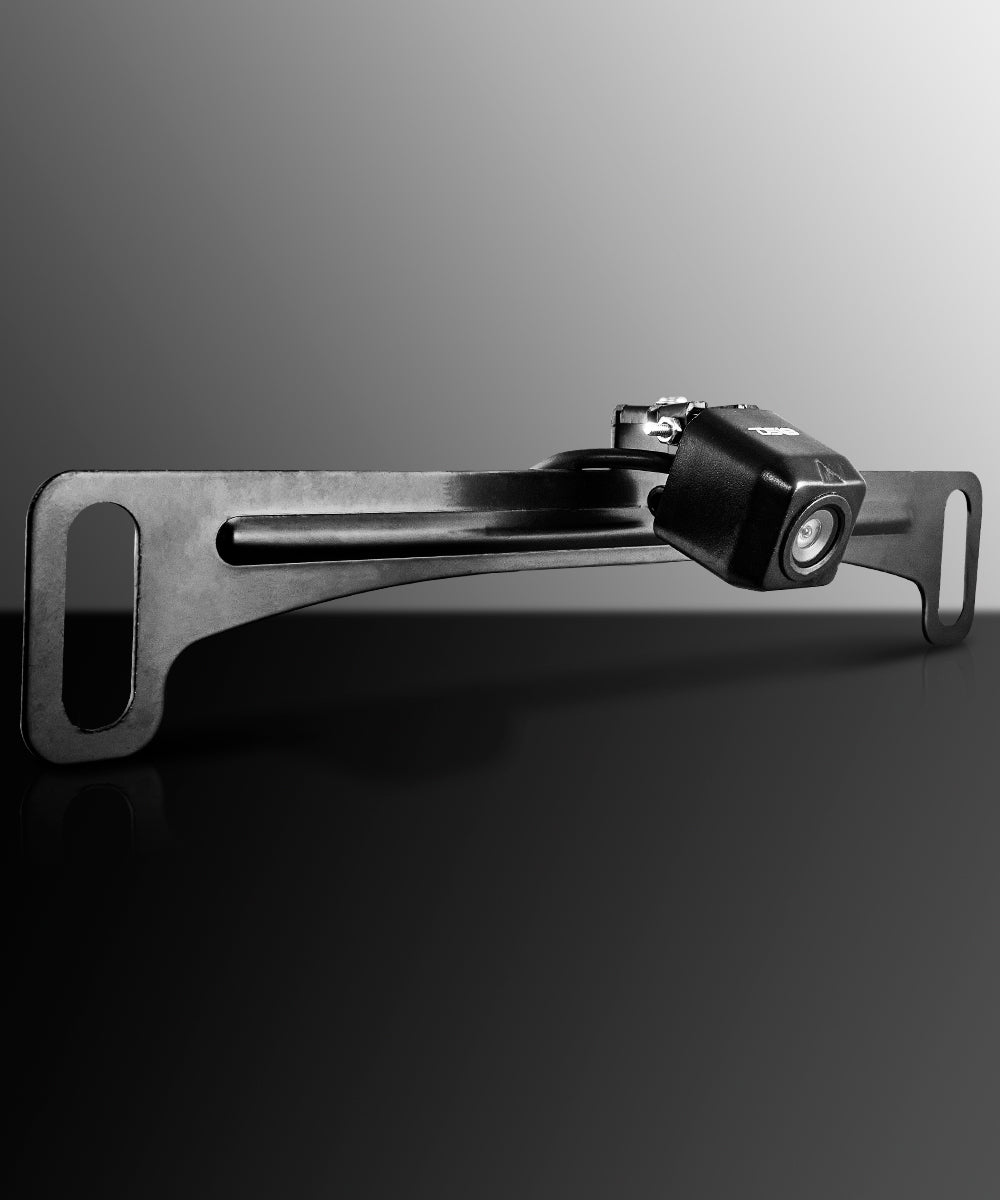

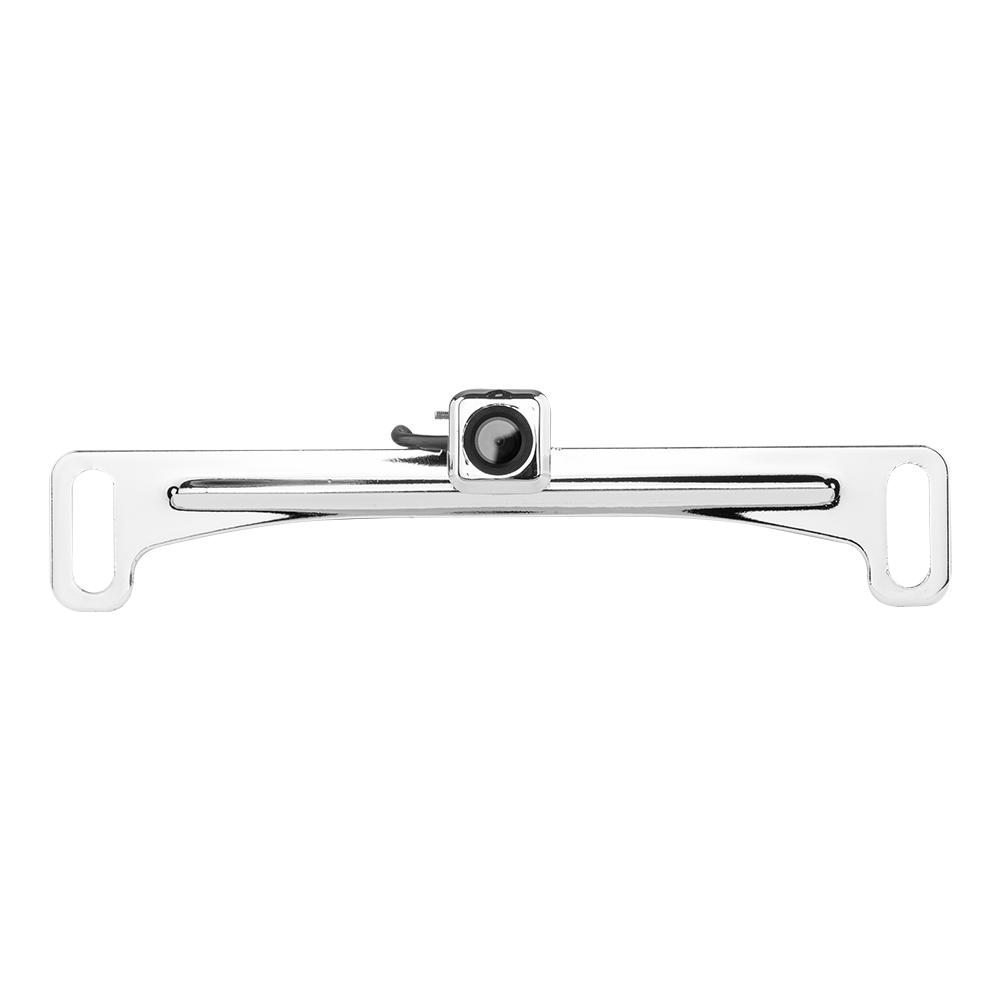

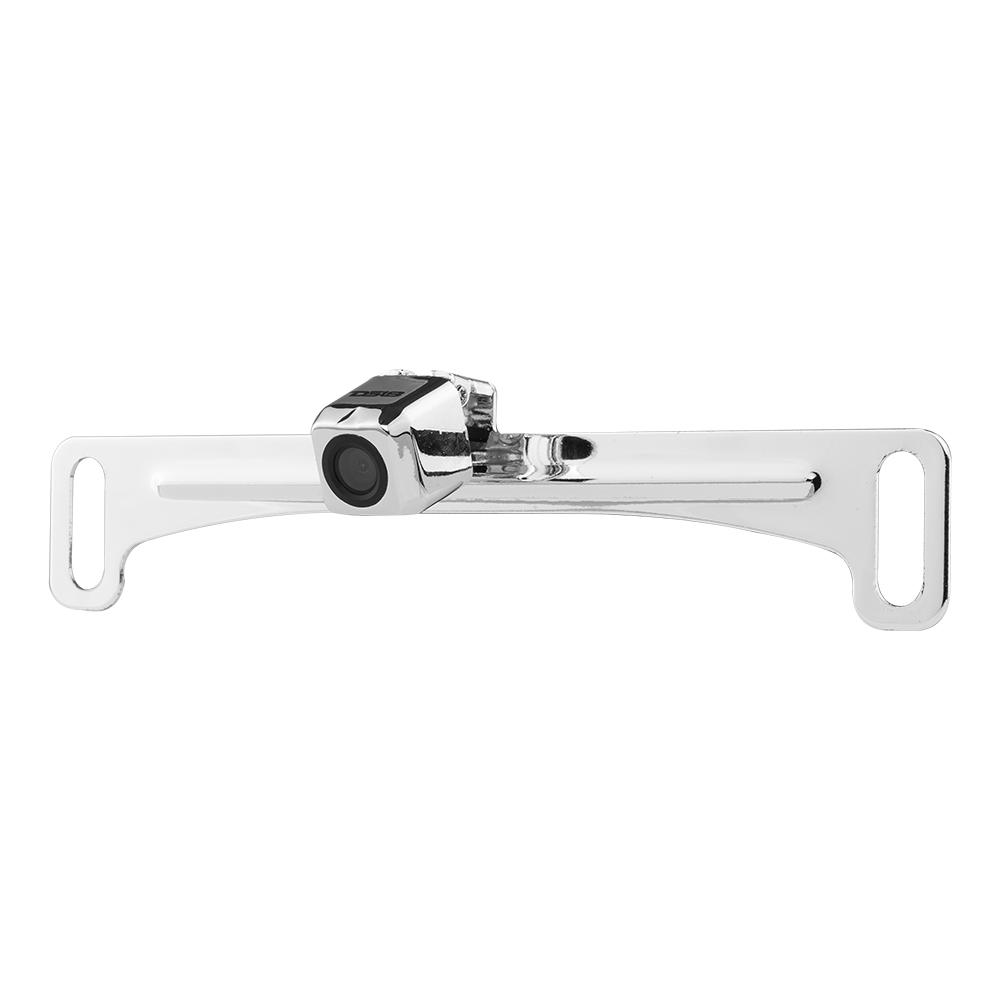

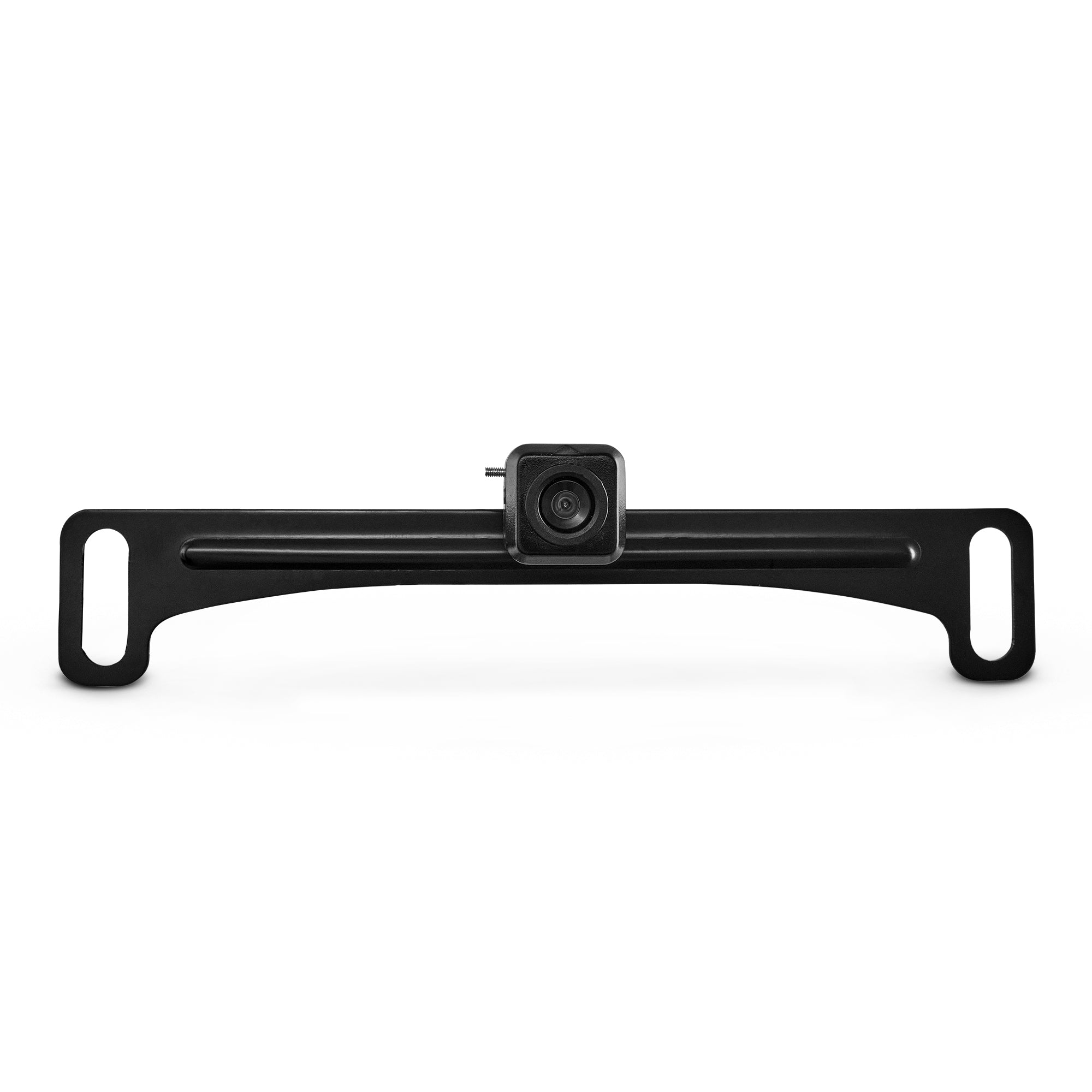

DS18 RCNLP Top License Plate Backup Camera
DS18 RCNLP Top License Plate Backup Camera
DS18 RCNLP Top License Plate Backup Camera
Product Overview
The RCNLP is a new rear view camera that attaches to the license plate screw holes on your vehicle of choice. This unit provides clear visibility while reversing in your vehicle and is made to be compatible with most vehicles and head unit camera inputs.
Specifications
-
Super low illumination wide angle (100 degrees)
-
Compact size
-
No need to drill holes for bracket installation
-
Hidden bracket will not cover any information on your license plate
-
High Resolution
Key Features
- Back Up Camera
- License Plate Mount
- High Resolution / Low Illumination
- Color Camera Screen Image
- Distance Scale
- Water Proof IP67
Specifications
| SKU | RCNLP |
|---|---|
| Image Sensor | PC7070 |
| Tv System | PAL/NTSC |
| Effective Pixels | 648 x 488 Pixels |
| Sensing area | 5.55 um x 5.55 um |
| Scanning system | 2:1Interlance |
| Resolution | 420 TV Lines |
| Horizontal Sync, Frecuency | 15.625KHz - 15.734KHz |
| Vertical Sync, Frequency | 50Hz - 60Hz |
| Minimum illumination | 1.5 lux/F1.2 |
| Video Output | 1.0VP - P.750hm |
| White Balance | Auto |
| Electronic Shutter | 1/60~1/15,000 Seconds |
| Power supply | DC 12V |
| Lens | 1.8mm F=2.0 |
| Lens angle | 100° |
| Waterproof Grade | IP67 |
