TMS6SG

Overview

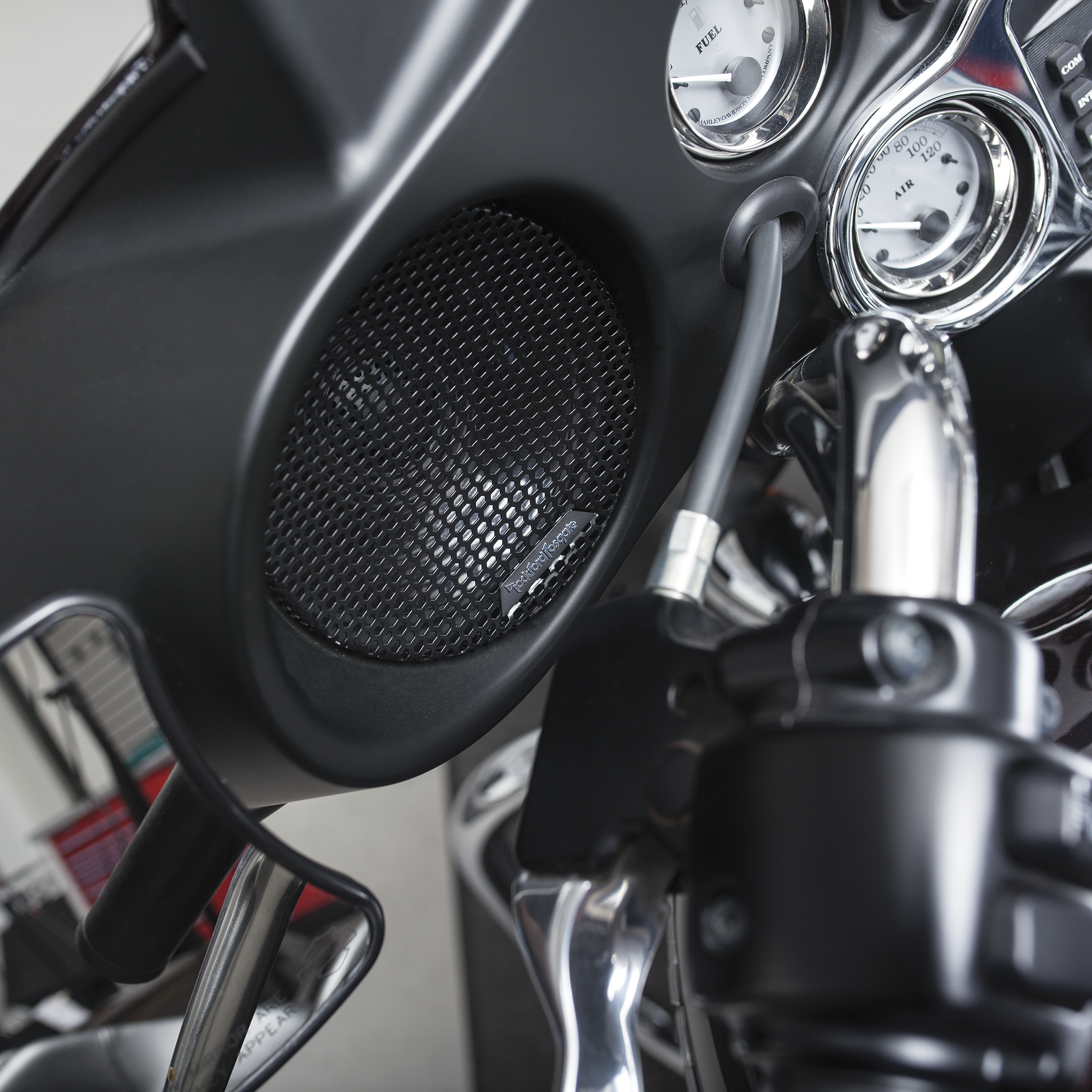

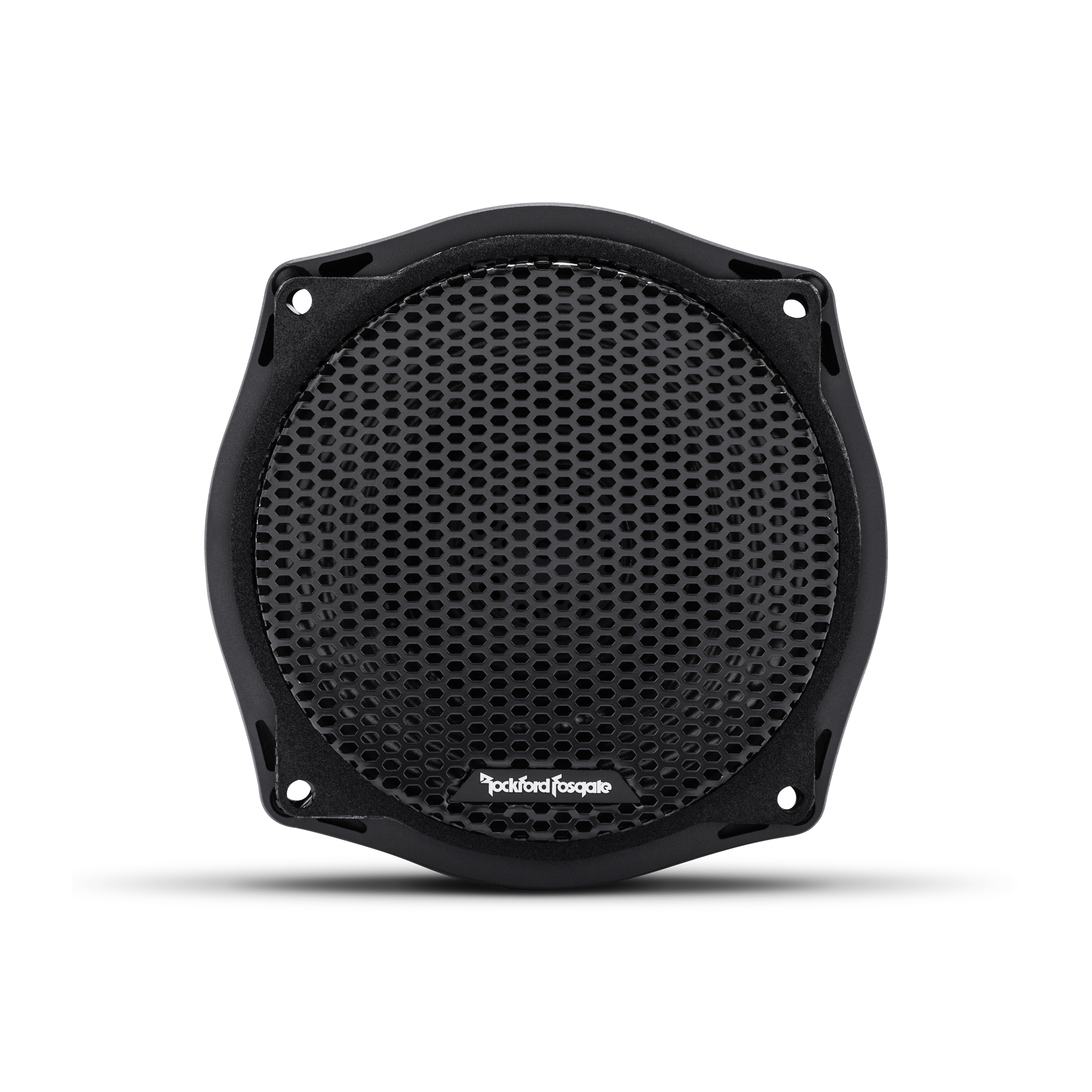

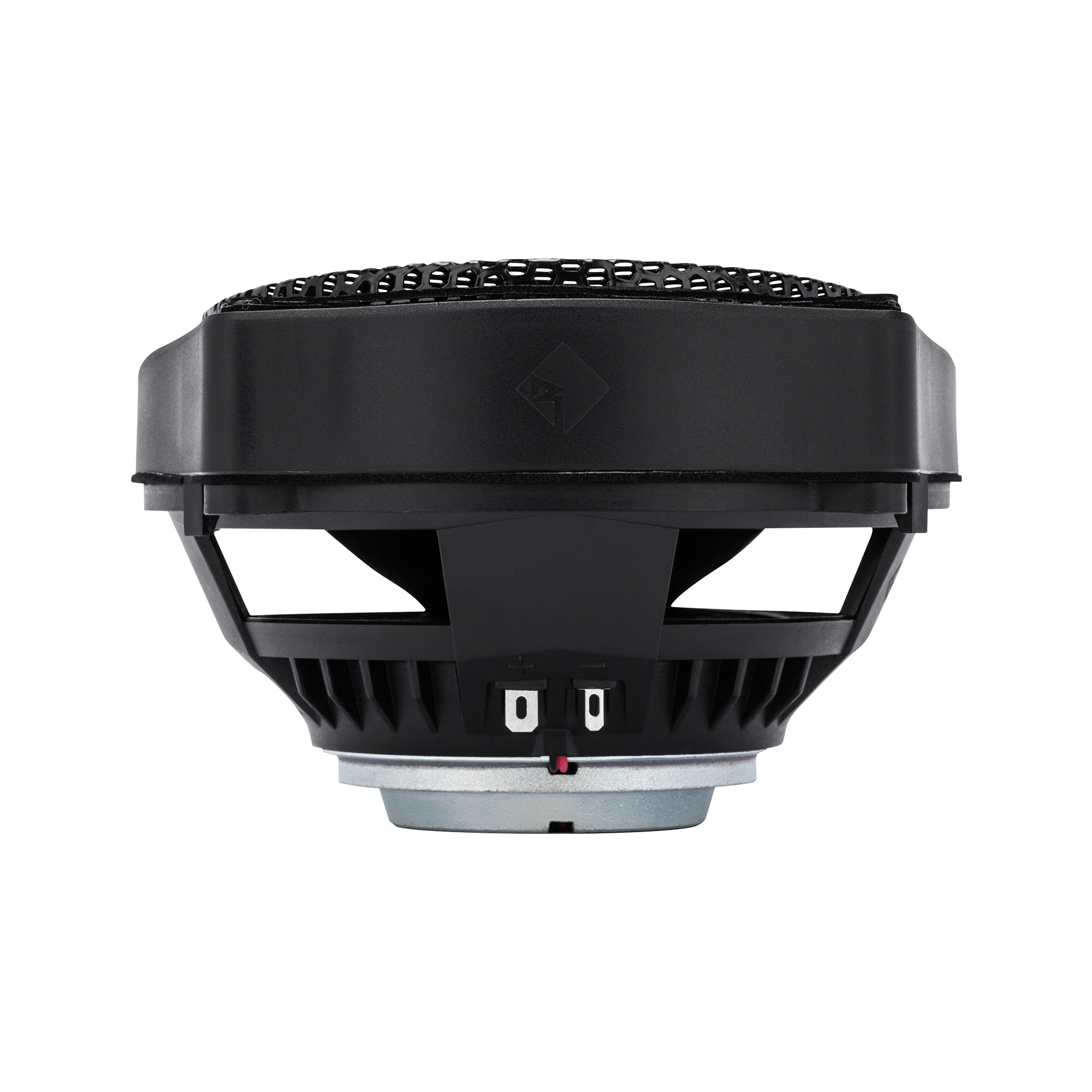

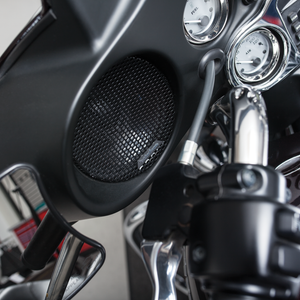

The TMS6SG is a full range coaxial speaker designed to fit the fairing speaker locations of select model Harley-Davison Electra Glide and Street Glide Motorcycles. It features a Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker mounts using the factory hardware and comes with new grille assemblies. See compatibility chart for fitment.

Features

• Element Ready design that is weather and water resistant
• High Power 35mm Voice Coil
• Neodymium Tweeter with Integrated Phase Plug and ASA Grill
• Ultra-Efficient 25mm Proprietary Film Dome Tweeter
• Carbon Fiber Reinforced Polypropylene Cone
• Integrated 6dB Crossover with High Power Polyester Capacitor
• Integrated Spade Terminals
• Ultra-Efficient Neodymium Ring Magnet Motor
• Ultra-High Temperature Glass Reinforced Polymer Frame
• NOTE: Installation on CVOTM and Screaming EagleTM models are not plug-n-play and will require modification
• Co-Molded Cone and Surround
• Designed for 1998-2013 Harley-Davidson Electra Glide / Street Glide Fairing Locations
• Poly-Cotton Spider
• Santoprene Front Isolation Spider
• Santoprene VAST Surround
• Discreet (Hidden) Tweeter Wire
• Low Profile Coaxial Tweeter Design
• 2-Year Warranty

Specifications

• Nominal Impedance (Ohms): 4-Ohm
• Voice Coil Diameter (in/mm): 1.40"; (35.6 mm)
• Midrange Size; (Nominal Diameter): 6.5"
• Sensitivity; (dB @ 2.83V/1M): 94 dB
• Power Handling (MAX): 150 Watts MAX
• Power Handling (RMS): 75 Watts RMS
• Crossover: Built-in tweeter crossover
• Frequency Response (Hz): 56 Hz - 20 kHz
• Sensitivity; (dB @ 1W/1M): 91 dB
• Grille/Trim Ring Included: Yes

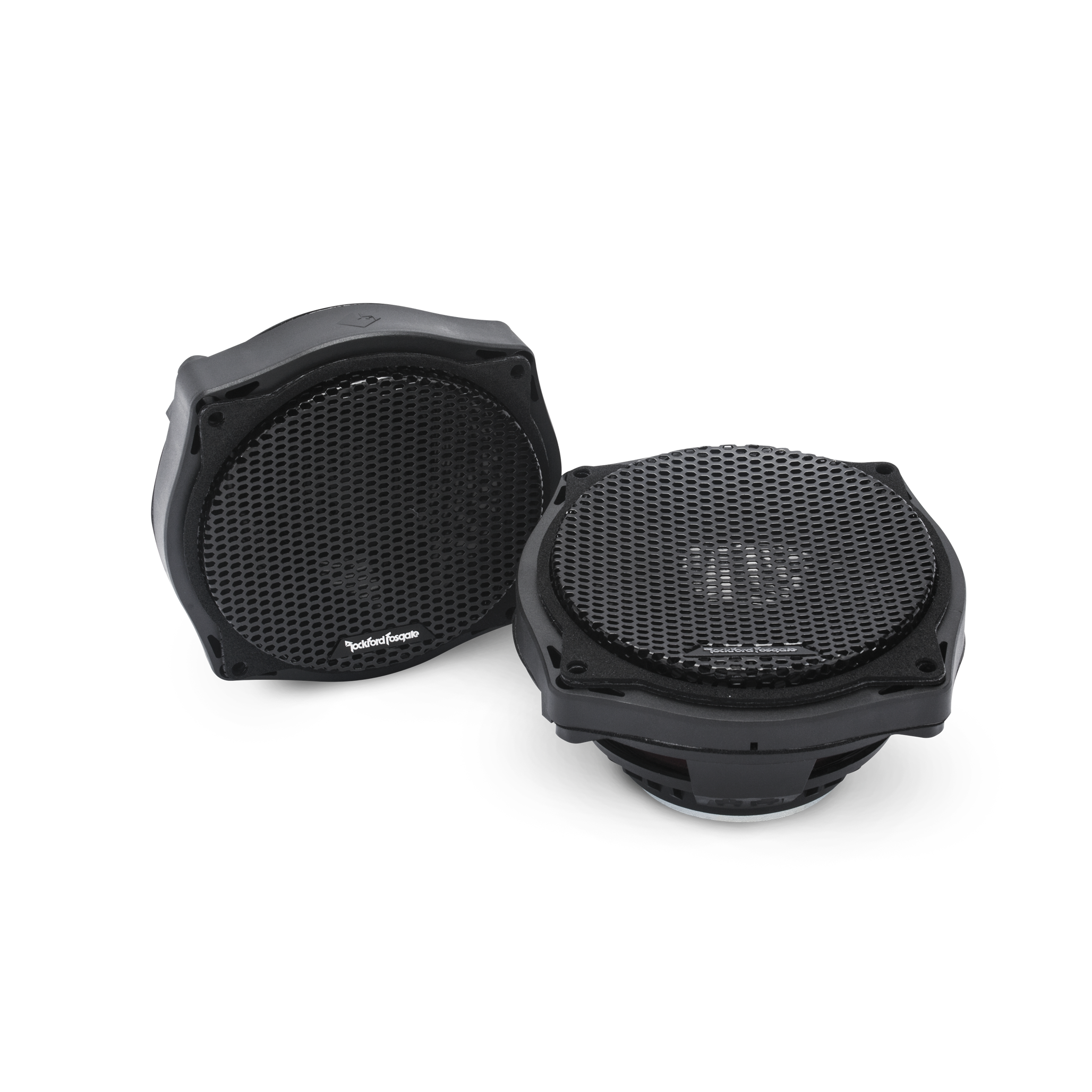

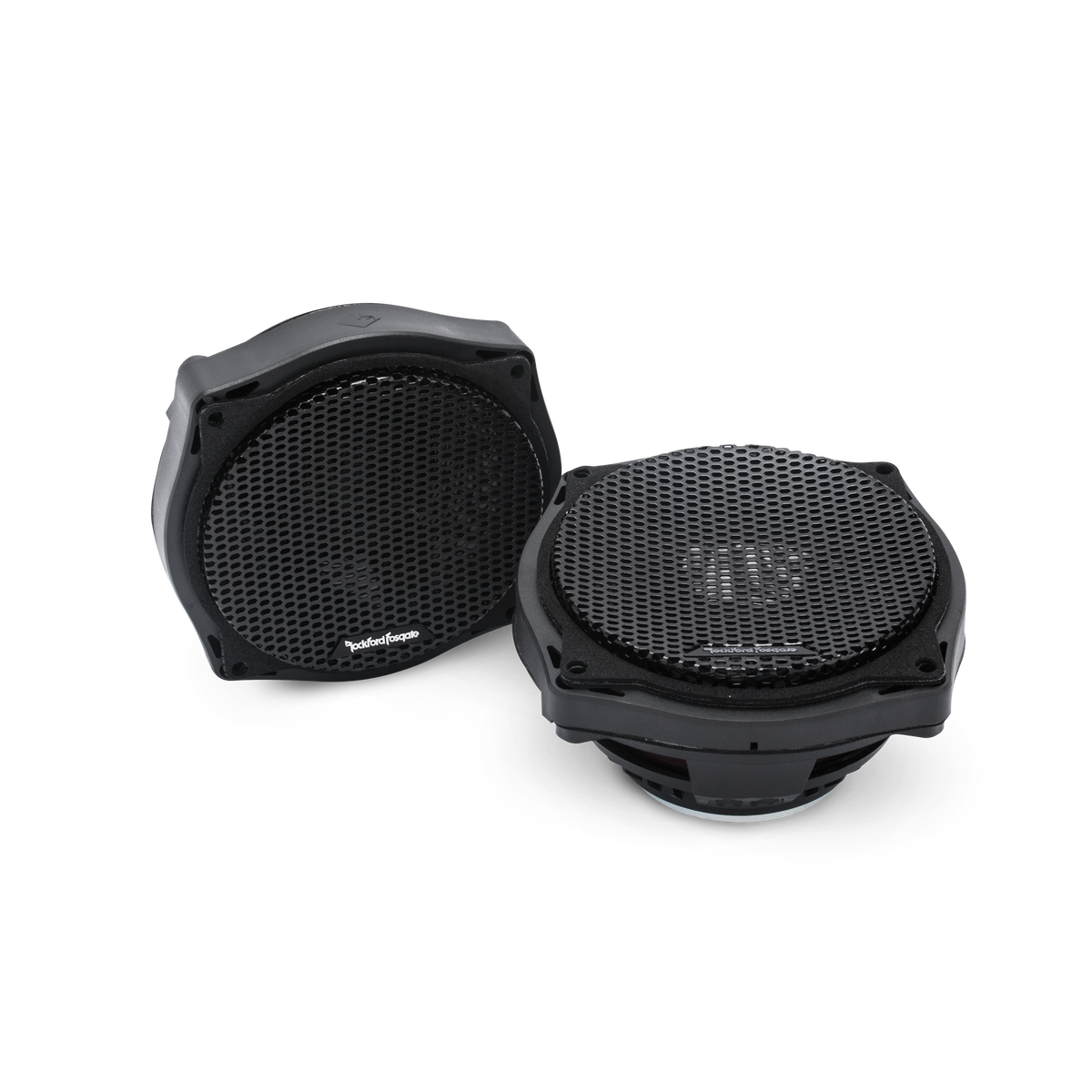

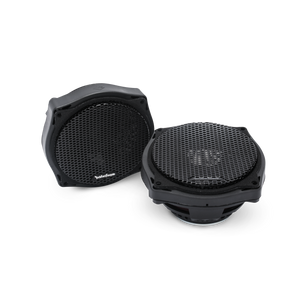

• Included In The Box: (2) Speakers; (2) Speaker Grilles; (1) Hardware Pack
• Mounting Hardware: Yes
• Speaker Type: 2-Way Coax
