Harley-Davidson® 6.5" Full Range Upper/Lower Fairing and Tour-Pak Speakers (2014+)

Overview

Upgrade your motorcycle audio with Rockford Fosgate TMS65 speakers. Immerse in superior sound quality. Improve your riding experience now!

Features

• Ultra-Efficient 25mm Proprietary Film Dome Tweeter
• Carbon Fiber Reinforced Polypropylene Cone
• Element Ready design that is weather and water resistant
• Neodymium Tweeter with Integrated Phase Plug and ASA Grill

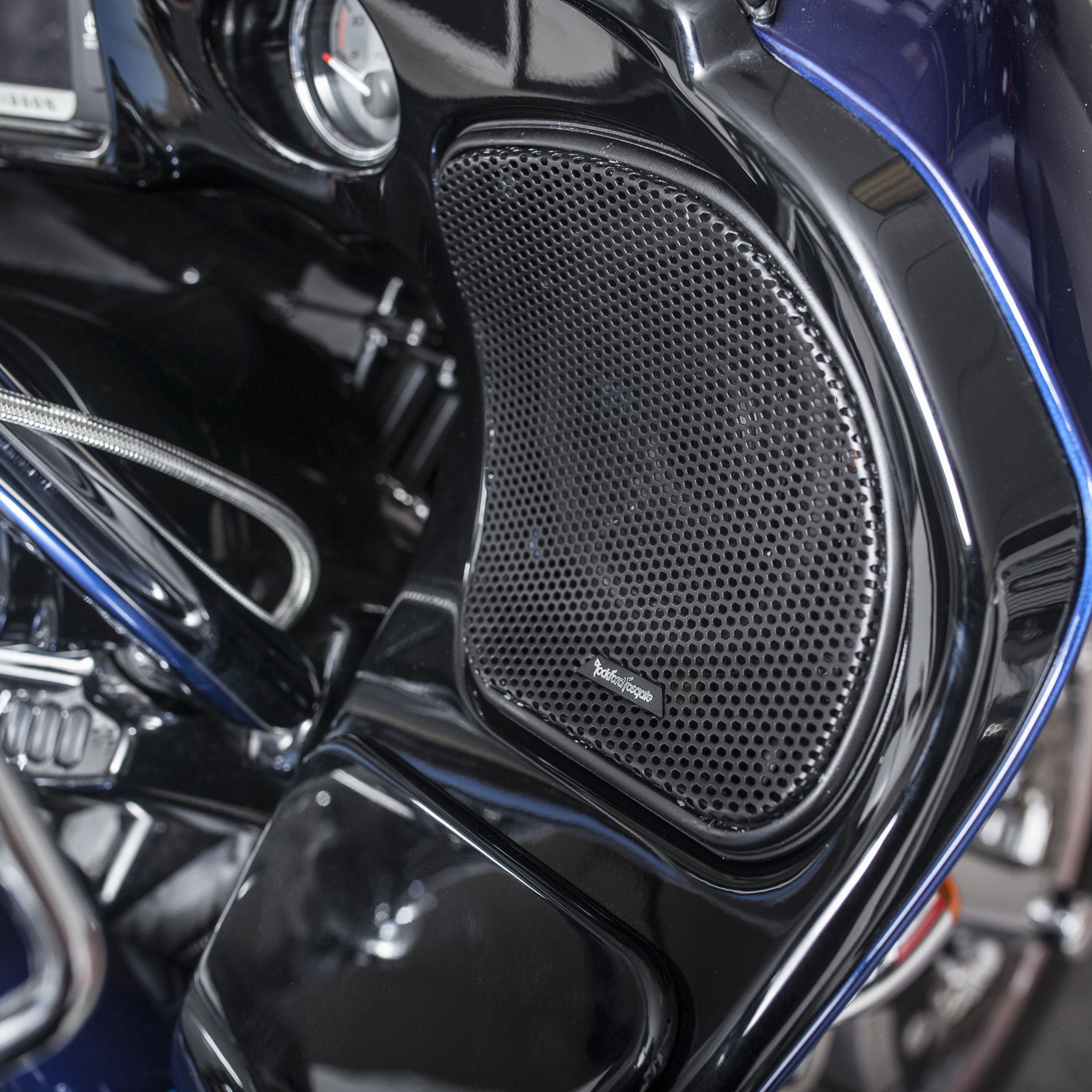

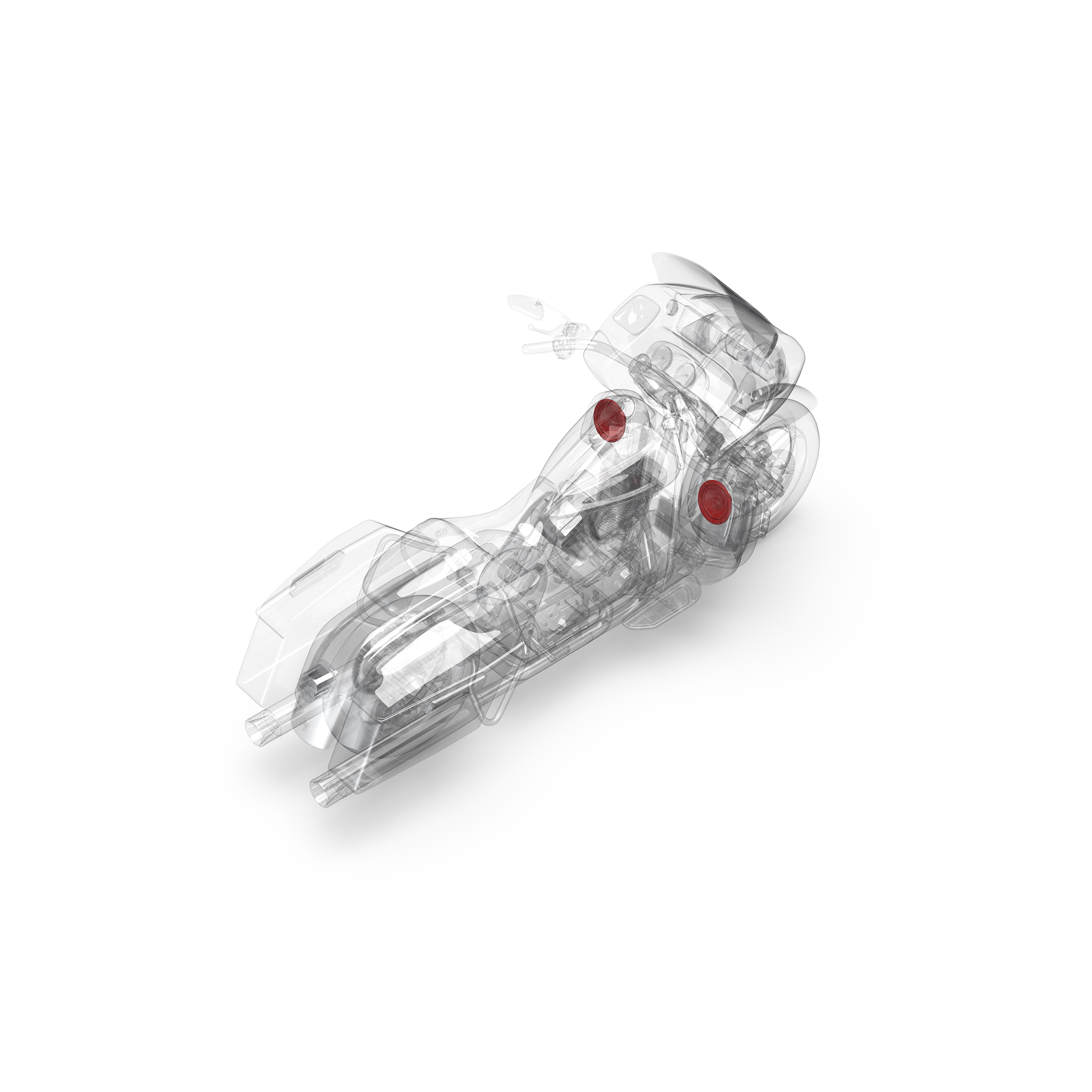

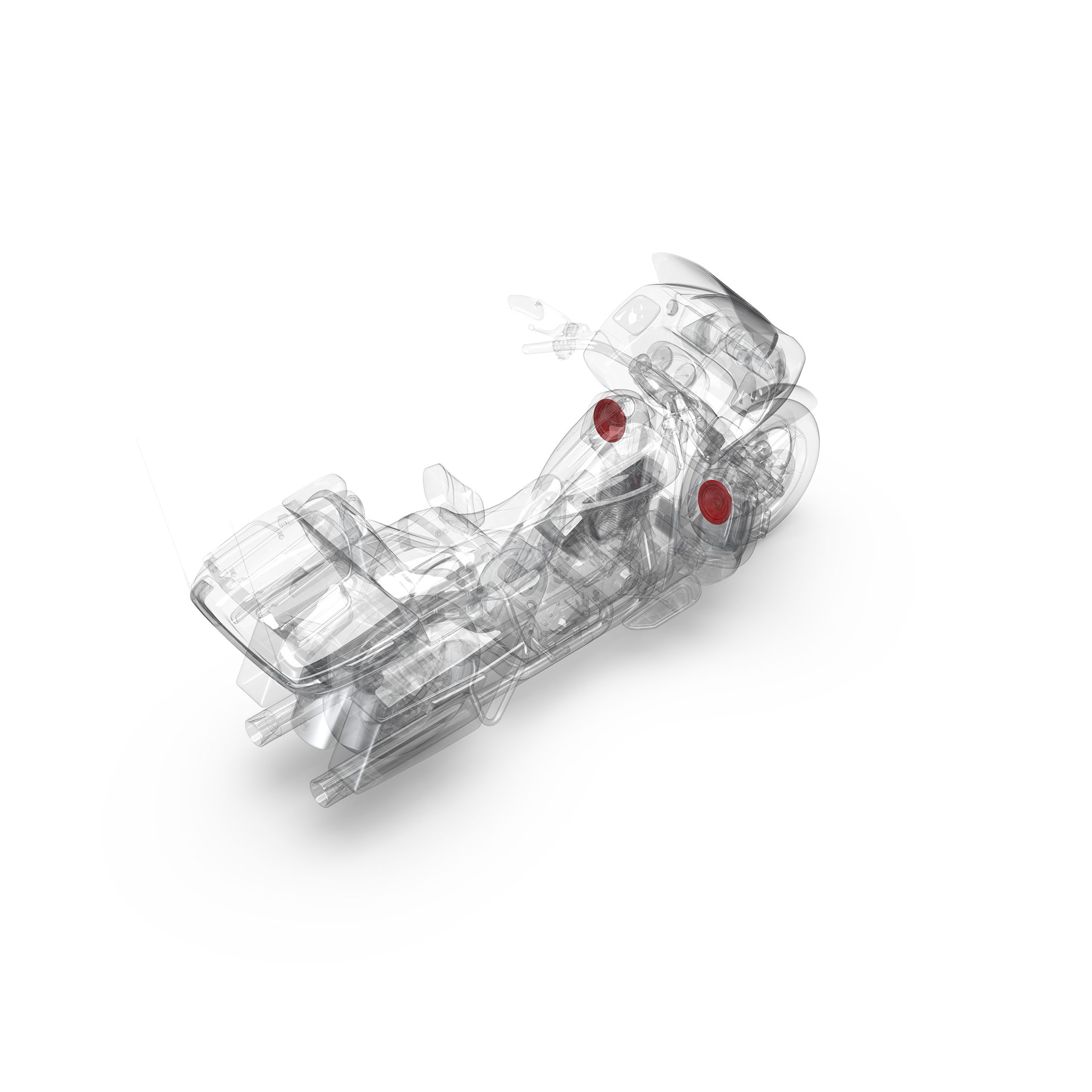

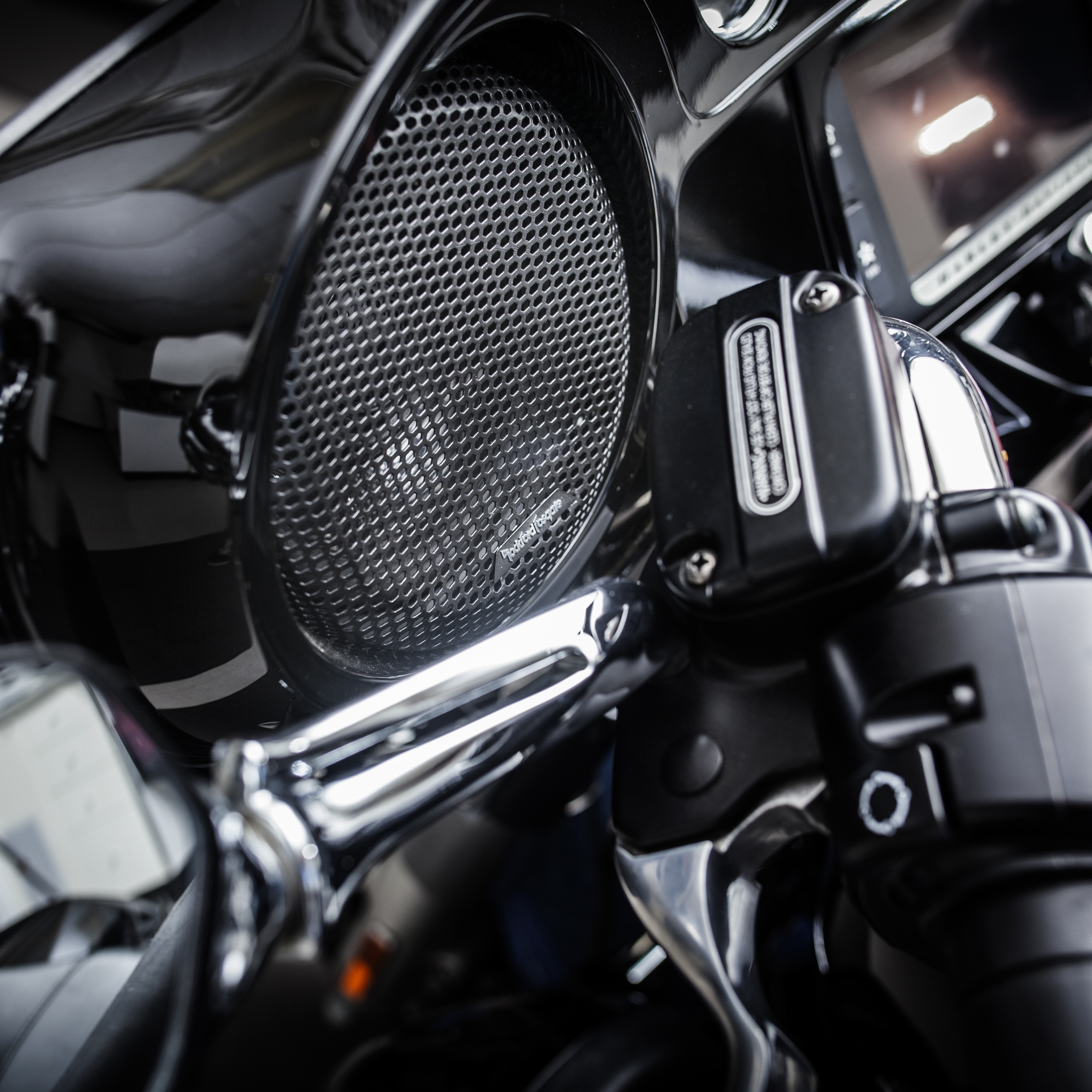

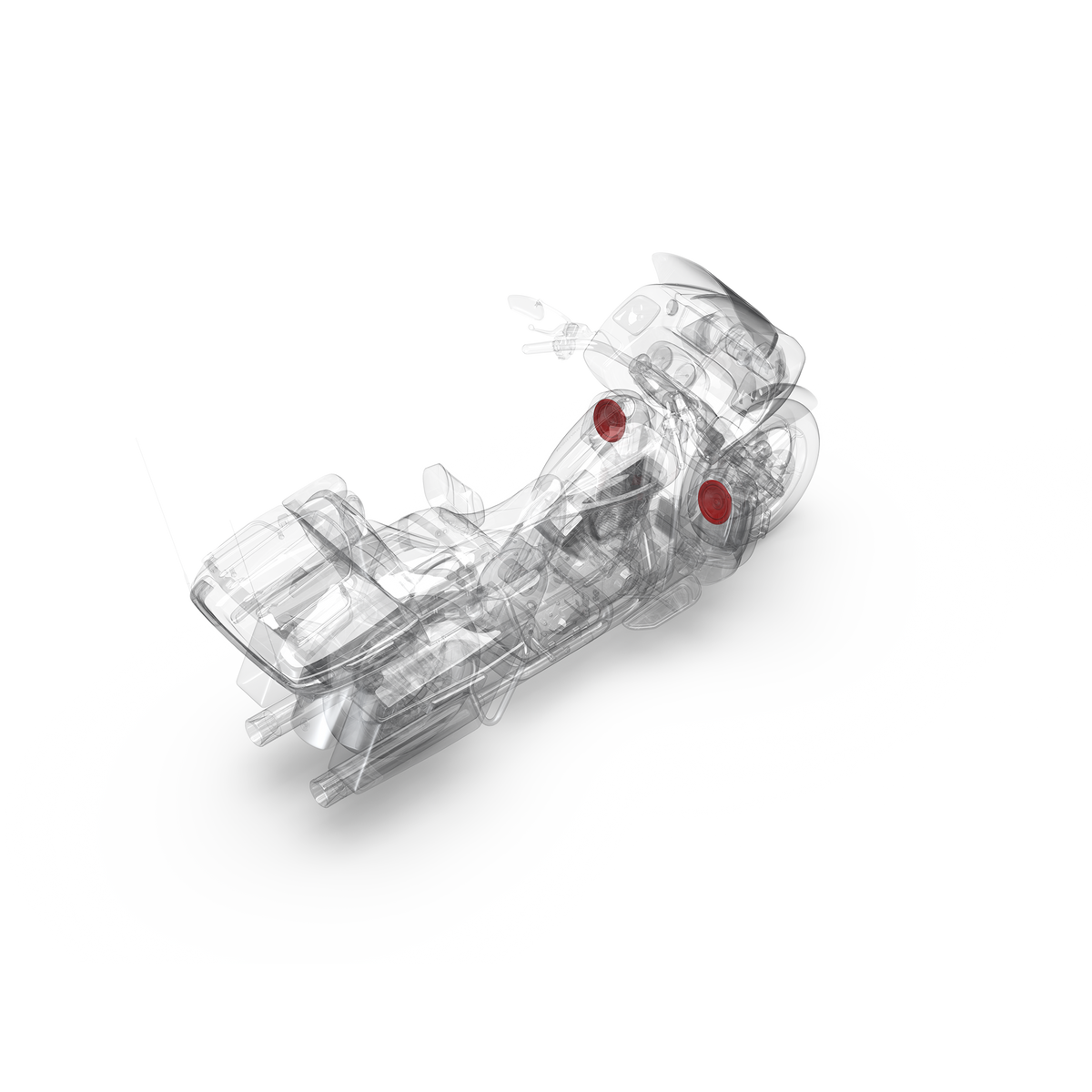

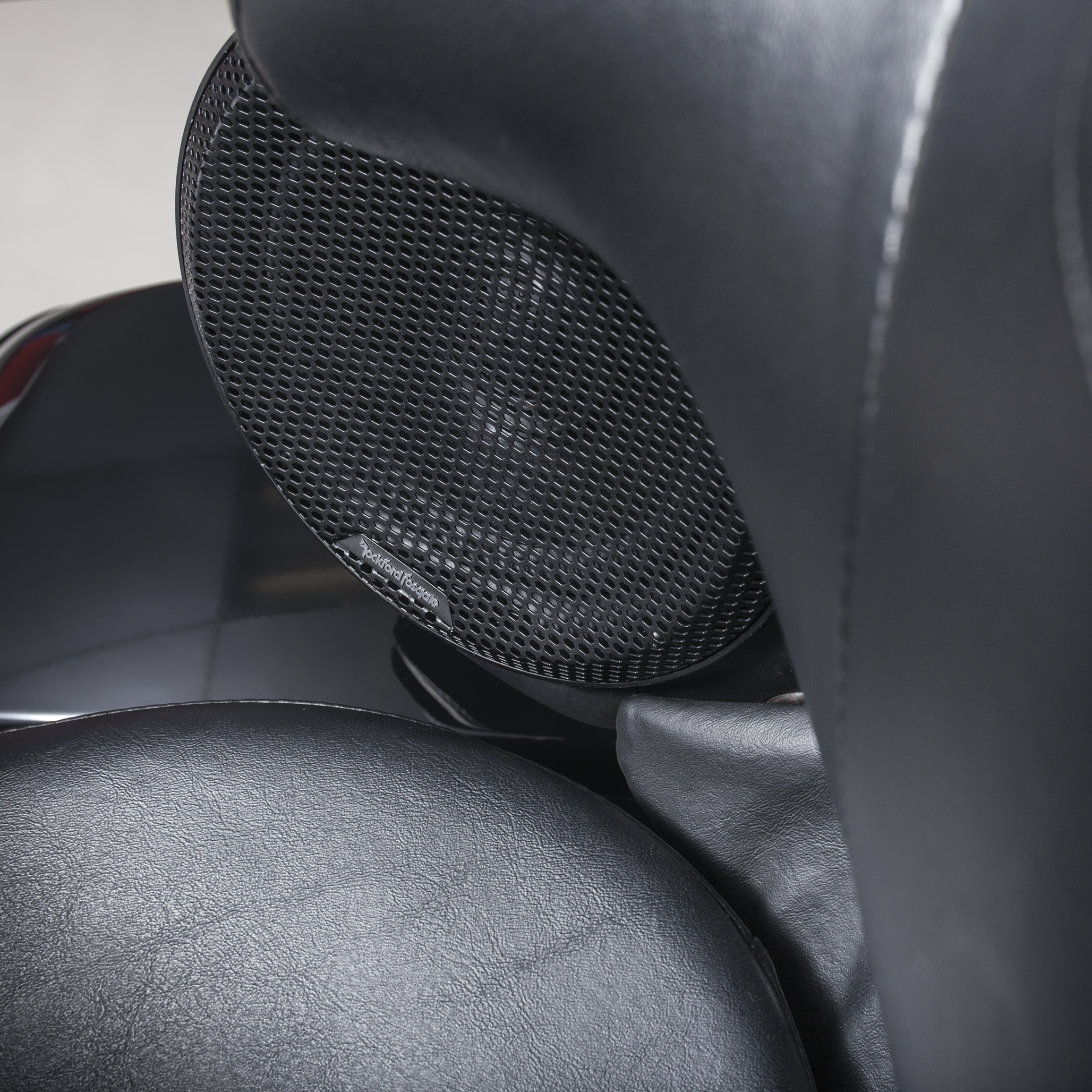

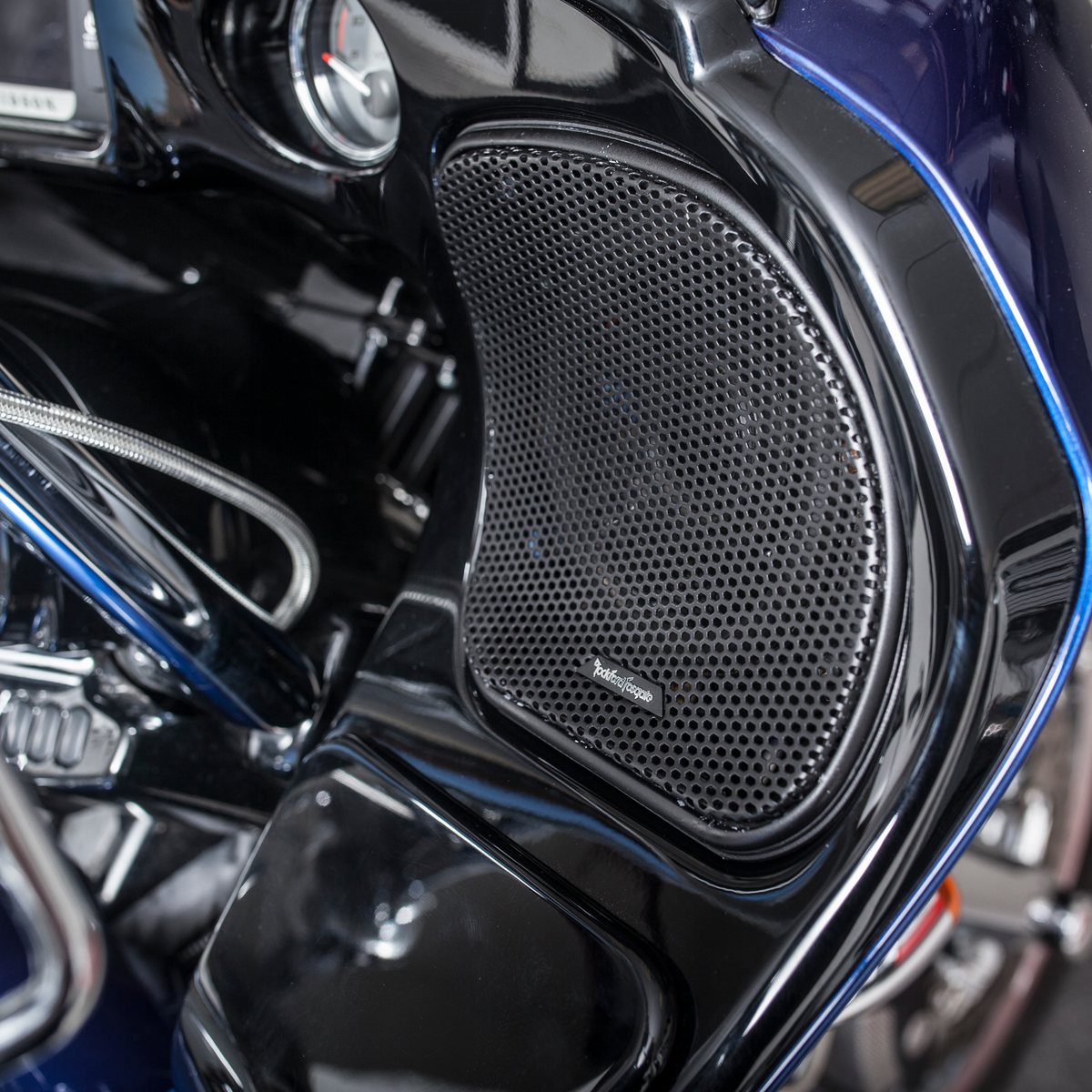

• Grilles for upper fairing, lower fairing (non cooled) and Tour-Pak® included
• High Power 35mm Voice Coil
• Santoprene Front Isolation Spider
• Integrated Spade Terminals
• Integrated 6dB Crossover with High Power Polyester Capacitor
• Poly‐Cotton Spider
• Co‐Molded Cone and Surround
• Santoprene VAST Surround
• 2-Year Warranty
• Ultra‐Efficient Neodymium Ring Magnet Motor
• Low Profile Coaxial Tweeter Design
• Discreet (Hidden) Tweeter Wire

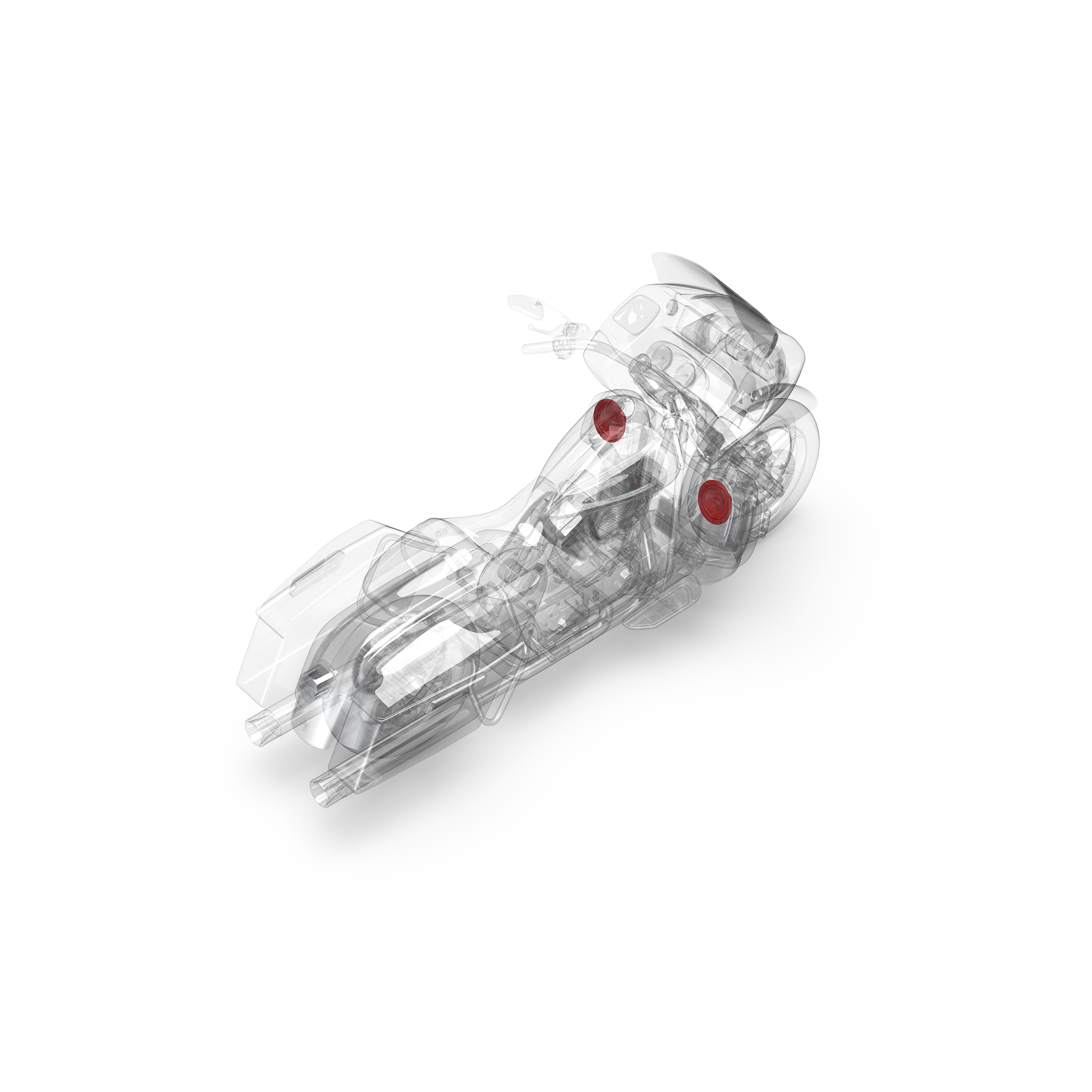

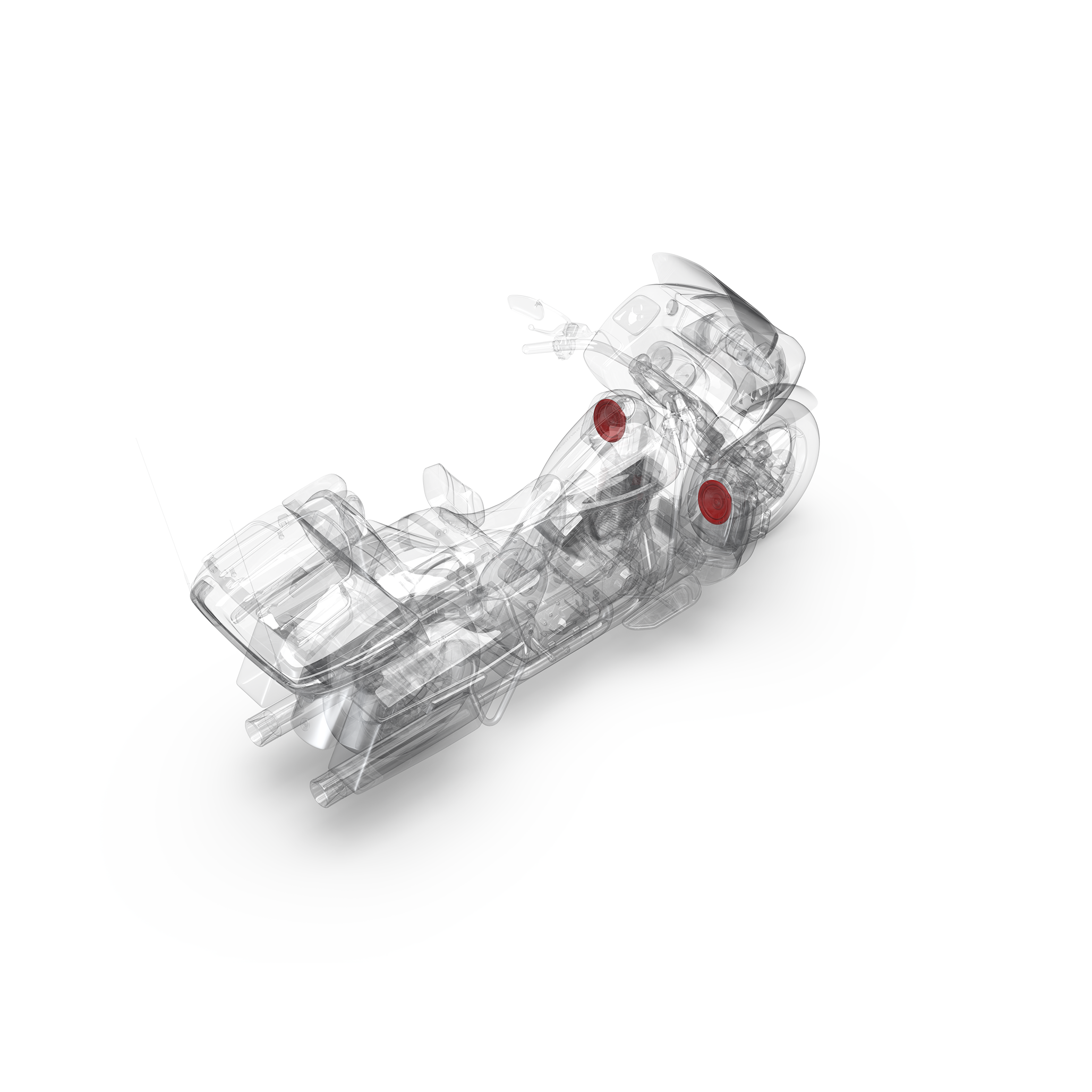

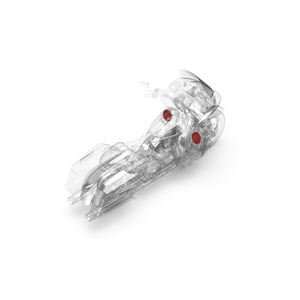

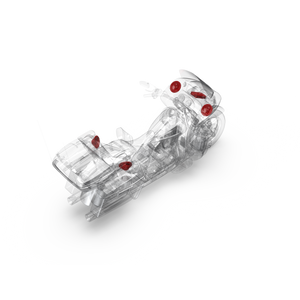

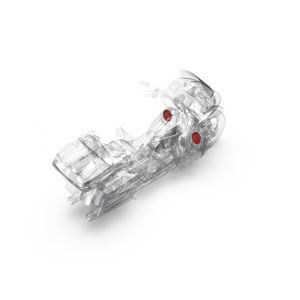

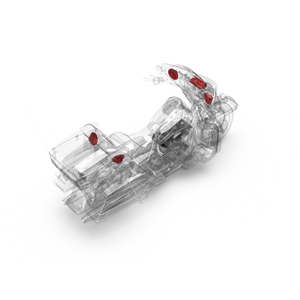

• Designed for 2014+ Harley-Davidson® Street Glide®/Road Glide® and Tour-Pak®
• Ultra‐High Temperature Glass Reinforced Polymer Frame

Technologies

• VAST Surround (speakers): The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.
• Klippel Verified: Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
• CEA-2031 (speakers): Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
• Element Ready™ | Motorcycle: All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
• Anodized Aluminum Voice Coil Former: Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.

Specifications

CEA-2031 Compliant
Midrange Size (Nominal Diameter)	6.5"
Speaker Type	2-Way Coaxial
Frequency Response (Hz)	56 Hz - 20 kHz
Nominal Impedance (Ohms)	4-Ohm
Power Handling (MAX)	150 Watts MAX
Power Handling (RMS)	75 Watts RMS
Sensitivity (dB @ 1W/1M)	91 dB
Sensitivity (dB @ 2.83V/1M)	94 dB
Voice Coil Diameter (in/mm)	1.40" 35.56 mm
Crossover	Built-in tweeter crossover
Mounting Hardware	Yes
Grille / Trim Ring Included	Yes

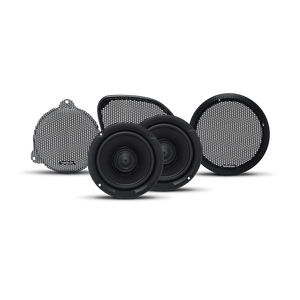

Included In The Box	(2) Speakers (2) 2015+ Road Glide Grilles (2) 2014+ Street Glide Grilles (2) 2014+ Tour-Pak Grilles (1) Hardware Pack
