Power Harley-Davidson® 5.25" Full Range Tour-Pak Speakers (1998-2013)

Overview

Experience music like never before with Rockford Fosgate TMS5 speakers. Elevate your audio journey with premium sound quality and sleek design.

Features

• Carbon Fiber Reinforced Polypropylene Cone
• Element Ready design that is weather and water resistant
• Neodymium Tweeter with Integrated Phase Plug and ASA Grill
• Ultra-Efficient 25mm Proprietary Film Dome Tweeter
• Integrated 6dB Crossover with High Power Polyester Capacitor
• Integrated Spade Terminals
• Poly‐Cotton Spider
• Santoprene Front Isolation Spider
• Ultra‐High Temperature Glass Reinforced Polymer Frame
• Co‐Molded Cone and Surround
• Discreet (Hidden) Tweeter Wire
• High Power 35mm Voice Coil
• Low Profile Coaxial Tweeter Design
• Santoprene VAST Surround
• Ultra‐Efficient Neodymium Ring Magnet Motor
• 2-Year Warranty

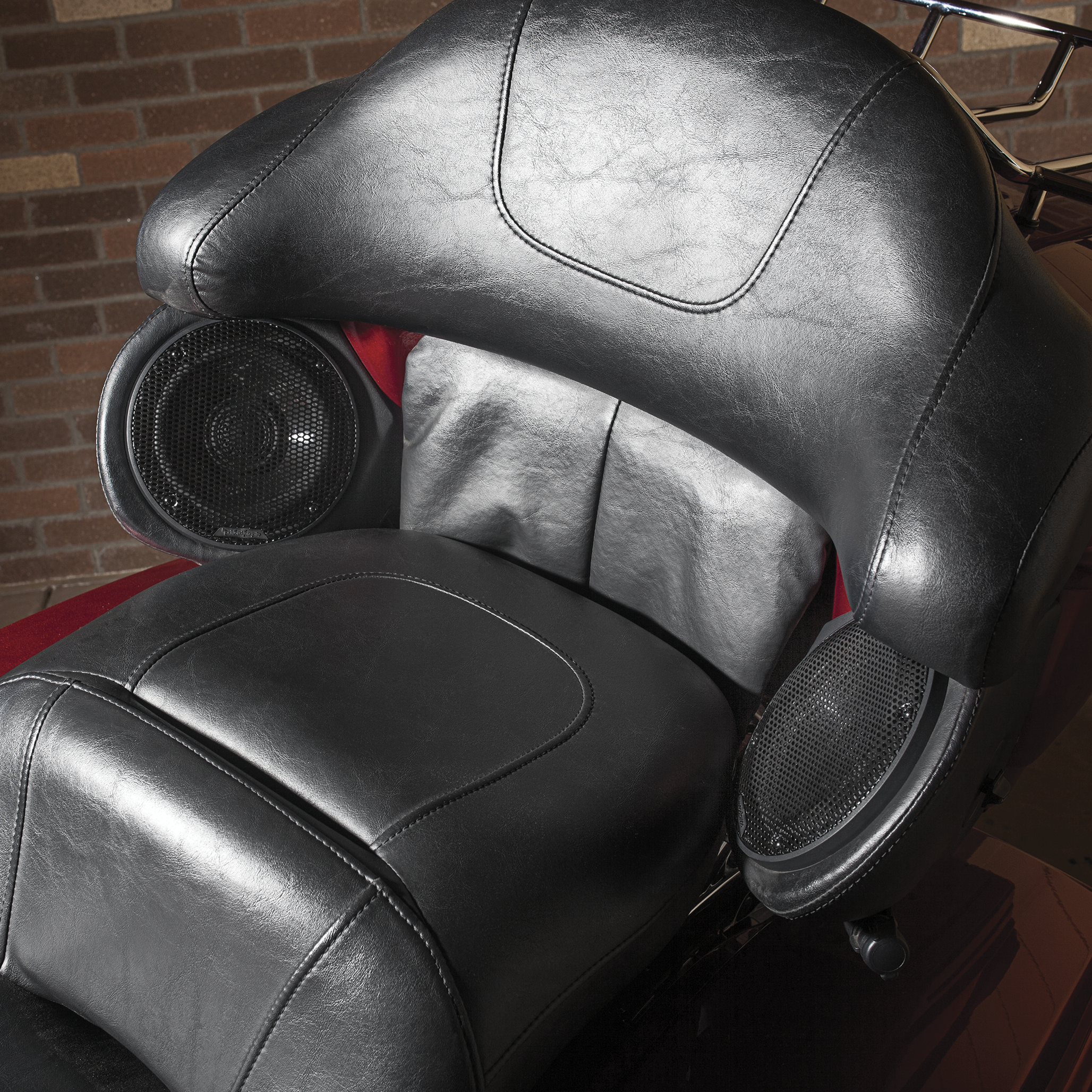

• Designed for 1998‐2013 Harley-Davidson® Rear Tour-Pak® Locations
• NOTE: Installation on CVOTM and Screaming EagleTM models are not Plug-and-play and will require modification

Technologies

• Element Ready™ | Motorcycle: All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
• Anodized Aluminum Voice Coil Former: Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.
• VAST Surround (speakers): The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.
• Klippel Verified: Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
• CEA-2031 (speakers): Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.

Specifications

Power Handling (MAX)	130 Watts MAX
CEA-2031 Compliant
Frequency Response (Hz)	64 Hz - 20 kHz

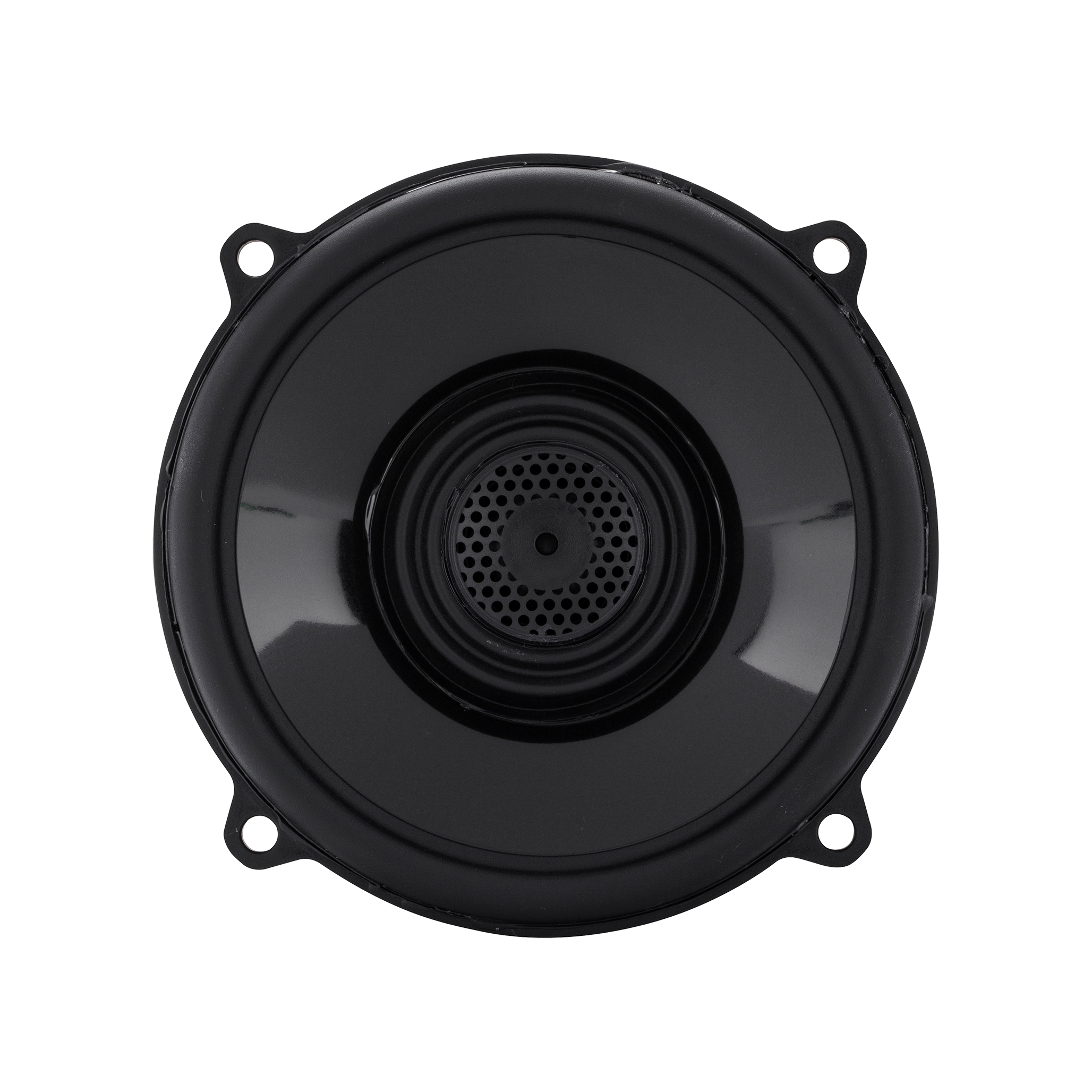

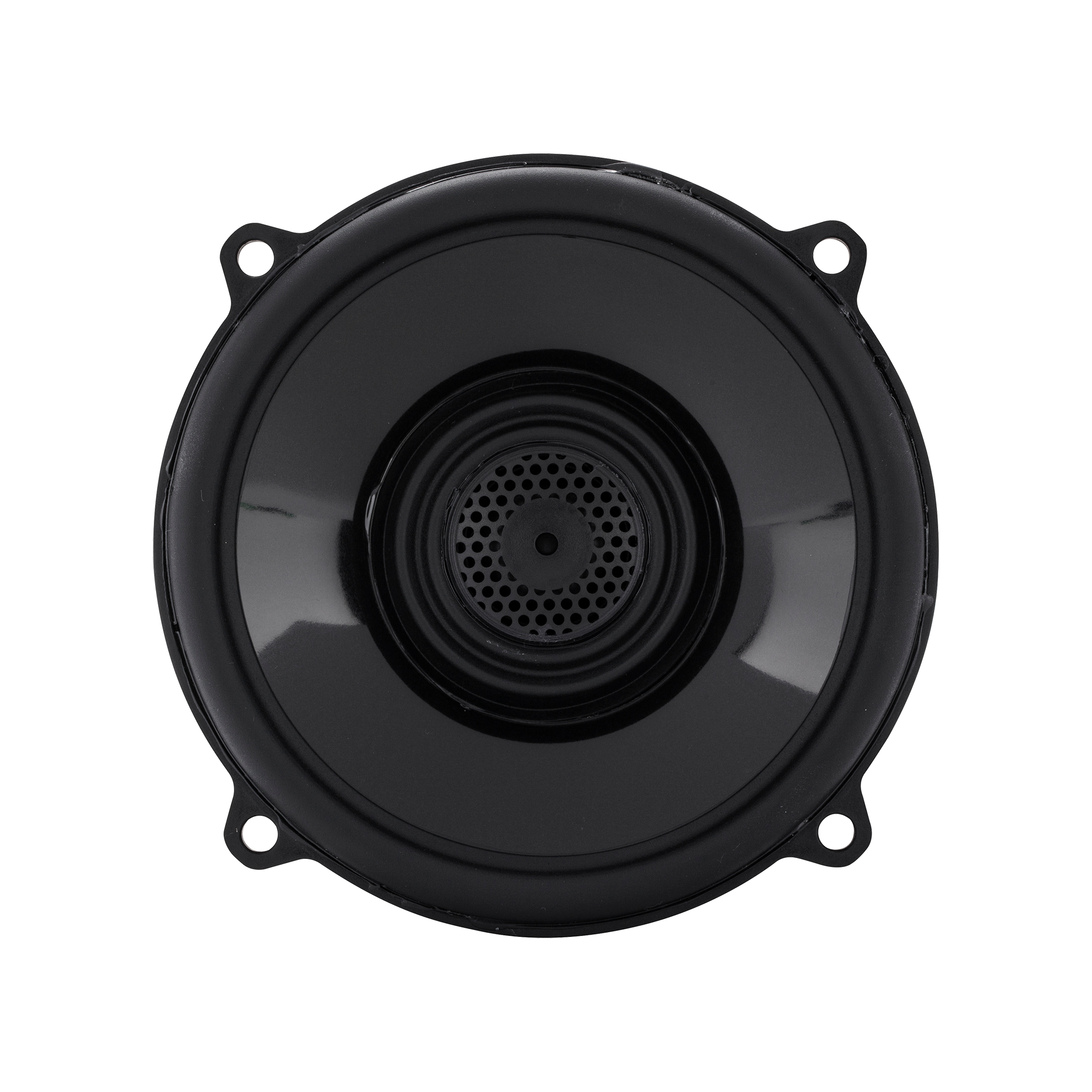

Speaker Type	2-Way Coax
Nominal Impedance (Ohms)	4-Ohm
Midrange Size (Nominal Diameter)	5.25"
Power Handling (RMS)	65 Watts RMS
Voice Coil Diameter (in/mm)	1.40" (35.6 mm)
Tweeter Mounting Depth

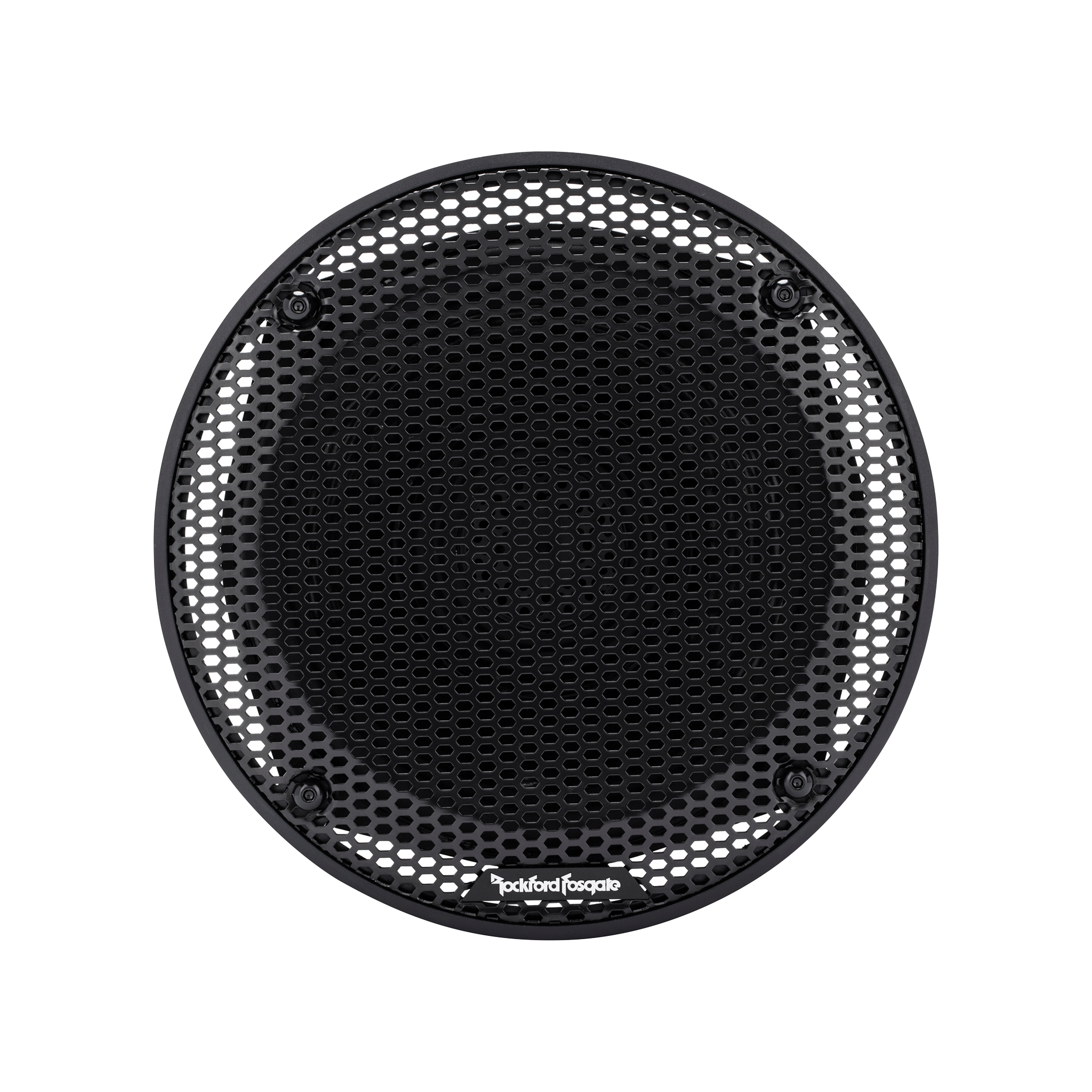

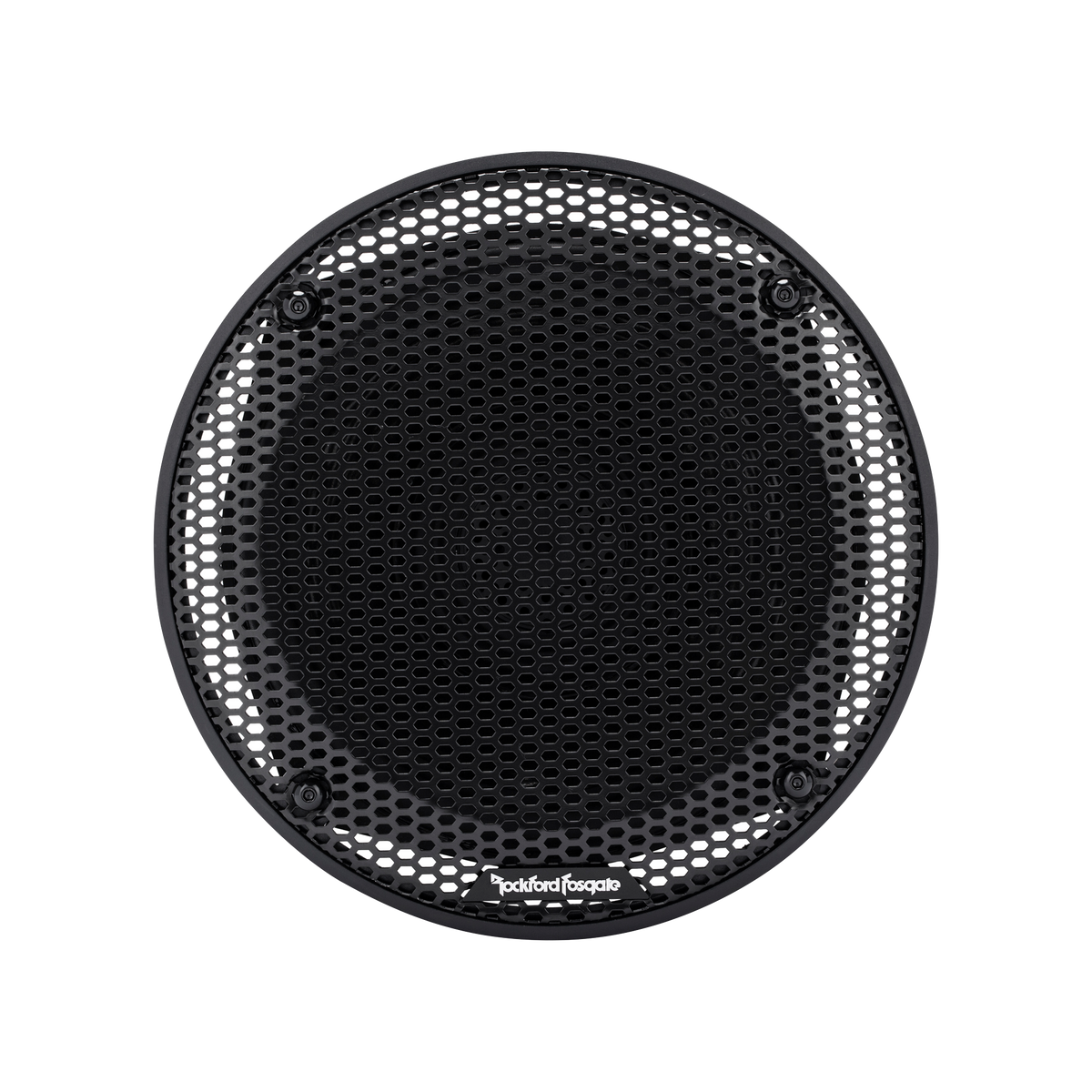

Grille / Trim Ring Included	Yes
Mounting Hardware	Yes
Crossover	Built-in tweeter crossover
Sensitivity (dB @ 2.83V/1M)	94 dB
Sensitivity (dB @ 1W/1M)	91 dB

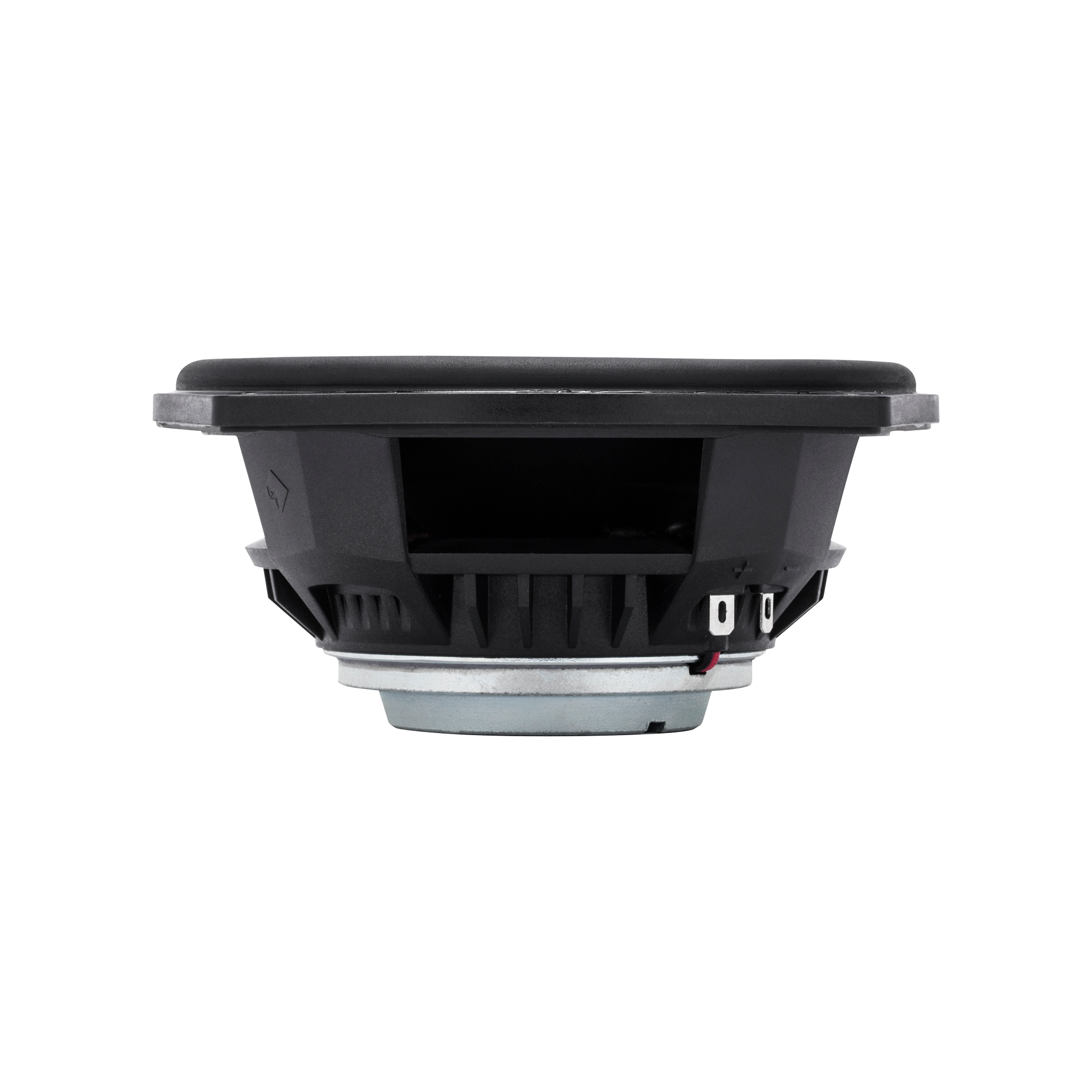

Midrange Mounting Depth	2.05" (52.0mm)

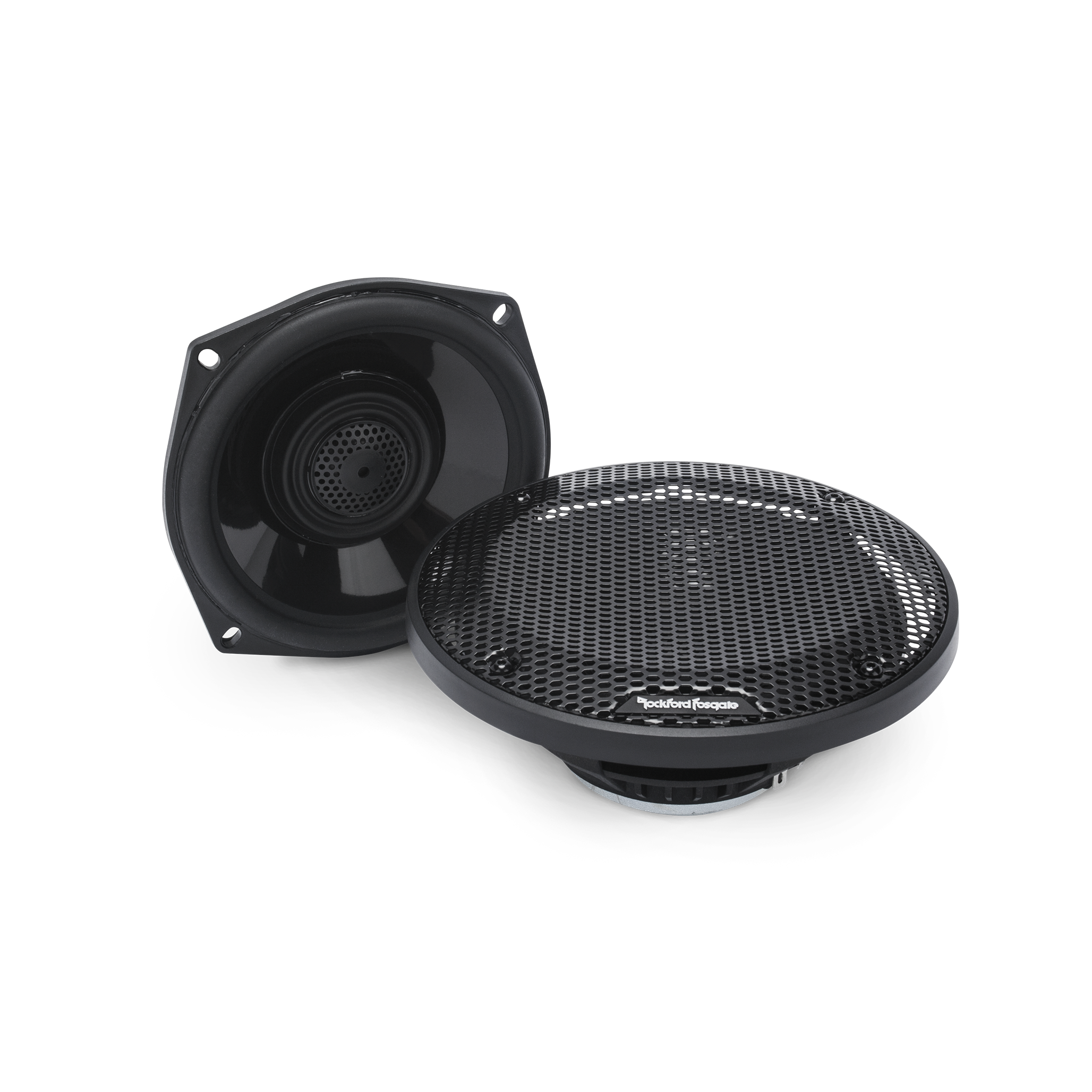

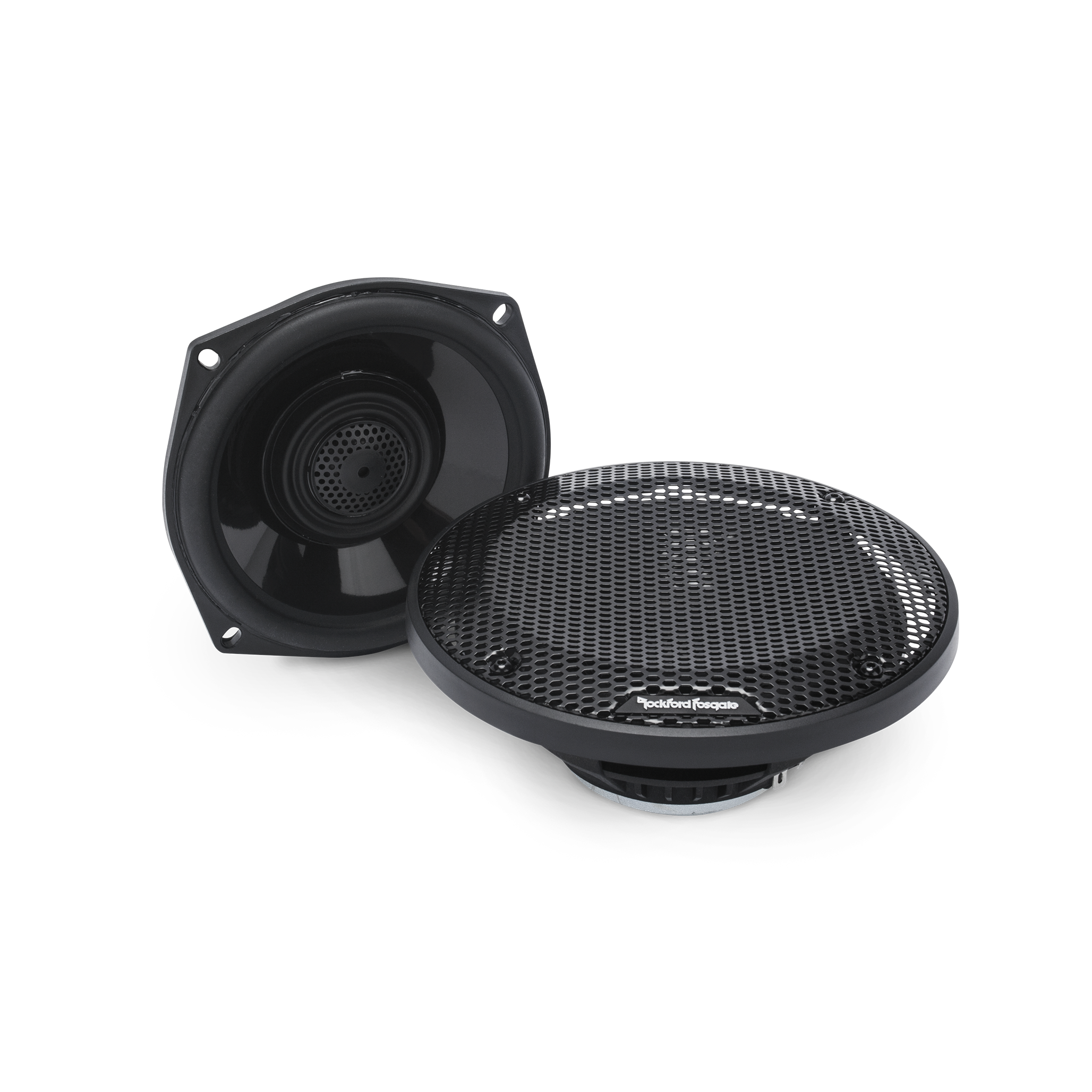

Included In The Box	(2) Speakers (2) Speaker Grilles (1) Hardware Pack
