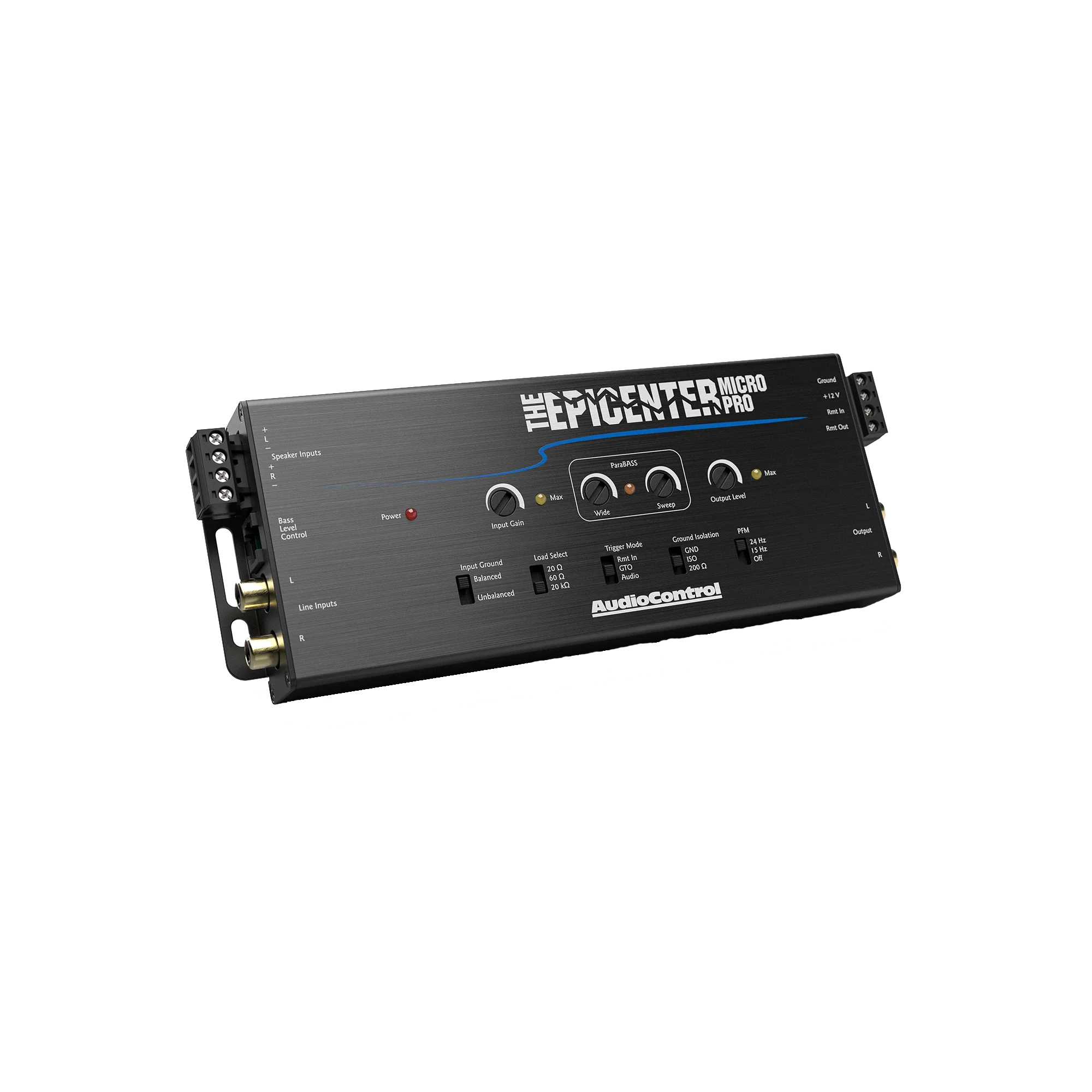

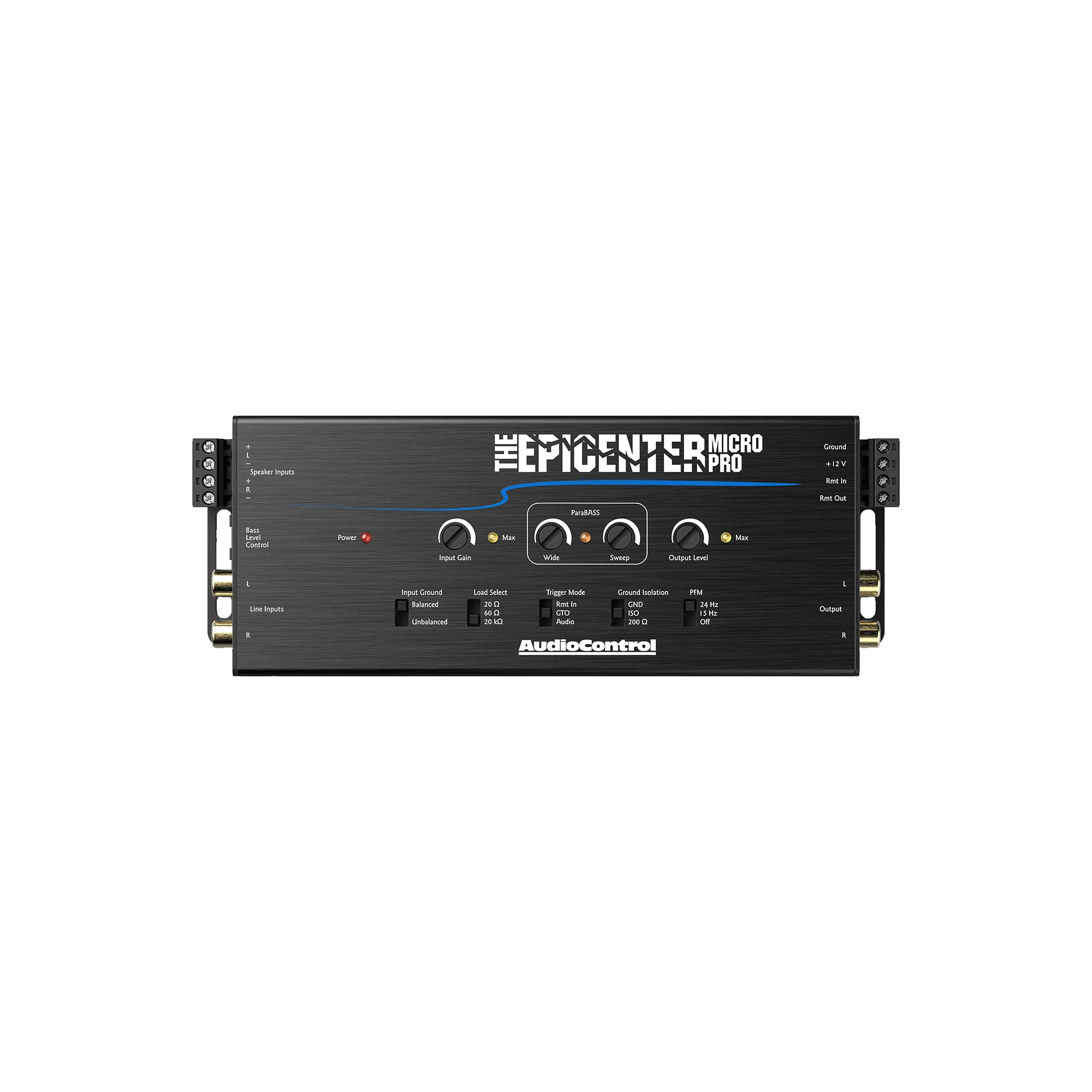

Building on the powerful features of The EPICENTER Micro and everything you have come to know and love about AudioControl’s legendary bass processing, The EPICENTER Micro PRO adds more control and tuning potential for those who wish to push even further into the unexplored outer realms of extreme bass performance.
Bass Maximizer – The EPICENTER Micro PRO is designed to reproduce low frequency information by looking at the upper frequency ranges and detecting musical harmonics. These harmonics then allow The EPICENTER Micro PRO to drop down a few octaves and reproduce the “missing” bass notes.

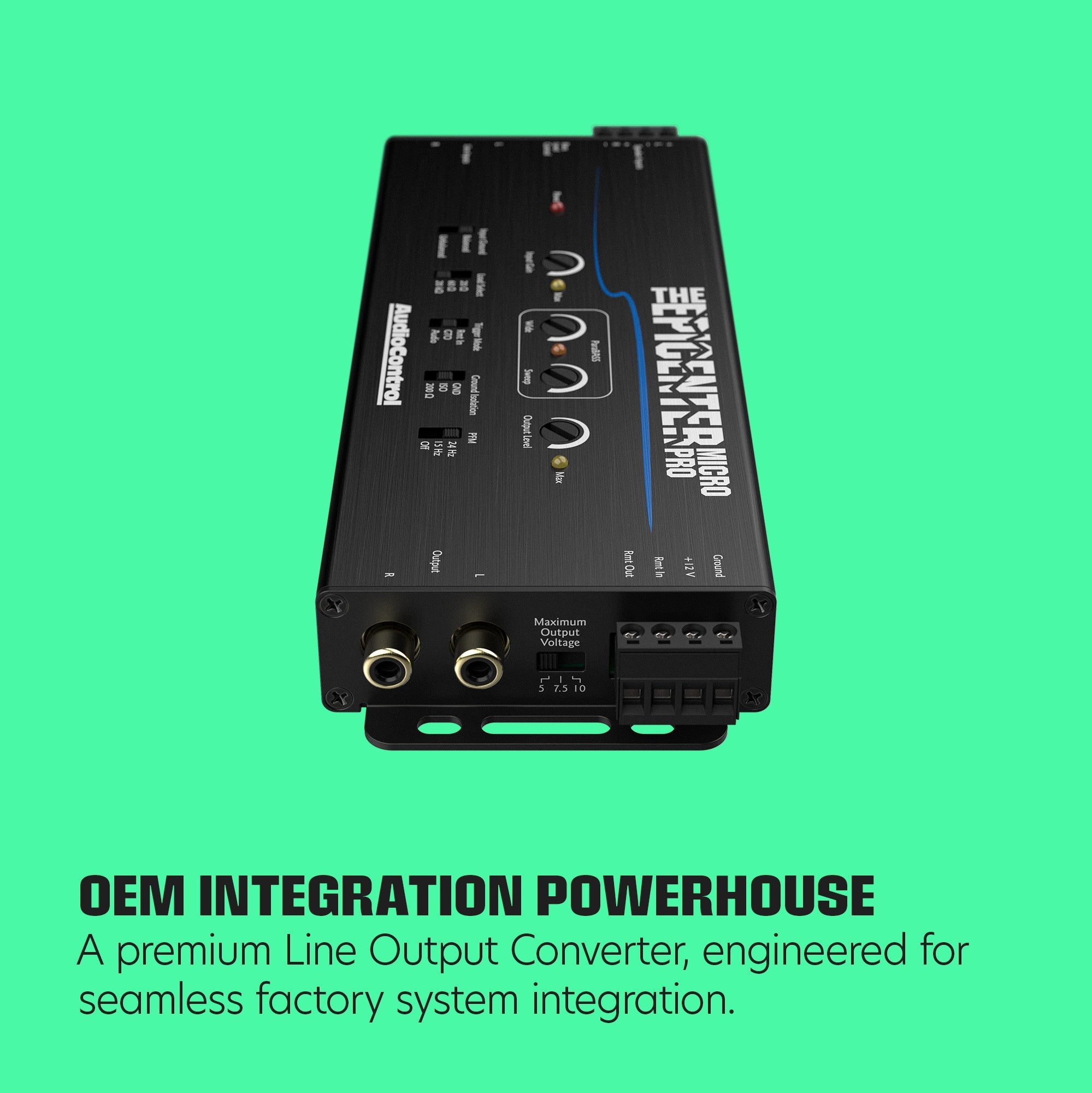

Line Output Converter - Beyond maximizing bass, The EPICENTER Micro PRO is a line output converter packed with premier
OEM integration features like AudioControl’s Load Matching Circuit (LMC) with Load Select, multiple Trigger Modes, and selectable Ground Isolation. For power-users, the PFM Subsonic Filter can be selected or bypassed and Output Voltage can be configured for up to 10 Volts!
• AudioControl’s Original Digital Bass Restoration Circuit: Restore missing low notes and transform flat audio into rich, powerful bass you can truly feel.
• ParaBASS® Controls for Bass Shaping: Precisely sculpt and fine-tune your bass to perfectly match your music, vehicle, and personal preference.
• Selectable PFM Subsonic Filter with Bypass: Protect your speakers and ensure tighter, more controlled bass by filtering out inaudible, power-wasting frequencies.
• Built-in Line Driver for Optimal Output Voltage: Boosts your audio signal for a strong, clean path to your amplifiers, minimizing noise and maximizing sound quality.

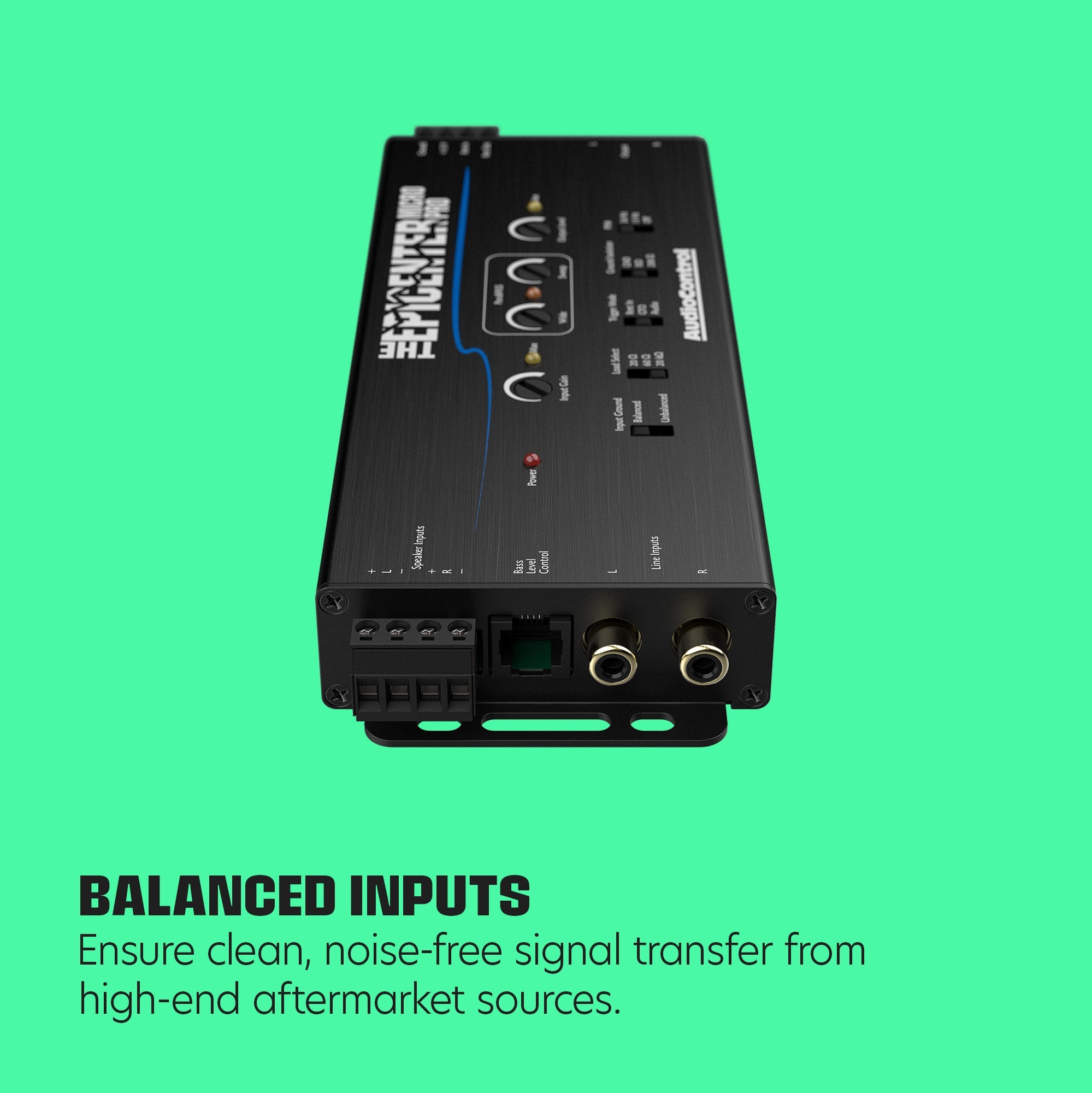

• Balanced Line Level Inputs: Helps eliminate electrical interference and hum, delivering crystal-clear sound even in noisy car environments.
• Speaker-Level Inputs: Seamlessly integrate a factory stereo without needing RCA outputs, saving money and simplifying upgrades.
• Load Selection Switch: Ensures perfect compatibility with modern factory stereos, preventing issues and guaranteeing a smooth upgrade.
• GTO and Audio Sense Turn On: Automatically powers up the unit when your stereo is active, making installation simpler and operation seamless.
• 10 Volt Maximum Output Level: Sends a strong, clean signal to your amplifier, unleashing maximum power and dynamic impact.
• Conformally Coated PCB: A protective layer against moisture, dust, and temperature swings, improving the durability and reliability of The Epicenter Micro PRO.
• ACR-4 Dual-Knob Remote Level Control Included: Command your bass instantly from the driver's seat, fine-tuning levels and bass restoration on the fly.

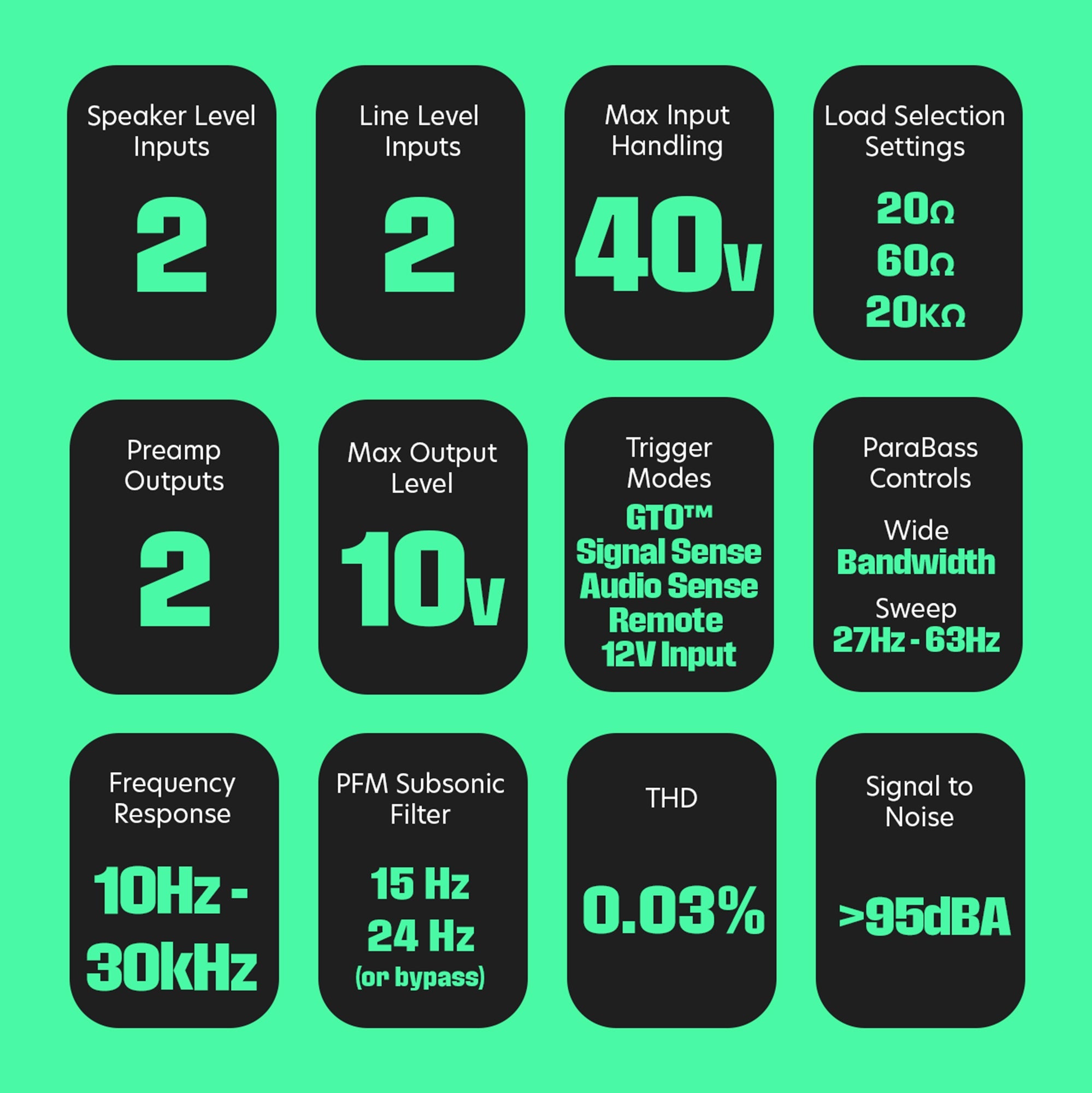

| Part Number | EPICENTER MICRO PRO |
|---|---|
| UPC | 850038647858 |
| Specification | INPUTS |
| Maximum Line Level Input | 10Vrms |
| Maximum Speaker Level Input | 40V / 400W (20kΩ setting) |
| Line Level Input Impedance | 7kΩ |
| Speaker Level Input Impedance (selectable) | 20Ω, 60Ω, 20kΩ |
| Specification | OUTPUTS |
| Maximum Output Level (THD<1%) | 9Vrms, 13V peak |
| Output Impedance | 150Ω |
| Specification | PERFORMANCE |
| Total Harmonic Distortion | 0.03% |
| Signal to Noise | >105 dB |
| Frequency Response | 10 Hz – 22 kHz ±1 dB |
| PFM Filter (High Pass) | Selectable 24 Hz, 15 Hz, or Bypass |
| Specification | CONTROL |
| Specification | Remote In / GTO™ Signal Sense / Audio Sense |
| Specification | 12VDC Remote Out (always active when unit is on) |
| Specification | GENERAL |
| Power Supply | High Headroom PWM Switching |
| Current Draw | 300 mA |
| Recommended Fuse Rating | 1 A |
| Dimensions | 8″L x 3″D x 1″H |
| Weight | 0.9 lbs |

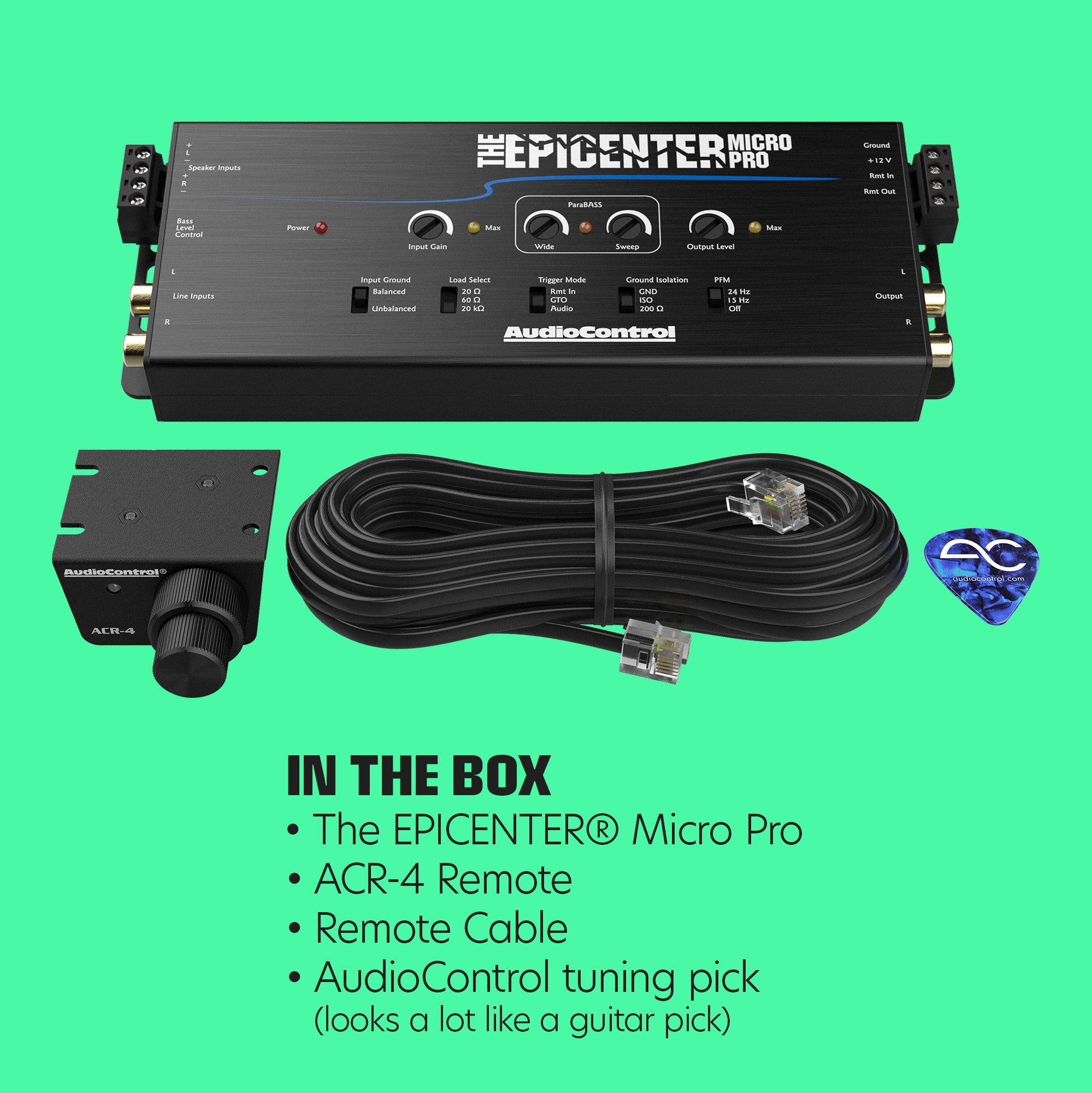

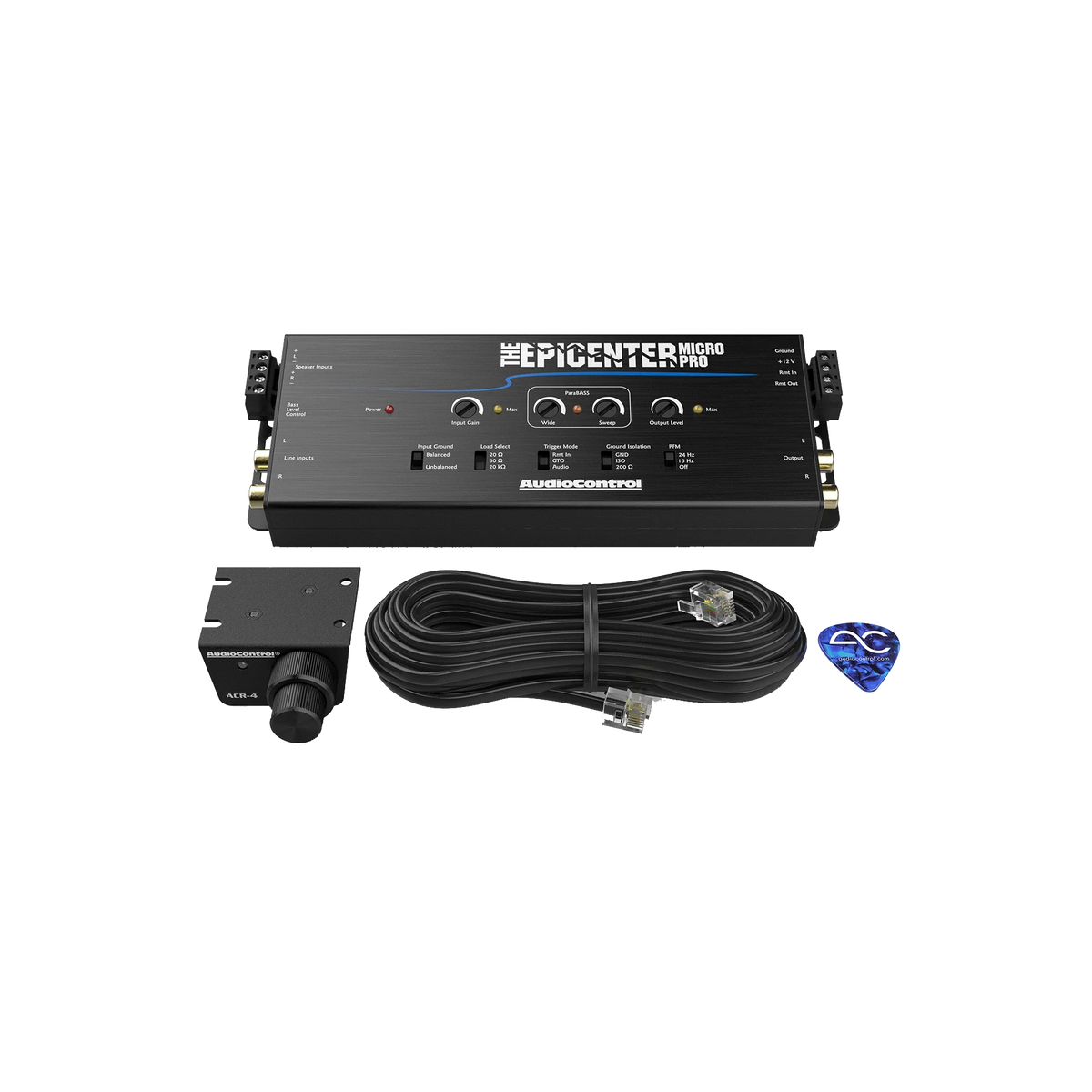

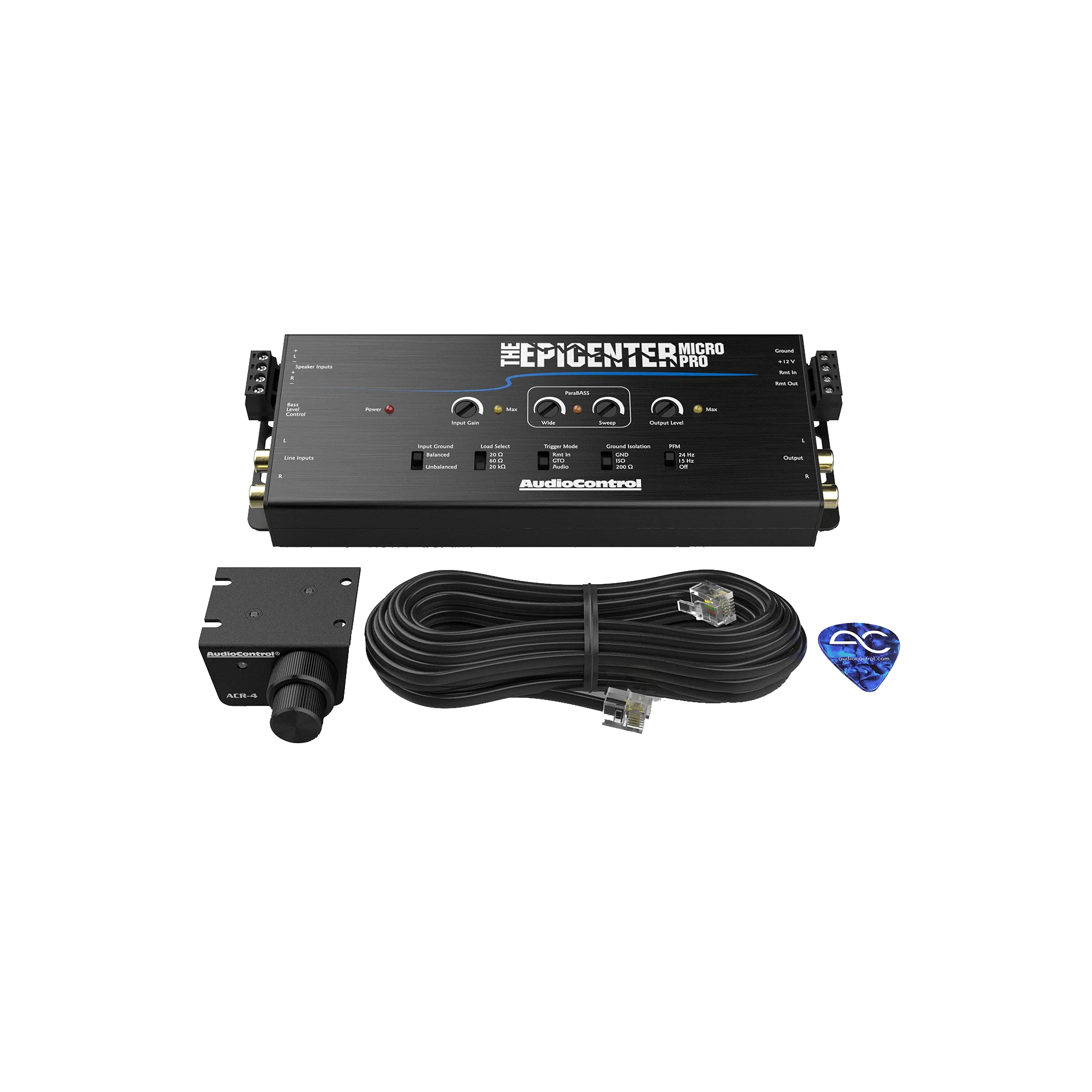

| IN THE BOX | The Epicenter Micro PRO, ACR-4, Remote Cable, Speaker and Power connectors, User Manual |
| Specification | California Proposition 65 |
| To our California customers | Please view your Proposition 65 warning here. |
