Power 750 Watt Class-bd Mono Amplifier

Overview

The Power T750X1bd is an ultra-compact, Class bd 750-watt mono amplifier. It features a high-level auto turn-on, CLEAN circuit with input/output clip detection.

Features

• Remote-Out feature when using high level inputs
• Class-BD
• Differential inputs with high level auto turn-on feature
• Real time thermal sensing with Rollback technology
• Upgraded RCA connectors
• Patented Constant PowerTM boosts power up to 25% across varying impedance loads
• 2013 PLC2 remote ready
• Discrete surface mount technology
• Dual extruded heat sinks
• 2-Year Warranty
• Dual fan cooled
• All other normal Rockford protection schemes

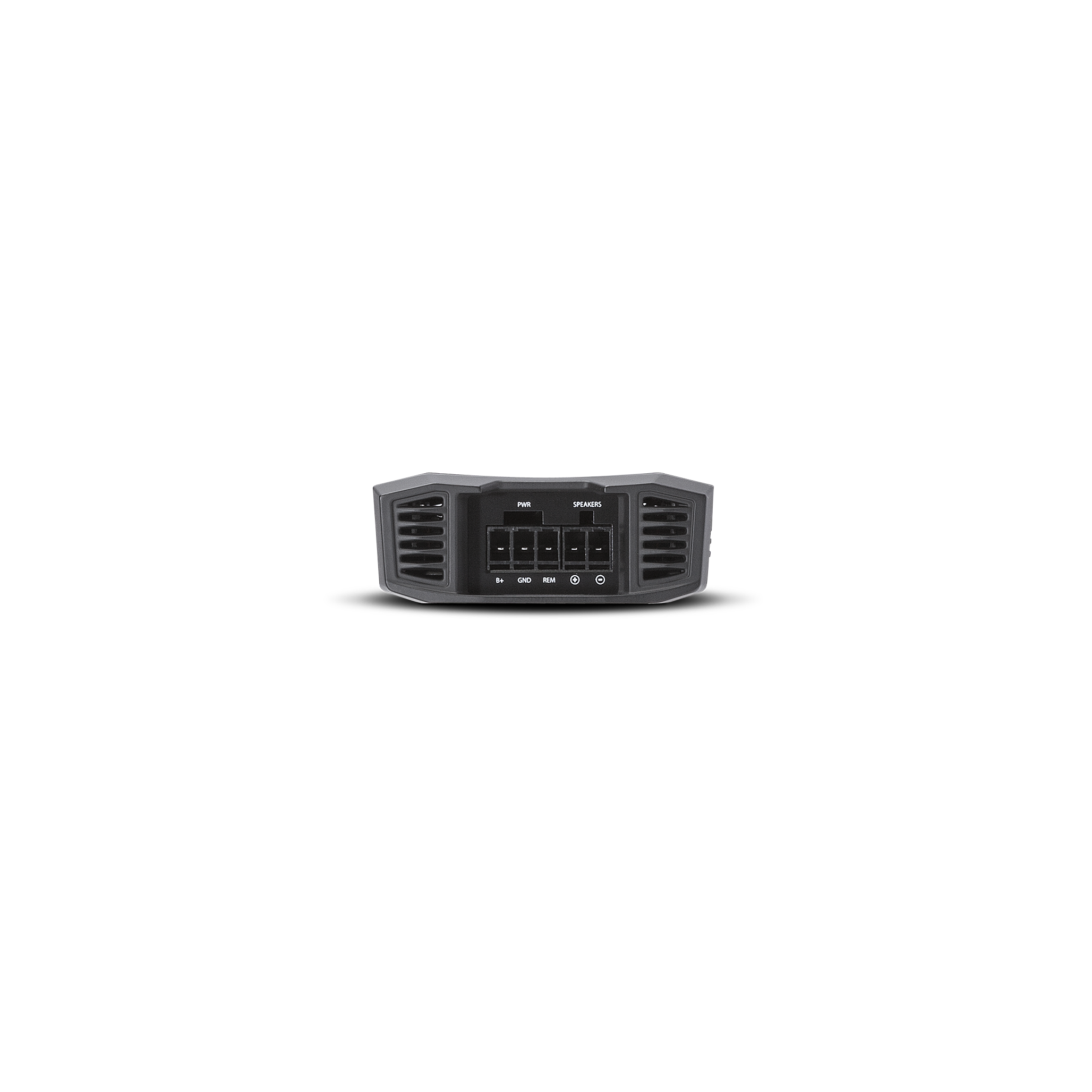

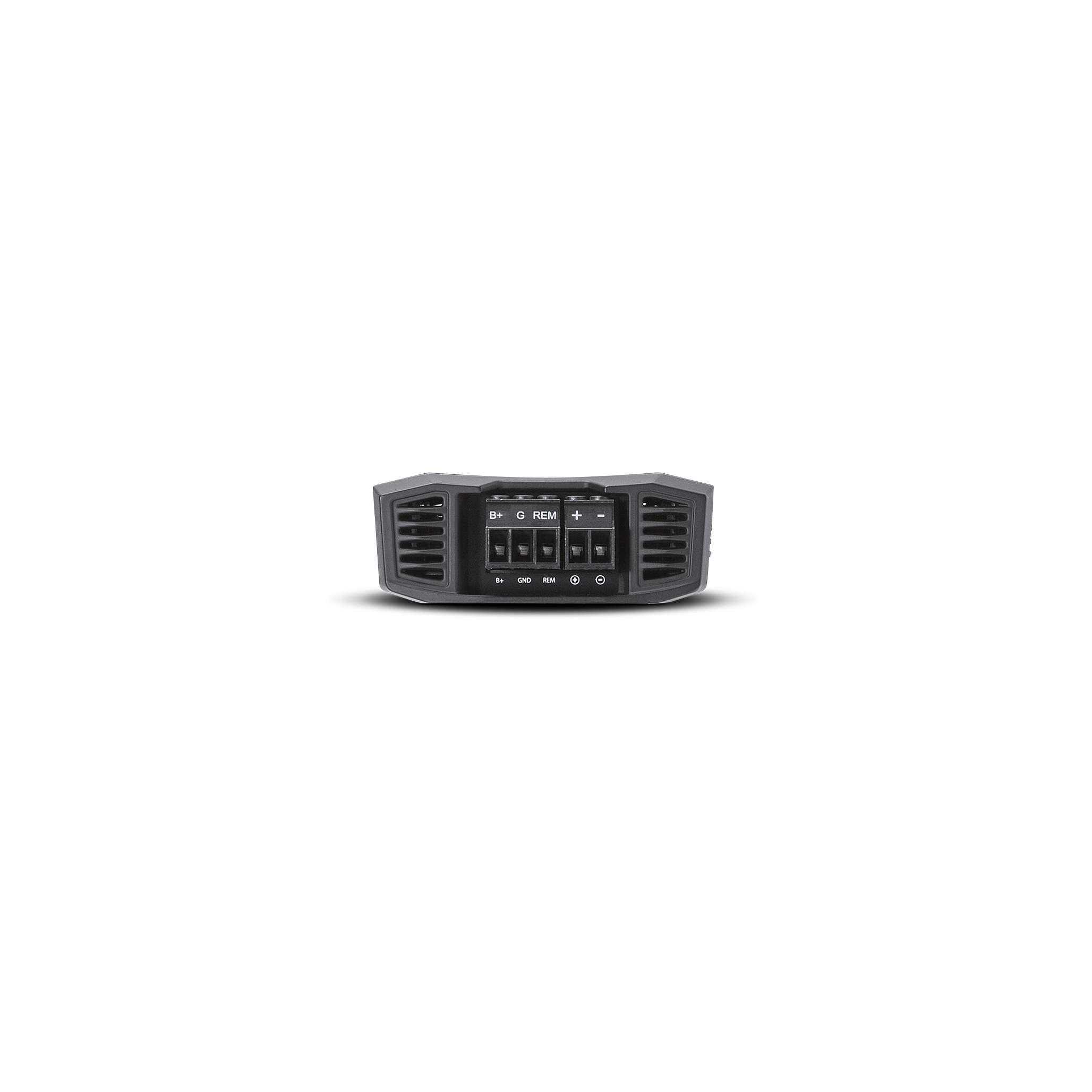

• 8 AWG Power/Ground connector. 10 AWG speaker connector
• CEA-2006 and CE compliant

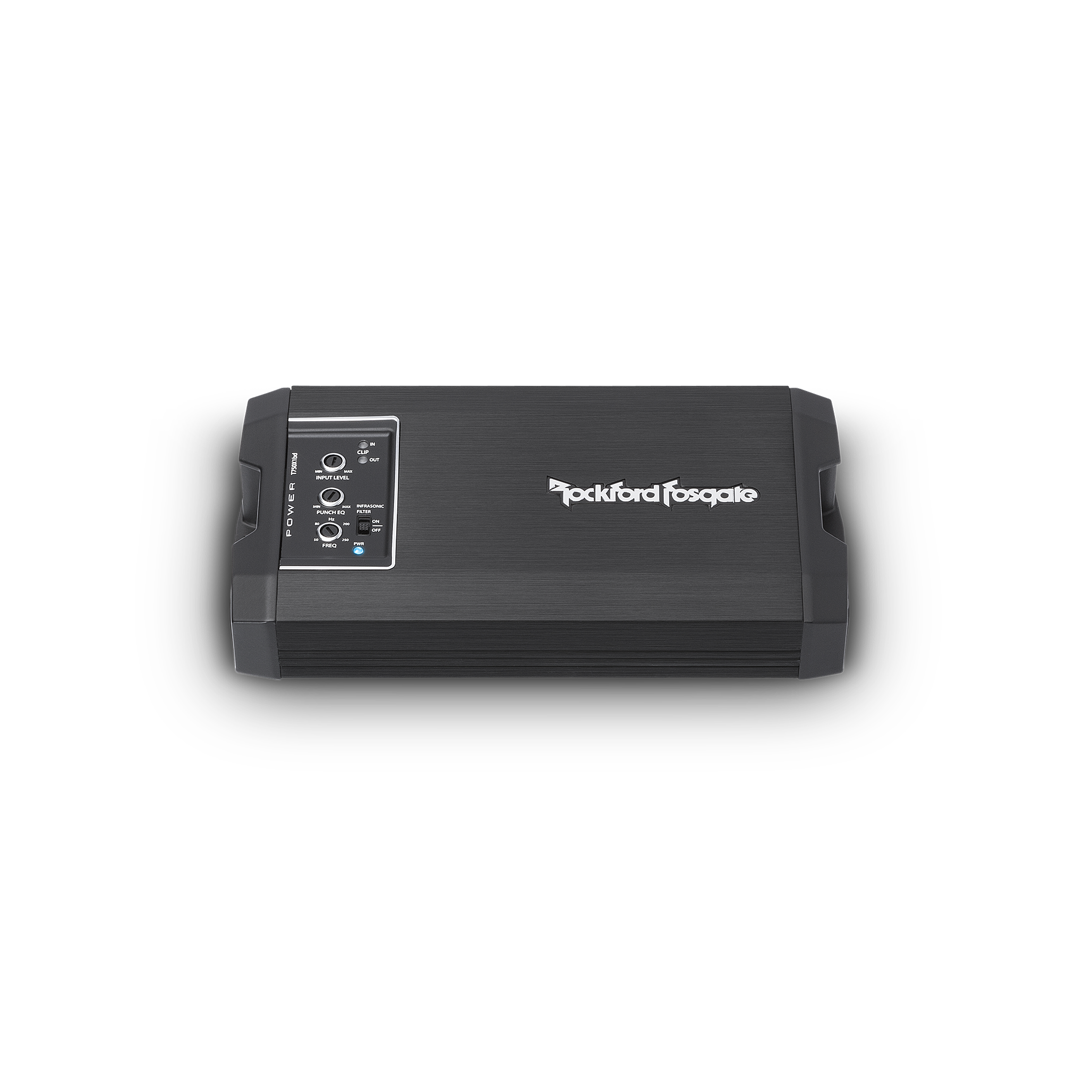

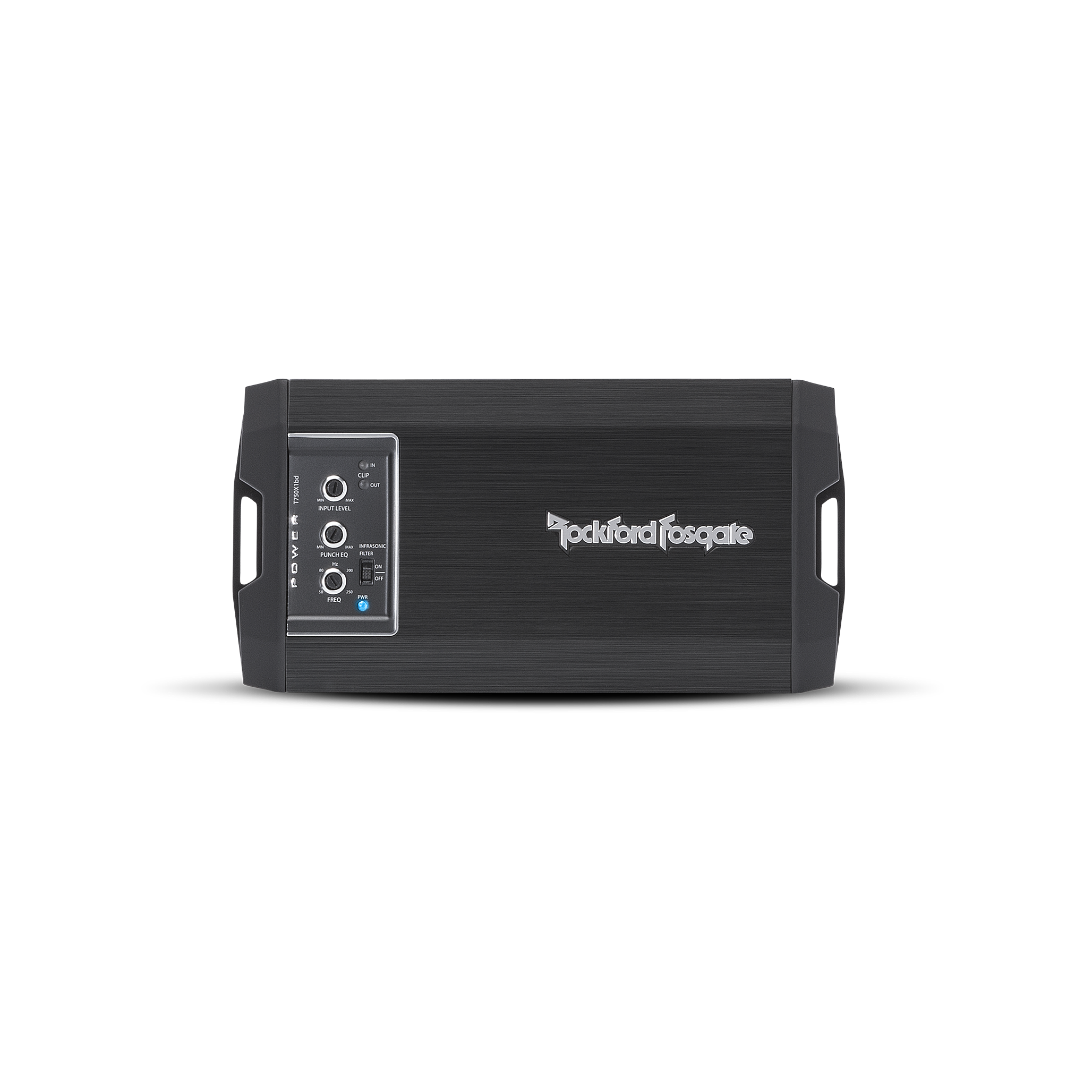

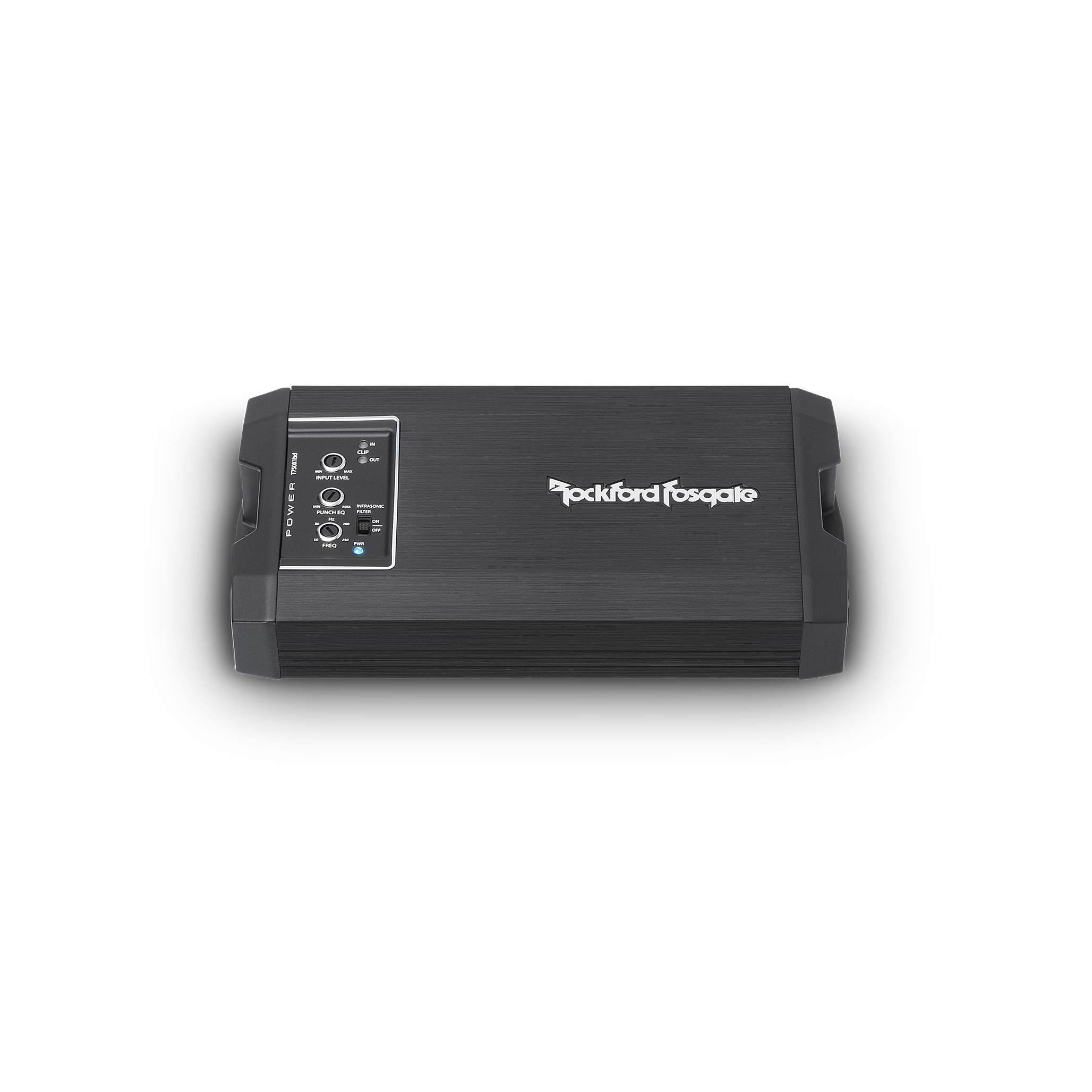

• Top mounted controls
• C.L.E.A.N. input/output clip detection and indicator LEDs

Technologies

• 3-Stage Airflow: 3-stage airflow method effectively exhausts heat and ensures your amplifier runs cooler for optimum performance.
• CE Compliant: This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
• Engineered In The USA: These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
• DSM: DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
• CTA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
• Class-BD: Class-BD amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional Class-A/B amplifiers.
• C.L.E.A.N. Technology: C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
• Constant Power: Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying impedance loads.
• Differential Inputs: Differential inputs eliminate noise picked up by signal cables resulting in clean signal transfer.

Specifications

CEA-2006 Compliant	CEA-2006 Power Rating 500W x 1 @ 4Ω ≤1.0% THD+N
Total Power (Sum of Rated Power)	750 Watts
Dynamic Power (PVC/PowerCube®)	538 Watts x 1 @ 4-Ohm 909 Watts x 1 @ 2-Ohm 990 Watts x 1 @ 1-Ohm
Number of Channels	1
Rated Power (RMS Continuous Power)	500 Watts x 1 @ 4-Ohm 750 Watts x 1 @ 2-Ohm 750 Watts x 1 @ 1-Ohm
Input Sensitivity	150 mV to 12 V
Remote Controls	Optional PLC2 provides Punch Level Control

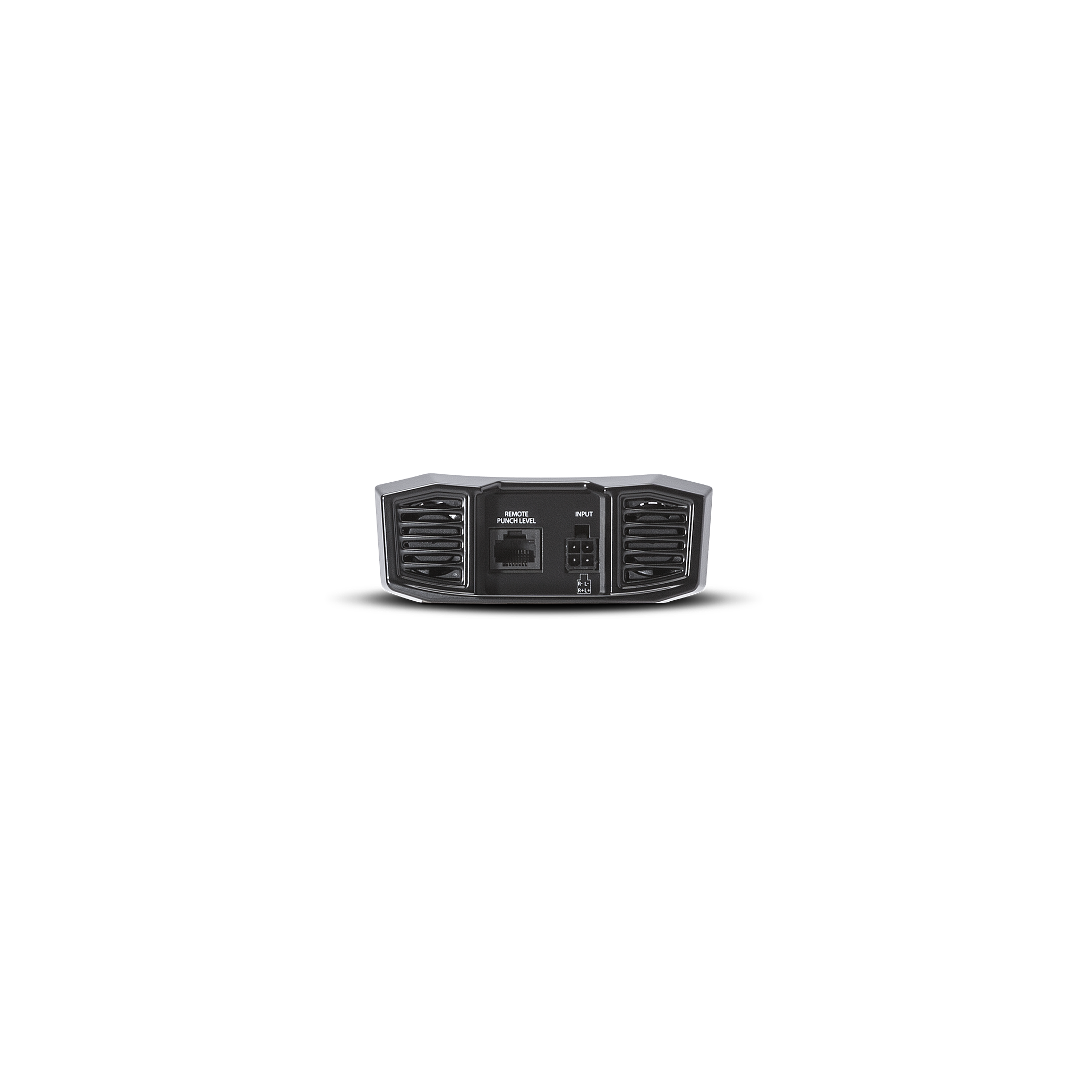

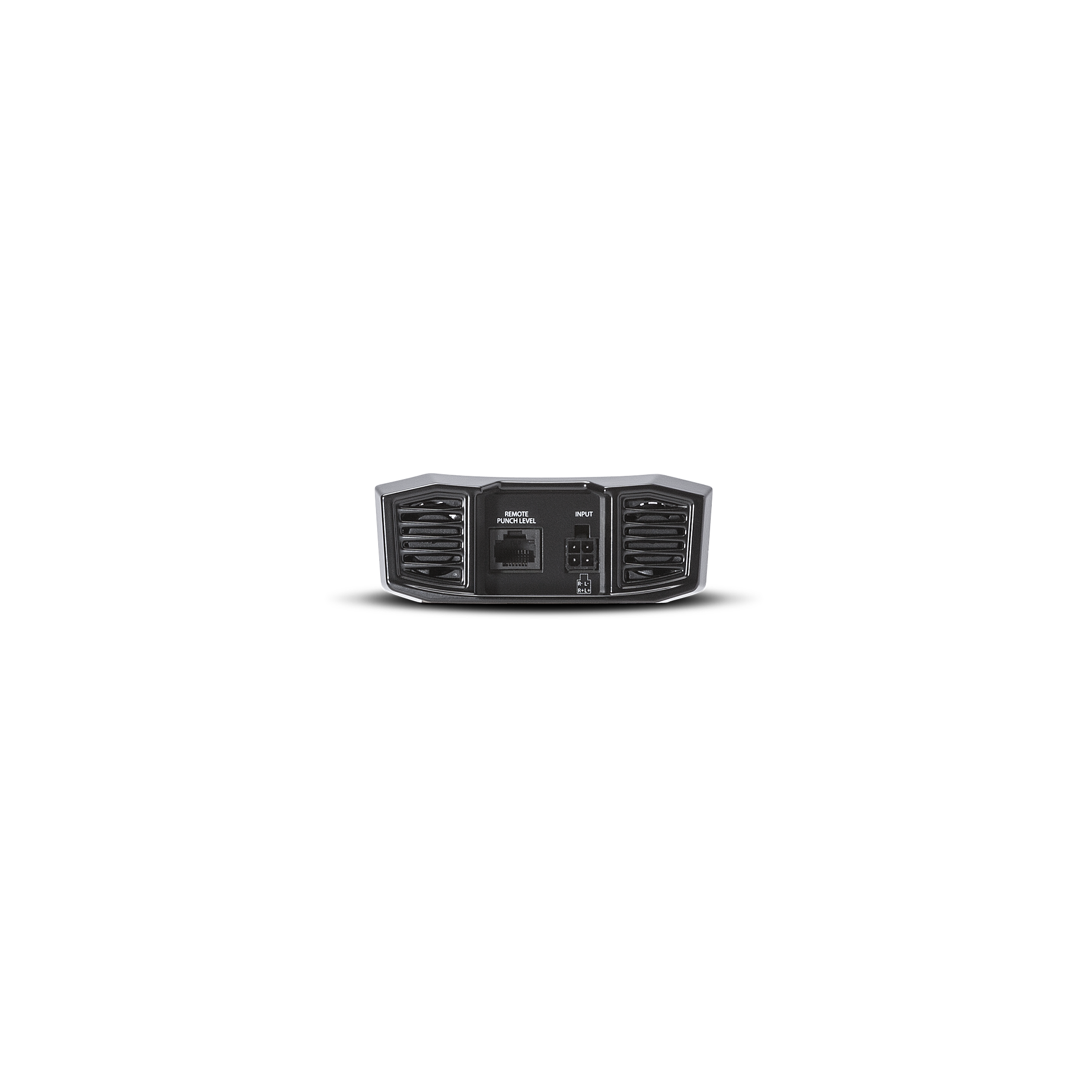

Signal Input	High/Low Level Input: 4-Pin harness
Tone Controls	Bass: 0 to +18 dB @ 45 Hz
Bridgeable	No
Suggested Alternator
Heatsink	Extruded Aluminum
Circuit Topology Class	Class BD
Visual Indicators	Power: Blue LED Protect: Red LED Input Clip: Red LED3 Output Clip: Blue/Violet/Red LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD
Frequency Response	20Hz - 230Hz +/-1dB
Crossover Controls	Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth Infrasonic: 28Hz @ 12dB/Octave Butterworth
Efficiency (average)	>85%
Power Wire Gauge	8 AWG
Signal Output	—
Power Input Connector	Detachable Compression Terminal Replacement 1040-57997
Speaker Output Connector	Detachable Compression Terminal
Speaker Wire Gauge	10 AWG
Cooling	Dual Fan Cooled
Operating Voltage	9 - 16 VDC
Total Harmonic Distortion (THD+Noise)	4-Ohm:<1.0% 2-Ohm:<1.0% 1-Ohm:<1.0% above 35 Hz
Recommended Fuse (not included)	100 A
Average Current Draw (13.8V Music)
Max. Current Draw (13.8V Sinewave)	86 A
Signal-to-Noise (CEA)	>80 dB
Channel Separation	—
Common Mode Rejection	>70 dB
Dimensions (H x W x D)	1.6 x 4.3 x 8.3 (in.) 4.1 x 10.8 x 21.1 (cm)
Shipping Weight	3.44 lb. (1.56 Kg.)
