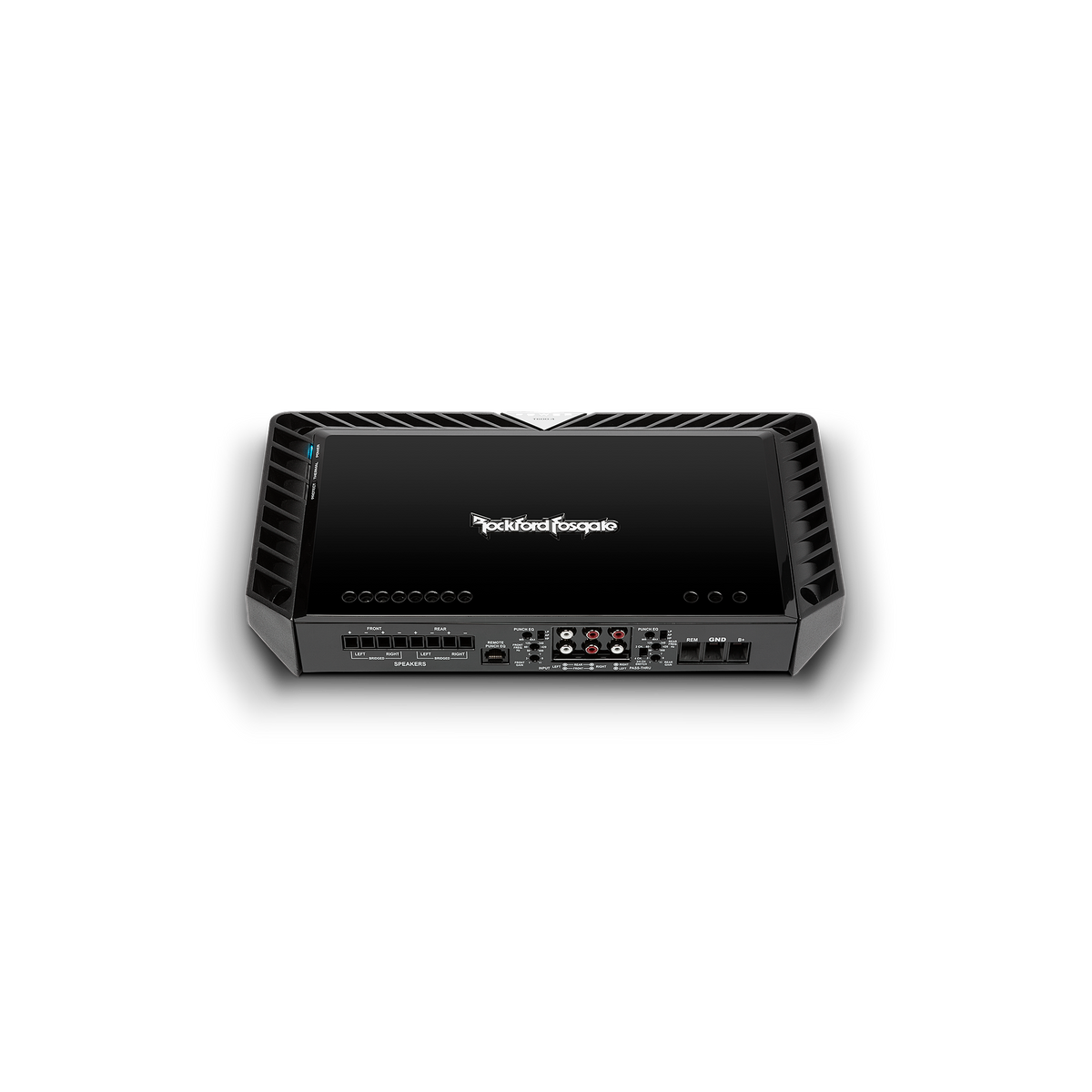

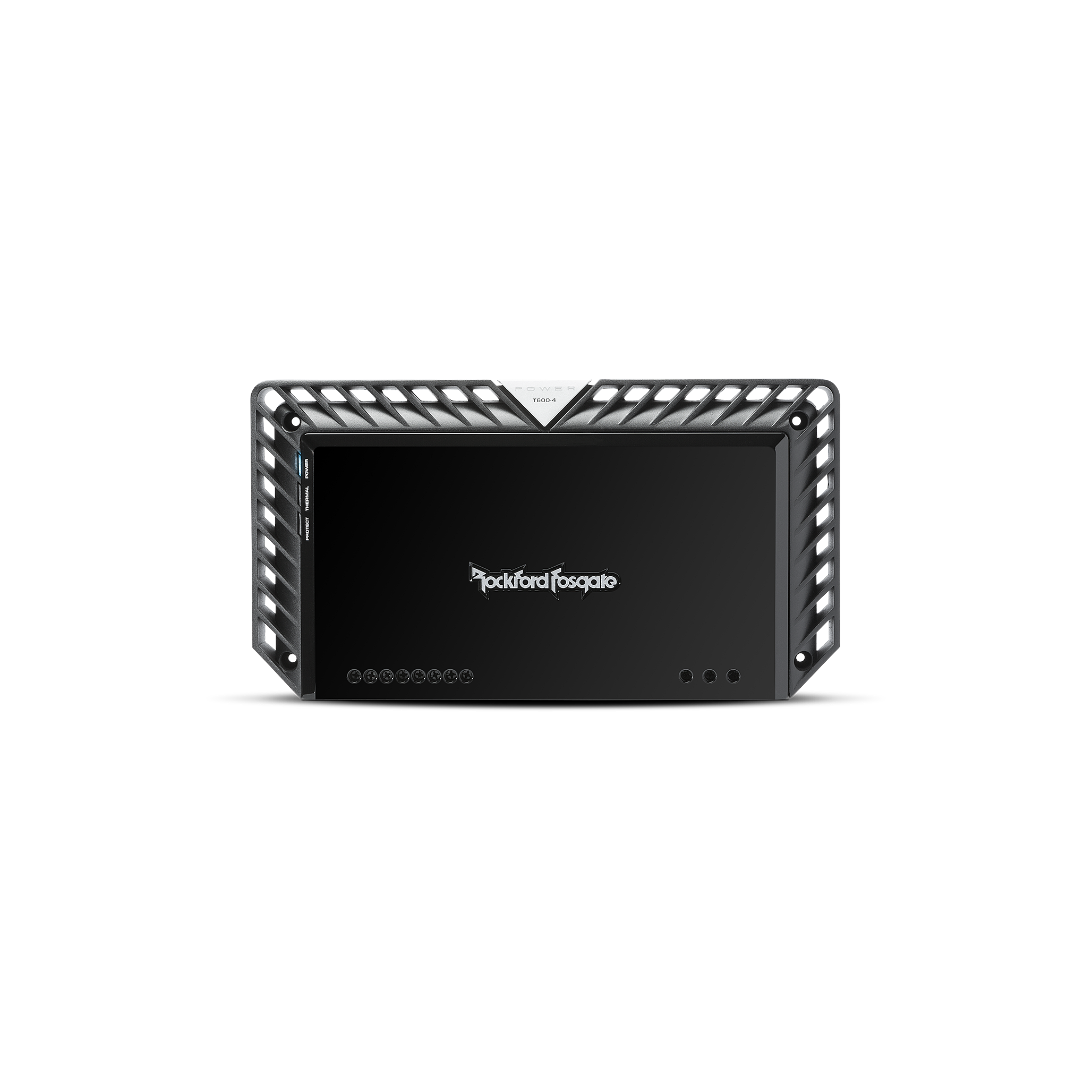

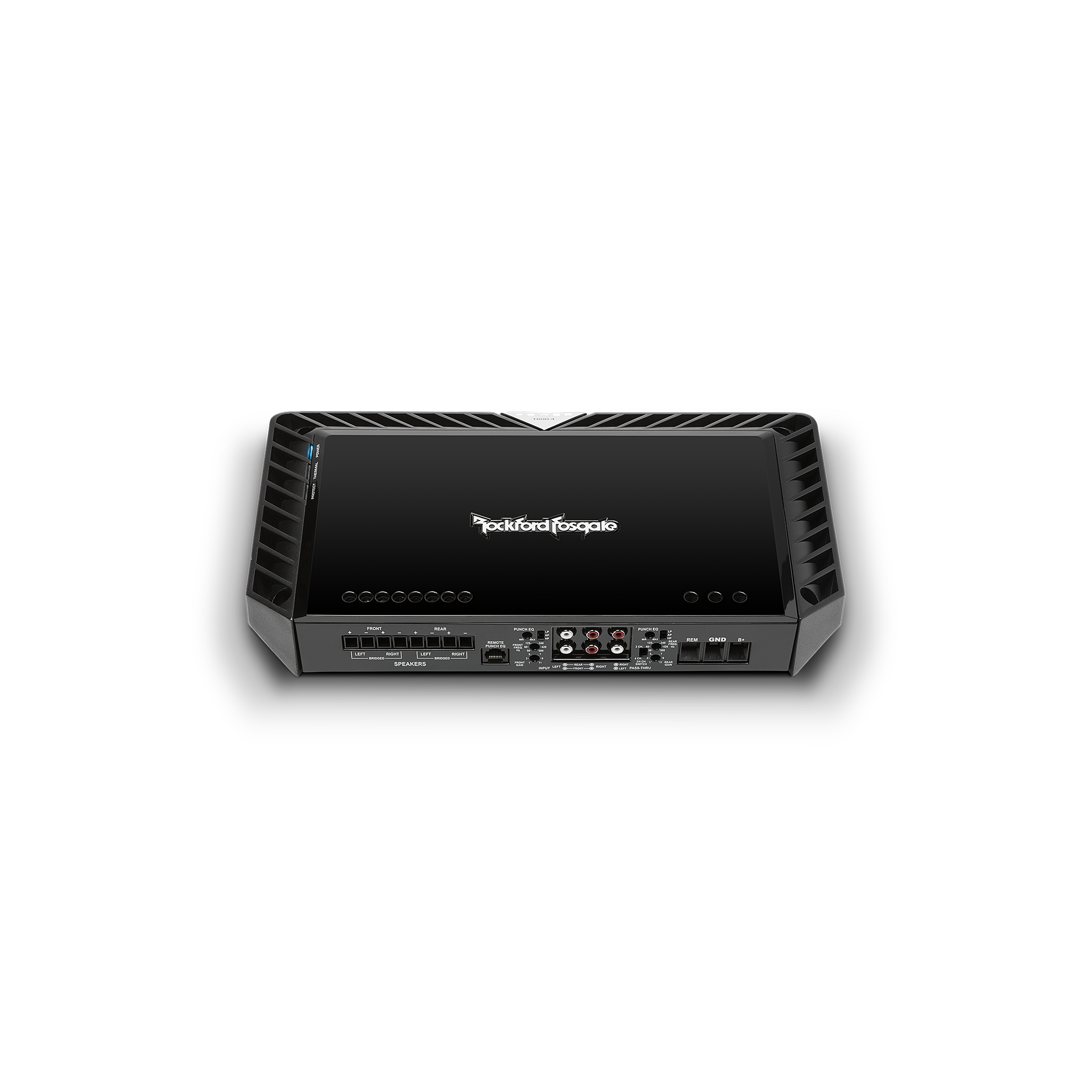

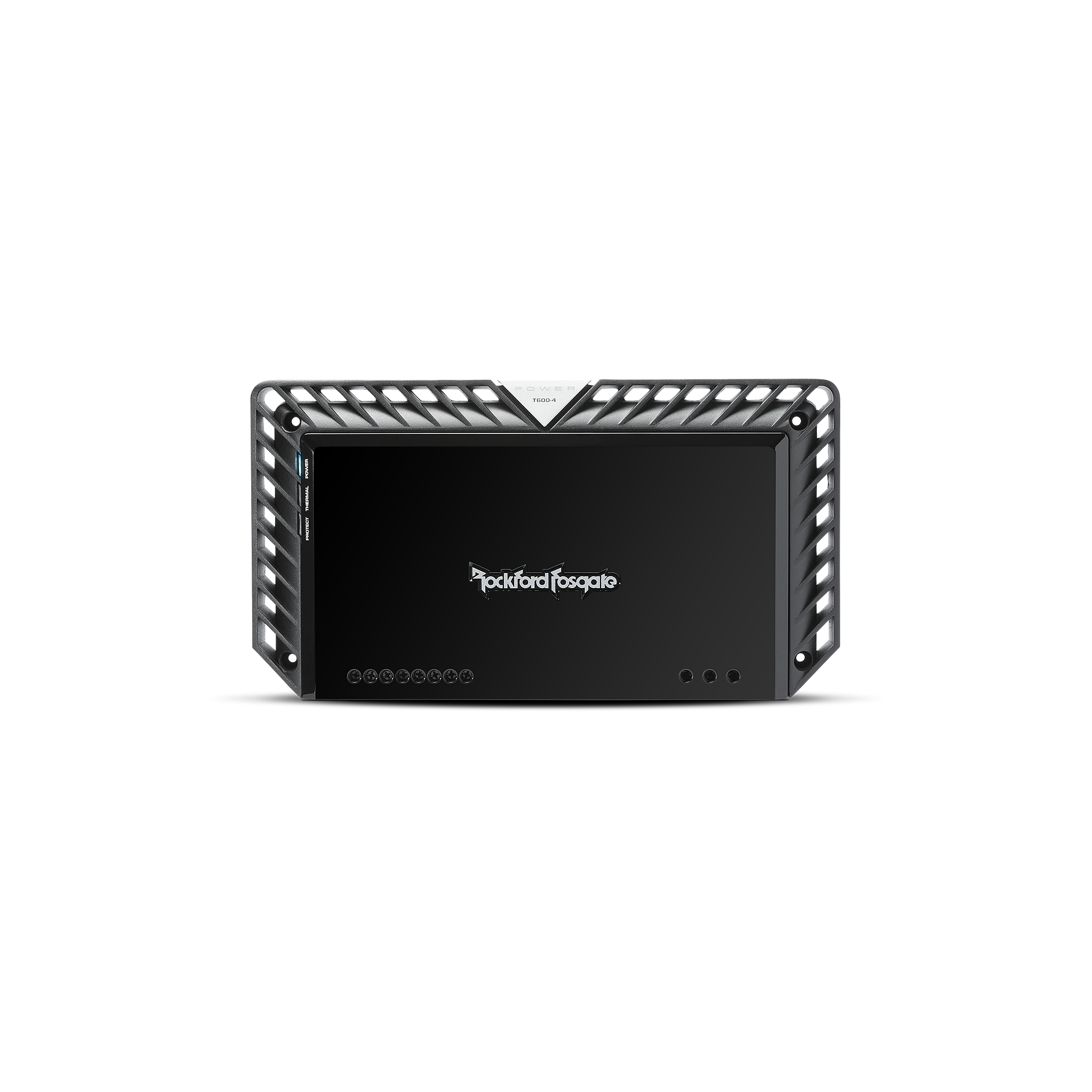

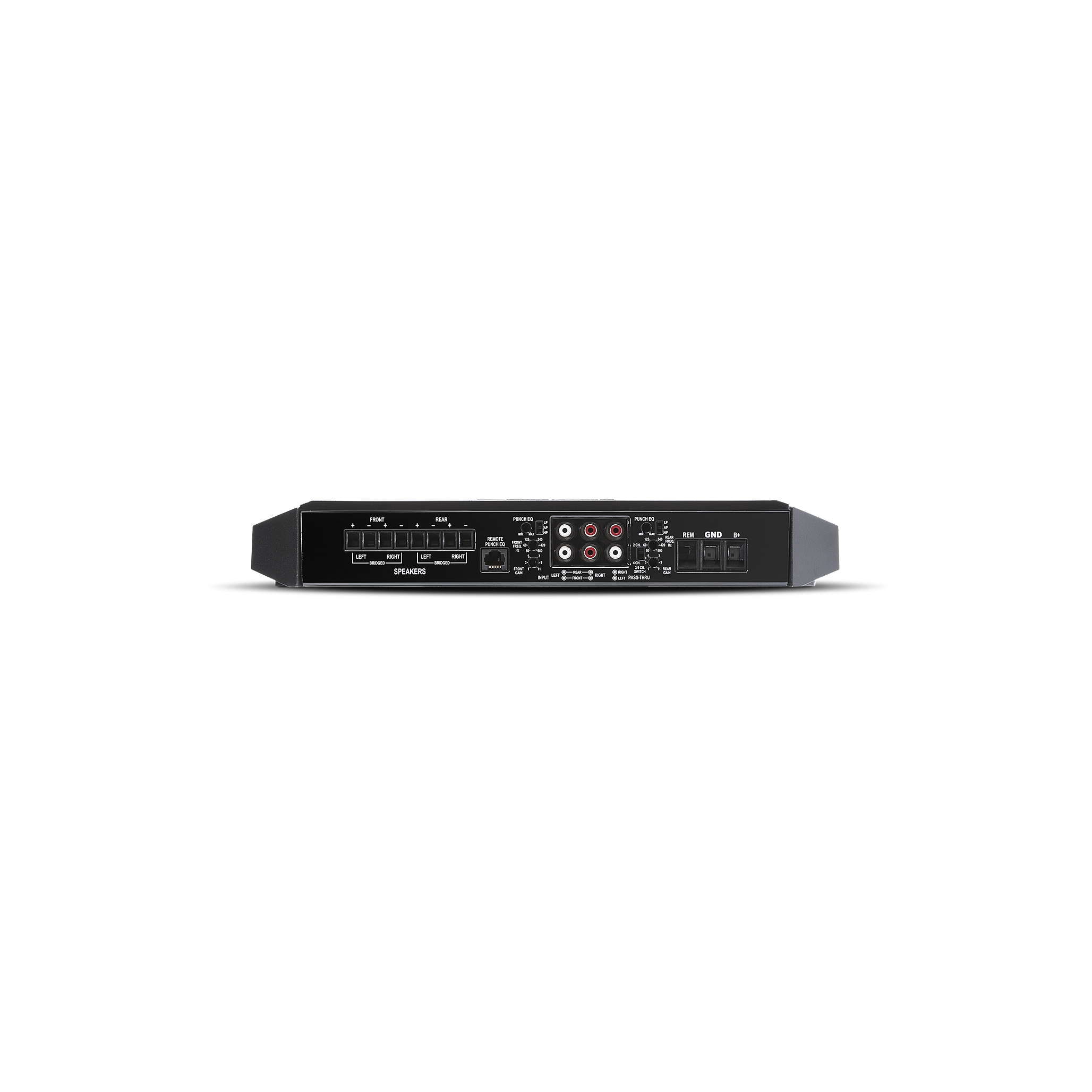

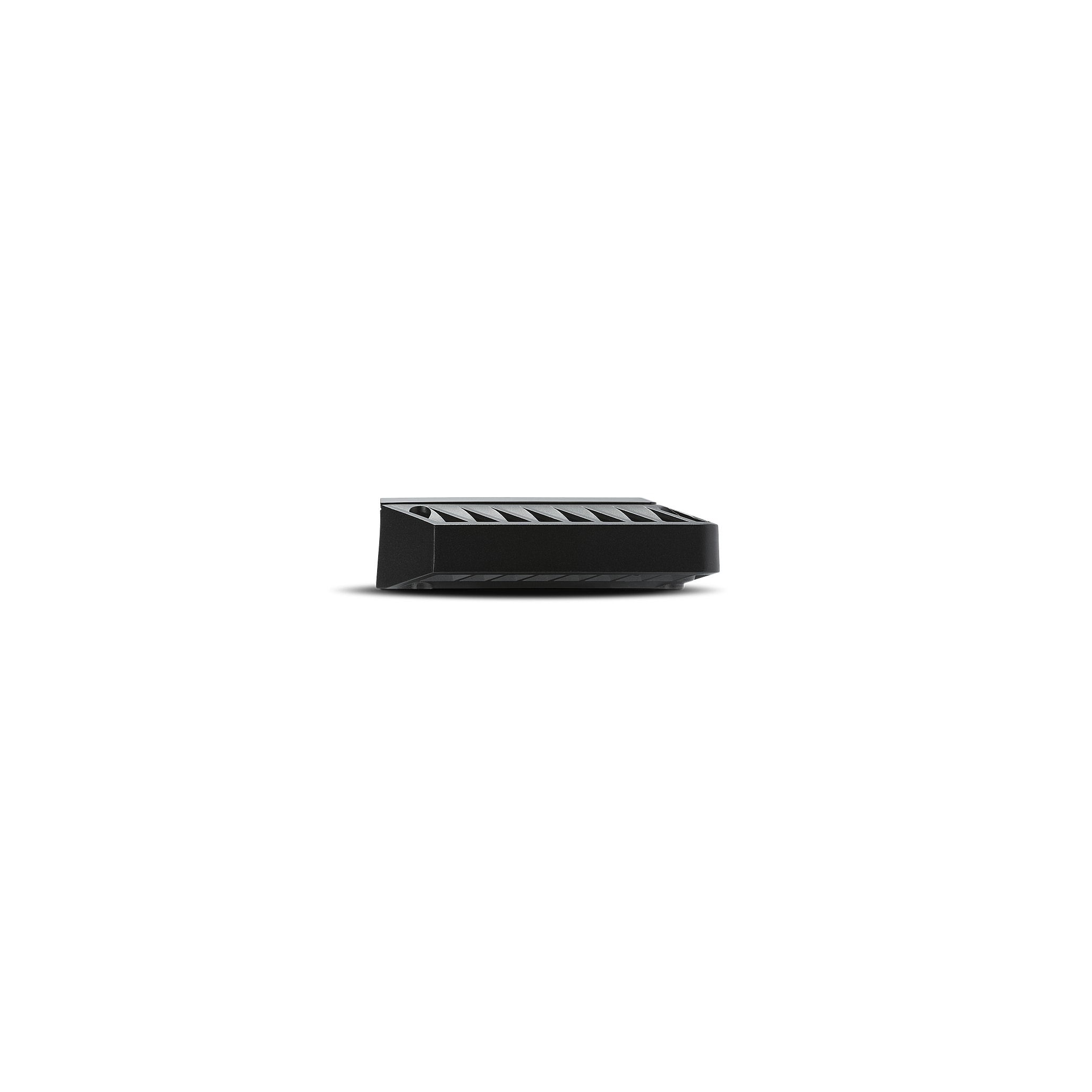

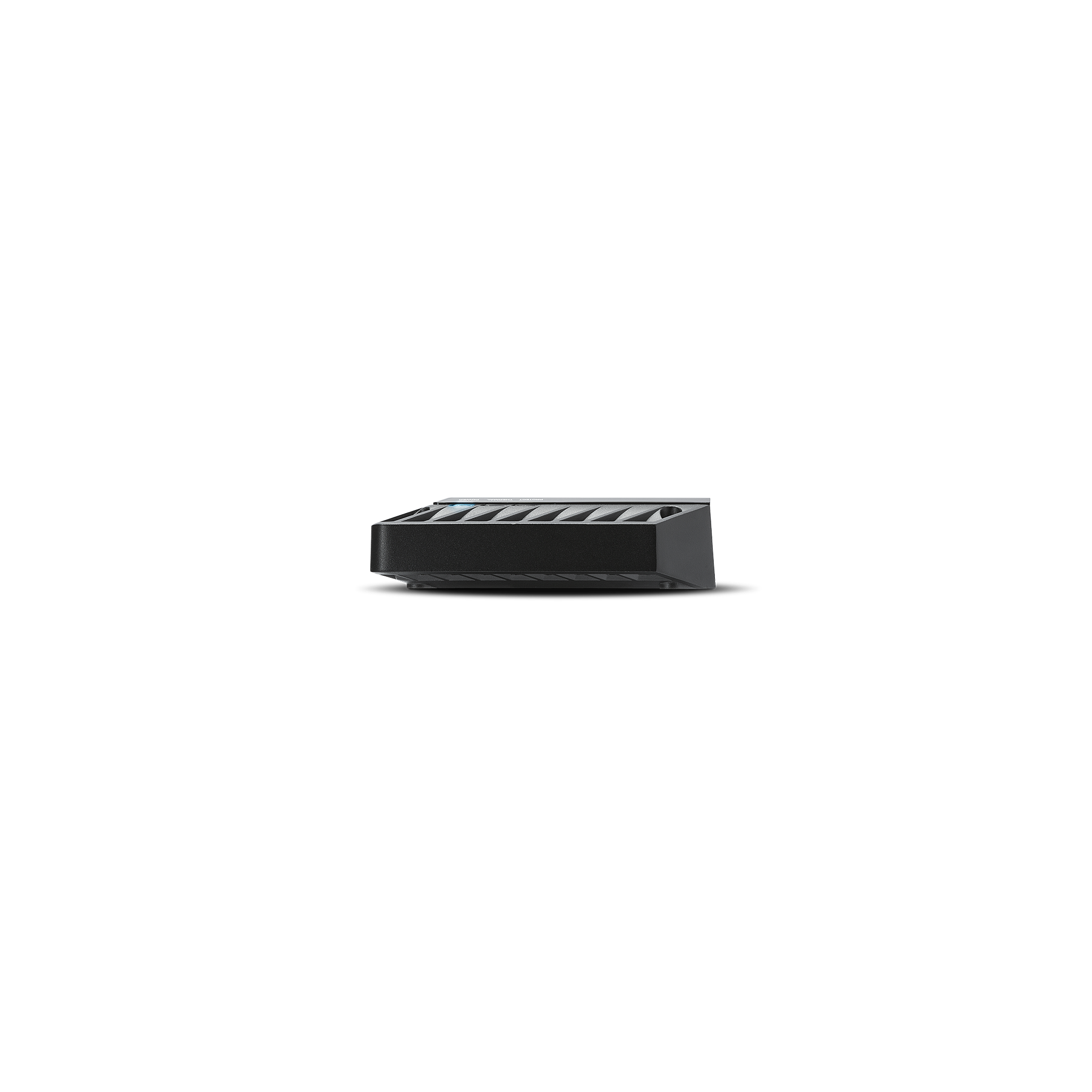

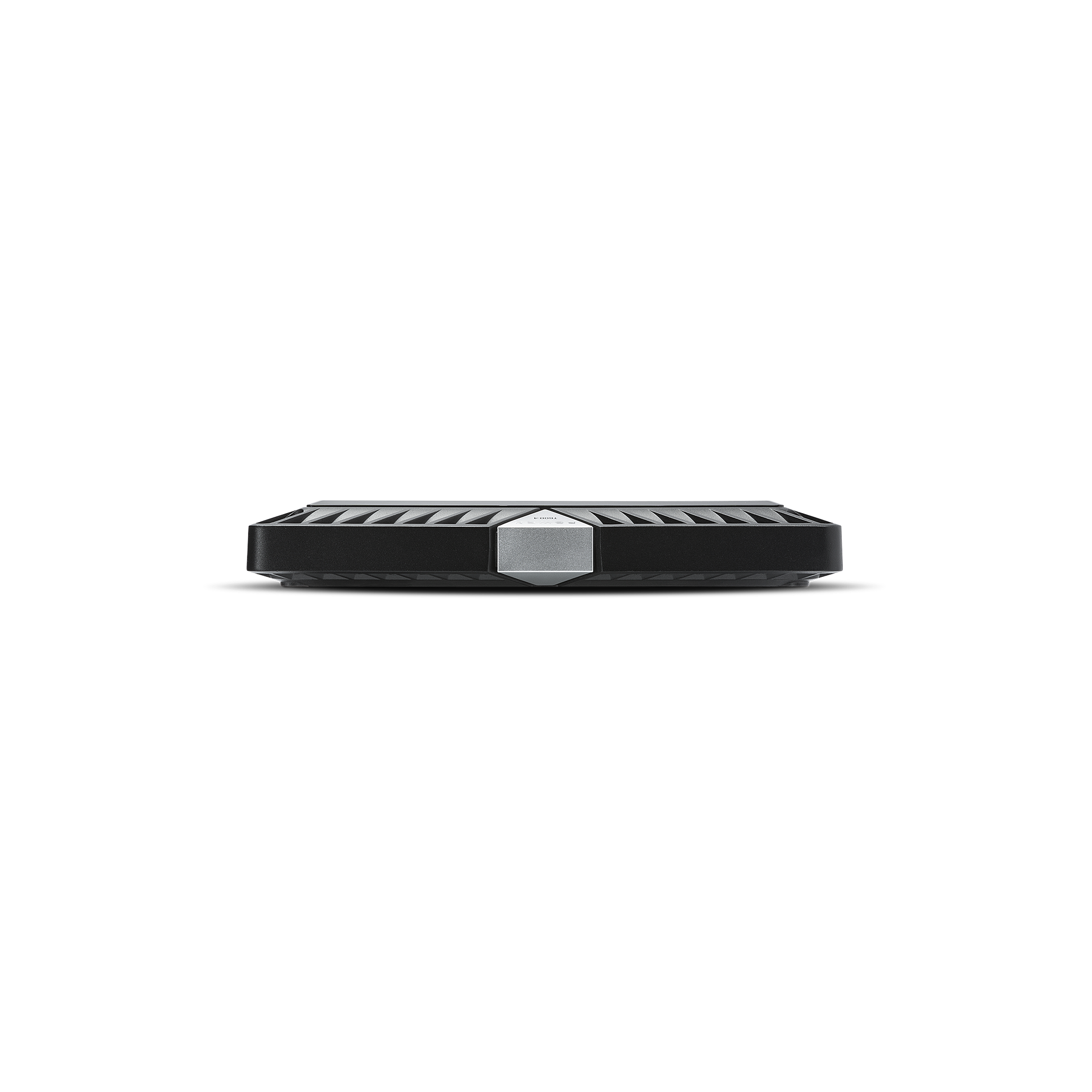

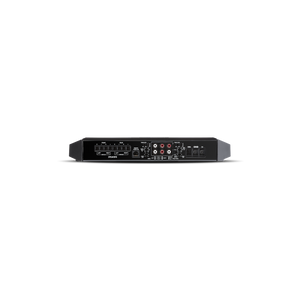

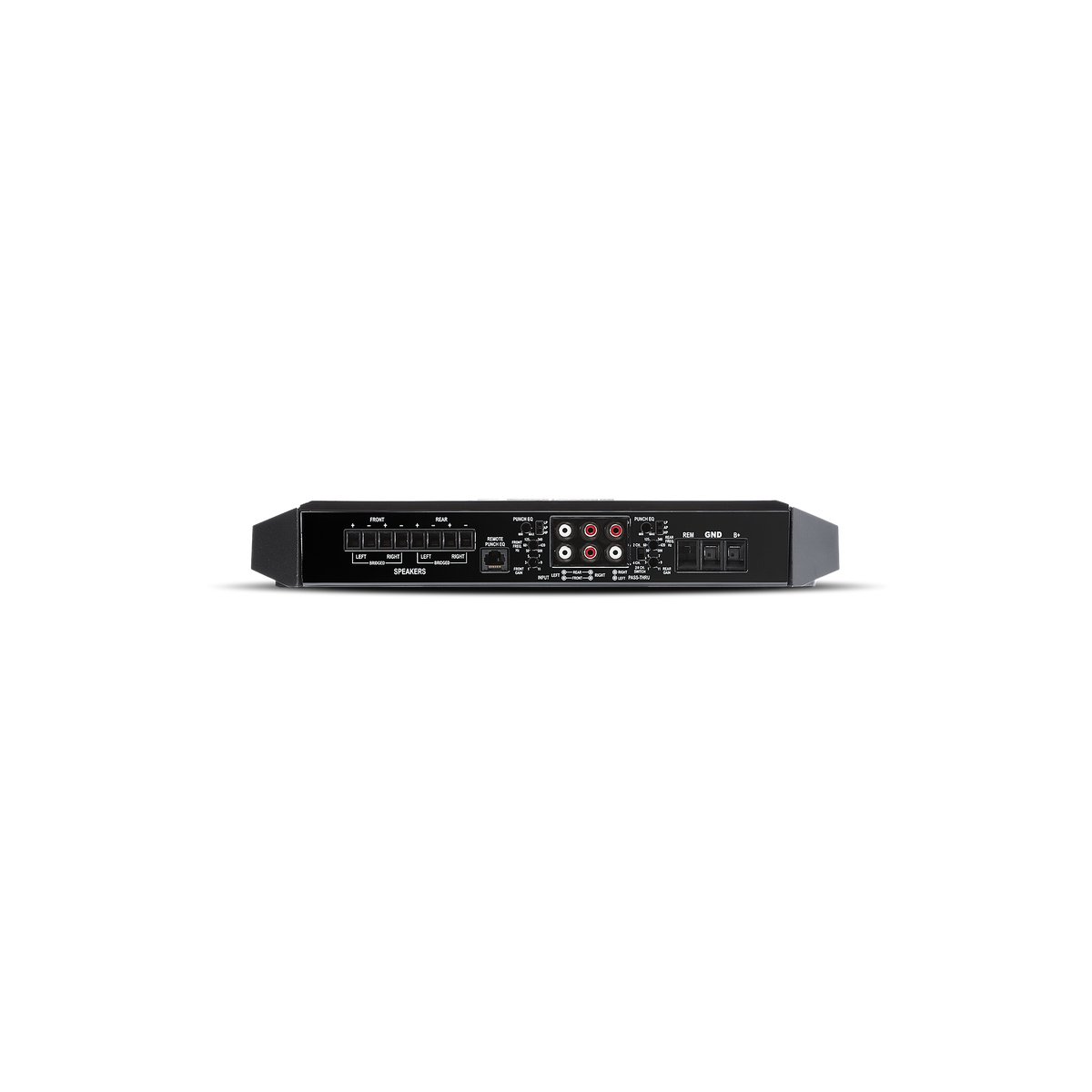

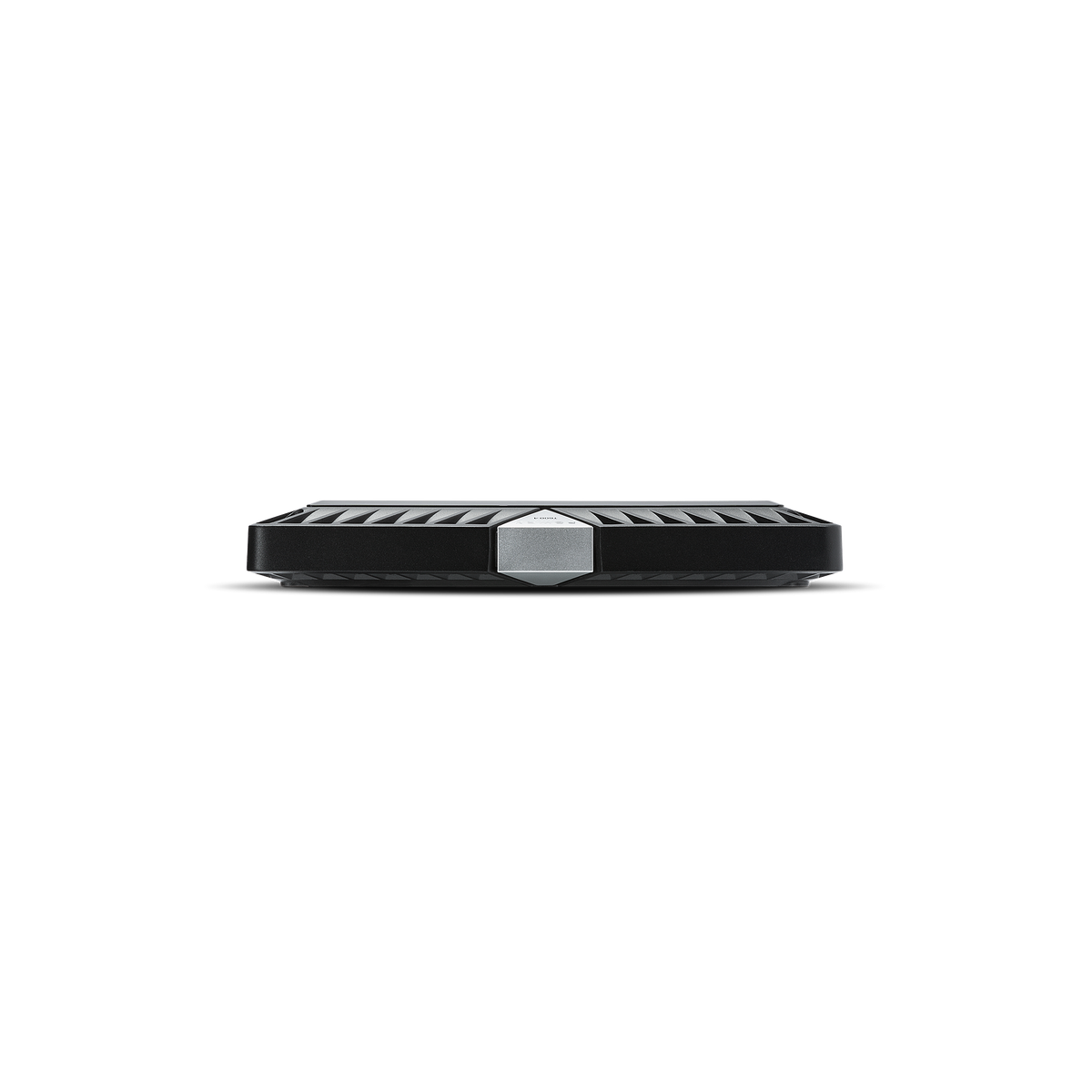

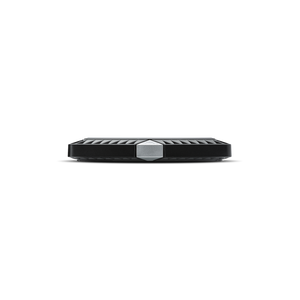

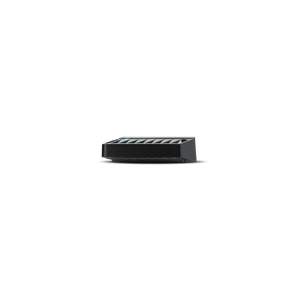

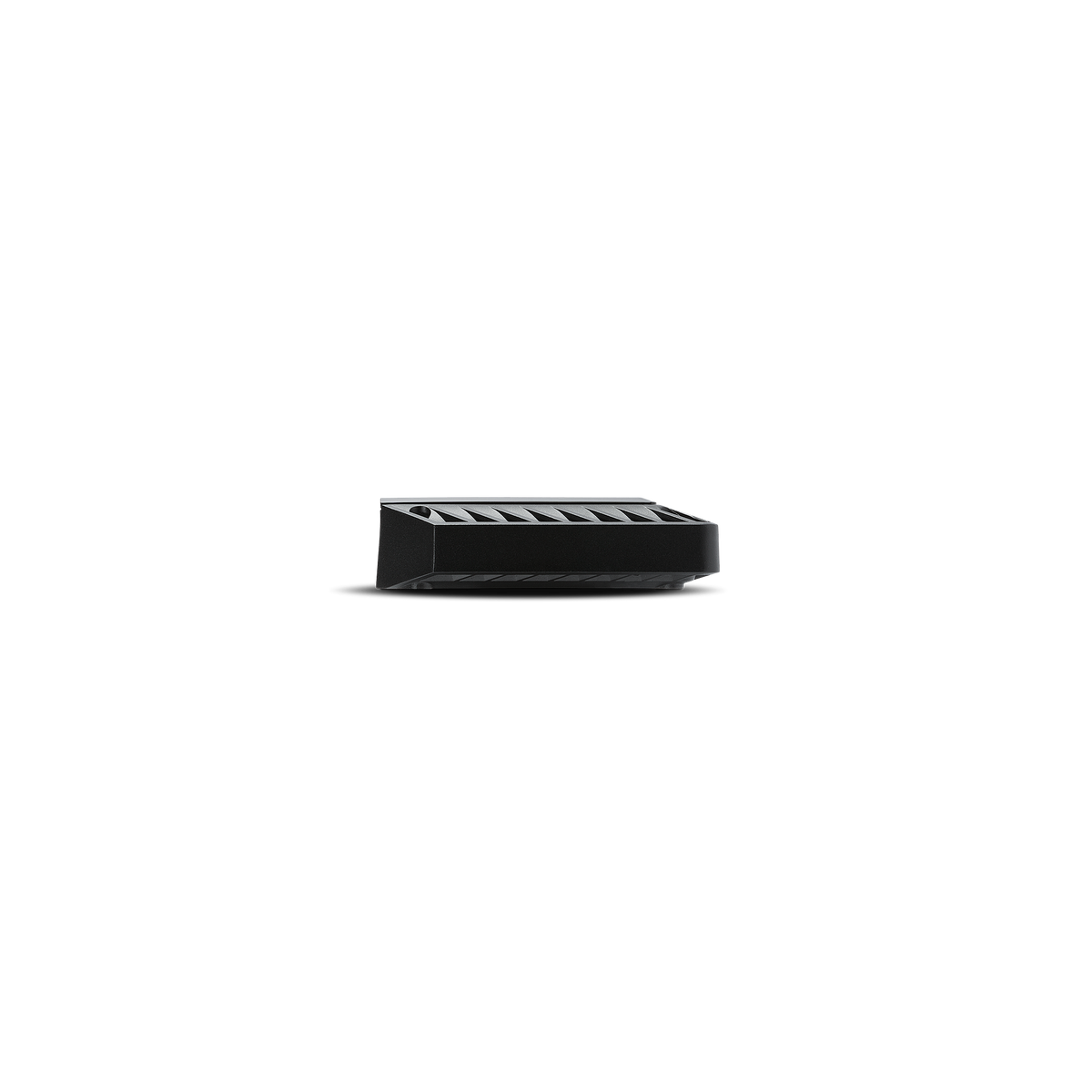

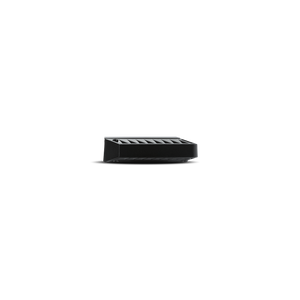

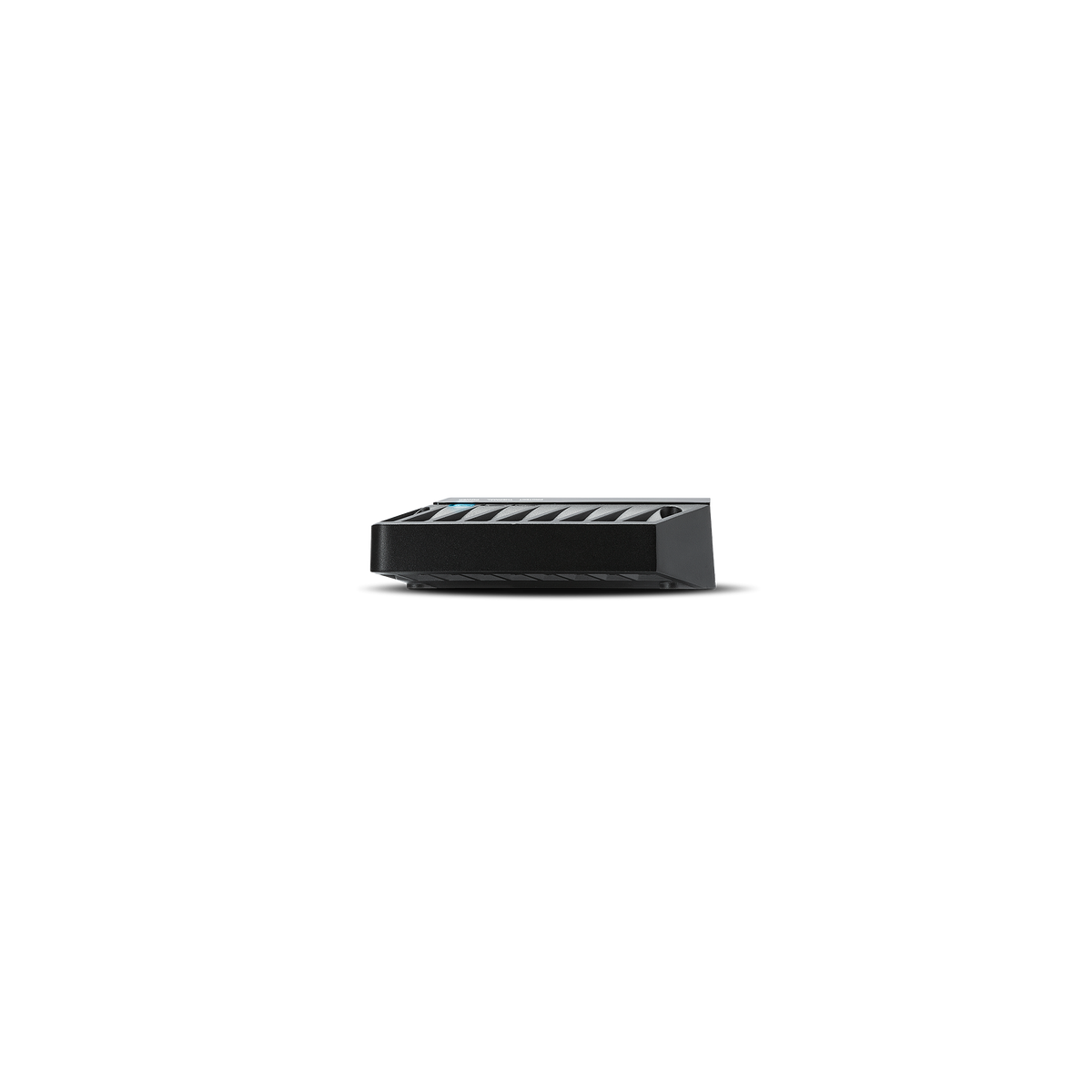

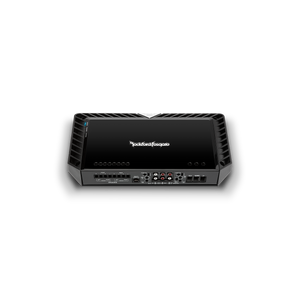

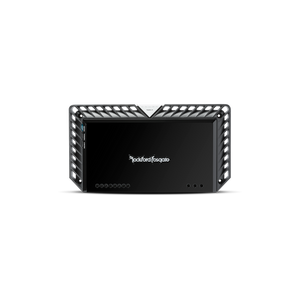

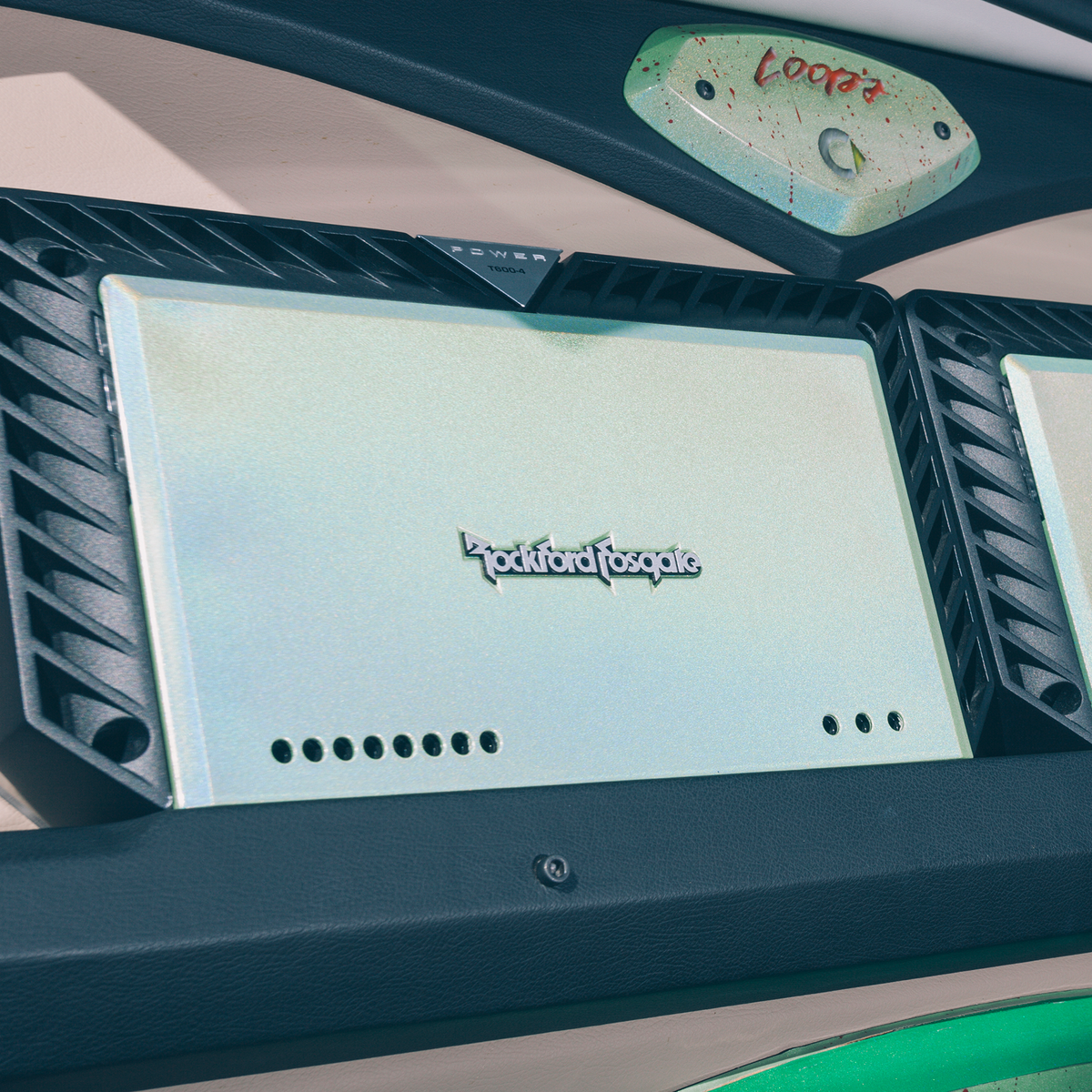

Power 600 Watt 4-Channel Amplifier

Overview

The Power T600-4 is a 4-channel amplifier capable of producing 150 Watts into each of its four channels at 2-Ohms. The T600-4 can run a 4-way full-range system or use component speakers on the front with subwoofers on the rear.

Features

• 2-Year Warranty
• 2/4 channel input switch
• 24dB/octave crossover
• 4 Gauge power/ground connectors
• Audiophile grade speaker connections
• MOSFET output stage
• MOSFET power supply
• RCA pass-thru outputs

Technologies

• TRANS•ana: Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.
• DTM: Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.
• Punch EQ2: Onboard equalizer with up to +18dB @ 45Hz and/or up to +12dB boost at 12kHz.
• MEHSA³: MEHSA³ reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
• NOMAD: NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
• TO-247 MOSFETs: (left-OLD | right-NEW)
  Rockford Fosgate amps use custom TO-247 MOSFETs. These have 60% more metal tab area for more power capacity, lower impedance and improved heat dissipation over traditional TO-220 MOSFETs found in competitor amps.
• CTA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
• DSM: DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
• Engineered In The USA: These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
• Differential Inputs: Differential inputs eliminate noise picked up by signal cables resulting in clean signal transfer.

Specifications

Input Sensitivity	150 mV to 4 V
Damping Factor	>200
Signal-to-Noise (CEA)	>90 dB
Channel Separation	60 dB
Common Mode Rejection	>60 dB
CEA-2006 Compliant	CEA-2006 Power Rating 100W x 4 @ 4Ω ≤1.0% THD+N
Shipping Weight	12.00 lb. (5.44 Kg.)
Suggested Alternator	75 A
Max. Current Draw (13.8V Sinewave)	80 A
Average Current Draw (13.8V Music)	40 A
Total Harmonic Distortion (THD+Noise)	4-Ohm:<1.0% 2-Ohm:<1.0%
Efficiency (average)	70% @ 4-Ohm 64% @ 2-Ohm
Operating Voltage	9 - 16 VDC
Recommended Fuse (not included)	80 A
Rated Power (RMS Continuous Power)	100 Watts x 4 @ 4-Ohm 150 Watts x 4 @ 2-Ohm 300 Watts x 2 @ 4-Ohm Bridged 2-Ohm x 2 Bridged Stable
Bridgeable	Yes
Dynamic Power (PVC/PowerCube®)	Front Channels 139 Watts x 2 @ 4-Ohms 0° Res 236 Watts x 2 @ 2-Ohms 0° Res Rear Channels 140 Watts x 2 @ 4-Ohms 0° Res 236 Watts x 2 @ 2-Ohms 0° Res
Number of Channels	4
Total Power (Sum of Rated Power)	600 Watts RMS
Crossover Controls	Front High-Pass (HP): 50-500Hz 24dB/octave Butterworth Front Low-Pass (LP): 50-500Hz 24dB/octave Butterworth Rear High-Pass (HP): 50-500Hz 24dB/octave Butterworth Rear Low-Pass (LP): 50-500Hz 24dB/octave Butterworth
Power Wire Gauge	4 AWG

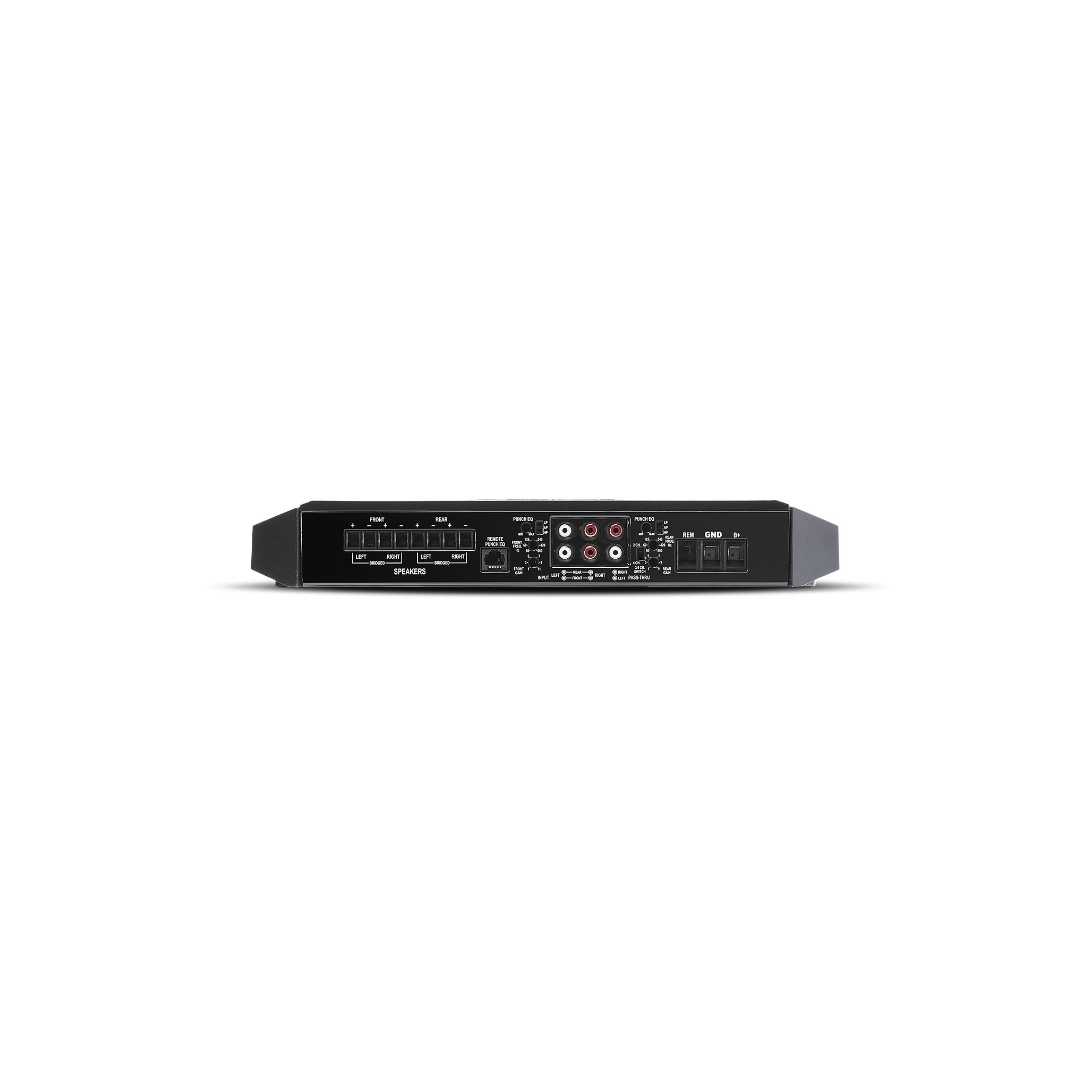

Signal Input	Front Low level: 1 RCA pair Rear Low level: 1 RCA pair Input Switch: 2CH / 4CH
Power Input Connector	Block
Tone Controls	Front Channels - Punch EQ Treble: 0dB to +12dB @ 12kHz Bass: 0dB to +18dB @ 45Hz Rear Channels - Punch EQ Treble: 0dB to +12dB @ 12kHz Bass: 0dB to +18dB @ 45Hz
Speaker Output Connector	Screw terminal barrier strip
Signal Output	Low Level: 1 RCA pair
Speaker Wire Gauge	8 AWG to 18 AWG
Heat Sink Type	Cast aluminum
Cooling	Convection
Remote Controls	Optional Remote Punch EQ (overrides rear channel built-in Punch EQ)
Visual Indicators	Power Thermal Protect
Circuit Topology Class	Class A/B
Dimensions (H x W x D)	2.14 x 8.14 x 14.91 (in) 5.42 x 20.68 x 37.86 (cm)
Frequency Response	20Hz to 20kHz +/- 1dB
