Power 6.5" T4 Component System (pr)

Overview

The Power T4652-S is a 2-way audiophile grade 6.5” component system featuring a dedicated tweeter with phase plug, woofer, and passive crossover.

Features

• 1 Year Warranty
• 1" (25mm) ring radiator LCP dome tweeter w/ aluminum phase plug
• Asymetrical 12dB/Oct Butterworth crossover network
• DDC (Discreet Dual Clamp) tweeter mounting system

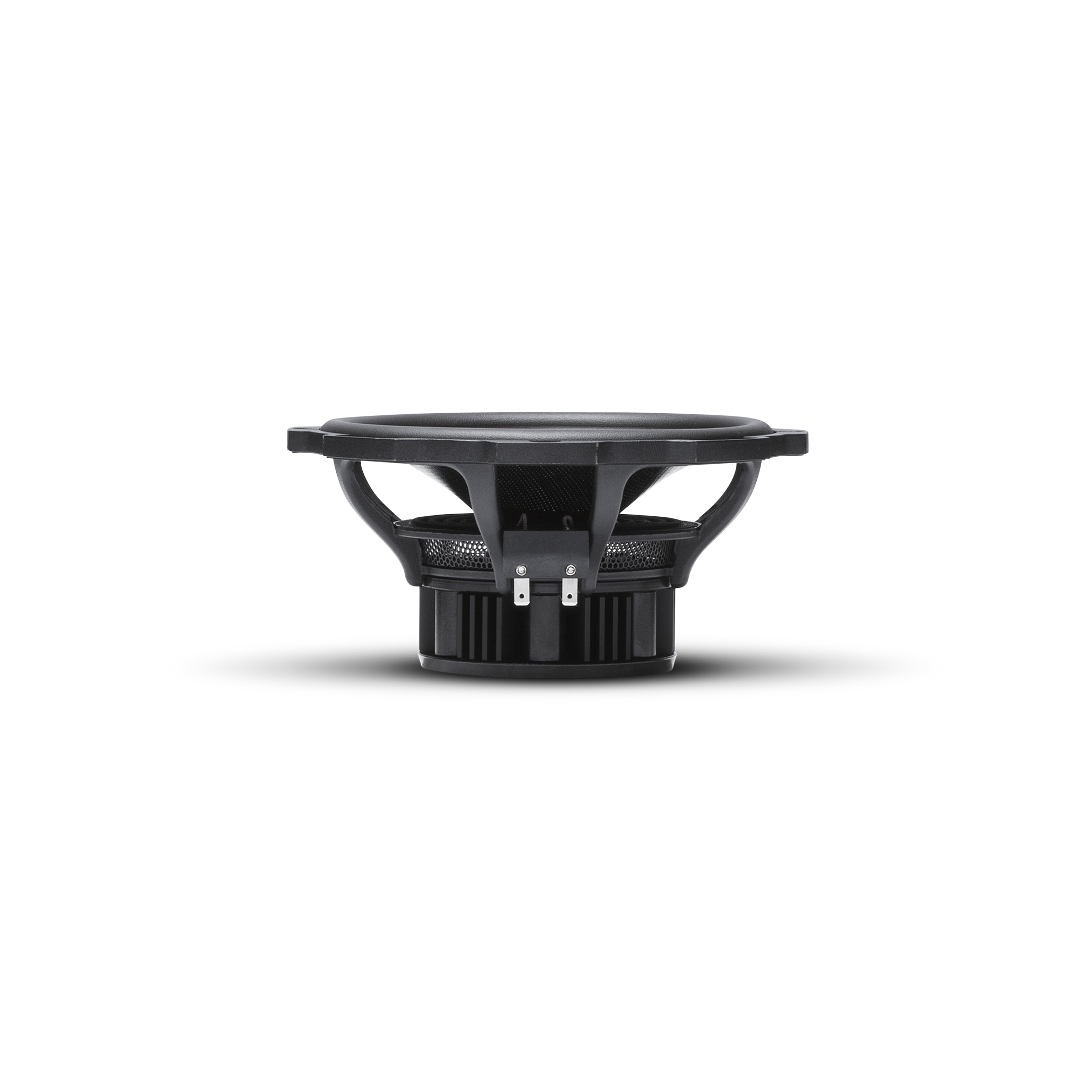

• Die cast aluminum frame
• Fatigue and tear resistant linear Nomex spider
• FlexFit slot woofer mounting

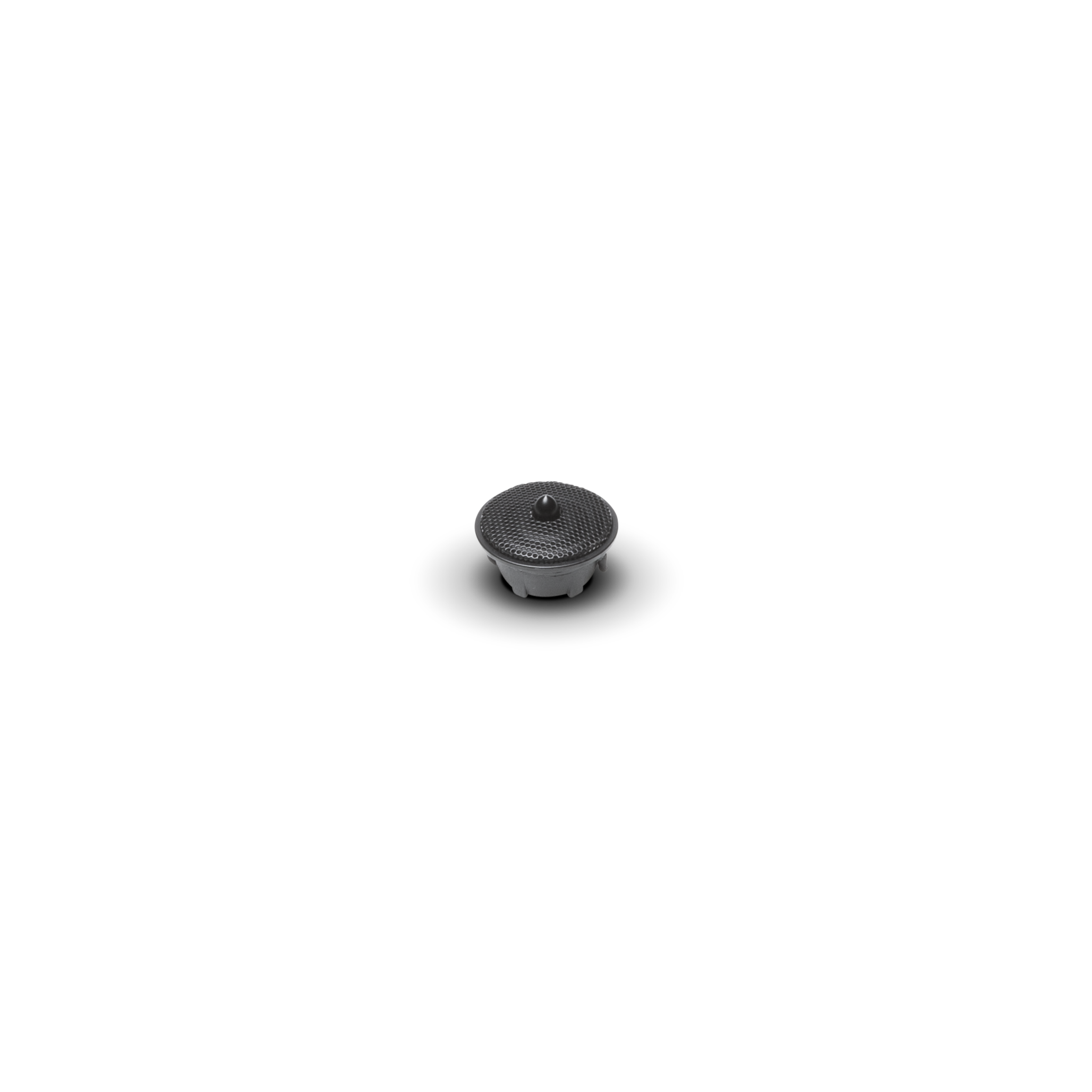

• Flush and surface (angled) tweeter Mounting Hardware Included

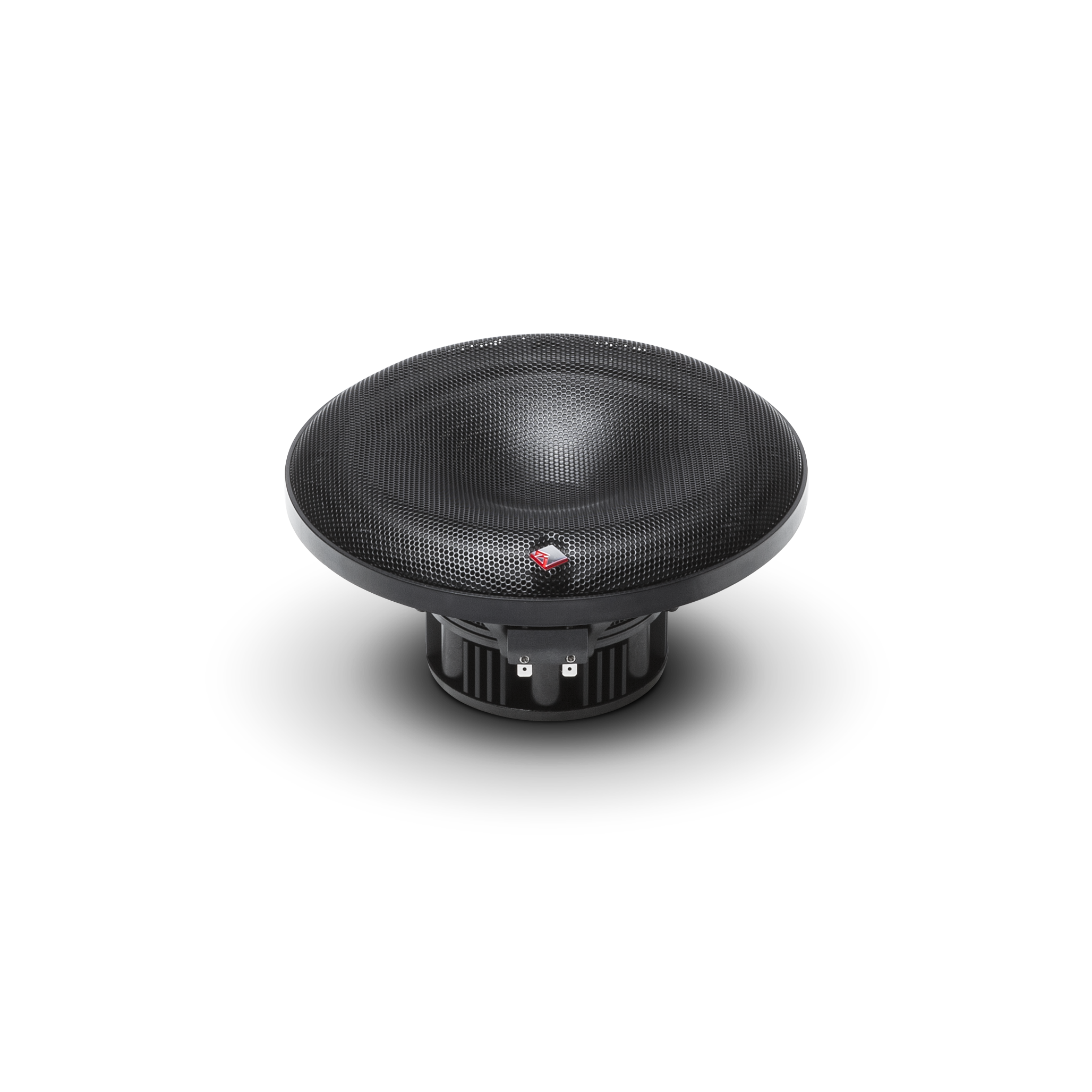

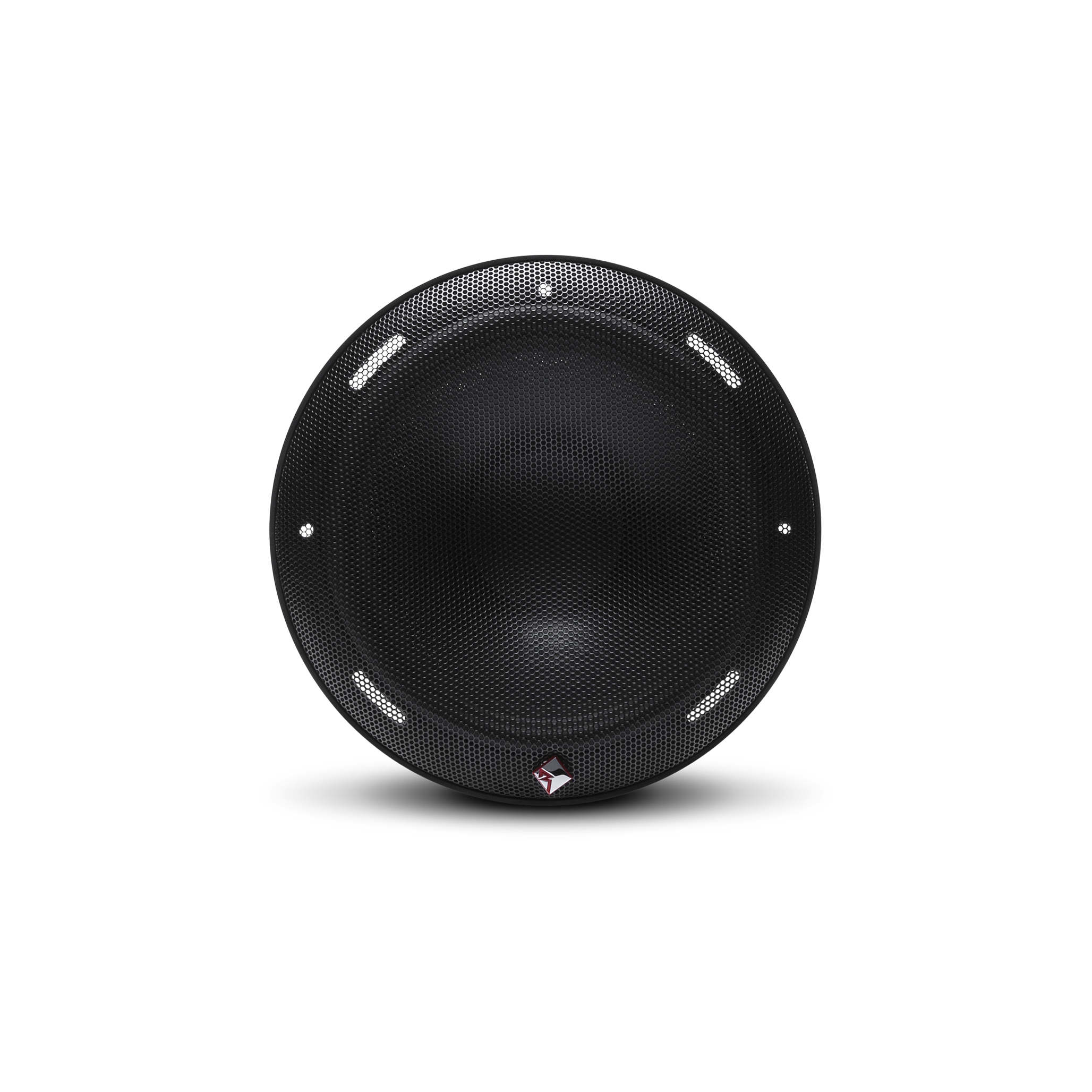

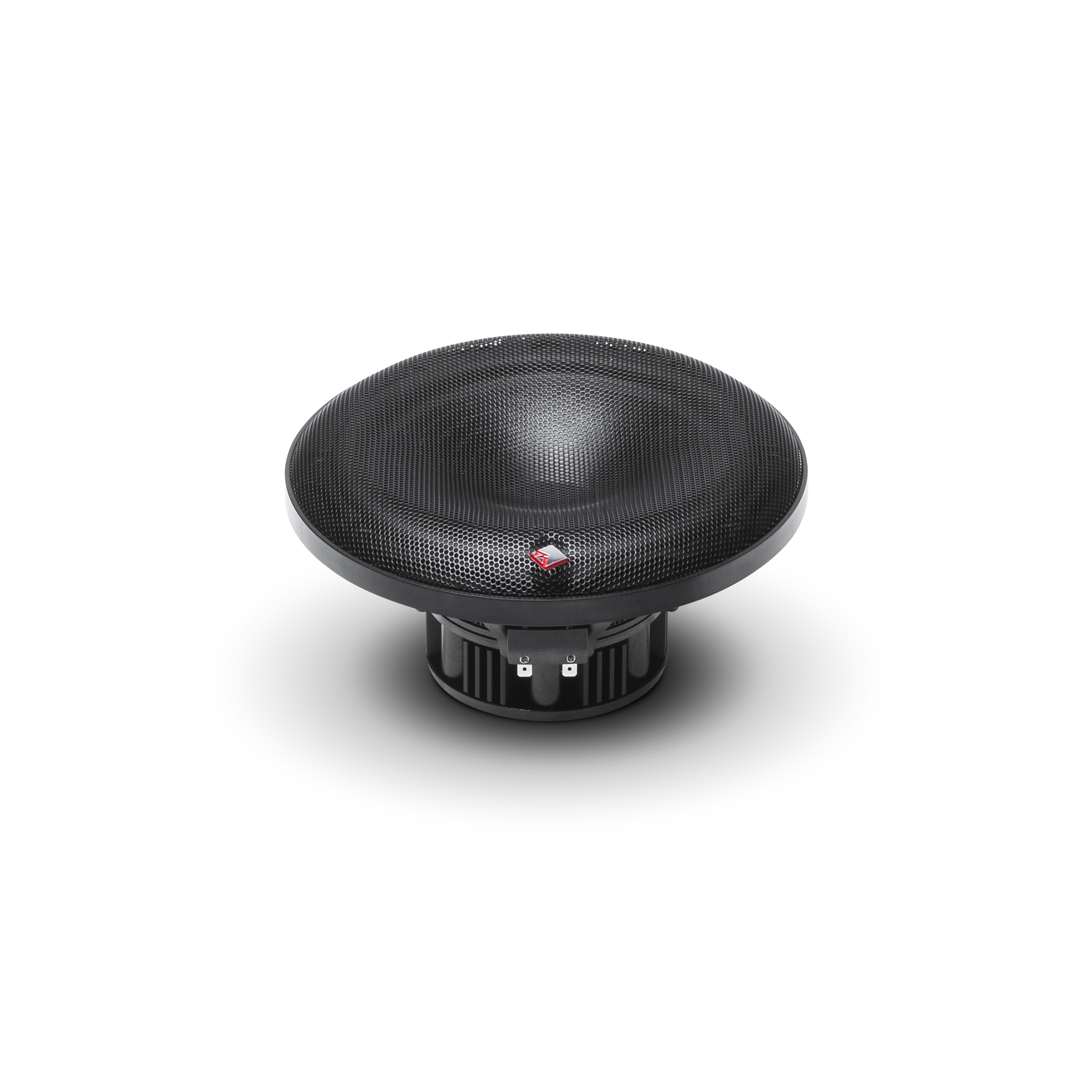

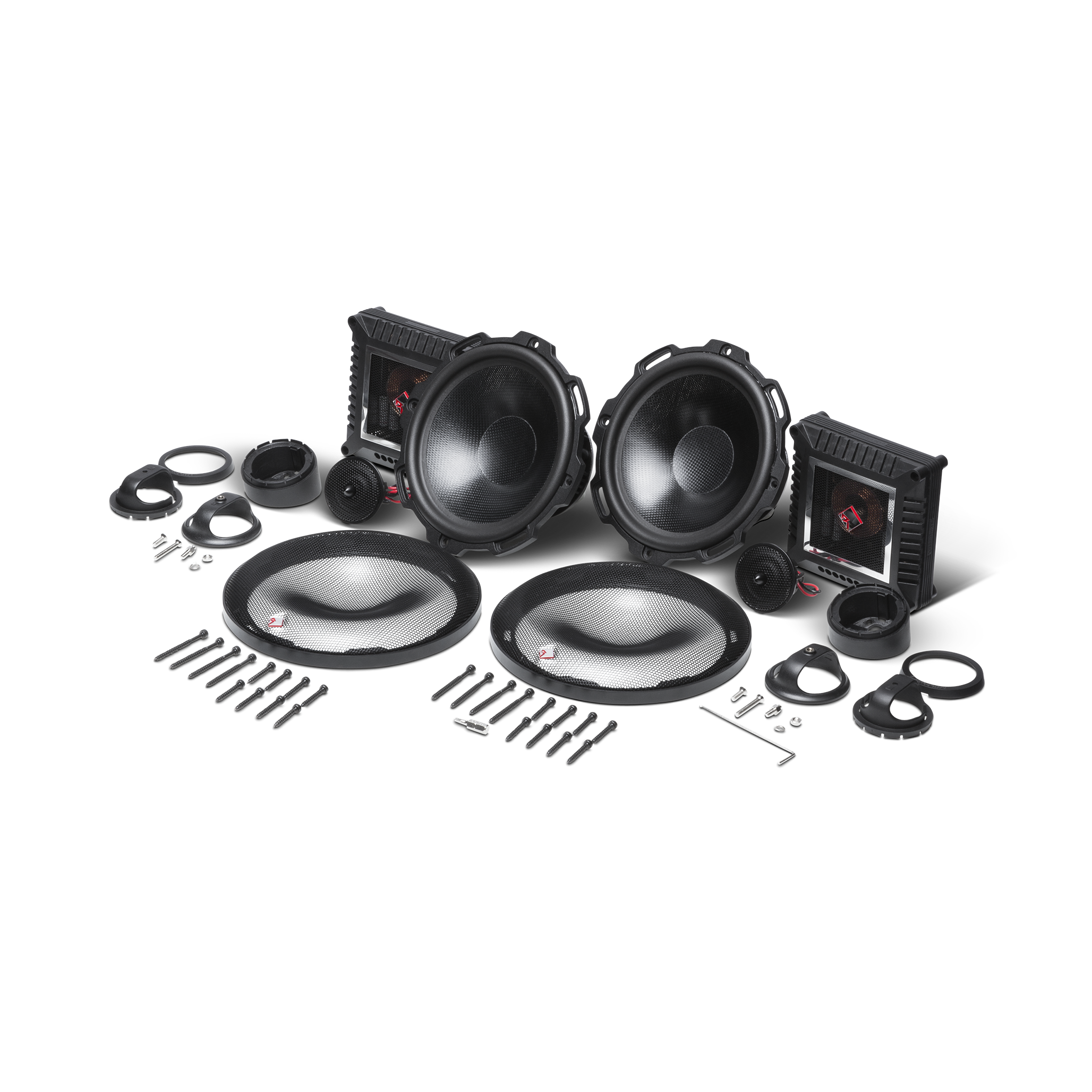

• Grilles and Mounting Hardware Included

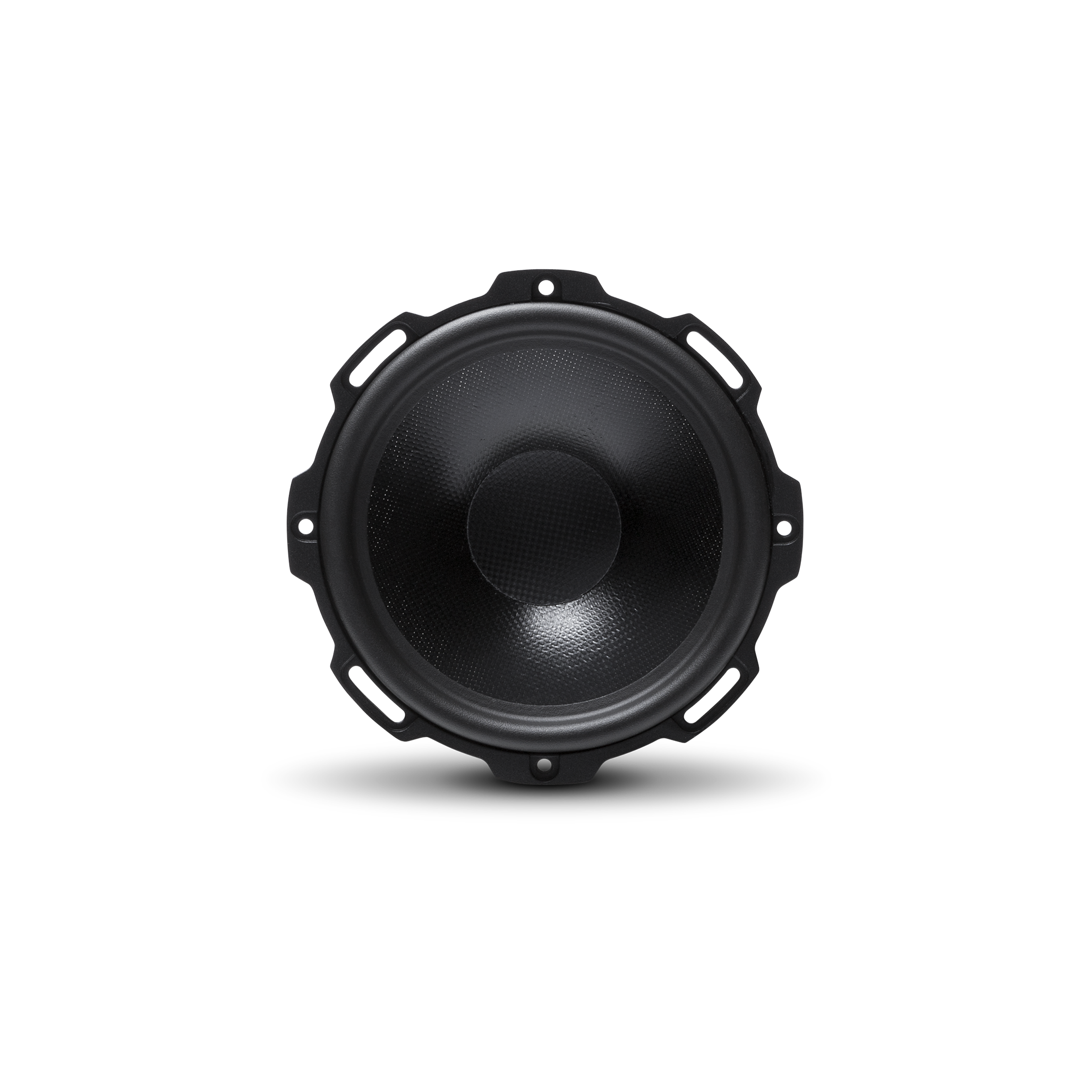

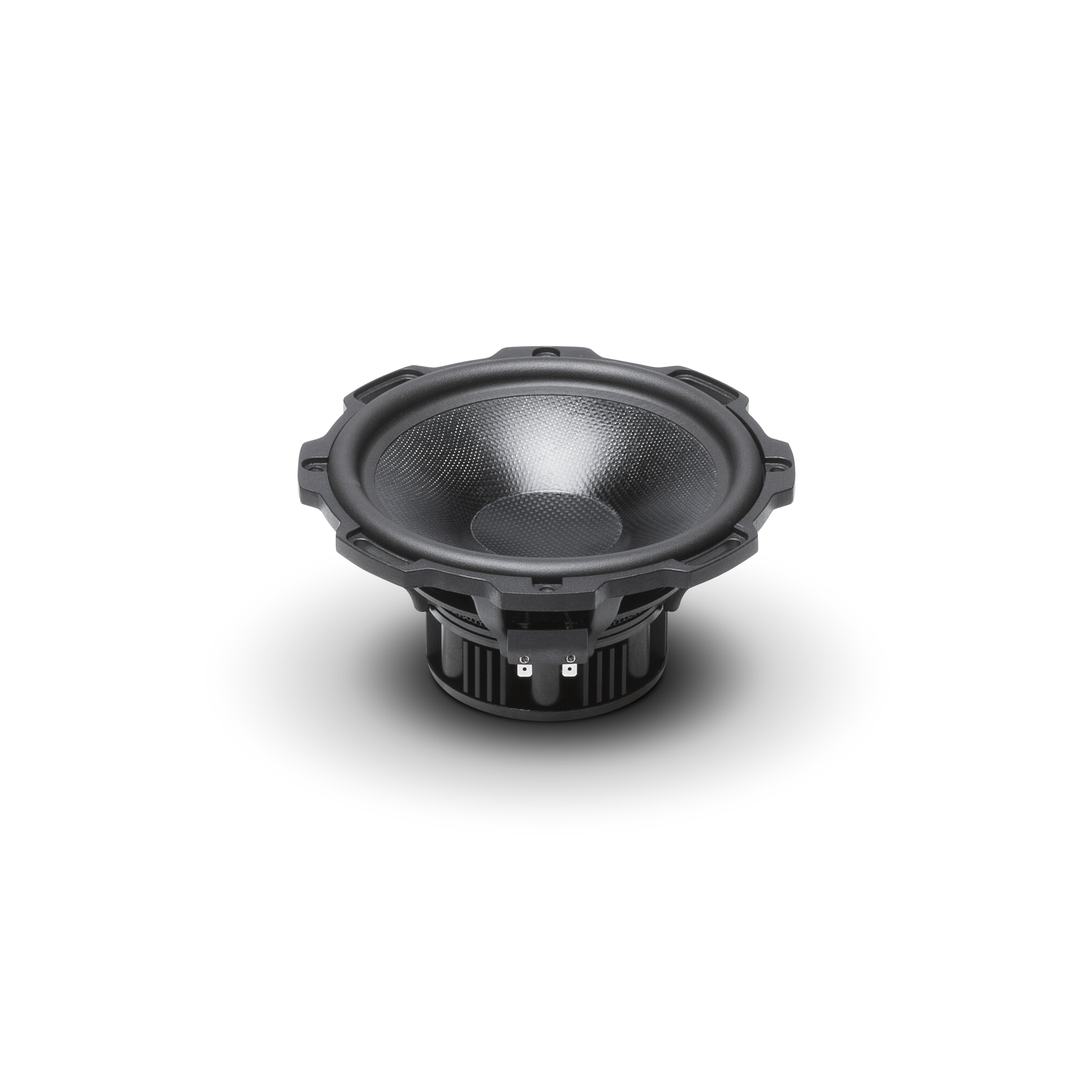

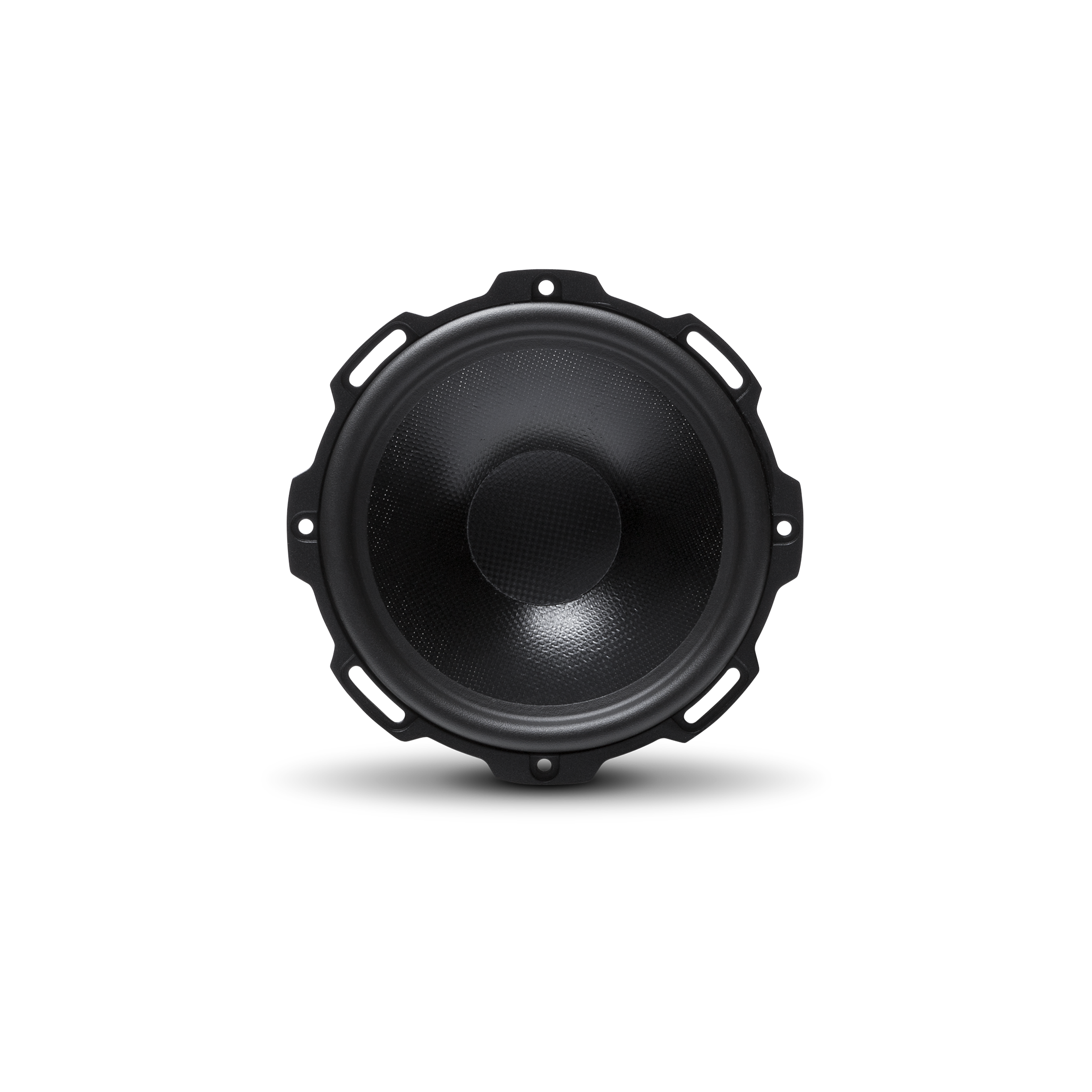

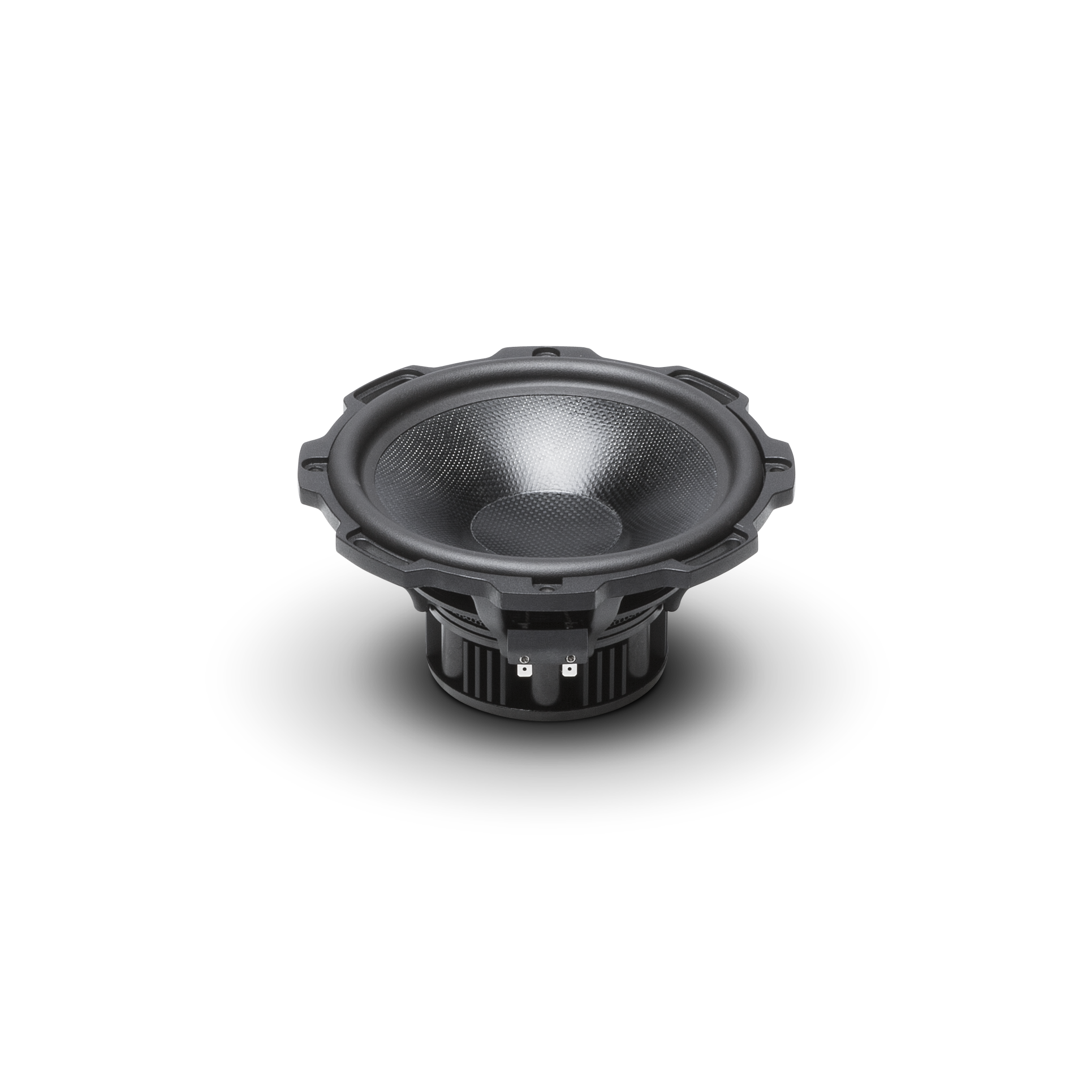

• LCP (Liquid Crystal Polymer) fiber sandwich woofer cone

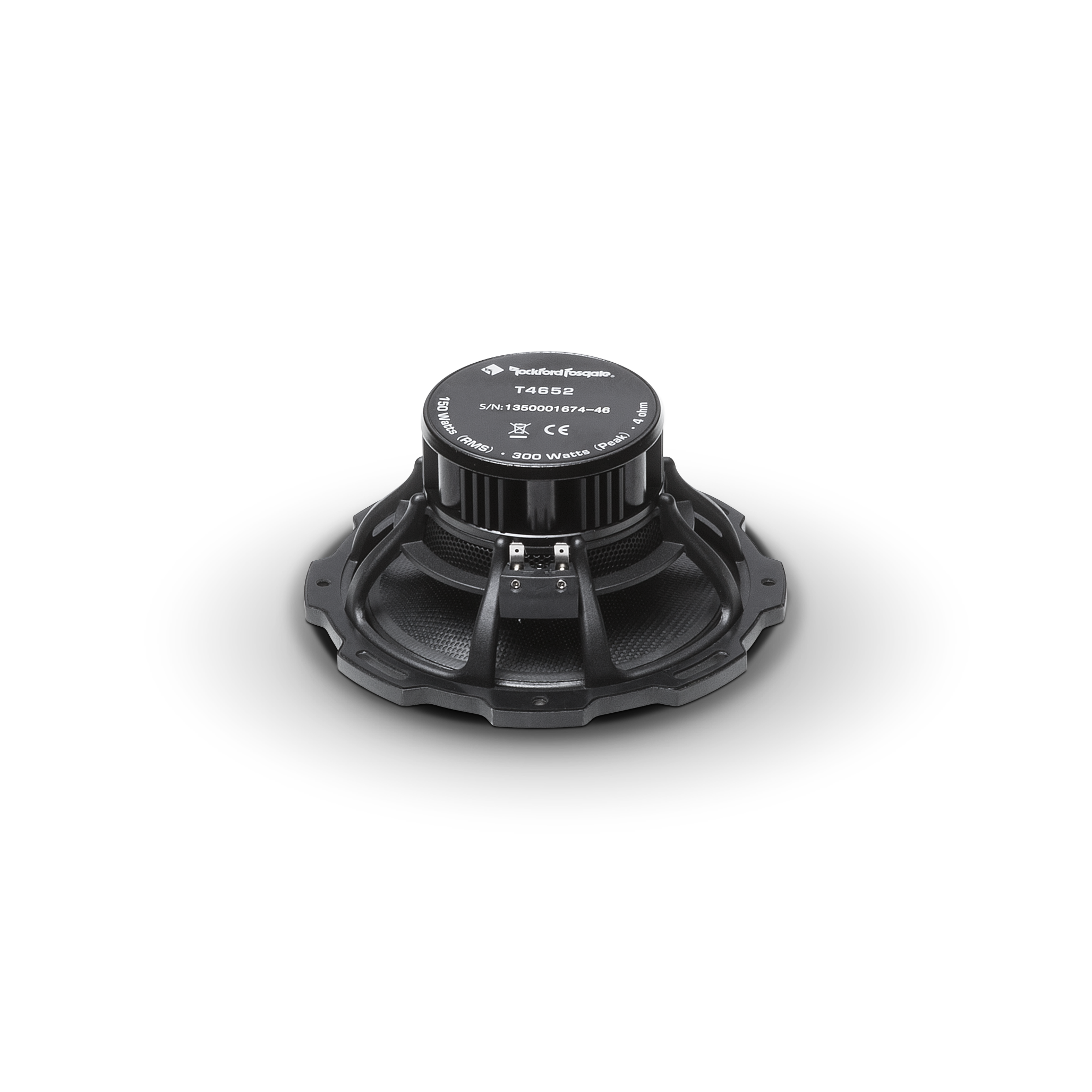

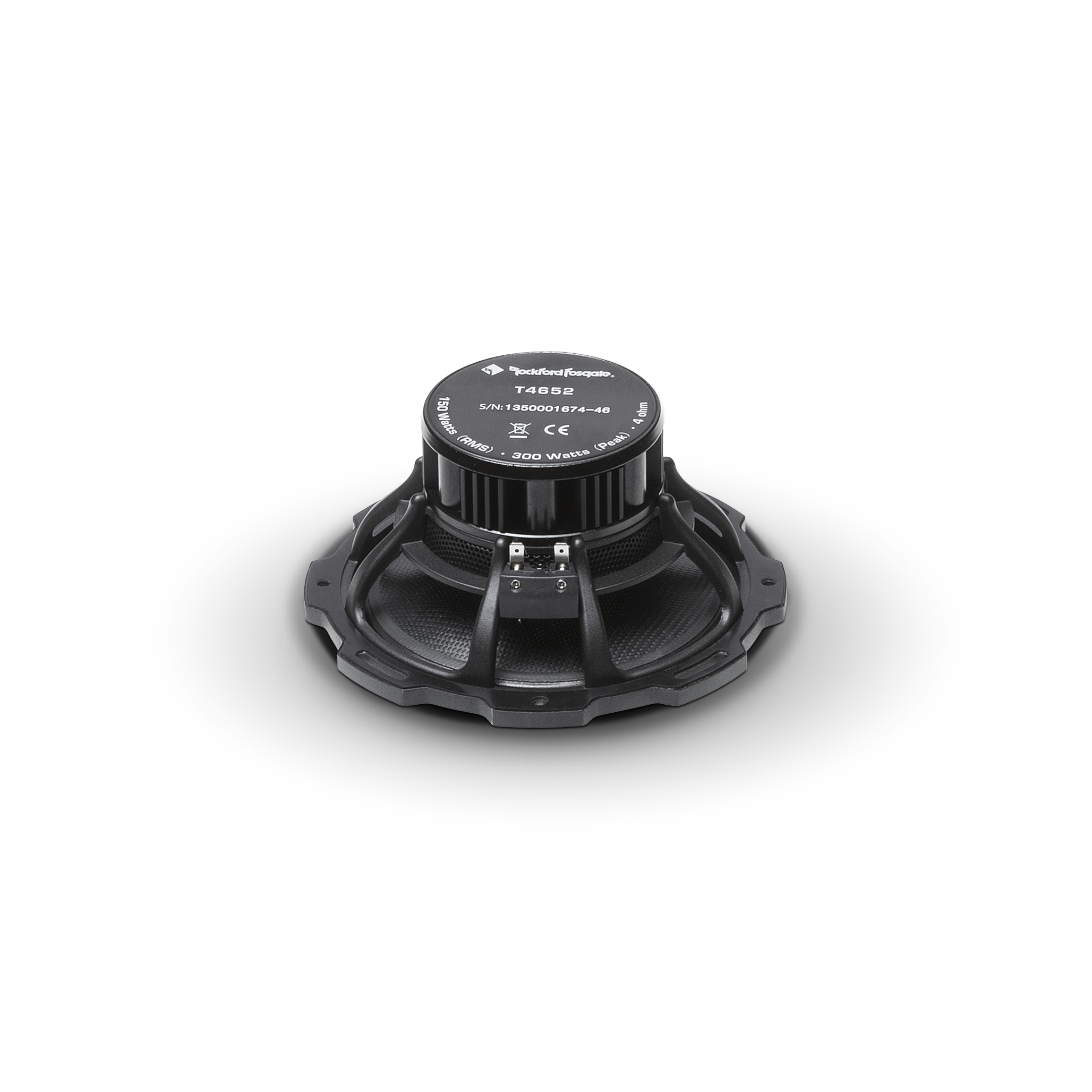

• Multi-poleTM neodymium motor structure
• Selectable +2, 0, -2 dB tweeter level settings
• Selectable bi-amp switching
• Selectable on/off axis setting
• Sold in pairs (2 each)
• VAST (Vertical Attach Surround Technique) Butyl rubber surround

Technologies

• Klippel Verified: Klippel is a speaker certification program allowing us to deliver the best possible speakers.
• CTA-2031: Power handling on Rockford Fosgate speakers conform to CTA-2031 industry standards.
• IDHSTM T3/T4 Inductive Damping Heat Sink: Secures directly to the top of magnet structure to improve system efficiency by reducing both distortion and back EMF (Electo-magnetic force). Also radiates heat to reduce voice coil temperature.
• FlexFit Basket - Speaker: The slot mounted frame pattern allows for variable adjustments to the mounting position.
• DDCTM Tweeter Mounting: Our DDCTM (Discreet Dual Clamp) Tweeter Mounting provides concentric clamping pressure around the perimeter of the mounting hole. This results in maximum ease of installation.
• VAST Surround (speakers): The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.

Specifications

CEA-2031 Compliant
Midrange Size (Nominal Diameter)	6.5"
Speaker Type	Component System
Frequency Response (Hz)	40Hz - 30kHz
Tweeter Size (Nominal Diameter)	1" (25 mm)
Nominal Impedance (Ohms)	4-Ohm
Midrange Mounting Depth	2.79" (71 mm)
Tweeter Mounting Depth	0.66" (17 mm)
Power Handling (RMS)	150 Watts RMS 300 Watts Max
Crossover	3kHz 12dB/Octave High-Pass 12dB/octave Low-Pass
Sensitivity (dB @ 1W/1M)	89
Grille / Trim Ring Included	YES
Mounting Hardware	YES
Shipping Weight	12.2 lb. (5.53 Kg.)
