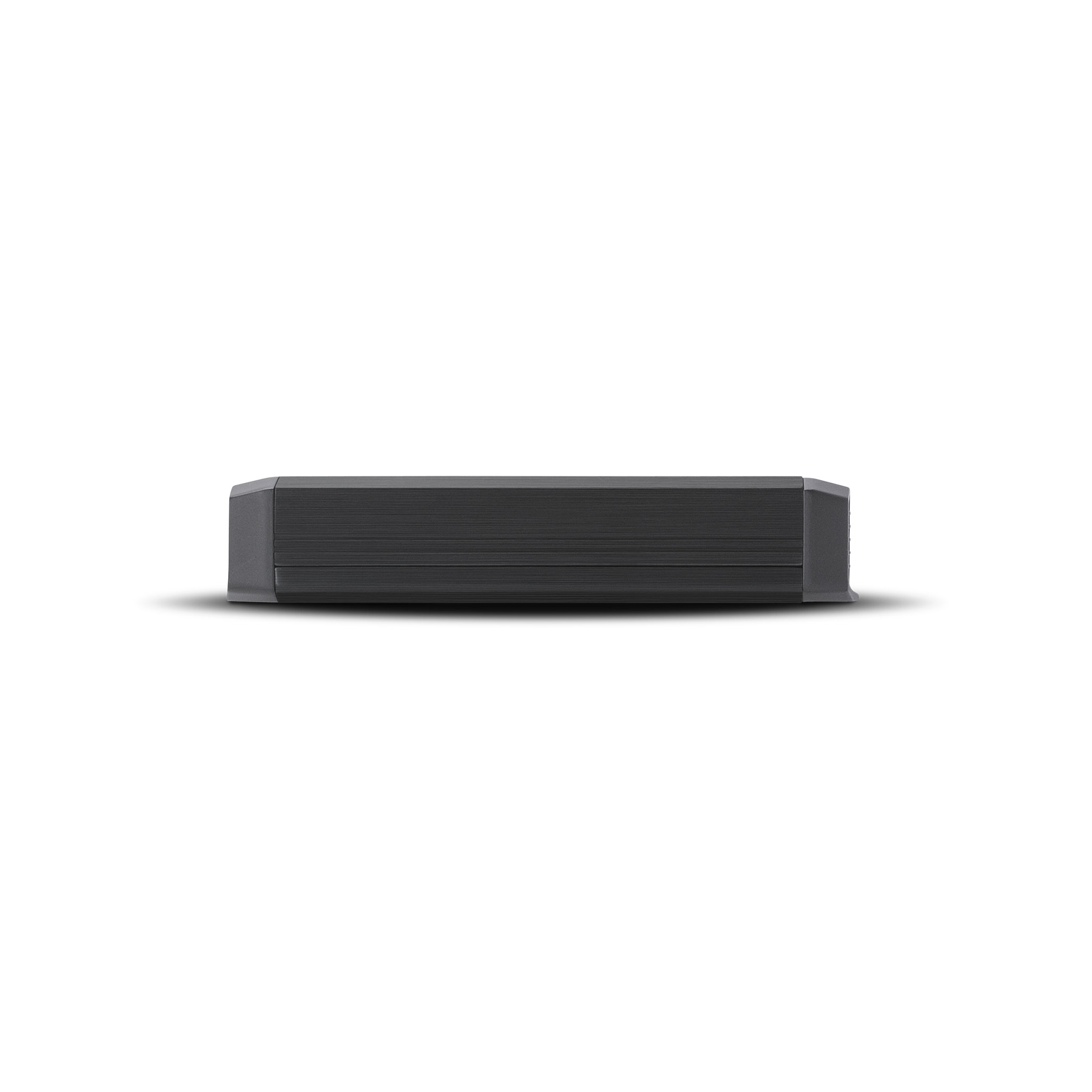

Power 400 Watt Class-ad 4-Channel Amplifier

Overview

The Power T400X4ad is an ultra-compact, high-efficiency 400-watt 4-channel amplifier, featuring multi-impedance Constant Power, and input/output clip detection.

Features

• Rockford Fosgate proprietary Class AD technology
• 8 AWG power/ground connector w/ upgraded RCA connectors
• C.L.E.A.N. input/output clip detection and indicator LEDs
• 4 Ohm bridged capable
• 4/2 Ohm muti-impedance Constant Power
• 2/4 channel input switch
• Remote-Out feature when using high level inputs
• Dual extruded heat sinks
• 2-Year Warranty
• Real time thermal sensing
• Dual fan cooled

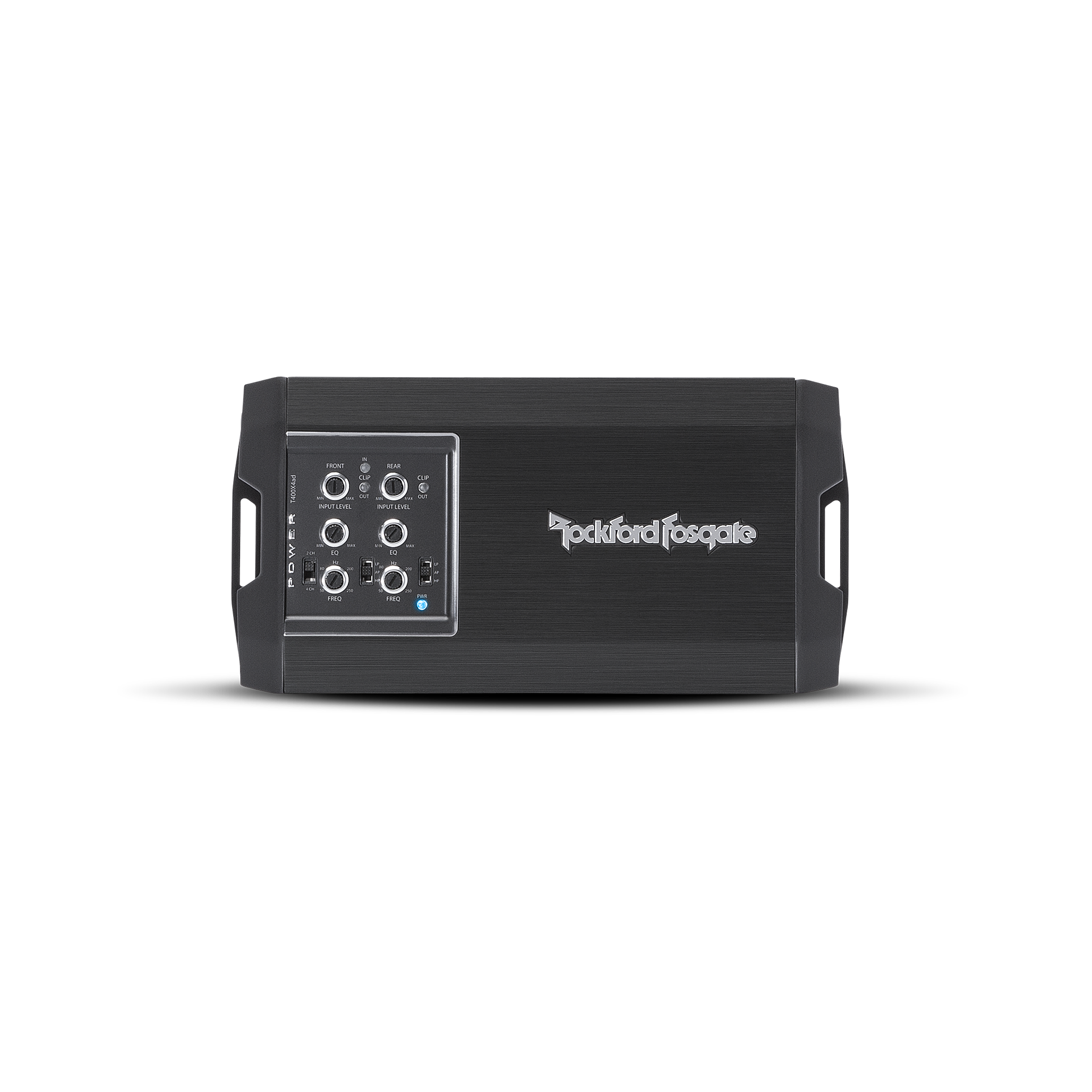

• Top mounted controls
• Discrete surface mount technology
• Differential inputs with high level auto turn-on feature

Technologies

• 3-Stage Airflow: 3-stage airflow method effectively exhausts heat and ensures your amplifier runs cooler for optimum performance.
• C.L.E.A.N. Technology: C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
• Class-AD: This technology allows the amplifier to produce more power with less current draw from the vehicle's charging system.
• Constant Power: Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying impedance loads.
• CTA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
• DSM: DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
• Engineered In The USA: These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
• CE Compliant: This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
• Differential Inputs: Differential inputs eliminate noise picked up by signal cables resulting in clean signal transfer.

Specifications

CEA-2006 Compliant	CEA-2006 Power Rating 100W x 4 @ 4Ω ≤1.0% THD+N
Number of Channels	4
Dynamic Power (PVC/PowerCube®)	128 Watts x 4 @ 4-Ohm 152 Watts x 4 @ 2-Ohm 290 Watts x 2 @ 4-Ohm Bridged
Total Power (Sum of Rated Power)	400 Watts
Rated Power (RMS Continuous Power)	100 Watts x 4 @ 4-Ohm 100 Watts x 4 @ 2-Ohm 200 Watts x 2 @ 4-Ohm Bridged
Input Sensitivity	150 mV to 12 V
Operating Voltage	9 - 16 VDC
Crossover Controls	High-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth All-Pass: Yes

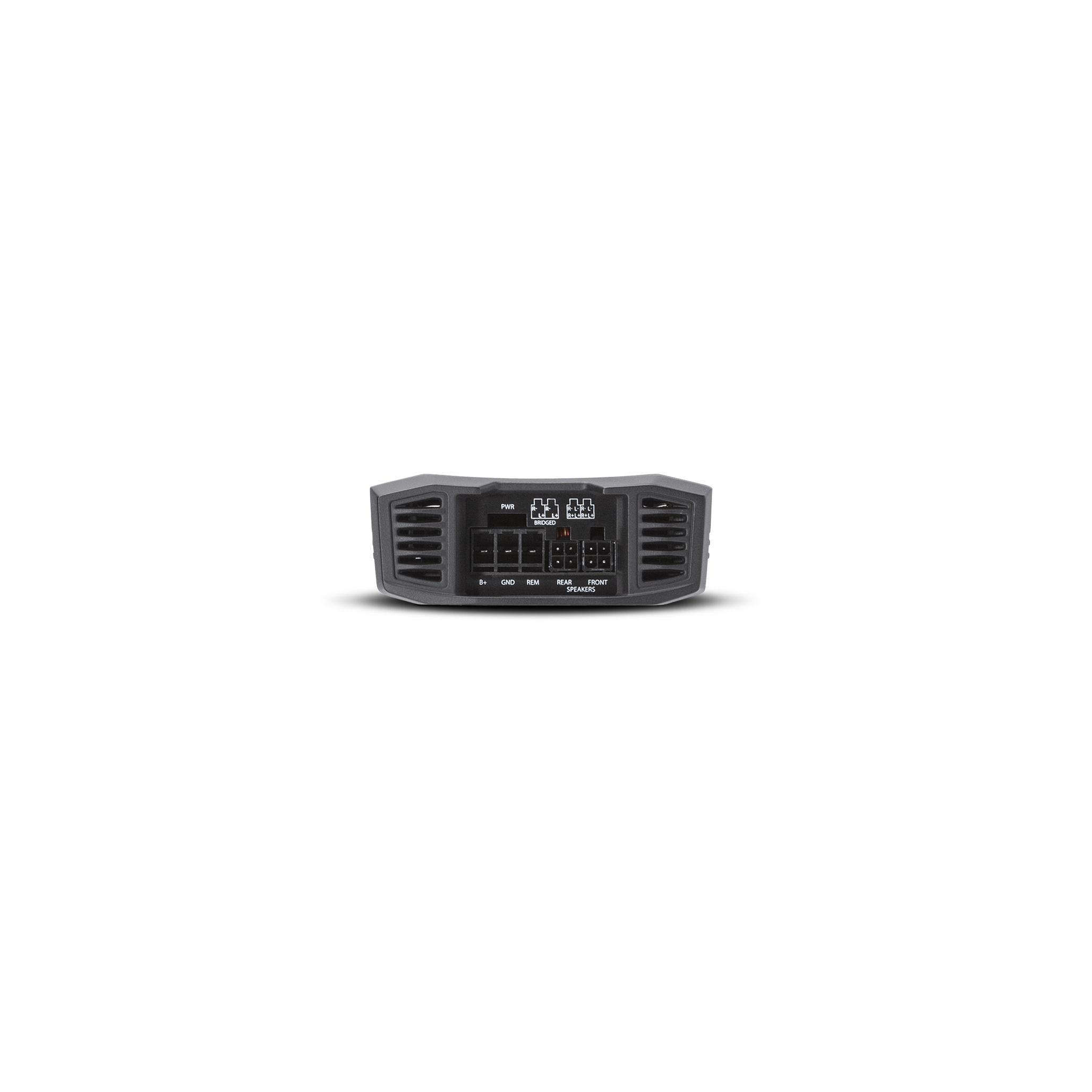

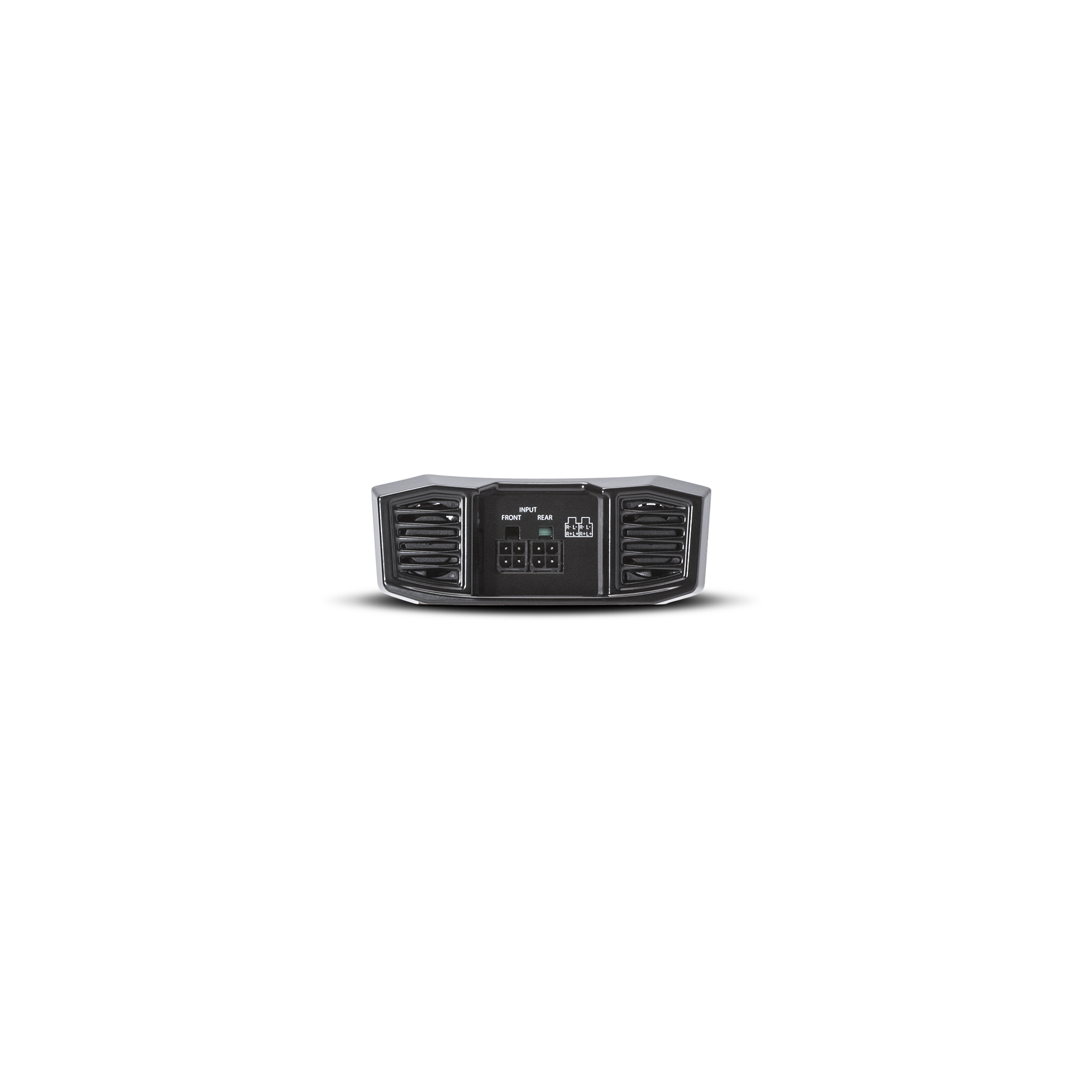

Signal Input	Front High/Low Level Input: 4-Pin harness Rear High/Low Level Input: 4-Pin harness
Signal Output	—
Visual Indicators	Power: Blue LED Protect: Red LED Input Clip: Red LED3 Output Clip: Blue/Violet/Red LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD

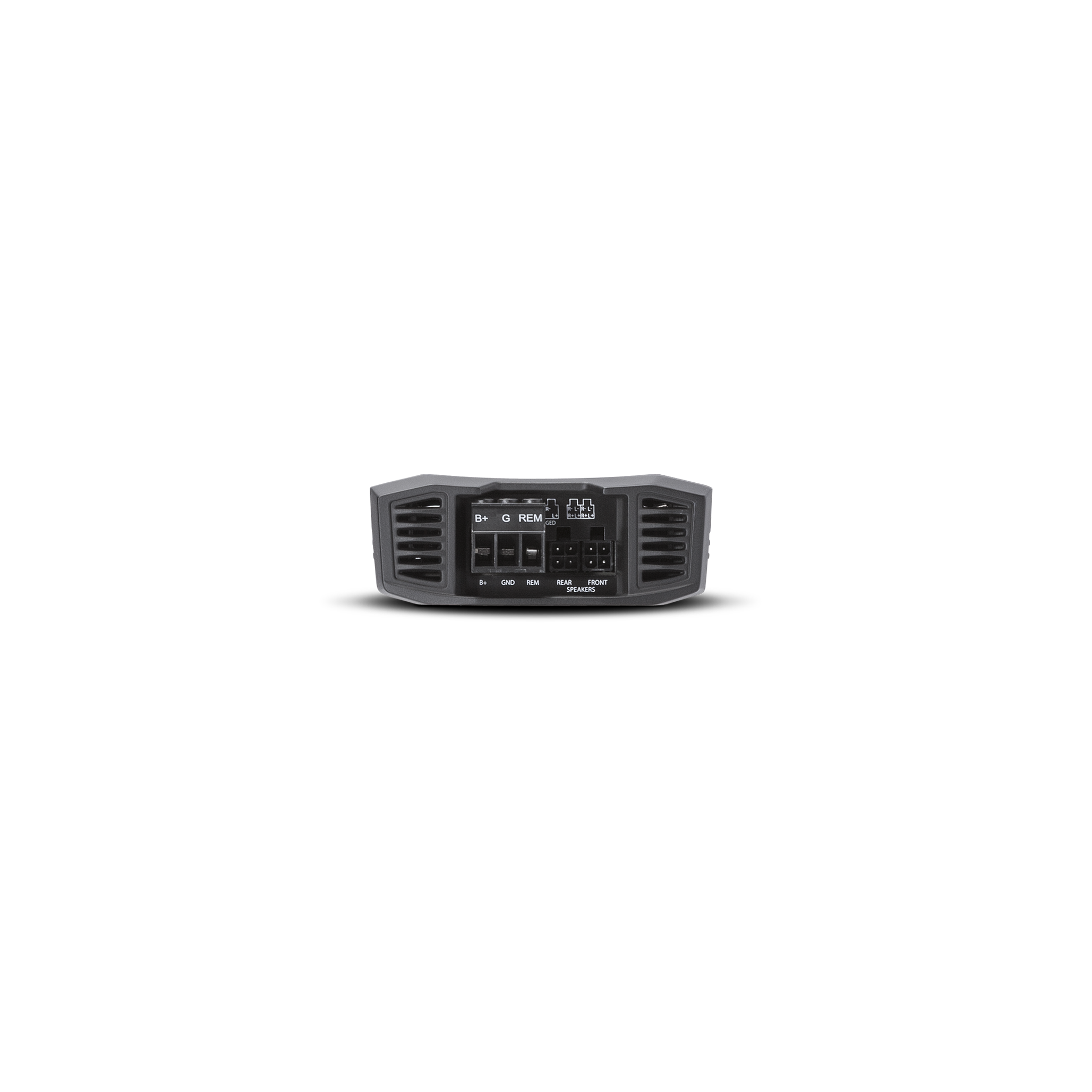

Speaker Output Connector	Front: 4-Pin Harness Rear: 4-Pin Harness

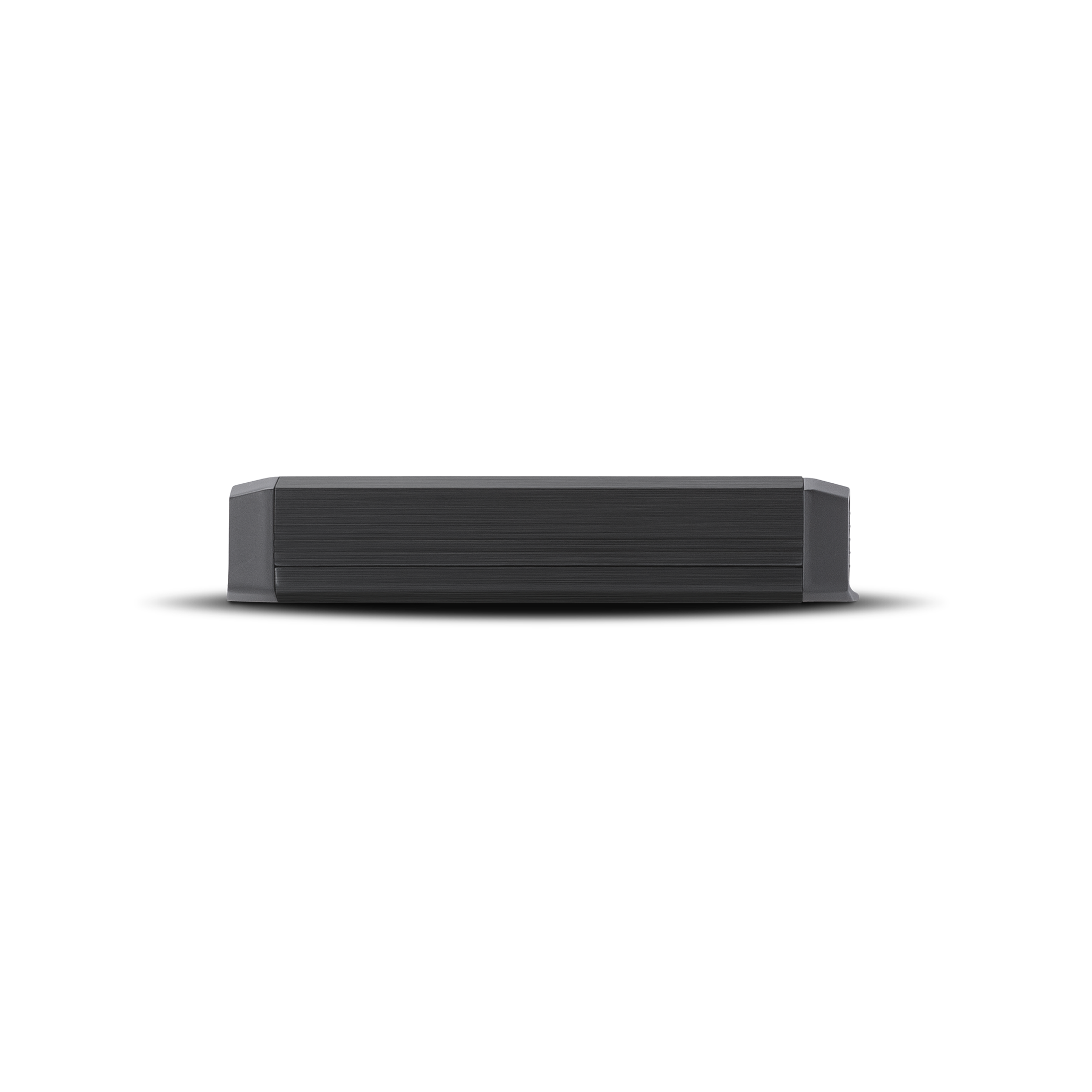

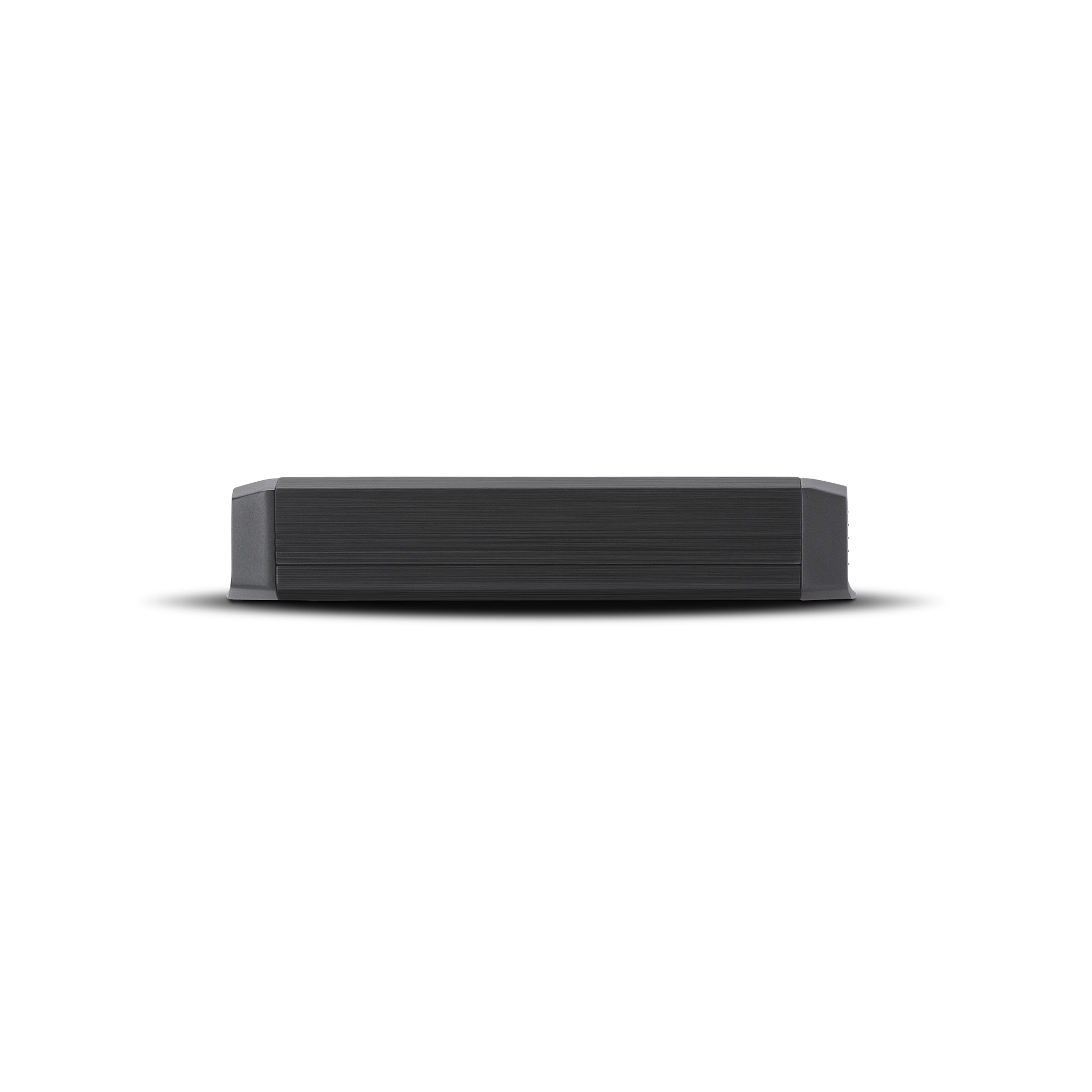

Heatsink	Extruded Aluminum
Speaker Wire Gauge	16 AWG
Cooling	Dual Fan Cooled
Circuit Topology Class	Class AD
Efficiency (average)	>75%
Suggested Alternator	75 A
Tone Controls	Treble: 0 to +14 dB @ 12.5 kHz Bass: 0 to +18 dB @ 45 Hz
Remote Controls	—
Bridgeable	Yes Front Terminals: Left (+) Right (-) Rear Terminals: Left (+) Right (-)
Power Wire Gauge	8 AWG
Power Input Connector	Detachable Compression Terminal Replacement 1040-57997
Frequency Response	20Hz-20kHz +/-1dB
Recommended Fuse (not included)	60 A
Total Harmonic Distortion (THD+Noise)	4-Ohm:<1.0% 2-Ohm:<1.0%
Average Current Draw (13.8V Music)	28 A
Max. Current Draw (13.8V Sinewave)	55 A
Damping Factor	—
Signal-to-Noise (CEA)	>90 dB
Channel Separation	>60 dB
Common Mode Rejection	>60 dB
Dimensions (H x W x D)	1.6 x 4.3 x 8.3 (in.) 4.1 x 10.8 x 21.1 (cm)
Shipping Weight	3.4 lb. (1.54 Kg.)
