Overview

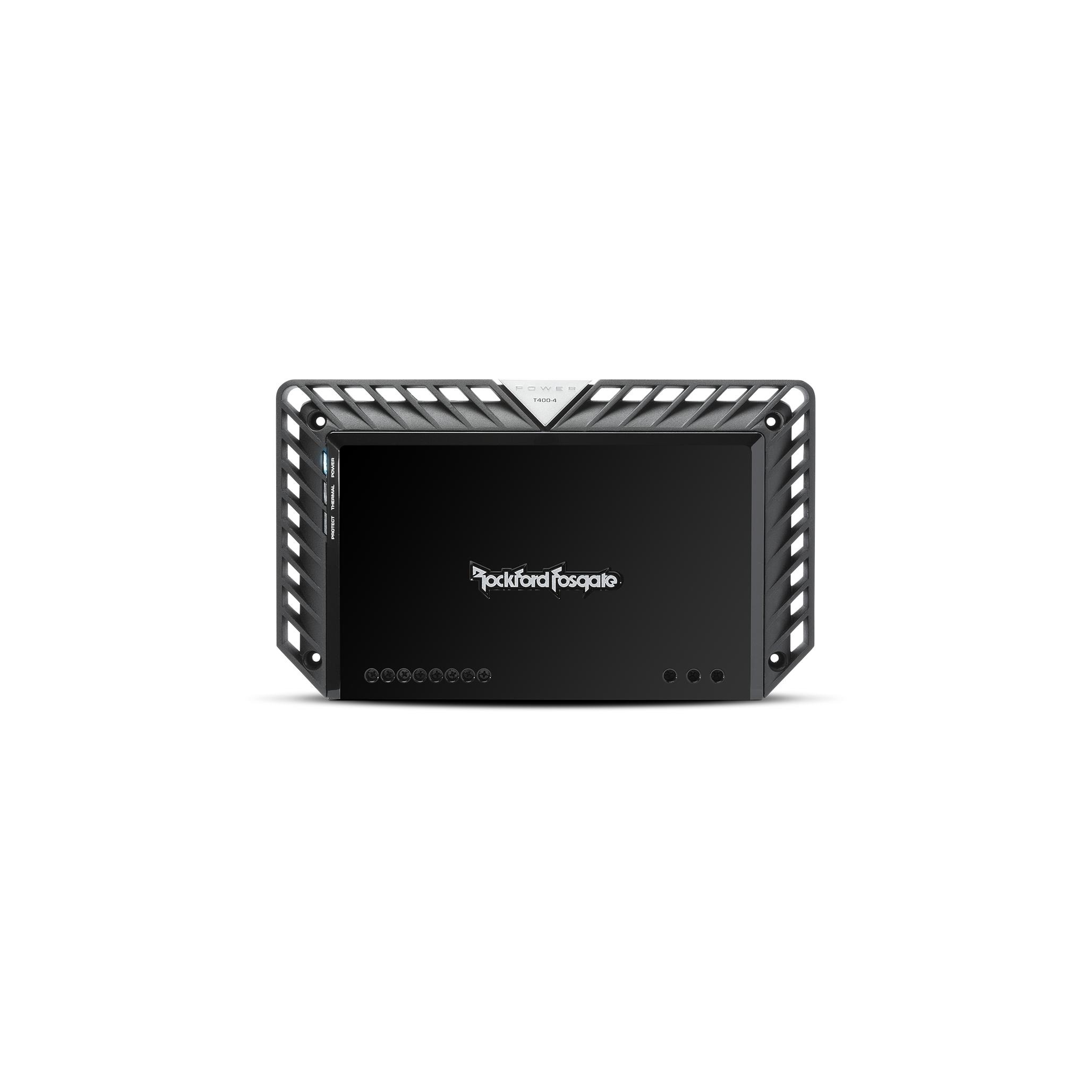

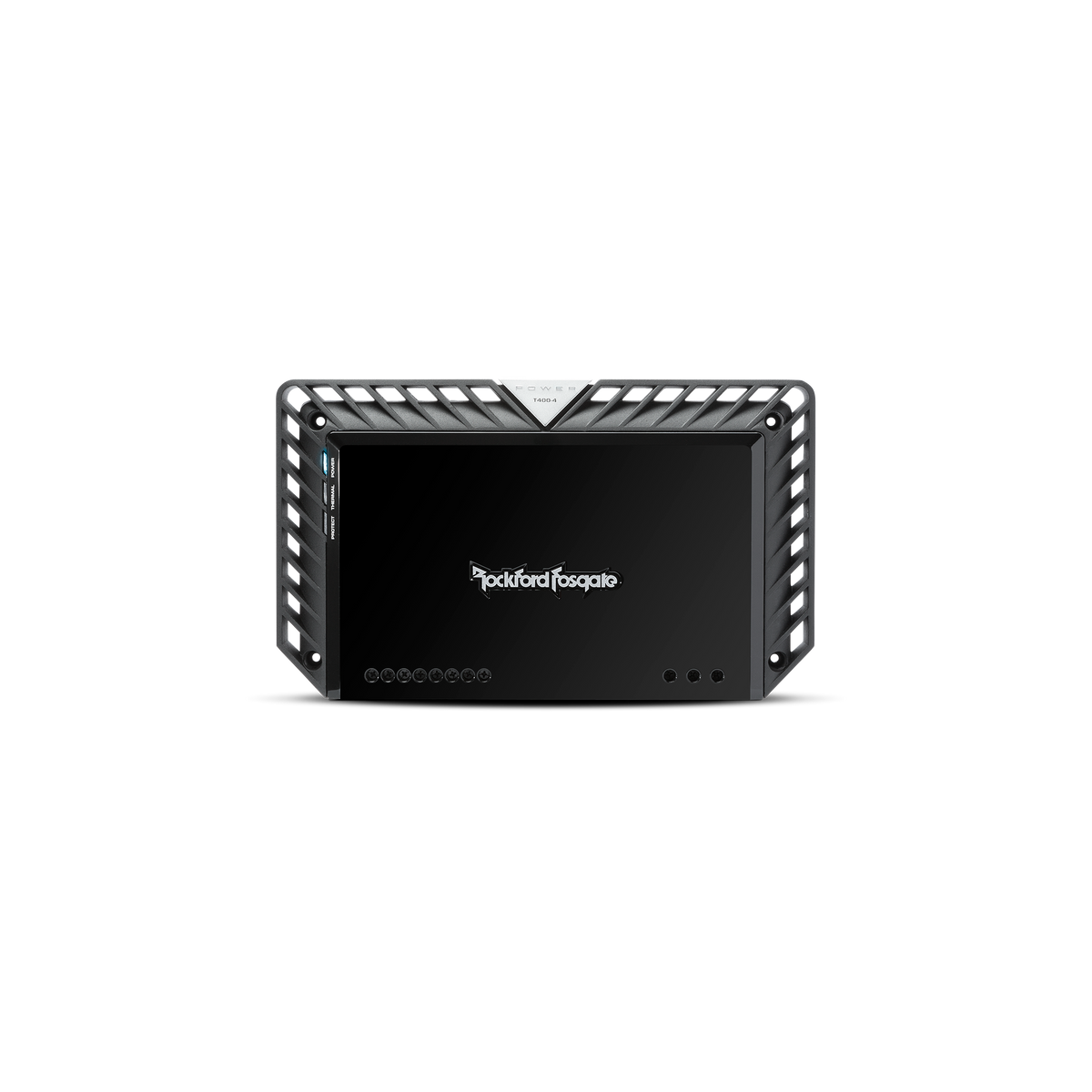

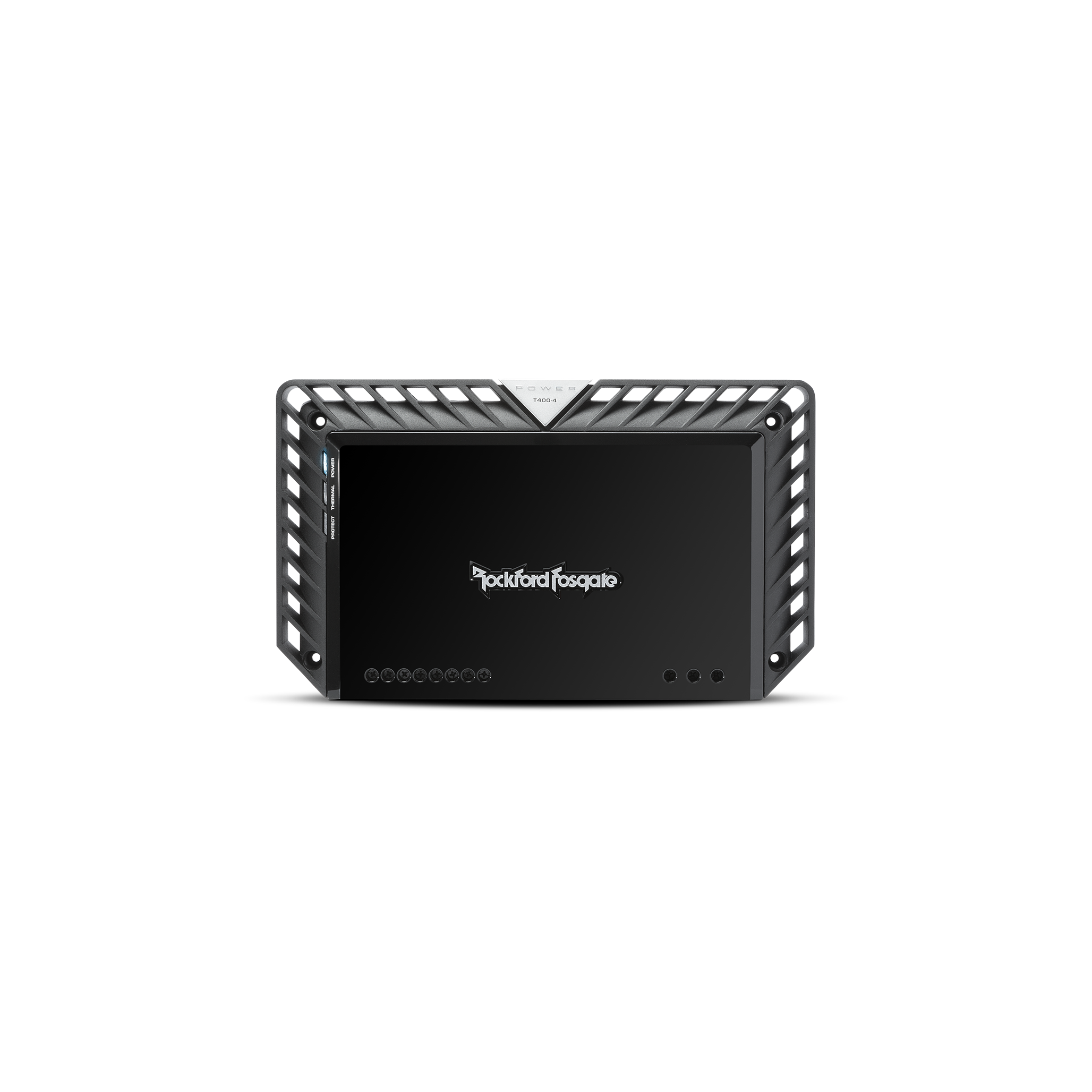

The Power T400-4 is a 4-channel amplifier capable of producing 100 Watts into its four channels at 2-Ohms. Can run front components & rear subwoofers.
Features
- 2-Year Warranty
- 2/4 channel input switch
- 24dB/octave crossover
- 4 Gauge power/ground connectors
- Audiophile grade speaker connections
- MOSFET output stage
- MOSFET power supply
Specifications
- Recommended Fuse; (not included): 60 A
- Common Mode Rejection: >65 dB
- Damping Factor: >200
- Channel Separation: >60 dB
- Signal-to-Noise (CEA): >90 dB
- Max. Current Draw (13.8V Sinewave): 60 A
- CEA-2006 Compliant: CEA-2006 Power Rating; 60W x 4 @ 4Ohm; <=1.0% THD+N
- Total Harmonic Distortion (THD+Noise): 4-Ohm: 2-Ohm: <1.0%
- Number of Channels: 4
- Shipping Weight: 11.90 Lbs. (5.39 Kg.)
- Average Current Draw (13.8V Music): 30 A
- Dynamic Power; (PVC/PowerCube): 84 Watts x 4 @ 4-Ohm 0 deg Res; 139 Watts x 4 @ 2-Ohm 0 deg Res; 272 Watts x 2 @ 4-Ohm Bridged
- Efficiency (average): 69% @ 4-Ohm; 68% @ 2-Ohm
- Operating Voltage: 9 - 16 VDC
- Suggested Alternator: 75 A
- Bridgeable: Yes
- Input Sensitivity: 150 mV to 4 V
- Rated Power; (RMS Continuous Power): 60 Watts x 4 @ 4-Ohm; 100 Watts x 4 @ 2-Ohm; 200 Watts x 2 @ 4-Ohm Bridged; 2-Ohm x 2 Bridged Stable
- Total Power; (Sum of Rated Power): 400 Watts RMS

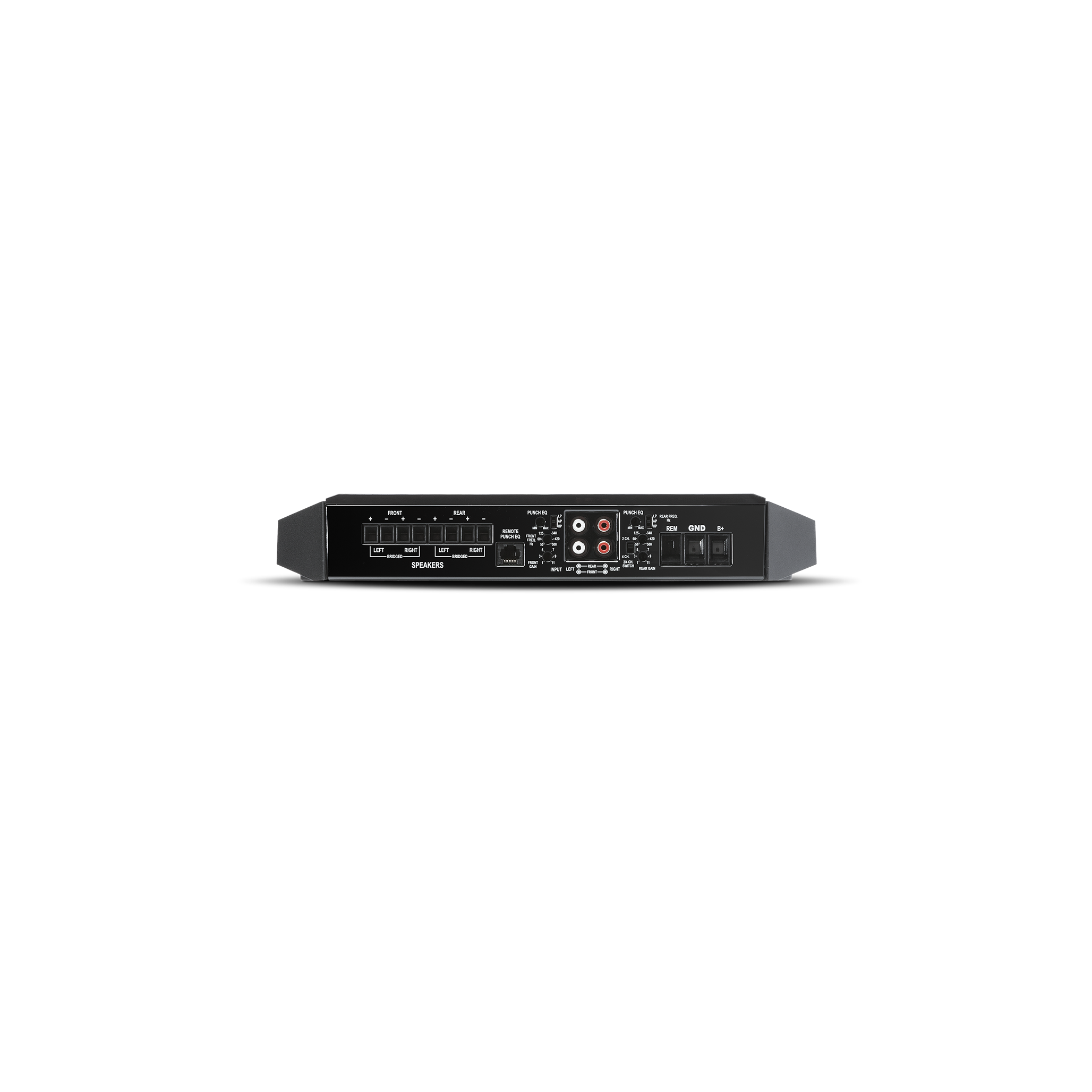

- Signal Input: Front Low level: 1 RCA pair; Rear Low level: 1 RCA pair; Input Switch: 2CH / 4CH
- Tone Controls: Front Channels - Punch EQ; Treble: 0dB to +12dB @ 12kHz; Bass: 0dB to +18dB @ 45Hz; Rear Channels - Punch EQ; Treble: 0dB to +12dB @ 12kHz; Bass: 0dB to +18dB @ 45Hz
- Crossover Controls: Front High-Pass (HP): 50-500Hz 24dB/octave Butterworth; Front Low-Pass (LP): 50-500Hz 24dB/octave Butterworth; Rear High-Pass (HP): 50-500Hz 24dB/octave Butterworth; Rear Low-Pass (LP): 50-500Hz 24dB/octave Butterworth
- Power Input Connector: Block
- Power Wire Gauge: 8 AWG to 4 AWG
- Speaker Output Connector: Screw terminal barrier strip
- Speaker Wire Gauge: 8 AWG to 18 AWG
- Heat Sink Type: Cast aluminum
- Cooling: Convection
- Remote Controls: Optional Remote Punch EQ; (overrides rear channel built-in Punch EQ)
- Circuit Topology Class: Class A/B
- Visual Indicators: Power; Thermal; Protect
- Frequency Response: 20Hz to 20kHz +/- 1dB
- Dimensions (H x W x D): 2.14 x 8.14 x 13.66 (in); 5.42 x 20.68 x 34.69 (cm)
