T3S1-19

Overview

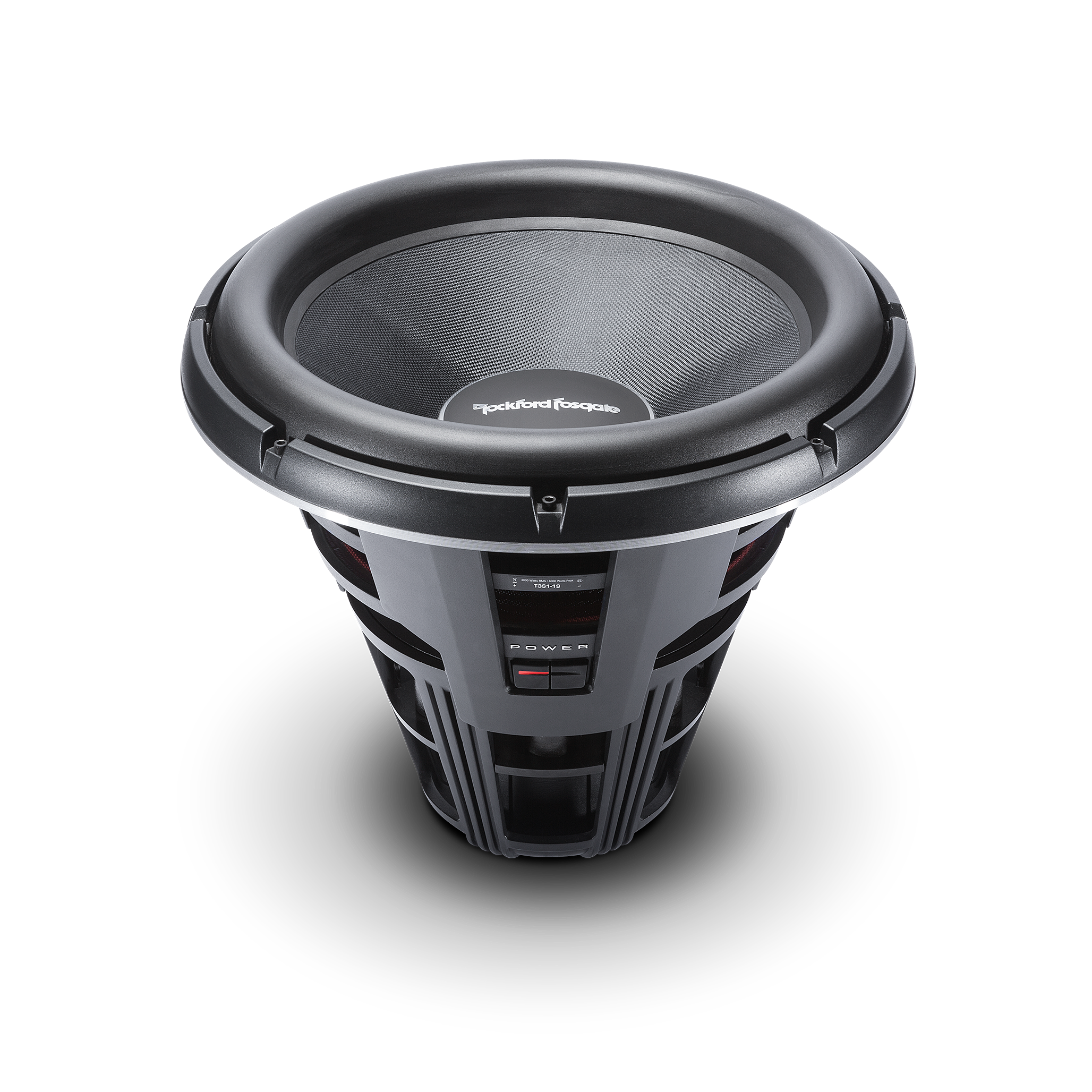

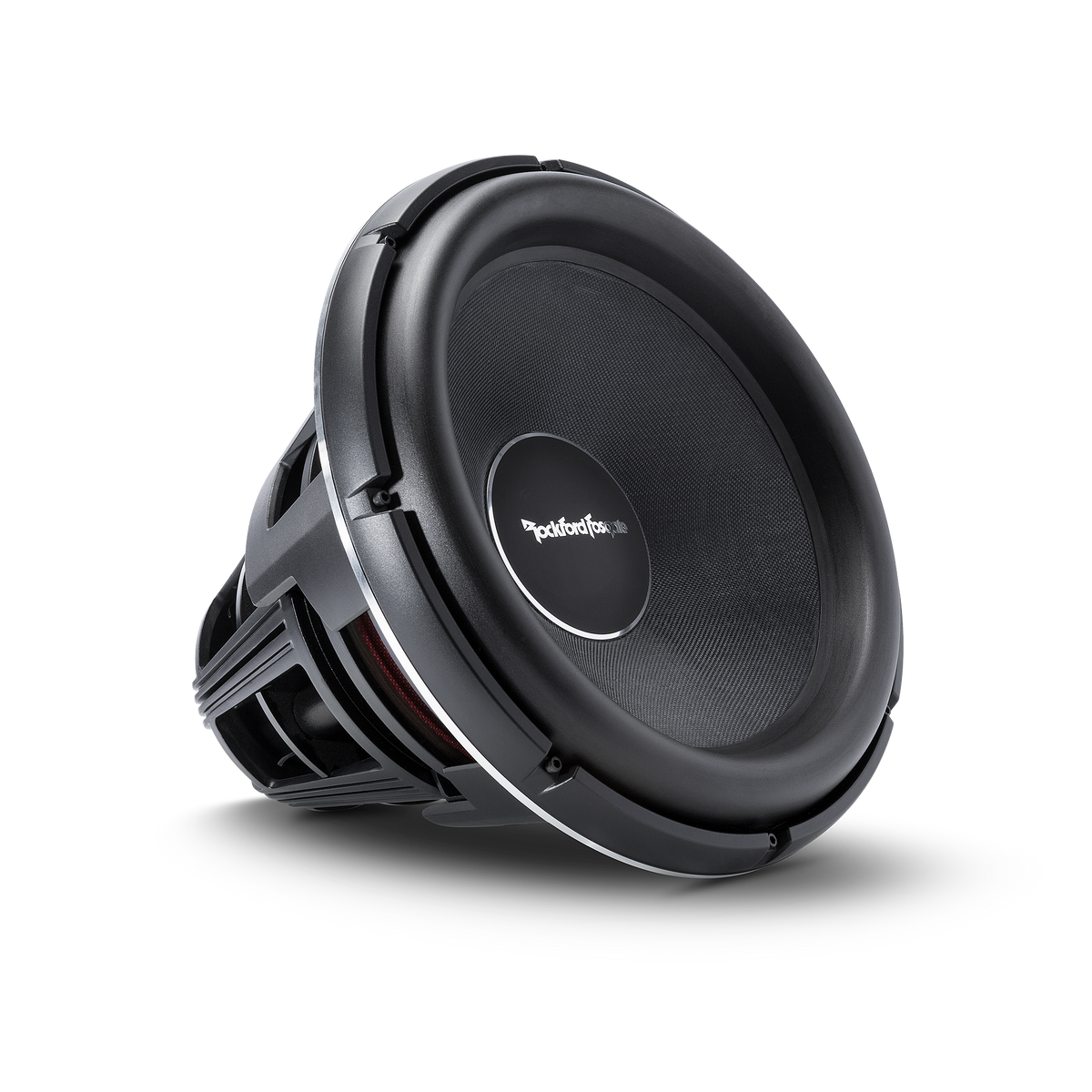

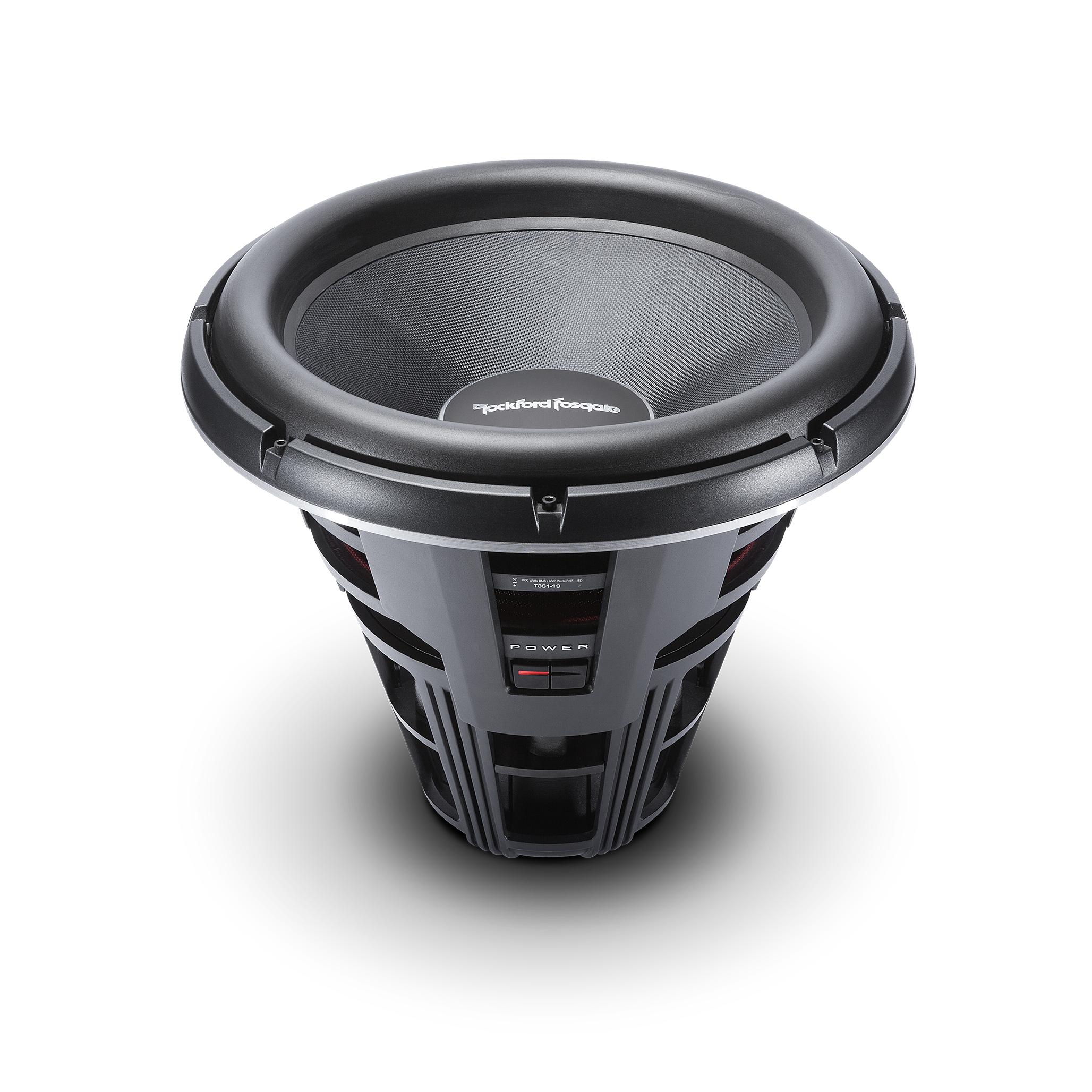

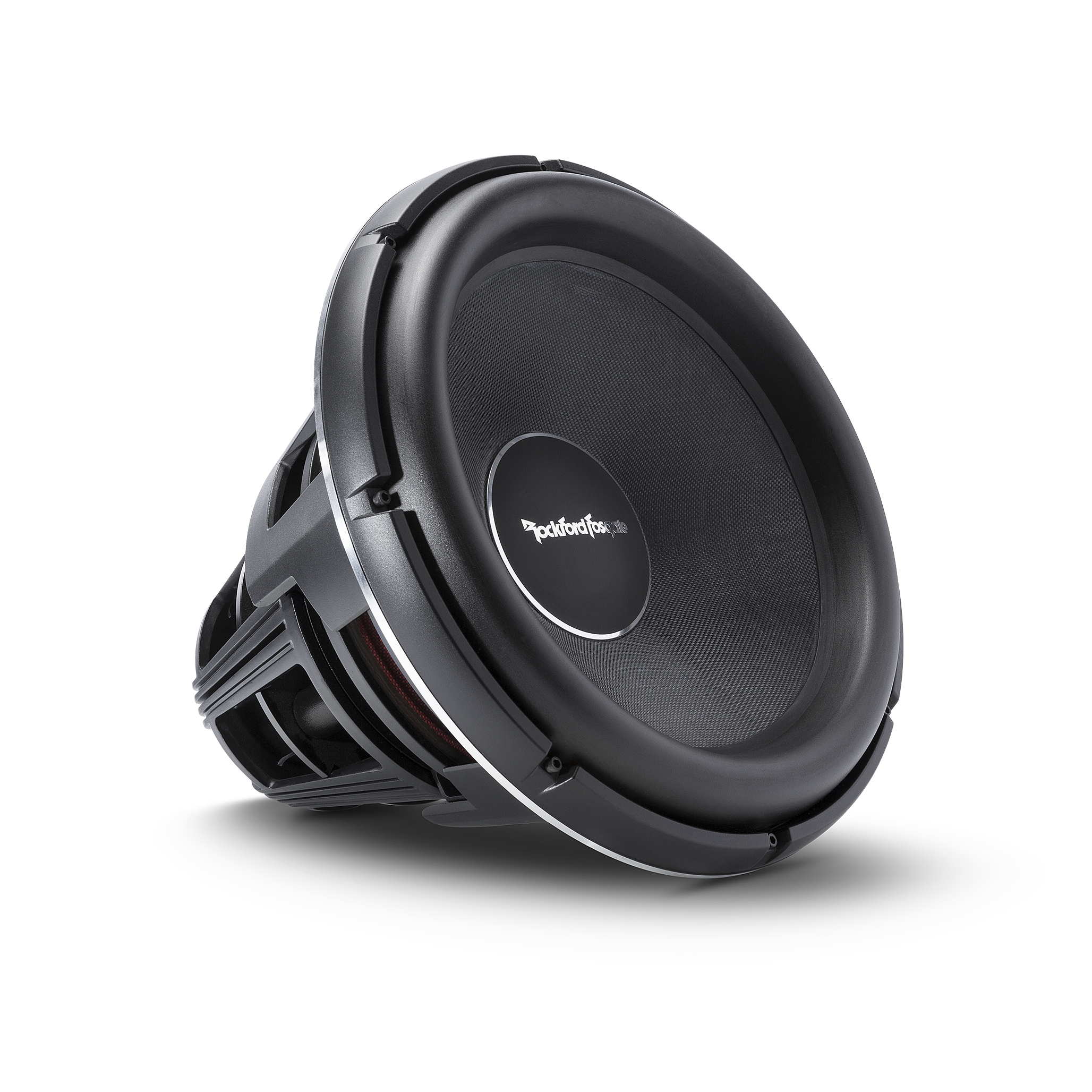

The Power T3S1-19 superwoofer has a whopping 19 inches of effective radiating cone area for deep bass and features a single 1-Ohm voice coil for easy wiring.

Features

• Aluminum dustcap
• Dual Nomex progressive spiders with stitched tinsel leads
• Injection molded foam surround with VASTTM

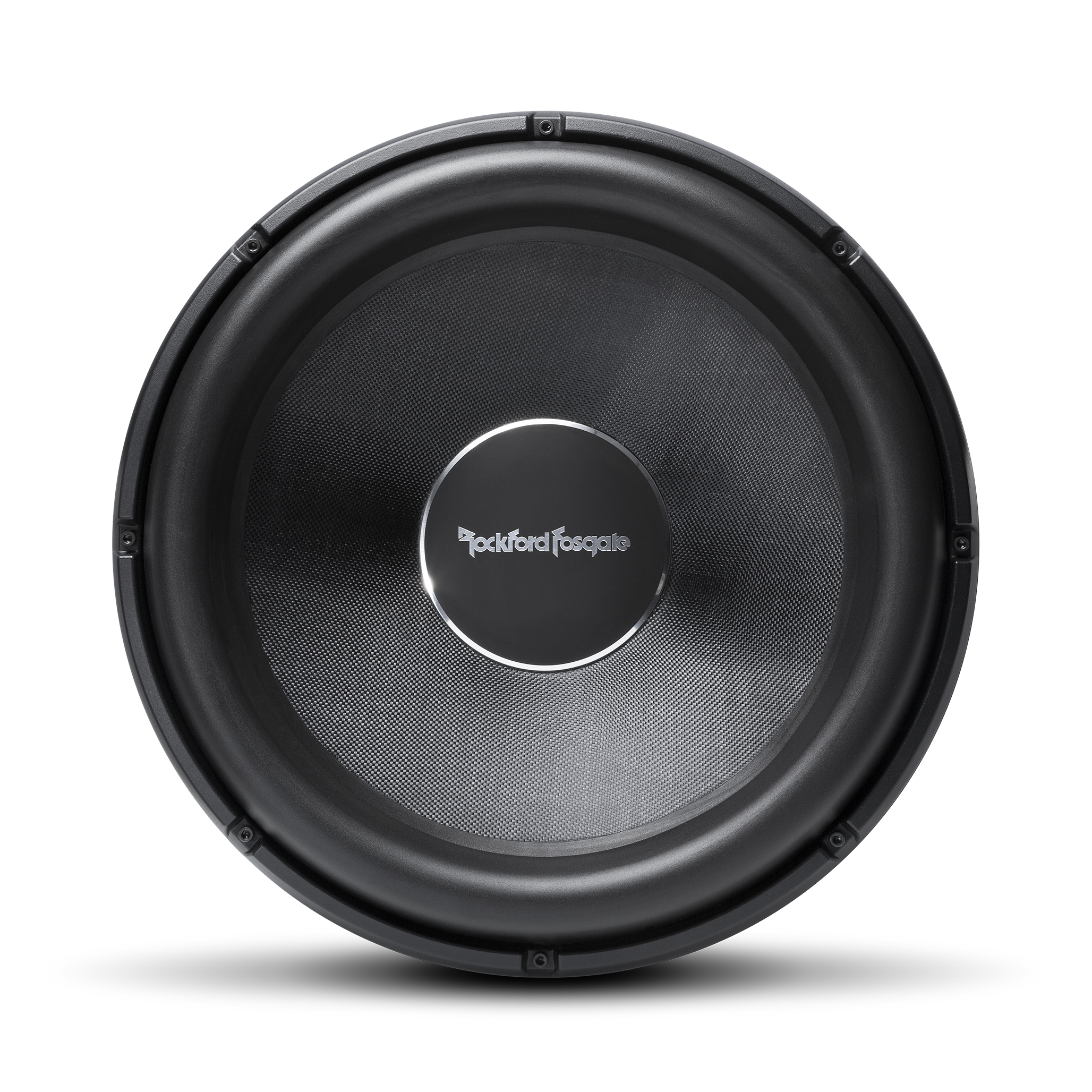

• Three layer glass fiber/Aramid honeycomb/Glass fiber cone
• Custom push spring insulated 4 AWG terminals

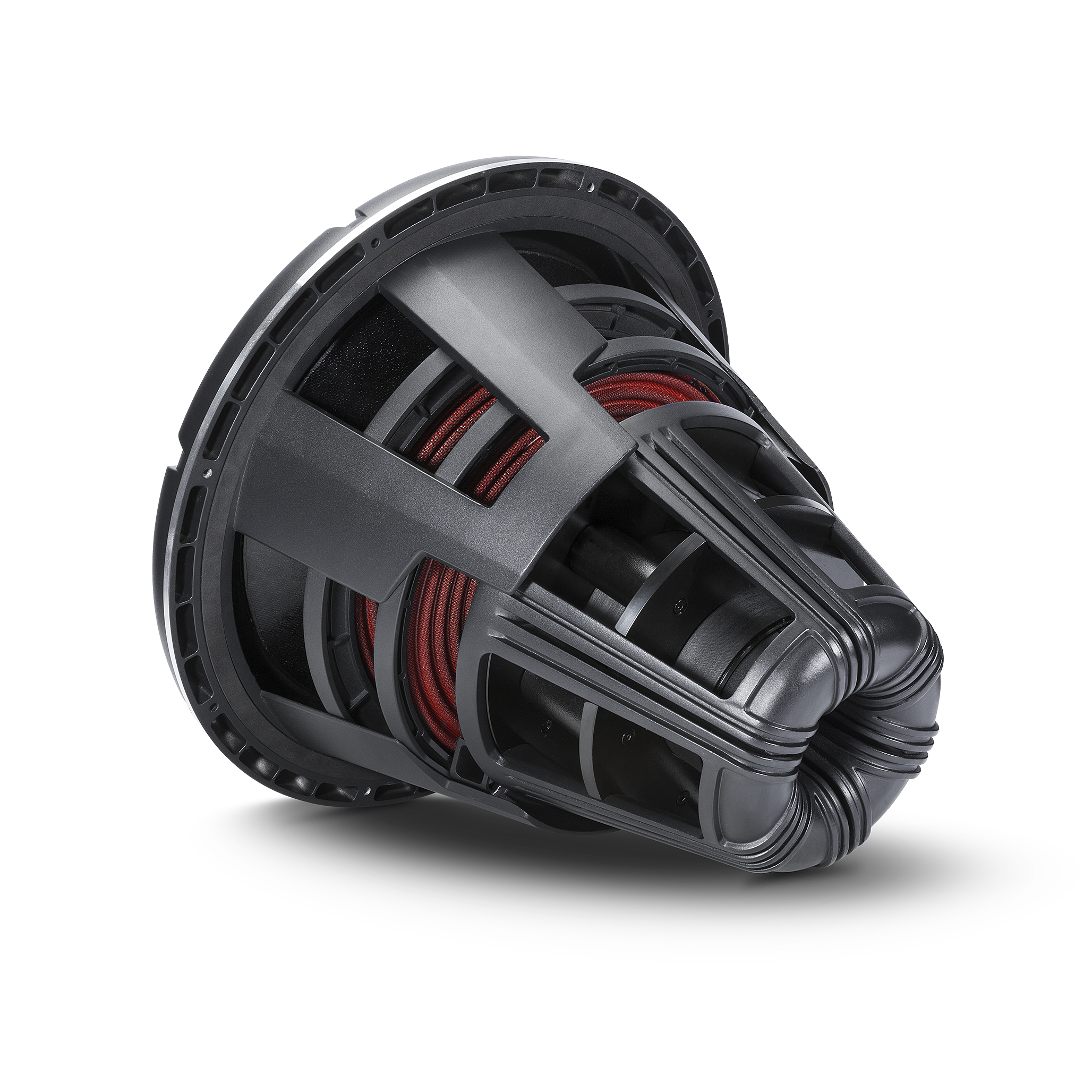

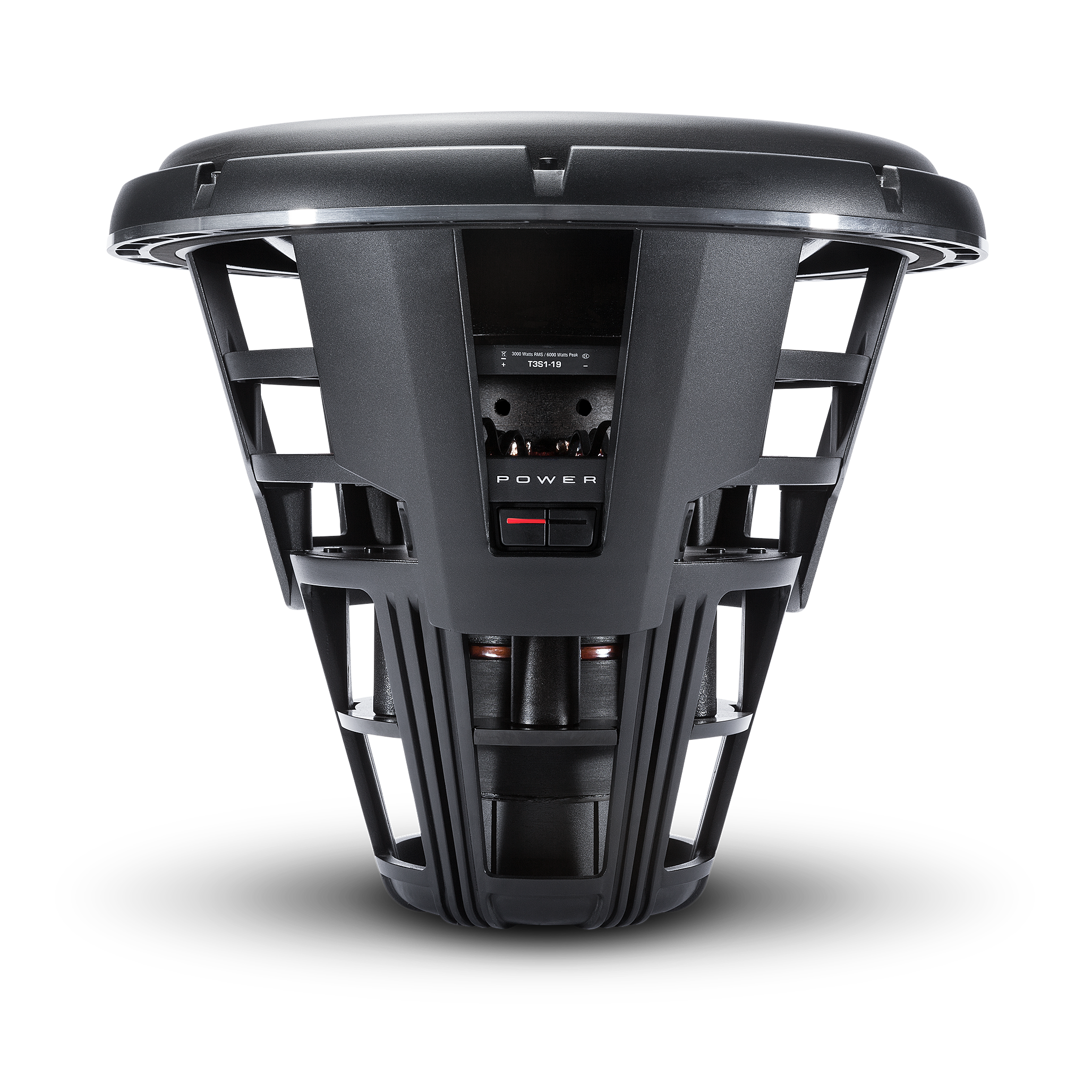

• Diecast aluminum frame with integrated heat sink fins and venting
• Integrated die cast aluminum trim ring
• Proprietary surround mechanical clamping ring
• Single layer edge wound aluminum 5" voice coil
• 1 Year Warranty
• Dual gap multi-pole Neodymium push/pull motor structure
• Since voice coil design with dual (push/pull) windings

Specifications

• Magnet Weight (oz): 115 oz. (3.26 Kg)
• Subwoofer Type: Superwoofer
• Speaker Connector: 4 AWG Compression Terminal
• Voice Coil Type: Single Voice Coil
• Power Handling (Watts RMS): 3000 Watts RMS; 6000 Watts Max
• Nominal Impedance: 1-Ohm
• Size: 19"
• Fs (Hz): 27
• Voice Coil Diameter: 5.0" (127 mm)
• Qts: 0.32
• Le (mH): 0.45
• Re (Ohms): 0.8
• Qms: 1.93
• SPL (dB @ 1w/1m): 91
• Sd (cm2): 1472
• Vas (Liters): 104.9
• Qes: 0.38
• Cutout Diameter: 17.72 in. (440 mm)
• Xmax (mm): 34
• Mounting Depth: 15.62 in. (396 mm)
• Woofer Displacement: 0.339 cu. ft. (9.6 Liters)
• Sealed Box Volume (Vb): Not Recommended
• Shipping Weight: 106.30 Lbs. (48.2 Kg.)
• Vented Box Volume (Vb): 8.0 cu. ft. (226.5 Liters)
