Power 6.5" T3 Component System (pr)

Overview

The T3652-S is a premium sound quality 6.5" 2-way component system, 125W RMS, 2 woofers, tweeters, crossover, and hardware. Sold in pairs (2 each).

Features

• 1 Year Warranty
• Sold in pairs (2 each)
• Integrated Woofer Shorting Ring with External Heat Sinking
• 1.5" (38mm) High Temp Aluminum Woofer Voice Coil Former
• Proprietary Dual Function Input Terminals
• Selectable +2.0, -2.dB Tweeter Level Settings
• VAST vertical attach surround technique increases effective radiating cone area up to 25%

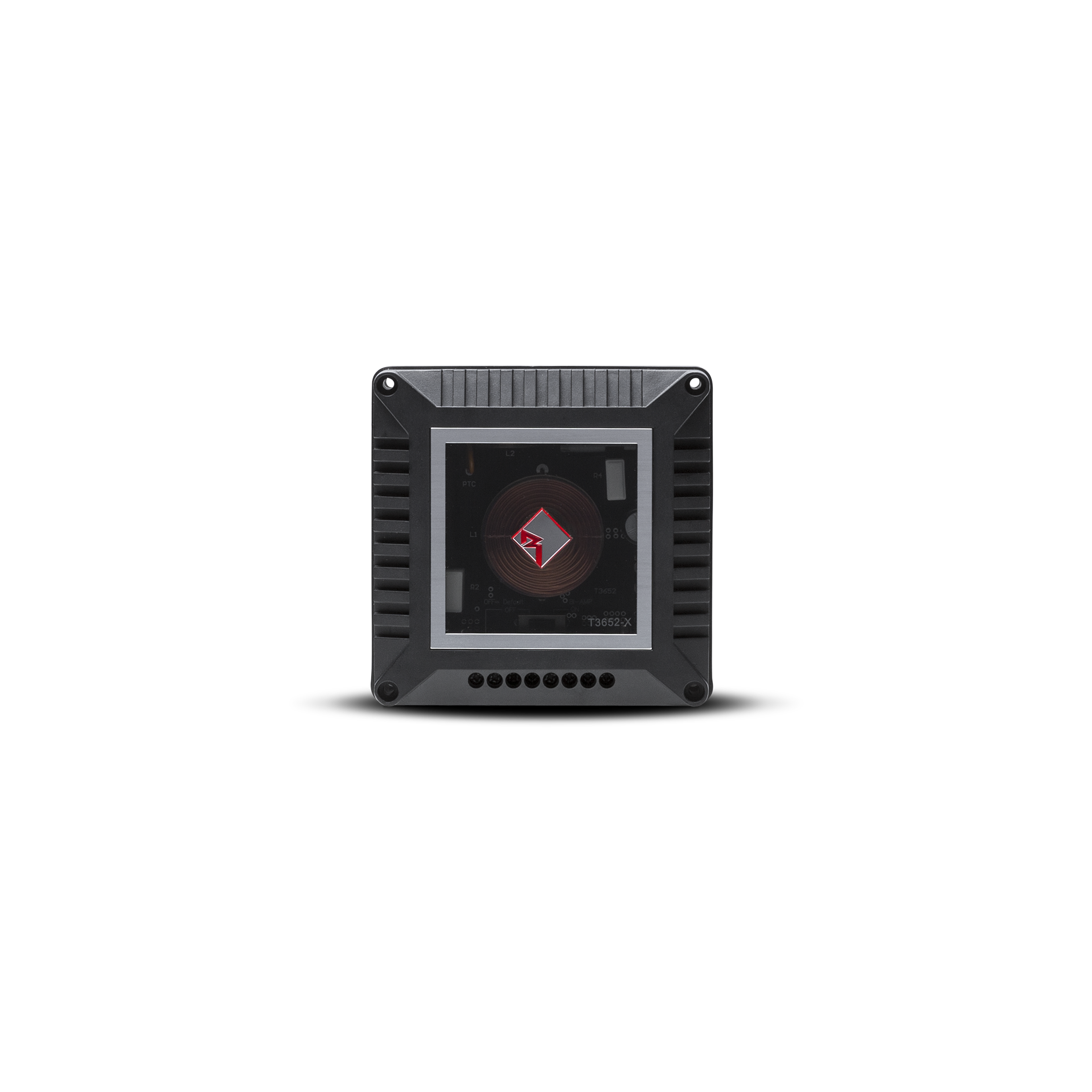

• Asymetrical 18dB HP and 12dB LP external crossover network
• Fatigue and tear resistant linear Nomex spider
• Flush and surface (angled) tweeter Mounting Hardware Included
• Selectable bi-amp switching
• Selectable on/off axis setting
• DDC (Discreet Dual Clamp) tweeter mounting system

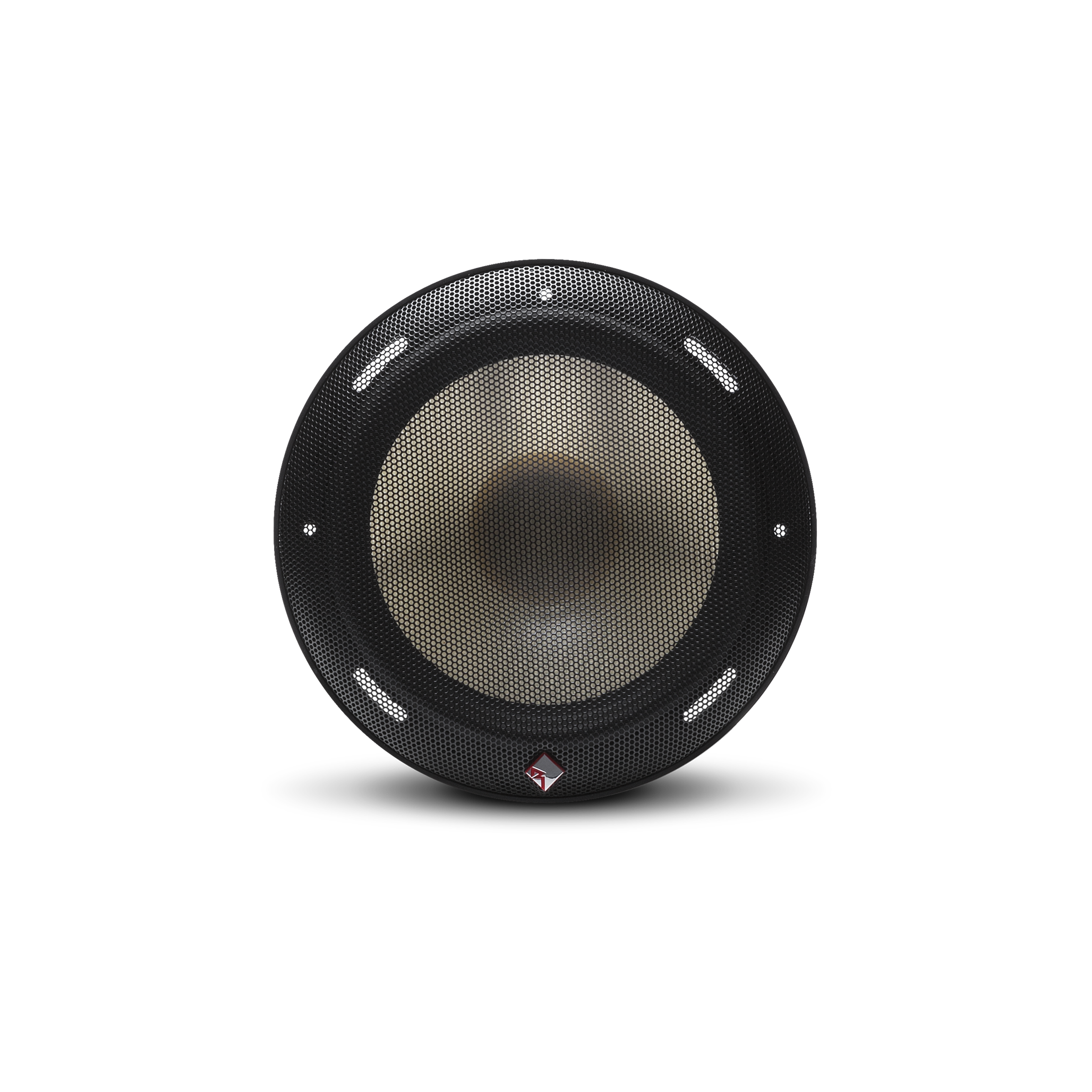

• Grilles and Mounting Hardware Included

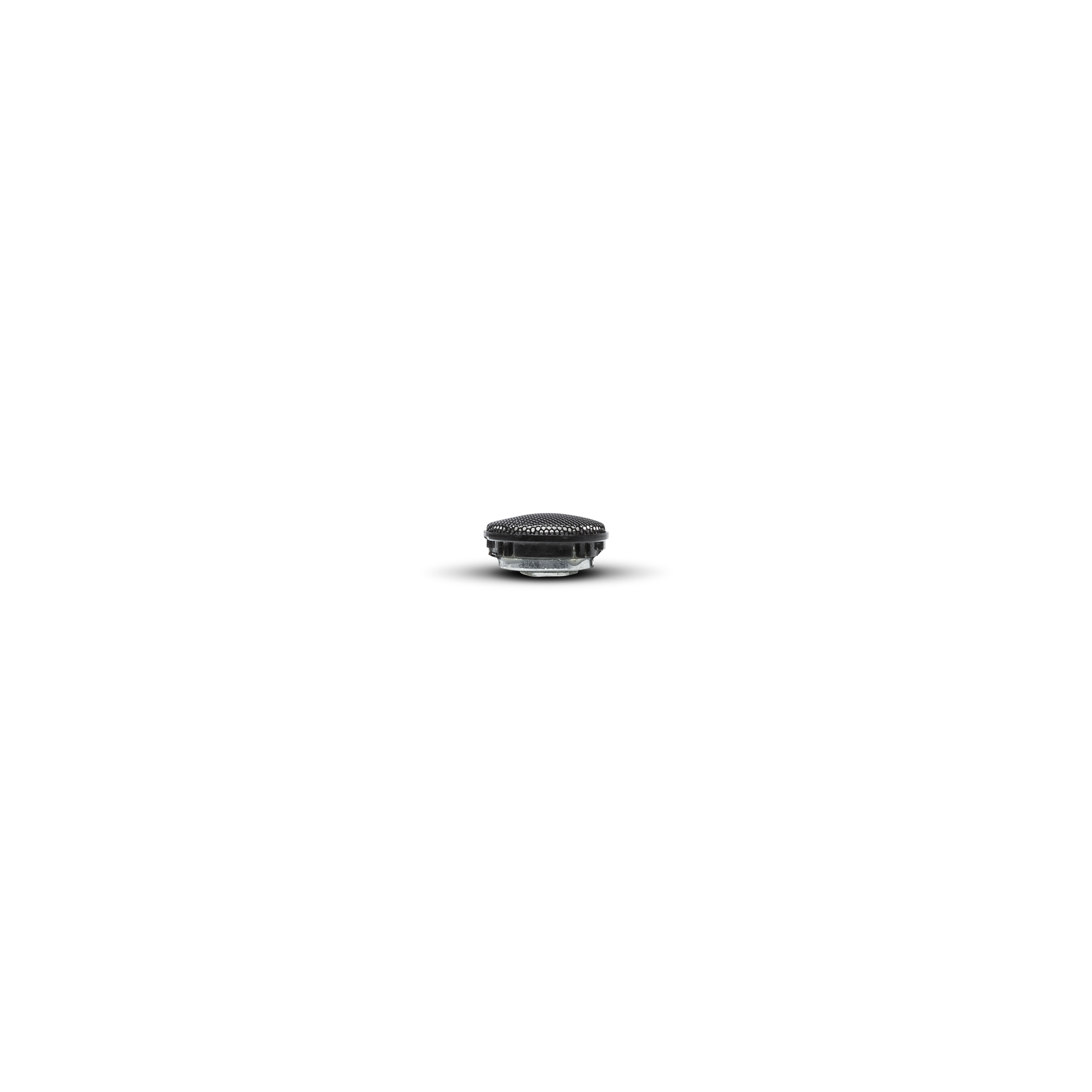

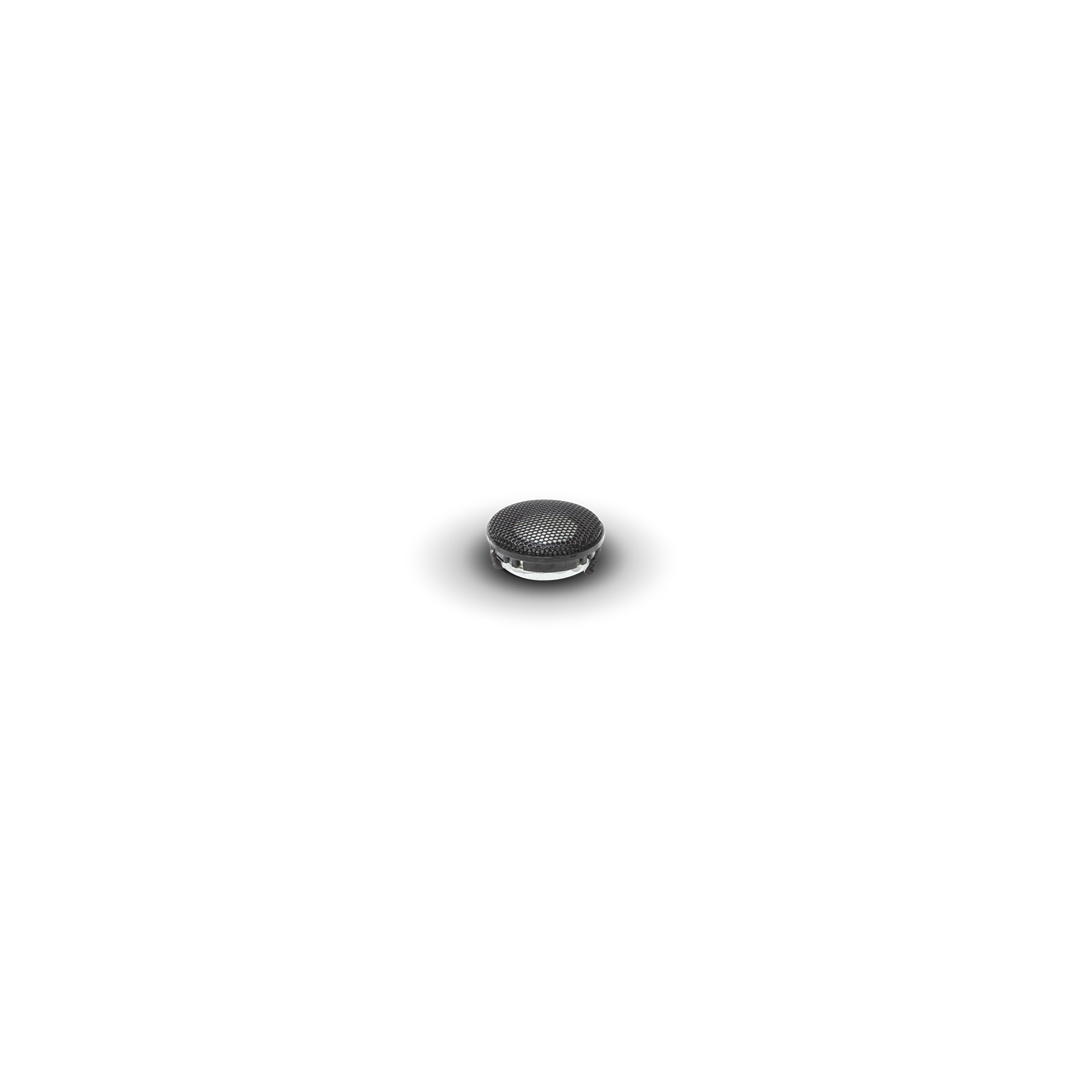

• 1" (25mm) treated silk surround LCP tweeter with neodymium motor
• LCP (Liquid Crystal Polymer) fiber cone
• Die cast aluminum frame
• FlexFit basket design
• High Excursion Neo Motor Magnetics with Matched Suspension Design

Technologies

• VAST Surround (speakers): The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.
• DDCTM Tweeter Mounting: Our DDCTM (Discreet Dual Clamp) Tweeter Mounting provides concentric clamping pressure around the perimeter of the mounting hole. This results in maximum ease of installation.
• FlexFit Basket - Speaker: The slot mounted frame pattern allows for variable adjustments to the mounting position.
• IDHSTM T3/T4 Inductive Damping Heat Sink: Secures directly to the top of magnet structure to improve system efficiency by reducing both distortion and back EMF (Electo-magnetic force). Also radiates heat to reduce voice coil temperature.
• Klippel Verified: Klippel is a speaker certification program allowing us to deliver the best possible speakers.
• CTA-2031: Power handling on Rockford Fosgate speakers conform to CTA-2031 industry standards.

Specifications

CEA-2031 Compliant
Speaker Type	Component System
Midrange Size (Nominal Diameter)	6.5"
Nominal Impedance (Ohms)	4-Ohm
Midrange Mounting Depth	2.79" (71 mm)
Tweeter Mounting Depth	0.91" (23 mm)
Tweeter Size (Nominal Diameter)	1" (25 mm)
Frequency Response (Hz)	40Hz - 30kHz
Sensitivity (dB @ 1W/1M)	87.5
Crossover	3kHz 18dB/Octave High-Pass 12dB/octave Low-Pass
Power Handling (RMS)	125 Watts RMS 250 Watts Max
Grille / Trim Ring Included	YES
Mounting Hardware	YES
Shipping Weight	9.95 lb. (4.51 kg.)
