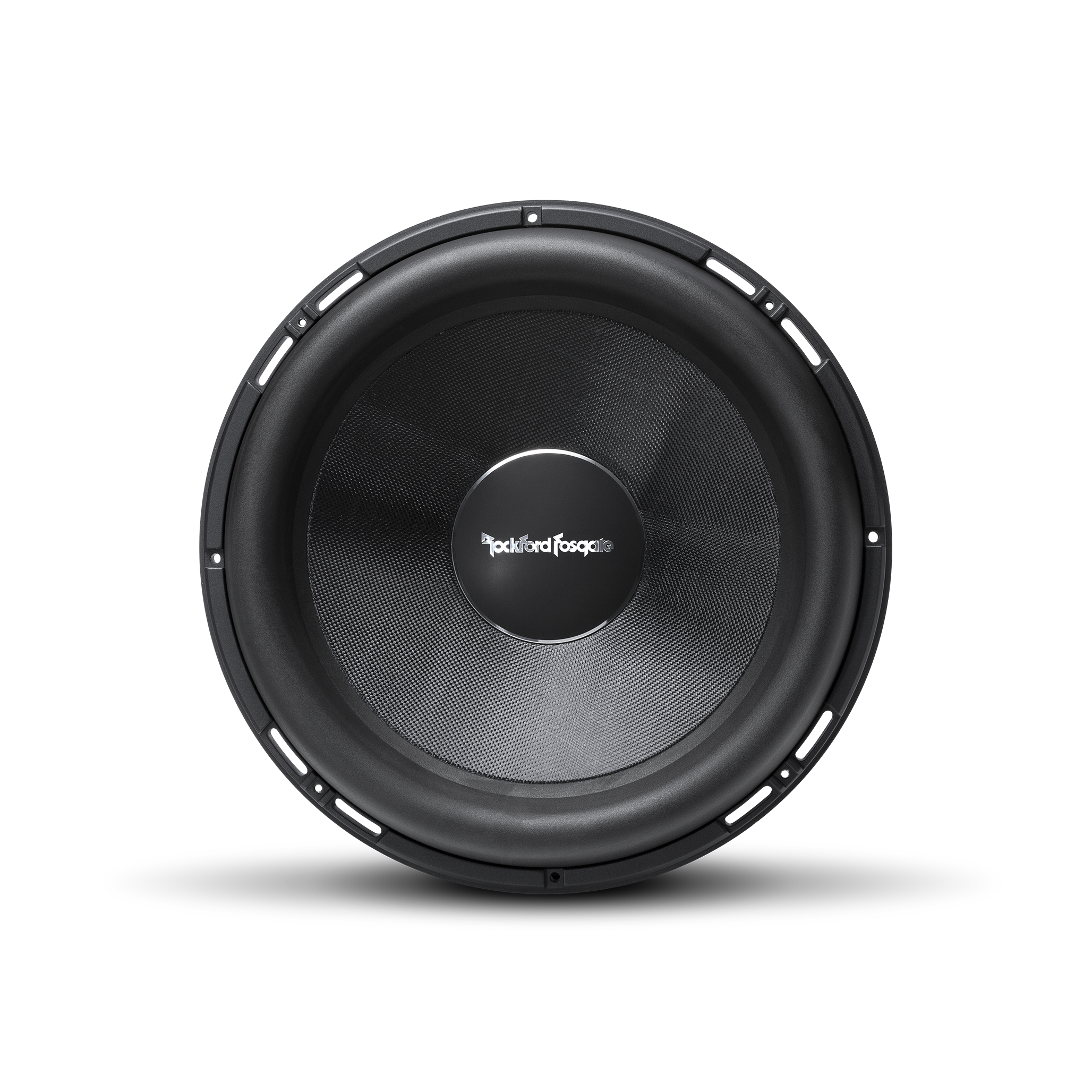

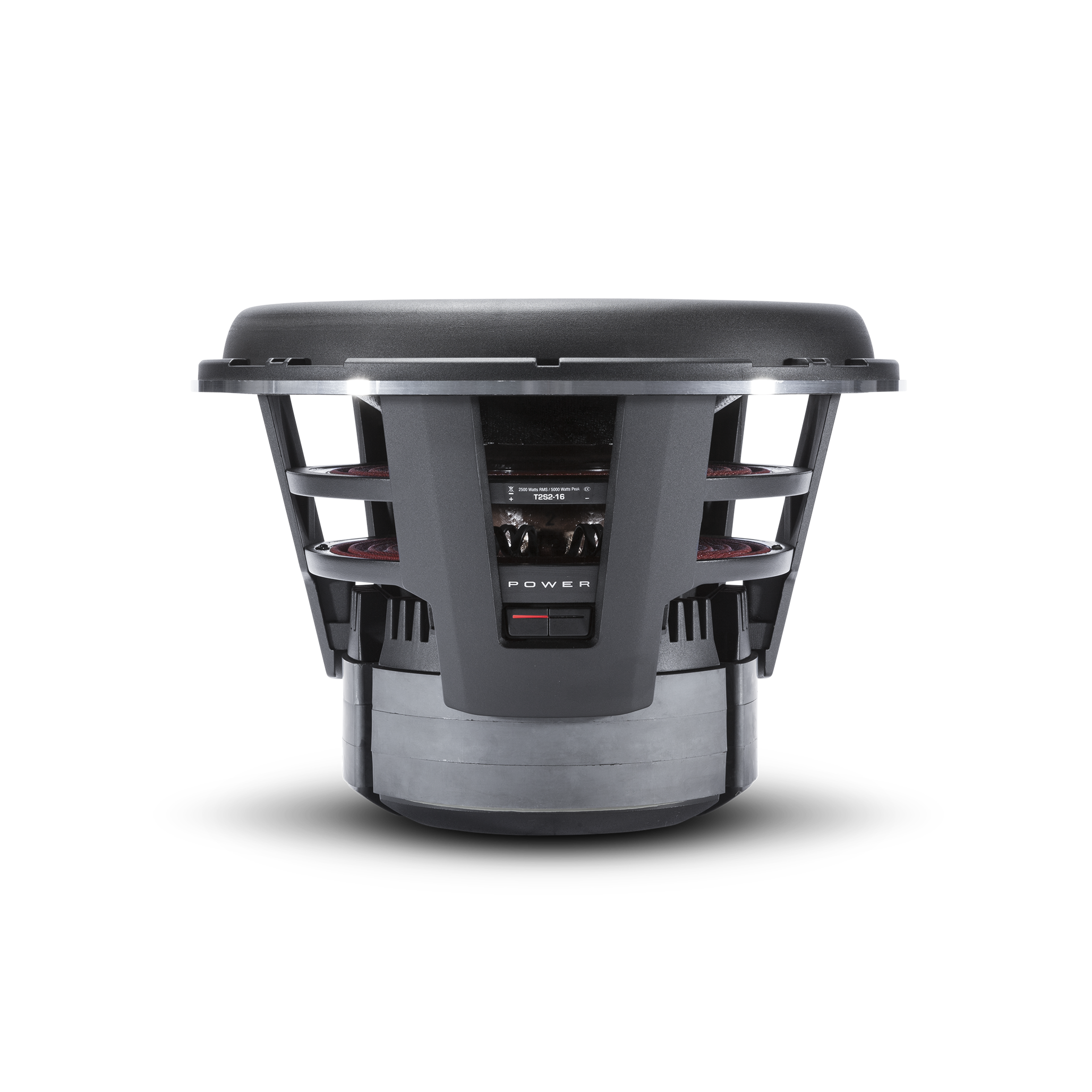

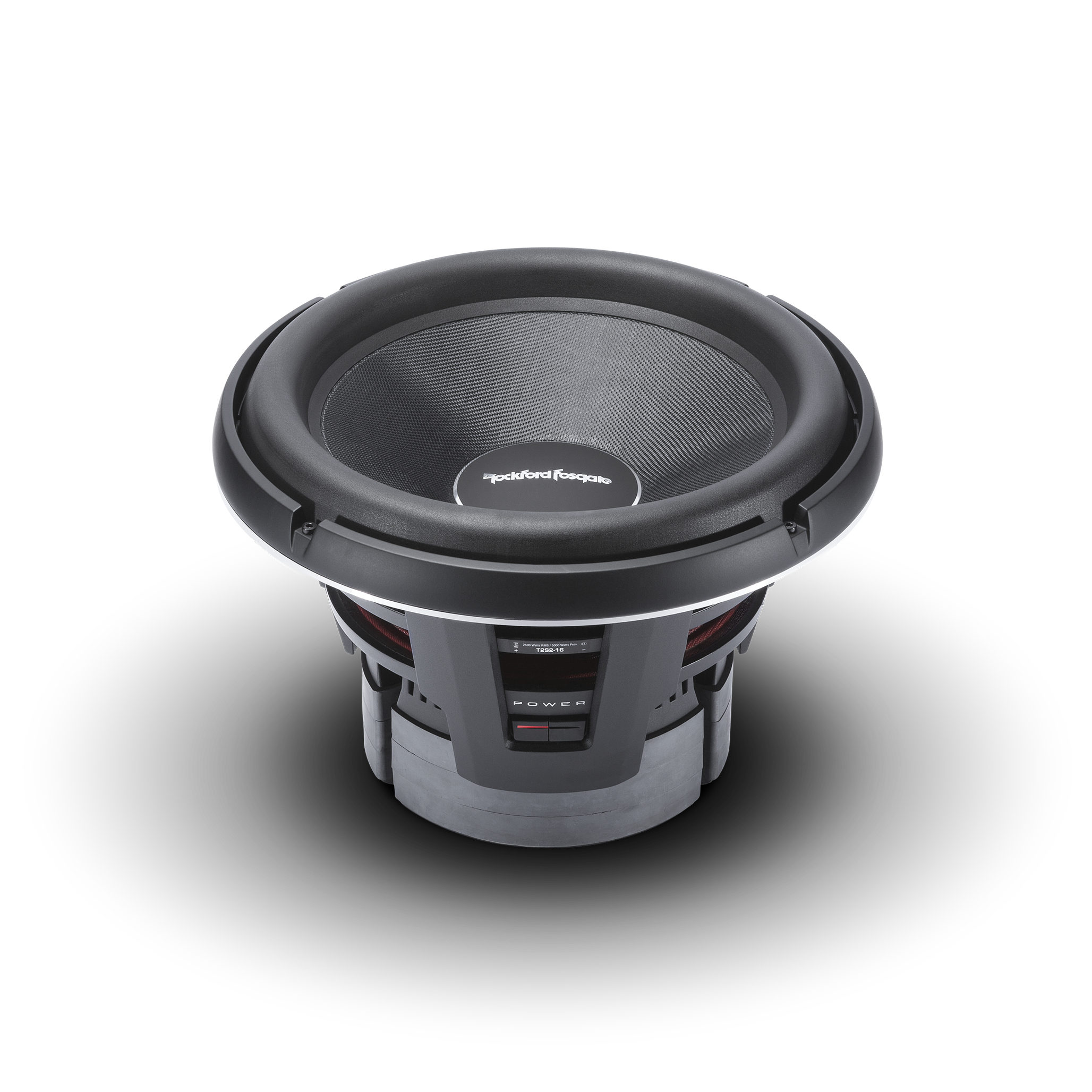

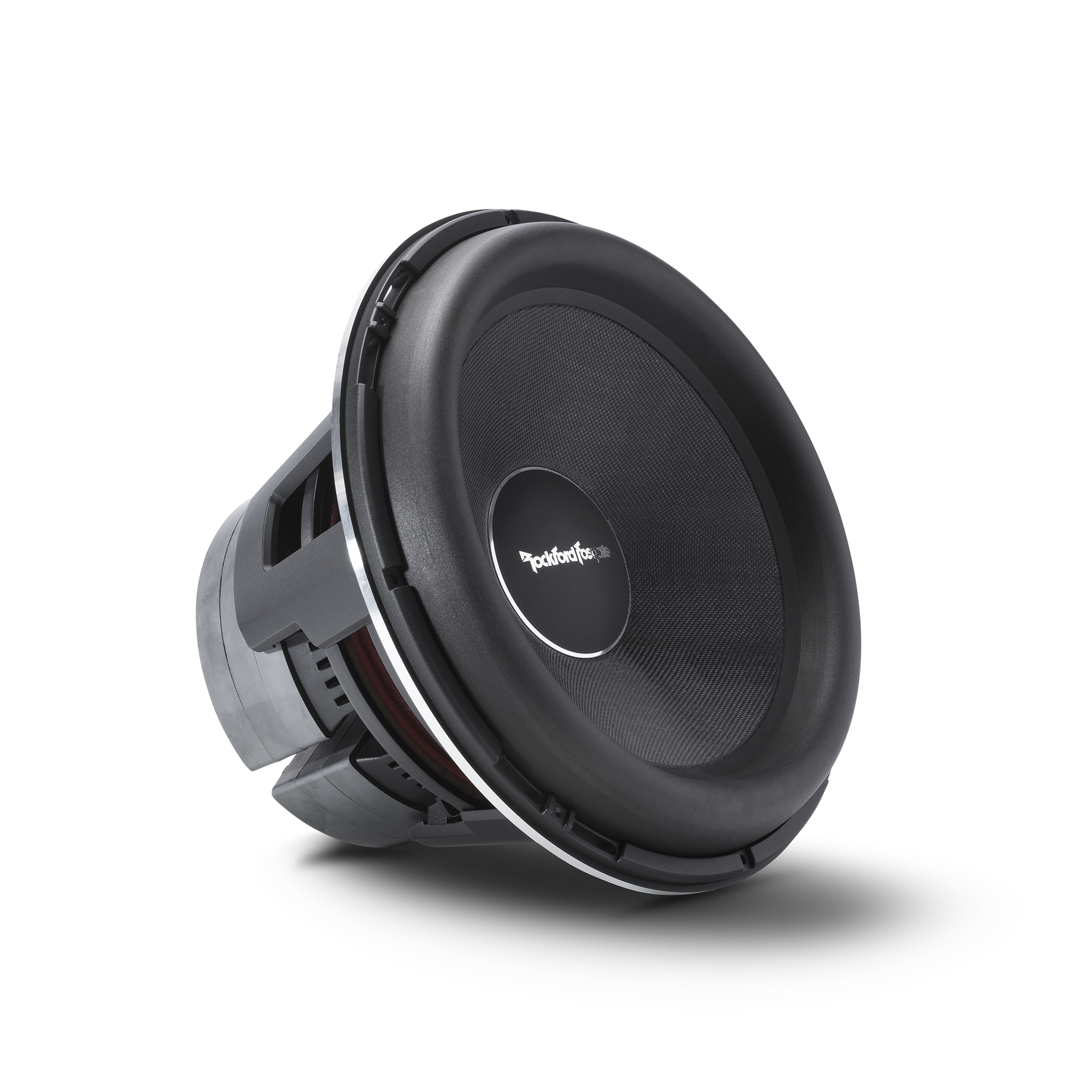

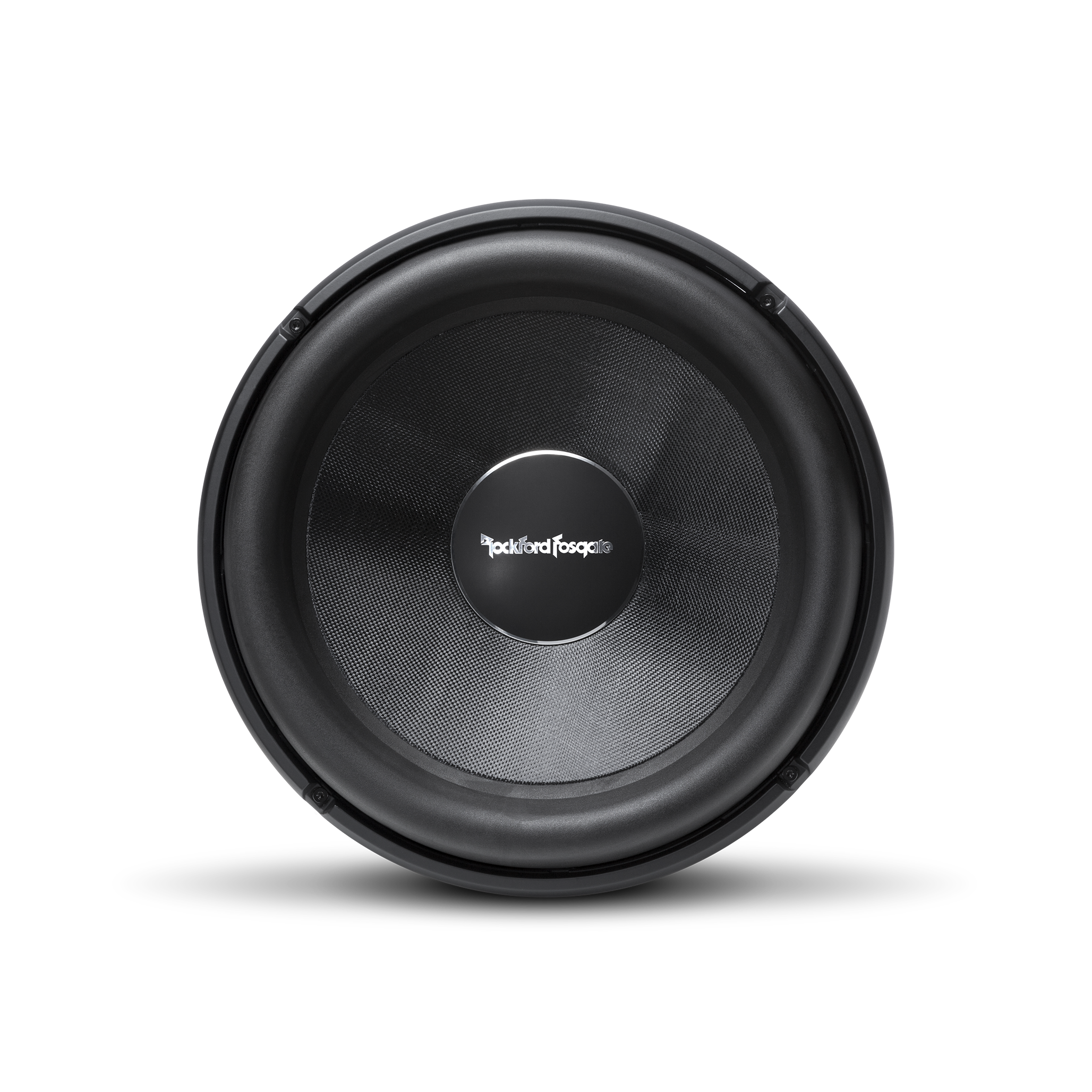

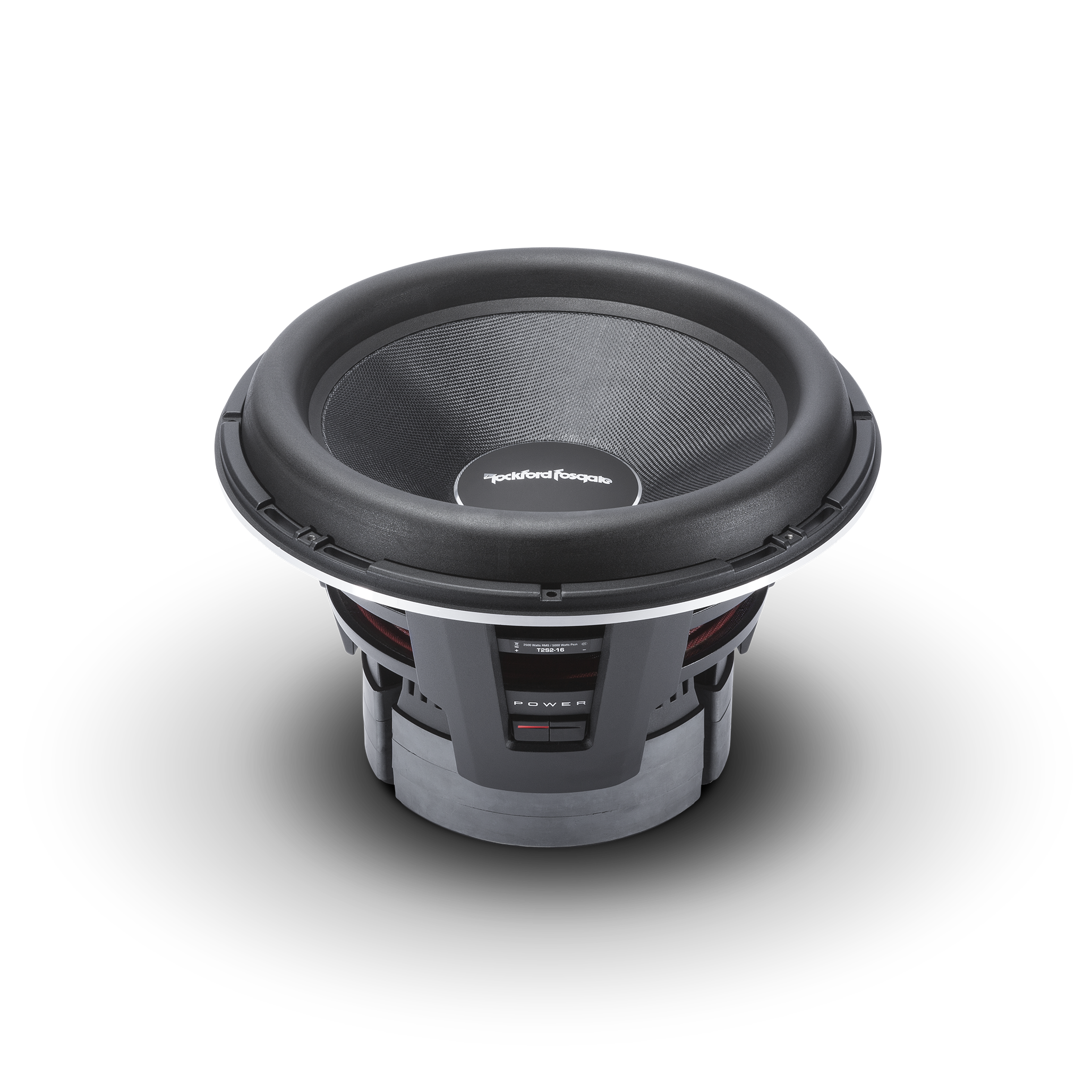

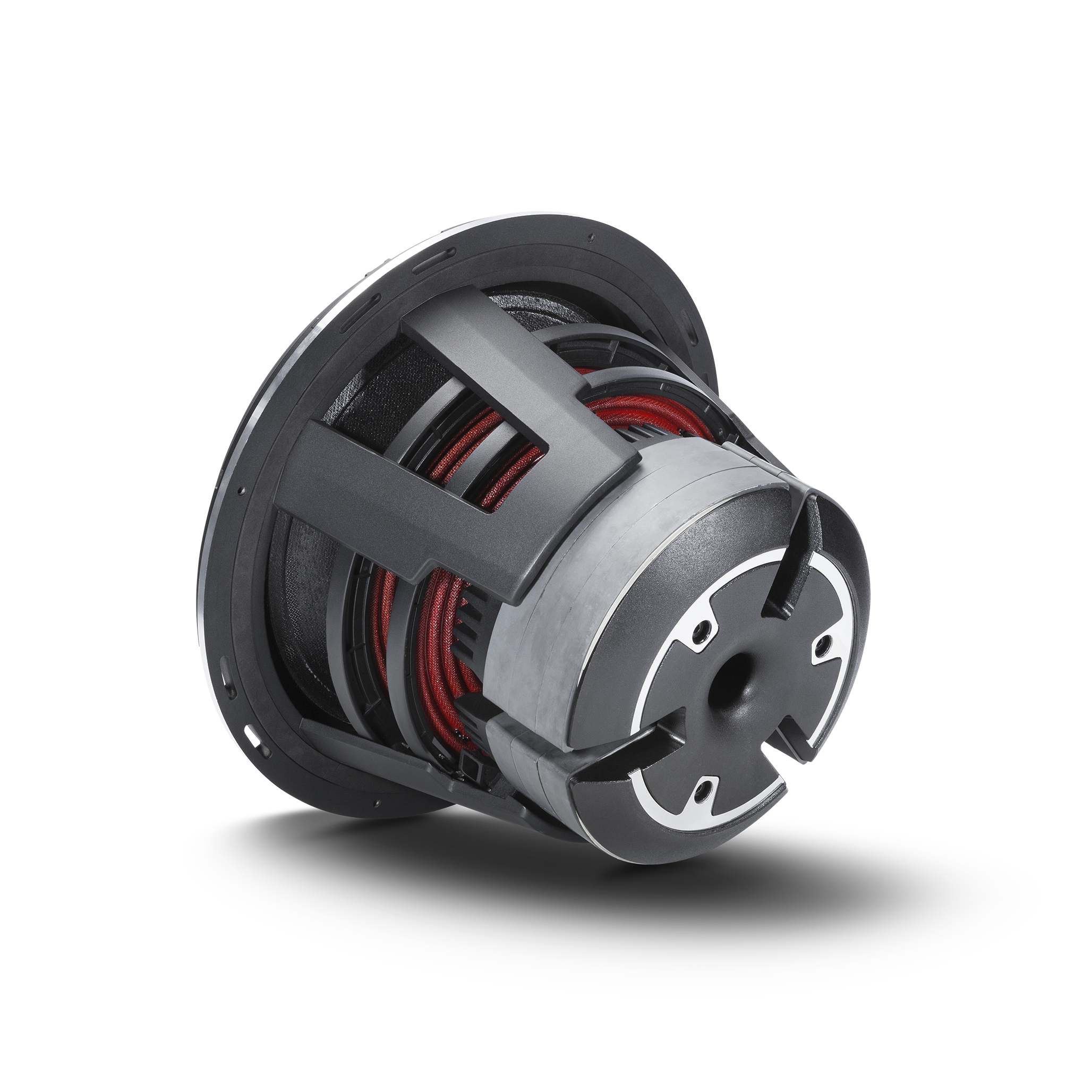

Power 16" T2 Single 2-Ohm Subwoofer

Overview

The Power T2S2-16 subwoofer features 16-inches of effective radiating cone area and a single 2-ohm voice coil for ease of wiring.

Features

• 1 Year Warranty
• Aluminum dustcap
• Custom push spring insulated 8 AWG terminals
• Detachable die cast aluminum trim ring
• Diecast aluminum frame with integrated heat sink fins
• Dual Nomex progressive spiders with stitched tinsel leads
• Injection molded foam surround with VAST™
• Integrated aluminum heat sinking shorting ring (IDHS)
• Proprietary surround mechanical clamping ring
• Single layer edge wound aluminum 4" voice coil
• Three layer glass fiber/Aramid honeycomb/Glass fiber cone

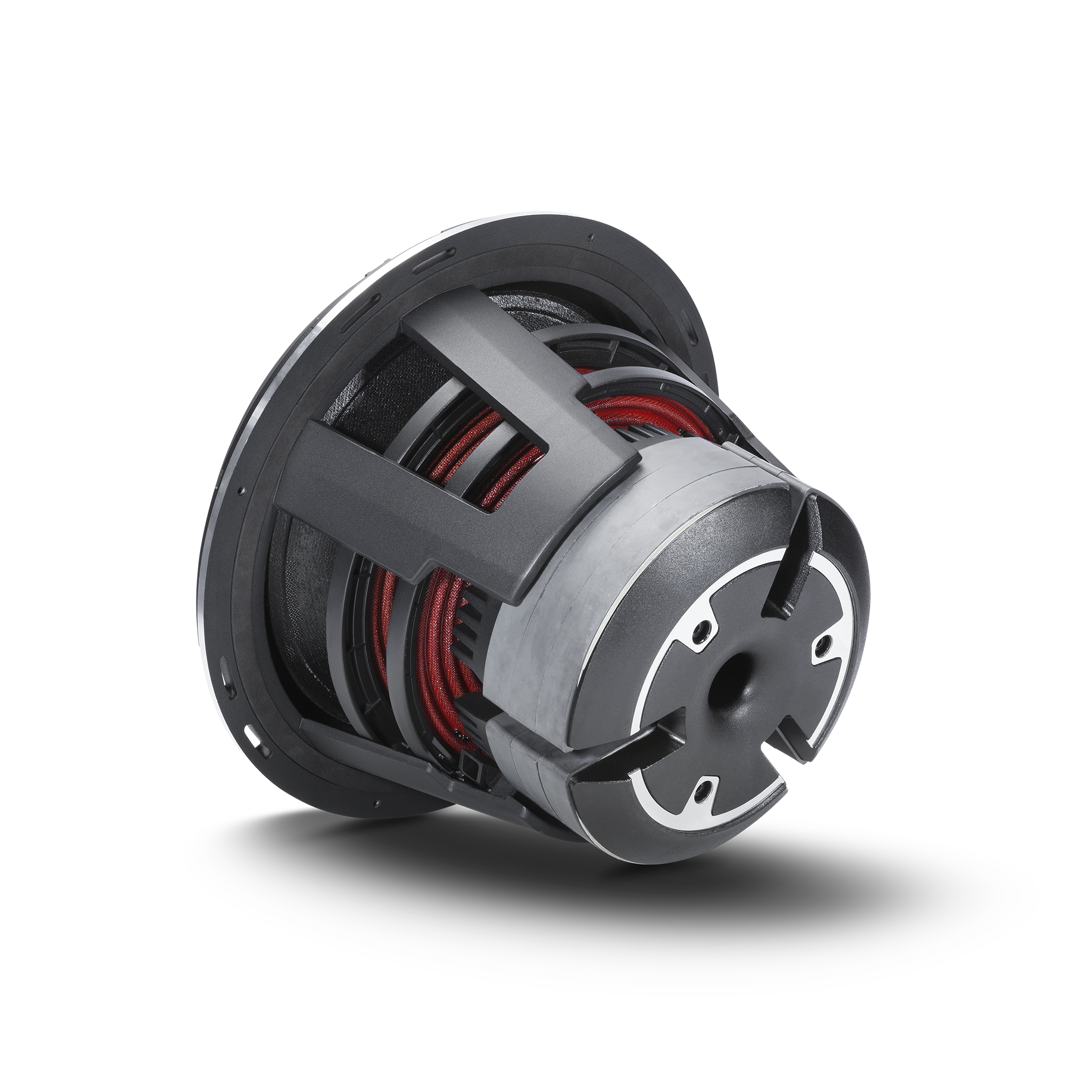

• Triple stack segmented ferrite motor structure
• Vented pole piece

Technologies

• VAST Surround - Subs: The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.
• FlexFit Basket - Subwoofer: The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.
• Stitched Tinsel Leads: Improved reliability and performance by reducing fatigue and possible shorting.
• CEA-2031: Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
• Inductive Damping Heat Sink: Secures directly to the top of magnet structure to improve system efficiency by reducing both distortion and back EMF (Electo-Magnetic force). Also radiates heat to reduce voice coil temperature.
• Klippel Verified: Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
• Anodized Aluminum Voice Coil Former: Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.

Specifications

CEA-2031 Compliant
Fs (Hz)	28.5
Le (mH)	0.91
Nominal Impedance	2-Ohm
Power Handling (Watts RMS)	2500 Watts RMS 5000 Watts Max
Qes	0.56
Qms	3.76
Speaker Connector	8 AWG slot loaded
Vas (Liters)	90.1
Voice Coil Diameter	3.96" (100 mm)
Size	16"
Magnet Weight (oz)	529 oz. (15 Kg)
Qts	0.49
Sd (cm2)	1034
Xmax (mm)	34
Re (Ohms)	1.6
SPL (dB @ 1w/1m)	90
SPL (dB @ 2.8v/1m)	93
Subwoofer Type	Standard
Voice Coil Type	Single Voice Coil
Mounting Depth	10.47 in. (266 mm)
Cutout Diameter	15.04 in. (382 mm)
Sealed Box Volume (Vb)	2.4 cu. ft. (67.9 Liters)
Vented Box Volume (Vb)	5.5 cu. ft. (155 Liters)
Woofer Displacement	0.289 cu. ft. (8.2 Liters)
Shipping Weight	100.80 lb. (45.7 Kg.)
