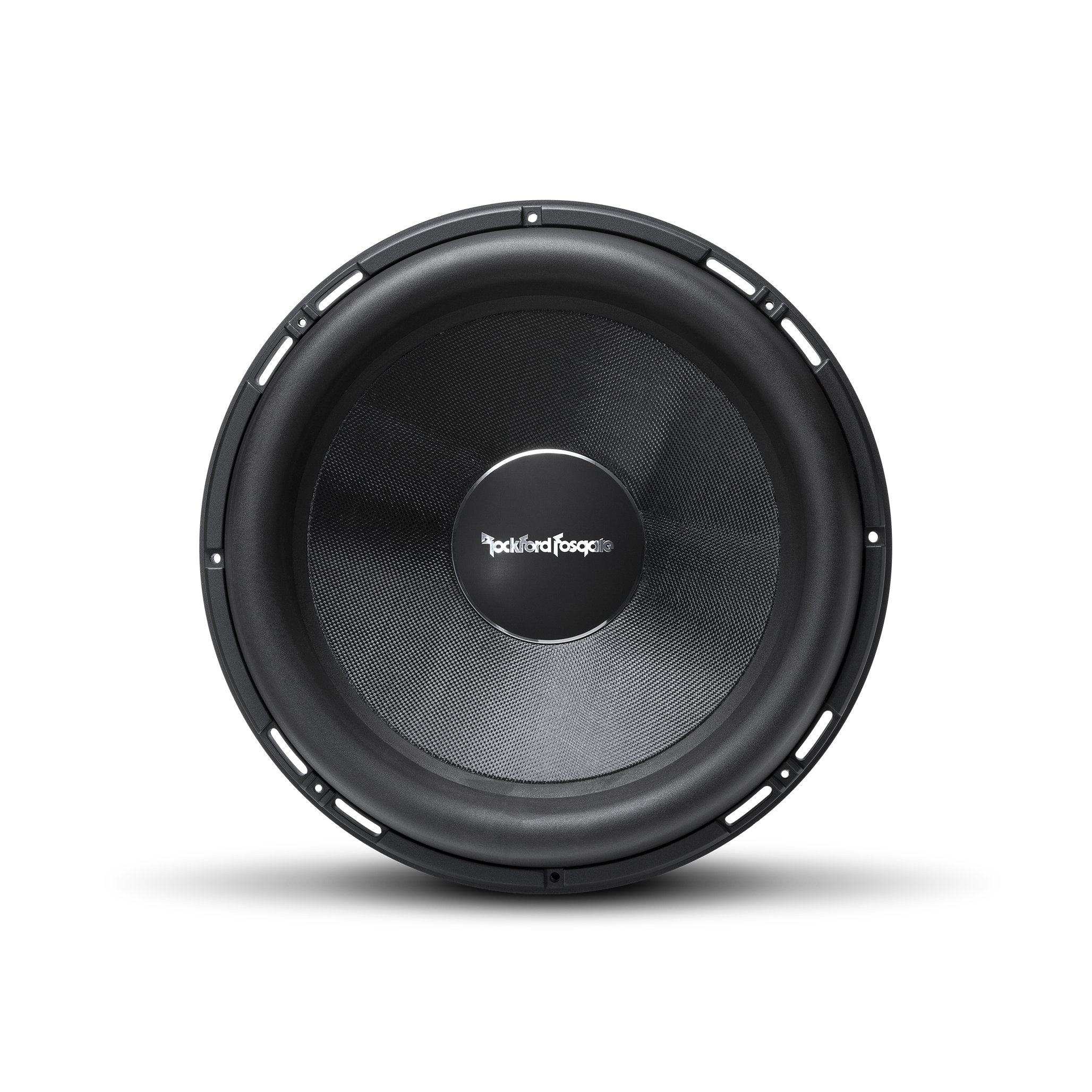

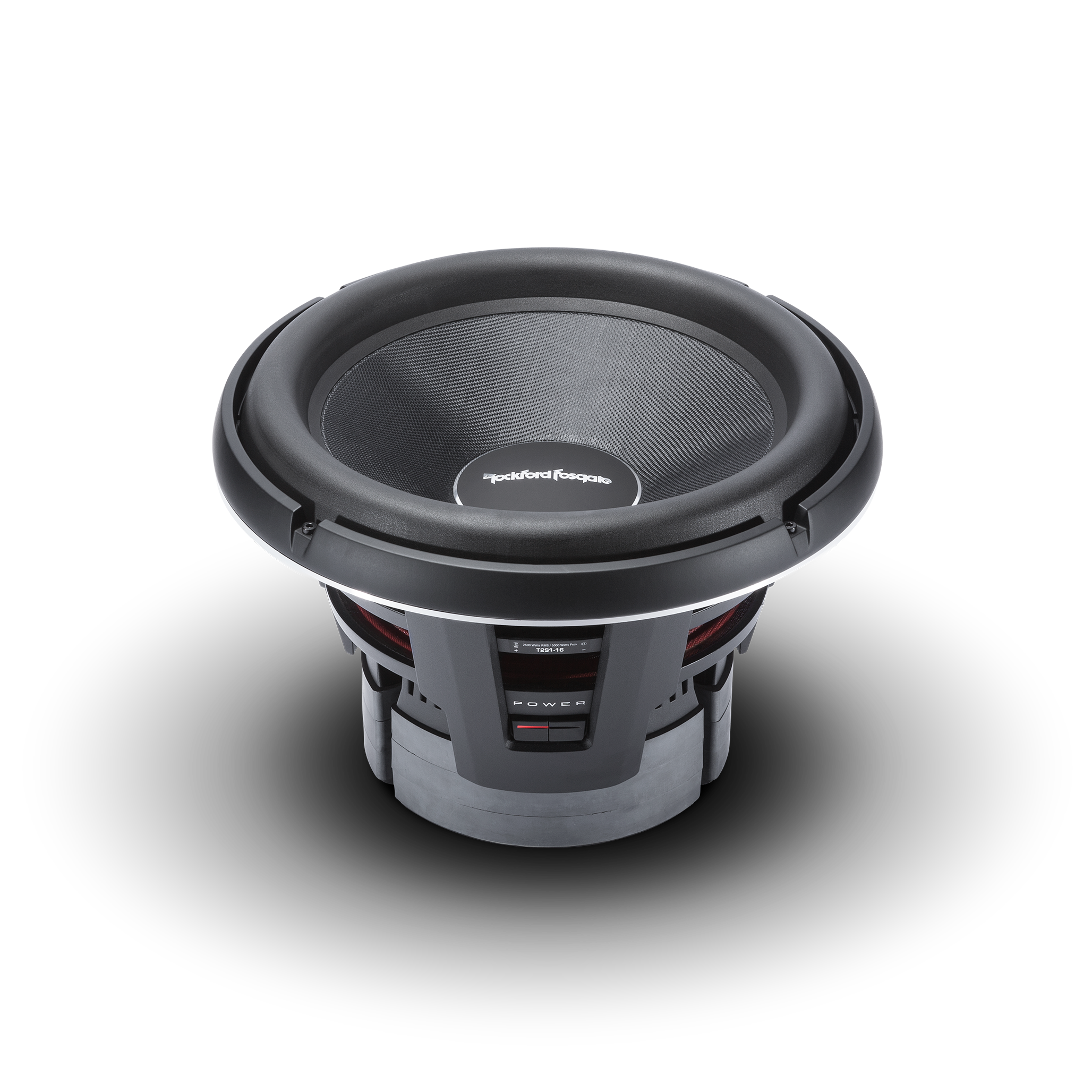

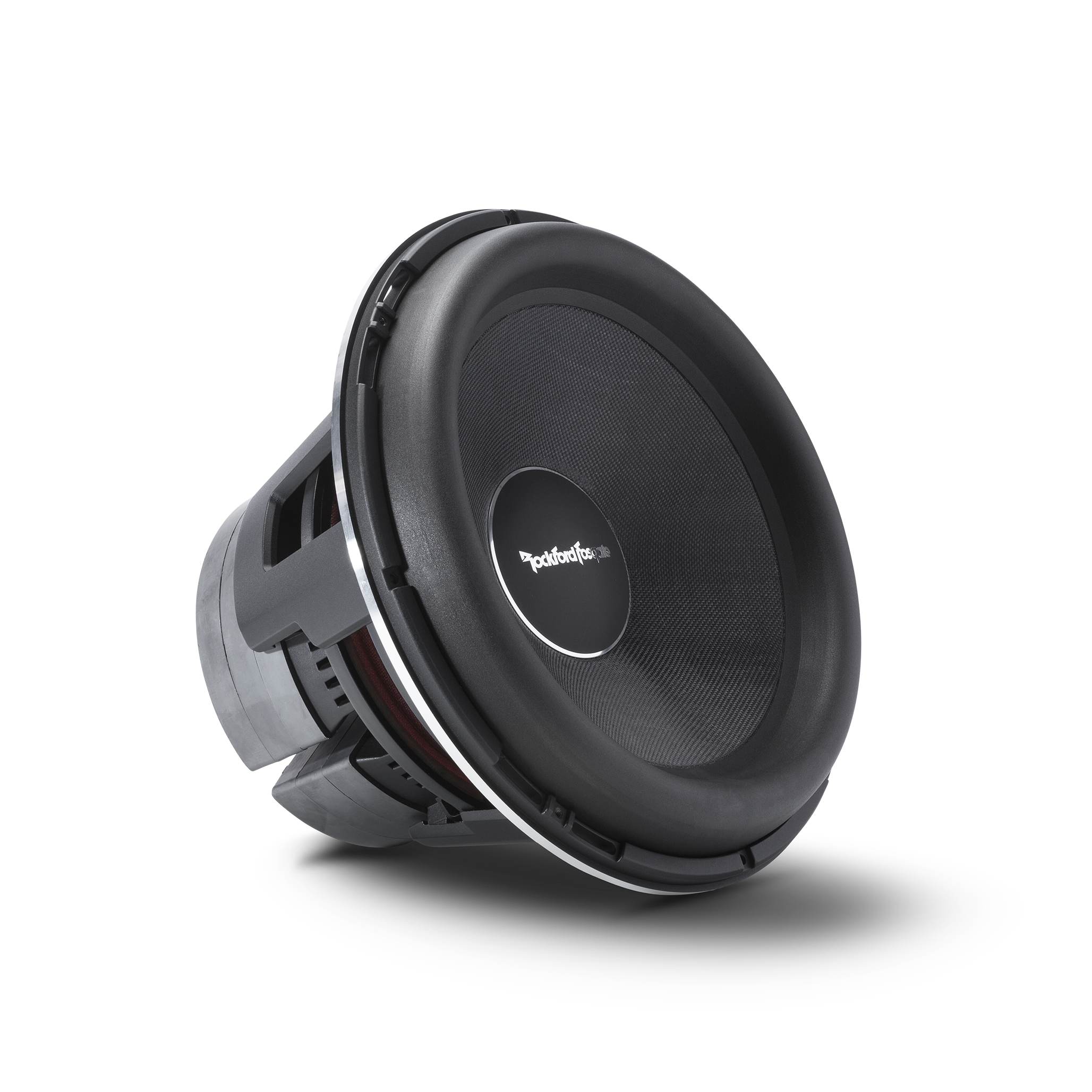

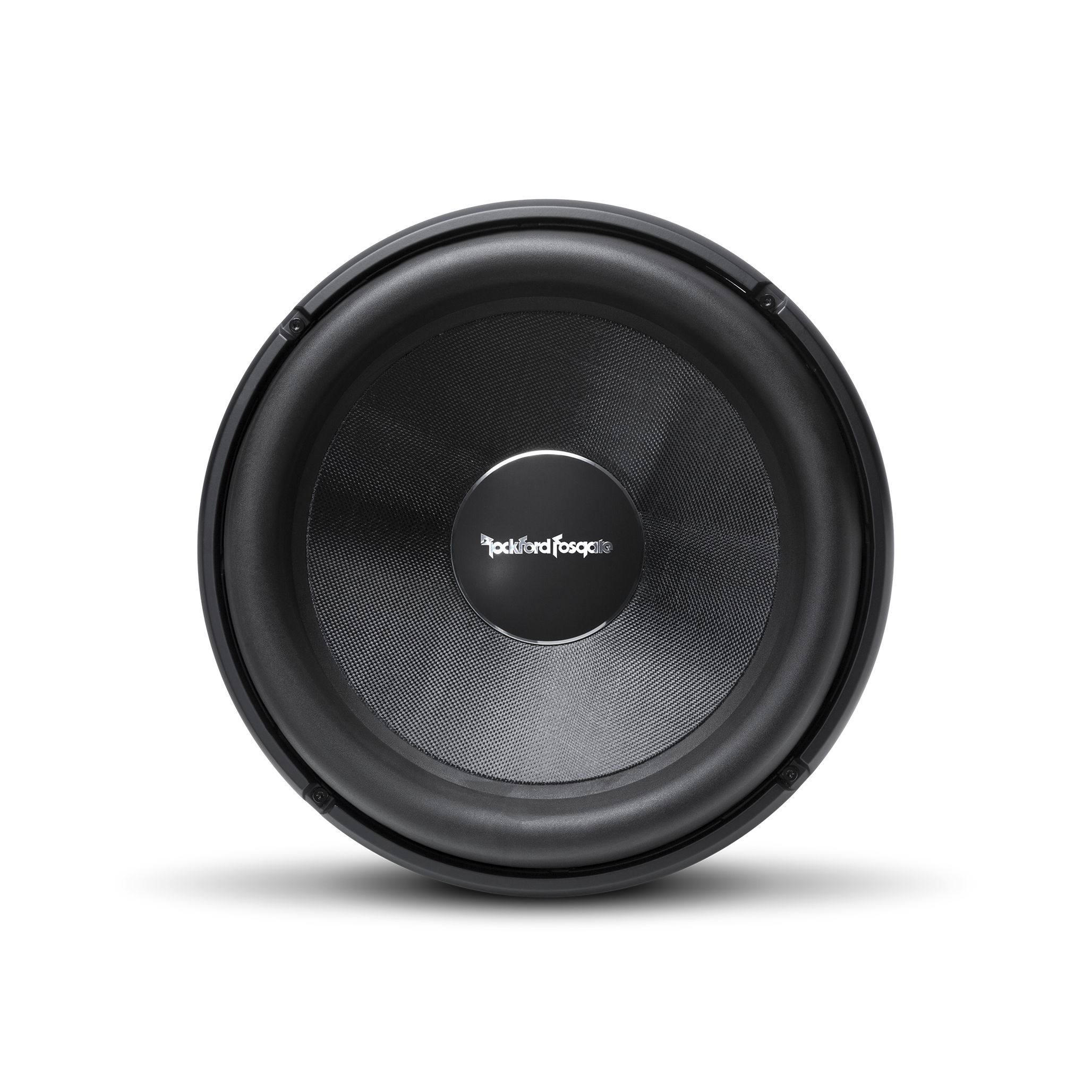

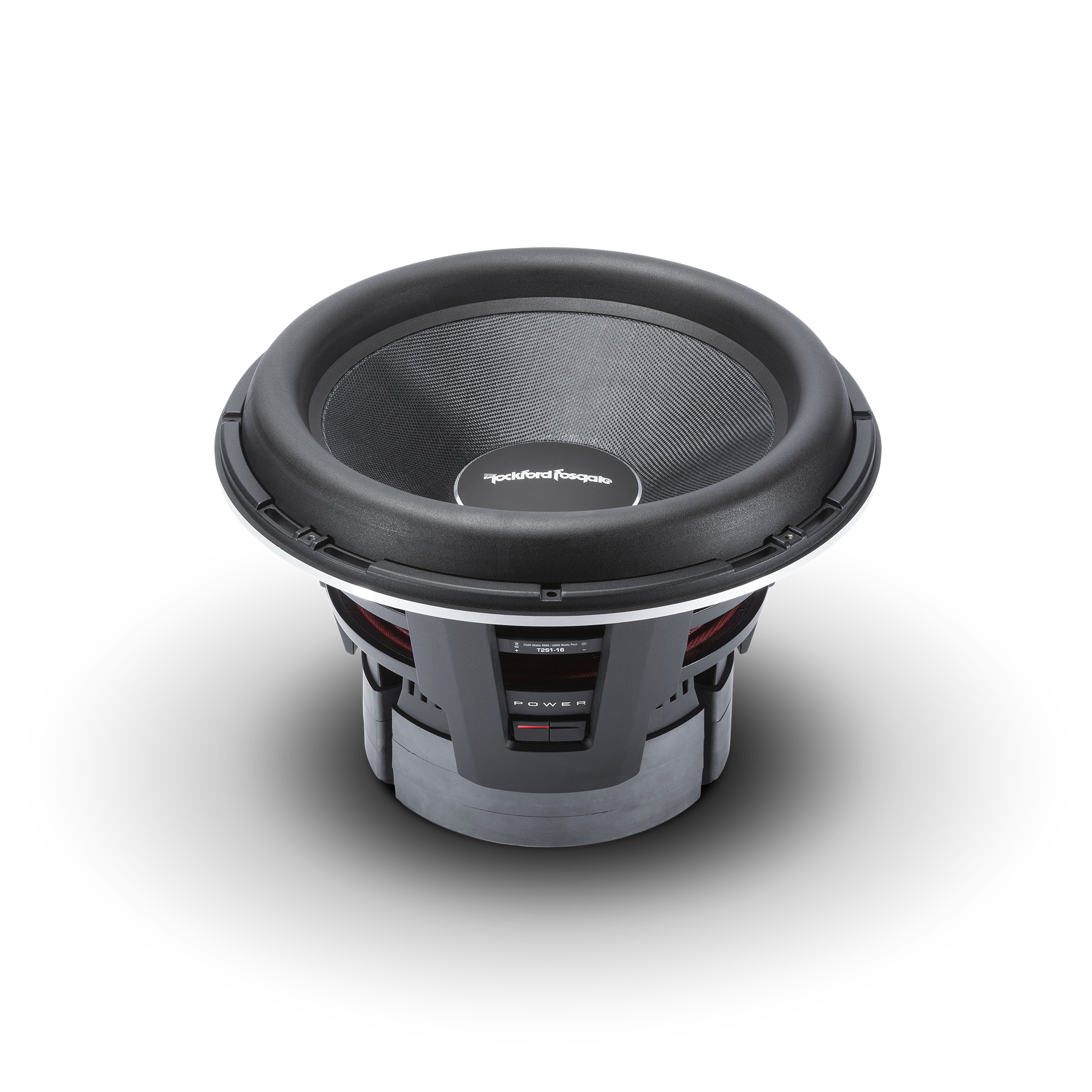

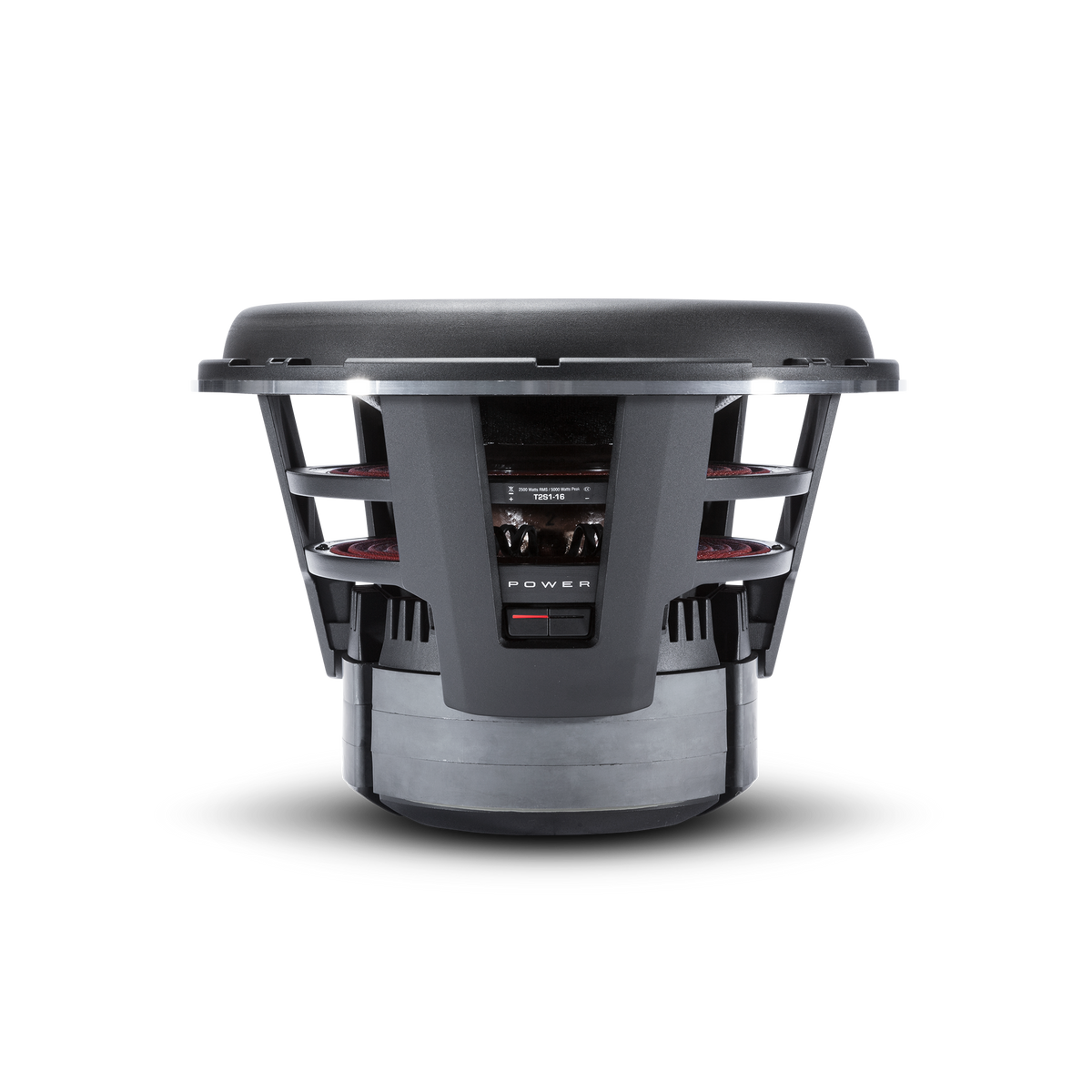

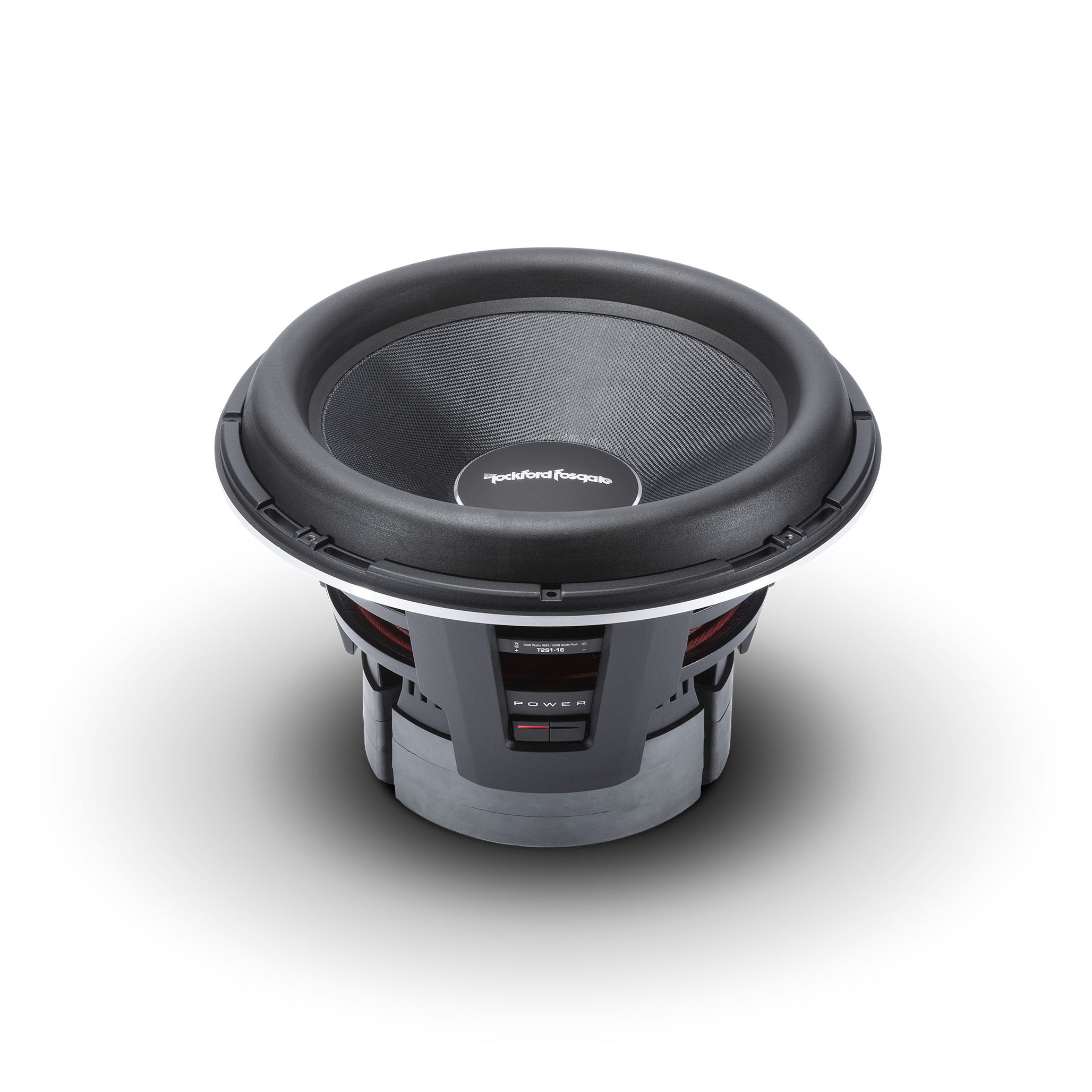

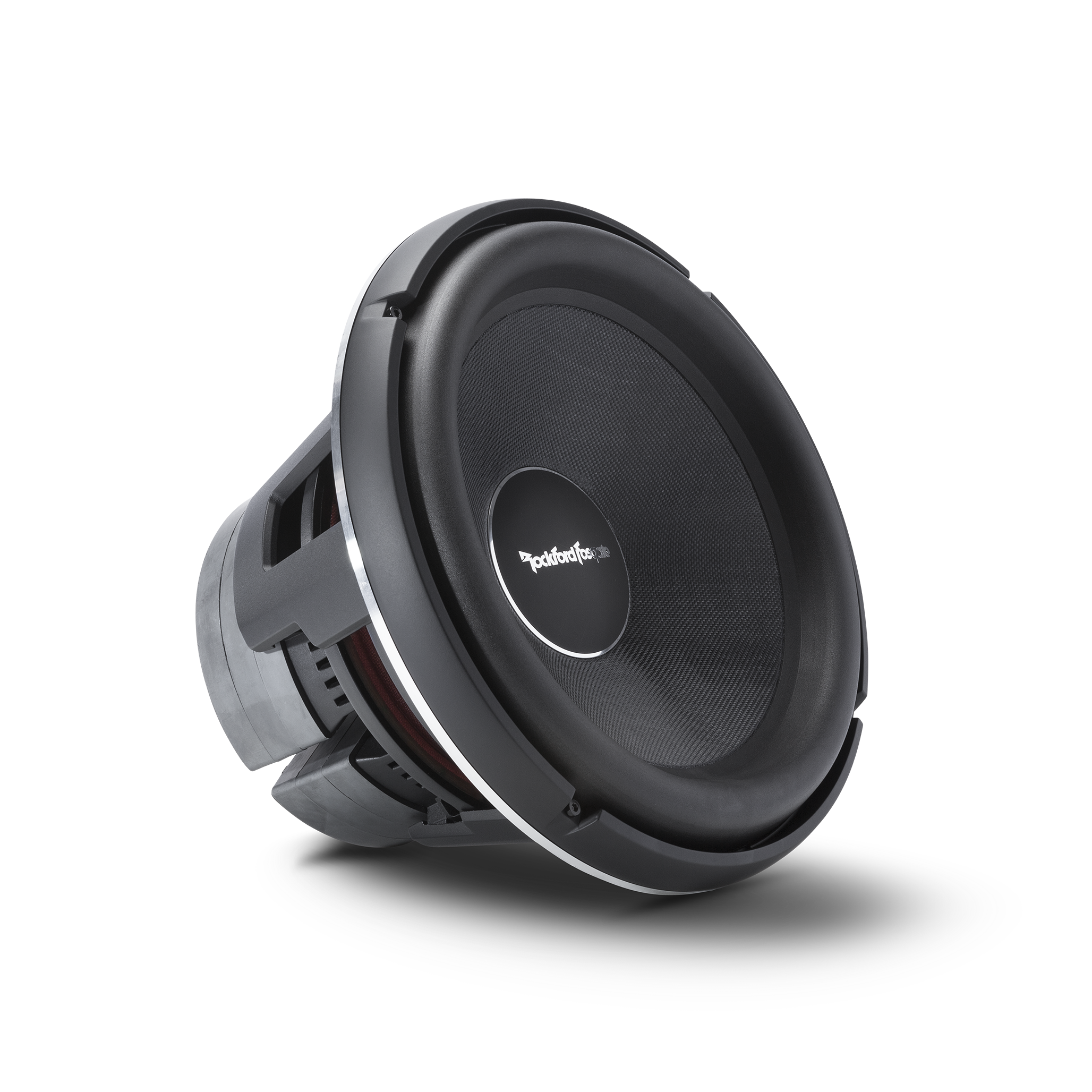

Power 16" T2 Single 1-Ohm Subwoofer

Overview

The Power T2S1-16 subwoofer features 16-inches of effective radiating cone area and a single 1-ohm voice coil for ease of wiring.

Features

• Aluminum dustcap
• Diecast aluminum frame with integrated heat sink fins
• Injection molded foam surround with VAST™
• Three layer glass fiber/Aramid honeycomb/Glass fiber cone
• 1 Year Warranty
• Custom push spring insulated 8 AWG terminals
• Detachable die cast aluminum trim ring
• Dual Nomex progressive spiders with stitched tinsel leads
• Proprietary surround mechanical clamping ring
• Integrated aluminum heat sinking shorting ring (IDHS)
• Single layer edge wound aluminum 4" voice coil

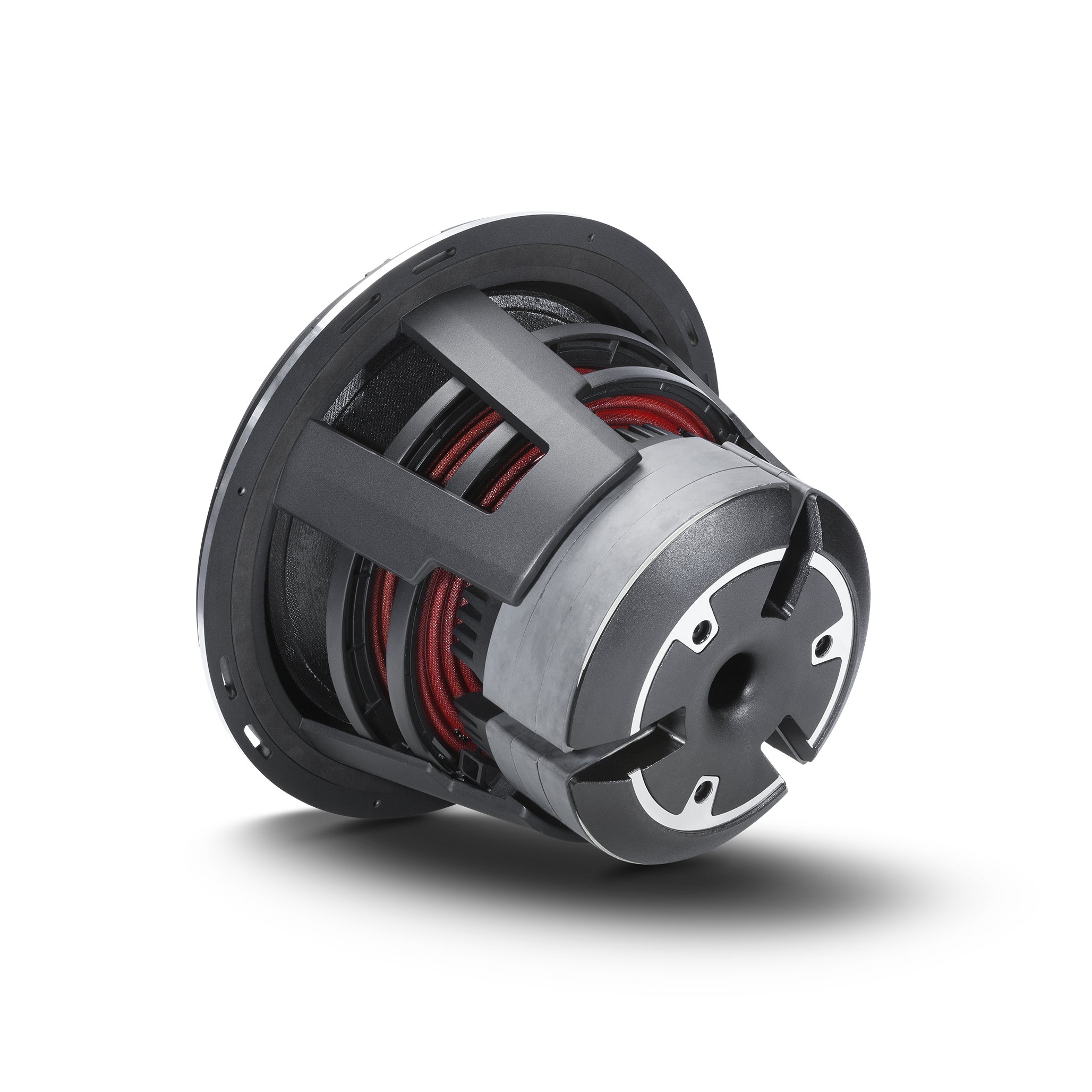

• Triple stack segmented ferrite motor structure
• Vented pole piece

Technologies

• VAST Surround - Subs: The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.
• Anodized Aluminum Voice Coil Former: Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.
• Klippel Verified: Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
• Inductive Damping Heat Sink: Secures directly to the top of magnet structure to improve system efficiency by reducing both distortion and back EMF (Electo-Magnetic force). Also radiates heat to reduce voice coil temperature.
• CEA-2031: Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
• Stitched Tinsel Leads: Improved reliability and performance by reducing fatigue and possible shorting.
• FlexFit Basket - Subwoofer: The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.

Specifications

Power Handling (Watts RMS)	2500 Watts RMS 5000 Watts Max
Voice Coil Type	Single Voice Coil
CEA-2031 Compliant
Subwoofer Type	Standard
Magnet Weight (oz)	529 oz. (15 Kg)
Fs (Hz)	28.5
Size	16"
Nominal Impedance	1-Ohm
Speaker Connector	8 AWG slot loaded
Voice Coil Diameter	3.96" (100 mm)
Qes	0.57
Qts	0.49
Qms	3.73
Re (Ohms)	0.9
SPL (dB @ 1w/1m)	89
Le (mH)	0.53
Sd (cm2)	1034
Xmax (mm)	34
SPL (dB @ 2.8v/1m)	92
Vas (Liters)	84.5
Cutout Diameter	15.04 in. (382 mm)
Woofer Displacement	0.289 cu. ft. (8.2 Liters)
Mounting Depth	10.47 in. (266 mm)
Sealed Box Volume (Vb)	2.4 cu. ft. (67.9 Liters)
Vented Box Volume (Vb)	5.5 cu. ft. (155 Liters)
Shipping Weight	100.80 lb. (45.7 Kg.)
