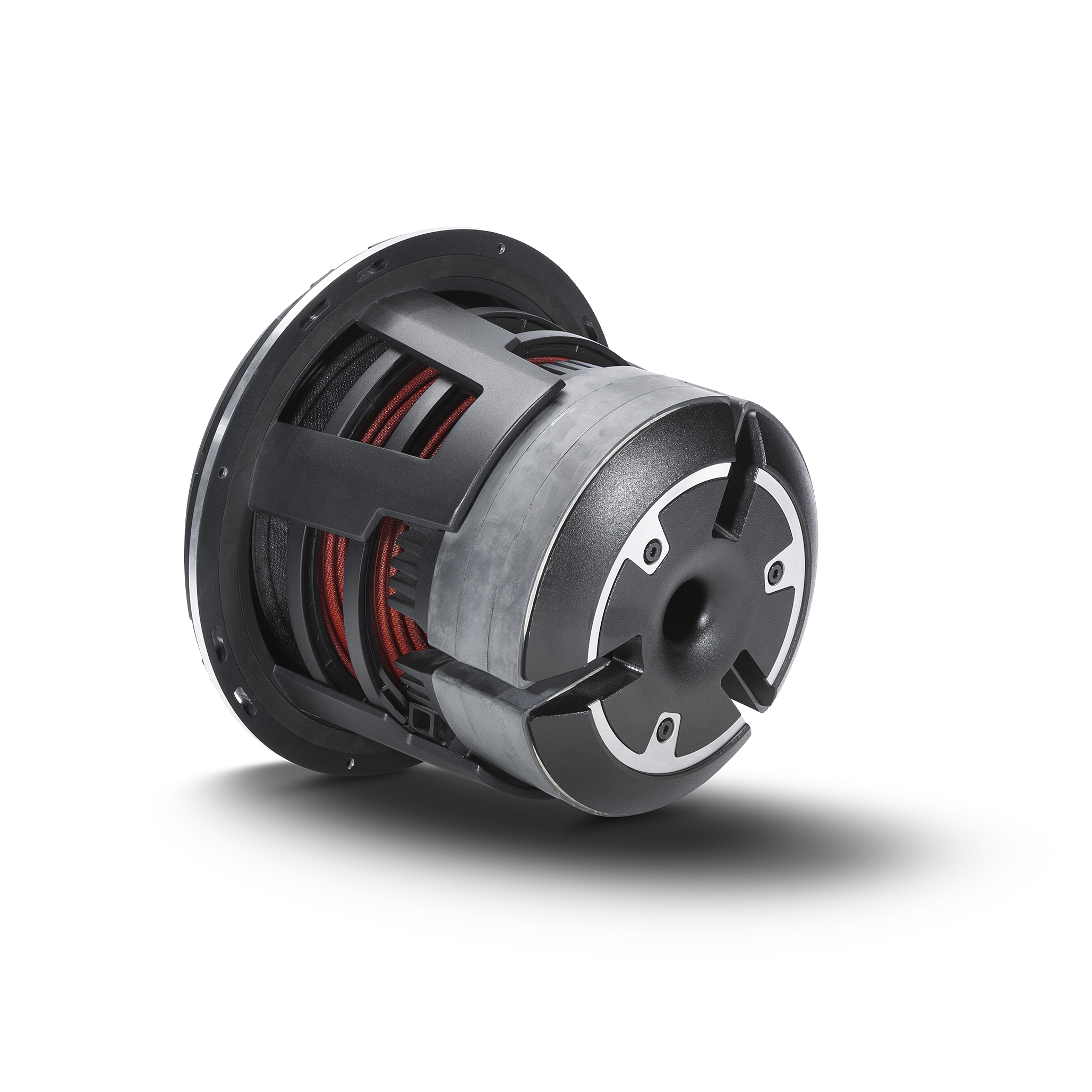

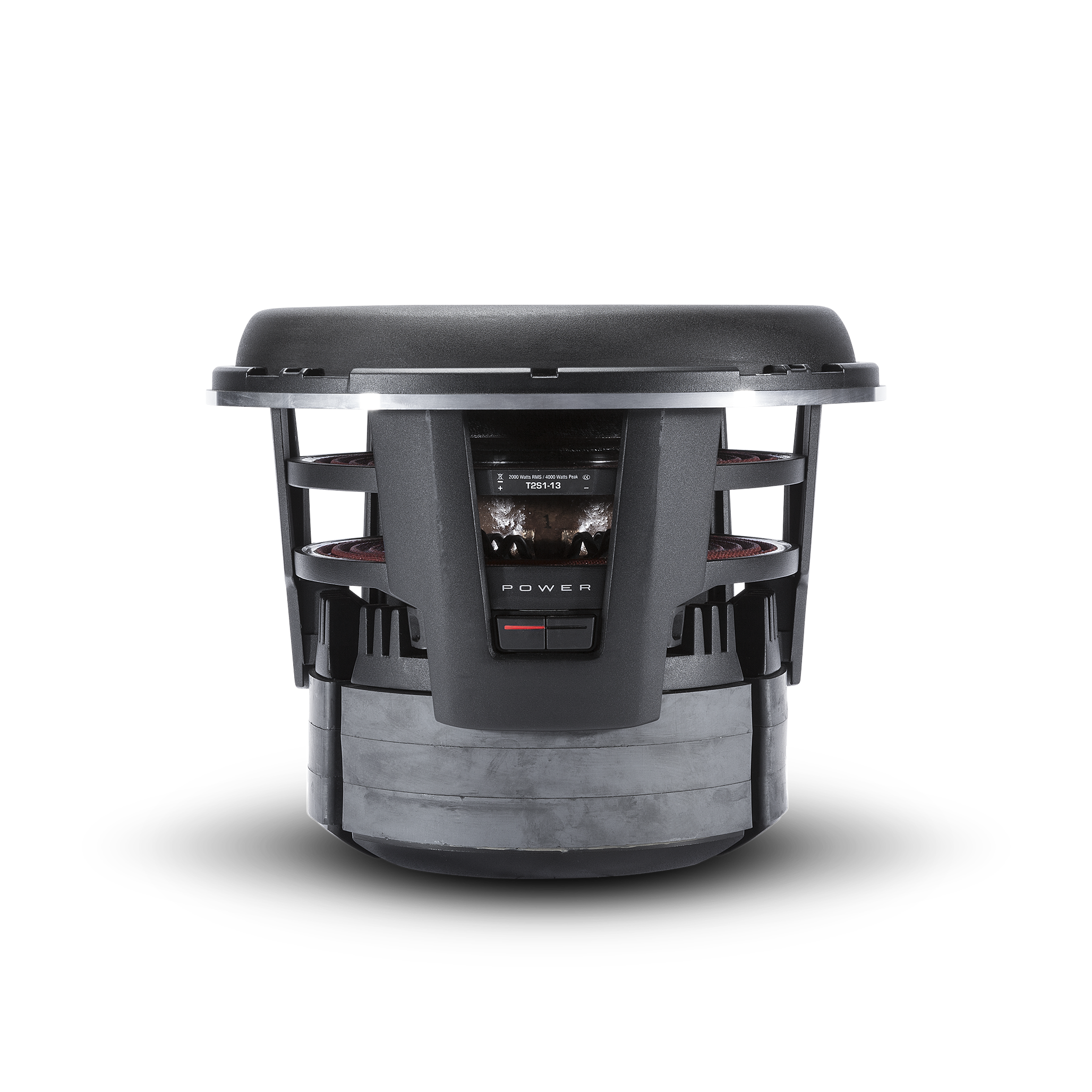

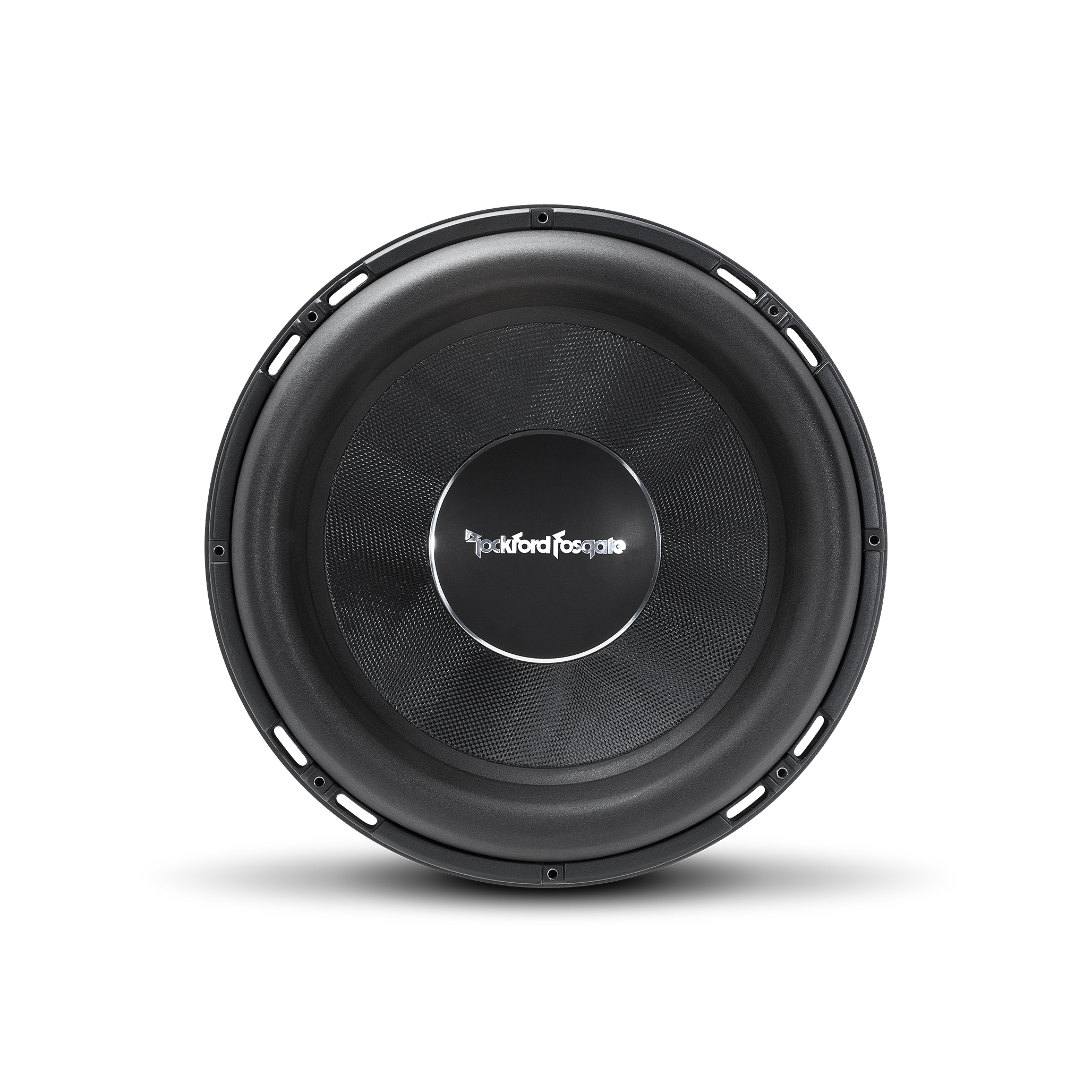

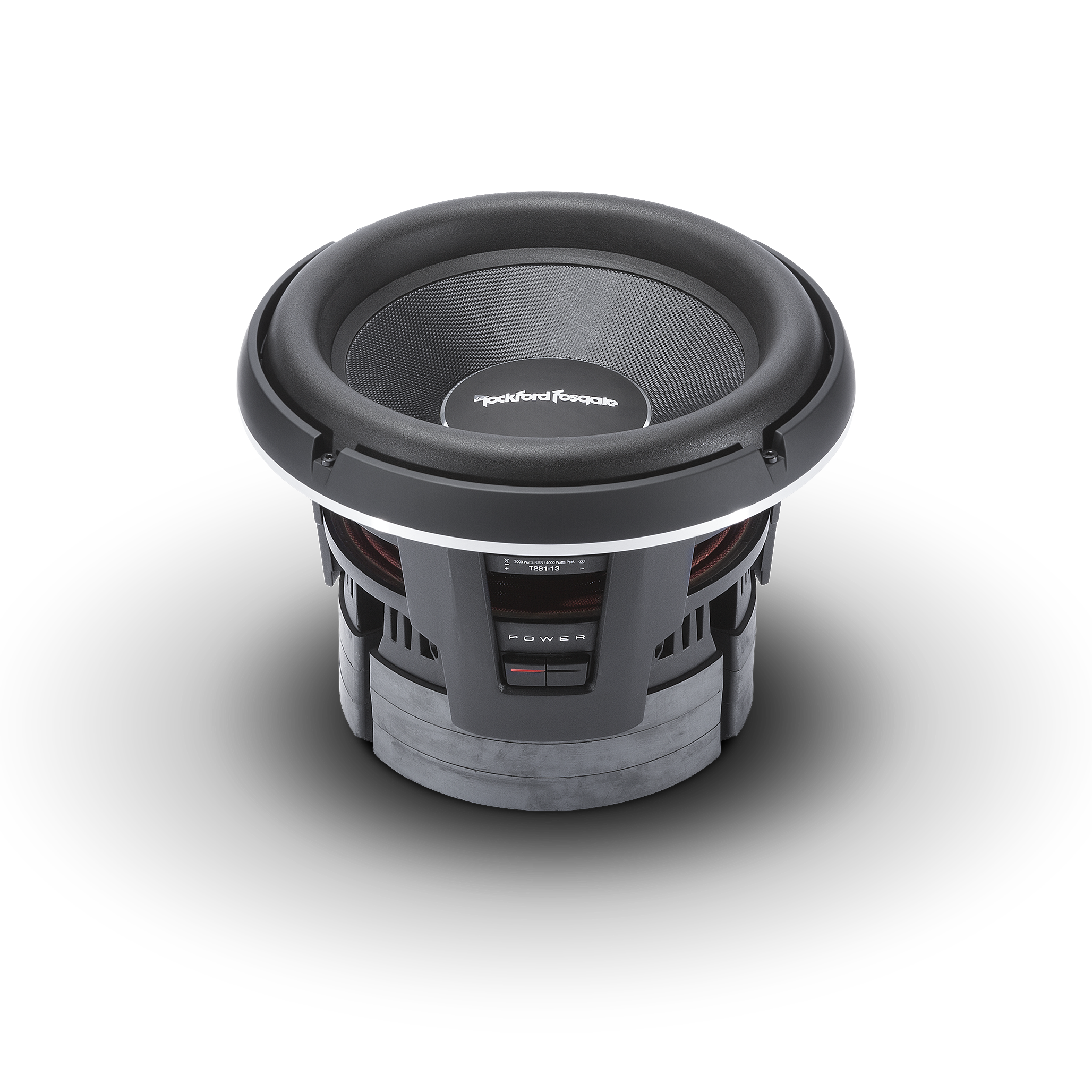

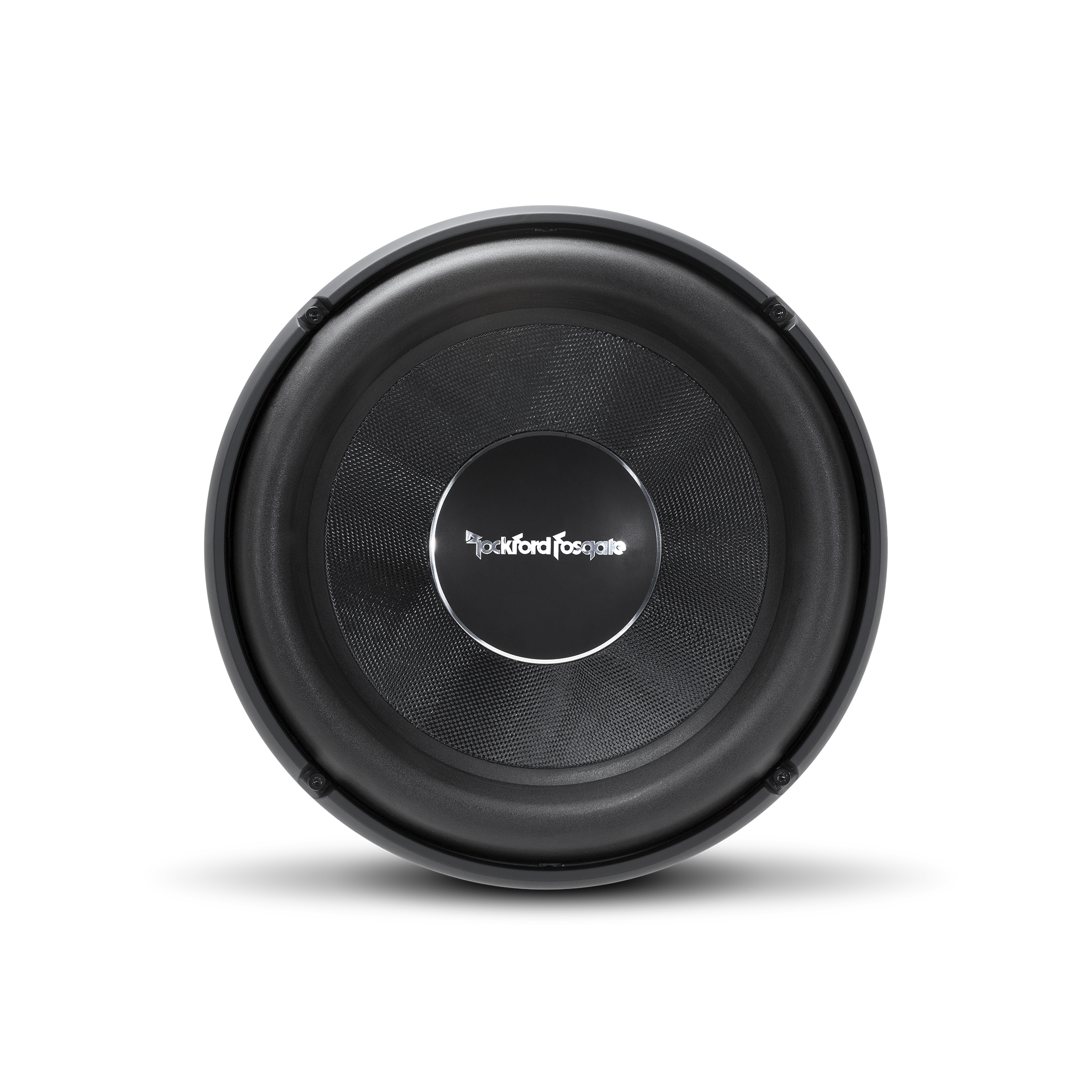

T2S1-13

Overview

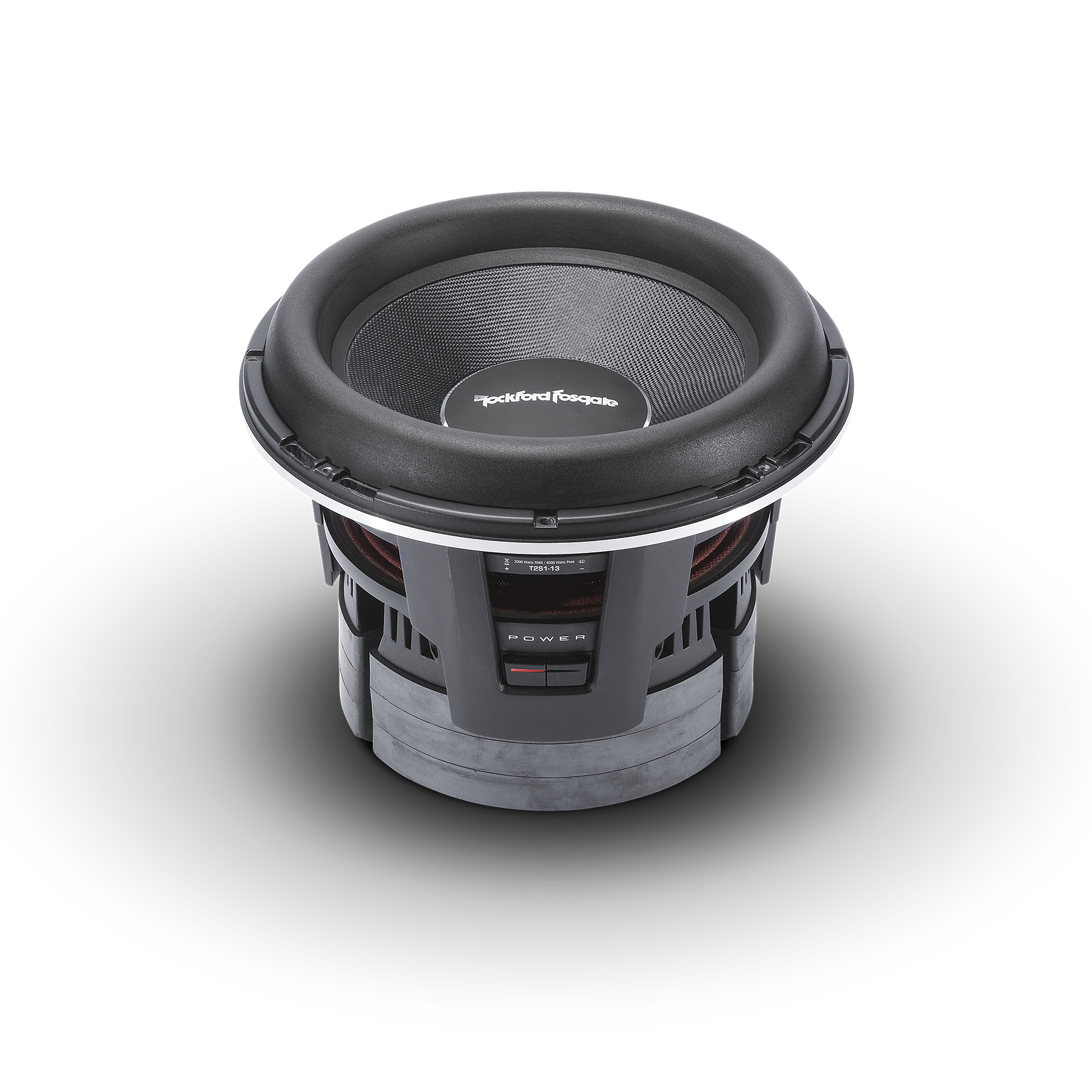

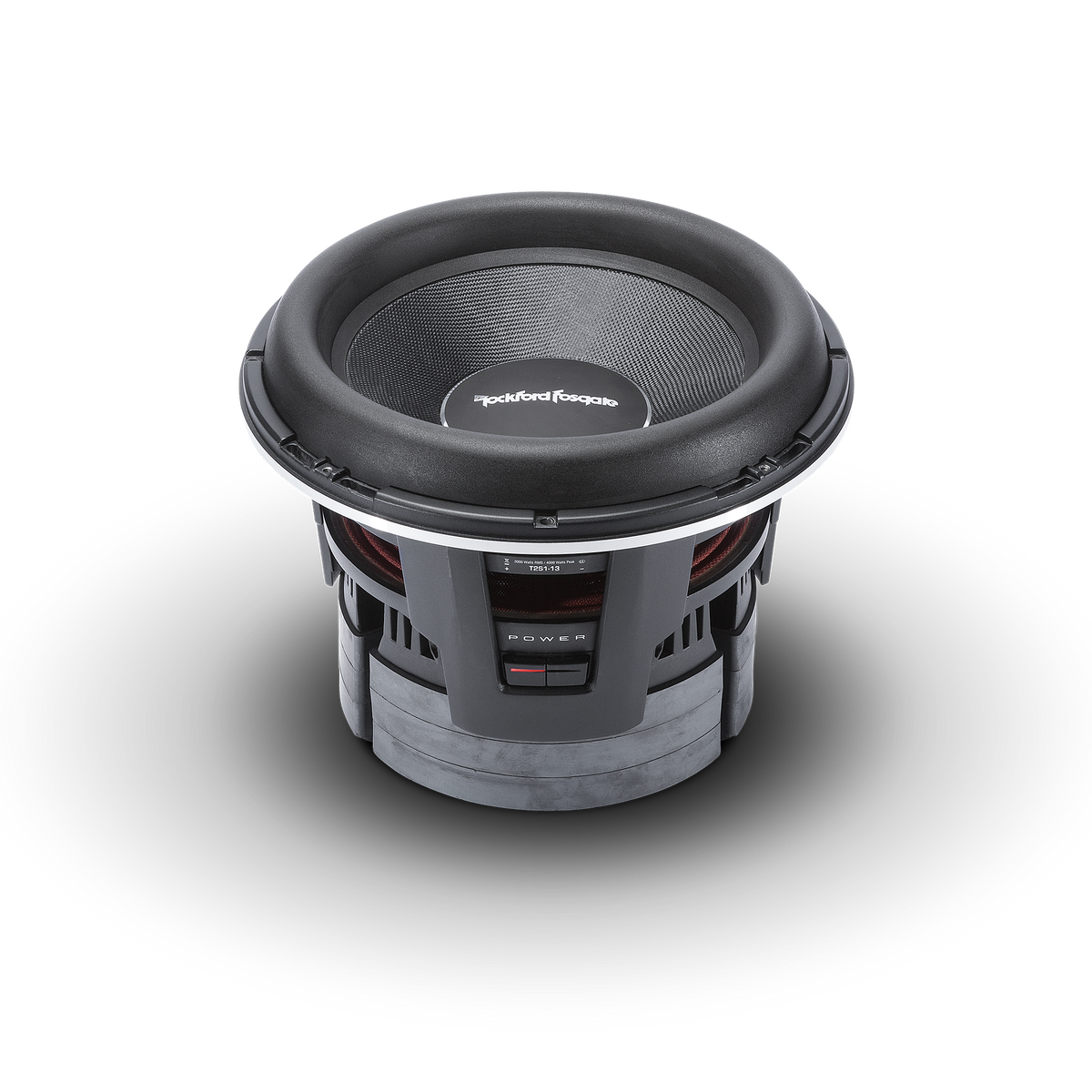

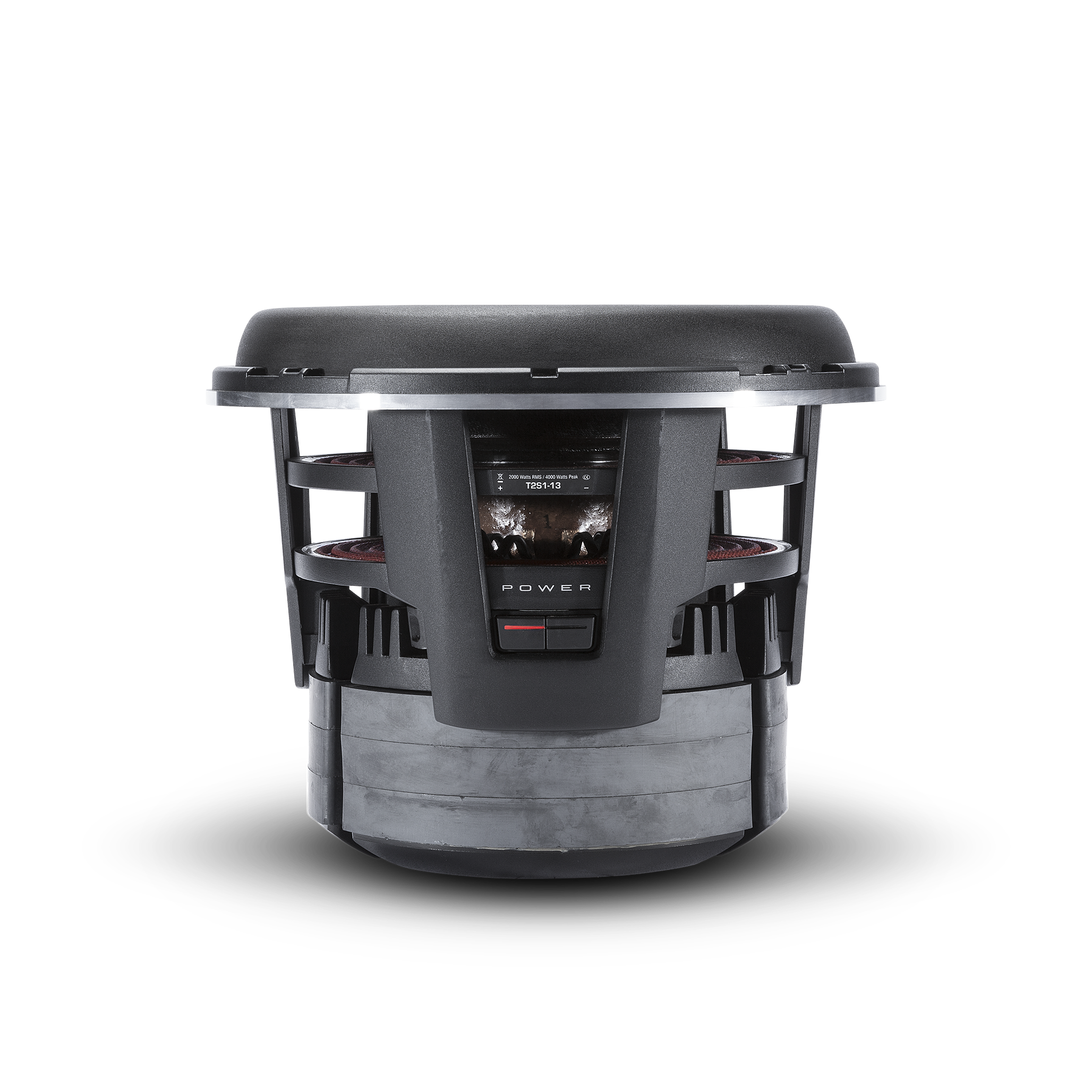

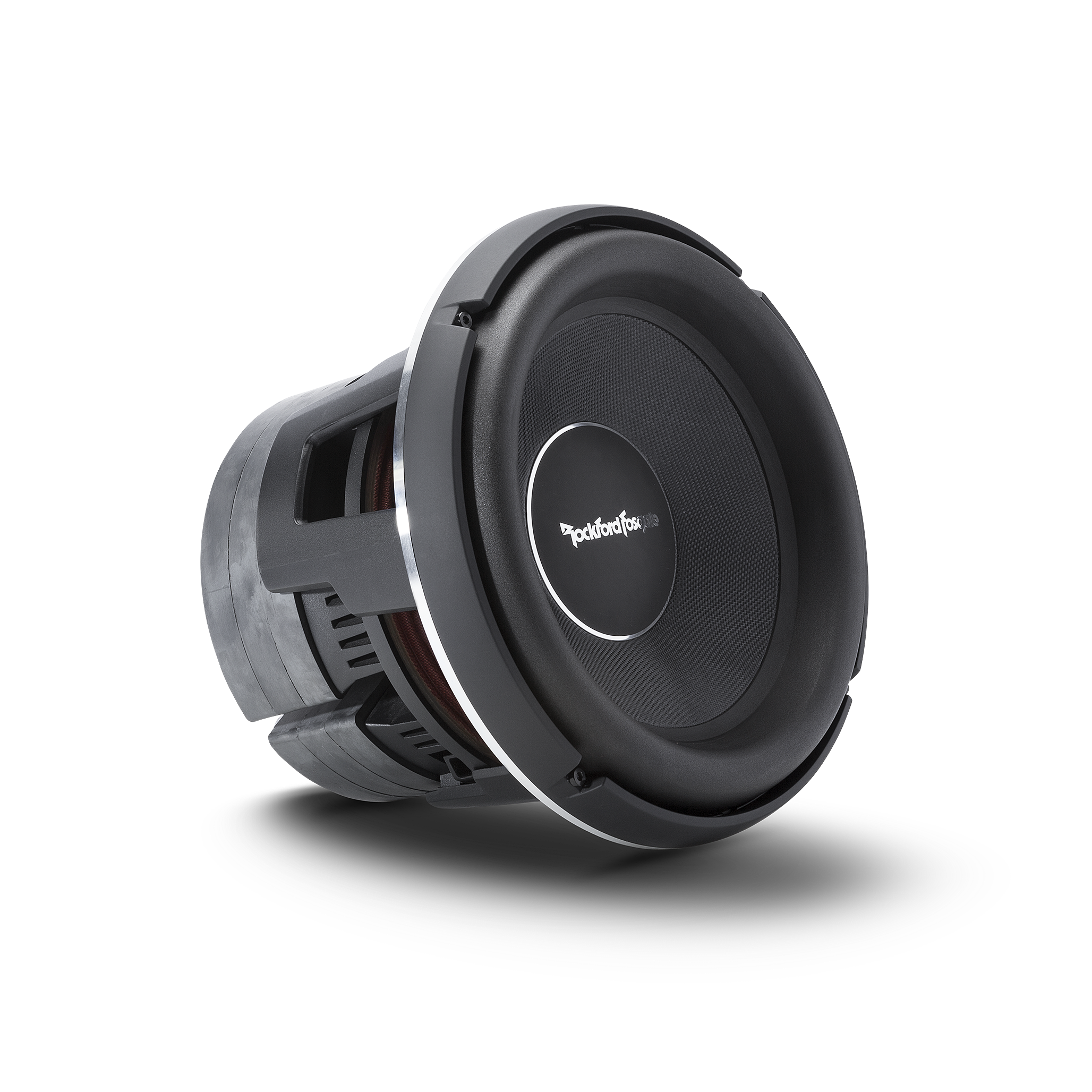

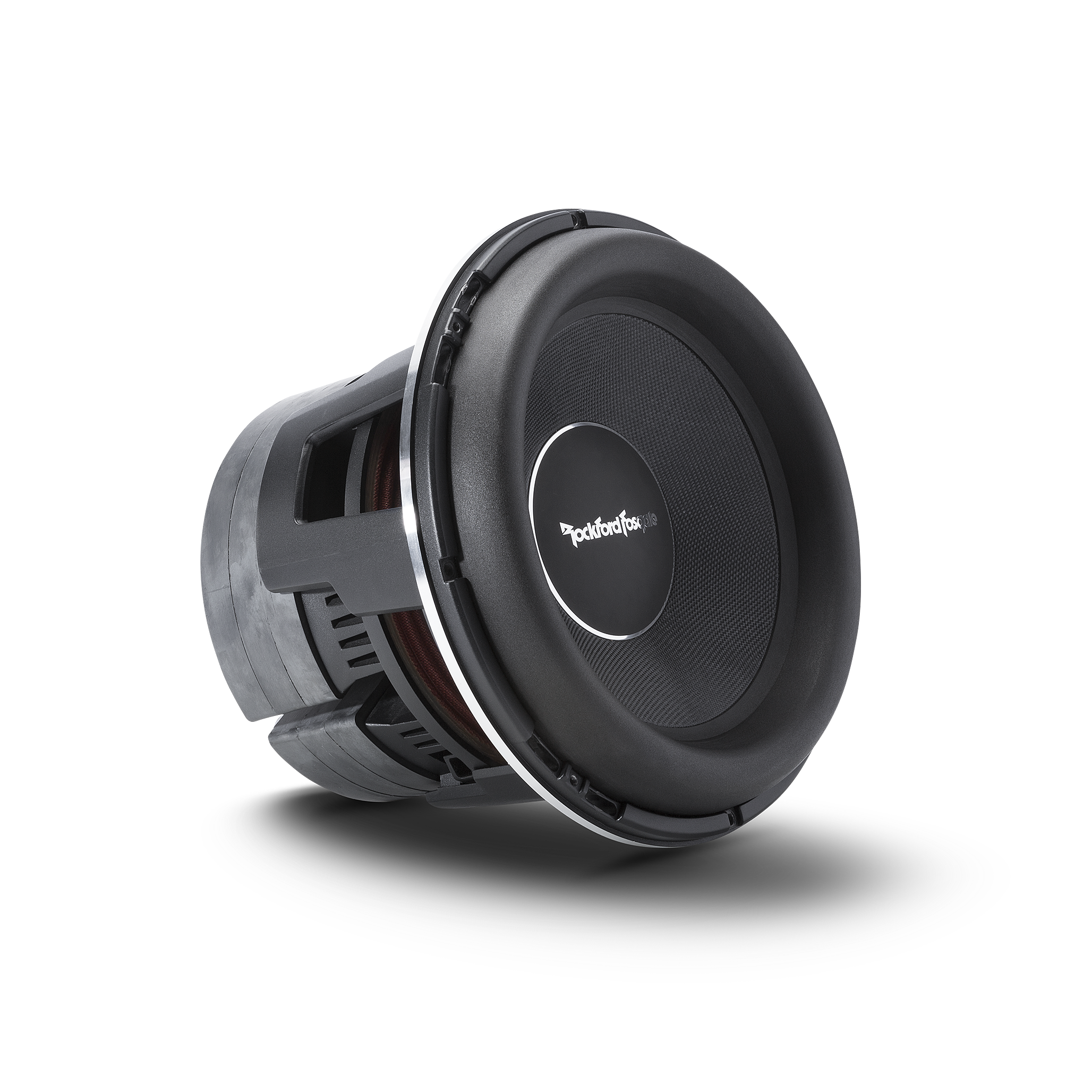

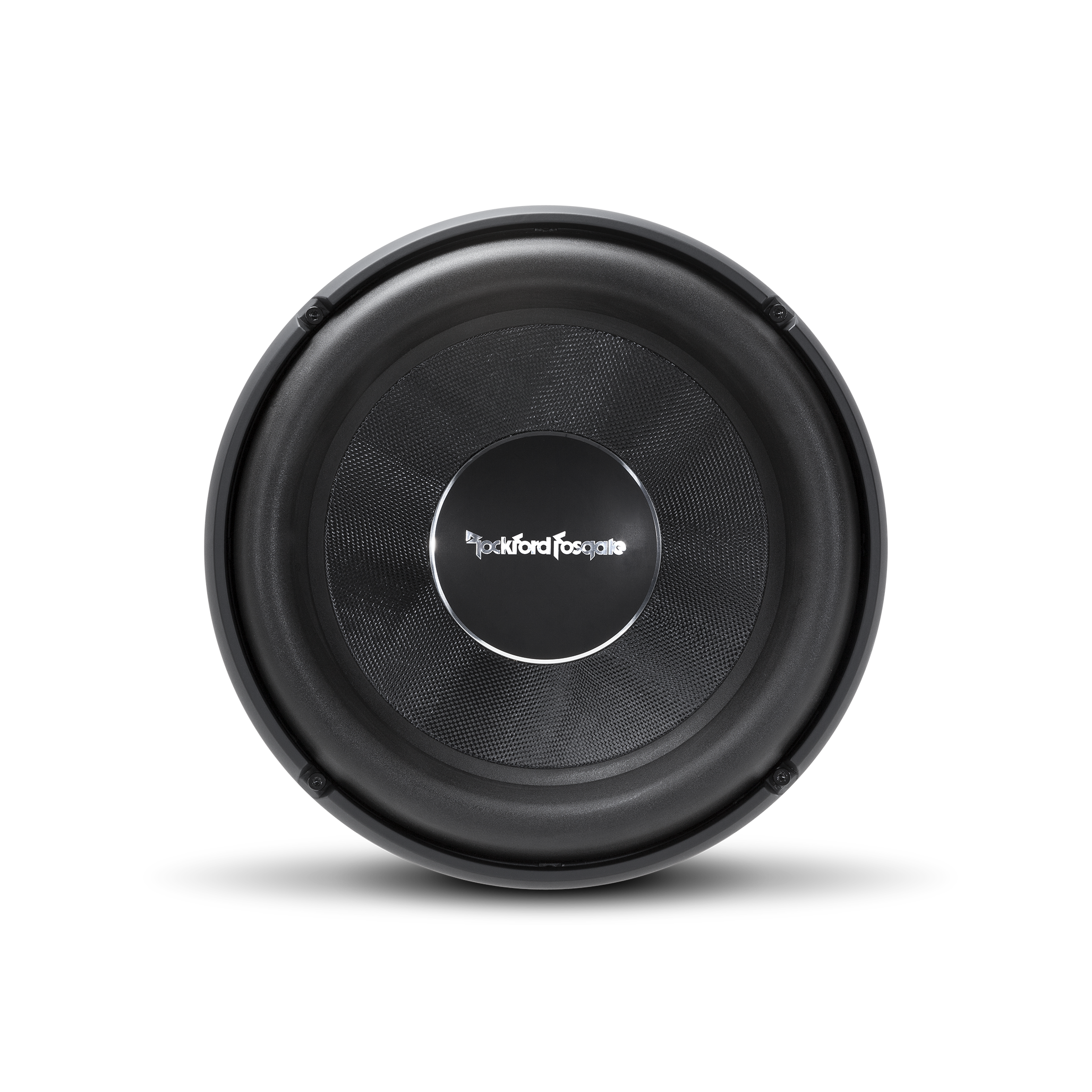

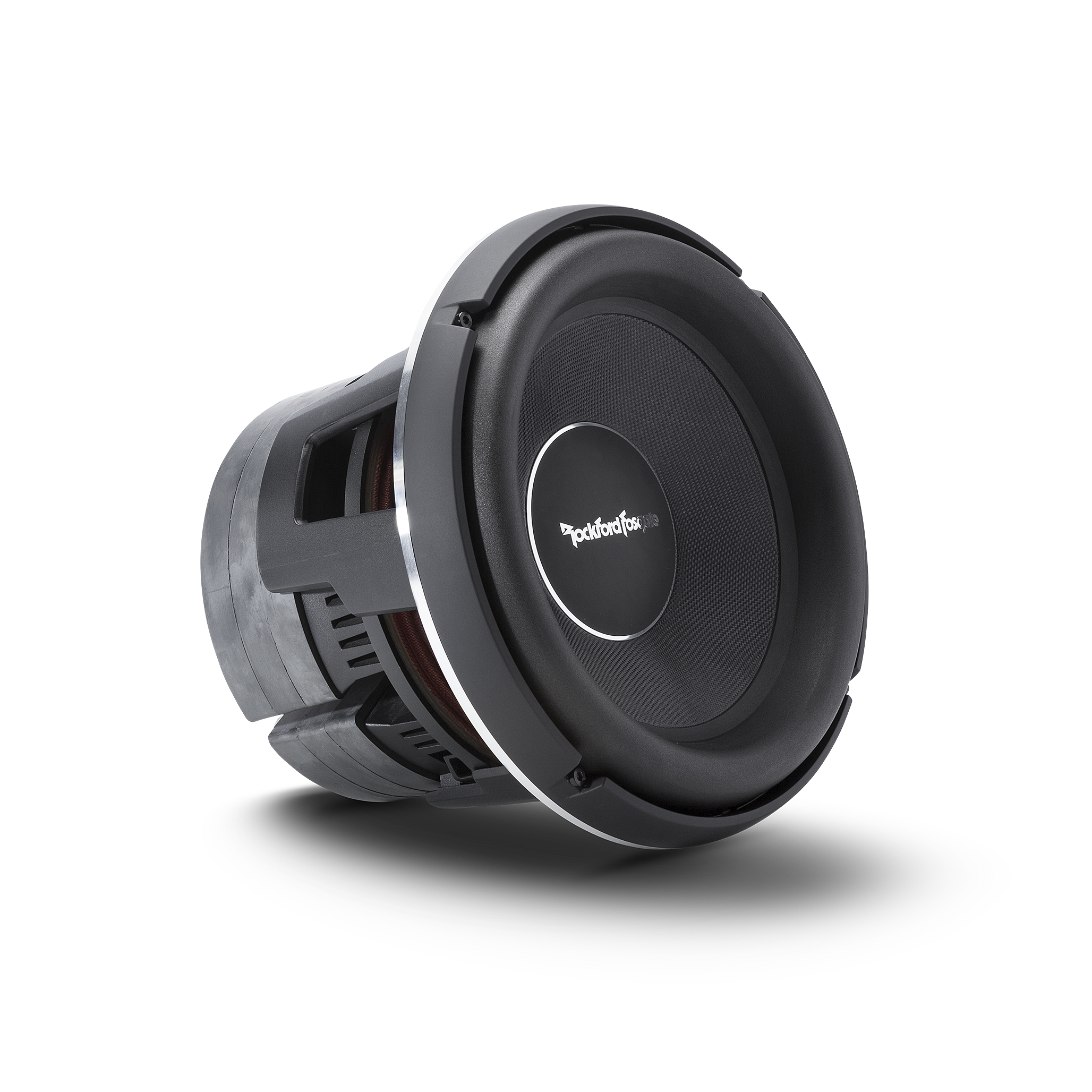

The Power T2S1-13 subwoofer features 13 inches of effective radiating cone area and a single 1-ohm voice coil for ease of wiring.

Features

• 1 Year Warranty
• Aluminum dustcap
• Custom push spring insulated 8 AWG terminals
• Detachable die cast aluminum trim ring
• Diecast aluminum frame with integrated heat sink fins
• Dual Nomex progressive spiders with stitched tinsel leads
• Injection molded foam surround with VASTTM
• Integrated aluminum heat sinking shorting ring (IDHS)
• Proprietary surround mechanical clamping ring
• Single layer edge wound aluminum 4" voice coil
• Three layer glass fiber/Aramid honeycomb/Glass fiber cone
• Triple stack segmented ferrite motor structure
• Vented pole piece

Specifications

• Power Handling (Watts RMS): 2000 Watts RMS; 4000 Watts Max
• Subwoofer Type: Standard
• Voice Coil Type: Single Voice Coil
• Voice Coil Diameter: 3.96" (100 mm)
• Qms: 2.93
• Qts: 0.34
• Vas (Liters): 69.3
• Qes: 0.39
• Fs (Hz): 25
• Size: 13"
• Nominal Impedance: 1-Ohm
• Re (Ohms): 0.9
• Speaker Connector: 8 AWG slot loaded
• Le (mH): 0.53
• SPL (dB @ 1w/1m): 87
• SPL (dB @ 2.8v/1m): 90
• Sd (cm2): 707
• Xmax (mm): 34
• Cutout Diameter: 12.28 in. (312 mm)
• Magnet Weight (oz): 528 oz. (14.97 Kg)
• Mounting Depth: 9.70 in. (246 mm)
• Sealed Box Volume (Vb): 1.85 cu. ft. (52.3 Liters)
• Woofer Displacement: 0.250 cu. ft. (7.08 Liters)
• Vented Box Volume (Vb): 4.0 cu. ft. (113 Liters)
• Shipping Weight: 93.70 Lbs. (42.5 Kg.)
