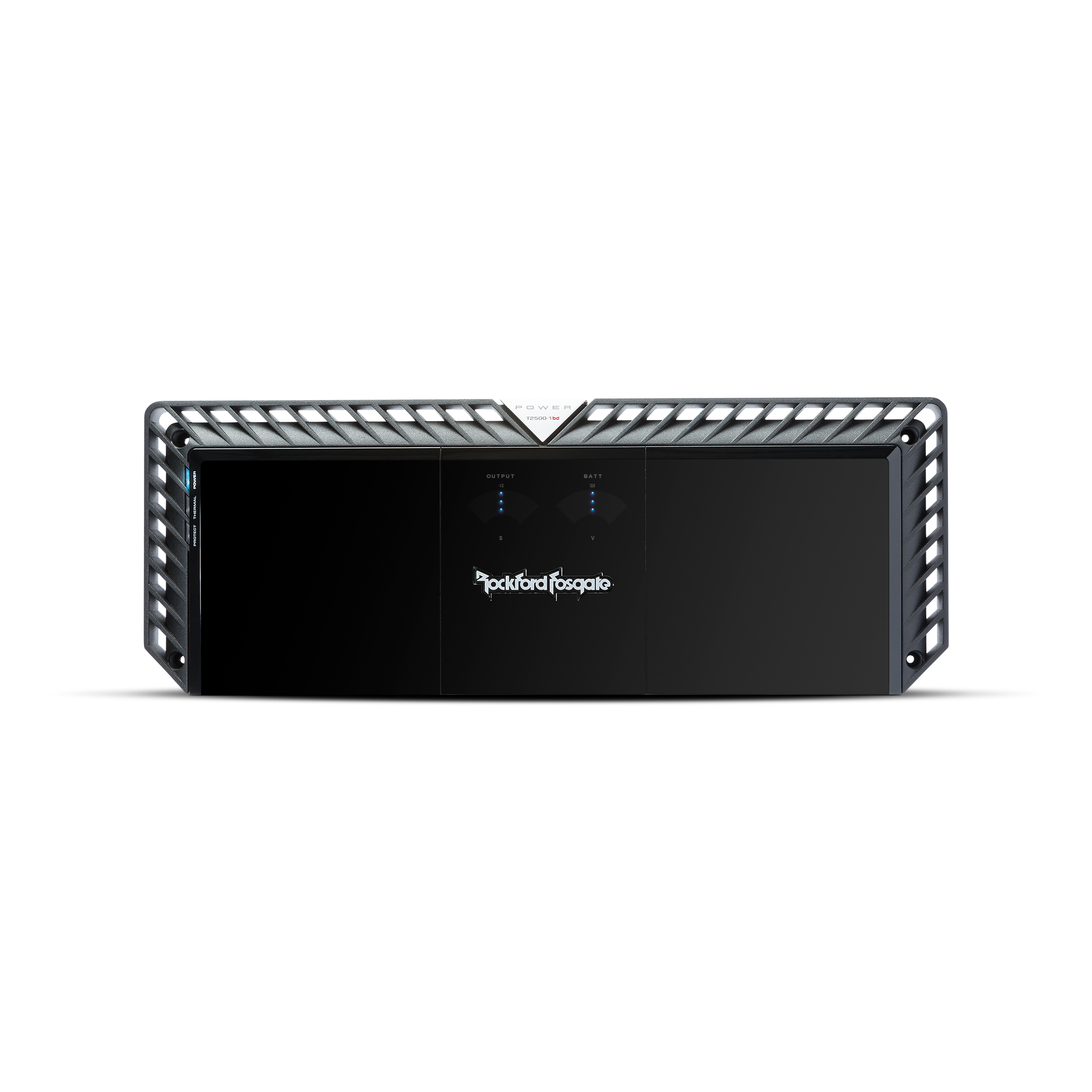

Power 2500 Watt Class-bd Constant Power Amplifier

Overview

The Power T2500-1bdCP is a 2,500-watt mono amp featuring Constant Power. This amp is so flexible that you can use a pair in bdSYNC mode to deliver 5 Kilowatts.

Features

• MOSFET power supply
• Audiophile grade speaker connections
• RCA pass-thru outputs
• 24dB/octave crossover
• Infrasonic filter
• 1/0 AWG power/ground connectors
• MasterSync - allows 1 amplifier to control an array of amplifiers
• 0°/180° Phase Switch
• PowerSync - allows 2 amplifiers to be "strapped" together
• Blue L.E.D. Simulated VU Signal/Power Meters
• MOSFET output stage
• 2-Year Warranty

Technologies

• MEHSA³: MEHSA³ reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
• Balanced Differential Inputs: Differential inputs eliminate noise picked up by signal cables.
• TO-247 MOSFETs: (left-OLD | right-NEW)
  Rockford Fosgate amps use custom TO-247 MOSFETs. These have 60% more metal tab area for more power capacity, lower impedance and improved heat dissipation over traditional TO-220 MOSFETs found in competitor amps.
• CTA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
• Class-BD: Class-BD amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional Class-A/B amplifiers.
• Punch Bass EQ: Onboard equalizer with up to +18dB @ 45Hz.
• DSM: DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
• Engineered In The USA: These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
• Constant Power: Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying impedance loads.

Specifications

Input Sensitivity	150 mV to 4 V
Channel Separation	—
Common Mode Rejection	68 dB
Signal-to-Noise (CEA)	75 dB
Frequency Response	20Hz to 250Hz +/-0.5dB
Bridgeable	Yes (two amps can be "strapped" together using bd-Sync2 cable to create one monster amplifier)
CEA-2006 Compliant	CEA-2006 Power Rating 1500W x 1 @ 4Ω ≤1.0% THD+N
Total Harmonic Distortion (THD+Noise)	4-Ohm:<1.0% 2-Ohm:<1.0% 1-Ohm:<1.0%
Rated Power (RMS Continuous Power)	1500 Watts x 1 @ 4-Ohm 2500 Watts x 1 @ 2-Ohm 2500 Watts x 1 @ 1-Ohm Two amplifiers in bdSYNC: 5000 Watts x 1 @ 2-Ohm
Efficiency (average)	81.9% @ 4-Ohm 77.7% @ 2-Ohm 64.5% @ 1-Ohm
Dynamic Power (PVC/PowerCube®)	1823 Watts x 1 @ 4-Ohm 2940 Watts x 1 @ 2-Ohm 2980 Watts x 1 @ 1-Ohm
Total Power (Sum of Rated Power)	2500 Watts RMS
Circuit Topology Class	Class BD
Number of Channels	1
Signal Output	1 RCA pair
Damping Factor	>200
Tone Controls	Bass: 0dB to +18dB @ 45Hz
Crossover Controls	Low-Pass (LP): 35Hz-250Hz @ 24dB/octave Butterworth Infrasonic: 12dB/octave Butterworth, -3dB @ 28Hz
Signal Input	1 RCA pair
Power Input Connector	Block
Visual Indicators	Power (Blue LED) Thermal (Red LED) Protect (Yellow LED) Output -00dB to +2dB @ 11 steps (Blue LEDs) Battery 9VDC to 16VDC @ 11 steps (Blue LEDs)
Remote Controls	Optional Remote PEQ (overrides built-in Punch Bass)
Power Wire Gauge	1/0 AWG
Speaker Output Connector	Block
Speaker Wire Gauge	8 AWG to 16 AWG
Cooling	Convection
Heat Sink Type	Cast aluminum
Operating Voltage	9 - 16 VDC
Recommended Fuse (not included)	300 A
Average Current Draw (13.8V Music)	175 A
Max. Current Draw (13.8V Sinewave)	350 A
Dimensions (H x W x D)	2.14 x 8.14 x 21.875 (in) 5.44 x 20.68 x 55.66 (cm)
Suggested Alternator	200 A
Shipping Weight	21.7 lb. (9.84 Kg.)
