Overview

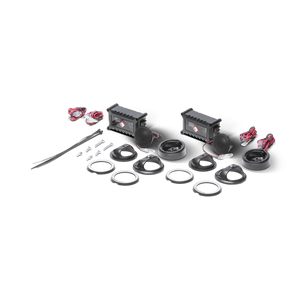

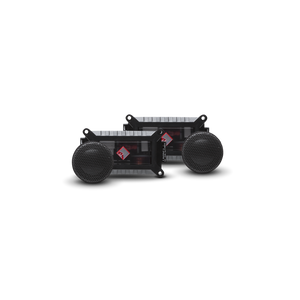

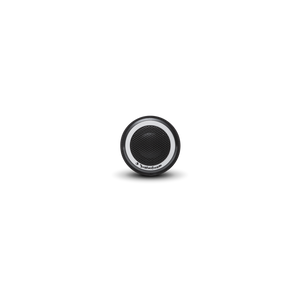

The T1T-S is an audiophile 1" fabric dome tweeter kit rated at 75 Watts RMS for fanatics preferring this type of tonal quality. The kit includes two tweeters with dedicated crossovers, trim rings, and mounting hardware. Sold in pairs (2 each)
Features
- 1 Year Warranty
- 5% tolerance high quality poly-capacitors and air-core inductors
- External audiophile grade component crossover
- On-axis/off-axis tweeter configuration
- Recessed tweeter mount uses standard 1-3/4" hole saw
- Sold in pairs (2 each)
- Treated fabric dome neo-tweeter with integral suspension
Specifications
- Midrange Mounting Depth: -
- Midrange Mounting Diameter: -
- Midrange Size; (Nominal Diameter): -
- Mounting Hardware: Yes
- Nominal Impedance (Ohms): 4-Ohm
- Power Handling (RMS): 75 Watts RMS; 150 Watts Max
- Speaker Type: Tweeter
- Tweeter Mounting Depth: Flush Mount: 0.91" (23 mm); Surface Mount: 1.06" (27 mm)
- Tweeter Size; (Nominal Diameter): 1.0" (25.4 mm)
- Crossover: High-Pass (HP): 3.0kHz @ 18dB/octave Butterworth
- Frequency Response (Hz): 3kHz - 22kHz
- Grille/Trim Ring Included: Yes
- Sensitivity; (dB @ 1W/1M): 90
- Shipping Weight: 1.6 Lbs. (0.72 Kg.)
