T1S2-10S
Overview

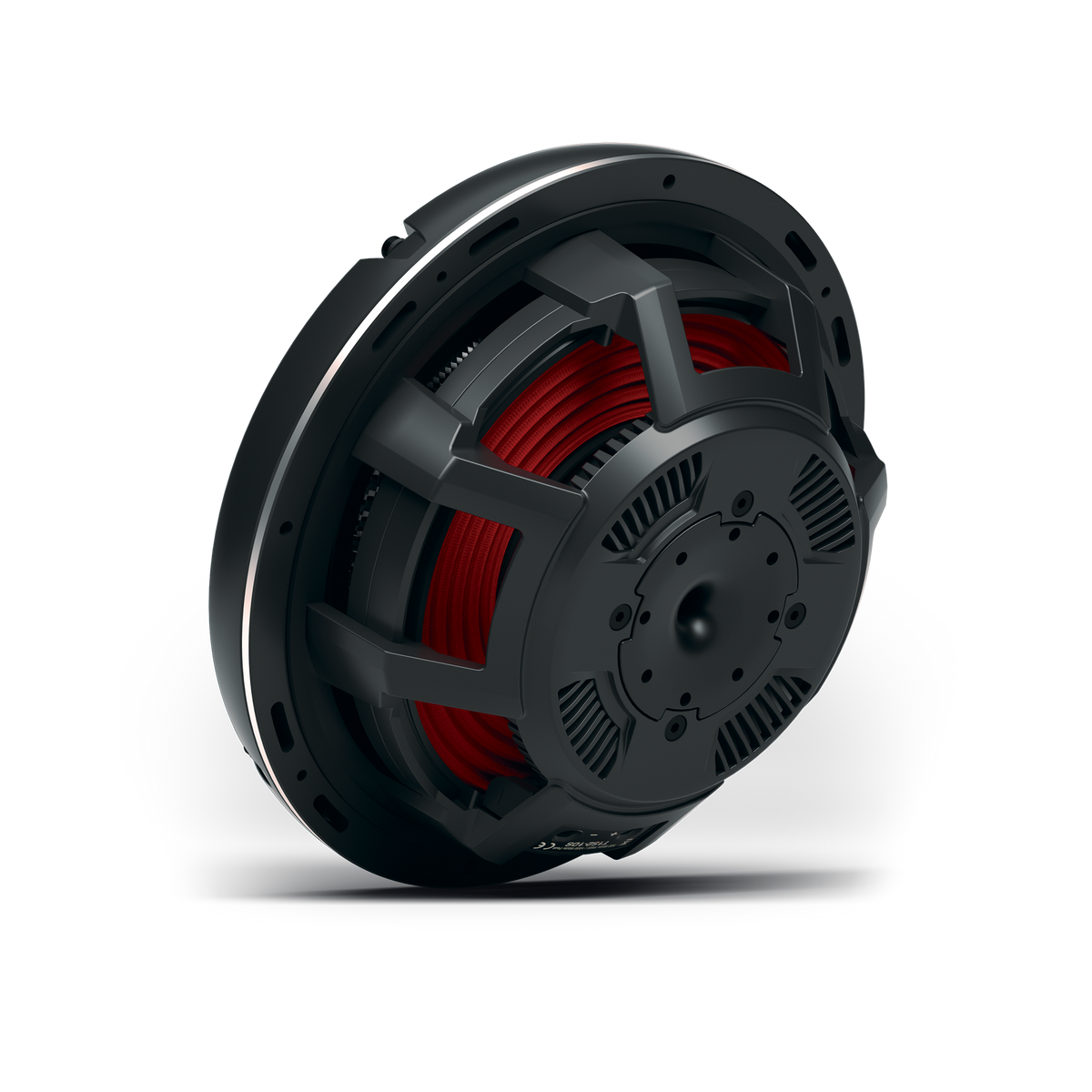

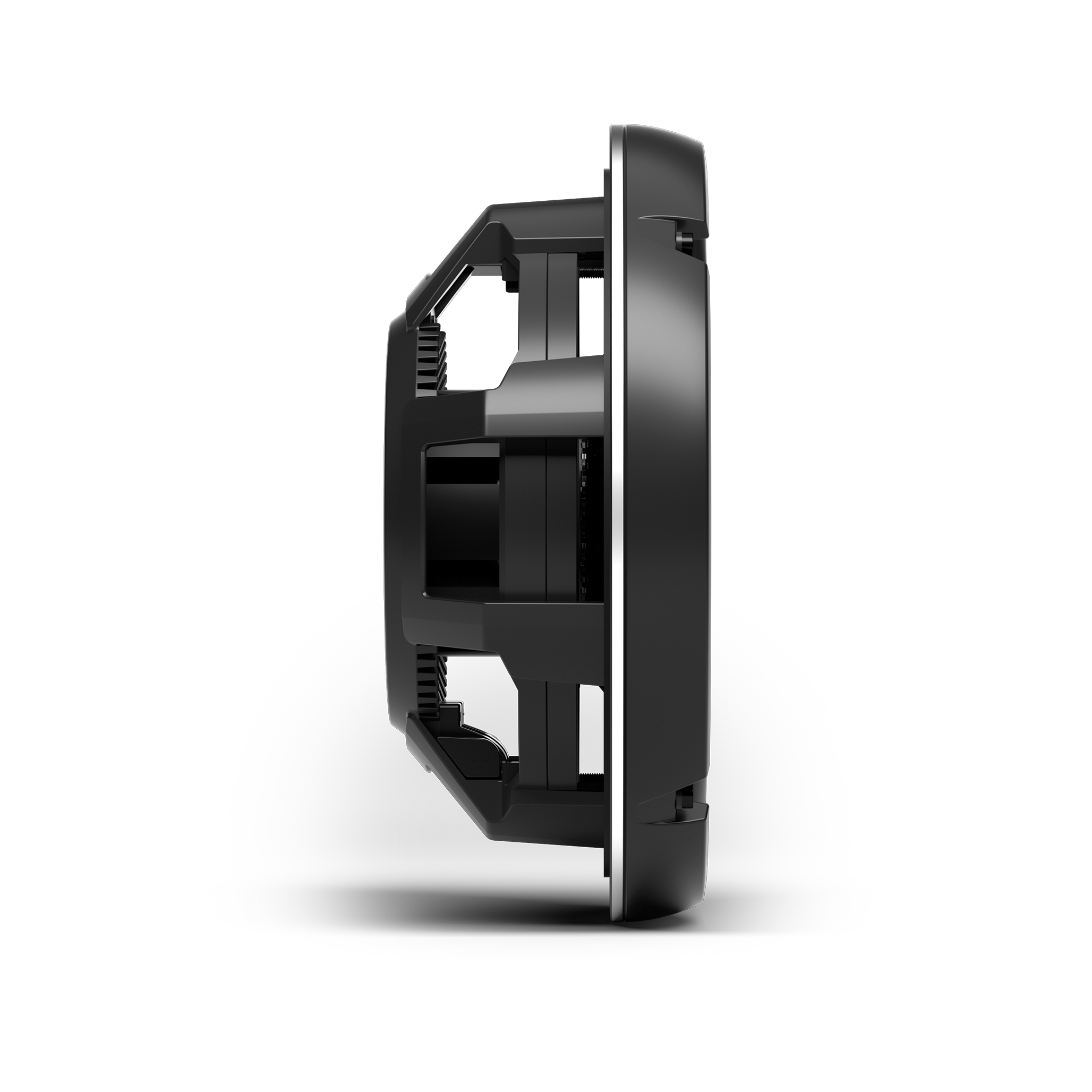

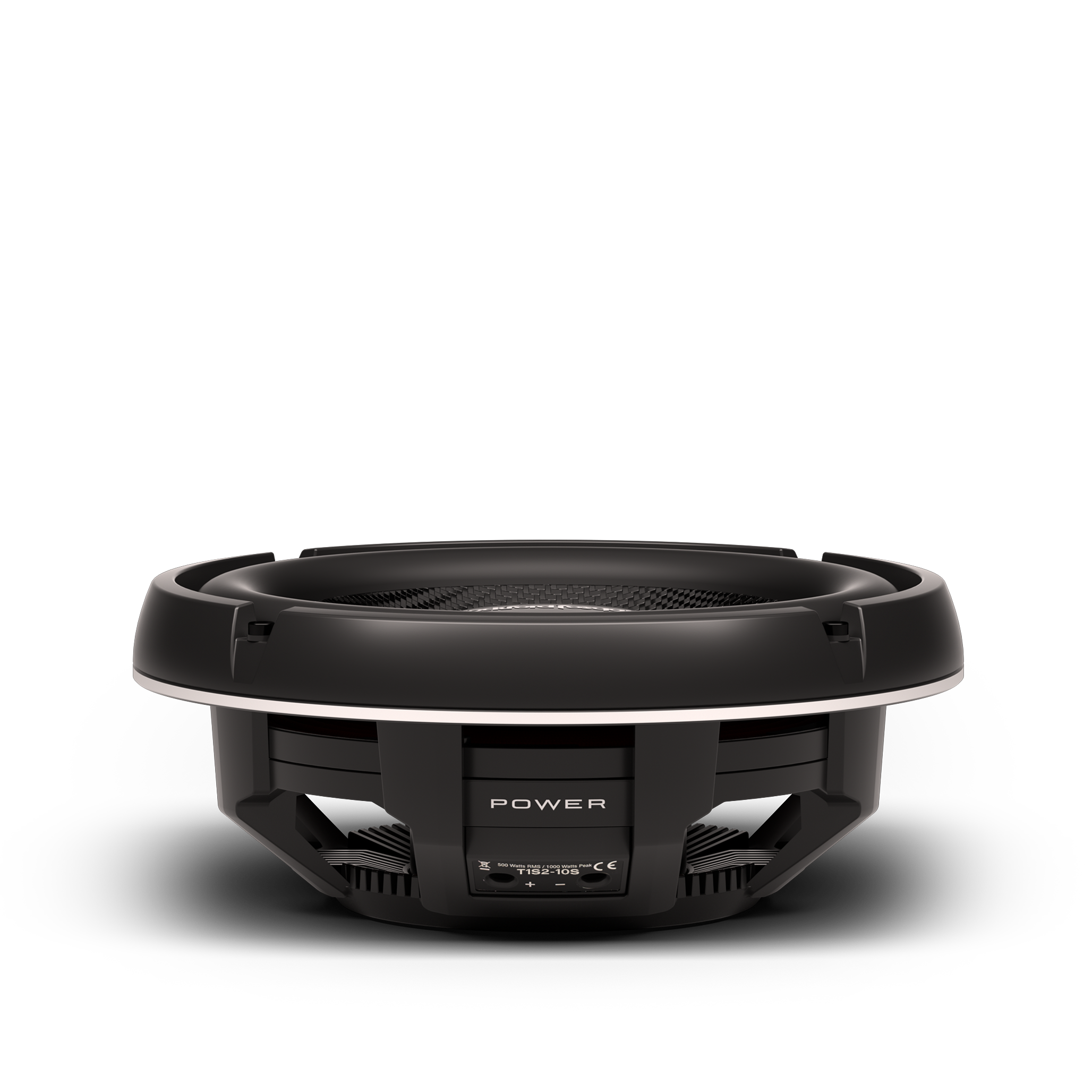

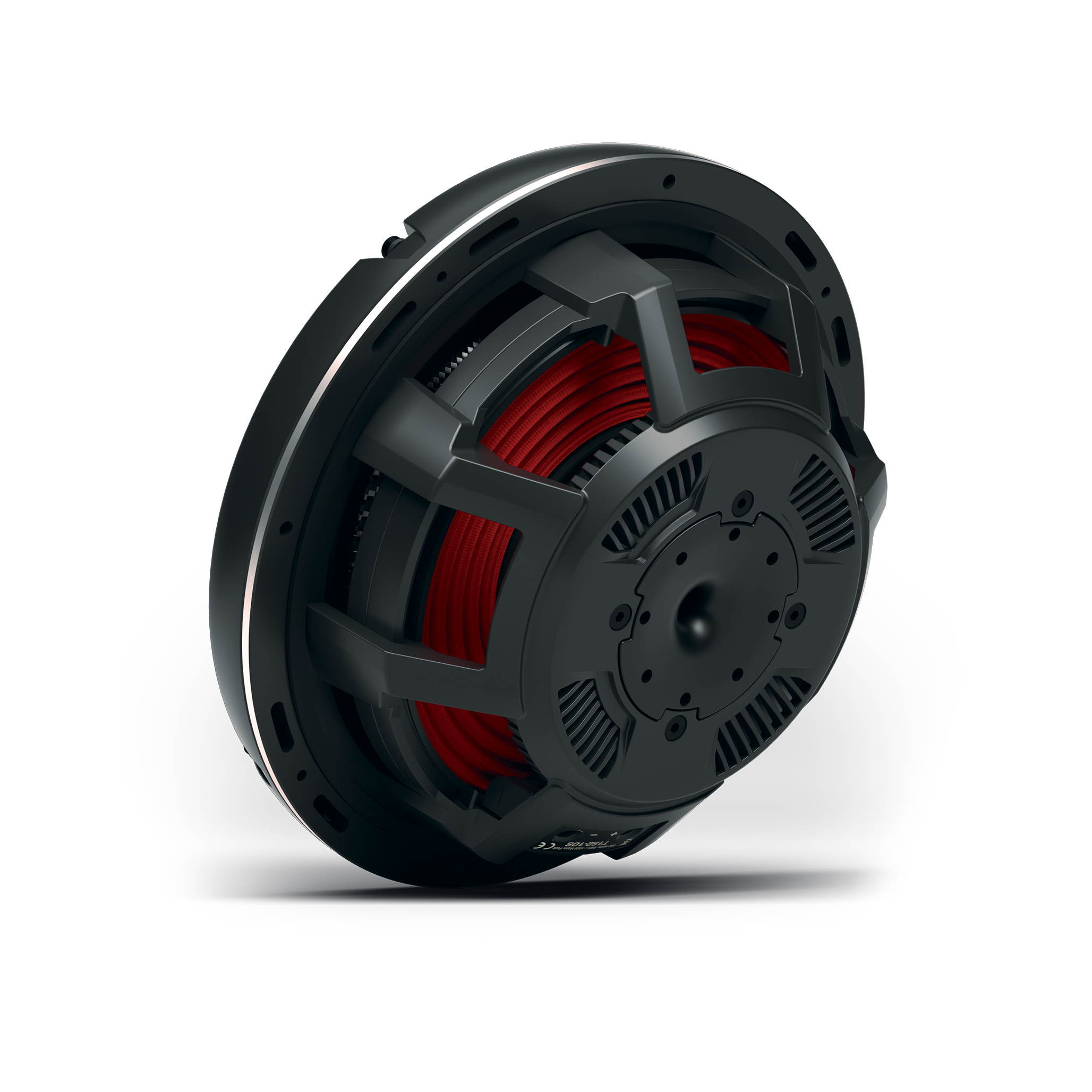

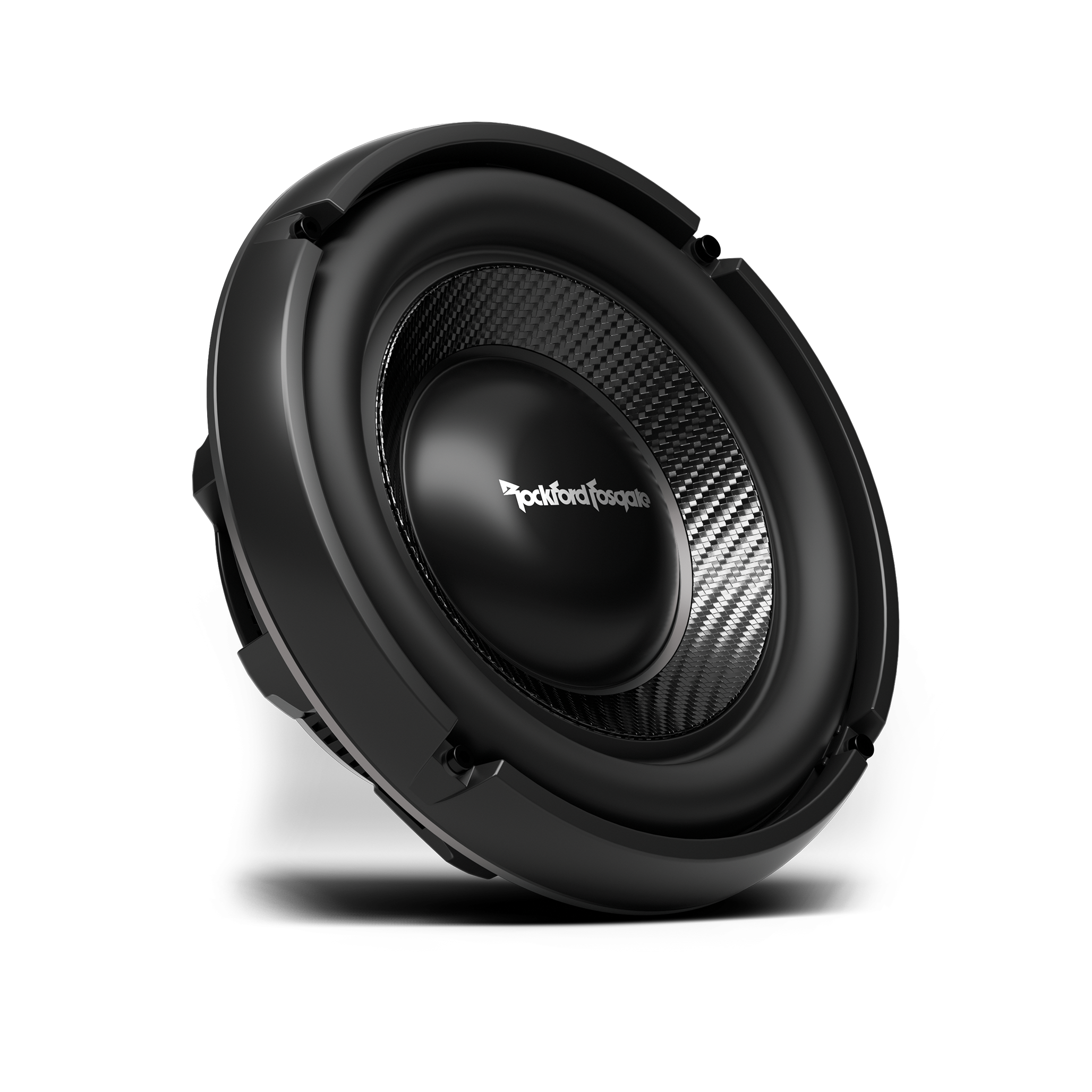

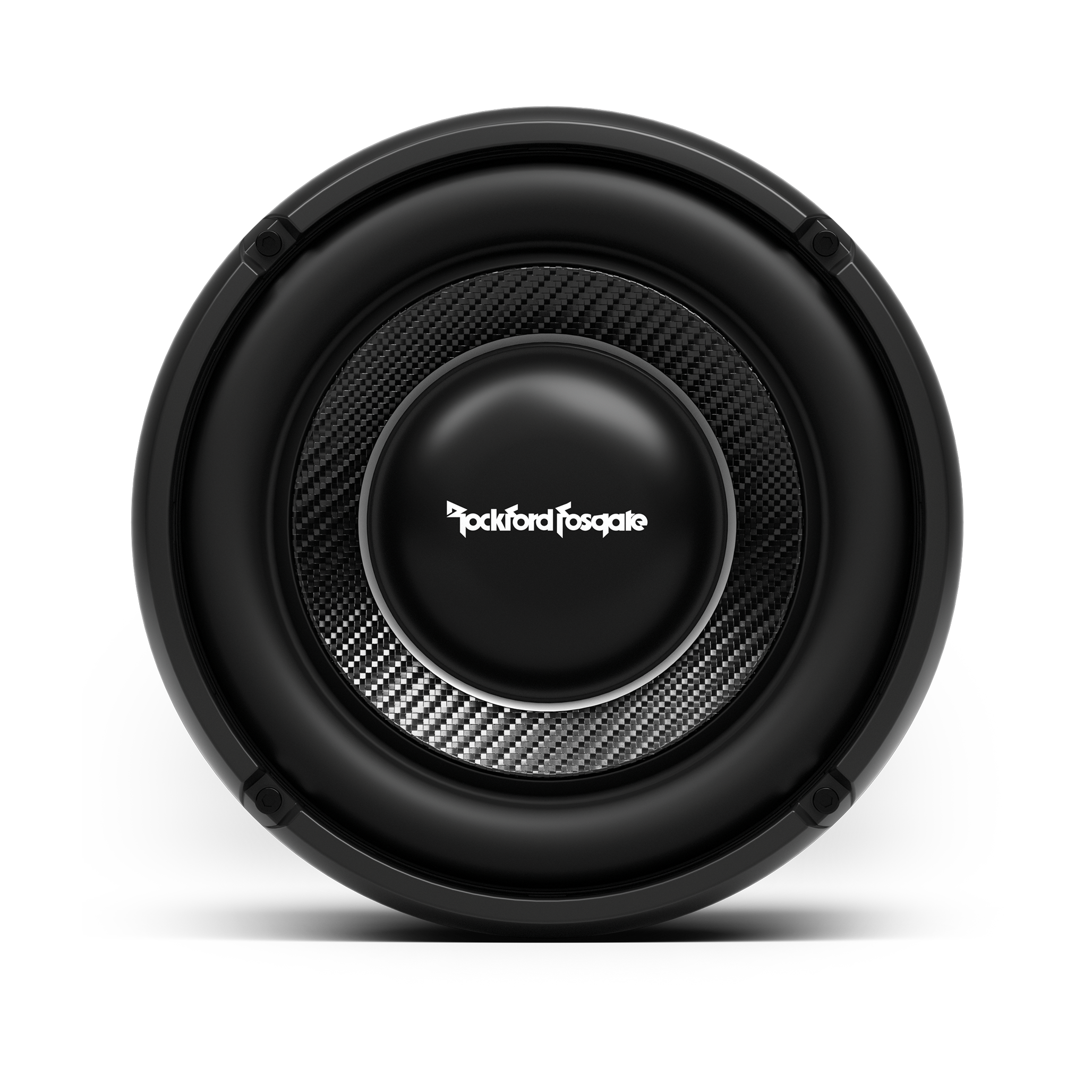

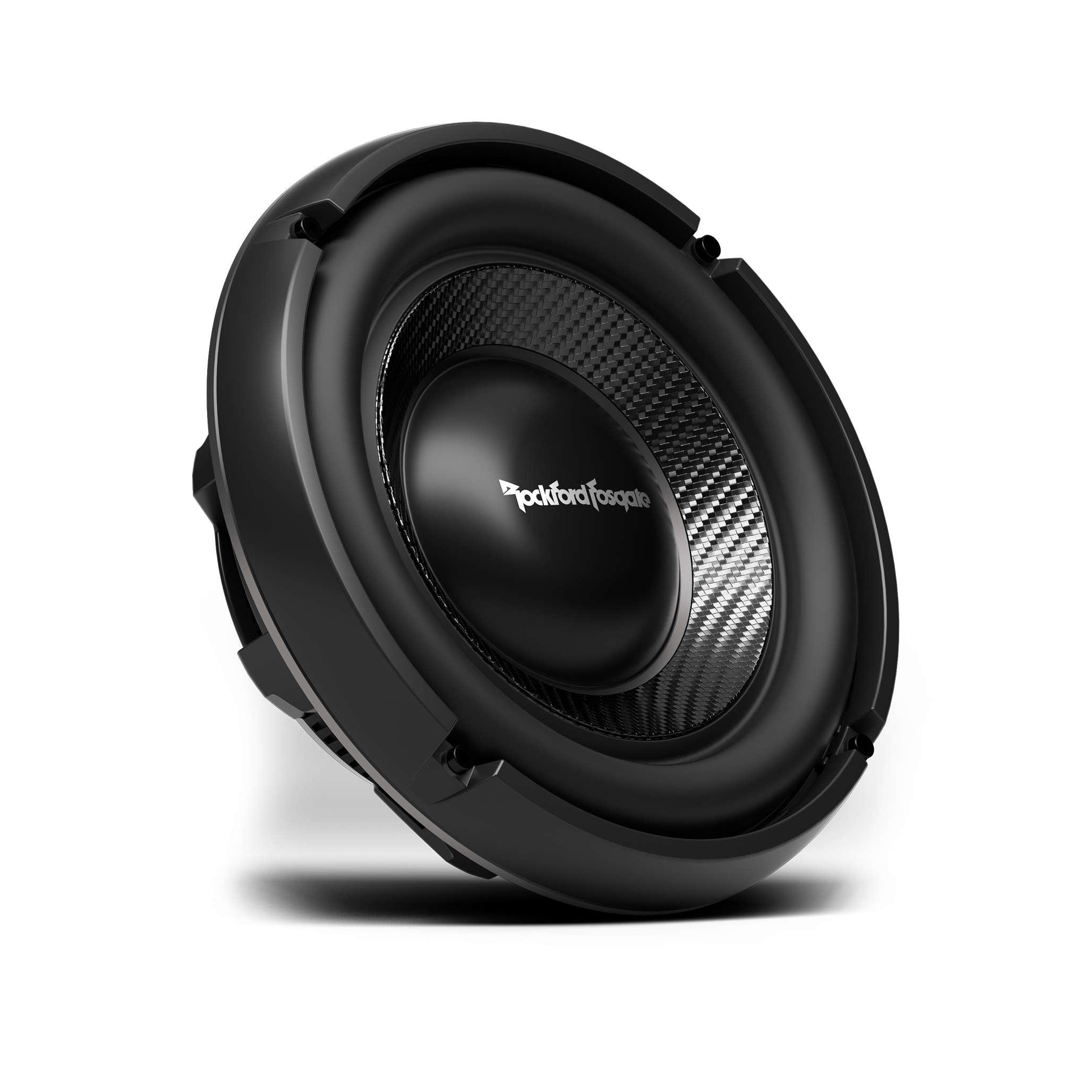

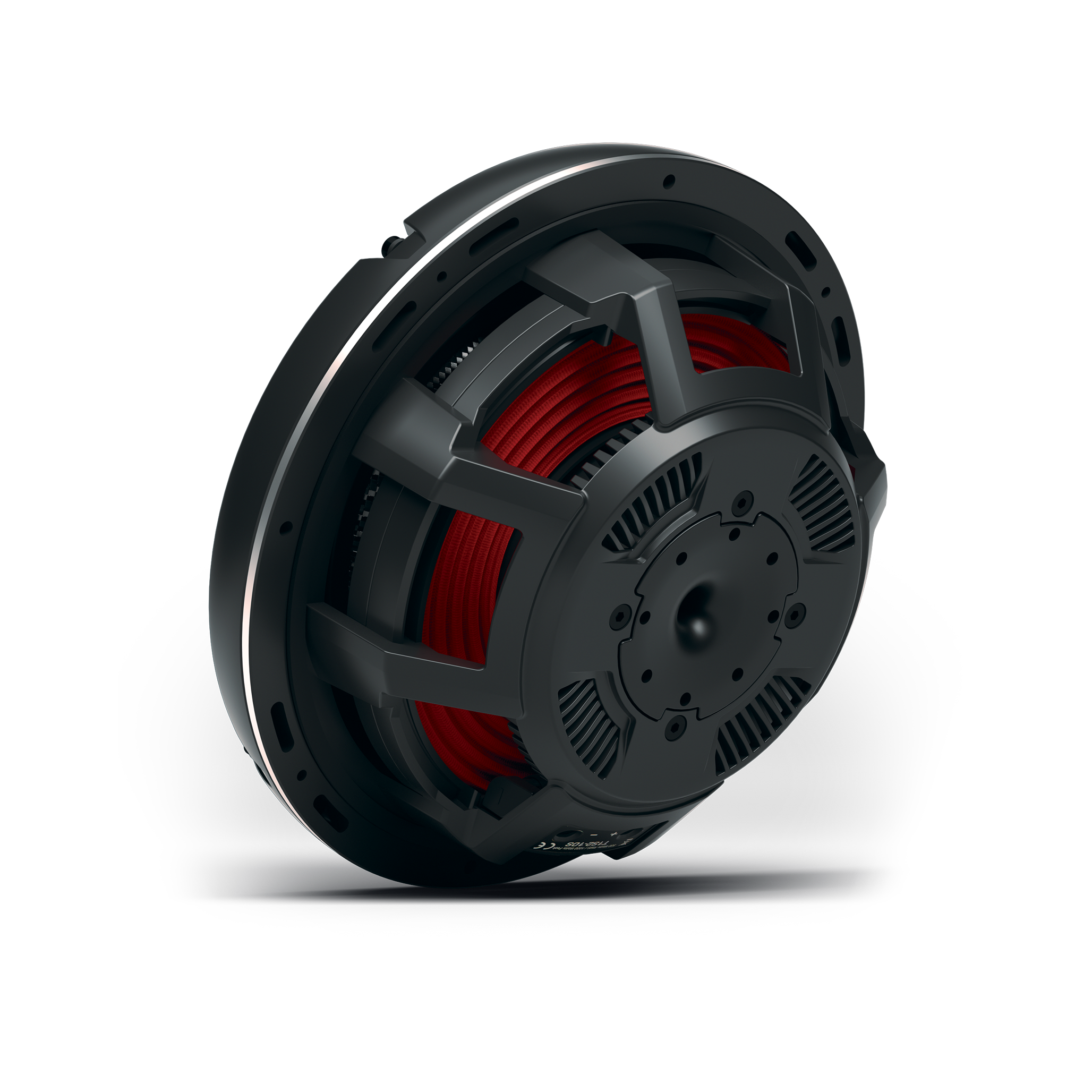

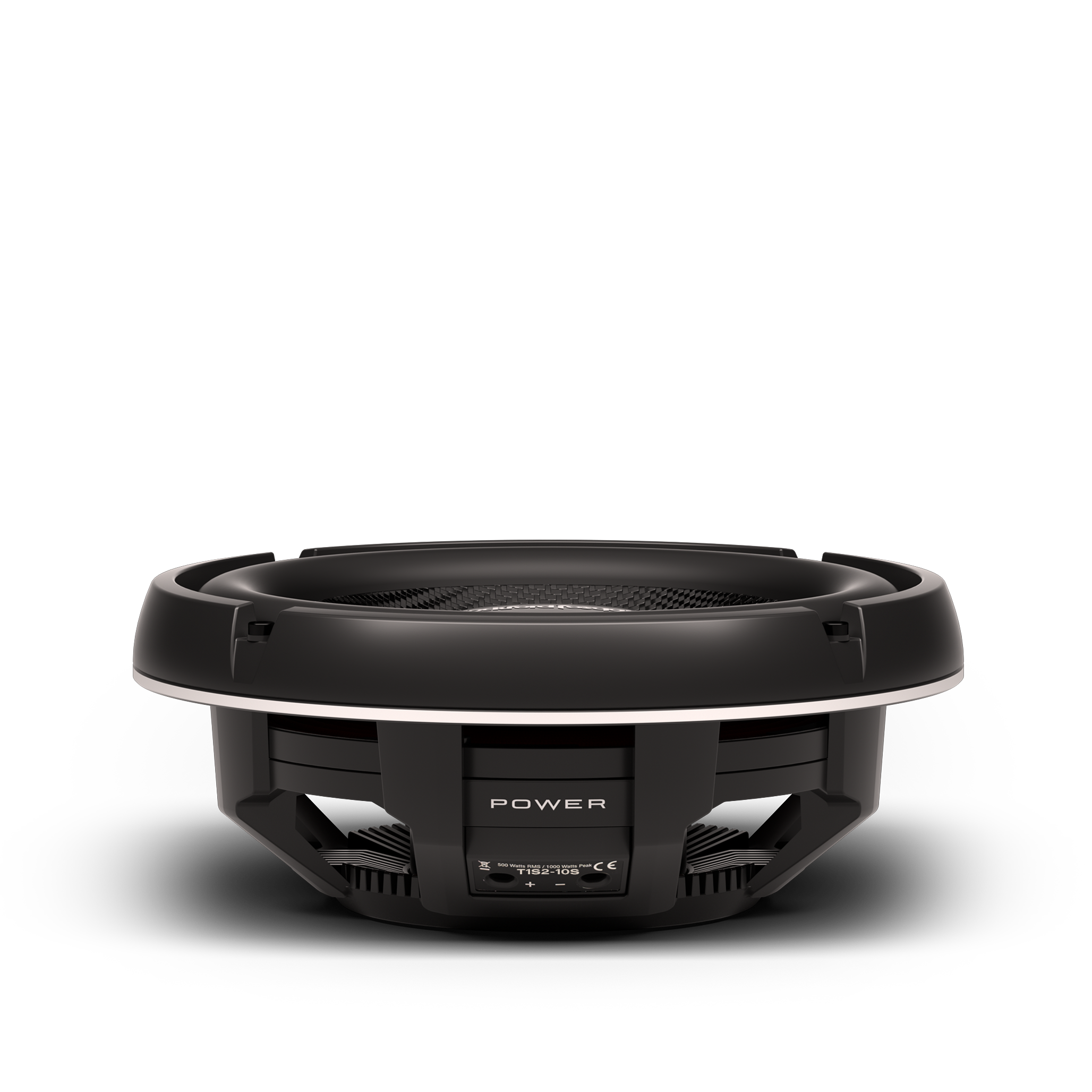

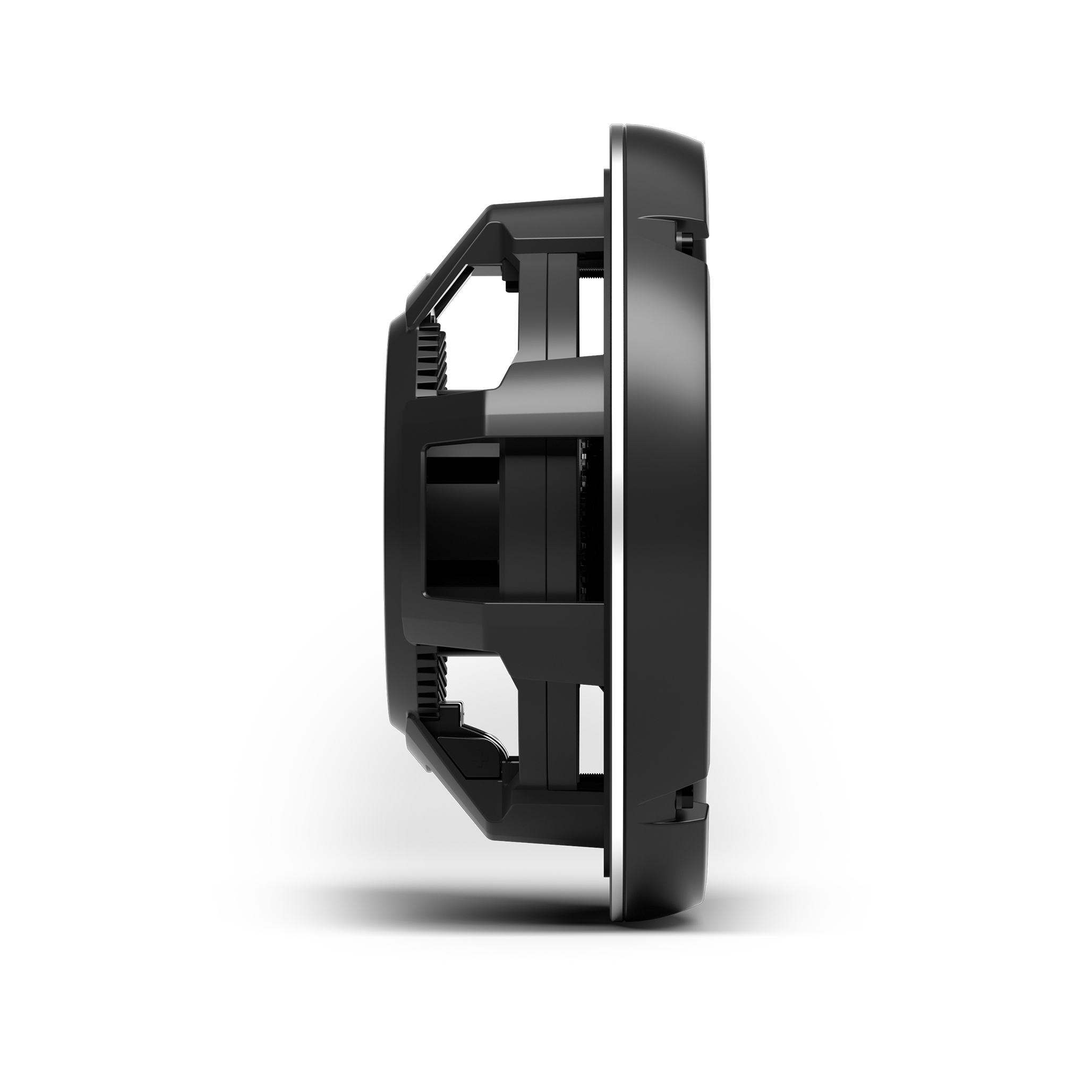

The Power T1S2-10S is a slimline 10" subwoofer designed for small sealed enclosures. Features a single 2-ohm single voice coil.
Features
- Supercritical synthetic organic polymer surround
- Linear Carbon Fiber/PMI/Glass Fiber cone with aluminum dustcap
- Chemically bonded co-molded surround for a stronger attachment
- Symmetrical ultra-flexible braided flat tinsel leads resistant to fatigue
- Dual Nomex progressive spiders with stitched tinsel leads
- Dual wound single 2.5" pure copper voice coil with interior and exterior coils
- High temp, high energy Neodymium motor structure
- Diecast aluminum frame with integrated heat sink fins
- Custom 10 AWG slot loaded brass push spring terminals with corrosion resistant tin plating
- Detachable die cast aluminum trim ring
- Optional protective grille insert available
- Optimized for compact sealed enclosures
- 1 Year Warranty
Specifications
- Size: 10"
- Frequency Response: 27 - 250 Hz
- Subwoofer Type: Shallow
- Nominal Impedance: 2Ohm
- Fs (Hz): 36
- Re (Ohms): 1.8
- Qms: 7
- Qes: 0.86
- Qts: 0.76
- Sd (cm2): 356
- Vas (Liters): 15.4
- Le (mH): 0.71
- Xmax (mm): 15
- SPL (dB @ 1w/1m): 82
- Power Handling (Watts RMS): 500 Watts RMS; 1000 Watts Max
- Voice Coil Type: Single Voice Coil
- Voice Coil Diameter: 2.5" (63.5mm)
- Magnet Weight (oz): 15.1 oz. (0.43 Kg)
- Speaker Connector: 10 AWG slot loaded
- Cutout Diameter: 9.13 in. (232 mm)
- Mounting Depth: 3.01 in. (76.5 mm)
- Woofer Displacement: 0.028 cu. ft. (0.82 Liters)
- Sealed Box Volume (Vb): 0.5 - 0.75 cu.ft. (14.2 - 21.2 Liters)
- Vented Box Volume (Vb): Not Recommended
- In The Box: (1) 1125-73494-01 Bit Driver, 40mm 5.0mm; (4) 1125-80626-01 4mm Hex, M5x43mm; (8) 1125-80626-01 4mm Hex, M5x43mm Self Tap
- Shipping Weight: 11 Lbs. (4.99 Kg.)
