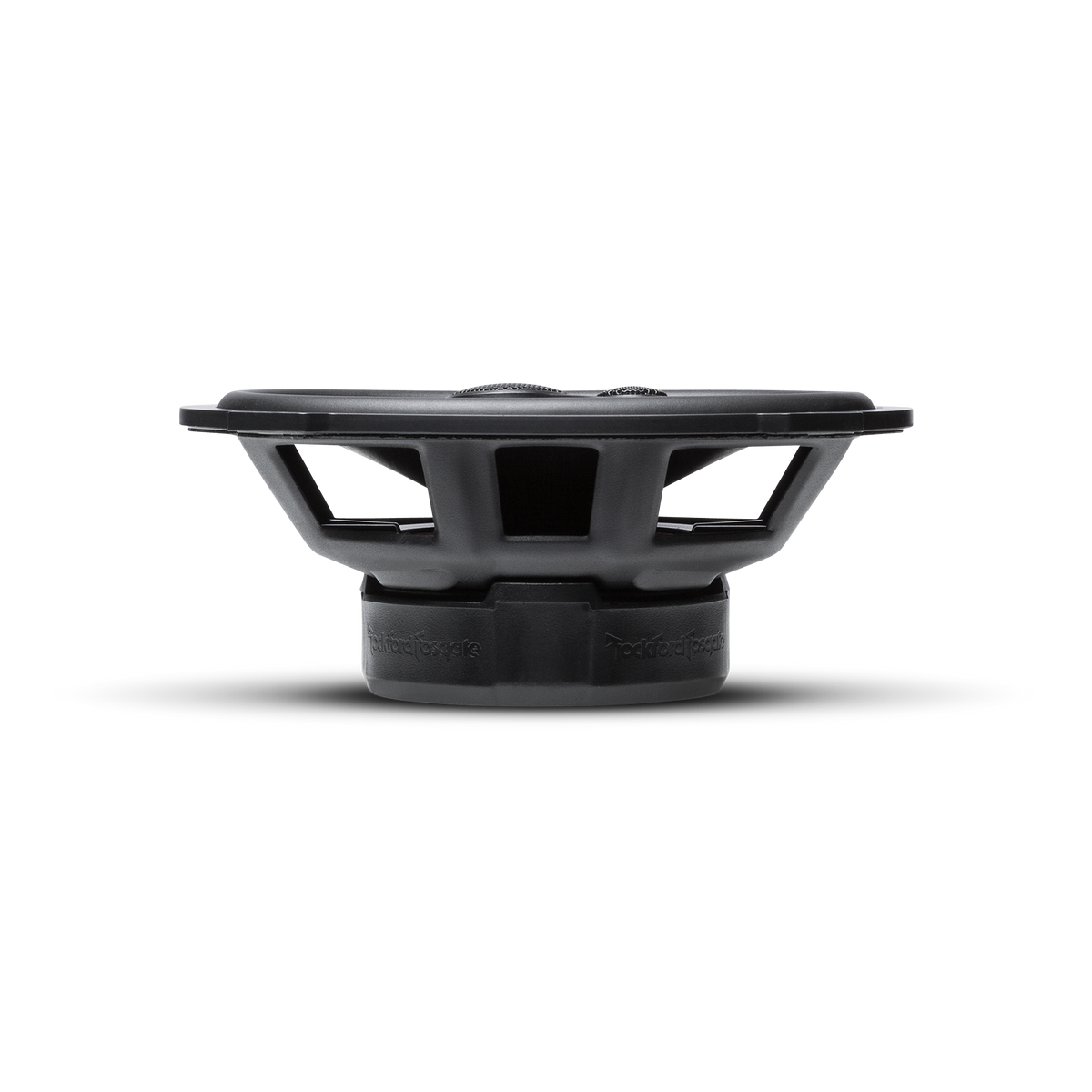

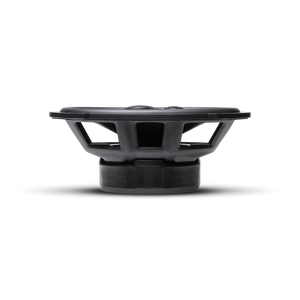

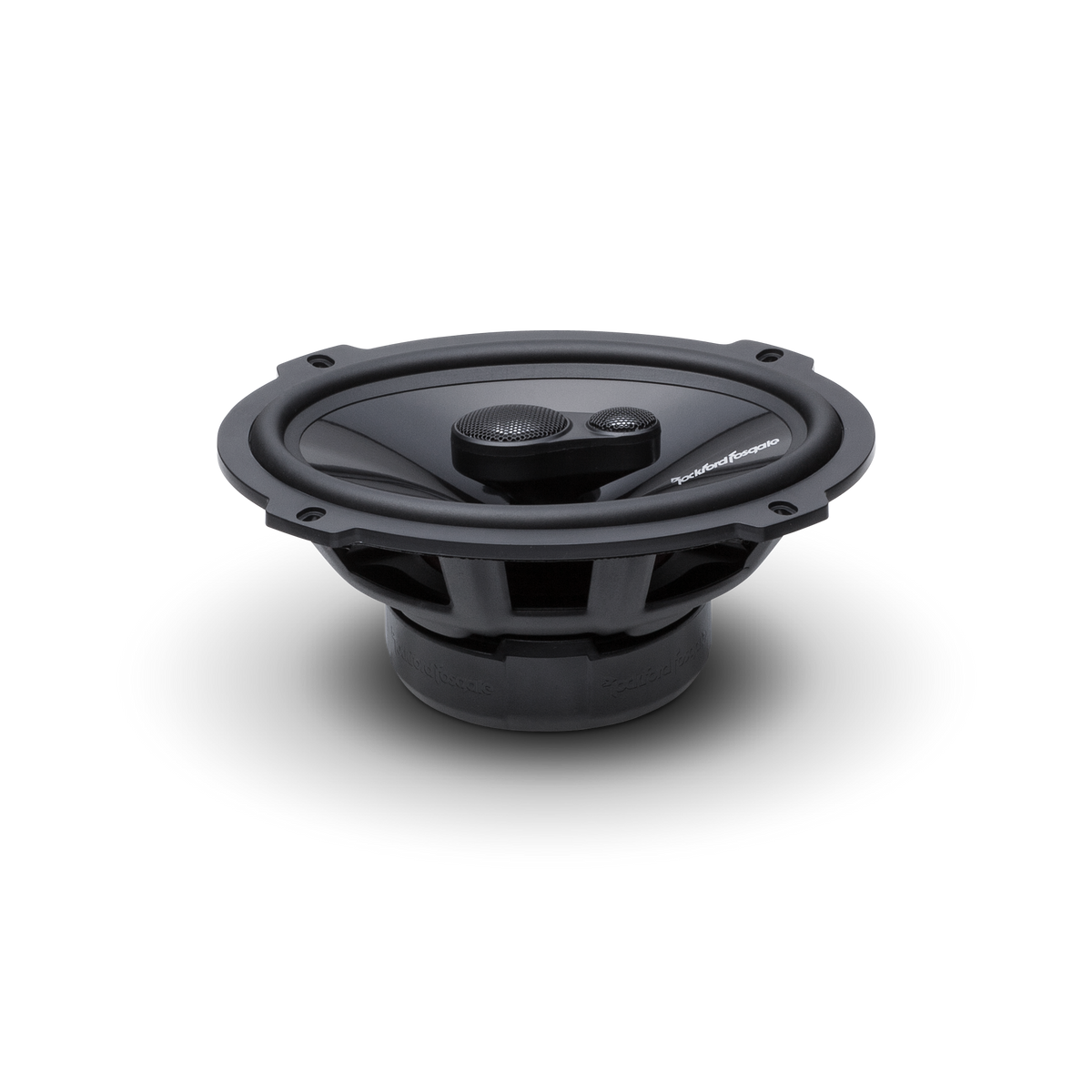

T1693
Overview

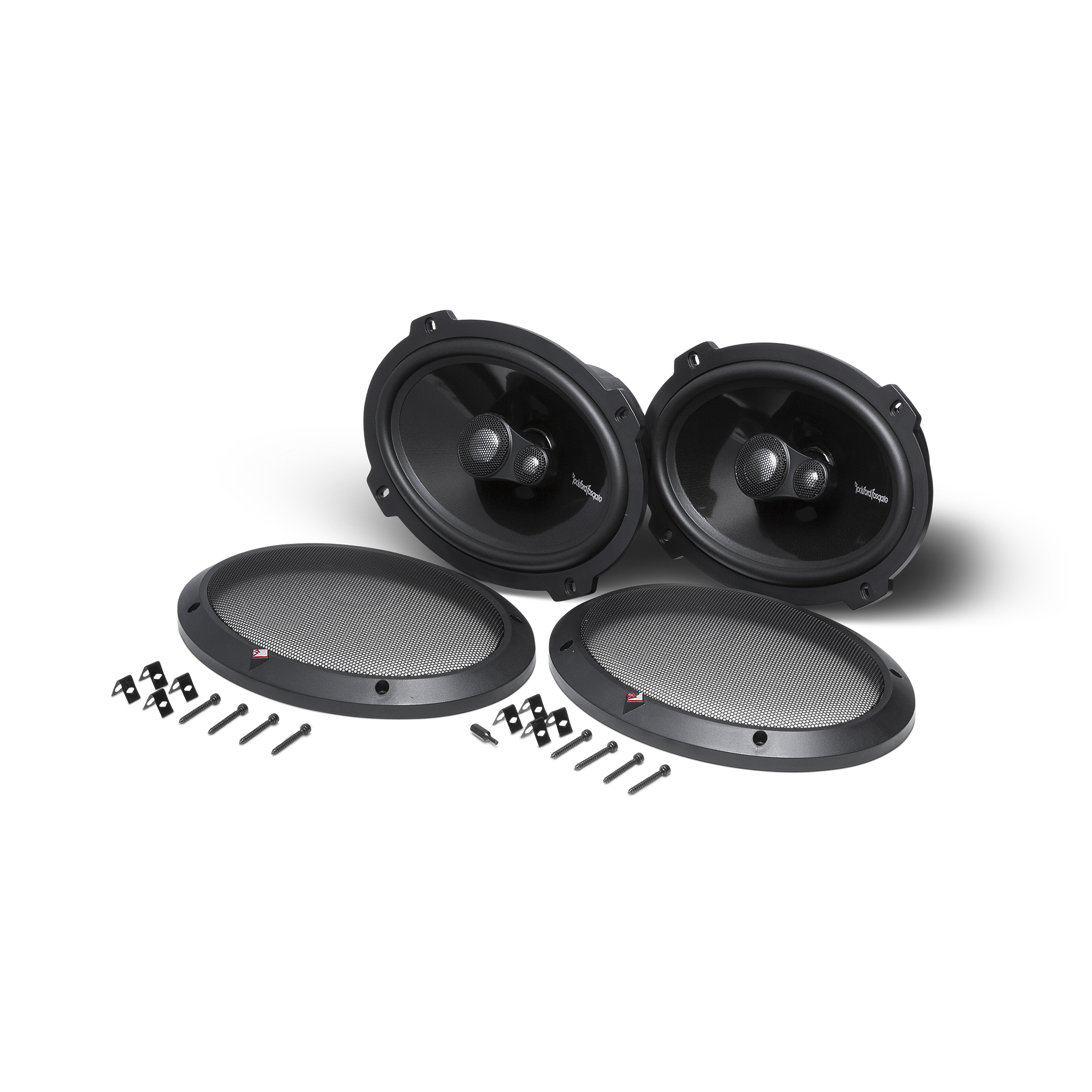

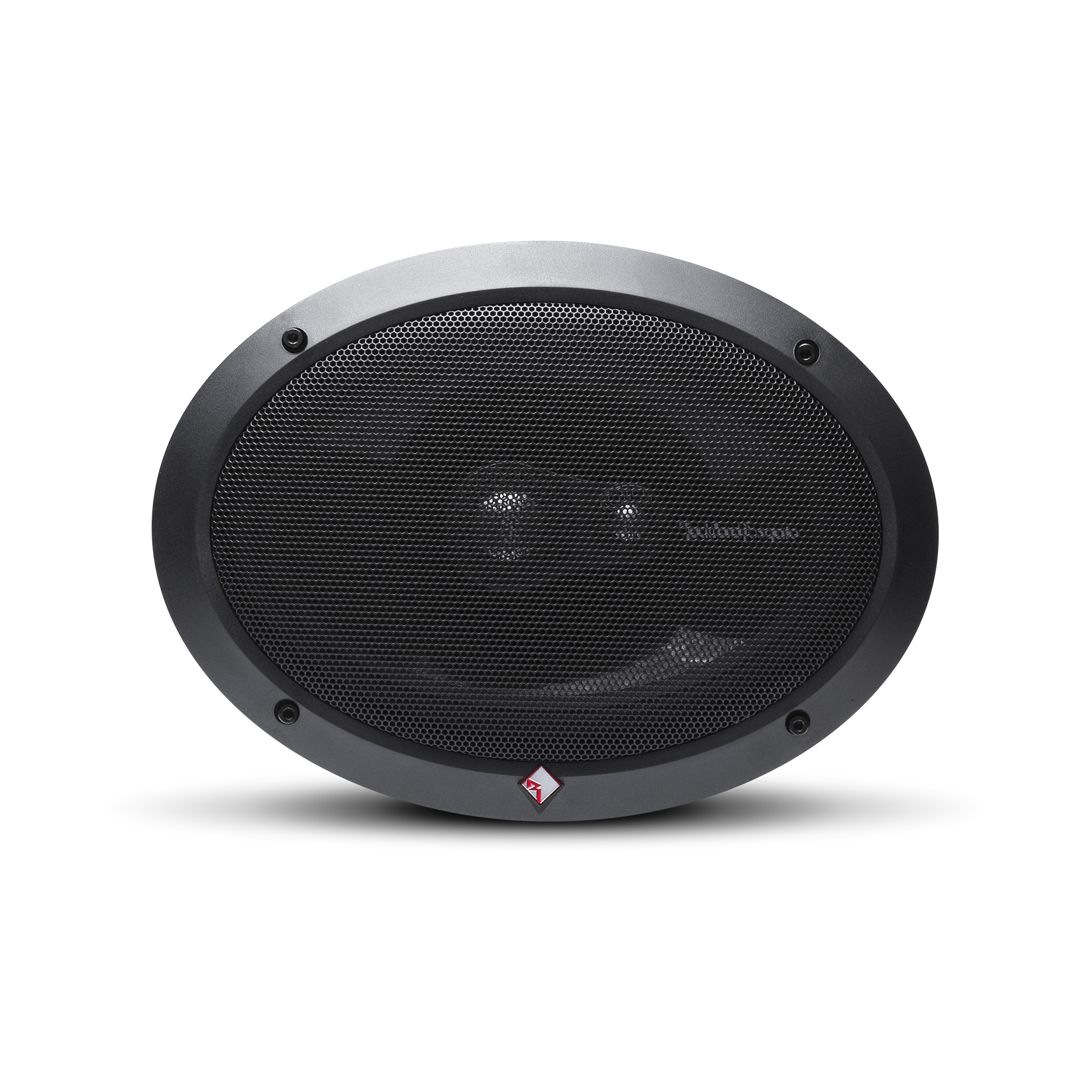

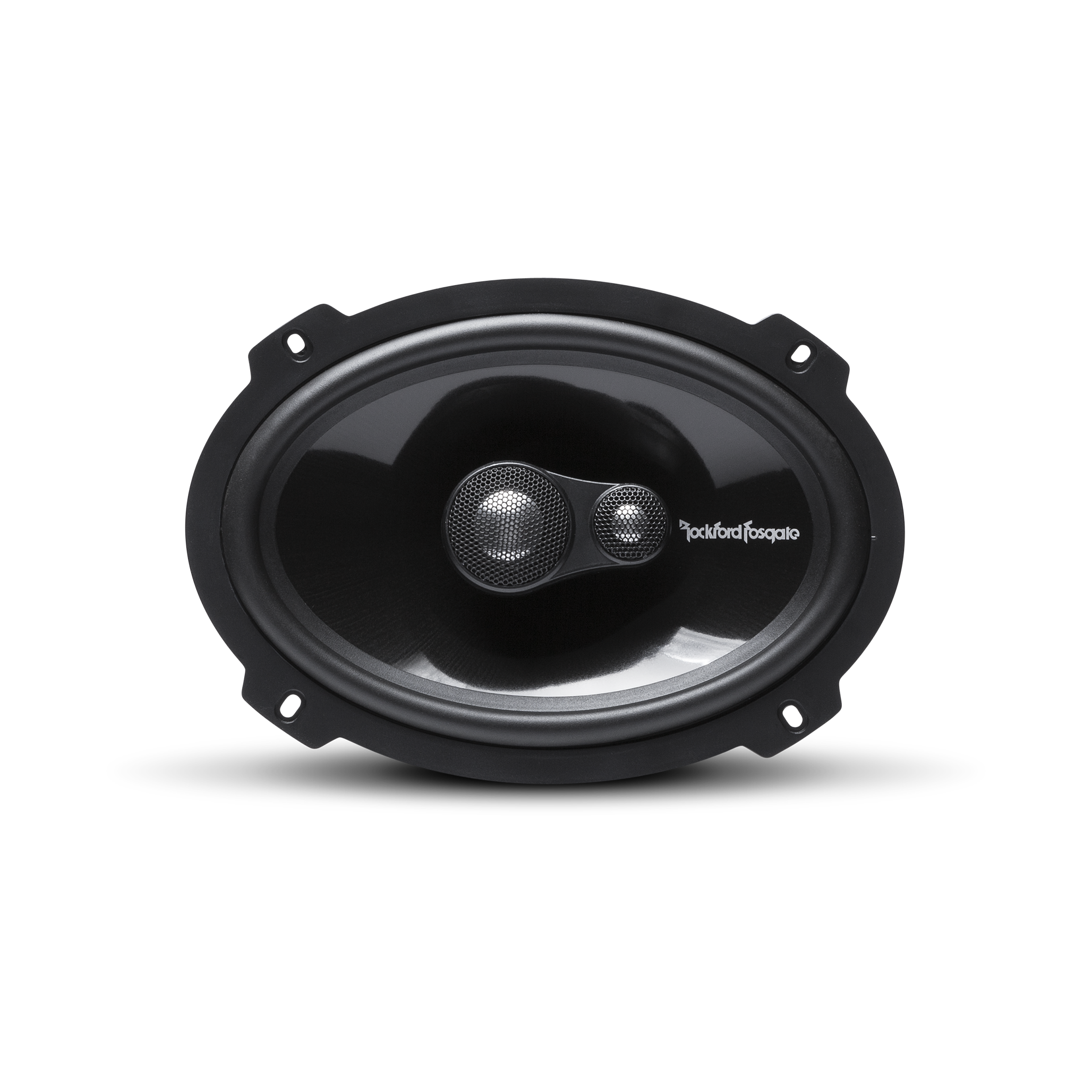

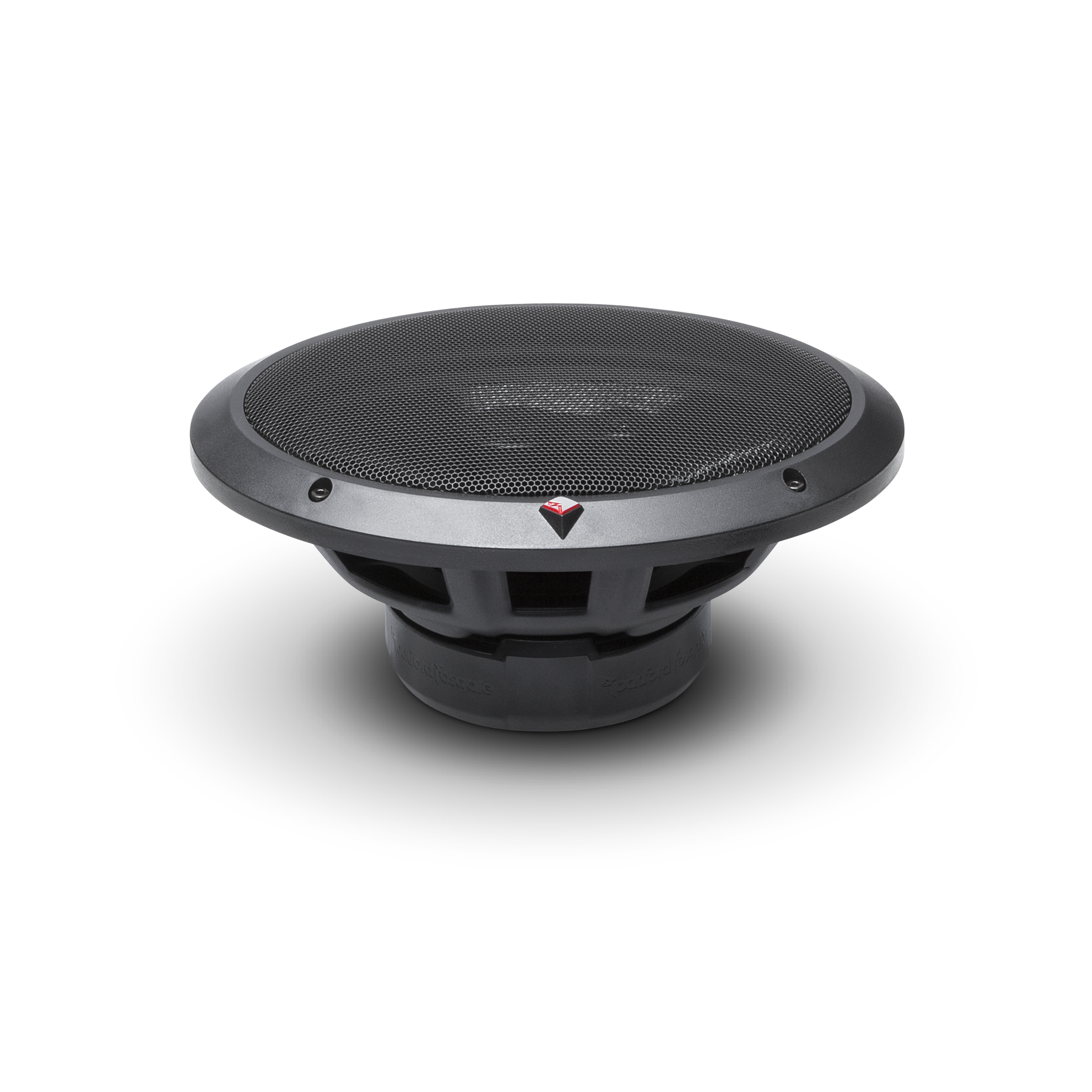

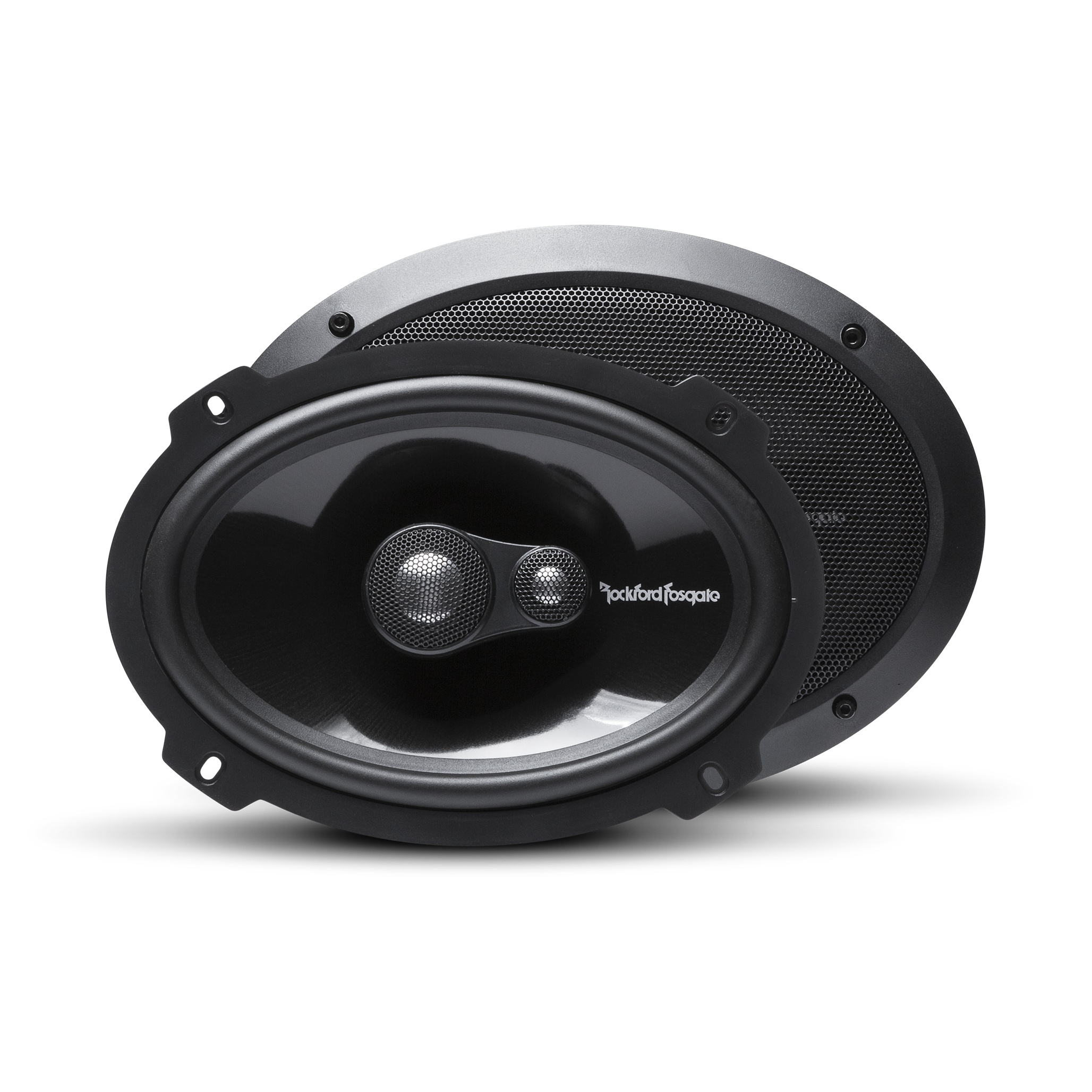

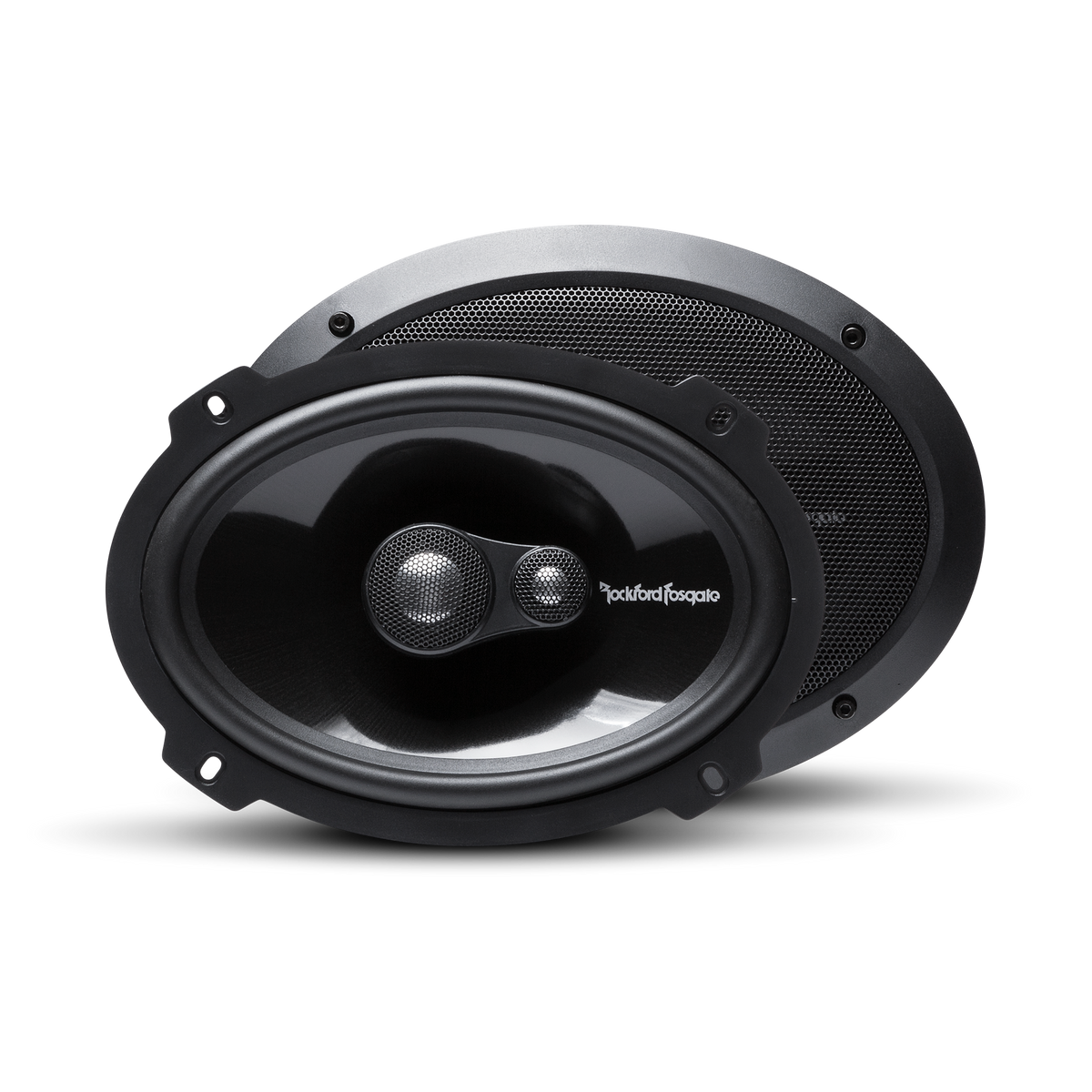

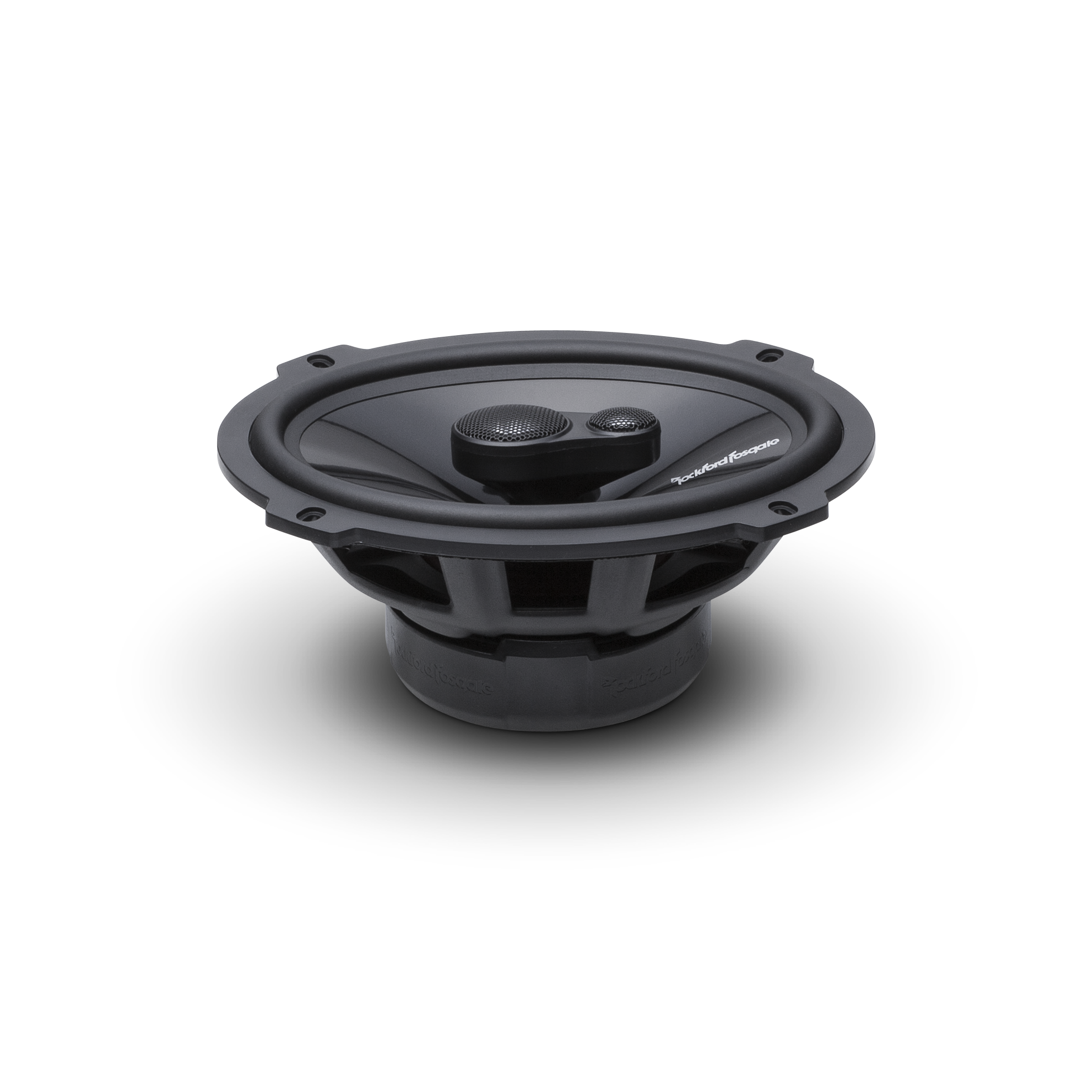

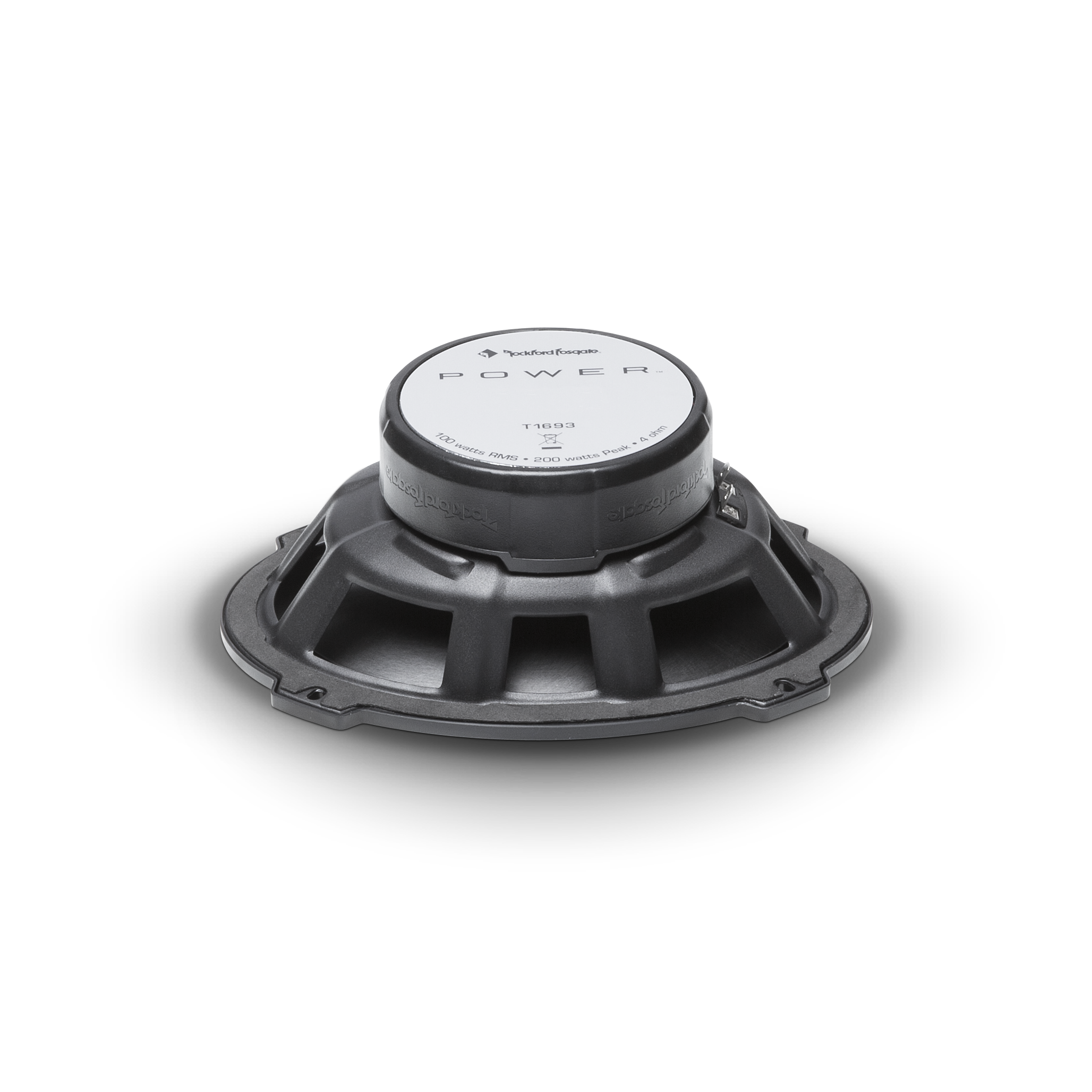

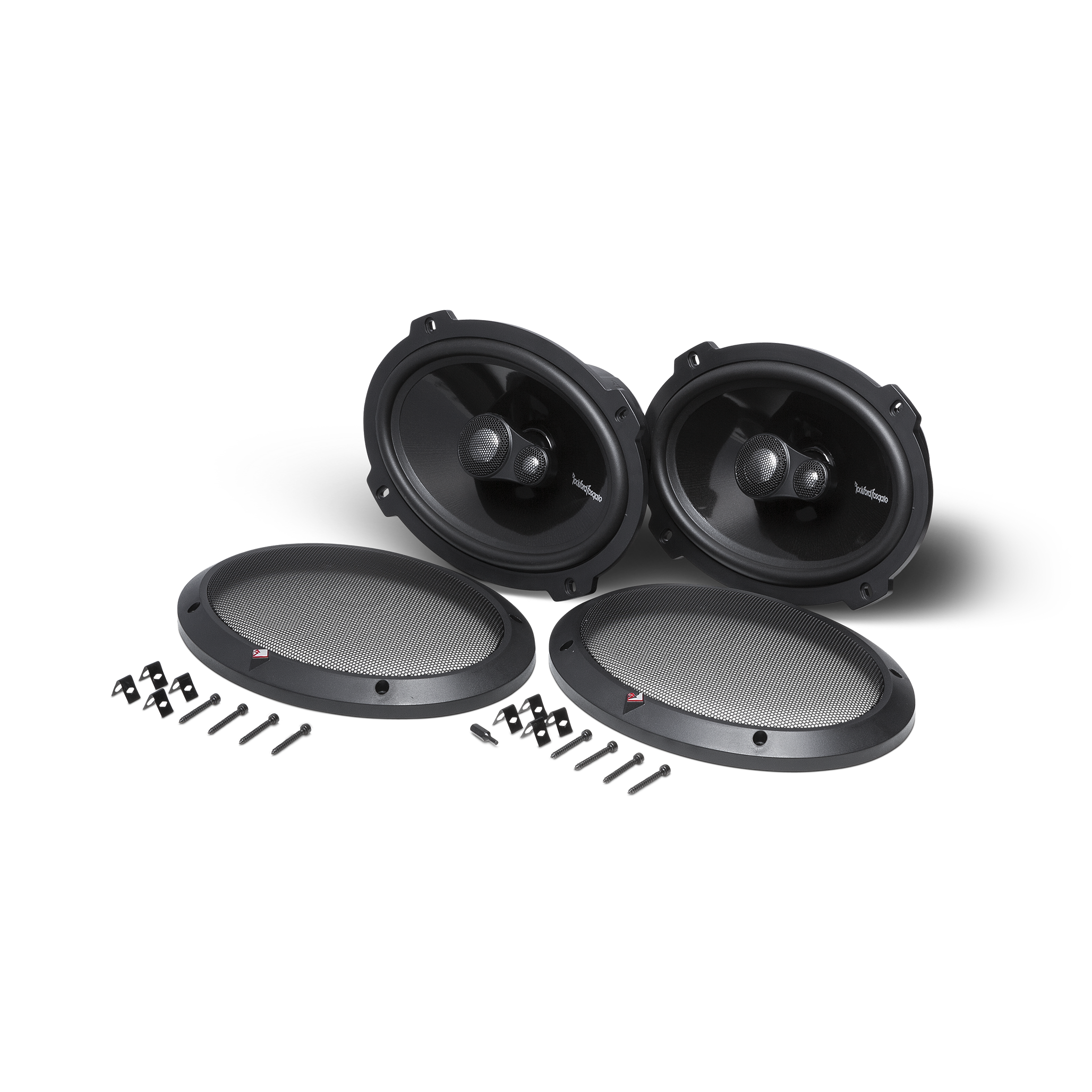

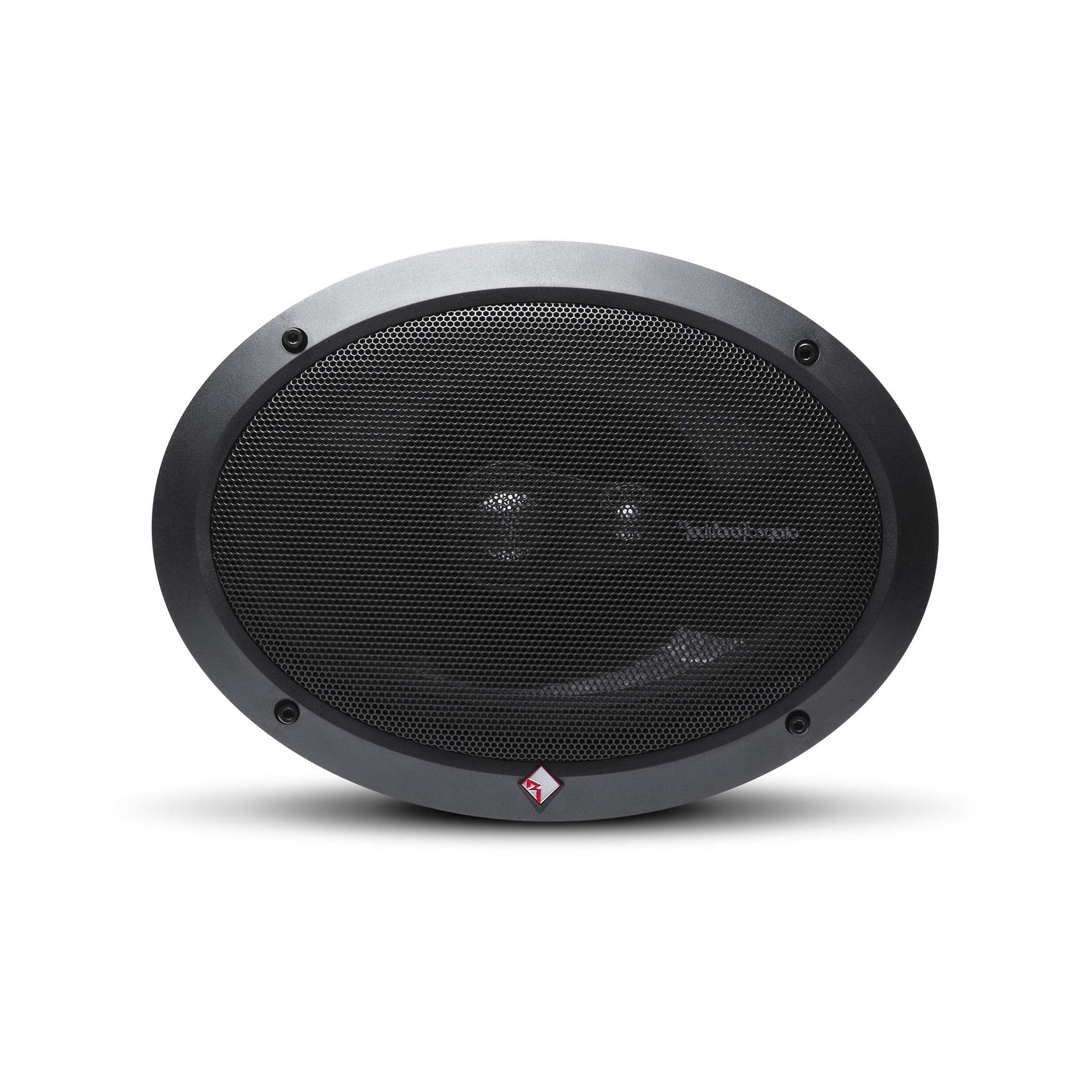

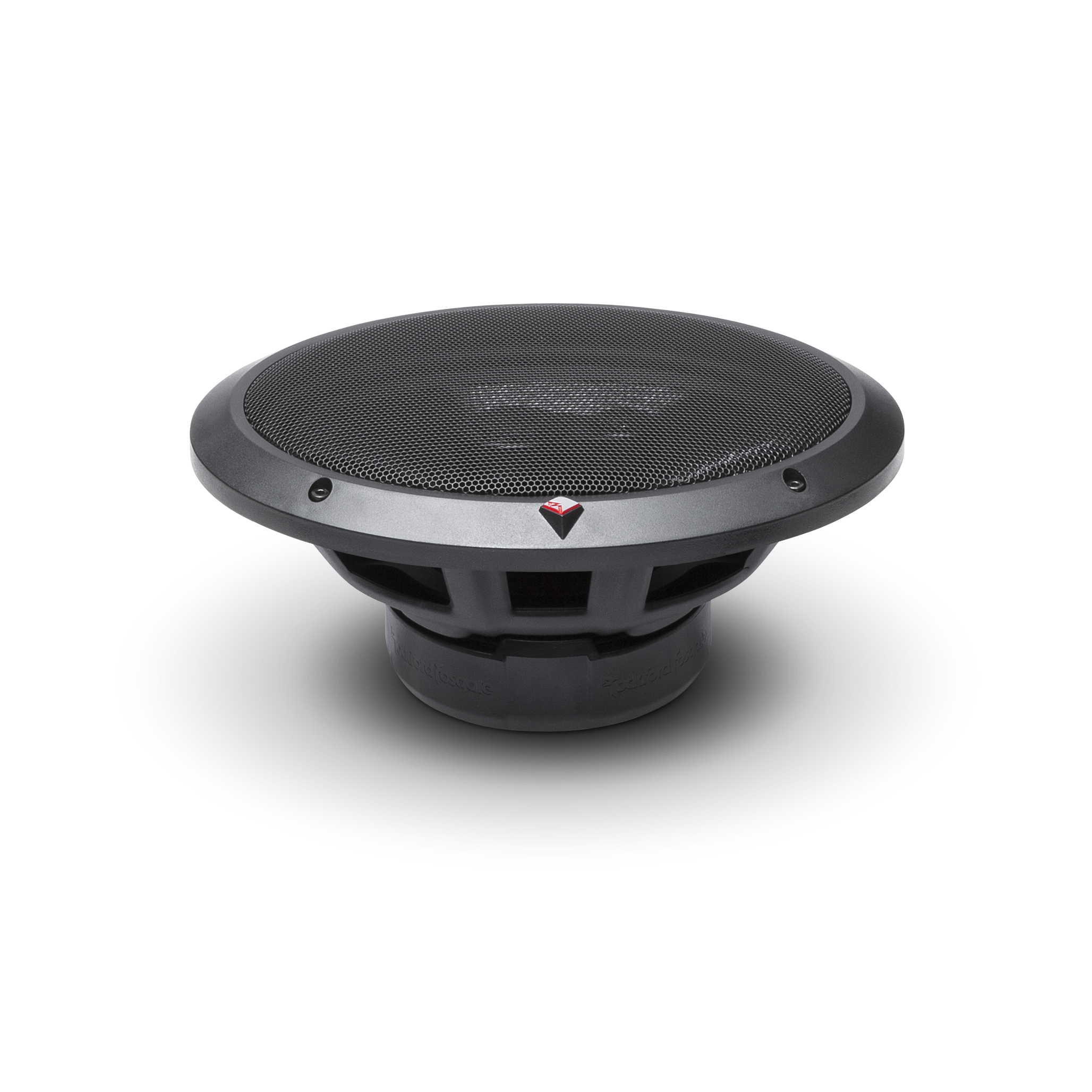

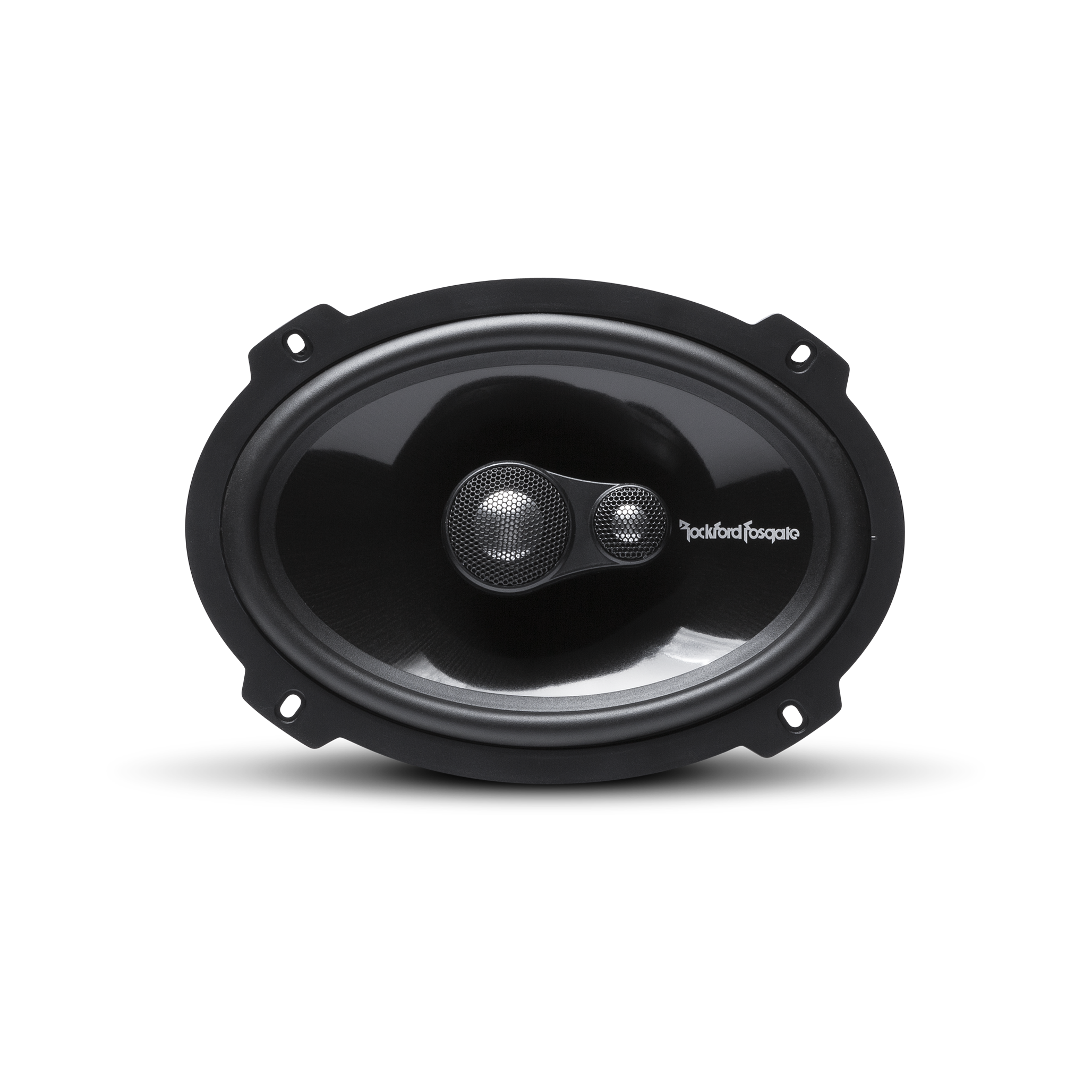

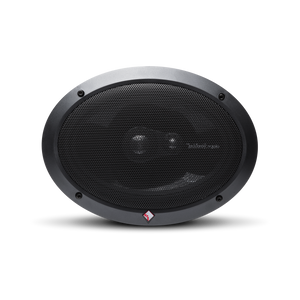

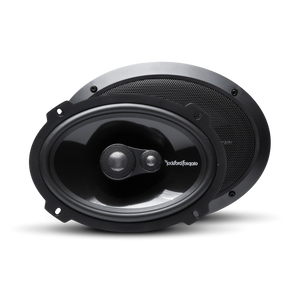

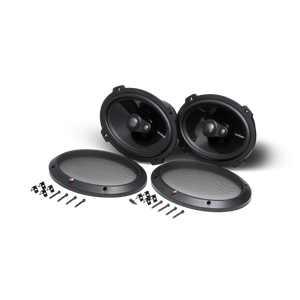

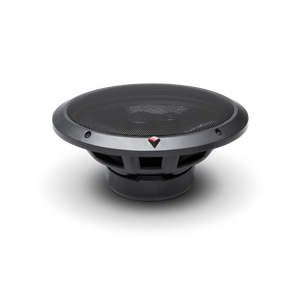

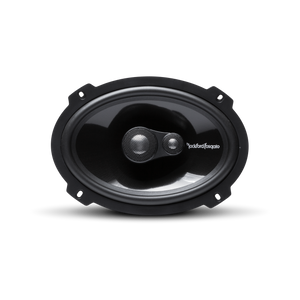

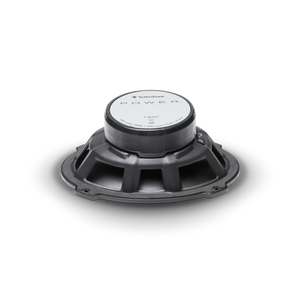

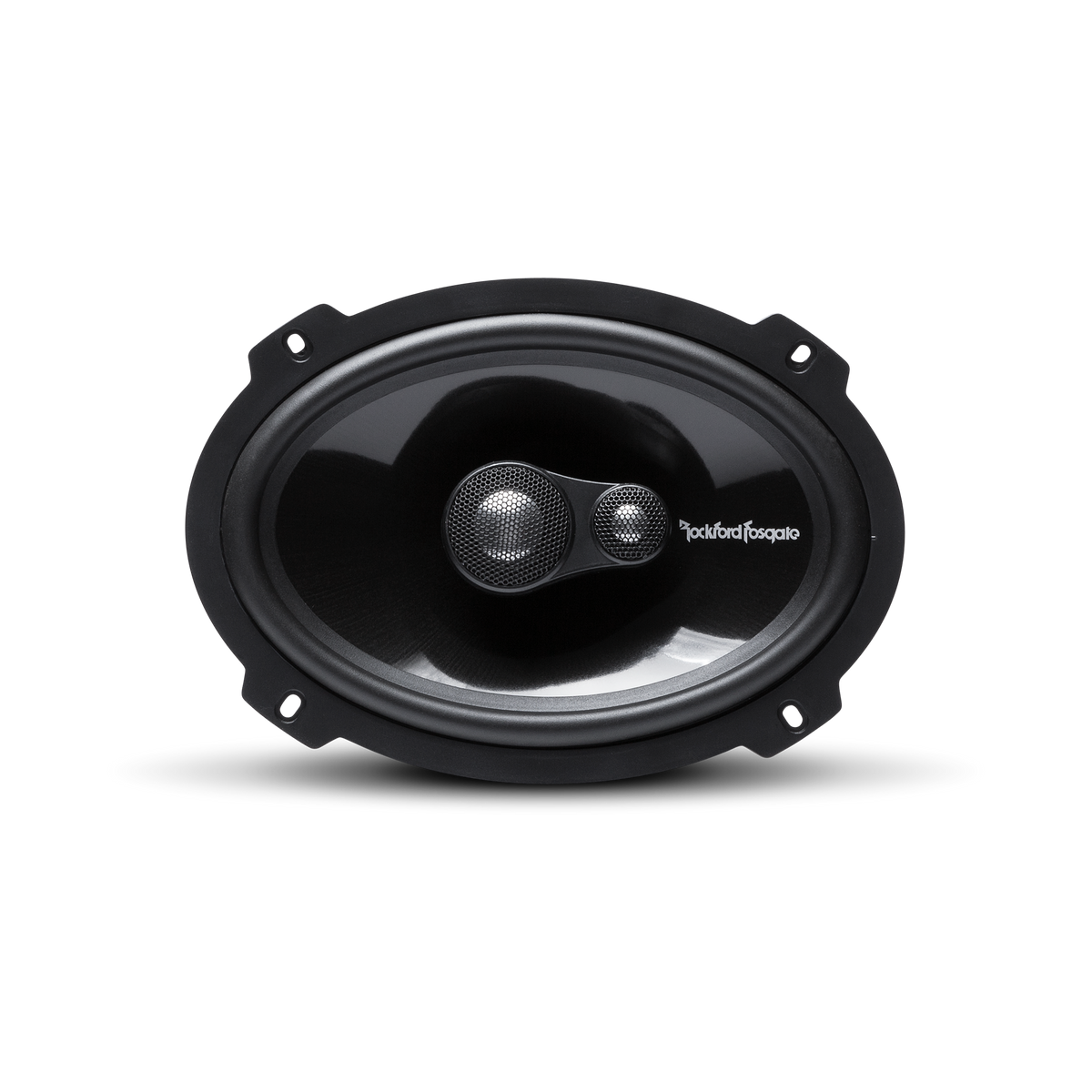

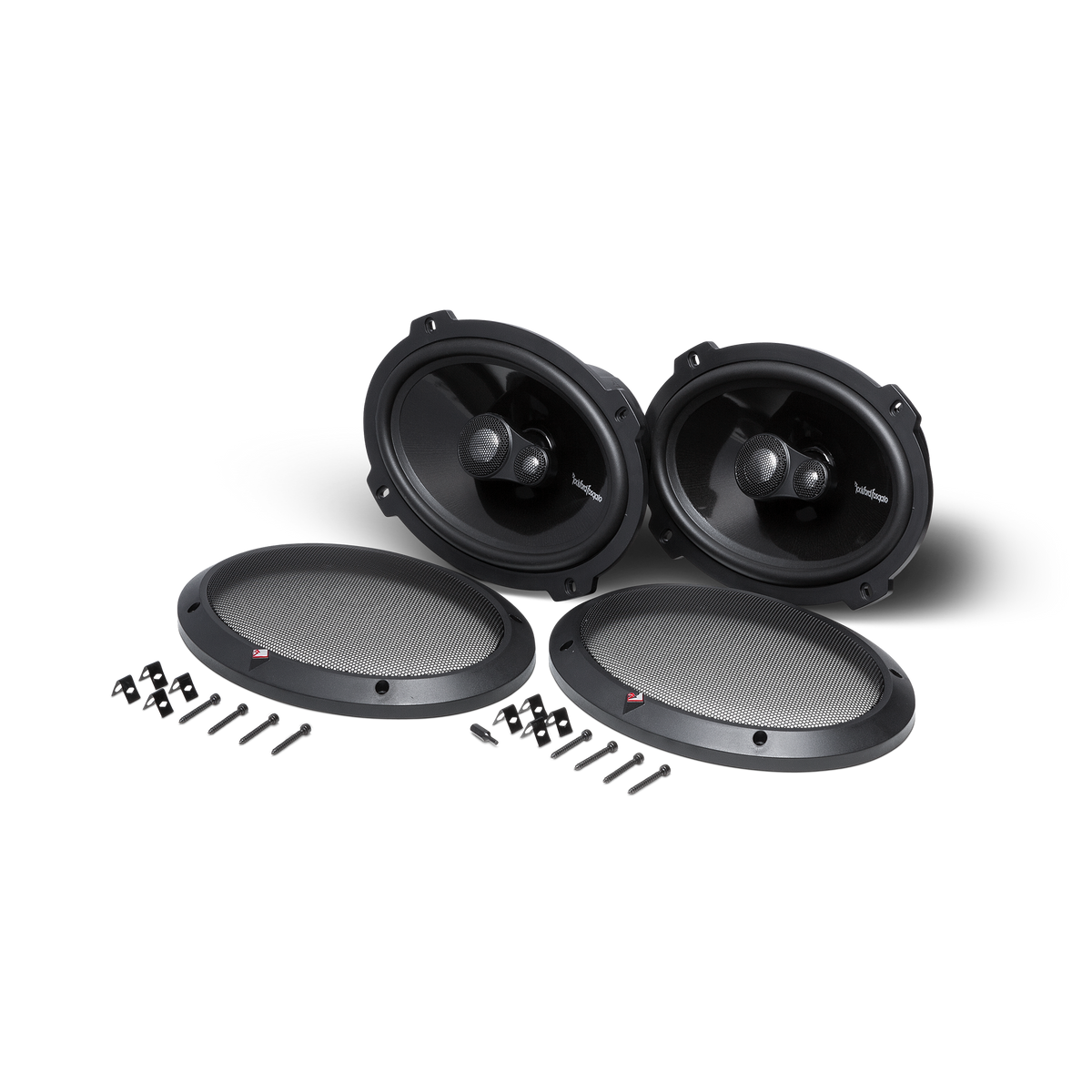

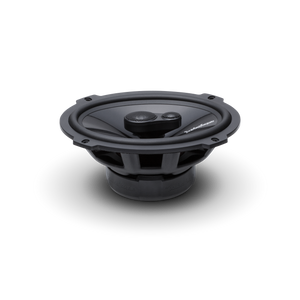

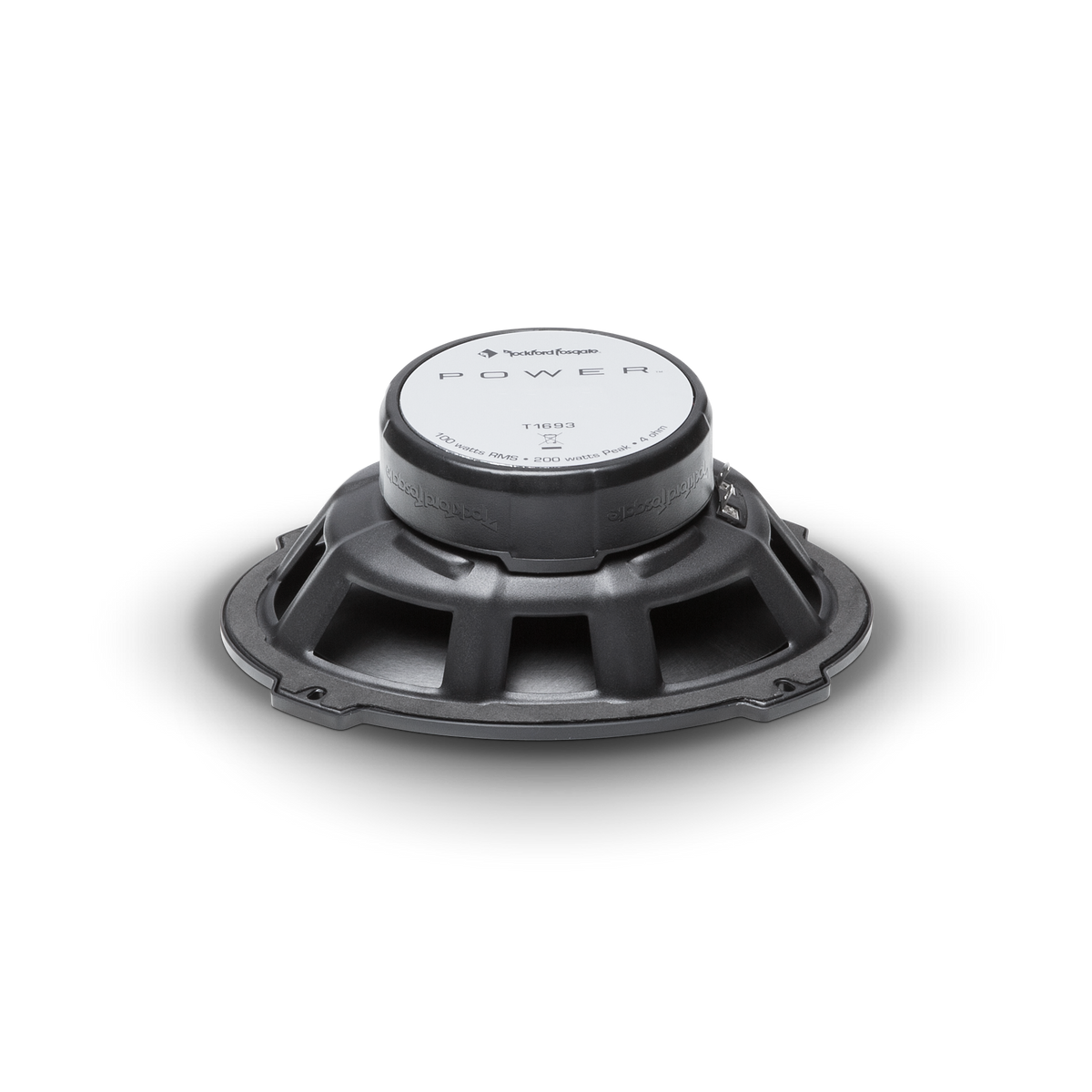

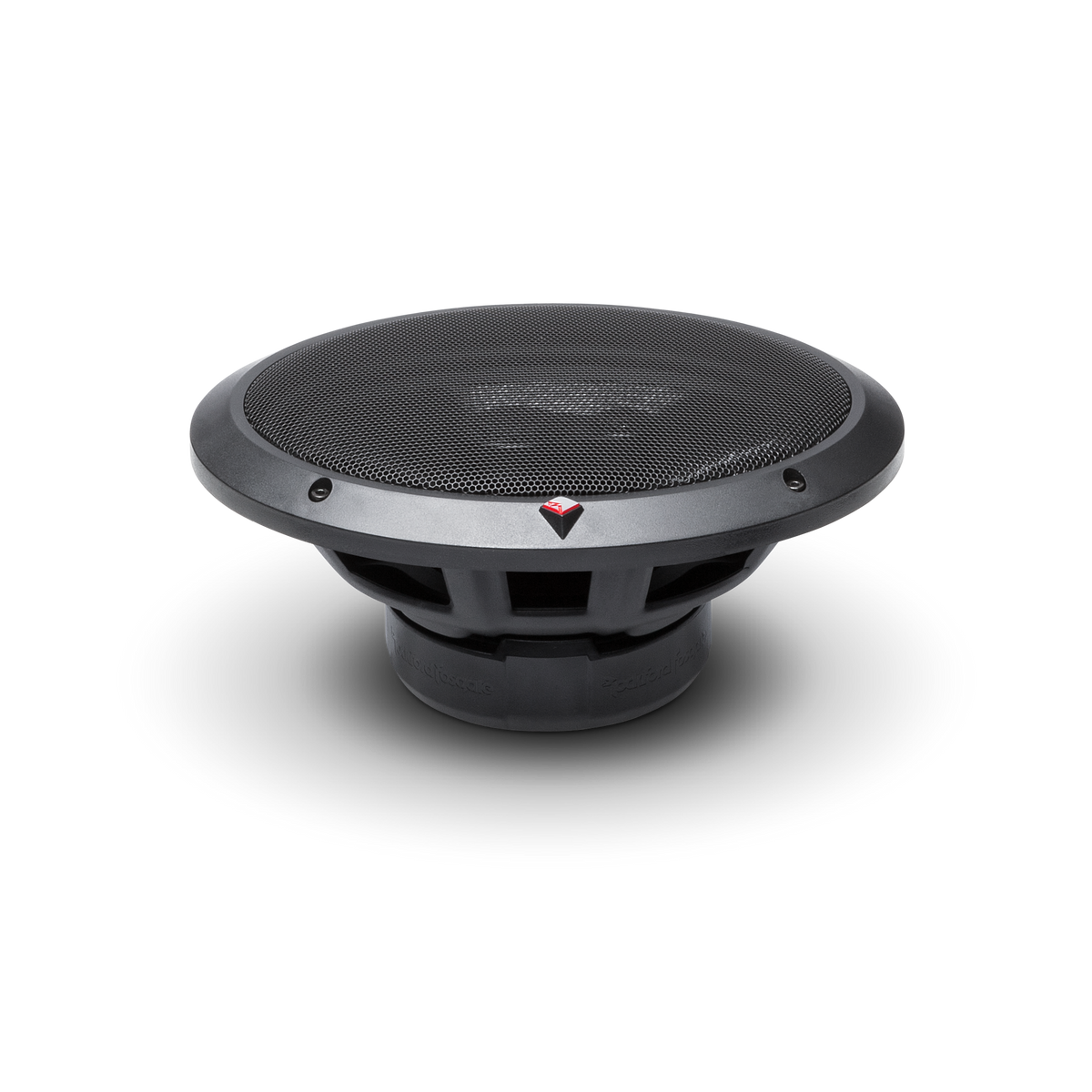

The T1693 is a 6"x9" 3-way full-range speaker rated at 100 Watts RMS designed as high-powered OEM replacement perfected for sound quality. Speakers include grilles, integrated concealed crossovers and mounting hardware. Sold in pairs (2 each)
Features
- 1 Year Warranty
- Aluminum dome tweeter with polyurethane suspension
- Butyl midrange rubber surround
- Carbon fiber & polypropylene injection molded cone
- ICC (Integrated Concealed Crossover) eliminates external black boxes
- Sold in pairs (2 each)
Specifications
- Crossover: Built-in tweeter crossover; High-Pass (HP): 12dB/octave Butterworth
- Frequency Response (Hz): 50Hz - 22kHz

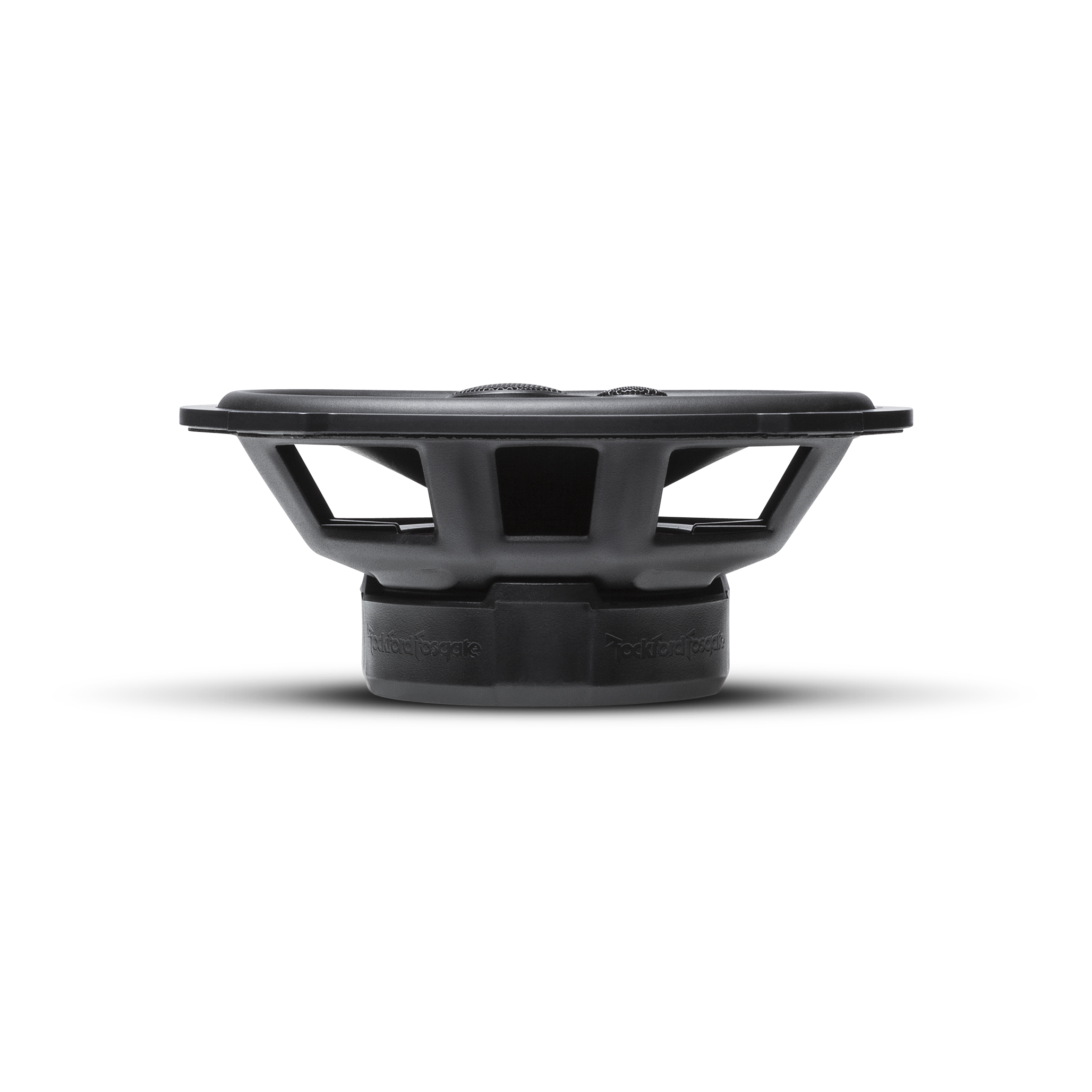

- Midrange Mounting Depth: 3.43"; (87mm)
- Midrange Size; (Nominal Diameter): 6"x9"
- Mounting Hardware: No
- Nominal Impedance (Ohms): 4-Ohm
- Speaker Type: 3-Way Coax
- Tweeter Size; (Nominal Diameter): 1.0"; (25.4mm)
- Power Handling (RMS): 100 Watts RMS; 200 Watts Max
- Grille/Trim Ring Included: Yes
- Sensitivity; (dB @ 1W/1M): 90dB
- Shipping Weight: 12.6 Lbs.; (5.72 Kg.)
