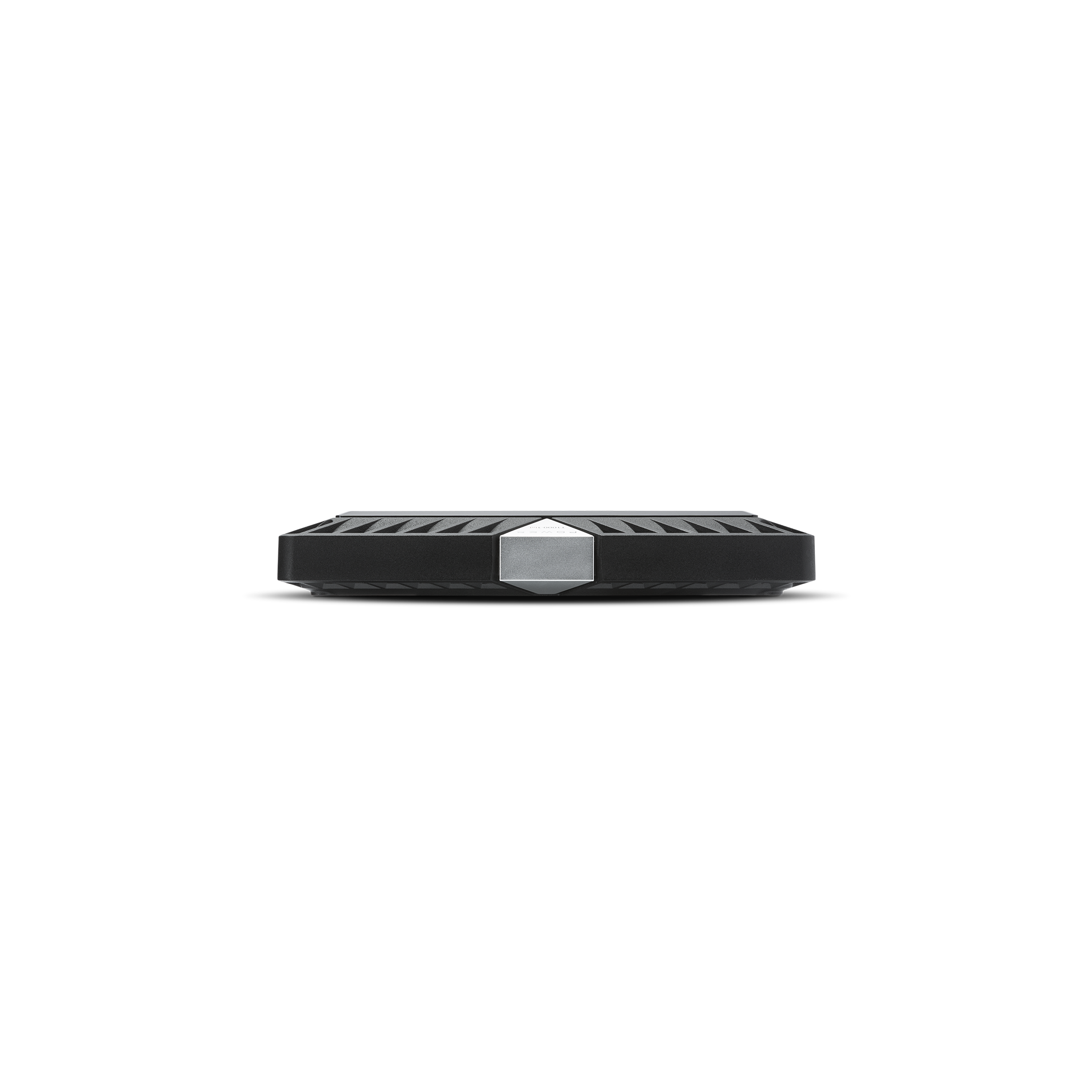

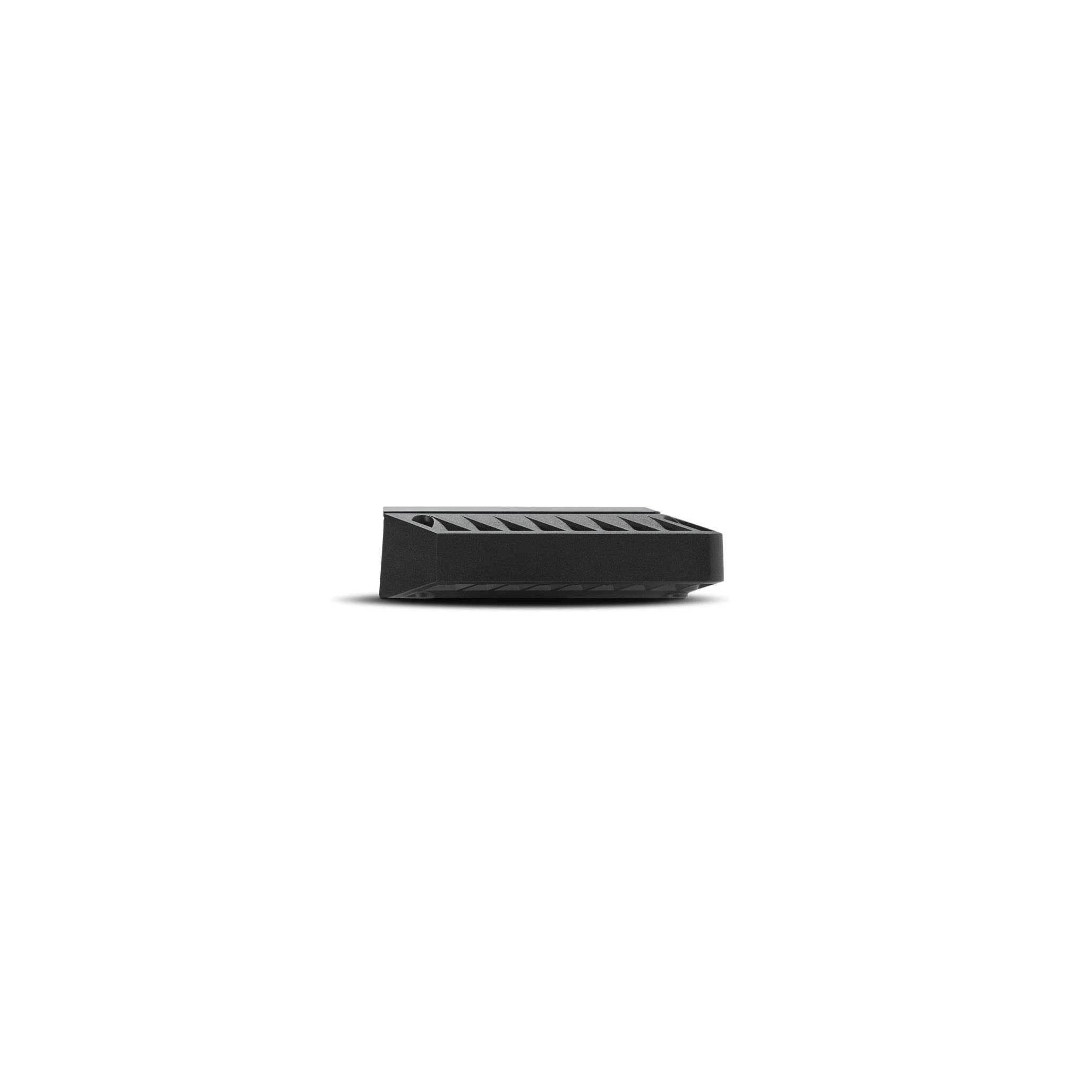

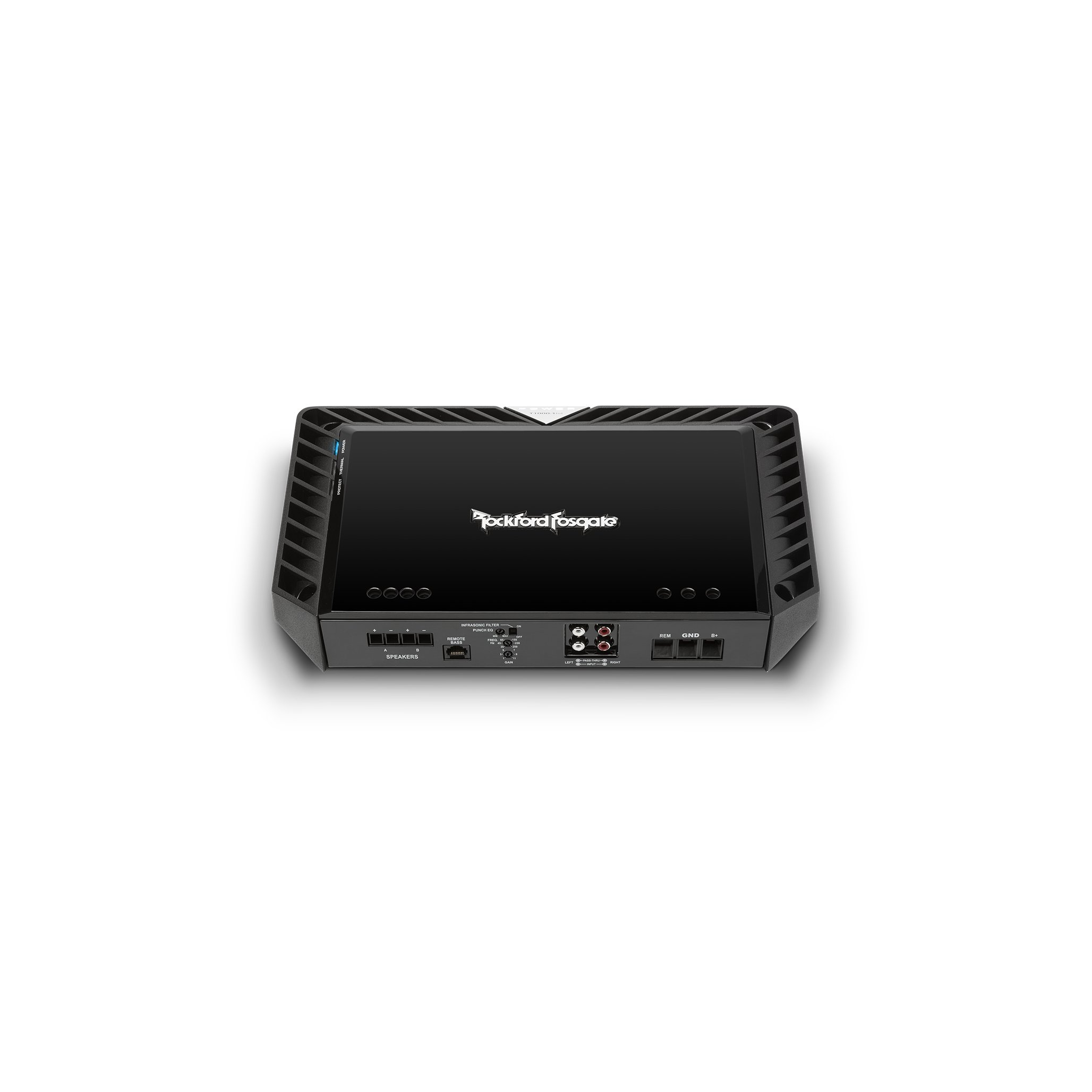

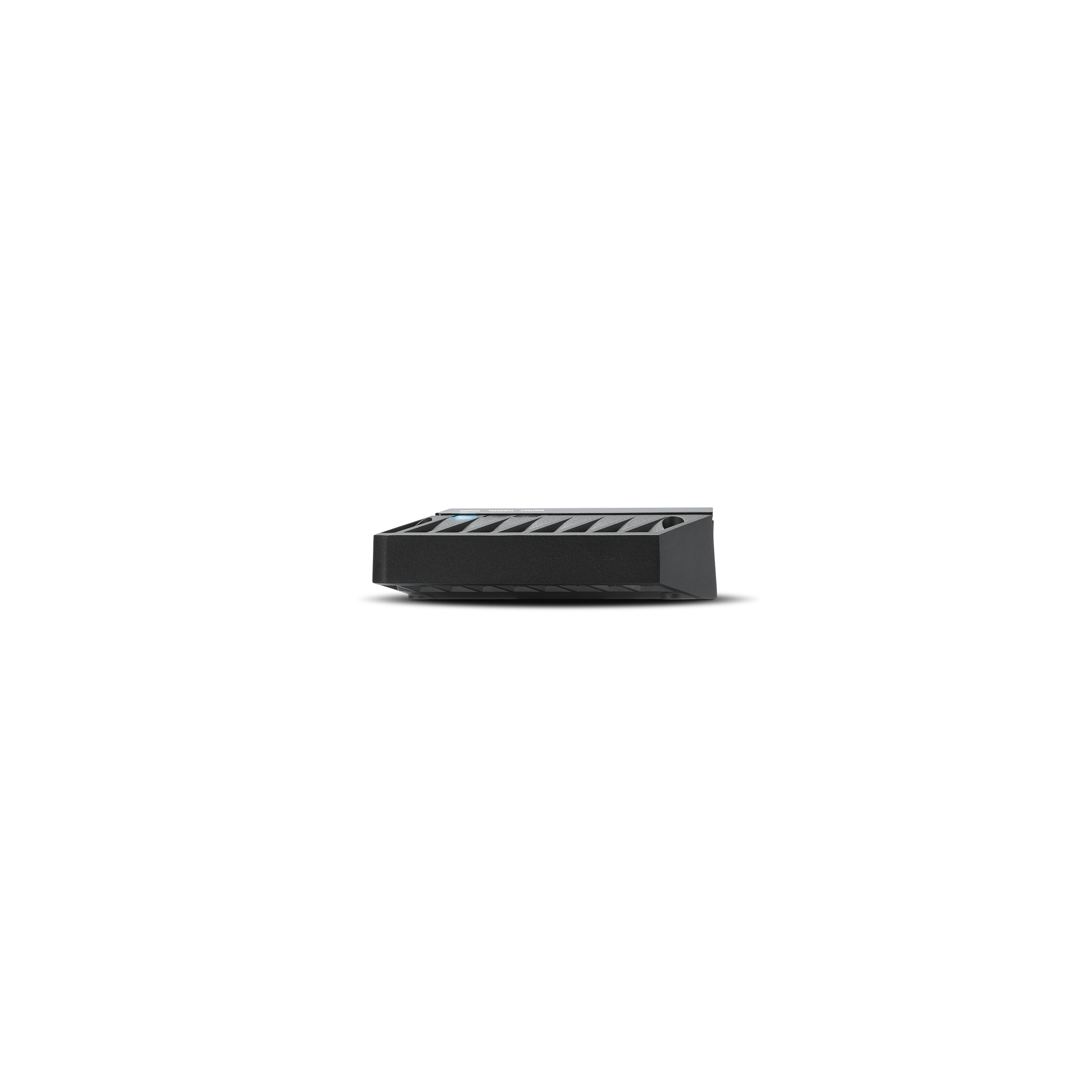

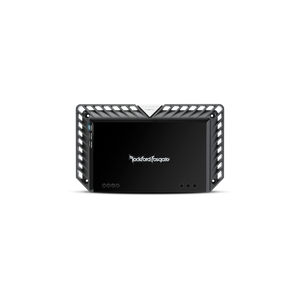

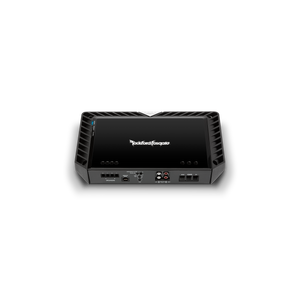

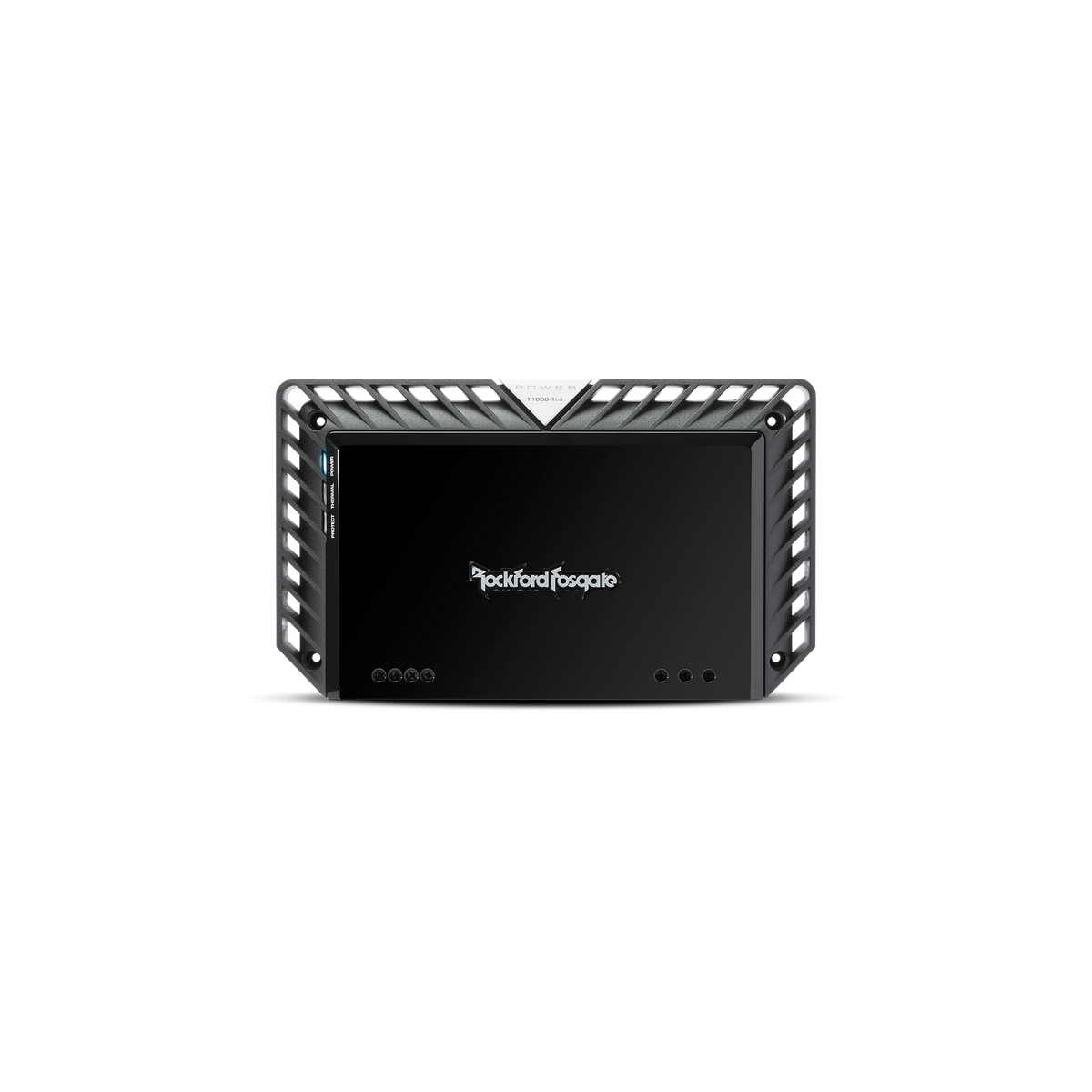

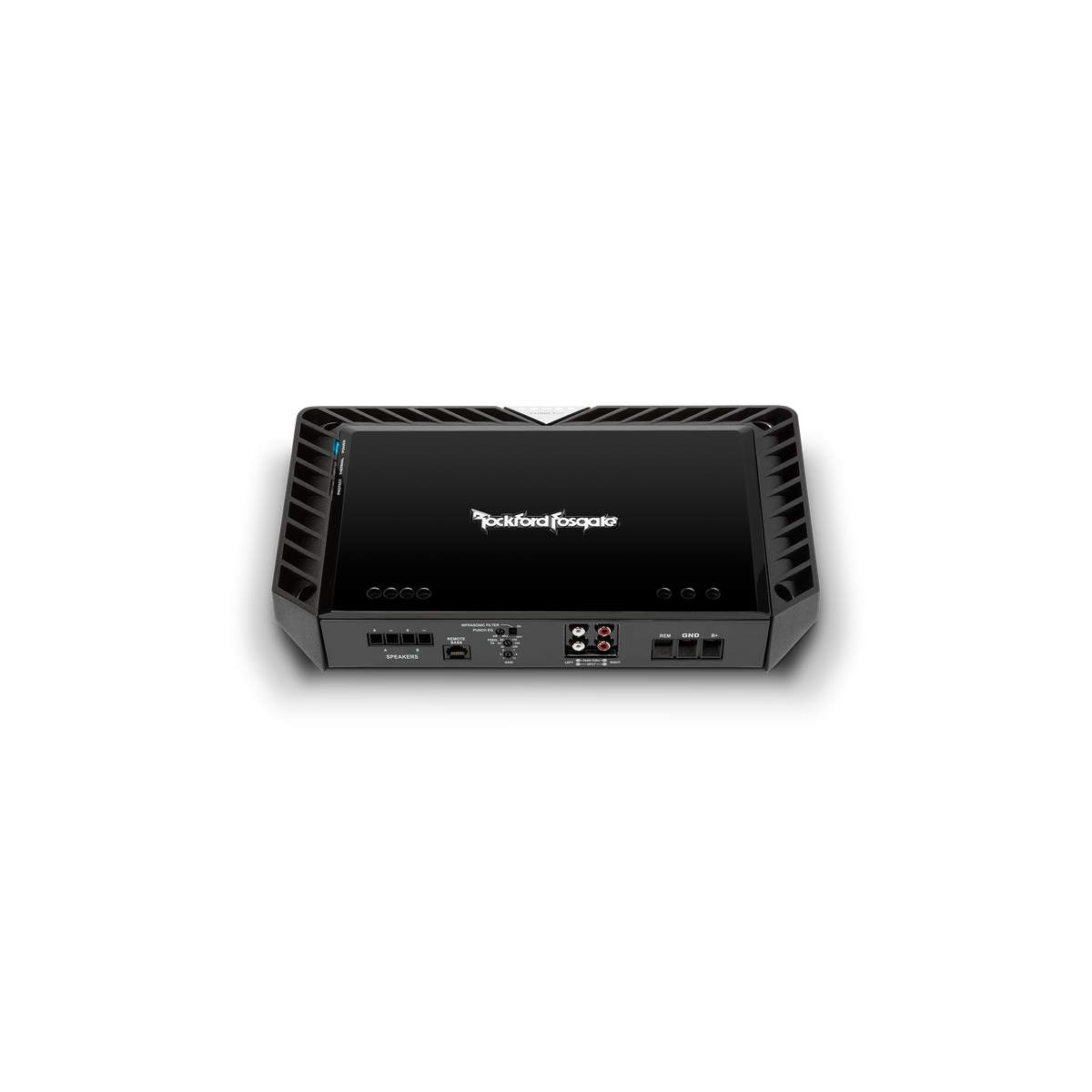

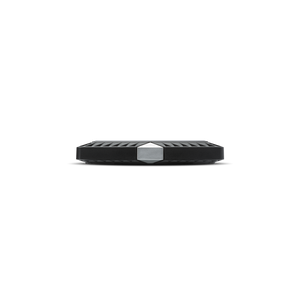

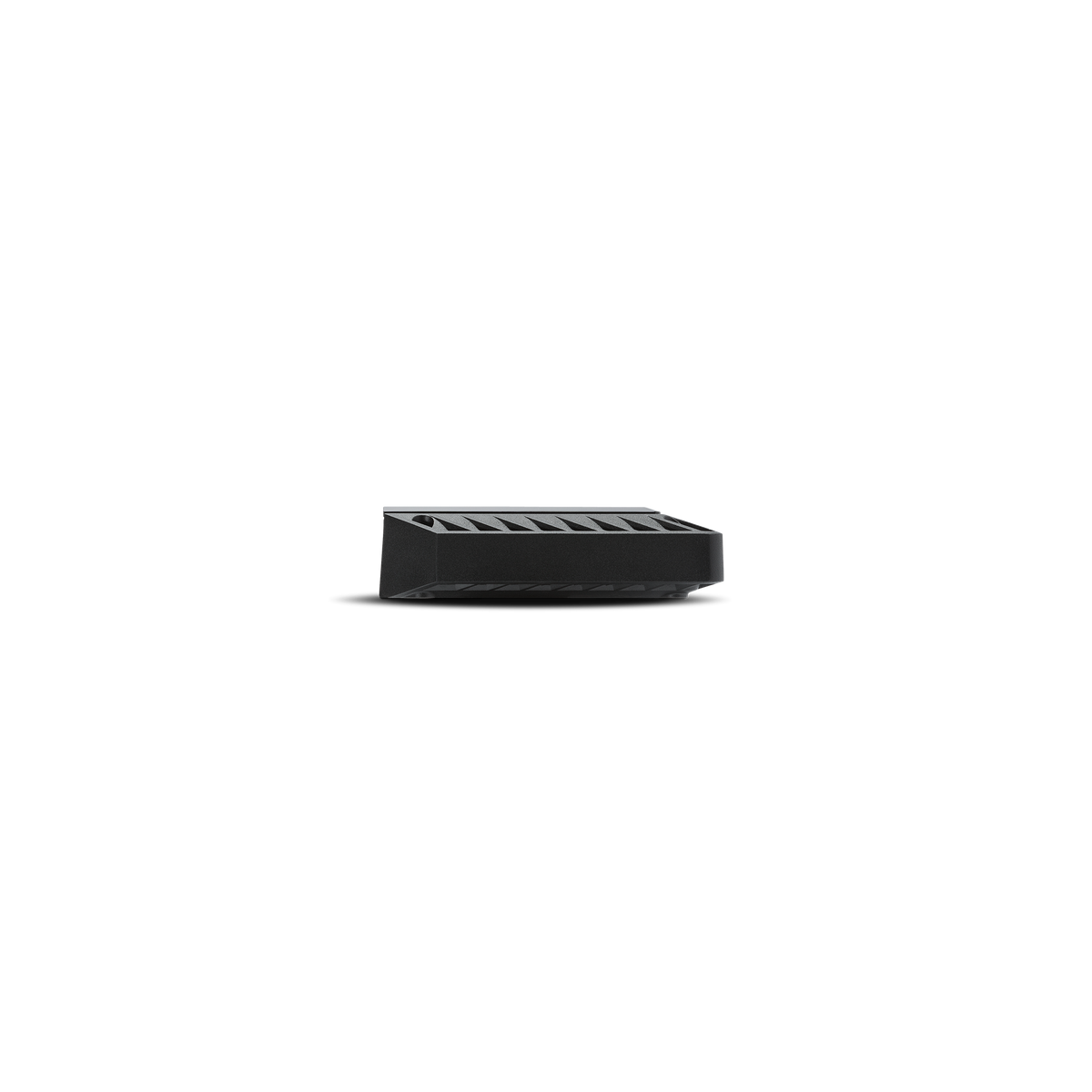

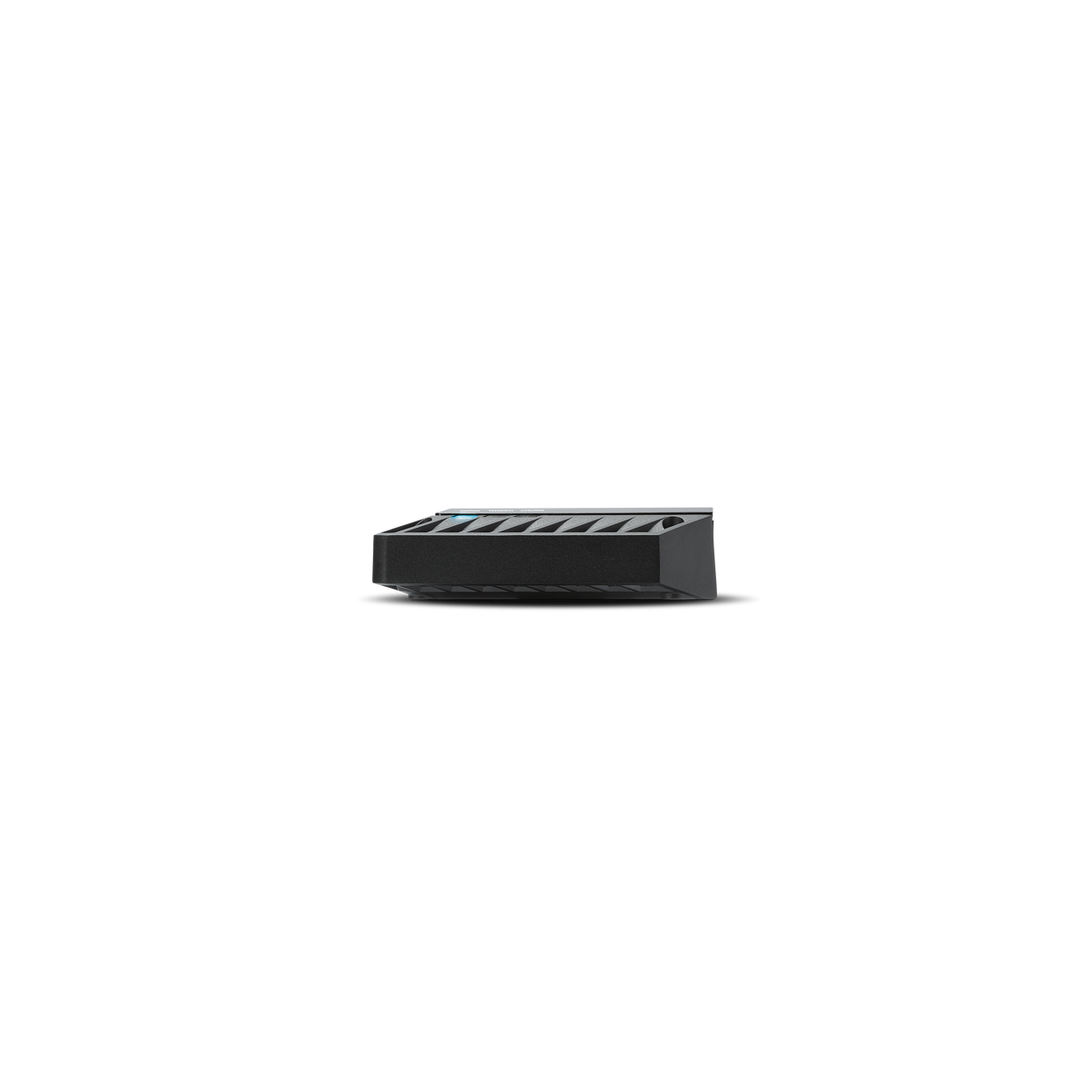

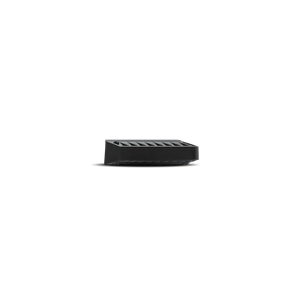

Power 1,000 Watt Class-bd Constant Power Amplifier

Overview

The Power T1000-1bdCP is a 1,000-watt mono amplifier featuring Constant Power delivering up to 25% more power across all impedance loads.

Features

• MOSFET output stage
• 24dB/octave crossover
• Audiophile grade speaker connections
• MOSFET power supply
• Infrasonic filter
• 4 Gauge power/ground connectors
• RCA pass-thru outputs
• 2-Year Warranty

Technologies

• CTA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
• MEHSA³: MEHSA³ reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
• Balanced Differential Inputs: Differential inputs eliminate noise picked up by signal cables.
• TO-247 MOSFETs: (left-OLD | right-NEW)
  Rockford Fosgate amps use custom TO-247 MOSFETs. These have 60% more metal tab area for more power capacity, lower impedance and improved heat dissipation over traditional TO-220 MOSFETs found in competitor amps.
• Class-BD: Class-BD amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional Class-A/B amplifiers.
• Punch Bass EQ: Onboard equalizer with up to +18dB @ 45Hz.
• DSM: DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
• Engineered In The USA: These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
• Constant Power: Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying impedance loads.

Specifications

Input Sensitivity	150 mV to 4 V
Signal-to-Noise (CEA)	>80 dB
Channel Separation	—
Damping Factor	>200
Common Mode Rejection	>60 dB
Average Current Draw (13.8V Music)	70 A
CEA-2006 Compliant	CEA-2006 Power Rating 700W x 1 @ 4Ω ≤1.0% THD+N
Operating Voltage	9 - 16 VDC
Recommended Fuse (not included)	150 A
Max. Current Draw (13.8V Sinewave)	140 A
Efficiency (average)	85.6% @ 4-Ohm 82.1% @ 2-Ohm 70% @ 1-Ohm
Suggested Alternator	100 A
Dynamic Power (PVC/PowerCube®)	772 Watts x 1 @ 4-Ohms 1299 Watts x 1 @ 2-Ohms 1395 Watts x 1 @ 1-Ohm
Number of Channels	1
Total Harmonic Distortion (THD+Noise)	4-Ohm:<1.0% 2-Ohm:<1.0% 1-Ohm:<1.0%
Bridgeable	No
Rated Power (RMS Continuous Power)	700 Watts x 1 @ 4-Ohm 1000 Watts x 1 @ 2-Ohm 1000 Watts x 1 @ 1-Ohm
Shipping Weight	12.2 lb. (5.53 Kg.)
Crossover Controls	Low-Pass (LP): 35Hz-250Hz @ 24dB/octave Butterworth Infrasonic: 12dB/octave Butterworth, -3dB @ 28Hz
Tone Controls	Bass: 0dB to +18dB @ 45Hz
Total Power (Sum of Rated Power)	1000 Watts RMS

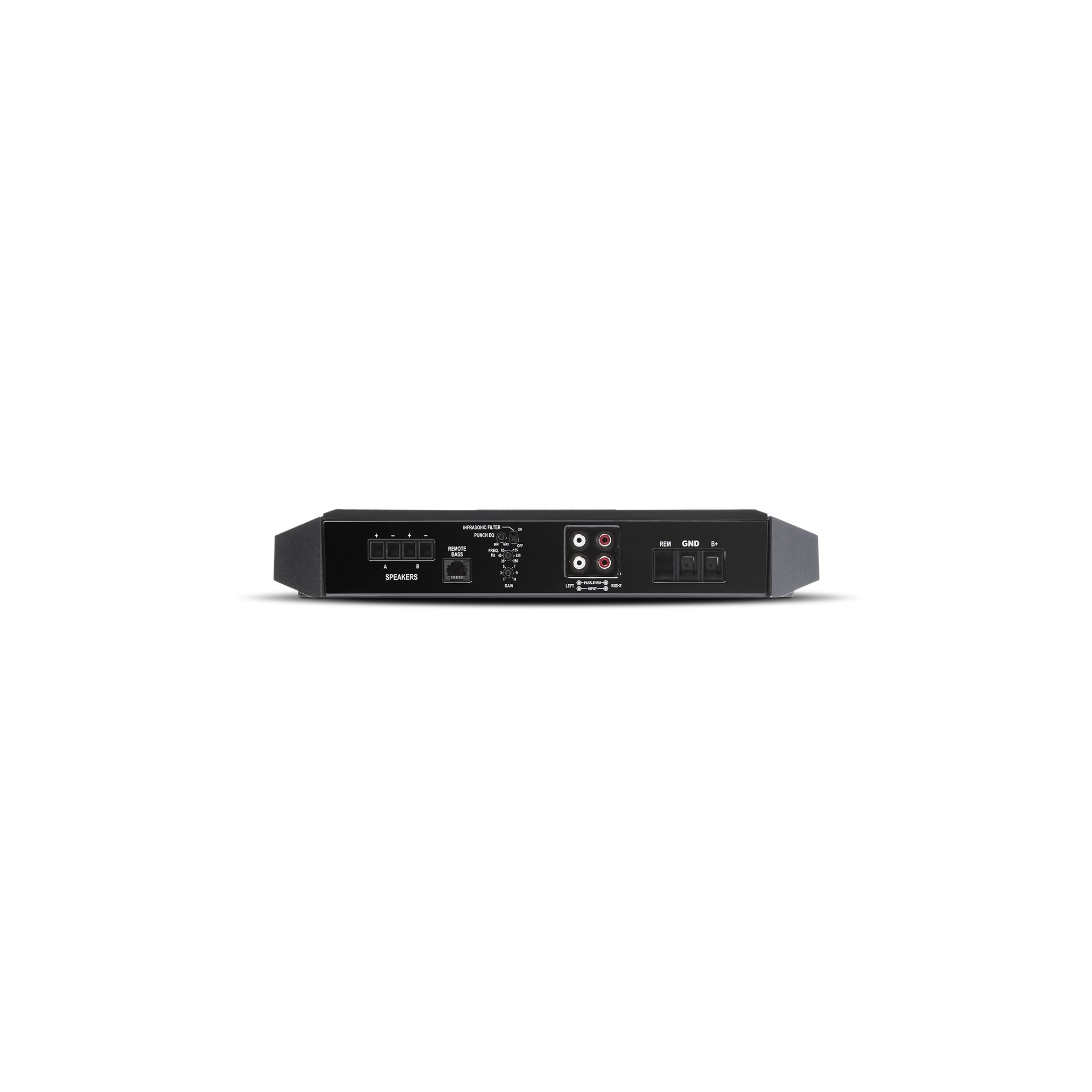

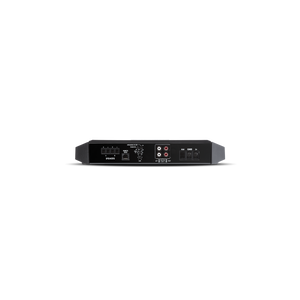

Signal Input	1 RCA pair
Signal Output	1 RCA pair
Power Wire Gauge	4 AWG
Power Input Connector	Block
Speaker Output Connector	Block
Speaker Wire Gauge	8 AWG to 18 AWG
Heat Sink Type	Cast aluminum
Remote Controls	Optional Remote PEQ (overrides built-in Punch Bass)
Cooling	Convection
Visual Indicators	Power (Blue LED) Thermal (Red LED) Protect (Yellow LED)
Circuit Topology Class	Class BD
Frequency Response	20Hz to 250Hz +/-0.5dB
Dimensions (H x W x D)	2.14 x 8.14 x 13.66 (in) 5.44 x 20.68 x 34.69 (cm)
