Product Overview
Class D 4-Channel Full-Range Car Amplifier 275x4 RMS @ 4-Ohm 4000W
Your system is unstoppable with the revamped SXE-4000.4D!
This beast of a Class D 4-Channel Full-Range Car Amplifier packs 4000W of pure audio muscle, taking your vehicle's sound system to a whole new level of precision and power.
The SXE-4000.4D puts you in complete control with fully variable crossovers, adjustable gain, and a multi-channel design, allowing you to dial in your sound exactly how you want it. Its compact design slips into any custom build easily, delivering a custom soundstage that matches your style to perfection.
With a hardcore Class D circuit at its core, the SXE-4000.4D is engineered to integrate into any setup without sacrificing an ounce of power. Brace yourself for jaw-dropping performance with 750W x 2 CH bridged at 4-ohms, 430W x 4 CH at 2-ohms, and 275W x 4 CH at 4-ohms.
And because we know you push the limits, the SXE-4000.4D is armed with a bulkier heatsink and advanced protection systems, like thermal, overload, and short circuit safeguards
Take it to the next level with the SXE-4000.4D—where raw power, precision, and protection collide.
Key Features
- Full Range Amplifier
- 4 Channel
- Class D
- 2 ~ 4 Ohm Stable
- 4 x 275 Watts @ 4 Ohm
- Compact Design
Specifications
| Total Watts (Peak) | 4000W |
|---|---|
| RMS Power @ 4 ohm | 4 x 275W |
| RMS Power @ 2 ohm | 4 x 430W |
| RMS Power @ 1 ohm | N/A |
| RMS Power @ 4 ohm Bridge | 2 x 750W |
| Frequency Response | 10Hz-20KHz |
| Signal to Noise Ratio | 90dB |
| Efficiency @ 4ohm | 86% |
| Damping Factor | 140 |
| Input Impedance | 20kΩ |
| Channel Separation | 45dB |
| Total Harmonic Distortion (THD) | 0.05% |
| Low Level Input Range | 200mV-5V |
| High Level Input | No |
| Selectable X-Over | HPF/FULL/LPF |
| X-Over Filter Range | 40Hz-2KHz |
| Bass Boost Range | No |
| Bass Boost Frequency | No |
| Infrasonic Filter | No |
| Phase Selector | No |
| Amplifier Class | Digital (D) |
| Amplifier Type | Stereo Full Range |
| Number of Channels | 4 |
| Minimum Impedance | 2 Ohm Stereo / 4 Ohm Bridge |
| LED Indicator | Power/Protect/Clip |
| Power Input Terminal Size | 4Ga |
| Fuse Size | External fuse |
| Remote Level Control | No |
| Cooling Fan | No |
| Voltmeter | No |
| Thermal Protection | Yes (80℃) |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (16.5v) |
| Clipping Protection | Yes |
| Body Color / Finish | Red / Black Brushed Aluminum |
| Overall Length | 11" / 279.3mm |
| Overall Width | 5.5" / 140mm |
| Overall Height | 1.8" / 48mm |
| Heatsink Length | 9.5" / 242mm |
| Gross Single Unit Weight | 2.07KG |
| Compact Size to Easy Installation for Any Applications | Yes |

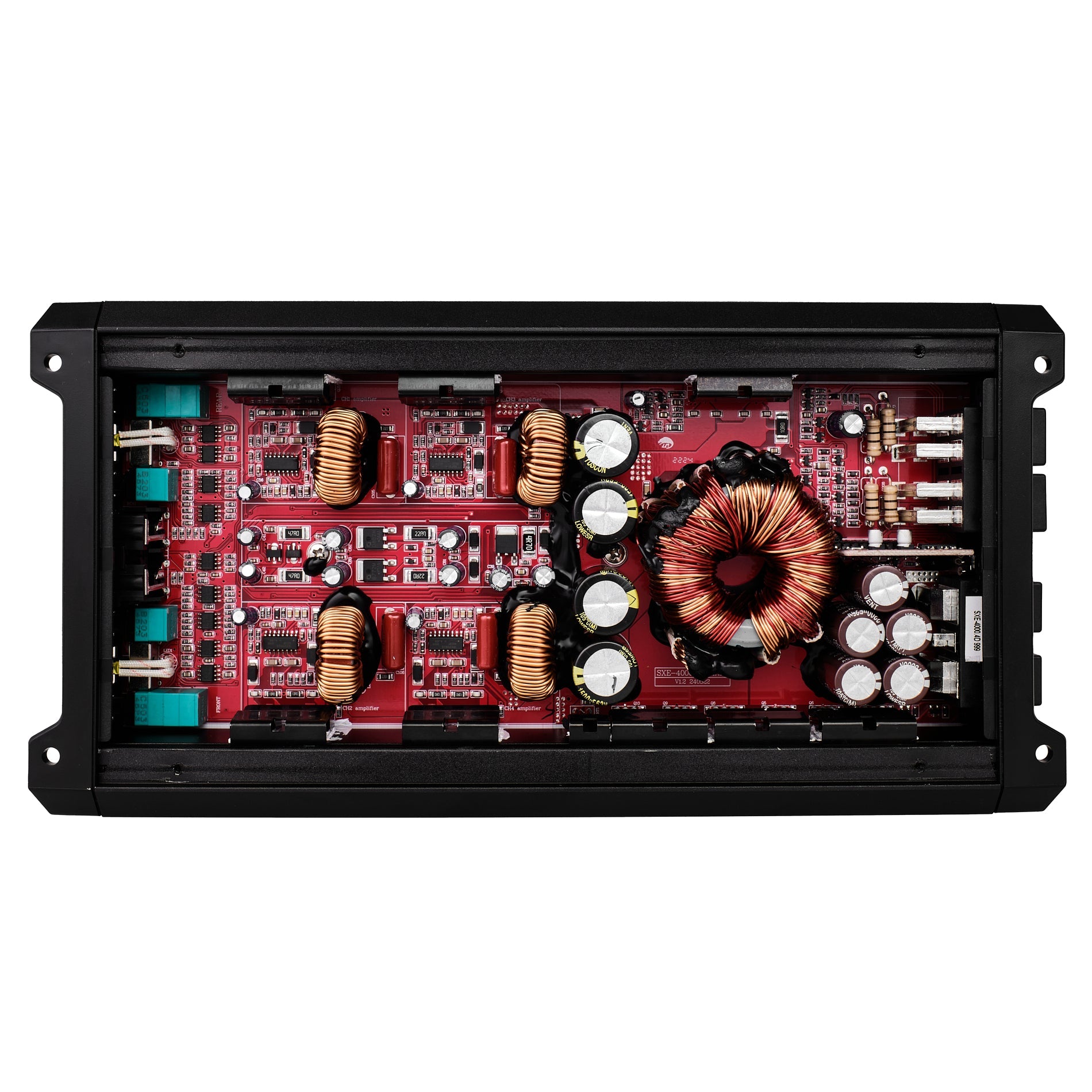

| Stable/Reliable Two or Four Layers Traces PCB Design | Yes |
| Surface Mount Component Technology | Yes |
| Quality Control Verification using Audio Precision Instruments | Yes |
| Remote Level Control with Clip Indicator | No |
