SXE Class D 4-Channel Amplifier 4 x 100 Watts Rms @ 4-ohm 2000 Watts

Sale price $239.95

Availability: In stock SKU: SXE-2000.4D/RD
SXE Class D 4-Channel Amplifier 4 x 100 Watts Rms @ 4-ohm 2000 Watts - DS18

SXE Class D 4-Channel Amplifier 4 x 100 Watts Rms @ 4-ohm 2000 Watts

$239.95

Product Overview

SXE Class D 4-Channel Amplifier 4 x 100 Watts Rms @ 4-ohm

DS18’s SXE Amplifier Series was designed for enthusiasts looking for an extreme increase to the quality of audio reproduced by their vehicle. With the SXE-2000.4D at the helm, your vehicle's speakers will unleash their true potential, effortlessly detailing the best parts of your favorite tracks.

The SXE-2000.4D offers you the ability to shape your systems audio to match your personal preferences. Its selectable crossover, and multi-channel amplifier design allows you to fine-tune your audio, ensuring every beat, melody, and lyric is reproduced with astonishing accuracy. The compact size of the SXE-2000.4D enables easy installation anywhere in your vehicle, making it a versatile companion for your custom audio setup. Immerse yourself in a customized soundstage that complements your unique style.

Thanks to its Class D circuit design the SXE-2000.4D seamlessly integrates into any vehicle's custom build, without compromising on its power. Prepare to be blown away by the SXE-2000.4D's staggering performance, delivering 320W x 2 CH bridged at 4-ohms, 160W x 4 CH at 2-ohms, and 100W x 4 CH at 4-ohms. These power settings are guaranteed to supercharge any custom build.

The SXE-2000.4D also comes equipped with various forms of electronic protection, including thermal protection that shields against overheating, over-load protection, and short circuit output protection. Additionally, the 80℃ thermal protection ensures the amplifier operates optimally, even in demanding conditions. DS18 has thought of everything to guarantee a long-lasting and exceptional audio experience.

Key Features

  • Full Range Amplifier
  • 4 Channel
  • Class D
  • 2 ~ 4 Ohm Stable
  • 4 X 100 Watts @ 4 Ohm
  • Compact Design

Specifications

SKU SXE-2000.4D
Total Watts (Peak) 2000W
RMS Power @ 4 Ohm 4 x 100W
RMS Power @ 2 Ohm 4 x 160W
RMS Power @ 1 Ohm N/A
RMS Power @ 4 Ohm Bridge 2 x 320W
Frequency Response 10Hz-20KHz
Signal to Noise Ratio 90dB
Efficiency @ 4ohm 90%
Damping Factor 200
Input Impedance 20kΩ
Channel Separation 60dB
Total Harmonic Distortion (THD) 0.10%
Low Level Input Range 200mV-5V
High Level Input No
Selectable X-Over HPF/FULL/LPF
X-Over Filter Range 40HZ-2KHZ
Bass Boost Range No
Bass Boost Frequency No
Infrasonic Filter No
Phase Selector No
Amplifier Class Digital (D)
Amplifier Type Stereo Full Range
Number of Channels 4
Minimum Impedance 2 Ohm Stereo / 4 Ohm Bridge
Led Indicator Power/Protect/Clip
Power Input Terminal Size 4Ga
Fuse Size 1 x 40A (40A)
Remote Level Control No
Cooling Fan No
Voltmeter No
Thermal Protection Yes
Over-Load Protection Yes
DC Output Protection Yes
Short Circuit Output Protection Yes
Voltage Input Protection Yes (16.5v)
Clipping Protection Yes
Body Color / Finish Red / Black Brushed Aluminum
Overall Length 6.4" / 164.3mm
Overall Wide 5.5" / 140mm
Overall Height 1.8" / 48mm
Heatsink Length 5" / 127mm
Compact Size to easy Installation for Any Applications Yes

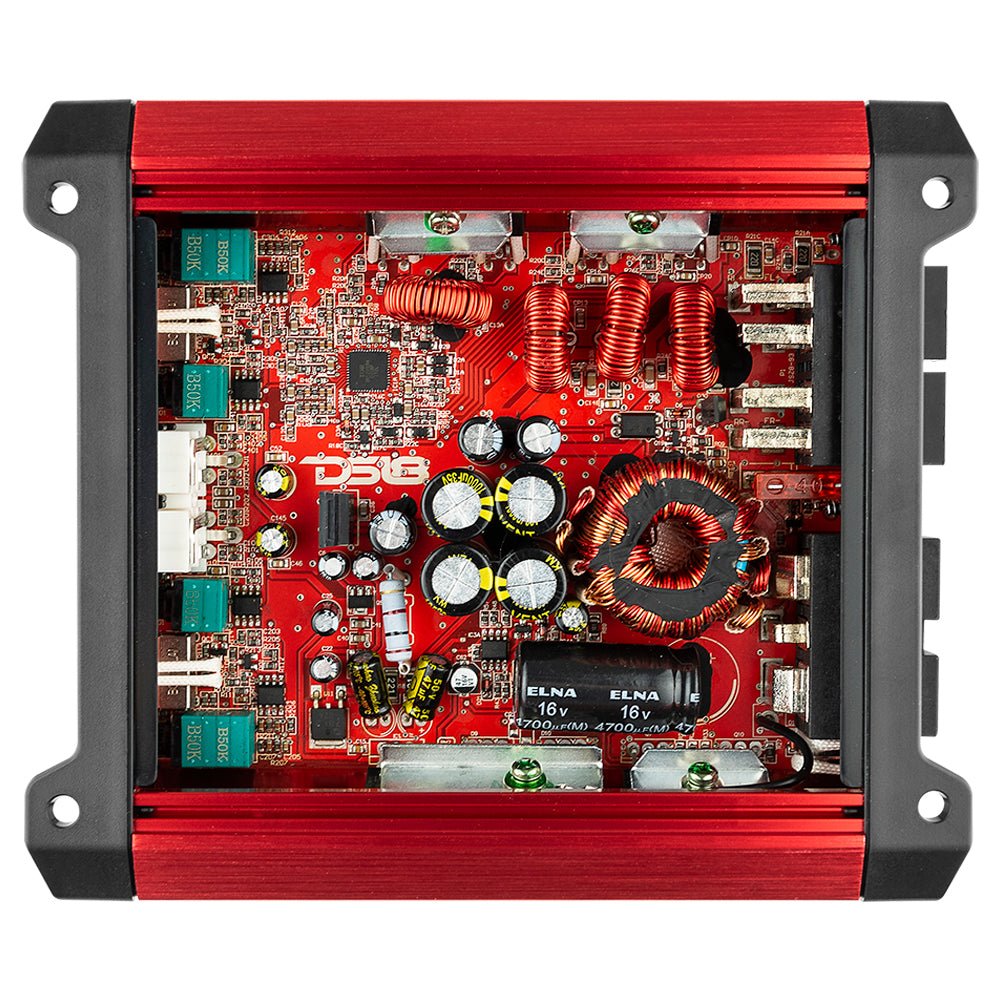

Stable/Reliable Two or Four Layers Traces PCB Design Yes
Surface Mount Component Technology Yes
Quality Control Verification using Audio Precision Instruments Yes
Remote Level Control with Clip Indicator No
