SXE Class D Monoblock Amplifier 1 x 500 Watts RMS @ 1-Ohm 1500 Watts
Product Overview Monoblock Car Amplifier The SXE-1500.1D is the perfect companion for rich, powerful bass! This 1500W...
- $203.95
- $203.95
- Unit price
- per
Subtotal:
$203.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
Monoblock Car Amplifier
The SXE-1500.1D is the perfect companion for rich, powerful bass! This 1500W Monoblock amplifier is engineered to get LOUD!
With RMS power ratings of 200W at 4 ohms, 350W at 2 ohms, and 500W at 1 ohm, it delivers exceptional performance for any subwoofer setup. Designed in a compact size for easy installation, the SXE-1500.1D fits perfectly into all setups without sacrificing space. Its Class D digital design ensures high-efficiency amplification for clear, crisp sound at all volumes. The amplifier's robust 1 ohm stability guarantees reliable performance even under demanding conditions.
Key features include a fully adjustable lowpass filter, subsonic filter, and bass boost from 0 to 18dB/octave: allowing precise control over your audio output. The built-in clipping LED indicator and multiple layers of electronic protection (including thermal, overload, short circuit, impedance, voltage, and clipping) ensure your amplifier operates safely and effectively. With a frequency response ranging from 10Hz to 250Hz and a signal-to-noise ratio of 90dB, this car audio amplifier delivers a dynamic audio experience.

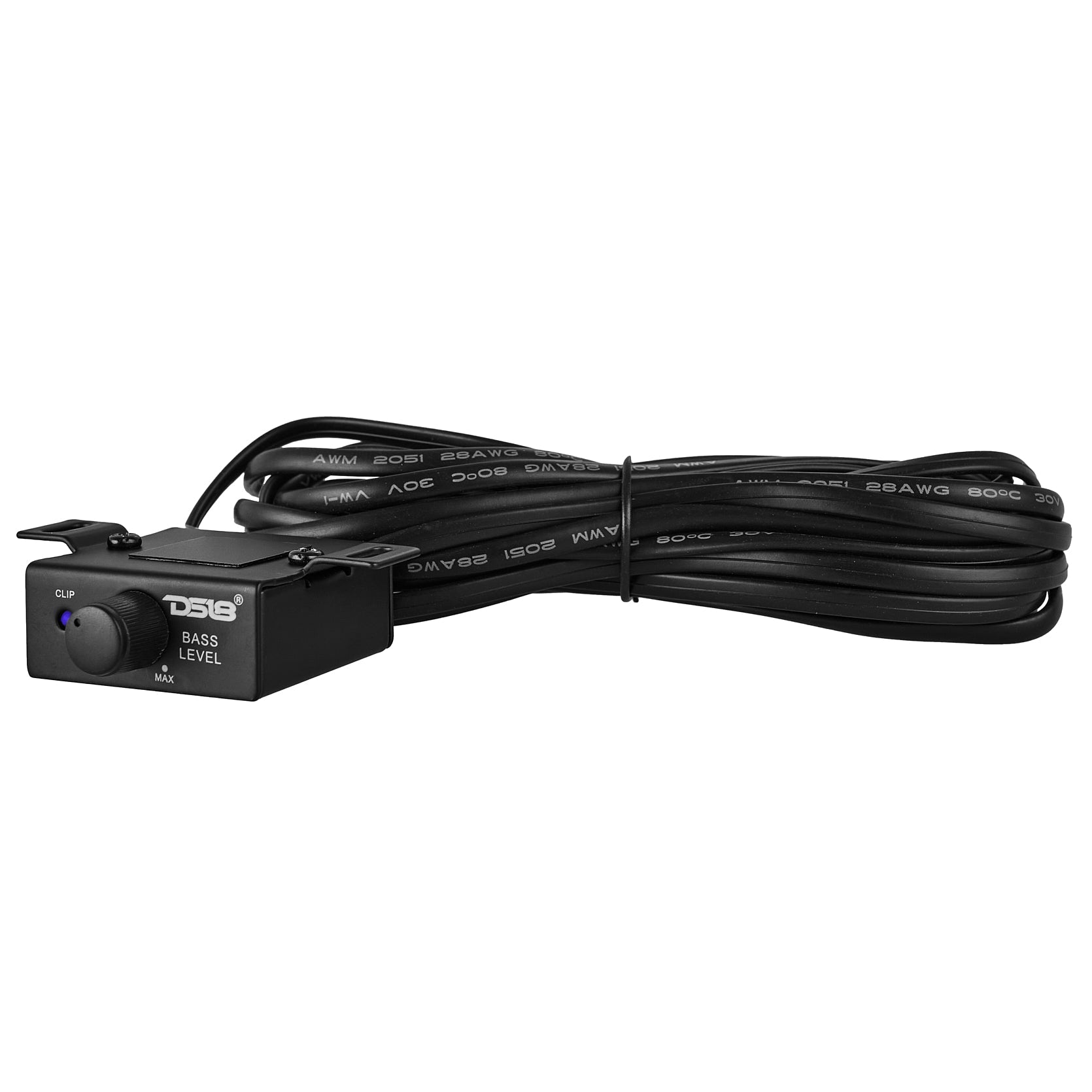

The remote level control with clip indicator offers convenient operation and customization from within your vehicle, making it easy to dial in your perfect sound.
Boost your bass and enjoy perfect audio with the SXE-1500.1D!
Key Features
- Subwoofer Monoblock Amplifier
- 1 Channel
- Class D
- 1 ~ 4 Ohm Stable
- 1 x 500 Watts @ 1 Ohm
- Compact Design
Specifications
| SKU | SXE-1500.1D |
|---|---|
| Total Watts (Peak) | 1500W |
| RMS Power @ 4 ohm | 200W |
| RMS Power @ 2 ohm | 350W |
| RMS Power @ 1 ohm | 500W |
| Frequency Response | 10Hz-250Hz |
| Signal to Noise Ratio | 90dB |
| Efficiency @ 4ohm | 80% |
| Damping Factor | 140 |
| Input Impedance | 20kΩ |
| Channel Separation | N/A |
| Total Harmonic Distortion (THD) | 0.05% |
| Low Level Input Range | 200mV-5V |
| High Level Input | No |
| Selectable X-Over | Fixed LPF |
| X-Over Filter Range | 50-250Hz |
| Bass Boost Range | 0-12dB |
| Bass Boost Frequency | 45Hz |
| Infrasonic Filter | 10-55Hz |
| Phase Selector | 0-180° |
| Amplifier Class | Digital (D) |
| Amplifier Type | Monoblock Subwoofer |
| Number of Channels | 1 |
| Minimum Impedance | 1 Ohm |
| Led Indicator | Power/Protect/Clip |
| Power Input Terminal Size | 4Ga |
| Fuse Size | 2 x 30A (60A) |
| Remote Level Control | Yes |
| Cooling Fan | No |
| Voltmeter | No |
| Thermal Protection | Yes (70°) |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (16.5v) |
| Clipping Protection | Yes |
| Body Color / Finish | Red / Black Brushed Aluminum |
| Overall Length | 7.68" / 195mm |
| Overall Width | 5.5" / 140mm |
| Overall Height | 1.8" / 48mm |
| Heatsink Length | 6.18" / 157mm |
| Gross Single Unit Weight | 1.4KG |
| Compact Size to easy Installation for Any Applications | Yes |
| Stable/Reliable Two or Four Layers Traces PCB Design | Yes |
| Surface Mount Component Technology | Yes |
| Quality Control Verification using Audio Precision Instruments | Yes |
| Remote Level Control with Clip Indicator | Yes |
