Switch-Pros SP9100

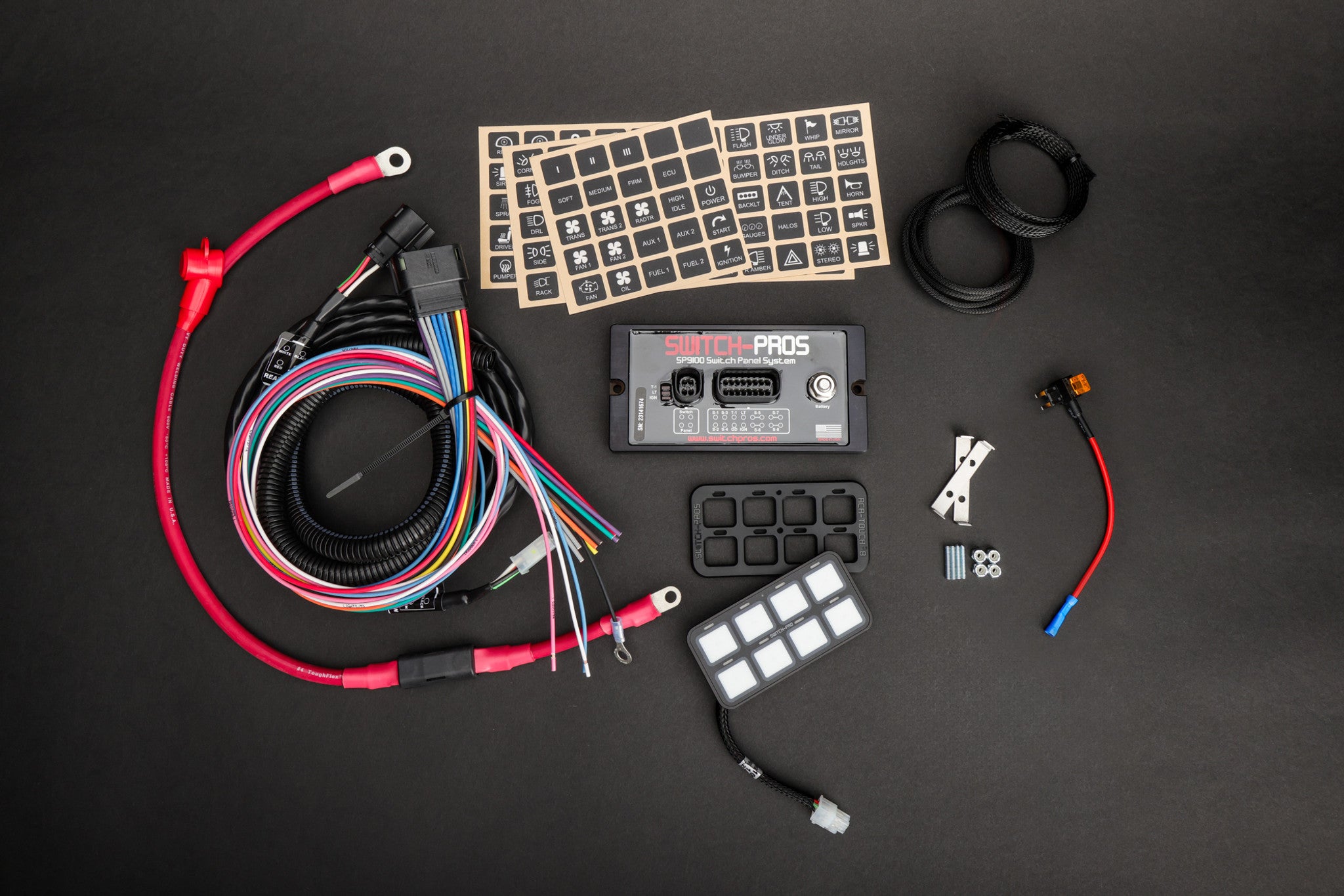

What’s Included?

• Switch Panel and Power Module

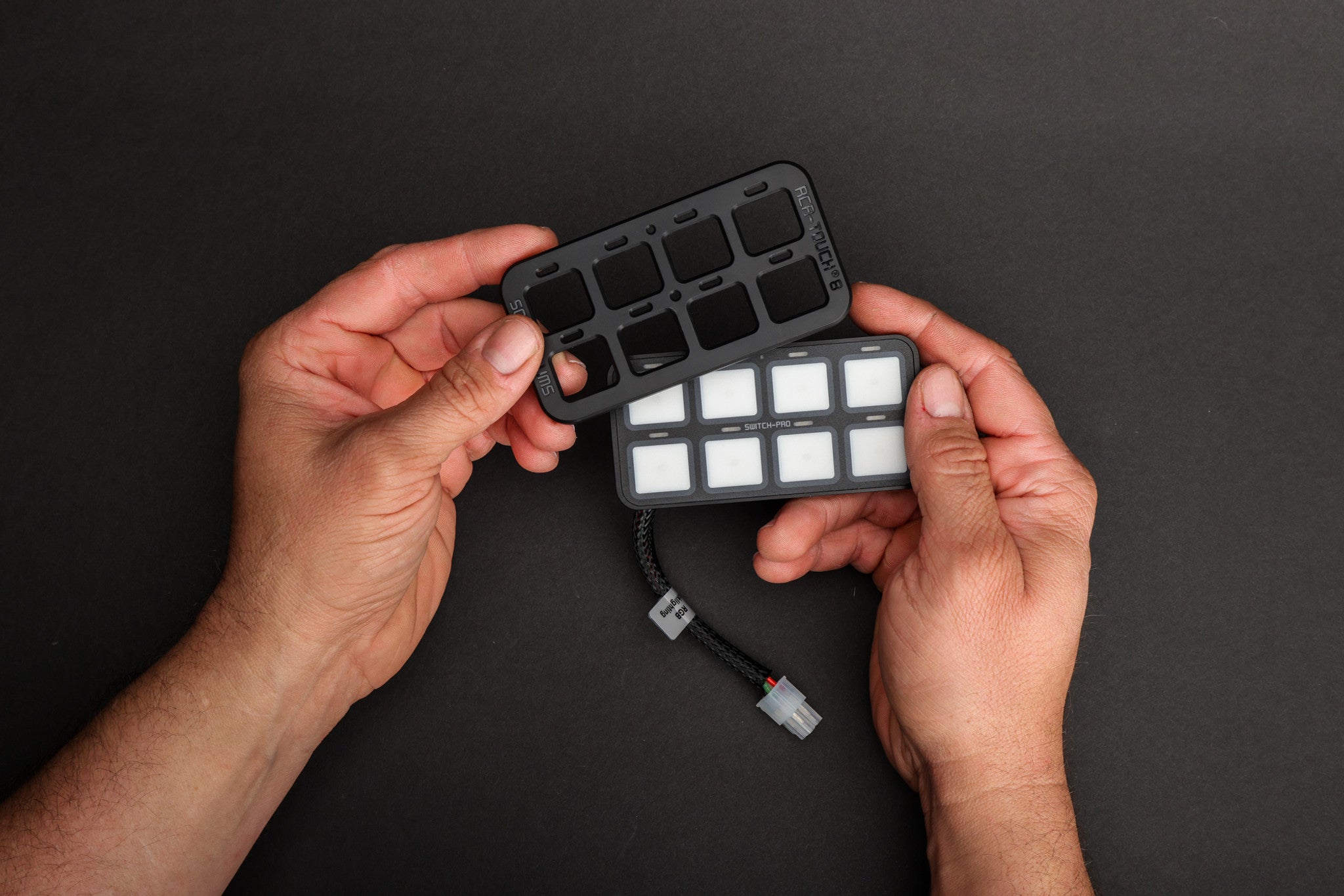

• RCR-Touch®8 cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain  (United States Design Patent No. US D922,969 S)

• 11’ of Communication Cable between Switch Panel and Power Module

• Power Cable with 125A inline fuse

• 125 User Selectable Legends included (Horizontal orientation)

• Installation brackets and hardware

• 16-pin color coded output harness

• Detailed installation Guide

Features

• RGB Backlighting

• Built-in Bluetooth module for use with free Switch-Pros App

• Program and operate your panel from any device with access to the iOs or Google Play Store

• Battery Voltage Readout on App screen

• Orange LED switch indicators

• LED Input Status Indicators for easy troubleshooting on power module

Specifications

• 125amp capacity with 8 outputs

• 8 Outputs: 4 rated @ 35A, 4 rated @ 20A

• Adjustable Output Overcurrent Values

• Switch Panel enclosure measures 4” L x 2” W x .375” H

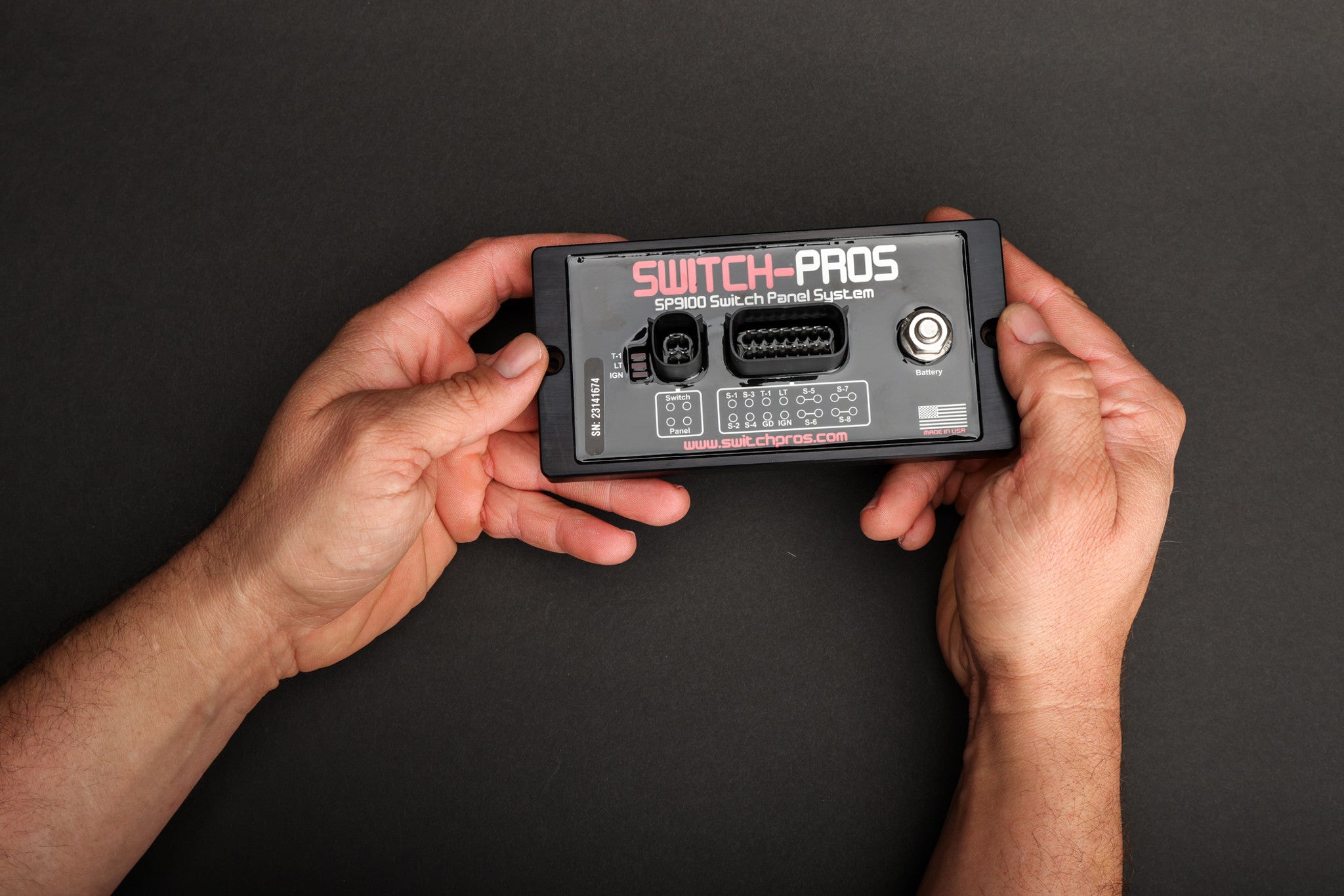

• Power Module Measures 6”L x 3”W x .5”H (excluding connectors)

• Power Module Under Hood rating 125°C to -40°C

• Switch Panel and Power Module Waterproof rating of IP67

Programming & Other Features

• Preset Dimming function WITH MEMORY (100% to 10% brightness)

• Master Mode, with ability to turn up to 7 other switches On AND Off with one touch

• On/Off or Momentary

• Ignition or Battery Input

• Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation

• Automatic Power-Up upon vehicle start up

• Time Delay off

• No bulky relay box

• Two External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)

• Low Voltage Disconnect

• Sleep Mode for minimal power consumption

• Daisy Chain up to 3 Switch Panels to One Power Module
