Honda Pioneer 1000 6in. Portal Gear Lift - 2016 - Dual Idler - 30% Gear Reduction - Billet Housing
Honda Pioneer 1000 6in. Portal Gear Lift - 2016 - Dual Idler - 30% Gear Reduction - Billet Housing
Honda Pioneer 1000 6in. Portal Gear Lift - 2016 - Dual Idler - 30% Gear Reduction - Billet Housing
{{widget type=Magento\Cms\Block\Widget\Block template=widget/static_block/default.phtml block_id=1444 type_name=CMS Static Block}}
More Clearance. More Torque. More Pioneer.
Put your Honda Pioneer 1000 on GDP Portals and find out what its really capable of. SuperATV's 6 Portal Gear Lift gives you room for monster tires and the torque to put them to work. Choose a 30%, 45%, or 60% gear reduction, cast or billet aluminum housings, and single or dual idler gears. We've done the hard work so you can take on the hard trails.
Which Gear Reduction Should You Choose?
Need help matching your tire size and riding style to a reduction? Check out our portal gear reduction calculator.
Should You Upgrade to Dual Idlers?
Adding a second idler gear is easy. Getting both gears to share the load takes precision—and that's where GDP earns its name. Our CNC-ground 9310 steel alloy gears mesh perfectly to spread the load over twice as much surface area. You get more reliable torque transfer and our strongest gear set. If you plan to push your Pioneer hard, this is the upgrade you want.
Cast or Billet Aluminum?
Choose cast or billet aluminum housings for your Pioneer. Both options have reinforcement for gear retention and an interior optimized for oil flow. Each kit also includes 5/16 backing plates made from an advanced steel alloy that's stronger than chromoly.
What Size Tires Can You Run?
Use the table below to match your tire size to your suspension setup.
Before you order, check the Fitment tab for your model and year, wheel requirements, and compatibility restrictions.
Do You Need a Frame Stiffener?
We strongly recommend a SuperATV Frame Stiffener with your 6 portals. Portals and oversized tires can put extra strain on your machine, and a frame stiffener adds reinforcement where you need it.
How Do Portals Affect Your Drivetrain?
GDP Portals put the gear reduction at the wheel hubs. That helps reduce stress on your axles, differential, prop shaft, and transmission compared to oversized tires without gear reduction.
GDP Riders Say It Best
“I have owned the other brand of portals, and there is no comparison. GDP all the way. Fit and finish is perfect, installation is a breeze, and shipping is super fast. —Levi, GDP Portal Gear Lift customer
“Love the portals so far. Super smooth and plenty of torque —Austin L., GDP Portal Gear Lift Customer
Reviews reflect customer experiences across the GDP Portal Gear Lift lineup.
Built for Hard Rides
Put your Honda Pioneer 1000 on GDP Portals and find out what its really capable of. SuperATV's 6 Portal Gear Lift gives you room for monster tires and the torque to put them to work. Choose a 30%, 45%, or 60% gear reduction, cast or billet aluminum housings, and single or dual idler gears. We've done the hard work so you can take on the hard trails.
Which Gear Reduction Should You Choose?
- 30% gear reduction: Get extra torque while retaining more speed for faster trail rides.
- 45% gear reduction: Step up the torque to help turn bigger tires.
- 60% gear reduction: Get our deepest reduction for big tires and deep mud.
Need help matching your tire size and riding style to a reduction? Check out our portal gear reduction calculator.
Should You Upgrade to Dual Idlers?
Adding a second idler gear is easy. Getting both gears to share the load takes precision—and that's where GDP earns its name. Our CNC-ground 9310 steel alloy gears mesh perfectly to spread the load over twice as much surface area. You get more reliable torque transfer and our strongest gear set. If you plan to push your Pioneer hard, this is the upgrade you want.
Cast or Billet Aluminum?
Choose cast or billet aluminum housings for your Pioneer. Both options have reinforcement for gear retention and an interior optimized for oil flow. Each kit also includes 5/16 backing plates made from an advanced steel alloy that's stronger than chromoly.
What Size Tires Can You Run?
Use the table below to match your tire size to your suspension setup.
| Honda Pioneer 1000 Portal Gear Reduction Recommendations | ||
|---|---|---|
| Tire Size | Required Suspension Setup with 6 Portals | |
| Up to 28 | Stock | |
| Up to 28 | 3 Lift Kit | |
| 29 to 31 | 1.5 Forward Front A-Arms | |
| 29 to 31 | 1.5 Forward Front A-Arms and 3 Lift Kit | |
| 32 to 37 | 6 Lift Kit | If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator. | Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used. |
Before you order, check the Fitment tab for your model and year, wheel requirements, and compatibility restrictions.
Do You Need a Frame Stiffener?
We strongly recommend a SuperATV Frame Stiffener with your 6 portals. Portals and oversized tires can put extra strain on your machine, and a frame stiffener adds reinforcement where you need it.
How Do Portals Affect Your Drivetrain?
GDP Portals put the gear reduction at the wheel hubs. That helps reduce stress on your axles, differential, prop shaft, and transmission compared to oversized tires without gear reduction.
GDP Riders Say It Best
“I have owned the other brand of portals, and there is no comparison. GDP all the way. Fit and finish is perfect, installation is a breeze, and shipping is super fast. —Levi, GDP Portal Gear Lift customer
“Love the portals so far. Super smooth and plenty of torque —Austin L., GDP Portal Gear Lift Customer
Reviews reflect customer experiences across the GDP Portal Gear Lift lineup.
Built for Hard Rides
- Our portal housings and advanced steel alloy backing plates give your Pioneer a tough foundation. Inside, precision-ground 9310 steel alloy gears deliver cool, quiet performance.
- Our housings are reinforced for gear retention and optimized for oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with Portal Blood—gear oil formulated for GDP Portals
- There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
- Our housings are reinforced for gear retention and optimized for oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with Portal Blood—gear oil formulated for GDP Portals
- There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
Advanced Gaskets, Seals, and Bearings
Our portals use:

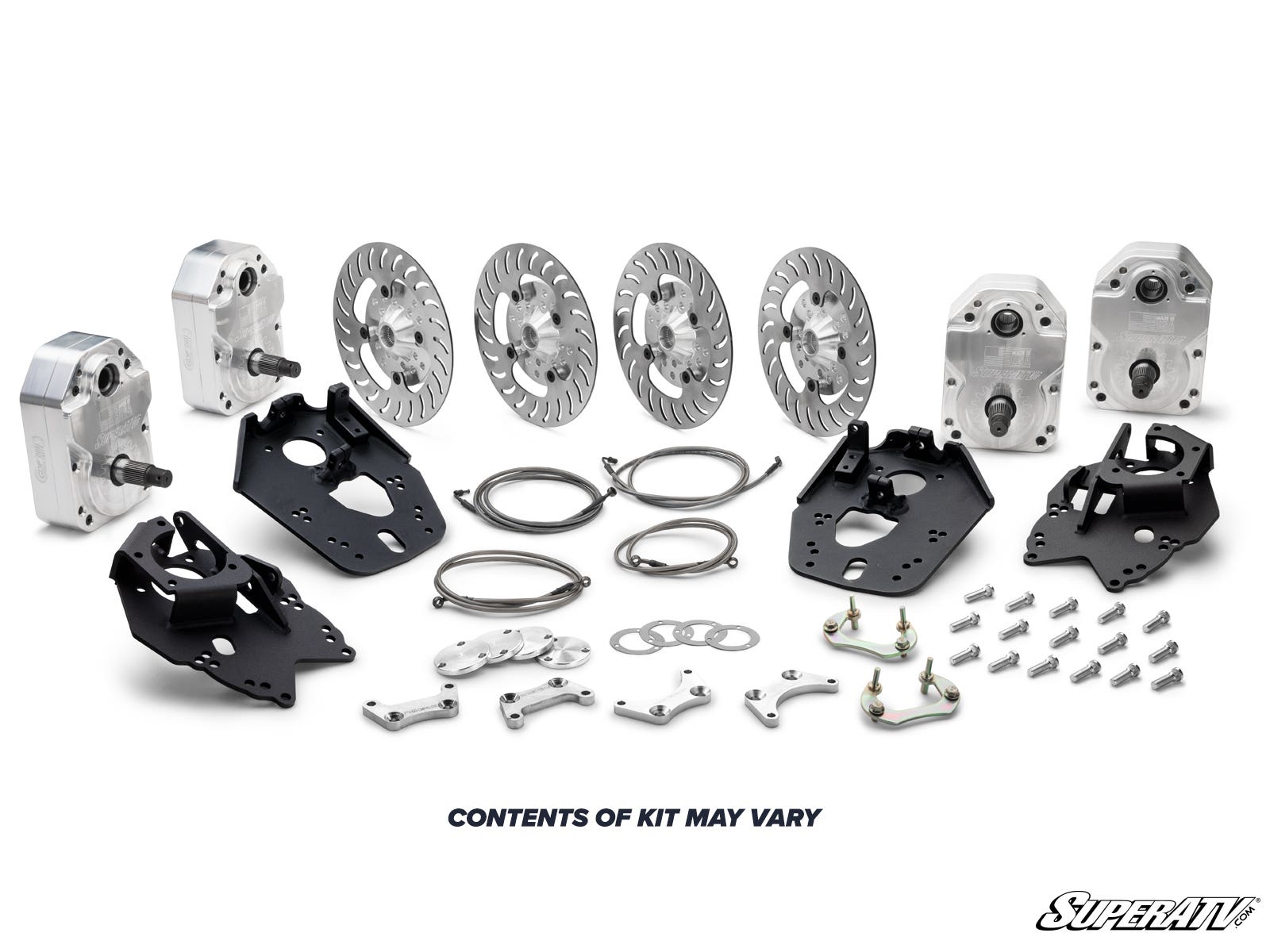

| 6 Portal Gear Lift Includes: | ||
|---|---|---|
| (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings | ||
| (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs | ||
| (4) Specialized steel alloy backing plates | ||
| (4) Steel caliper mounting plates | ||
| (2) Steel steering arms | ||
| (8) Rear backing plate bushings with sleeves | ||
| Extended brake lines | ||
| All required hardware, including recessed castle nut socket | ||
Need Help Choosing Your Portals?
Our dedicated portal tech support team can help you choose the right setup for your Pioneer. Call (855) 743-3427 for help with gear reduction, housing options, and more.
Patent #11,299,042
Patent #11,318,787Gen 3 Portals Are Geared for All
GDP didn't make the first portal side-by-side kit on the market—just the first kit that anybody gave a damn about. That's why SuperATV's GDP 6 Portal Gear Lift is the best thing you could add to your Honda Pioneer 1000. Massive ground clearance, monster tires, and your choice of a gear reduction—30%, 45%, or 60%—will turn your Pioneer into a force to be reckoned with. Want to push your machine even further? Choose dual idler gears to maximize strength and power. No matter where you ride, GDP has exactly what you need.
What is a Dual Idler®?
Perfection takes time. After years of research and development, we've made our dual idler gear portals unlike any other. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don't do a thing if they're not mated perfectly, though. Precision CNC grinding ensures ours do. Our gears are made from the industrys toughest 9310 steel alloy. Didn't think dual idlers mattered? With GDPs quality and experience, they finally do.
Perfect for All Riding Styles
GDP Portals weren't designed for one specific type of rider. They were designed with all riders and terrain types in mind. From the farm to the dunes and every muddy, rocky place in between, GDP will completely redefine your Pioneer. Looking for fast rides with plenty of torque? Go with a 30% gear reduction. Want to upgrade to bigger tires? Try a 45% gear reduction. Thinking about building the mother of all mud monsters? Our 60% gear reduction option is for you. We've got a portal setup for everyone.
A Gear Reduction That Protects Your Drivetrain
Having a gear reduction right in the hub places less stress on your drivetrain. Why does that matter? Because it protects your axles, differential, prop shaft, and transmission so you can ride hard without worry. Your Pioneers most vital components will last longer, too.
Cast or Billet Housings for Ultimate Strength
You won't find inferior or amateur housings on GDP Portals. These housings are professionally made by experts and backed by years of experience. Whether you go with cast or billet aluminum, you're getting a product that can't be beat. Add in our 5/16 backing plates made from an advanced steel alloy and you're left with Honda Pioneer 1000 portals that are second to none.
Advanced Gaskets, Seals, and Bearings
Our portals use:
Reinforce Your Ride with a Frame Stiffener
Portals and monster tires are fun, but they can put unnecessary and potentially harmful strain no your machine. For this reason, we strongly recommend running a SuperATV Frame Stiffener with your 6 portals.
Reinforce Your Ride with a Frame Stiffener
Portals and monster tires are fun, but they can put strain on your machine. For this reason, we strongly recommend running a SuperATV Frame Stiffener with your 6 portals.
Top-Rated Customer Service
Still need a little help getting exactly what you need? With GDP, you get a dedicated portal tech support team because nobody likes to get an automated response. Give us a call so we can get the perfect set of portals in your hands today.
| Honda Pioneer 1000 Portal Gear Reduction Recommendations | ||
|---|---|---|
| Tire Size | Required Suspension Setup with 6 Portals | |
| Up to 28 | Stock | |
| Up to 28 | 3 Lift Kit | |
| 29 to 31 | 1.5 Forward Front A-Arms | |
| 29 to 31 | 1.5 Forward Front A-Arms and 3 Lift Kit | |
| 32 to 37 | 6 Lift Kit | If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator. | Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used. |
| 6 Portal Gear Lift Includes: | ||
|---|---|---|
| (4) Assembled portal hub boxes complete with 9310 gears, seals, output shaft, gaskets, and thrust bearings | ||
| (4) Universal hubs and precision-ground stainless steel slotted rotors with lugs | ||
| (4) Specialized steel alloy backing plates | ||
| (4) Steel caliper mounting plates | ||
| (2) Steel steering arms | ||
| (8) Rear backing plate bushings with sleeves | ||
| Extended brake lines | ||
| All required hardware, including recessed castle nut socket | ||
| Honda Pioneer 1000 Portal Gear Reduction Recommendations | ||
|---|---|---|
| Tire Size | Required Suspension Setup with 6 Portals | |
| Up to 28 | Stock | |
| Up to 28 | 3 Lift Kit | |
| 29 to 31 | 1.5 Forward Front A-Arms | |
| 29 to 31 | 1.5 Forward Front A-Arms and 3 Lift Kit | |
| 32 to 37 | 6 Lift Kit | If you need help figuring out which gear reduction is right for you, check out our portal gear reduction calculator. | Max tire sizes are measured at full compression and full turn. The given tires sizes are the largest we fit without rubbing. With minor trimming or a small amount of rub, larger tire sizes can be used. |
Patent # 11,299,042
Patent # 11,318,787
Fitment
- Honda Pioneer 1000 : 2016-2025
- Honda Pioneer 1000 Deluxe : 2016-2025
- Honda Pioneer 1000 Limited Edition : 2022-2025
- Honda Pioneer 1000-5 : 2016-2025
- Honda Pioneer 1000-5 Deluxe : 2016-2025
- Honda Pioneer 1000-5 Limited Edition : 2022-2025
- Honda Pioneer 1000-6 : 2023-2025
NOTE:
- Not compatible with Keller Ball Joints
- Not compatible with ADR Axles
Wheel Requirements:
- 18 or larger wheel required
- Wheels cannot exceed 4-1/2 backspacing
- Wheels need to have a center hole of at least 3.25 (82.55mm) or require a 1 wheel spacer
