1.3" Multi-Mount PEI Mini Dome Tweeter with 0.8" Voice Coil
1.3" Multi-Mount PEI Mini Dome Tweeter with 0.8" Voice Coil
Product Overview

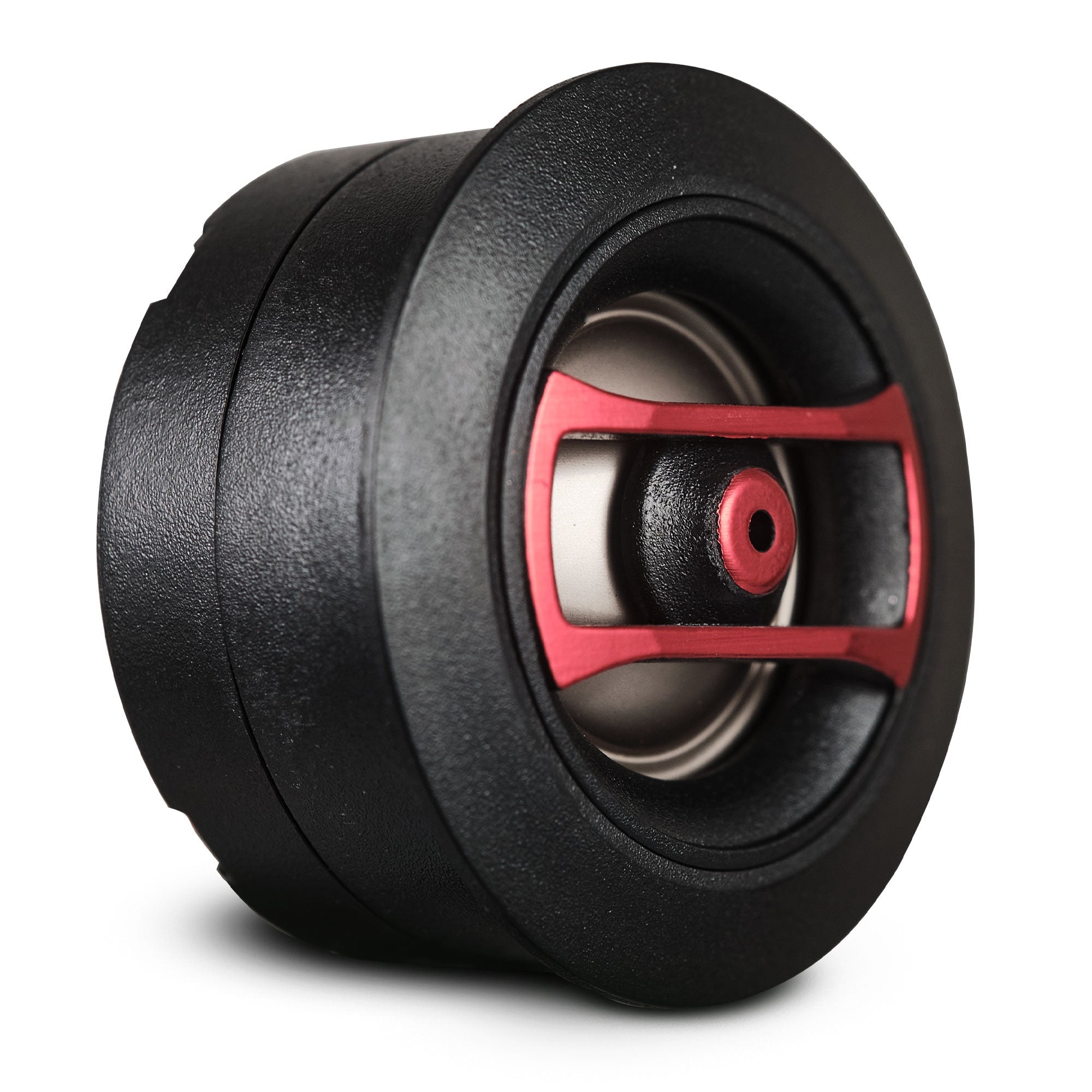

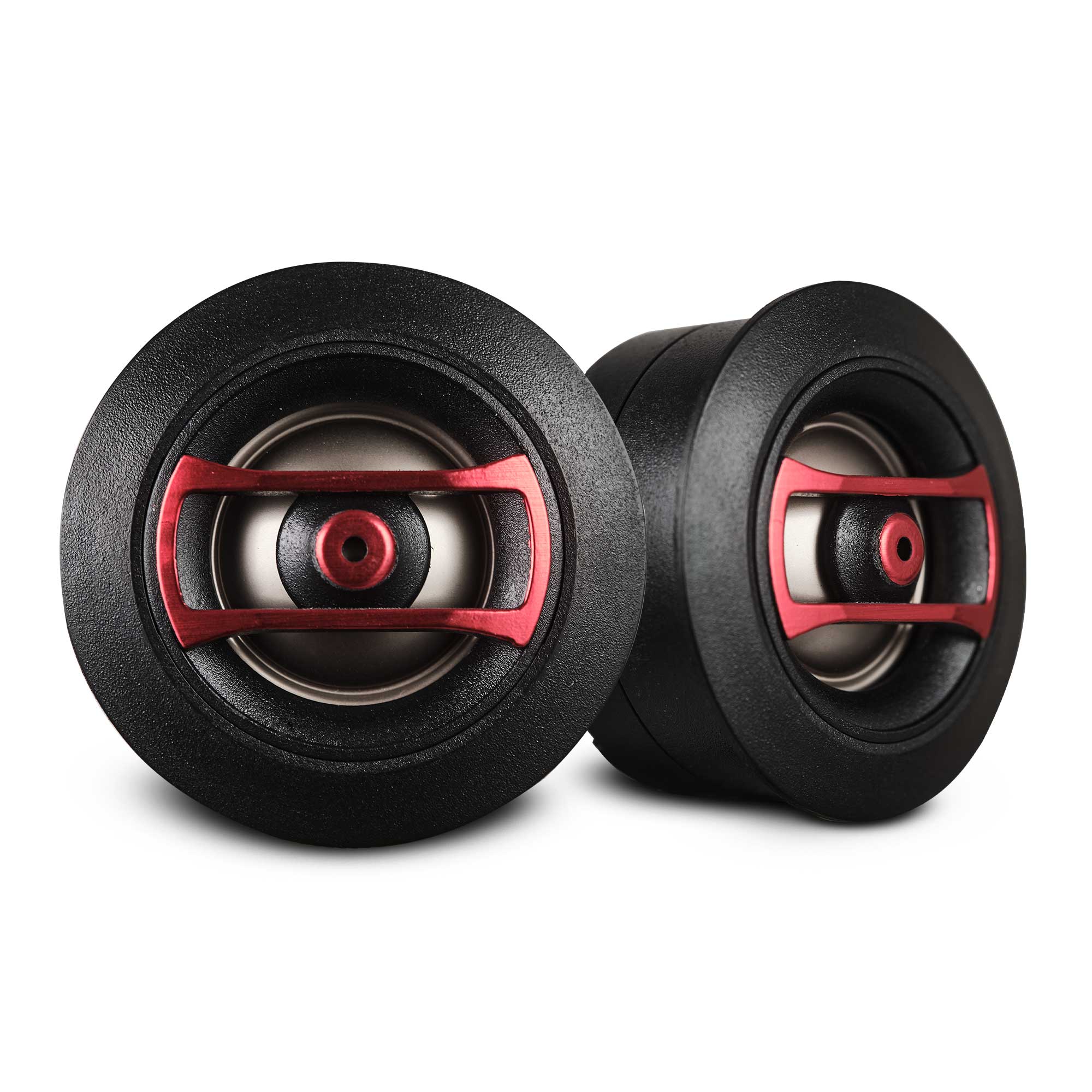

1.3" Multi-Mount PEI Mini Dome Tweeter with 0.8" Voice Coil
Boost your system’s clarity with the SQT1, the epitome of high-frequency clarity and versatility

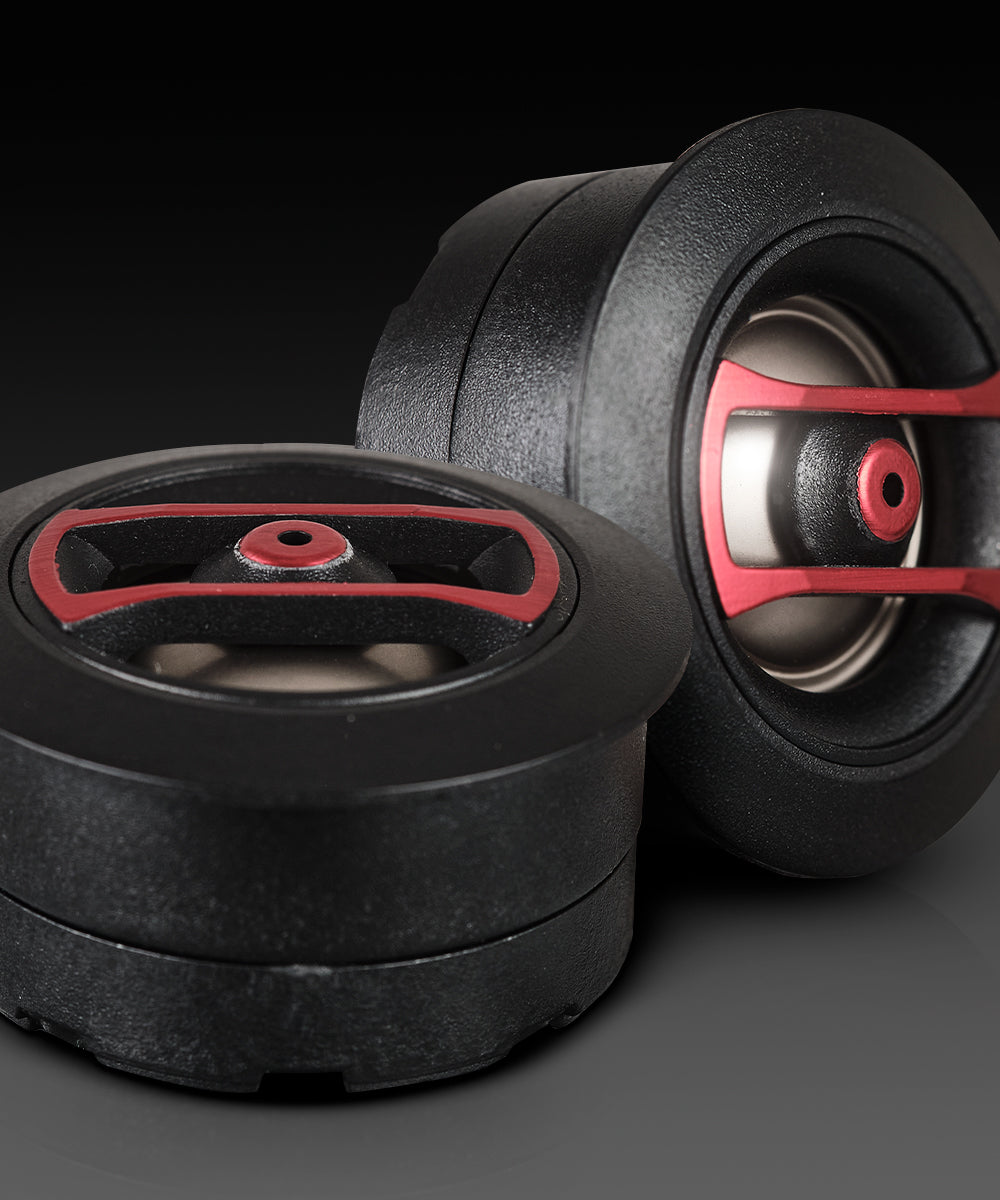

This 1.3" Multi-Mount PEI Mini Dome Tweeter balances power and precision, for crisp, accurate sound reproduction across an extended frequency range from 1KHz to 20KHz. Now available in pairs, each tweeter delivers 15W AES, 30W Program, and 60W Peak Power, making it a powerhouse addition to any setup.
Built with premium PEI and ABS materials, this high-frequency tweeter offers lasting durability and reliable performance in any environment. Featuring a sensitivity of 92 dB at 1W/1M and a 4-ohm impedance, it delivers crisp, superior highs. Equipped with a powerful yet lightweight neodymium magnet, the SQT1 enhances sound without adding bulk to your setup.

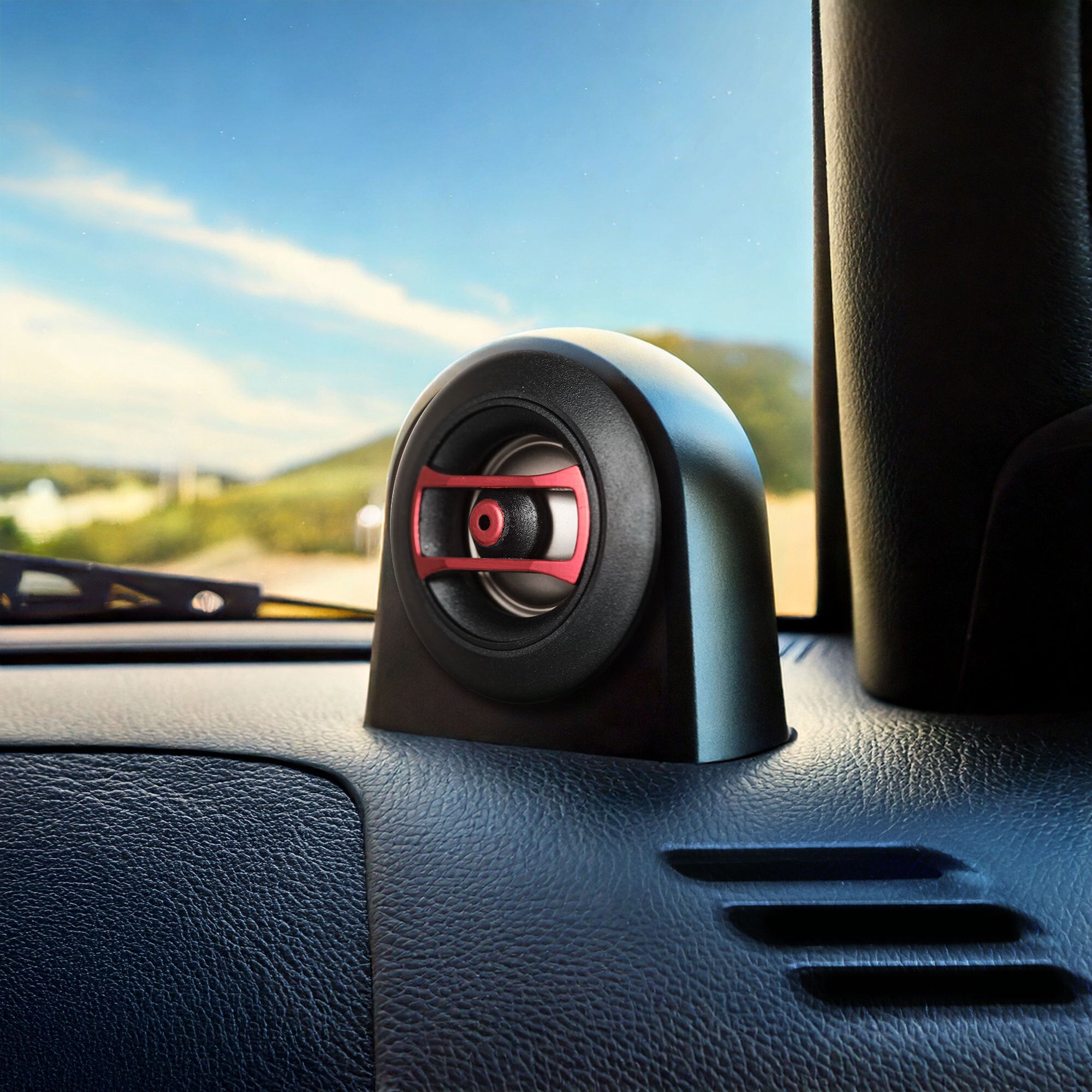

With three easy mounting options—flush, angled, and direct—installation is effortless. Perfect for car audio, the SQT1 mini dome tweeter seamlessly adapts to any setup. Unlike other tweeters, its premium build and advanced design deliver unmatched, refined treble.
Upgrade to the SQT1 today for extraordinary sound quality on every journey!
Key Features
- 1.3" Mini Dome Tweeter
- RMS Power: 30 Watts(60 Watts Peak)
- Impedance: 4 Ohm ~ 92dB
- Neodymium Magnet

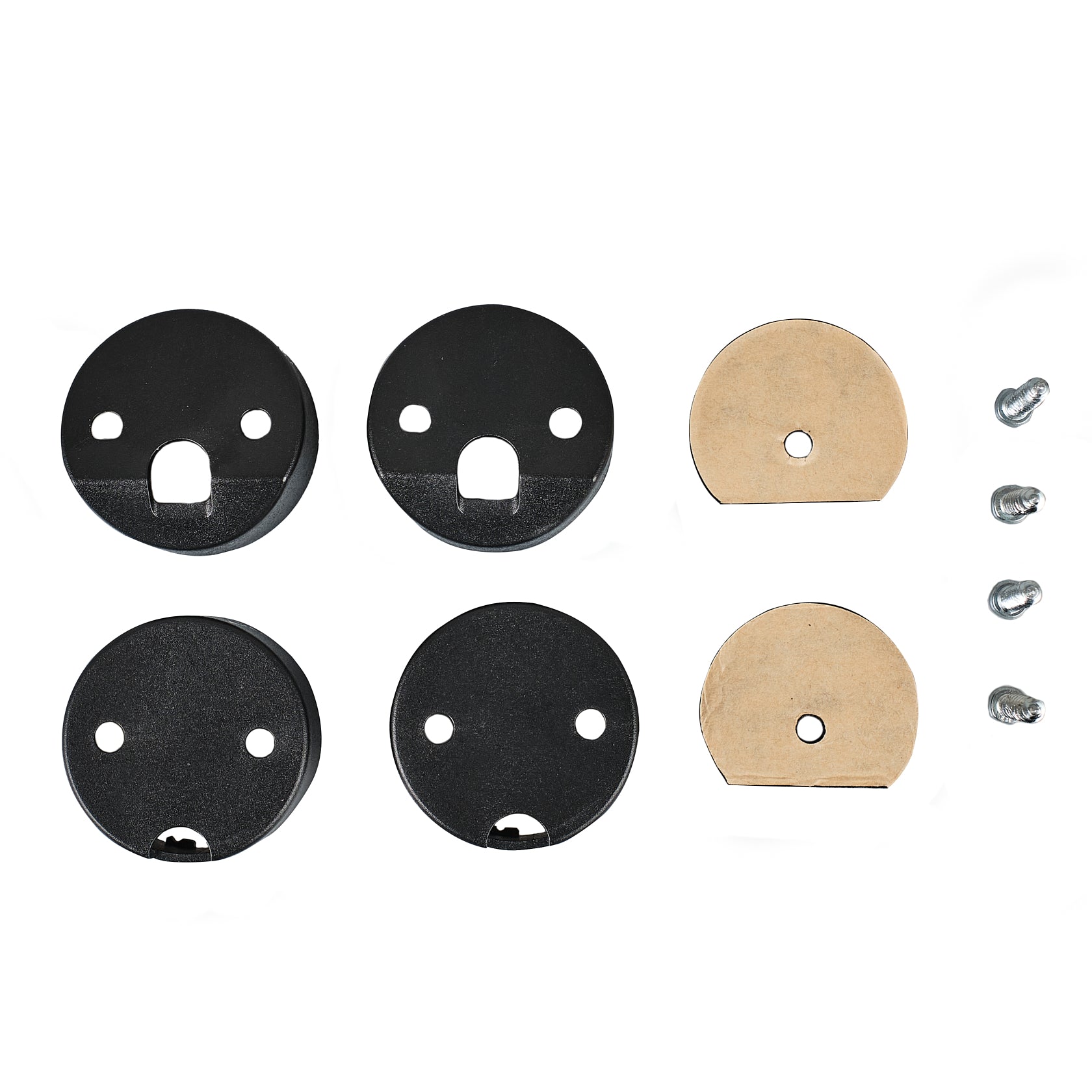

- Flat ~ Angle ~ Flush Mounts
- Pair
Specifications
| SKU | SQT1 |
|---|---|
| Nominal Diameter | 1.3" / 33mm |
| Nominal Impedance | 4 ohms |
| AES Power handling | 15W |
| Program Power handling | 30W |
| Peak Power handling | 60W |
| Sensitivity (1w/1m) | 92dB |
| Frequency Response | 1KHz-20KHz |
| Recommended HI Pass Crossover | 3KHz |
| Pair / Single | Pair |
| Body Color / Material | Black / ABS |
| Voice Coil Diameter | 0.8" / 20.4mm |
| Voice Coil Former Material | KSV |
| Winding Material | Copper |
| Diaphragm Material | PEI |
| Magnet Material | Neodymium (N38H) |
| Magnet Weight | 1.16 Oz |

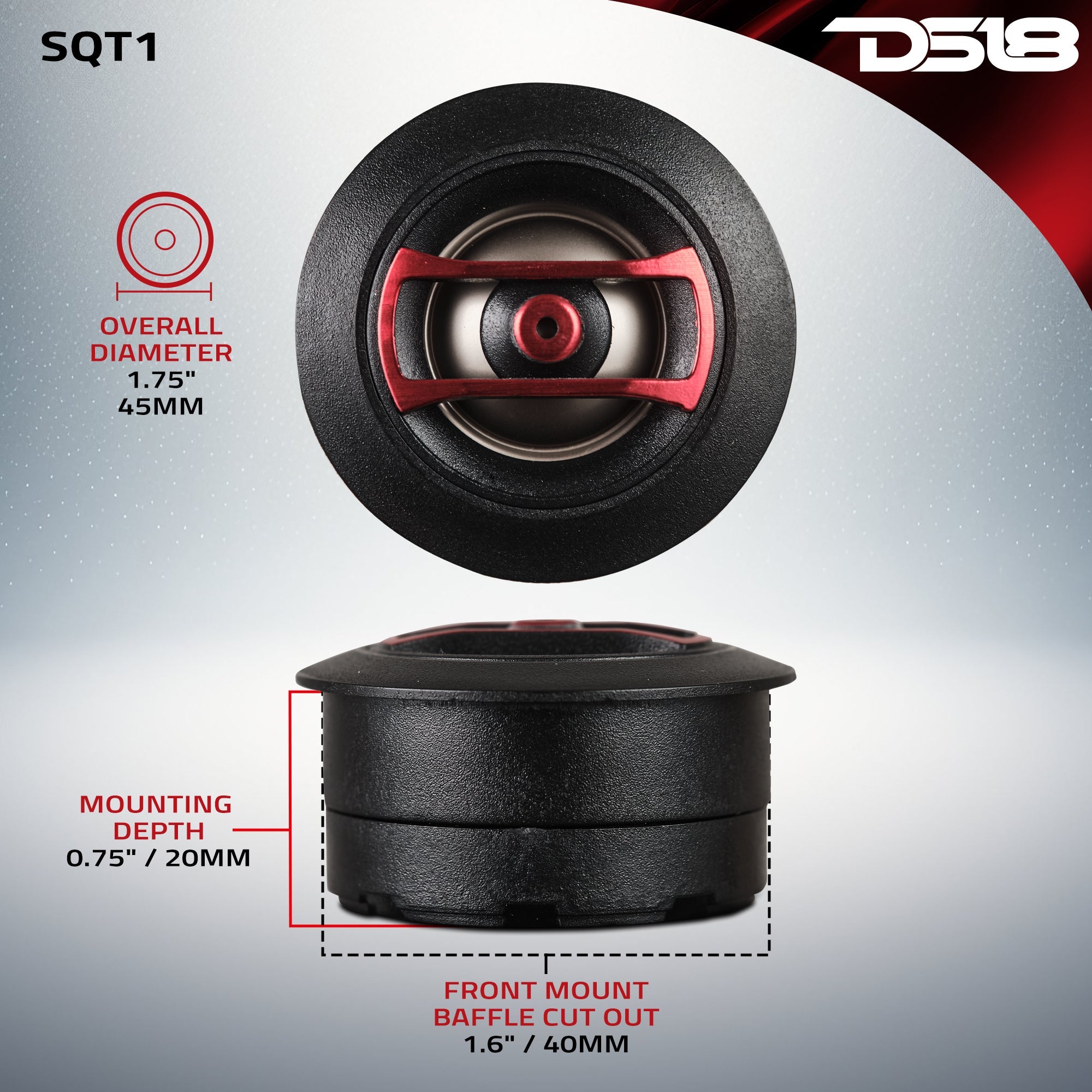

| With Flush Mount Adapter | Overall Diameter: 1.75" / 45mm Overall Depth: 1" / 25mm Front Mount Baffle Cutout: 1.6" / 40mm Mounting Depth: 0.75" / 20mm |
| With Angle Surface Mount Adapter | Overall Diameter: 1.3" / 33.5mm Overall Height: 1" / 26.7mm |

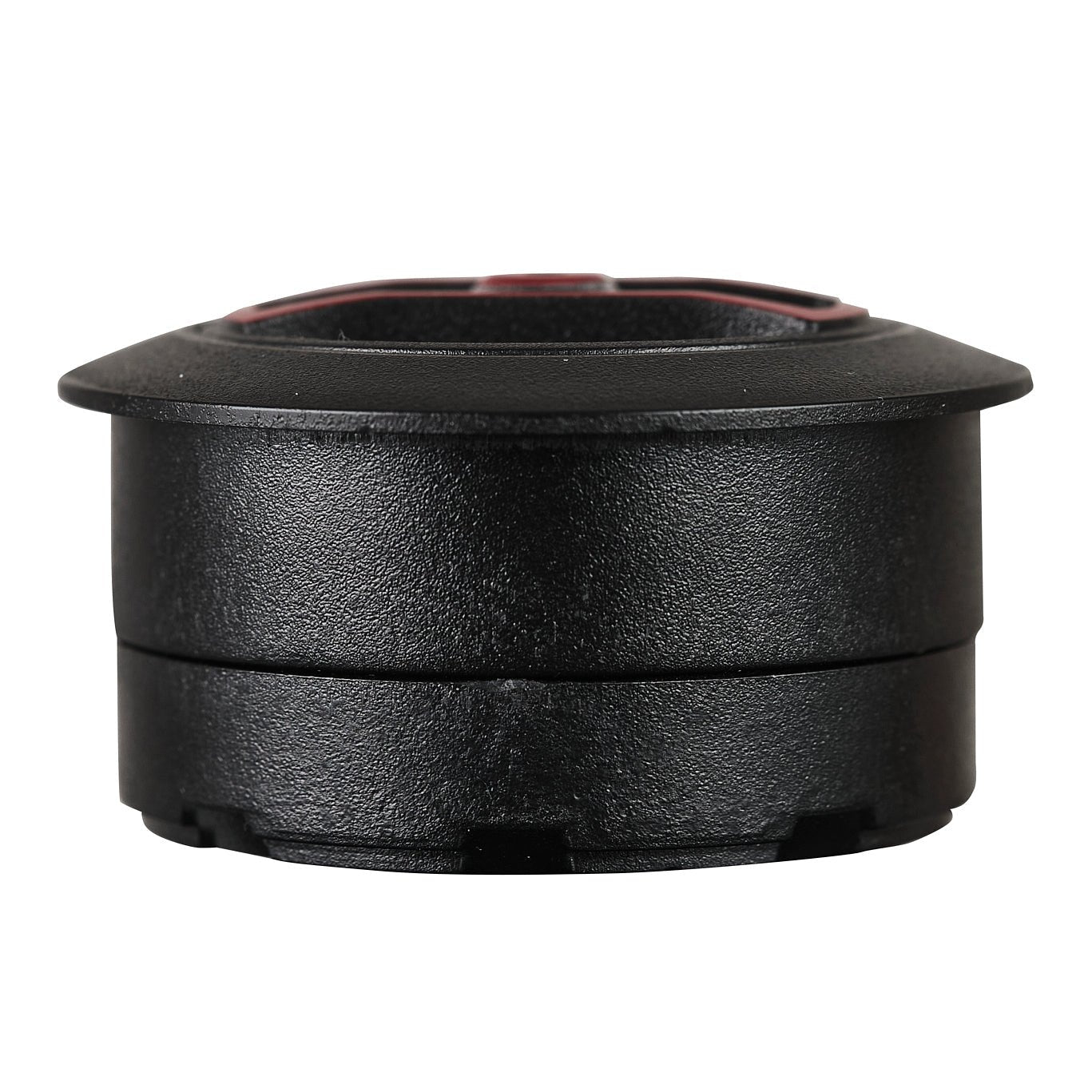

| Without adapter | Overall Diameter: 1.3" / 33.5mm Overall Height: 0.96" / 24mm |
