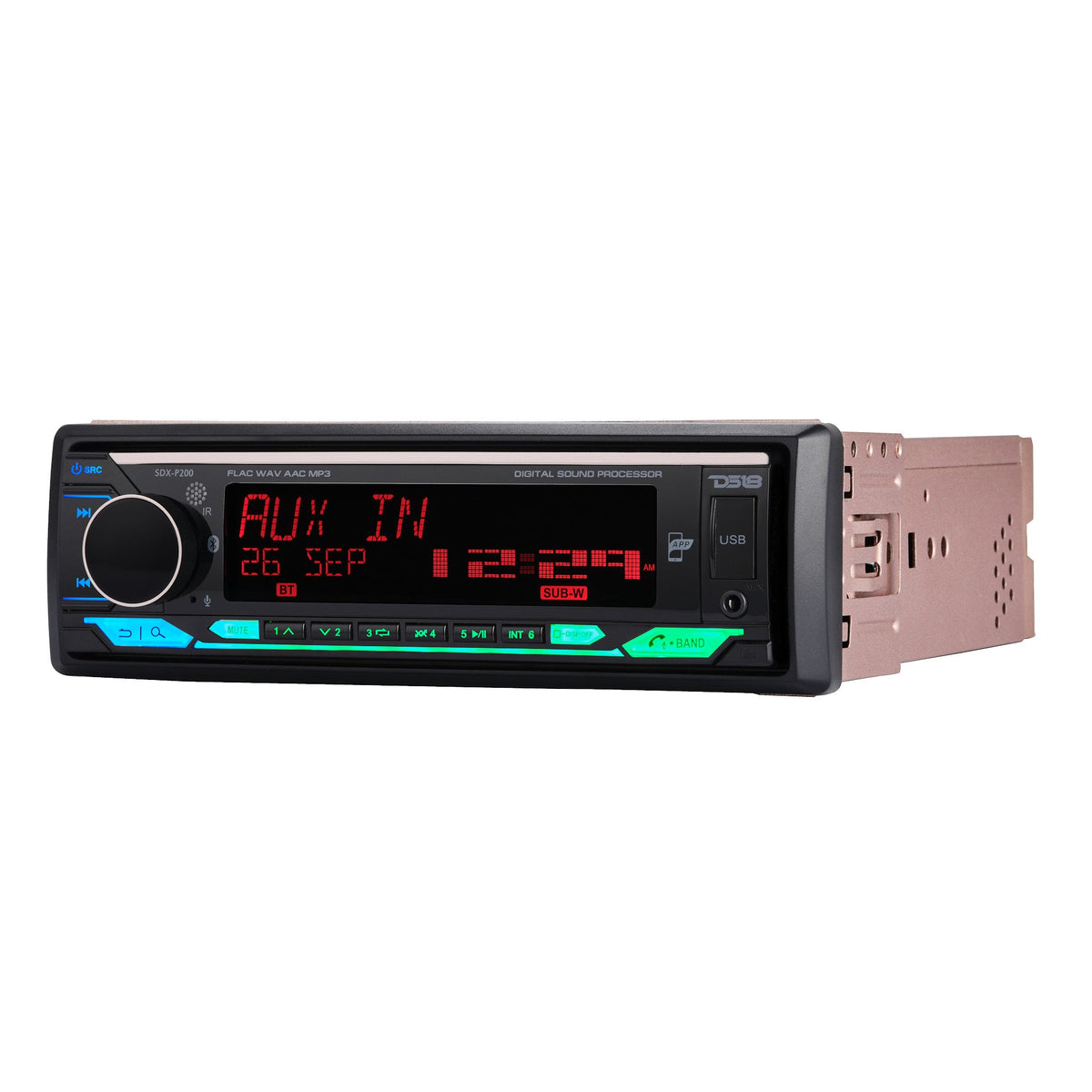

High Power 240 Watts RMS (4 x 60) Digital Media Receiver | Single Din | DSP | APP | Bluetooth Audio and Calling Head Unit | Aux Input | USB | Mechless | AM/FM Radio Receiver | 3V + 3.5V Subwoofer
Product Overview DS18 SDX-P200 High Power 60W x 4 RMS Digital Media Receiver | Single Din |...
Vendor:
DS18
Manufacturer SKU
SDX-P200
Availability:
Out Of Stock
Product Type:
Head Units & Receivers
- $359.95
- $359.95
- Unit price
- per
Subtotal:
$359.95
Couldn't load pickup availability
Instructions:
View Instructions
Out of stock
Product Overview
DS18 SDX-P200 High Power 60W x 4 RMS Digital Media Receiver | Single Din | DSP | APP | Bluetooth Audio and Calling Head Unit | Aux Input | USB | Mechless | AM/FM Radio Receiver | 3V + 3.5V Subwoofer
Upgrade your on-the-go audio experience with DS18’s SDX-P200!
Featuring a sleek and compact design, this single DIN receiver seamlessly integrates into any existing sound system. Enhancing its versatility, the SDX-P200 features 3.5V RCA outputs, providing seamless connectivity options for an even more dynamic audio setup. With the AM/FM radio and 30 memory stations, you can easily tune in to your favorite stations.
The SDX-P200 also has a high-powered built-in amplifier, delivering an impressive 60W x 4 RMS. Whether you're cruising down the highway or stuck in traffic, the SDX-P200 ensures that your music is LOUD and clear.
Take control of your sound with the integrated DSP (Digital Signal Processor) featuring time alignment and a 24-band graphic equalizer. The 2/3-way crossover allows you to fine-tune the sound for optimal performance, while the subwoofer pre-output gives you the option to add some extra bass to your music.
Use the Bluetooth feature to stream audio wirelessly from your smartphone or make hands-free calls on-the-go. The USB reader supports various media file formats, including FLAC, WAV, AAC, APE, and MP3: and provides convenient access to charging for your devices.

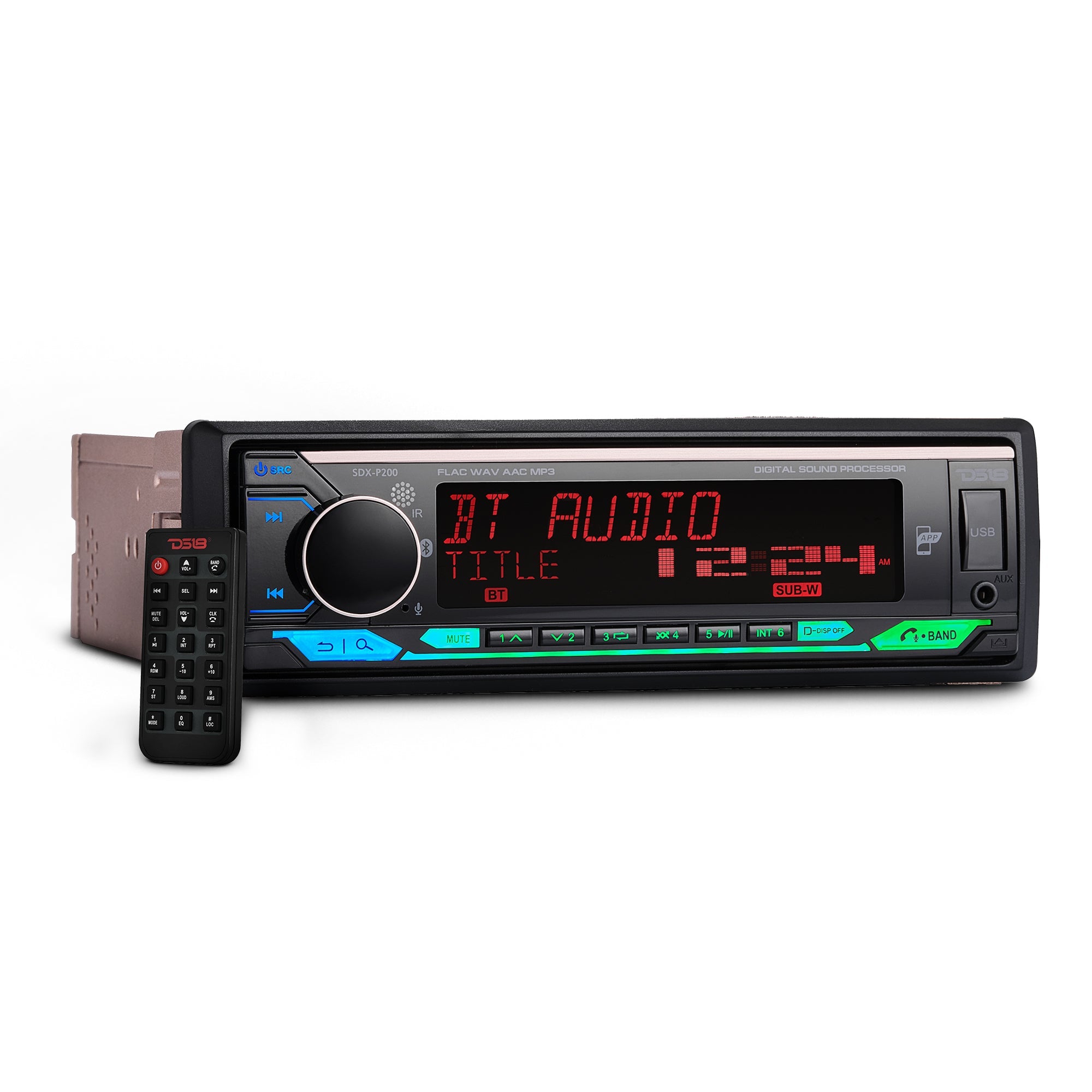

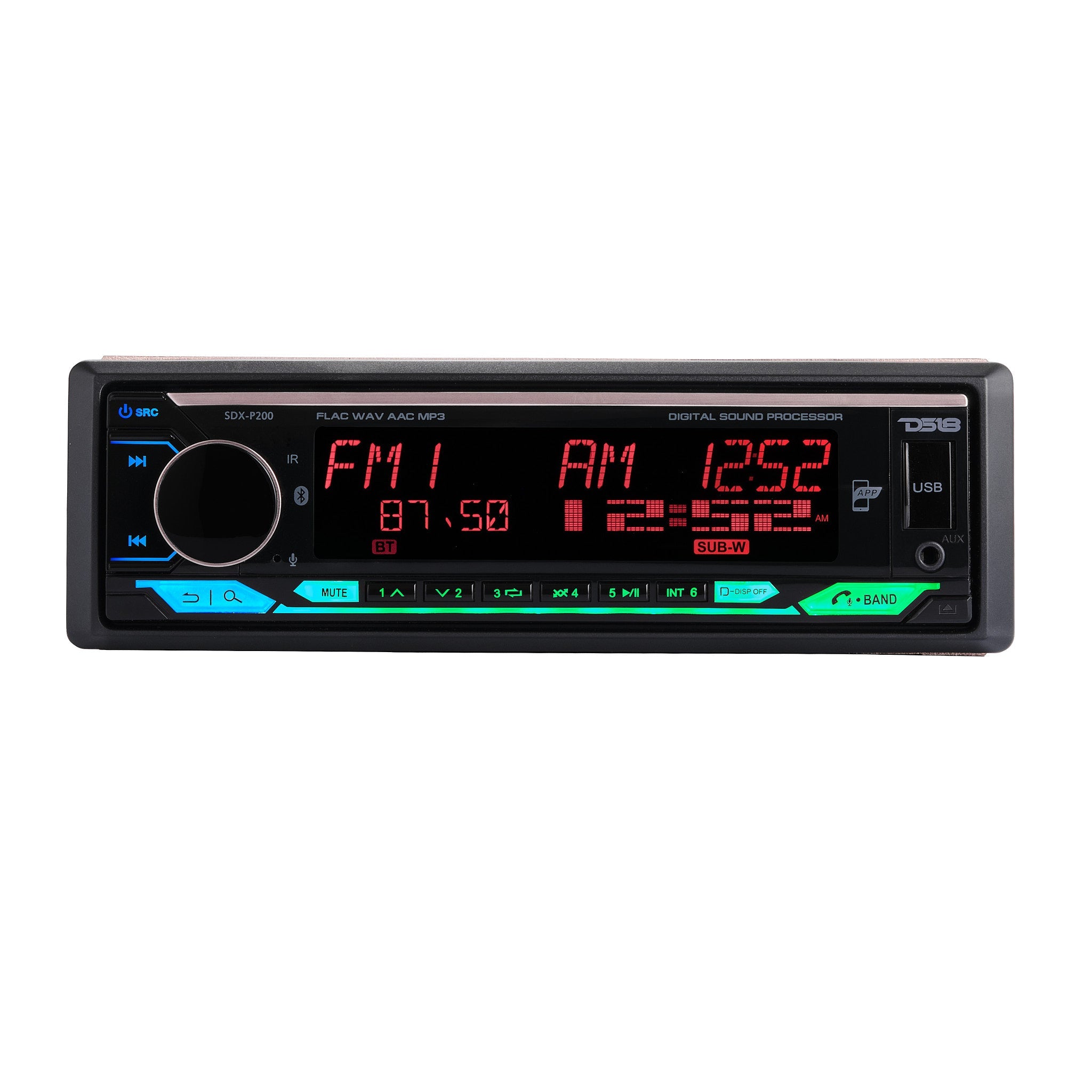

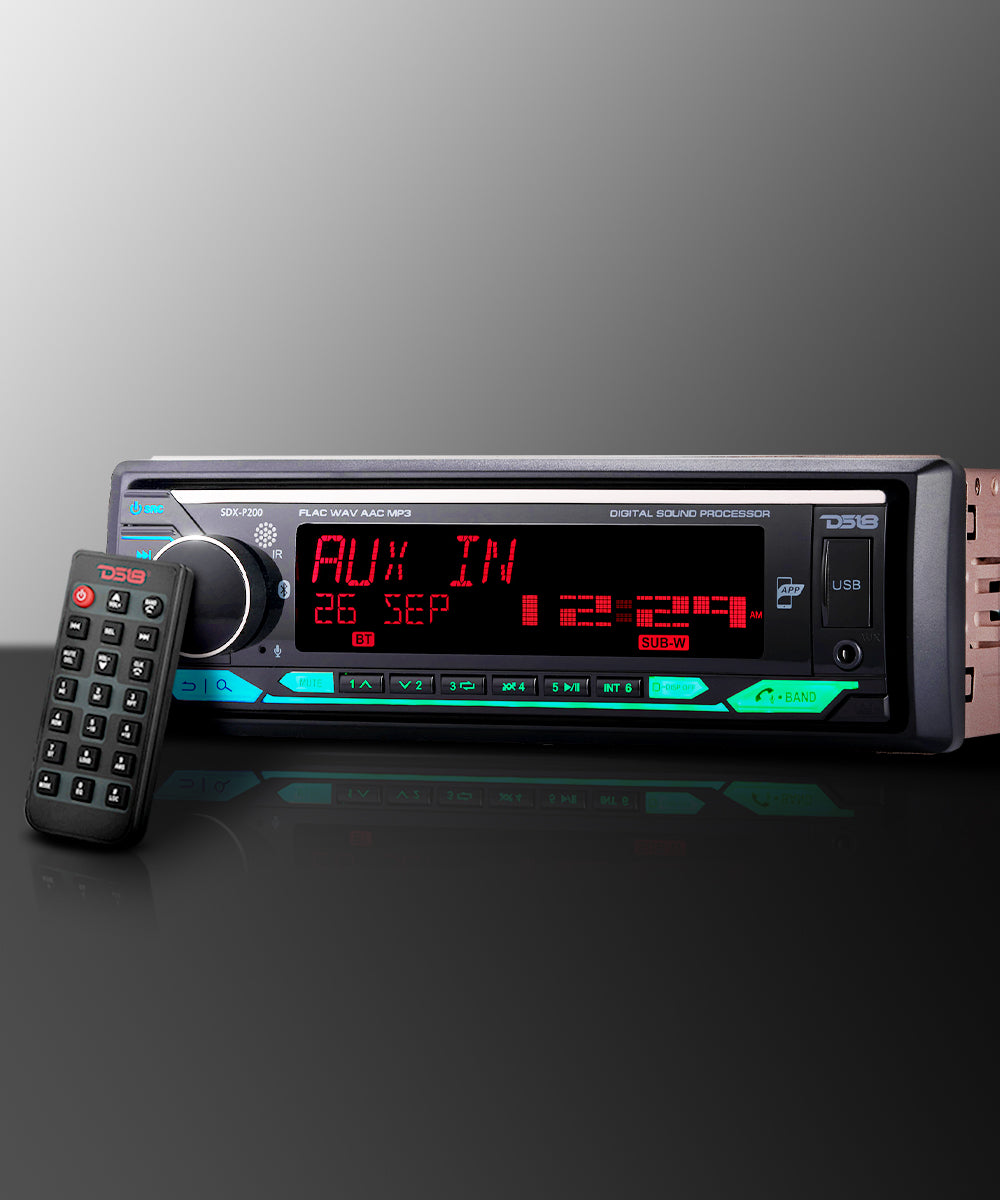

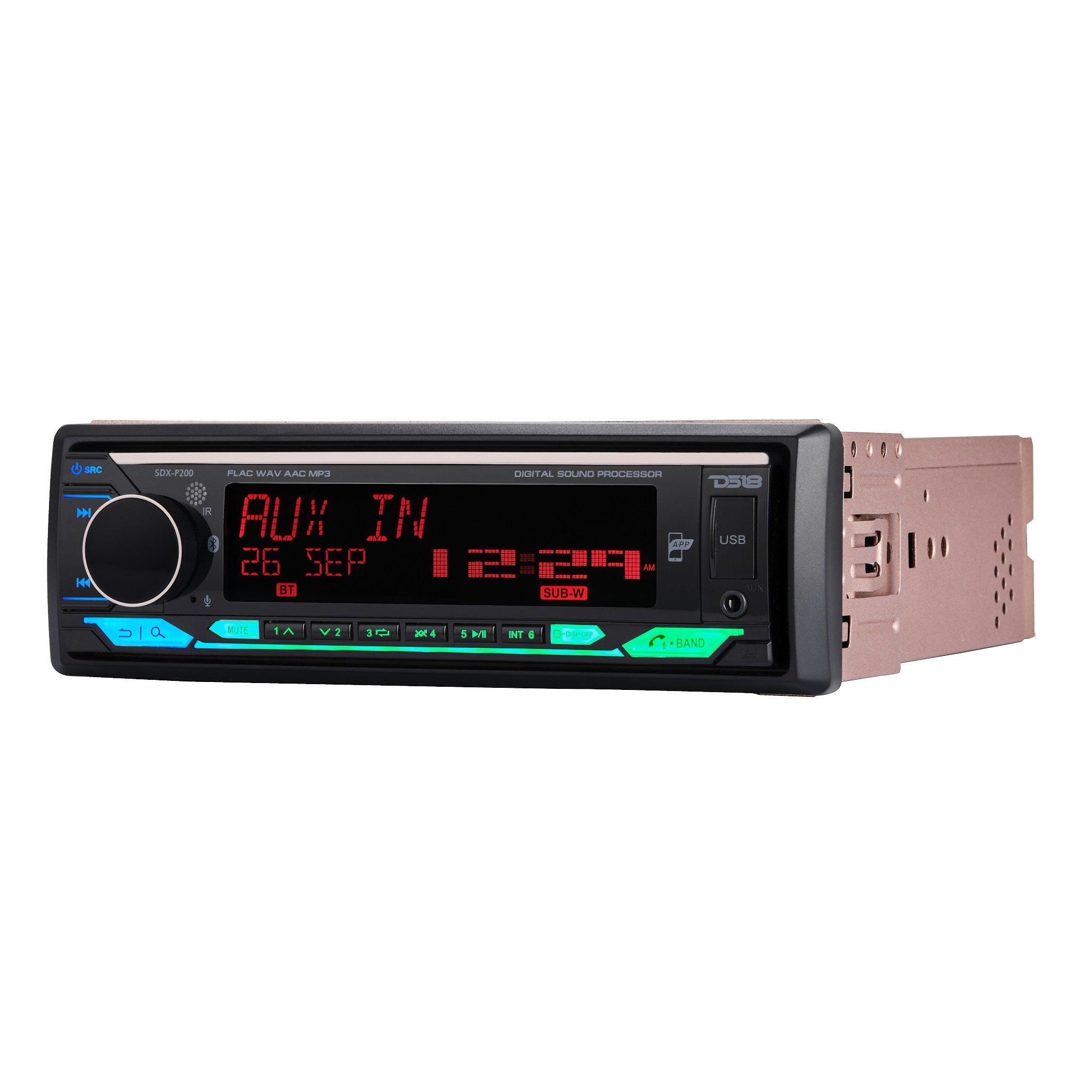

With its 4" LCD dots display and dynamic multi-color LED backlighting, this receiver adds a touch of style to your car's interior. The 3-zone RGB illumination allows you to customize the color scheme to match your mood or vehicle's aesthetics.

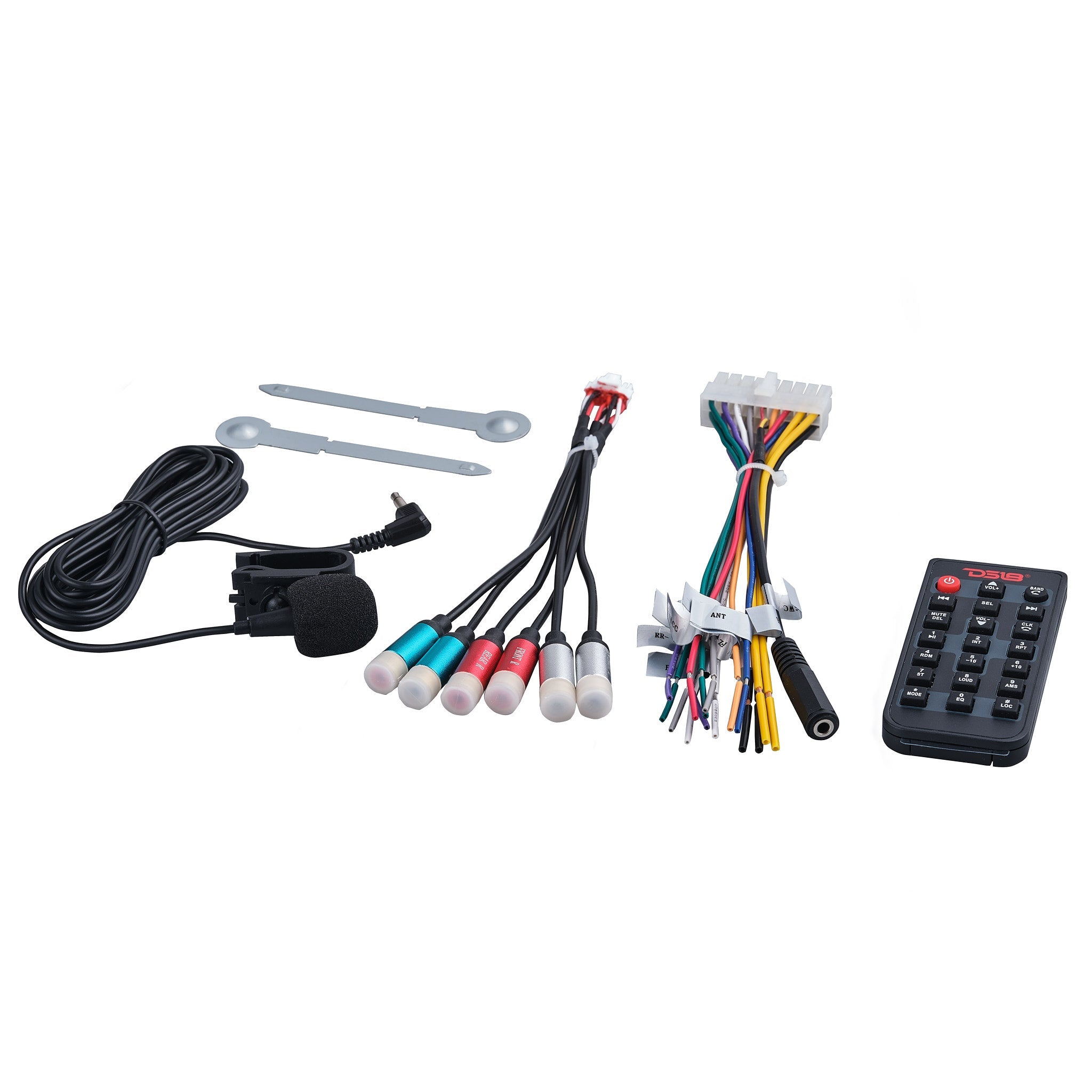

Stay connected on the go with DS18’s SDX App! This lets you control your receiver, processing, and other features included in the SDX-P200 using your smartphone. The wireless remote also allows complete control without the need for steering wheel control interfaces.
The ultimate in-car audio experience starts with DS18’s SDX-P200Key Features
- Digital Media Single Din Receiver
- Mech-Less ~ Remote Control APP
- BT ~ USB ~ AUX ~ AM/FM
- DSP ~ EQ ~ 4 X 60 Watts
- SWC Output ~ Subwoofer Output
- Multi Color Illumination ~ 4" Screen
Specifications
| SKU | SDX-P200 |
|---|---|
| Nominal DIN Size | 1-DIN |
| Rated Power Voltage | 14.4V |
| Voltage Operation | 9.6-15 Volts |
| Maximum Current Consumption | 30A |
| Temperature Operation | 0~60°C / 32~140°F |
| Screen Size | 4" / 104mm |
| Display Type | LCD Dots |
| Buttons / Controls | ABS |
| Backlight Illumination Type | RGB / 3 Zones |
| Body Material / Color / Finish | Steel / Bronze |
| Maximum Power Output (Peak) | 4x180W |
| Continuous Power Output (RMS) | 4x60W |
| Minimum Impedance | 4 Ohms |
| Frequency Response | 20Hz-20KHz |
| Pre-Output Level (RCA) | 3V / 3.5V (Subwoofer) |
| Equalizer Bands | 24 Bands |
| Equalizer Gain | + / - 9dB |
| Crossover | 3-Way |
| Crossover Slope | 6 / 12 / 24 dB/Oct |
| Time Alignment | 0~25ms / 0~850cm |
| Audio Control | Subwoofer Level, Fader, Balance, Loudness |
| Frequency Range (FM) | 87.5 - 108.0 MHz |
| Frequency Range (AM) | 522 - 1620 KHz |
| Presets Memory | 18 FM / 12 AM |
| Region | Europe, America, Asia, Russia |
| Sensitivity Adjustment | Local / DX |
| Version | 4.2 |
| Services | Hands Free Calls, Audio Streaming, APP Remote Control |
| Audio Protocols | A2DP, AVRCP, HFP |
| Range | 32ft / 10m |
| Type / Class | 2.0, 3.0 / FAT 16, FAT32 |
| Format Files Supported | FLAC (16 Bit), WAV, AAC, APE, MP3 |
| Max Memory Size Reader | 64 Gb |
| Max Current USB Charger | 1A |
| Number of Ports | 1 (Front) |
| A/V Aux Input | Yes, Front 3.5mm Jack (2V Max) |
| Microphone | Yes, Built-In / External Mic Input |
| Remote Control (SWC) | Yes, 3.5mm Jack Input |
| Remote Control (Handset) | Yes, Card Type with Rubber Buttons |
| APP Control | Yes, (Android Devices) |
| Overall Width (Chassis) | 7" / 178mm |
| Overall Height (Chassis) | 1.96" / 50mm |
| Overall Depth (Chassis) | 6.2" / 158mm |
| Overall Width (Bezel Frame) | 7.4" / 188mm |
| Overall Height (Bezel Frame) | 2.2" / 58mm |
| Overall Depth (Bezel Frame) | 0.98" / 25mm |
