Product Overview

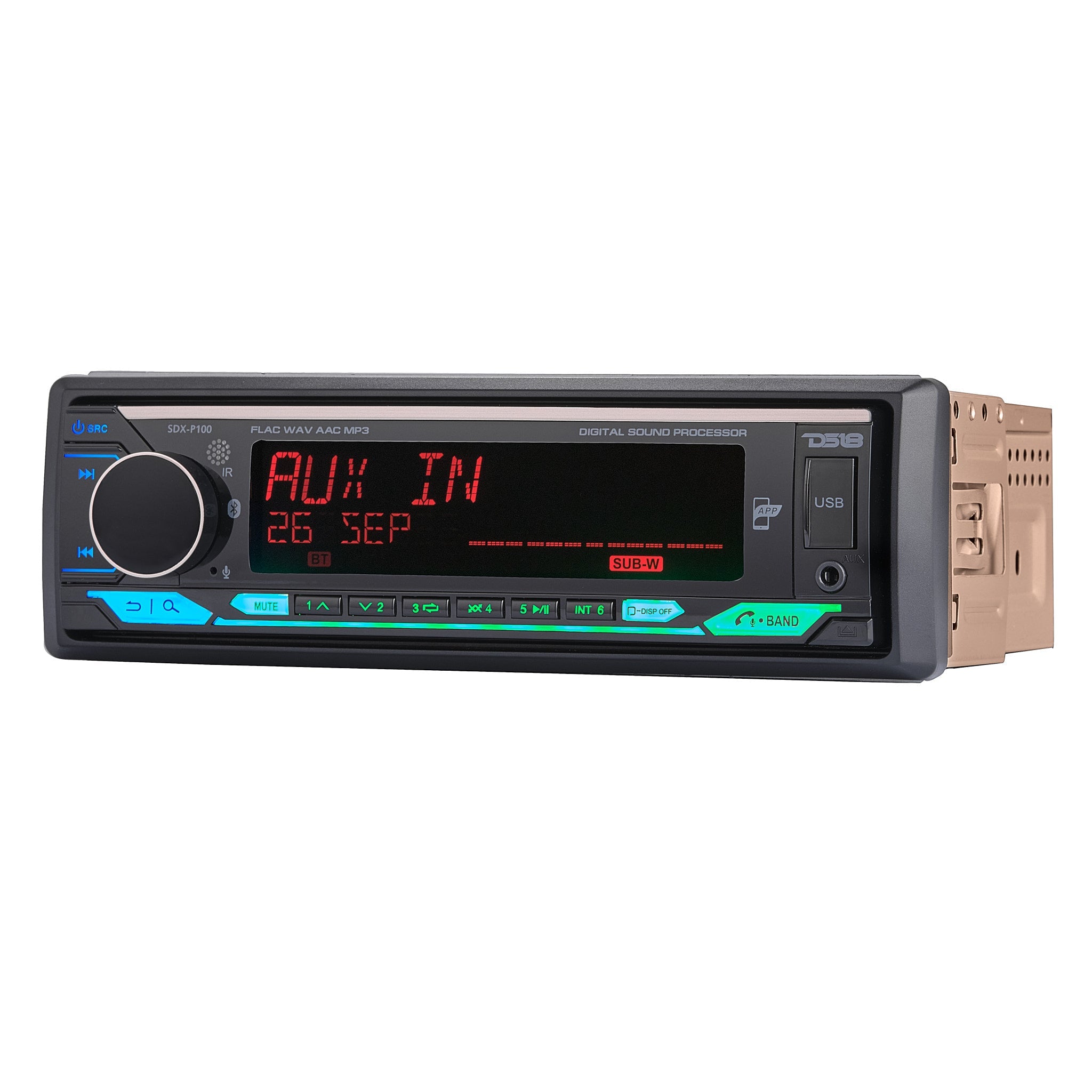

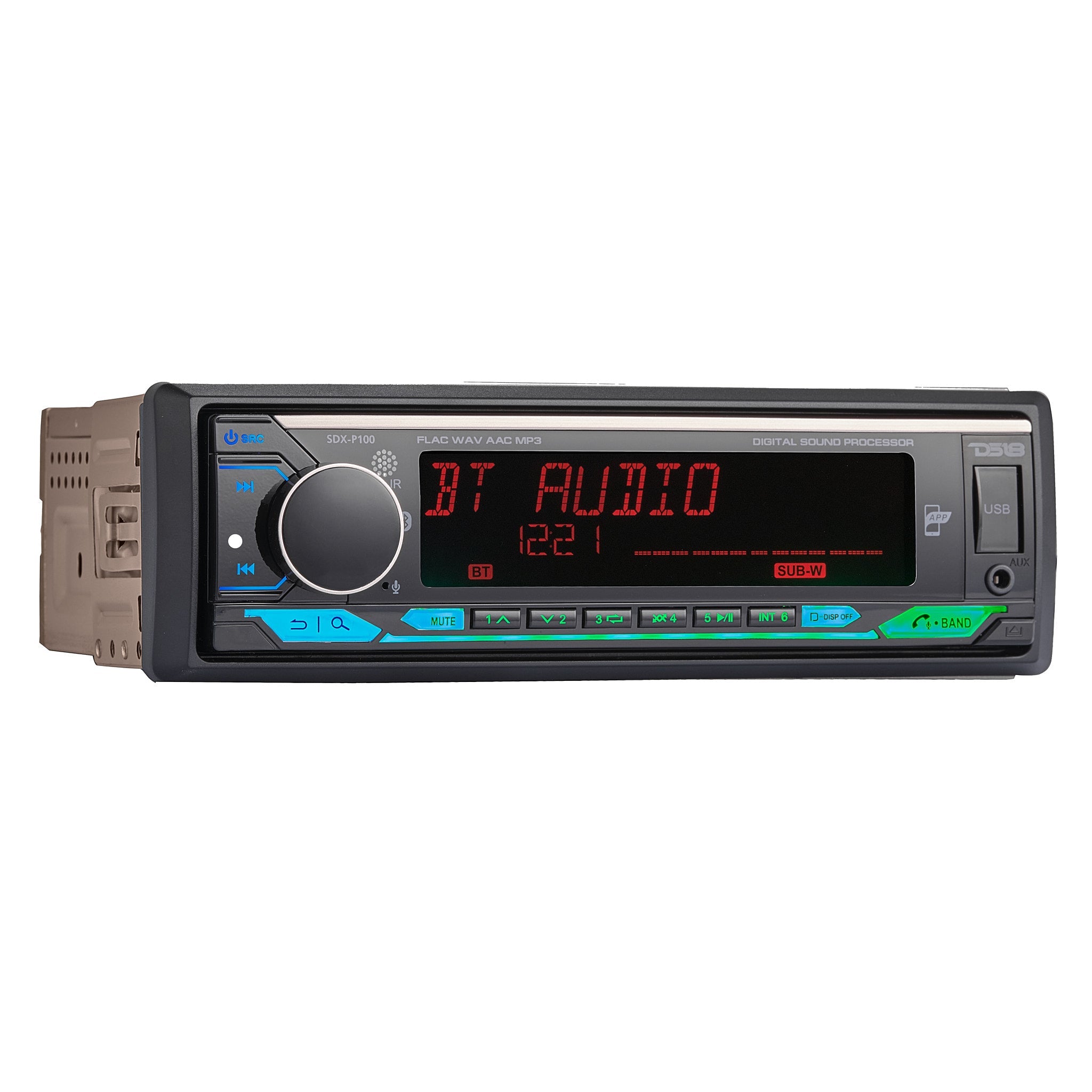

DS18 SDX-P100
Single DIN Digital Media Receiver With DSP / BT / USB / APP / AUX
Ready for the ultimate in-car audio experience? DS18’s SDX-P100 offers a full audio command center in a sleek single DIN design that’s easy to install and fully loaded with features.
Connect Your Devices
The SDX-P100 keeps your music at your fingertips. Enjoy 30 preset AM/FM stations, plus USB playback supporting high-quality audio formats including FLAC, WAV, AAC, APE, and MP3. Bluetooth lets you wirelessly stream your favorite playlists and take hands-free calls on the go.
Customize Your Sound
With 8-channel 6-volt RCA pre-outputs and a built-in DSP, the SDX-P100 gives you complete control over your system. Fine-tune your setup with time alignment and 4-way crossover capability for precise tuning. Shape your soundstage with a 48-band graphic equalizer and adjust volume, subwoofer level, balance, and fader to create a personalized listening experience.
Vibrant Display

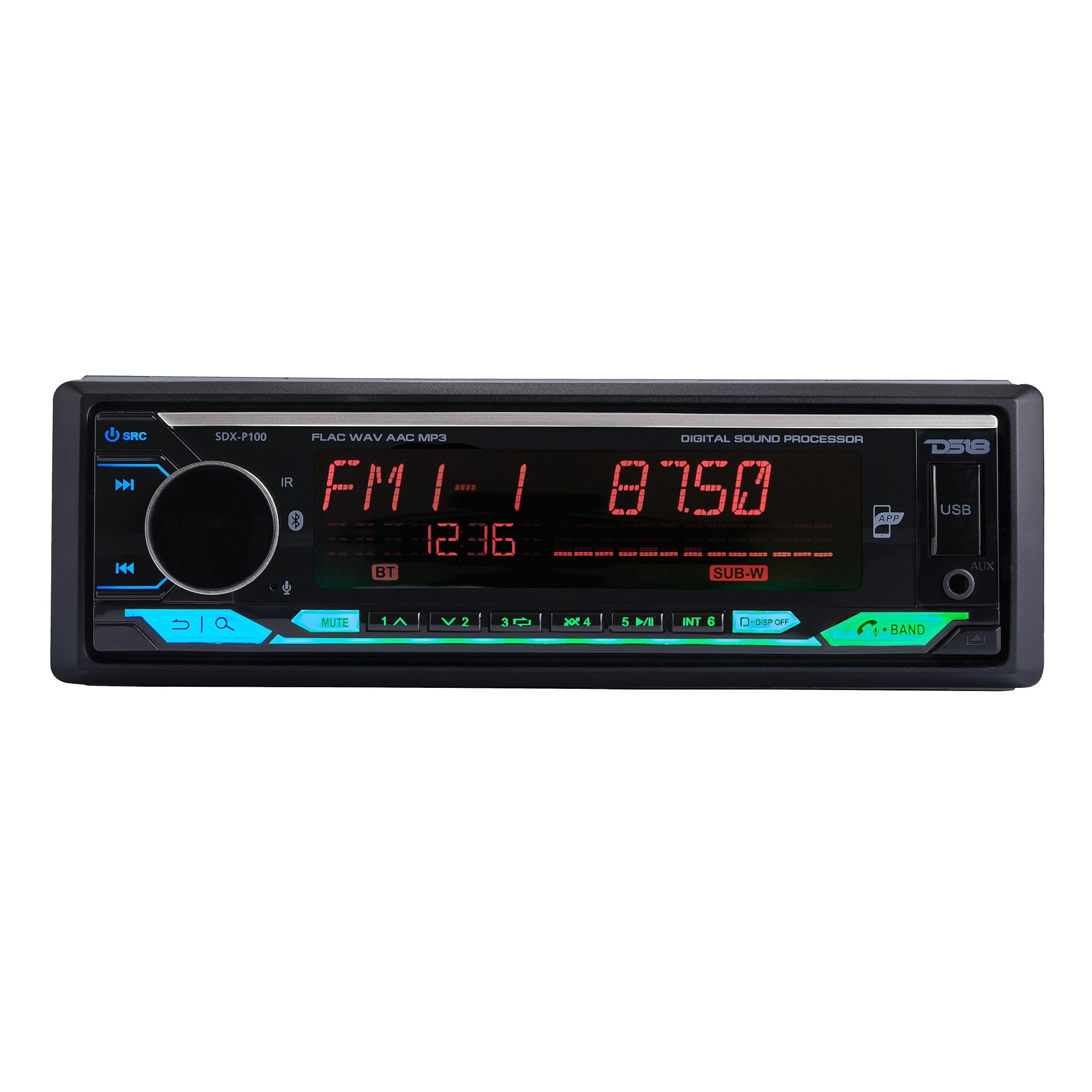

The vibrant 4" LCD screen delivers clean, easy-to-read visuals. Dynamic multi-color LED backlighting with 3-zone RGB illumination lets you set the vibe to match your ride.
Powerful Performance
The SDX-P100 pumps out up to 40W x 4 MAX power and a solid 13W x 4 RMS, delivering audio that hits harder and cleaner than ever before.
Control at Your Fingertips

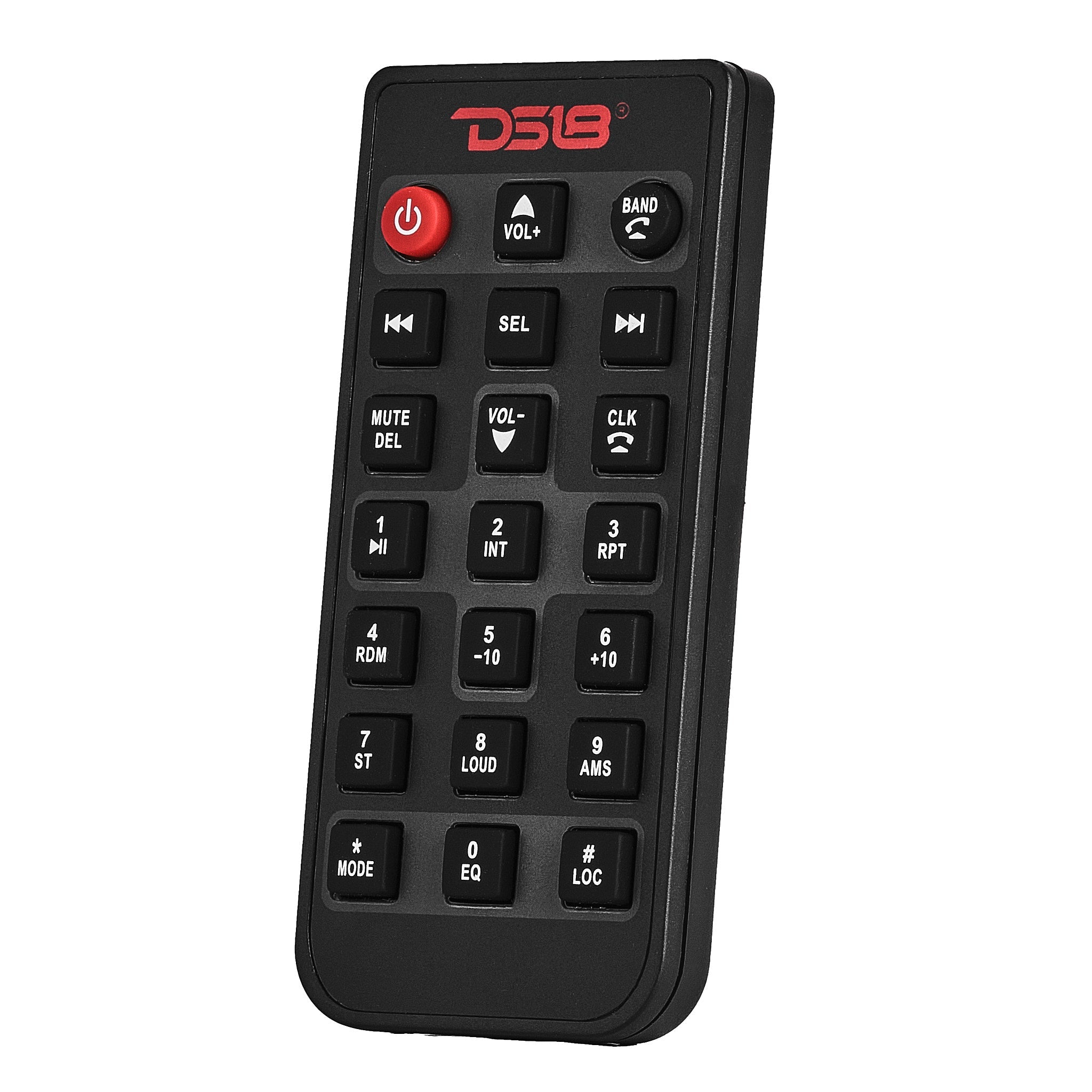

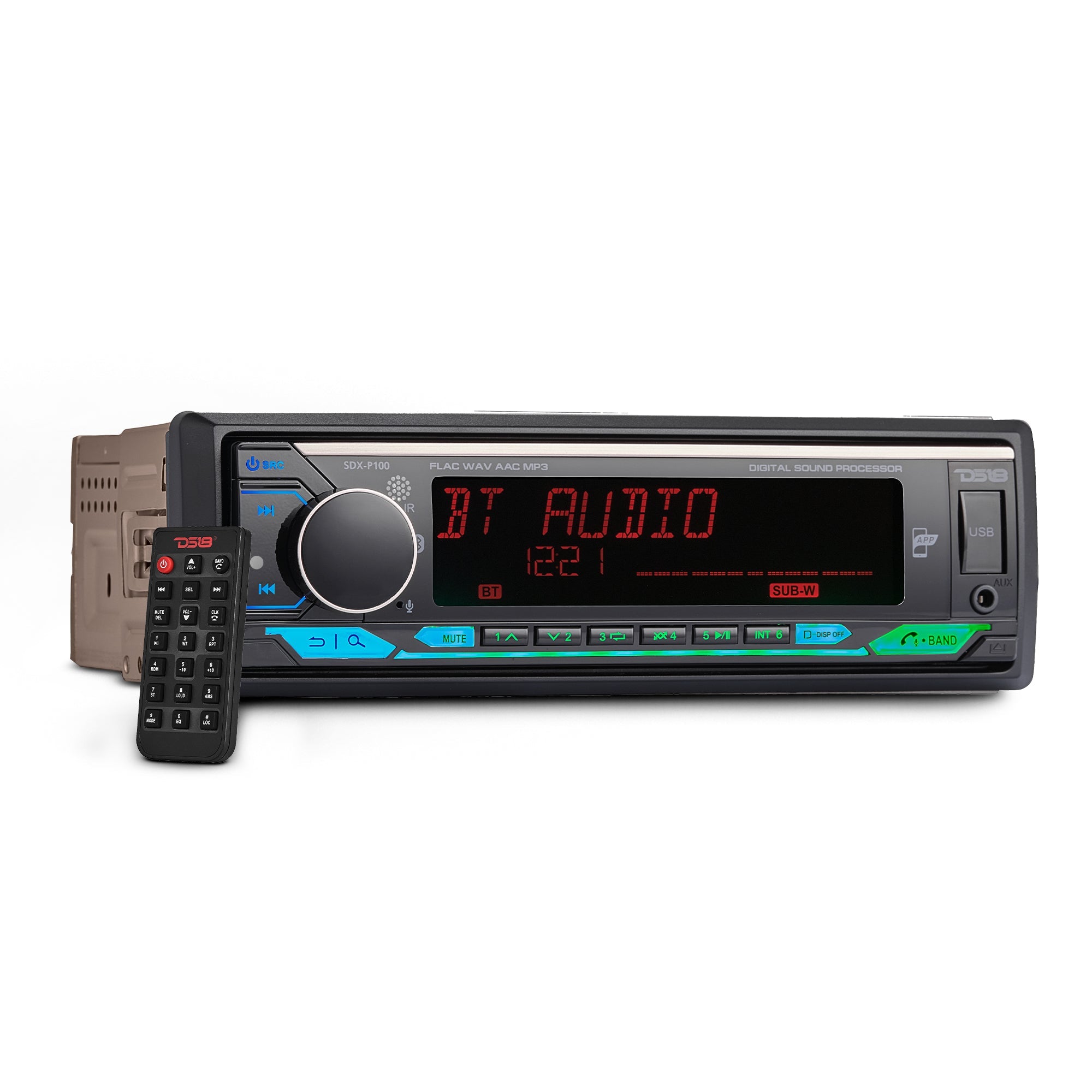

Download the DS18 SDX Remote Control App for iOS or Android and manage your receiver settings, DSP features, and audio controls directly from your smartphone. You can also use the included wireless remote to control your system without needing a steering wheel interface.
The SDX-P100 is engineered to give your dash a serious audio upgrade that’s built to outlast and outperform.
Key Features
- All-in-One Digital Media Receiver
- Advanced DSP for Precision Tuning
- High-Voltage 8-Channel Preouts (6V)
- Smart Connectivity & Hands-Free Control
- 48-band graphic equalizer
- Customizable RGB Display & Modern Interface
Specifications
| SKU | SDX-P100 |
|---|---|
| Nominal DIN Size | 1-DIN |
| Rated Power Voltage | 14.4V |
| Voltage Operation | 9.6-15 Volts |
| Maximum Current Consumption | 15A |
| Temperature Operation | 0~60°C / 32~140°F |
| Screen Size | 4" / 104mm |
| Display Type | LCD Dots |
| Buttons / Controls | ABS |
| Backlight Illumination Type | RGB / 3 Zones |
| Body Material / Color / Finish | Steel / Bronze |
| Maximum Power Output (Peak) | 4x40W |
| Continuous Power Output (RMS) | 4x15W |
| Minimum Impedance | 4 Ohms |
| Frequency Response | 20Hz-20KHz |
| Pre-Output Level (RCA) | 3V / 3.5V (Subwoofer) |
| Equalizer Bands | 48 Bands |
| Equalizer Gain | + / - 9dB |
| Crossover | 3-Way |
| Crossover Slope | 6 / 12 / 24 dB/Oct |
| Time Alignment | 0~25ms / 0~850cm |
| Audio Control | Subwoofer Level, Fader, Balance, Loudness |
| Frequency Range (FM) | 87.5 - 108.0 MHz |
| Frequency Range (AM) | 522 - 1620 KHz |
| Presets Memory | 18 FM / 12 AM |
| Region | Europe, America, Asia, Russia |
| Sensitivity Adjustment | Local / DX |
| Version | 4.2 |
| Services | Hands Free Calls, Audio Streaming, APP Remote Control |
| Audio Protocols | A2DP, AVRCP, HFP |
| Range | 32ft / 10m |
| Type / Class | 2.0, 3.0 / FAT 16, FAT32 |
| Format Files Supported | FLAC (16 Bit), WAV, AAC, APE, MP3 |
| Max Memory Size Reader | 64 Gb |
| Max Current USB Charger | 1A |
| Number of Ports | 1 (Front) |
| A/V Aux Input | Yes, Front 3.5mm Jack (2V Max) |

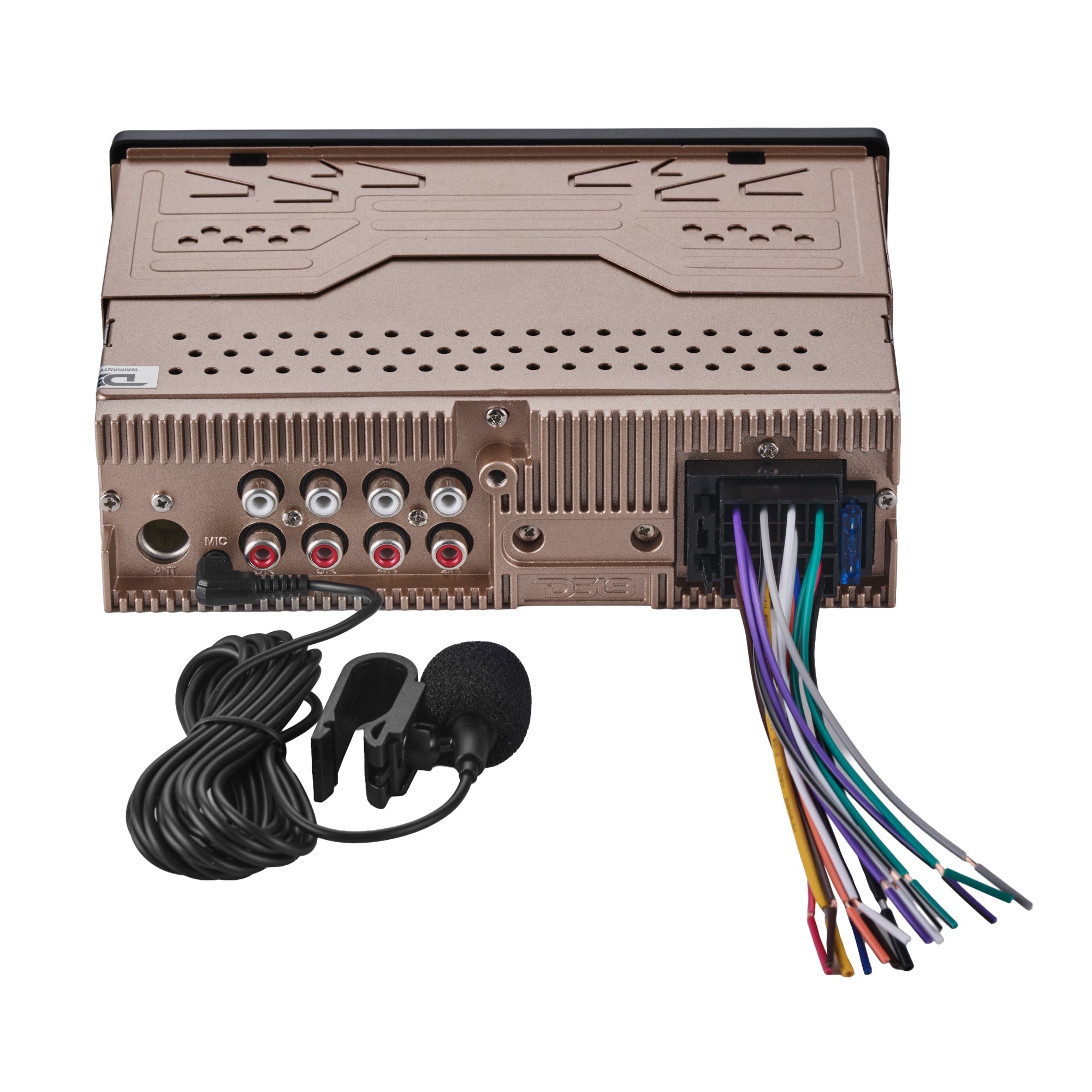

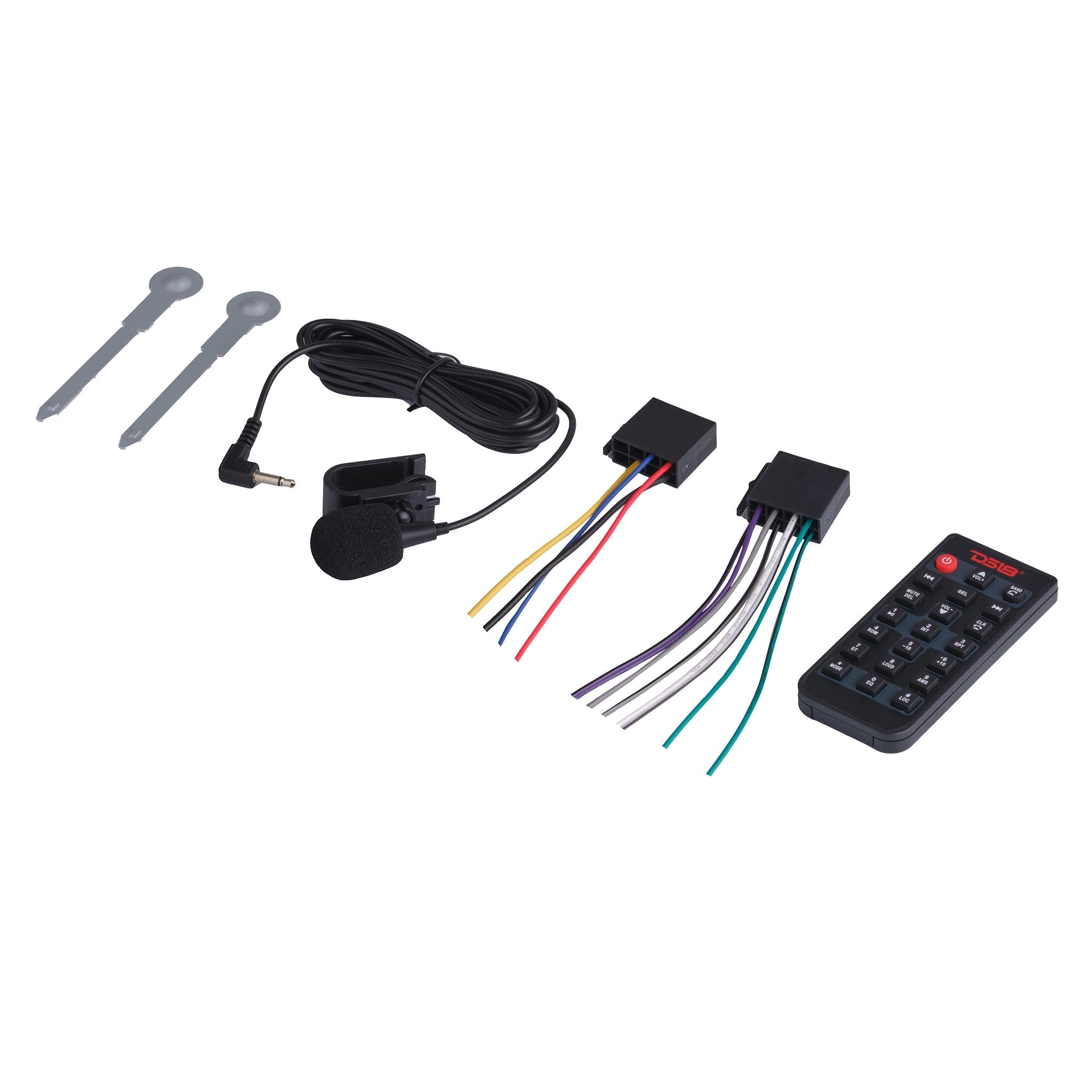

| Microphone | Yes, Built-In / External Mic Input |
| Remote Control (SWC) | Yes, 3.5mm Jack Input |
| Remote Control (Handset) | Yes, Card Type with Rubber Buttons |
| APP Control | Yes, (Android Devices) |

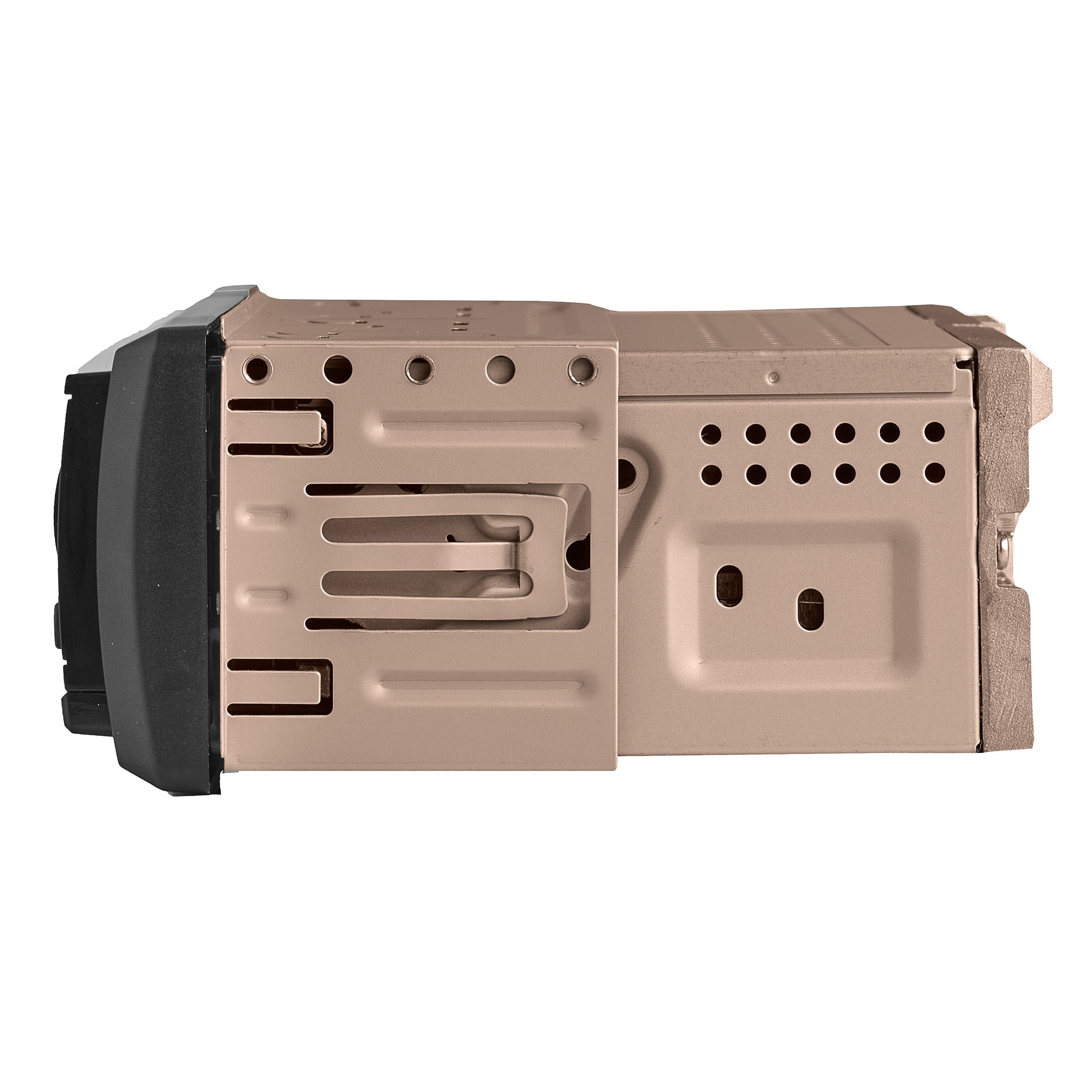

| Overall Width (Chassis) | 7" / 178mm |
| Overall Height (Chassis) | 1.96" / 50mm |
| Overall Depth (Chassis) | 4" / 104mm |
| Overall Width (Bezel Frame) | 7.4" / 188mm |
| Overall Height (Bezel Frame) | 2.2" / 58mm |
| Overall Depth (Bezel Frame) | 0.98" / 25mm |
