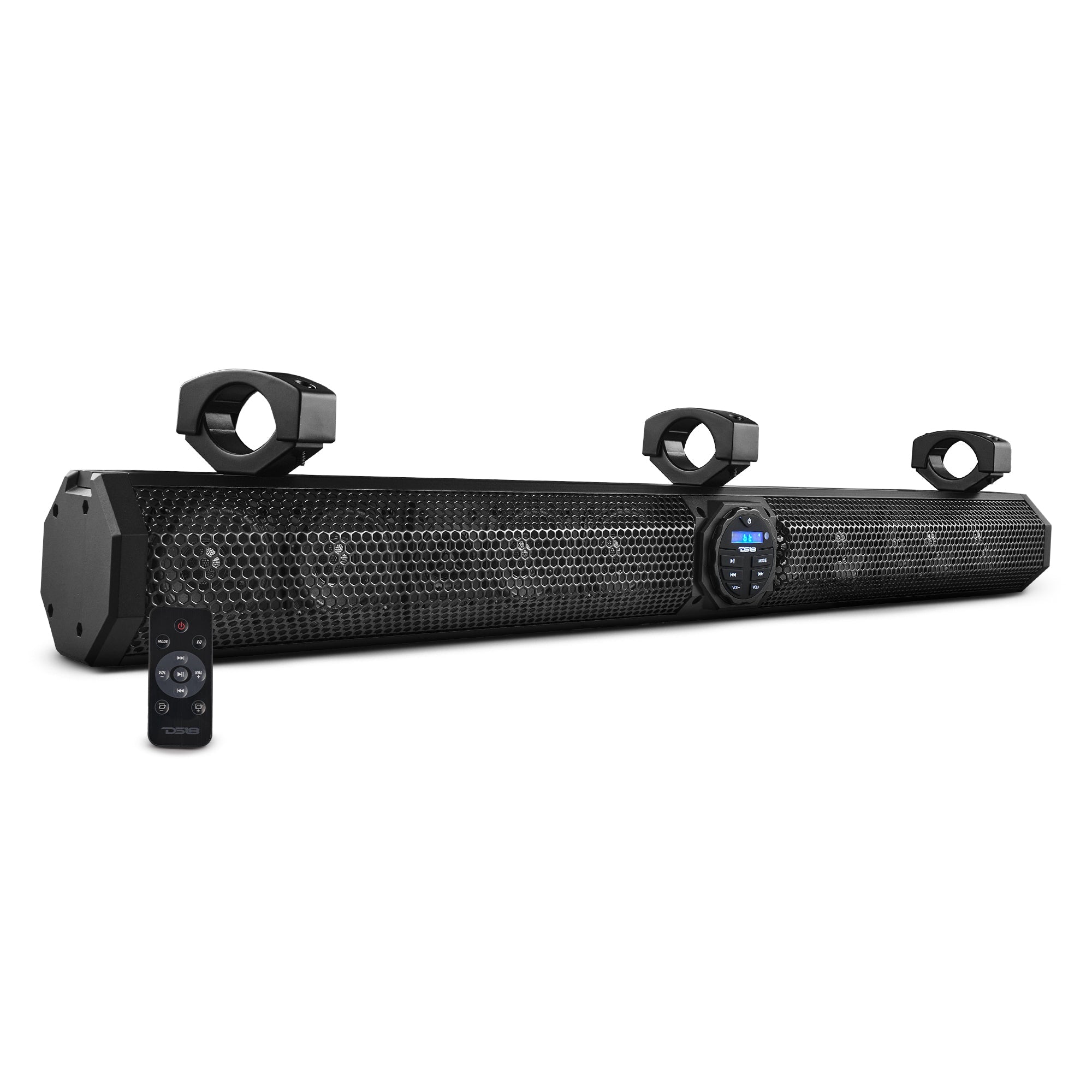

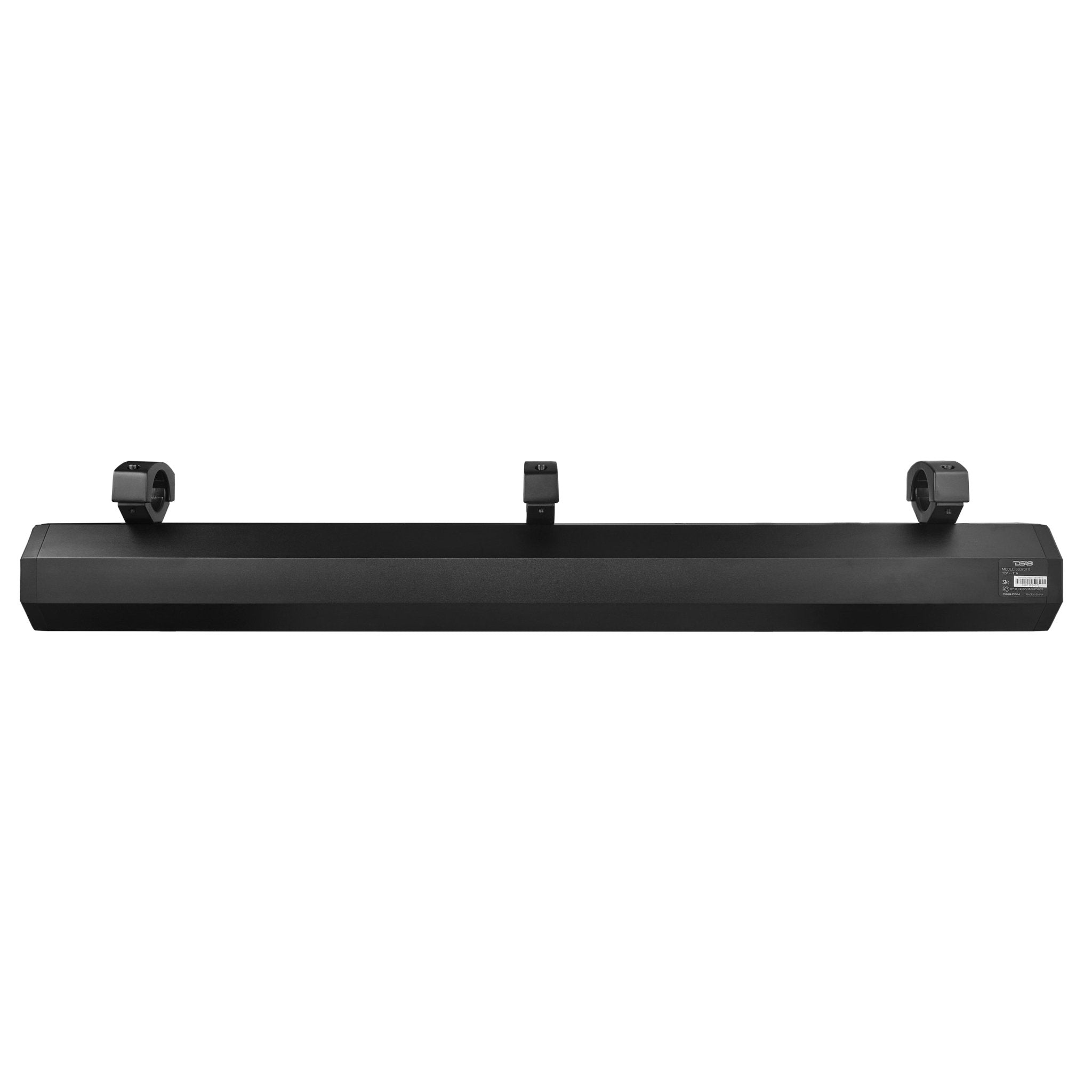

37" Marine Sound Bar Speaker System, 10 Speakers 1200 Watts, Bluetooth® v5.0, Rotating Control Panel
37" Marine Sound Bar Speaker System, 10 Speakers 1200 Watts, Bluetooth® v5.0, Rotating Control Panel
Product Overview
DS18 SB37BTX
Amplified Soundbar With Bluetooth® and USB Player
DS18’s SB37BTX is your marine or offroad systems NEW undisputed heavyweight champion. This Bluetooth® soundbar is the best choice for those in need of a waterproof audio system built for any adventure.

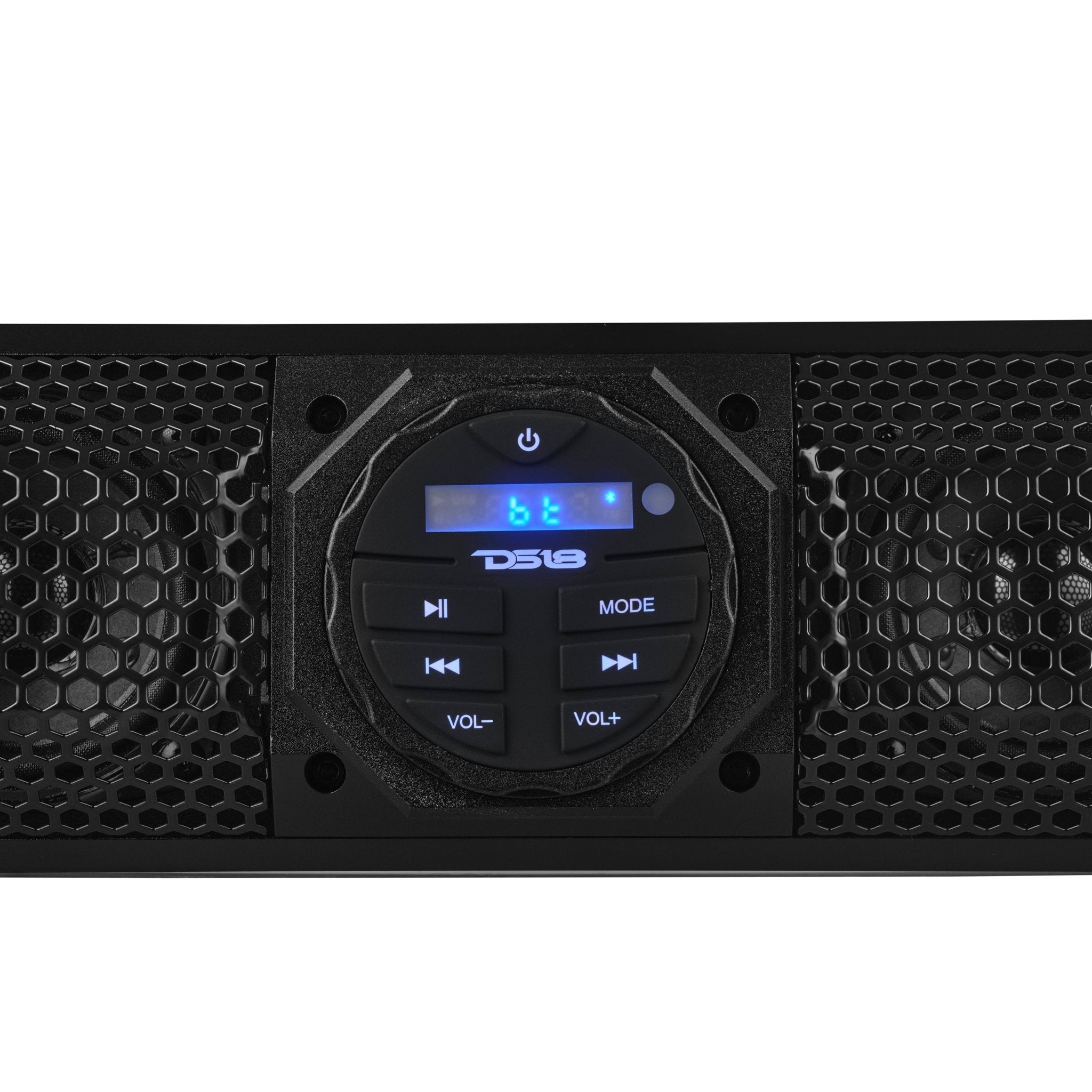

Key to its superior performance is the versatile rotatable control panel, providing flexibility in mounting positions for easy access wherever you choose to install it. The introduction of an RCA Line-Out feature allows seamless integration with external amplifiers or speakers, enhancing your audio setup's versatility and power. The SB37BTX adapts to any setting with ease, letting you seamlessly switch between Bluetooth®, AUX, and USB audio sources.
Experience sound like never before with enhanced water-resistant woofer cones that deliver pristine audio clarity and durability. The expanded audio impedance range ensures compatibility with a broader spectrum of audio systems, offering a perfect blend of power and precision. Equipped with a 1200W amplifier offering 200W RMS Power @ 4 ohm/ 400W MAX Power @ 4 ohm peak power and a frequency response from 45Hz to 20kHz, this DS18 soundbar delivers rich bass and crystal-clear highs that captivate your senses.
Coming in at 37.8 inches in width and weighing 12.5 lbs, the SB37BTX is designed to get LOUD anywhere. Choose the SB37BTX for unforgettable outdoor audio experiences.
Key Features

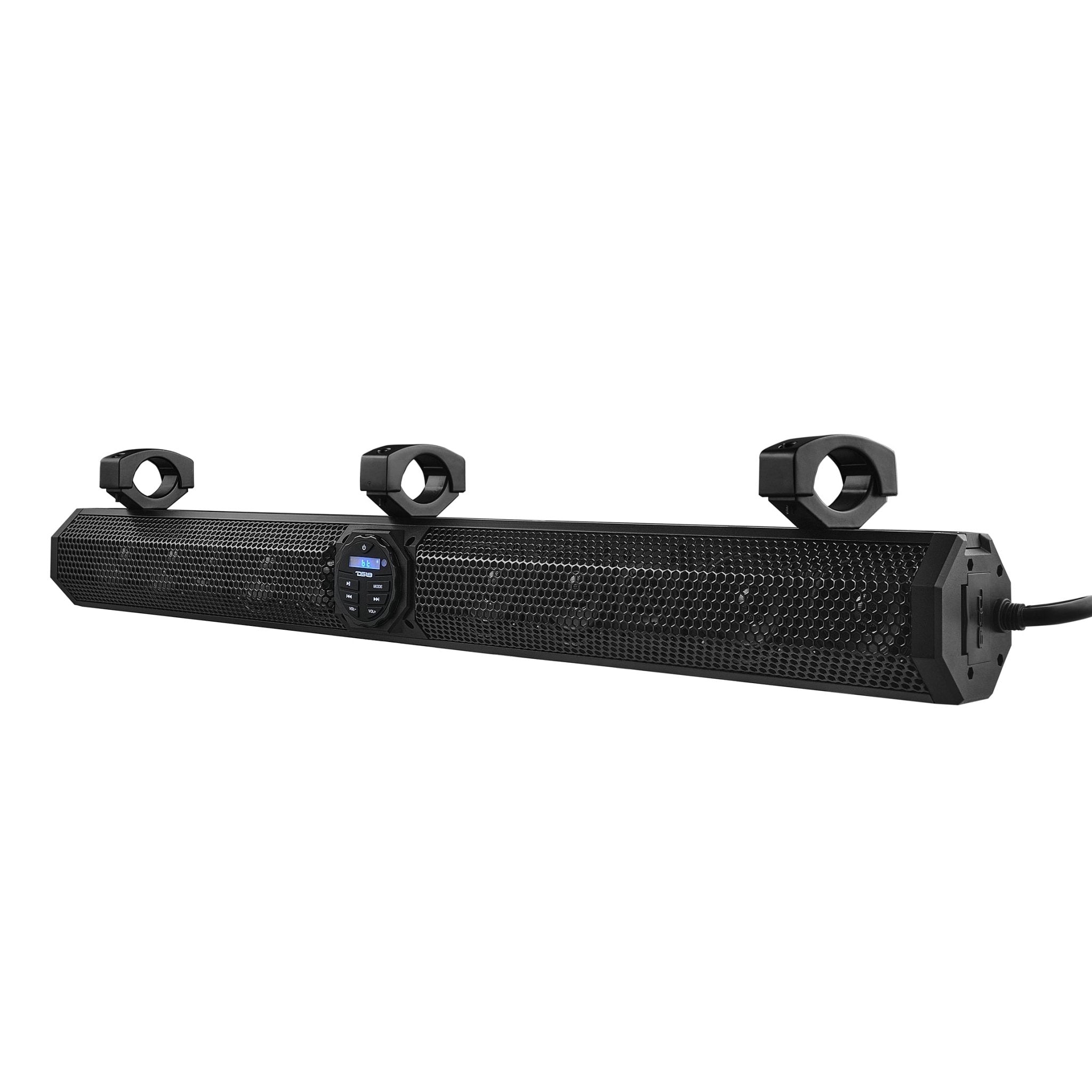

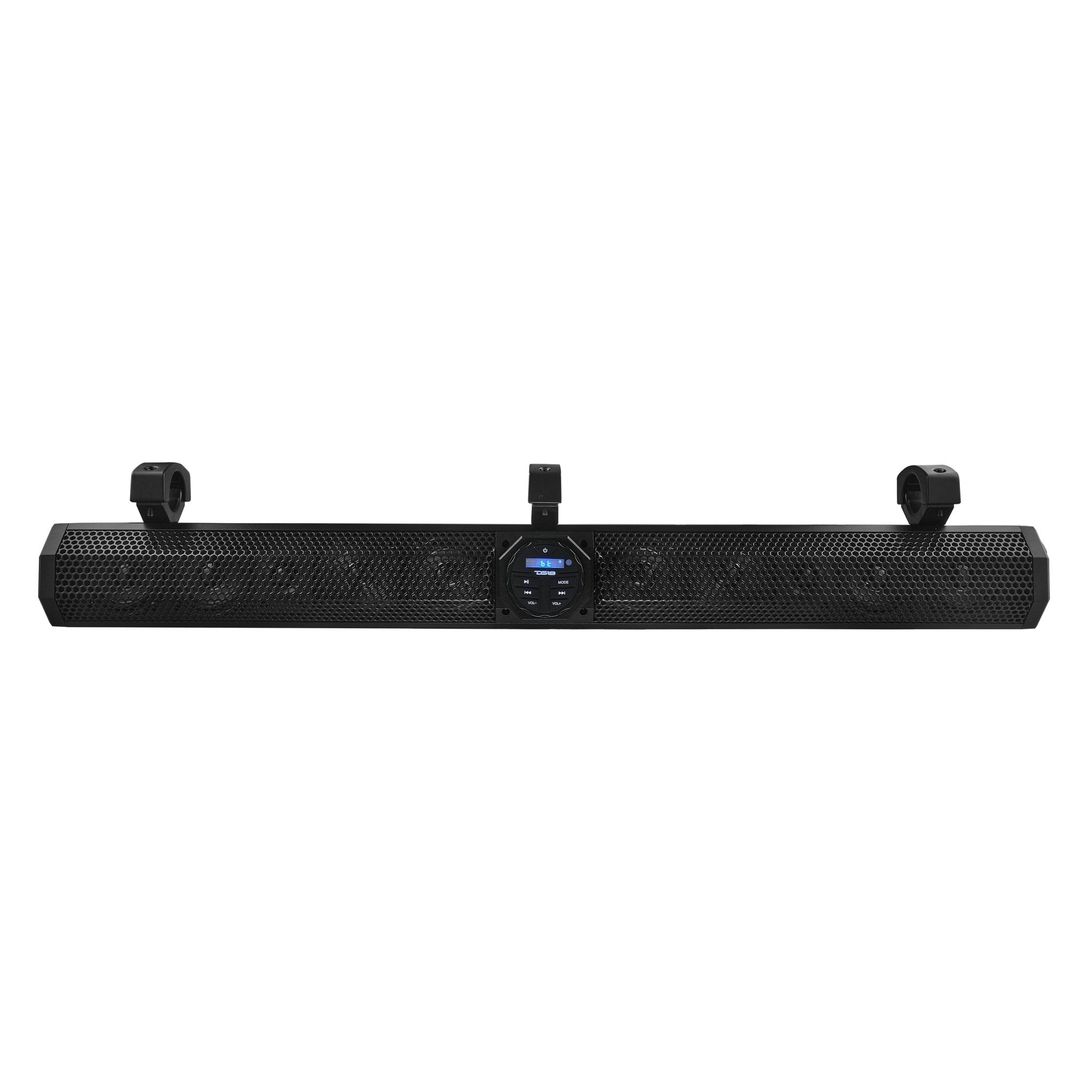

- 37" Marine Sound Bar Speaker System
- Amplified Class A/B ~ RMS Power 200 Watts
- 10 Speakers ~ 8 X 3" Woofers + 2 X 1" Tweeters
- BT v5.0 + A2DP ~ USB ~ AUX ~ Rotating Control Panel
- RCA Line Out ~ Remote Control ~ Clamp Style Mount
- Water Resistant IP35 ~ 37 FT. Range ~ Black
Specifications
| SKU | SB37BTX |
|---|---|
| Nominal Size | 37" / 940mm |
| Total Watts (Peak) | 1200W |
| RMS Power @ 4 ohm (Internal Amp) | 200W |
| MAX Power @ 4 ohm (Internal Amp) | 400W |
| Frequency Response | 45Hz-20KHz |
| Storage Temperature | 5°F ~ 176°F (-15°C ~ 80°C) |
| Operation Temperature | 32°F ~ 140°F (0°C ~ 60°C) |
| Operation Voltage | 12 Volts (10~16 Volts Range) |
| Marine Grade Type | IP35 |
| Body Material / Color / Finish | Aluminum / Oxidized Black Hemp Sand |
| Grill Type | Steel Mesh |
| Qty on box | 1 Pcs |

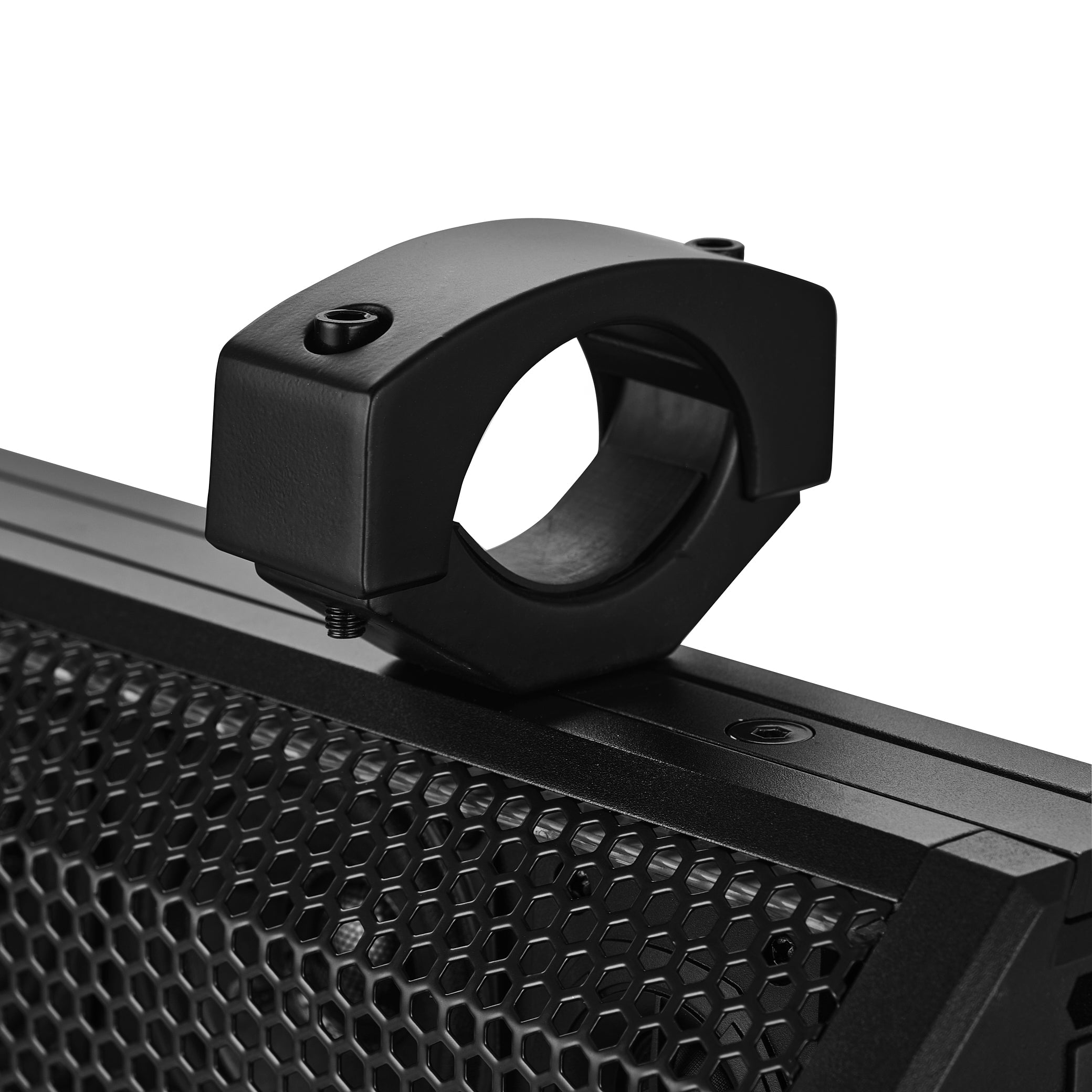

| Clamps | 3 Set (Tube Clamp Adjustable 1.5" ~ 2.25") |
| Front Logo | Yes |
| RCA Line Out (Pre-Amp) | Yes (L/R 2 Volts) |
| Aux Line Input | Yes (720mV) |
| EQ / DSP | 5 Preset EQ (for BT and USB Mode) |
| Remote Out | Yes (+12V) |

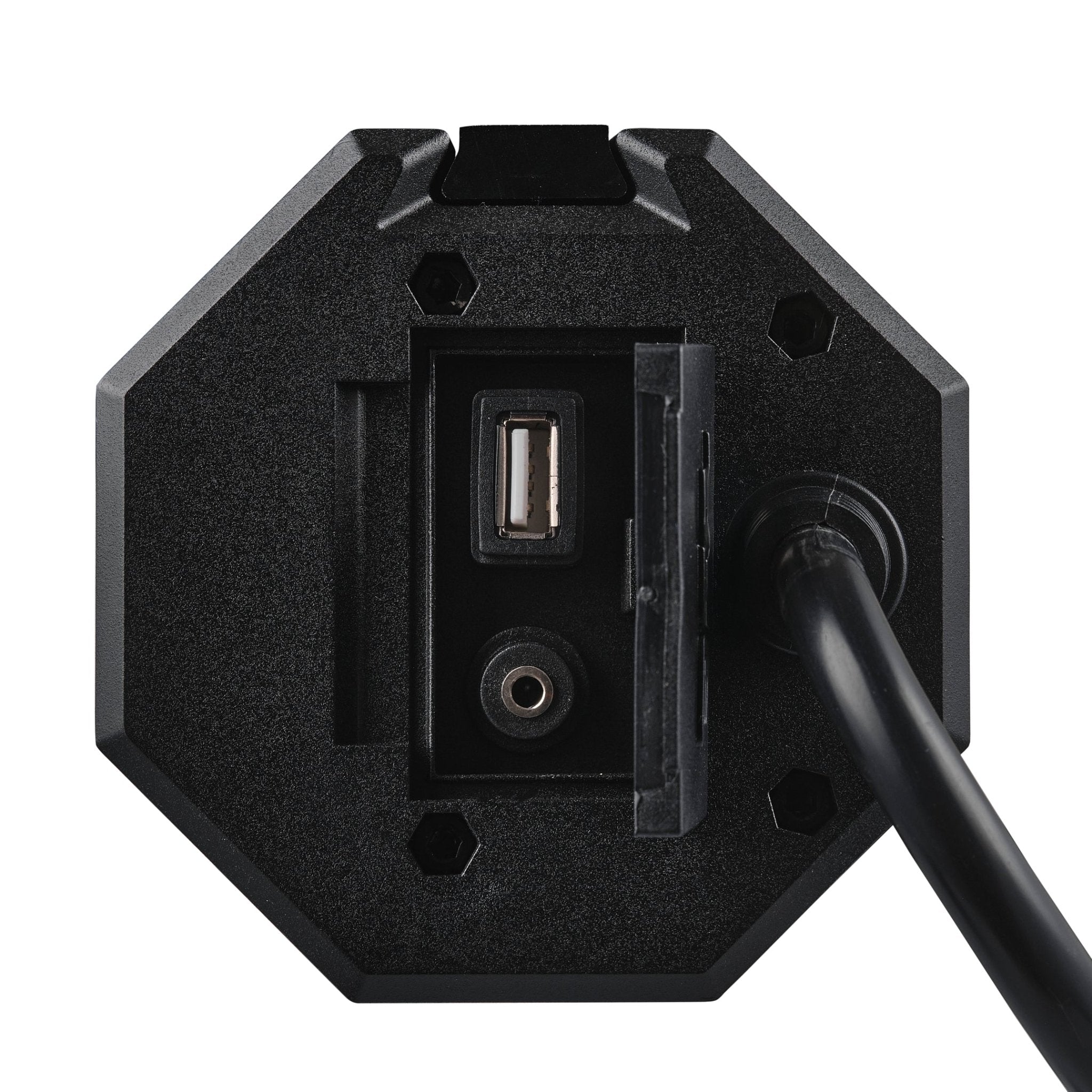

| USB Player | Yes (WMA, MP3 files) |
| USB Charger | Yes (1Amp) |
| Buttons / Controls | Yes (Power, Mode, Play/Pause, Fwd, Bwd, Vol+/Vol-) |
| Rotatable Control Panel | Yes (345?) |

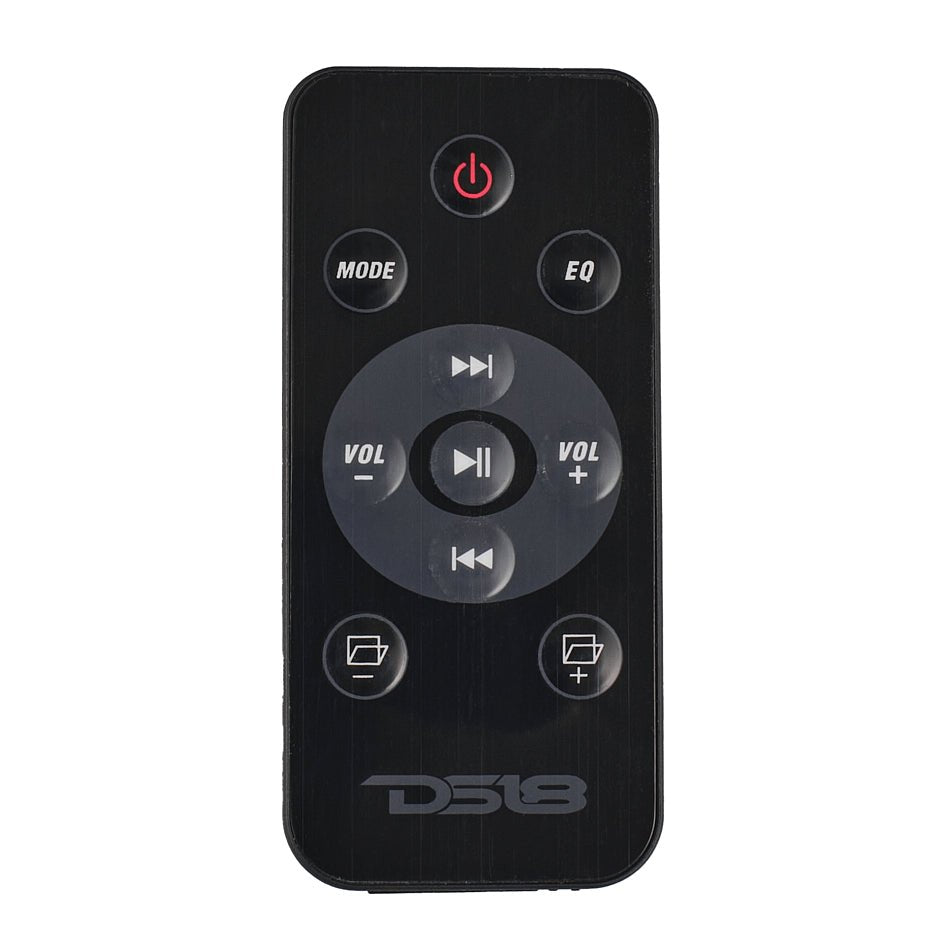

| Remote Control | Yes (IR Card Type) |
| Illumination | Yes (Blue Backlit) |
| Bluetooth Version | v5.0 |
| Audio Protocols | A2DP |
| Range | >33ft (10m)* / Class 2 |
| Voice Coil Former Material | Kapton |
| Cone Material | Water Resistant Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Magnet Material | Ferrite / Neodymium |
| Motor Diameter | 2.36" / 60mm |
| Nominal Diameter | 0.94" / 24mm (2 Pcs) |
| Voice Coil Diameter | 0.8" / 20.4mm |
| Type | Dome |
| Diaphragm Material | Soft Dome |
| Crossover | 6dB/oct |
| Amplifier Class | Class A/B |
| Amplifier Type | Stereo Full Range |
| Number of Channels | 8 |
| Minimum Impedance | 4 ohm |
| Signal to Noise Ratio | 68dB |
| T.H.D. | 1% @ 1000Hz |
| Channel Separation | 60dB |
| Audio Source | BT / USB / AUX |
| Power Input Wire Size | 2x14ga |
| Recommend Fuse Size | 15A |
| MAX Current Draw | 11A |
| Thermal Protection | Yes (>284?F / 140?C) |
| Over-Load Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | No |
| Overall Width | 37.8" / 960 mm |
| Overall Height | 3.98" / 101 mm |
| Overall Depth | 3.98" / 101 mm |
