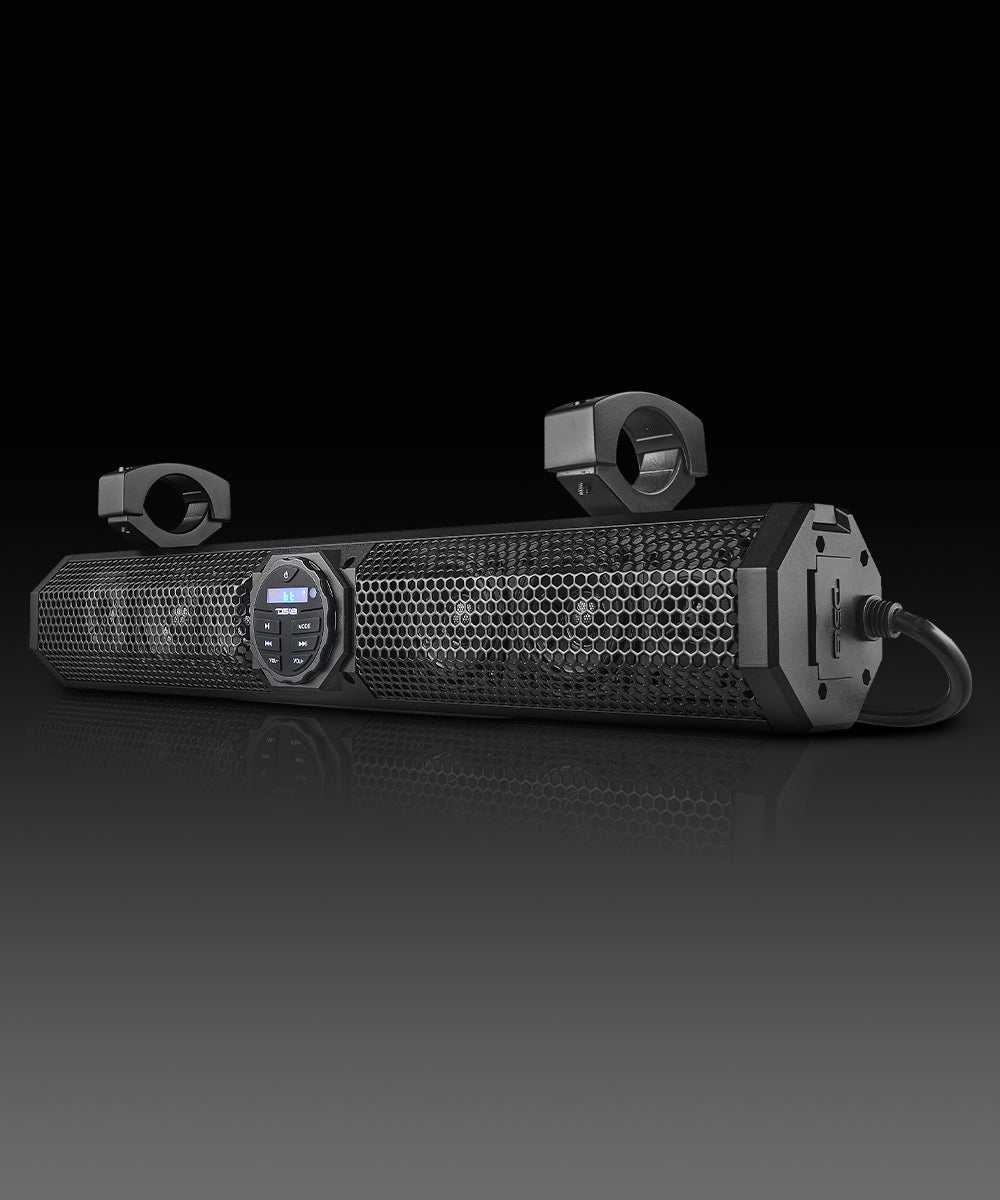

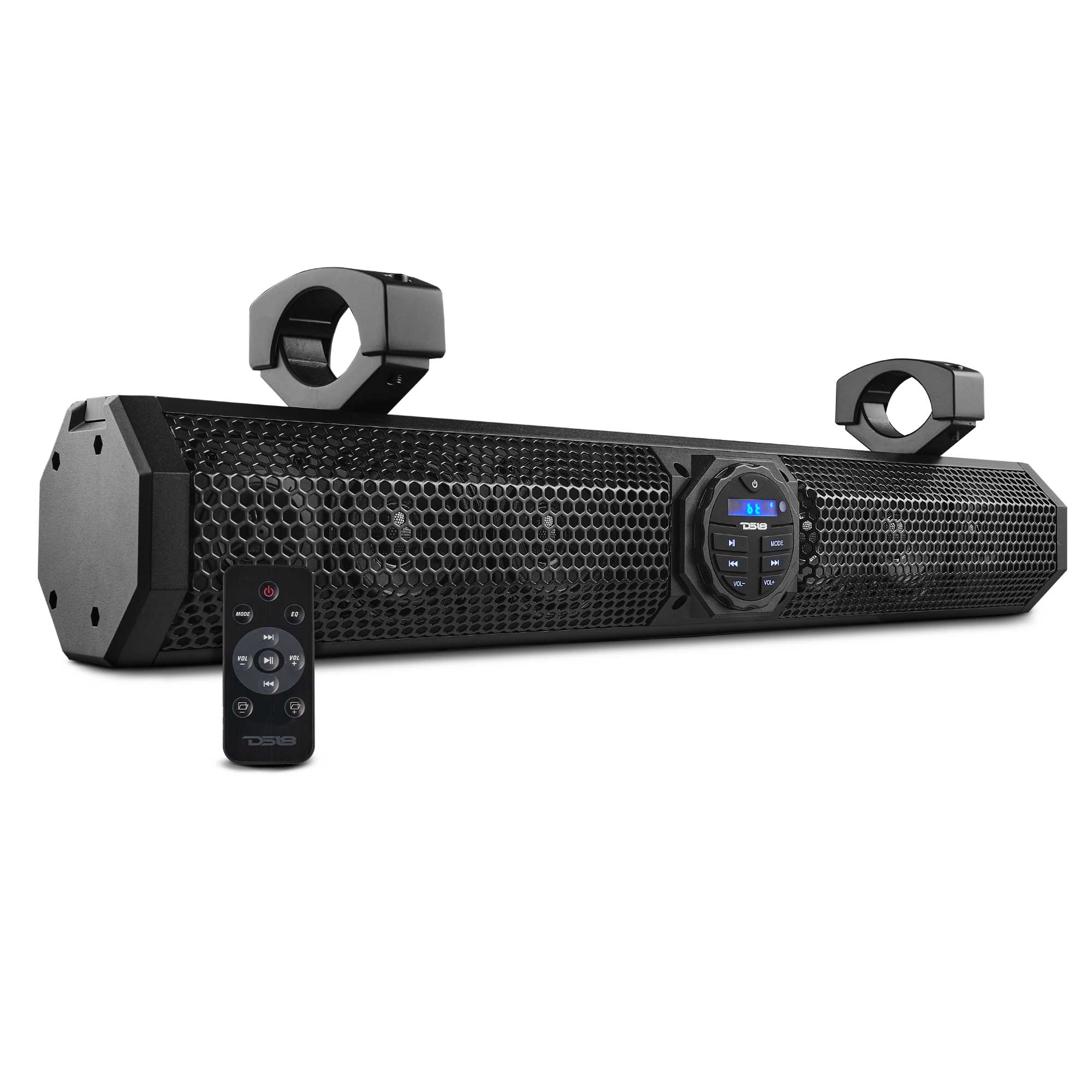

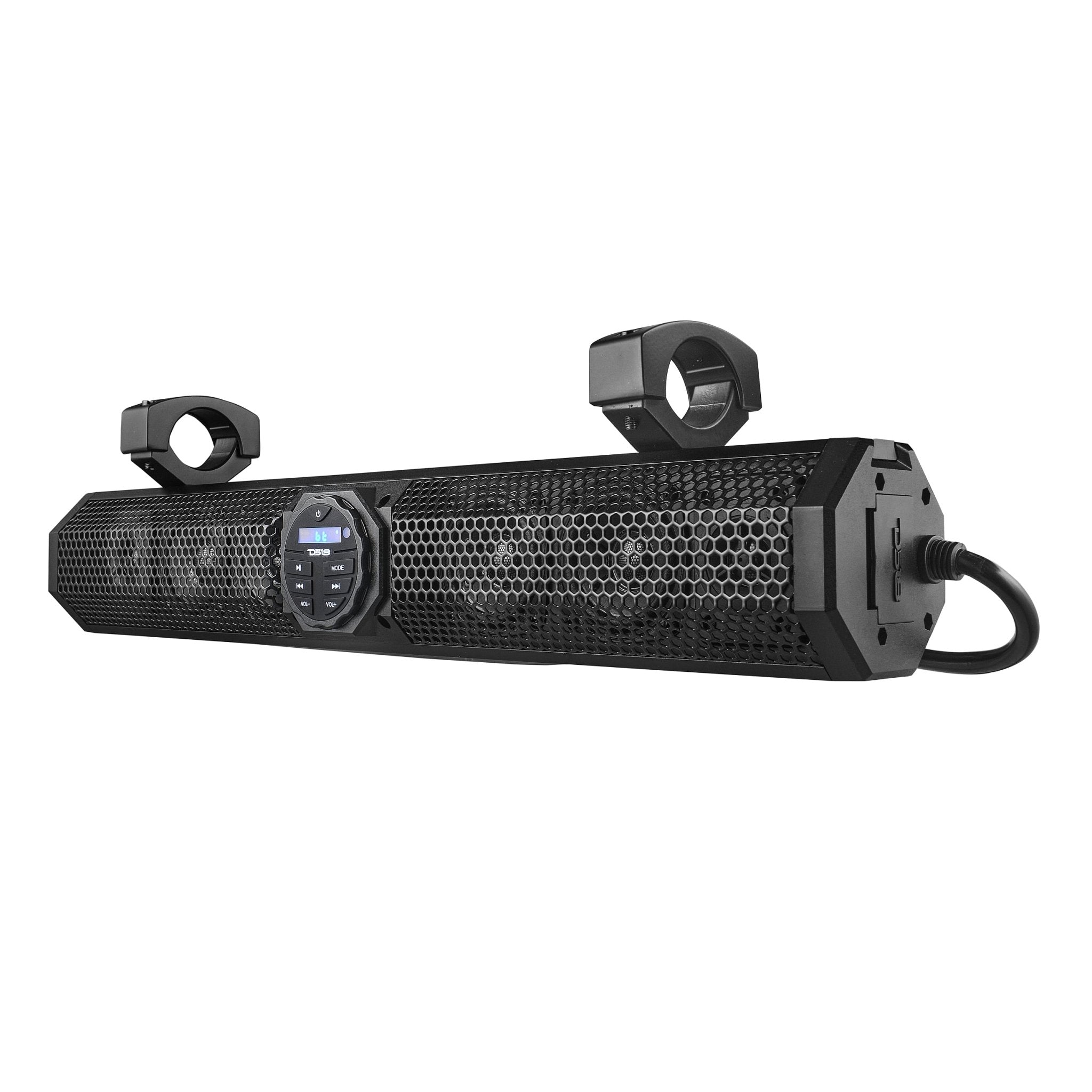

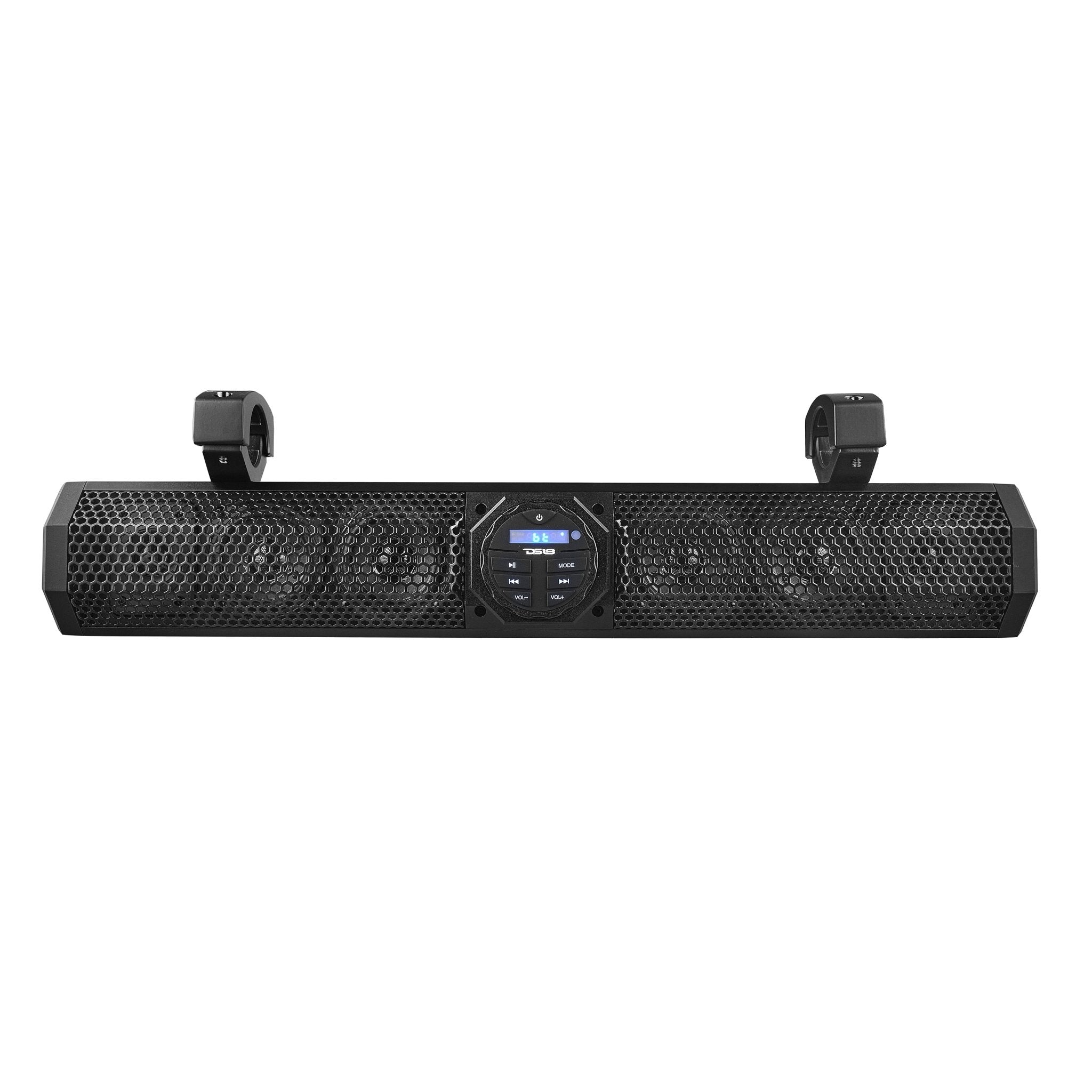

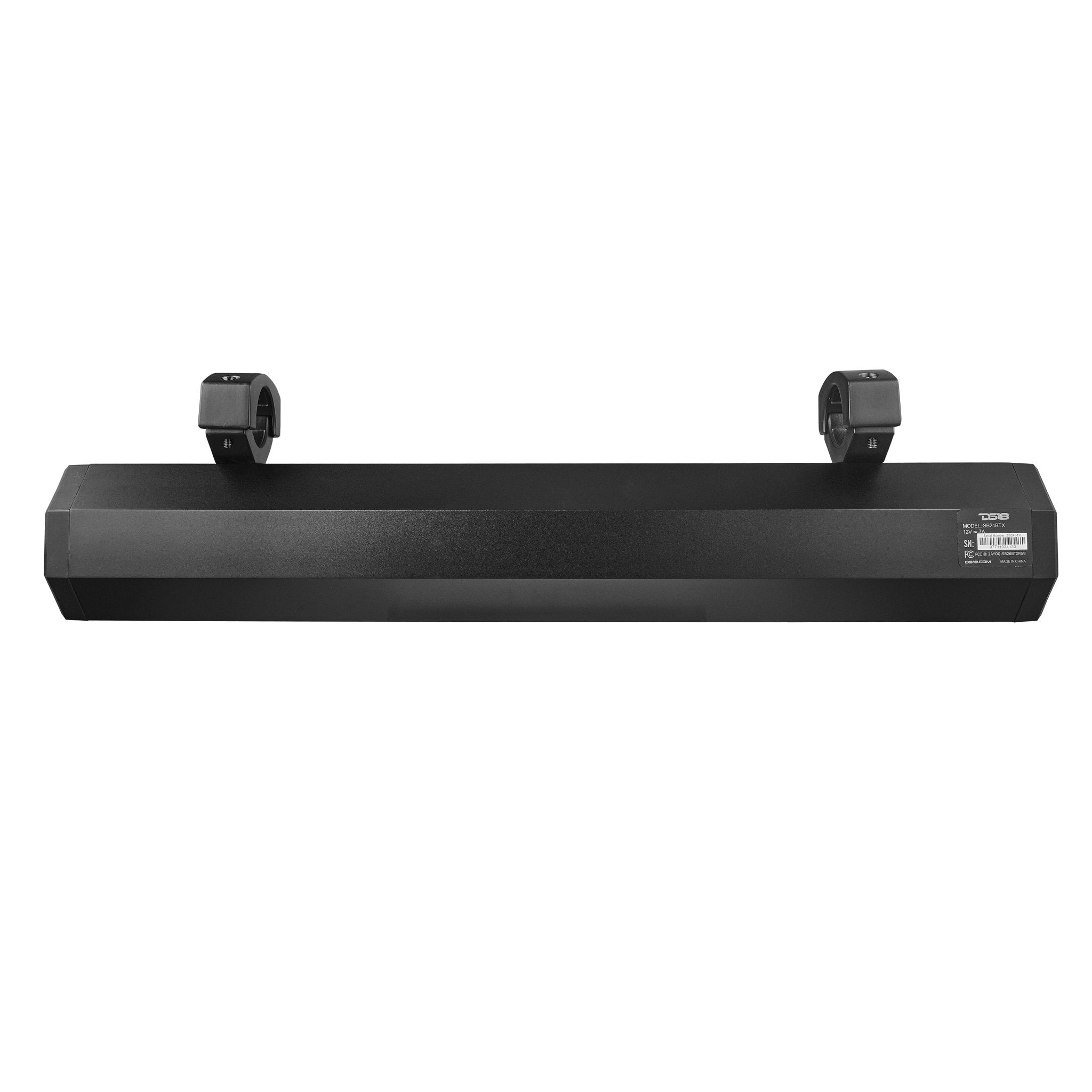

24" Marine Sound Bar Speaker System, 6 Speakers 600 Watts, Bluetooth® v5.0, Rotating Control Panel
Product Overview DS18 SB24BTXAmplified Soundbar With Bluetooth® and USB Player DS18’s SB24BTX is engineered for those who...
Vendor:
DS18
Manufacturer SKU
SB24BTX
Availability:
In Stock
Product Type:
Speaker Enclosures & Pods
- $419.95
- $419.95
- Unit price
- per
Subtotal:
$419.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
DS18 SB24BTX
Amplified Soundbar With Bluetooth® and USB Player
DS18’s SB24BTX is engineered for those who refuse to compromise on their listening experience, even in the most challenging environments. This Bluetooth® soundbar is the ideal waterproof audio system for any adventure.

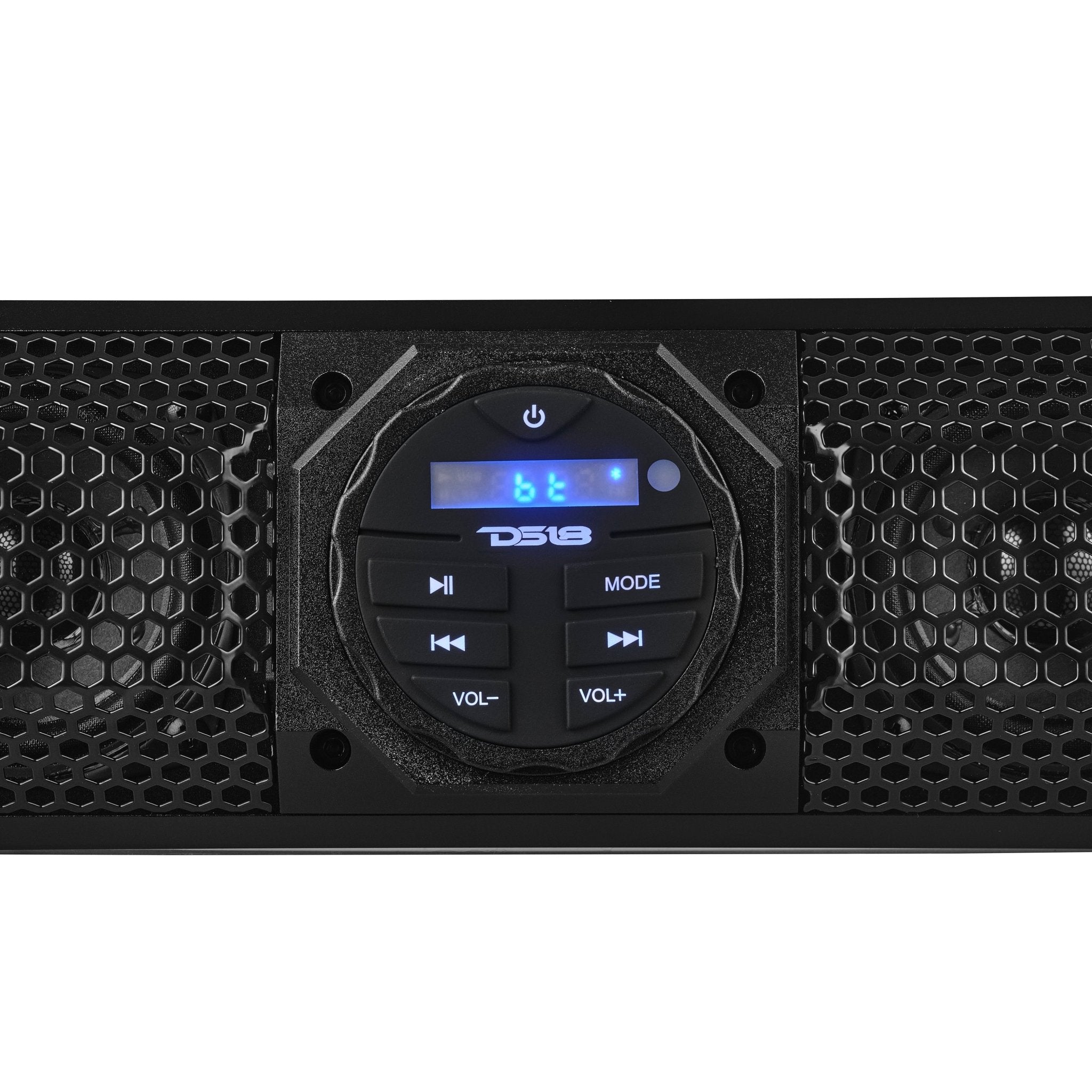

Key to its superior performance is the versatile rotatable control panel, providing flexibility in mounting positions for easy access wherever you choose to install it. The introduction of an RCA Line-Out feature allows seamless integration with external amplifiers or speakers, enhancing your audio setup's versatility and power. The SB24BTX adapts to any setting with ease, letting you seamlessly switch between Bluetooth®, AUX, and USB audio sources.
Experience sound like never before with enhanced water-resistant woofer cones that deliver pristine audio clarity and durability. The expanded audio impedance range ensures compatibility with a broader spectrum of audio systems, offering a perfect blend of power and precision. Equipped with an amplifier offering 100W RMS Power @ 4 ohm/ 200W MAX Power @ 4 ohm peak power and a frequency response from 45Hz to 20kHz, this DS18 soundbar delivers rich bass and crystal-clear highs that captivate your senses.
Compact yet powerful at 24.6 inches in width and weighing just 7.5 lbs, the SB24BTX is designed for ease of installation anywhere you desire premium sound. Choose the SB24BTX for high-quality outdoor audio experiences.
Key Features
- 24" Marine Sound Bar Speaker System
- Amplified Class A/B ~ RMS Power 100 Watts
- 6 Speakers ~ 4 X 3" Woofers + 2 X 1" Tweeters
- BT v5.0 + A2DP ~ USB ~ AUX ~ Rotating Control Panel
- RCA Line Out ~ Remote Control ~ Clamp Style Mount
- Water Resistant IP35 ~ 33 FT. Range ~ Black
Specifications
| SKU | SB24BTX |
|---|---|
| Nominal Size | 24" / 610mm |
| Total Watts (Peak) | 600W |
| RMS Power @ 4 ohm (Internal Amp) | 100W |
| MAX Power @ 4 ohm (Internal Amp) | 200W |
| Frequency Response | 45Hz-20KHz |
| Storage Temperature | 5°F ~ 176?F (-15°C ~ 80°C) |
| Operation Temperature | 32°F ~ 140°F (0°C ~ 60°C) |
| Operation Voltage | 12 Volts (10~16 Volts Range) |
| Marine Grade Type | IP35 |
| Body Material / Color / Finish | Aluminum / Oxidized Black Hemp Sand |
| Grill Type | Steel Mesh |
| Qty on box | 1 Pcs |

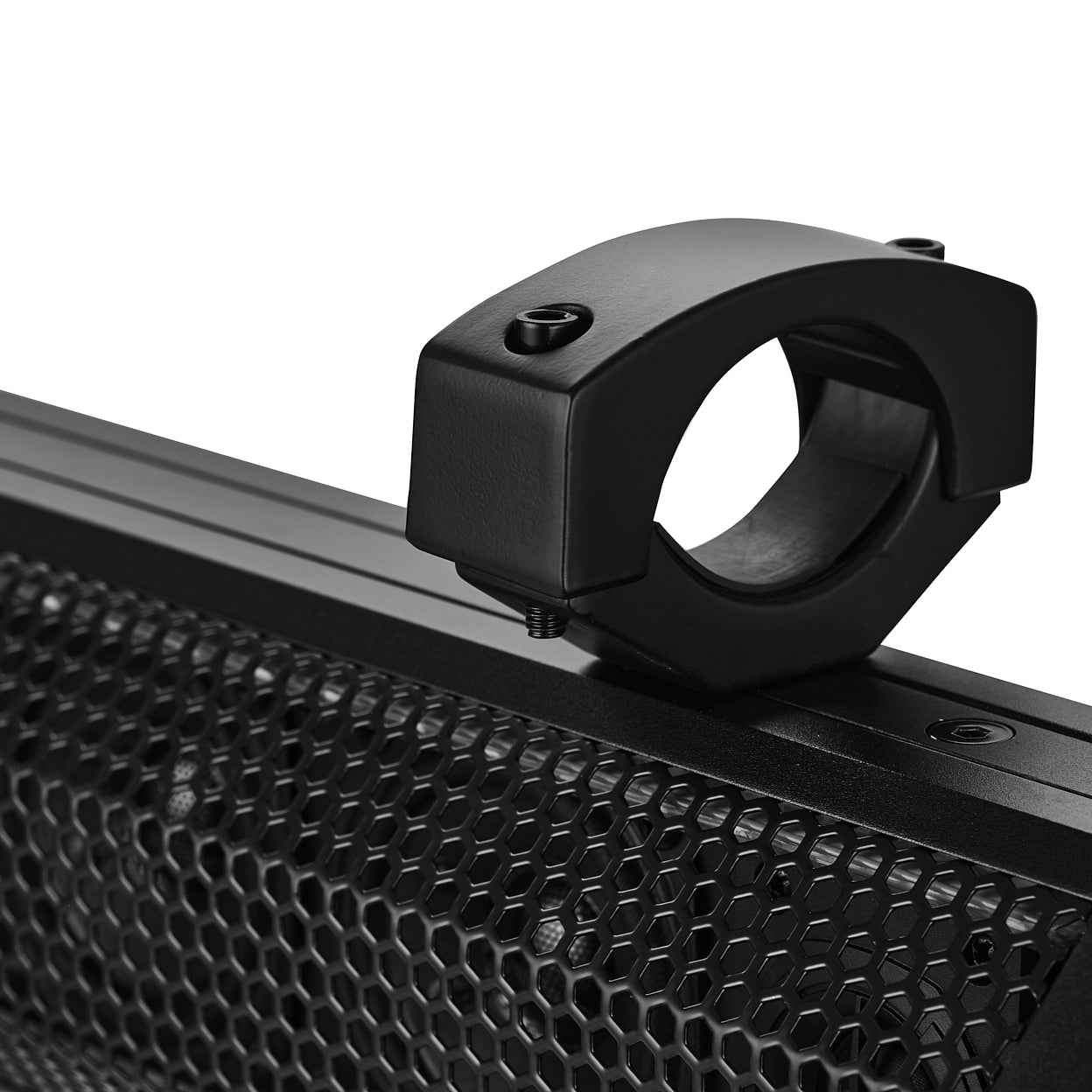

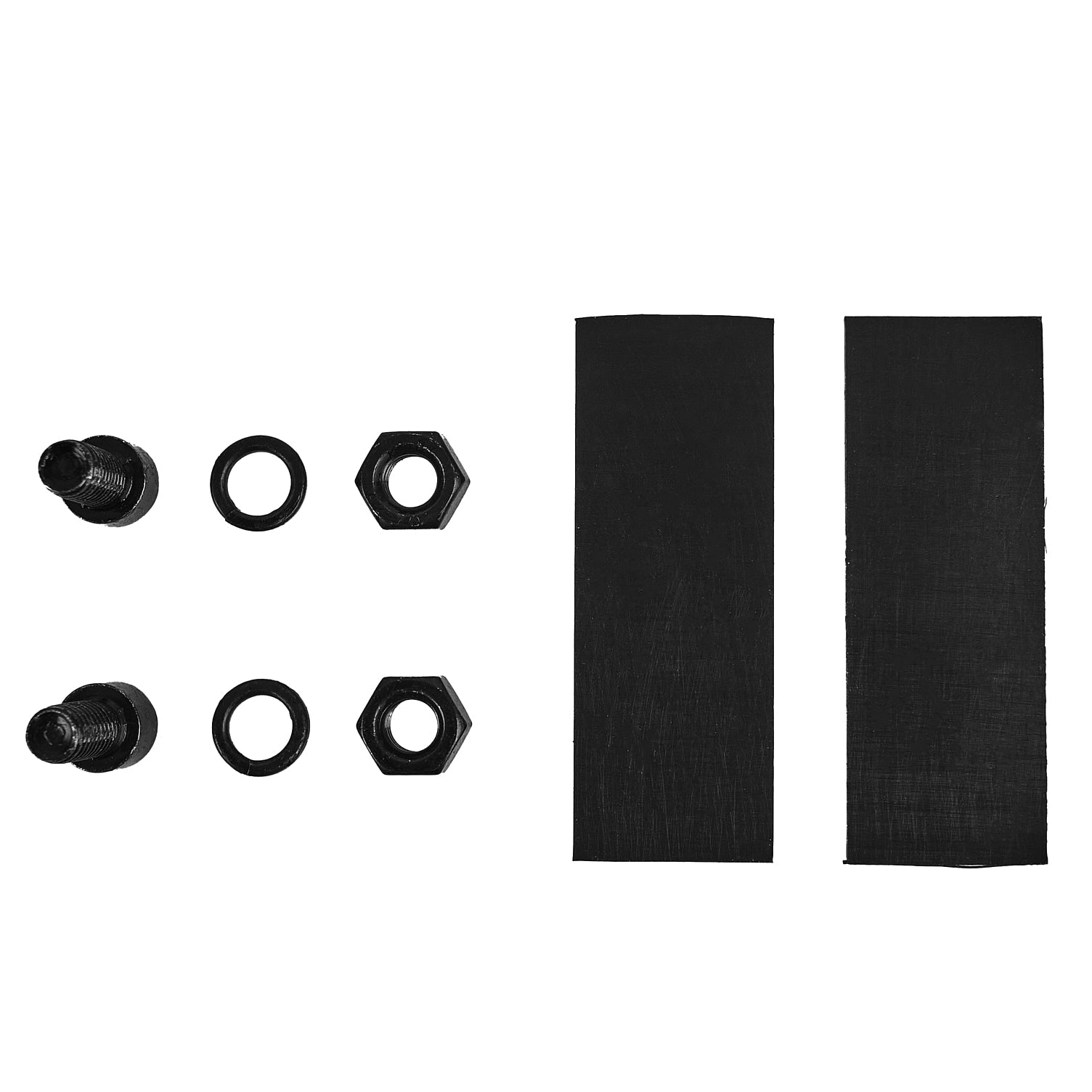

| Clamps | 2 Set (Tube Clamp Adjustable 1.5" ~ 2.25") |
| Front Logo | Yes |
| RCA Line Out (Pre-Amp) | Yes (L/R 2 Volts) |
| Aux Line Input | Yes (720mV) |
| EQ / DSP | 5 Preset EQ (for BT and USB Mode) |
| Remote Out | Yes (+12V) |

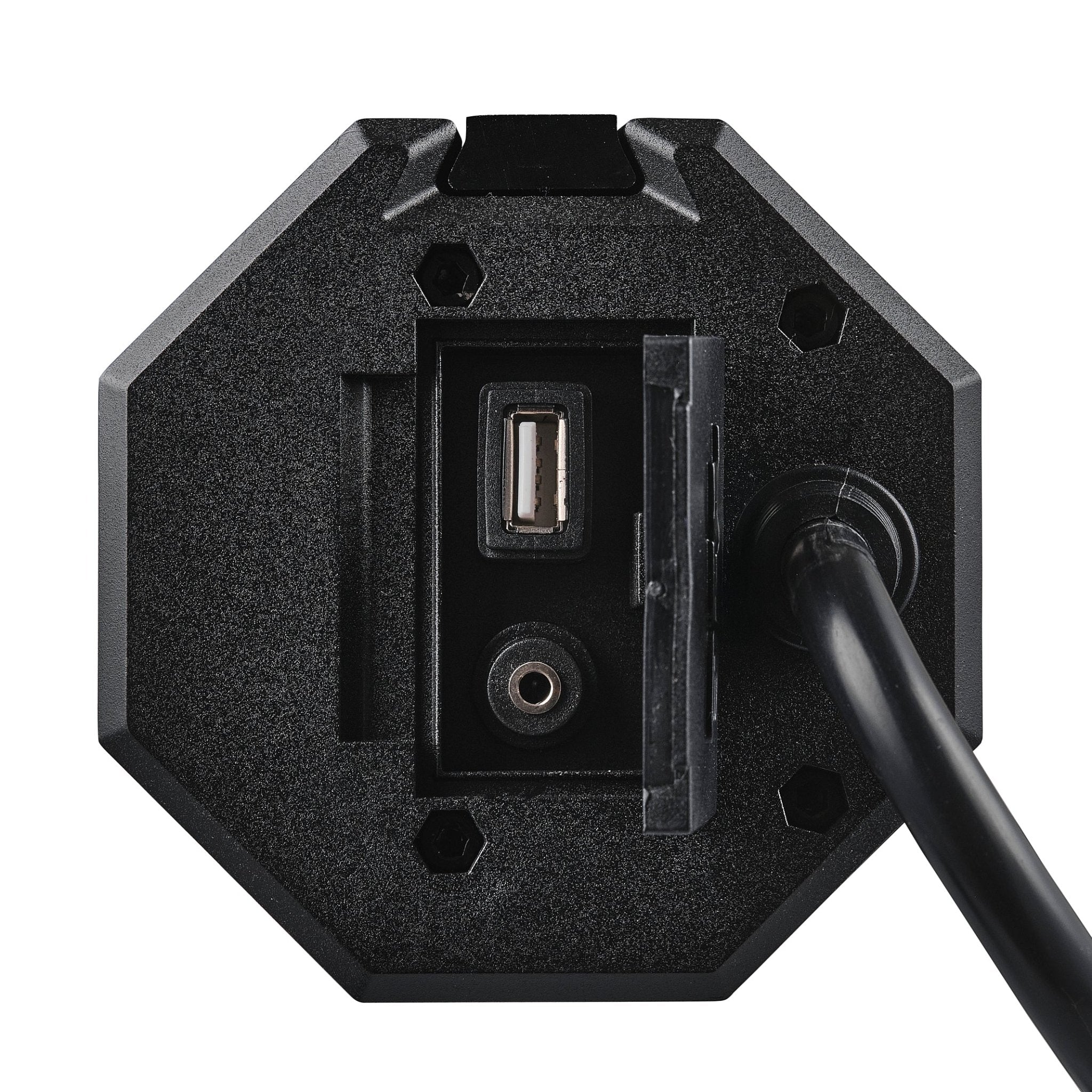

| USB Player | Yes (WMA, MP3 files) |
| USB Charger | Yes (1Amp) |
| Buttons / Controls | Yes (Power, Mode, Play/Pause, Fwd, Bwd, Vol+/Vol-) |
| Rotatable Control Panel | Yes (345°) |

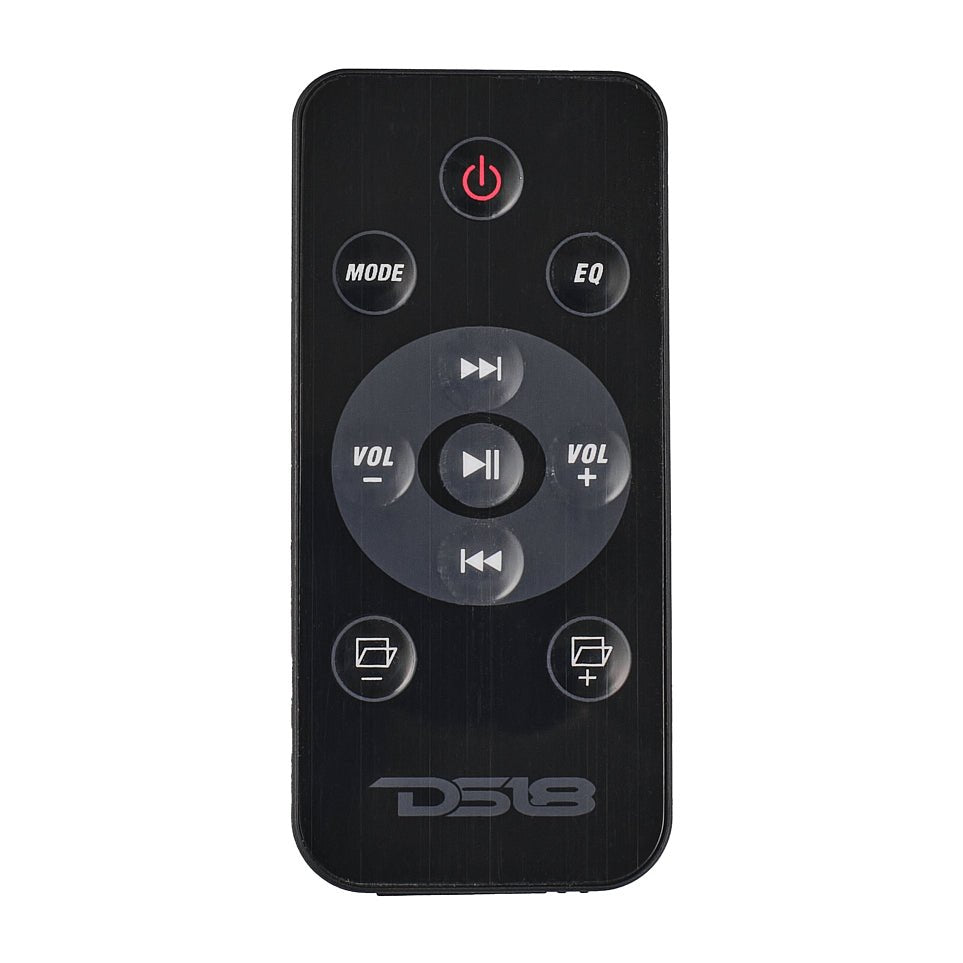

| Remote Control | Yes (IR Card Type) |
| Illumination | Yes (Blue Backlit) |
| Bluetooth Version | v5.0 |
| Audio Protocols | A2DP |
| Range | >33ft (10m)* / Class 2 |
| Voice Coil Former Material | Kapton |
| Cone Material | Water Resistant Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Magnet Material | Ferrite / Neodymium |
| Motor Diameter | 2.36" / 60mm |
| Nominal Diameter | 0.94" / 24mm (2 Pcs) |
| Voice Coil Diameter | 0.8" / 20.4mm |
| Type | Dome |
| Diaphragm Material | Soft Dome |
| Crossover | 6dB/oct |
| Amplifier Class | Class A/B |
| Amplifier Type | Stereo Full Range |
| Number of Channels | 4 |
| Minimum Impedance | 3 ohm |
| Signal to Noise Ratio | 68dB |
| T.H.D. | 1% @ 1000Hz |
| Channel Separation | 60dB |
| Audio Source | BT / USB / AUX |
| Power Input Wire Size | 2x16ga |
| Recommend Fuse Size | 10A |
| MAX Current Draw | 7A |
| Thermal Protection | Yes (>284°F / 140°C) |
| Over-Load Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | No |
| Overall Width | 24.6" / 625 mm |
| Overall Height | 3.98" / 101 mm |
| Overall Depth | 3.98" / 101 mm |
