12" Loaded Shallow Subwoofer Enclosure 700 Watts Rms @ 1 ohm
12" Loaded Shallow Subwoofer Enclosure 700 Watts Rms @ 1 ohm
Product Overview

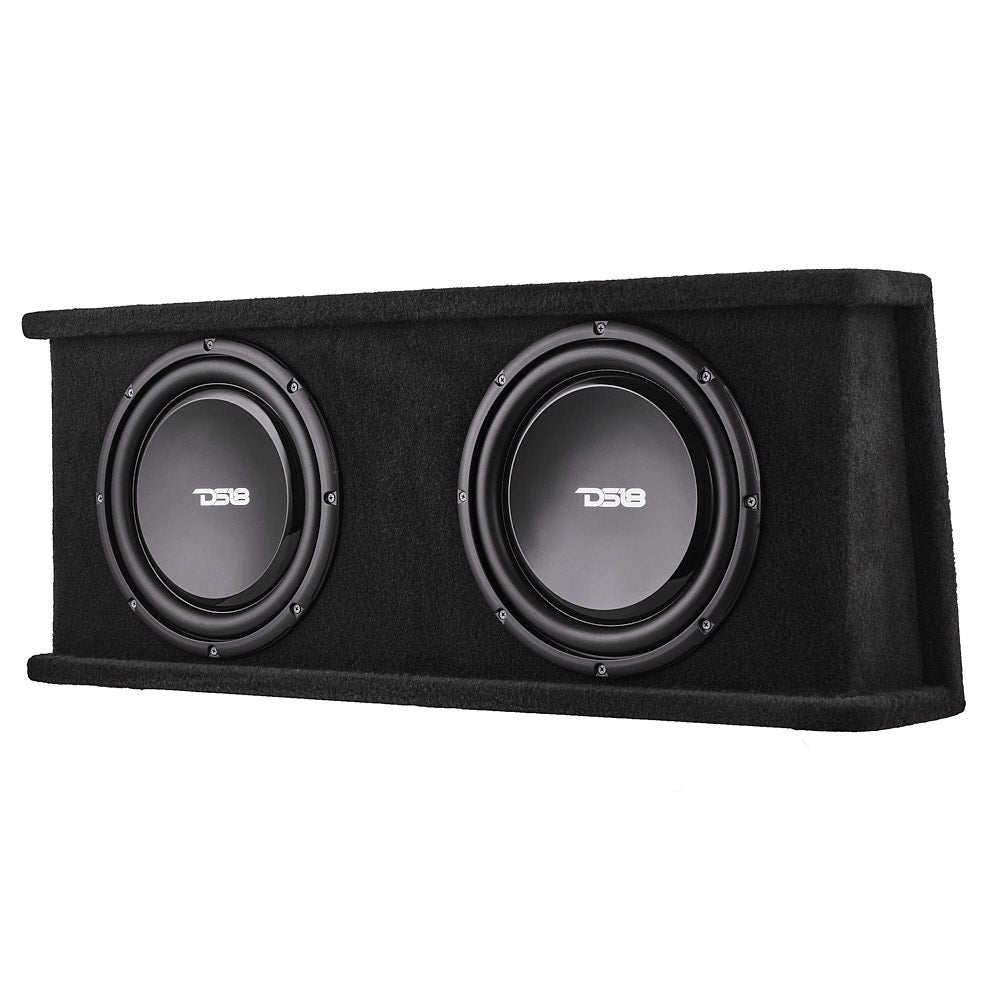

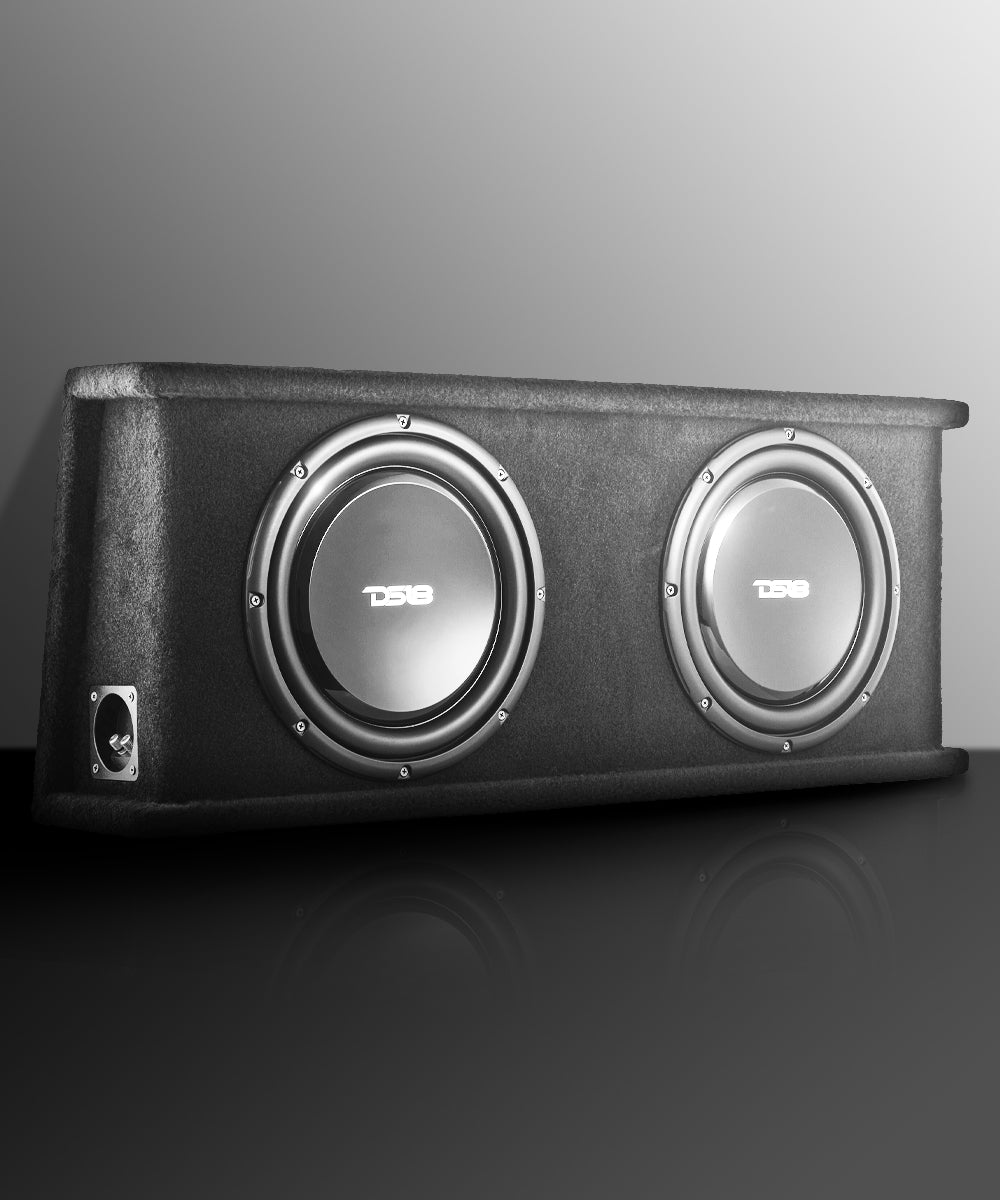

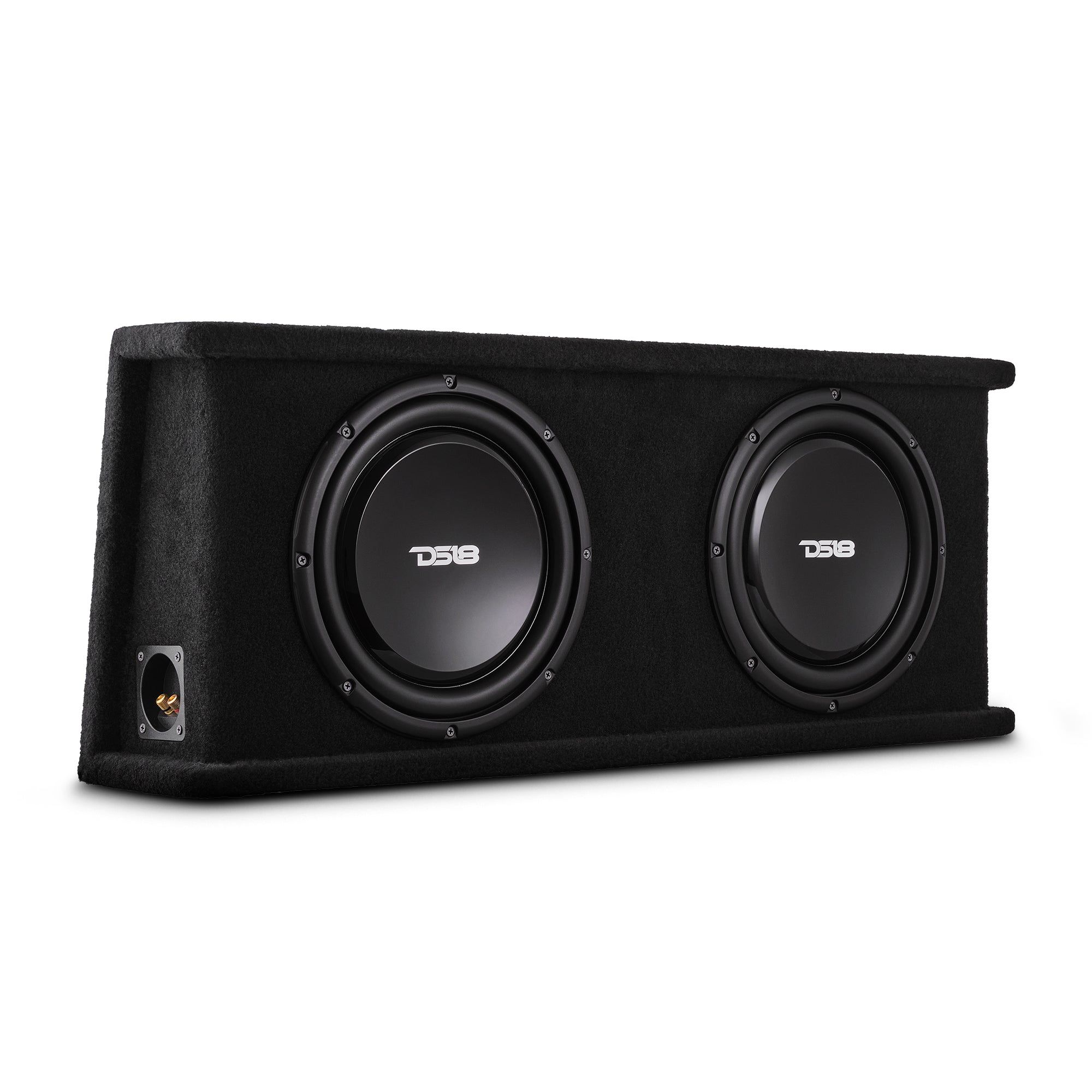

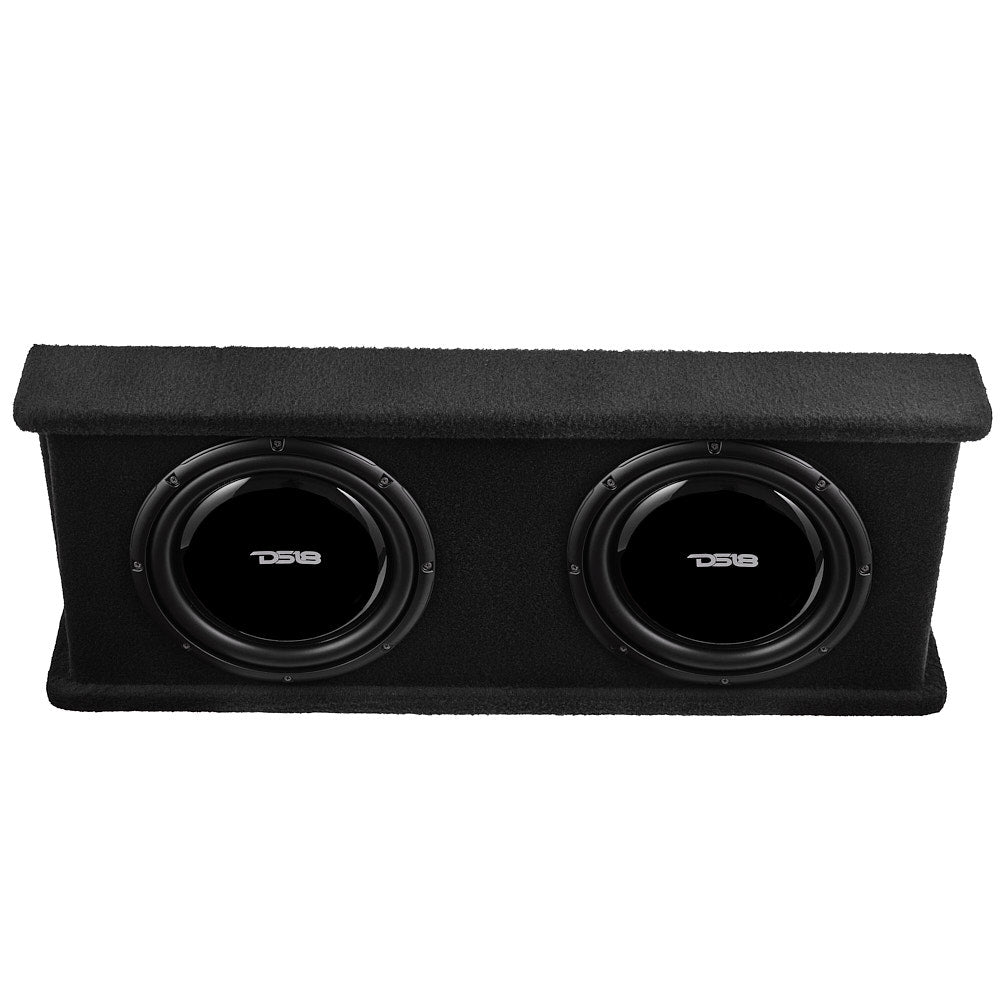

DS18 SB212 12" Loaded Shallow Subwoofer Enclosure
700 Watts Rms @ 1 ohm
DS18’s SB212 is the ultimate solution for those seeking powerful bass in any tight space.
These slim dual 12-inch subwoofers housed in a compact sealed box defy expectations with chest-thumping bass in a package that fits into any vehicle. Crafted from rugged .6-inch MDF, the SB212 is built for everyday use and optimum sound quality.
The internal volume of 1.12ft3 strikes the perfect balance between compactness and performance, ensuring that you get the best sound without sacrificing space. Its impressive frequency response ranging from 30Hz to 250Hz gets even richer and deeper bass, thanks to the control allowed by the sealed box.

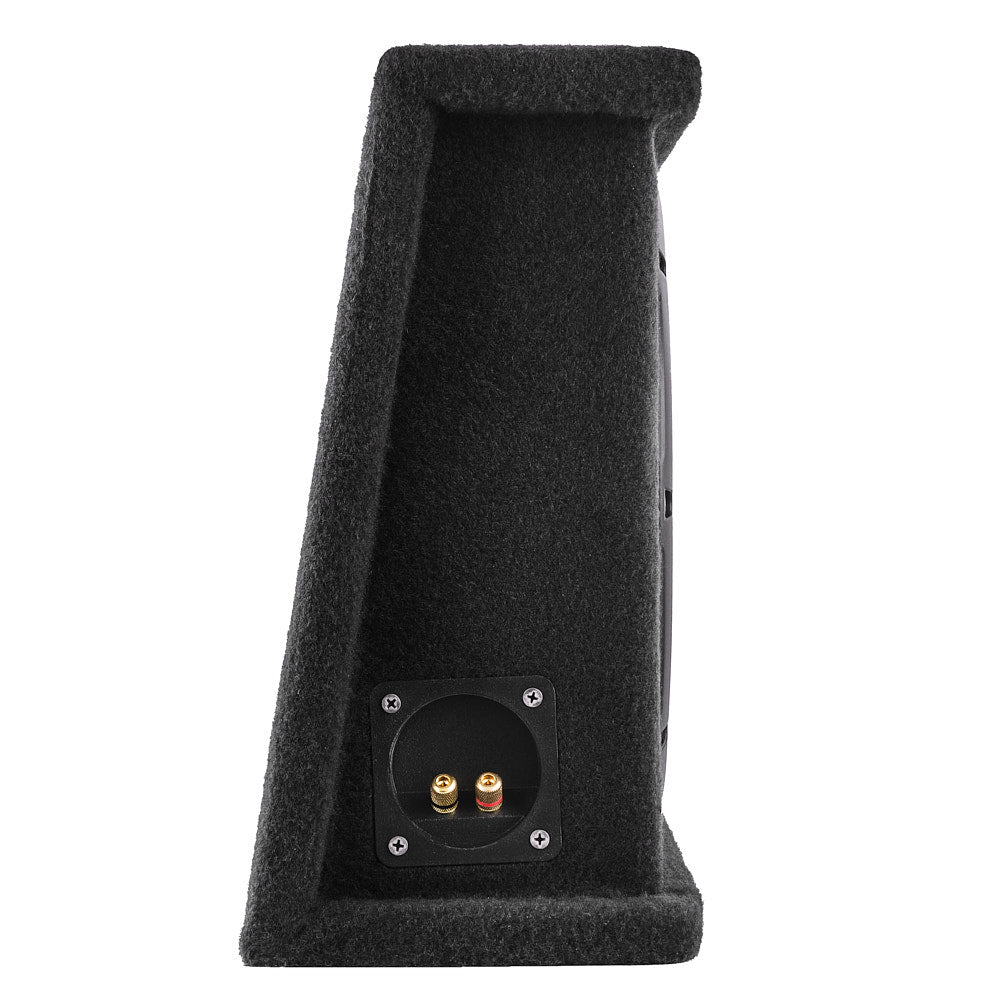

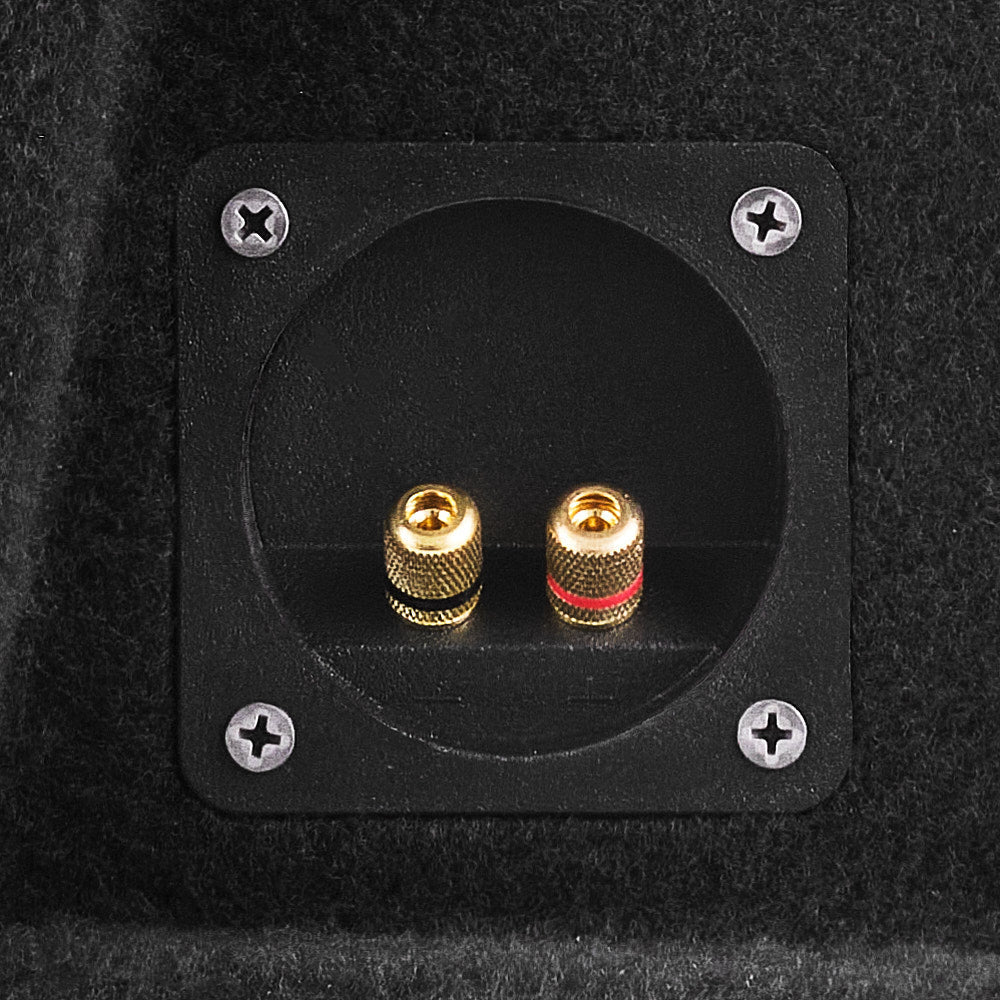

Connectivity options are limitless with the SB212. It offers high-level inputs or RCA jacks, for effortless integration into any existing audio system. Simply hook it up, sit back, and Get LOUD!
Key Features
- Subwoofer Enclosure
- 2 X 12" Shallow Mount
- RMS Power: 700 Watts(1400 Watts Peak)
- Impedance: 1 Ohm
- 1/2" MDF with Black Carpet
- 93dB
Specifications
| SKU | SB212 |
|---|---|
| Speaker Type / Size | Dual 12" / 312mm |
| Total Impedance | 1 ohm |
| Total RMS Power Handling | 700W |
| Total MAX Power Handling | 1400W |
| Sensitivity (1w/1m) | 93dB |
| Frequency Response | 30-250Hz |
| Recommended Lo Pass Crossover | 80Hz |
| Voice Coil Diameter | 1.75" / 44.43mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | EISV |
| Cone Material | IPP |
| Dust Cap Material | N/A |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 50 Oz |
| Internal Volume | 32L / 1.12ft3 |
| Port Tune (Fb) | N/A |
| Load Configuration | parallel in |
| Box Type | Sealed Box |
| Box Material | 0.59" MDF |
| Finish Material | Black Carpet |
| -3Db Dropping Point (F3) | 45Hz |

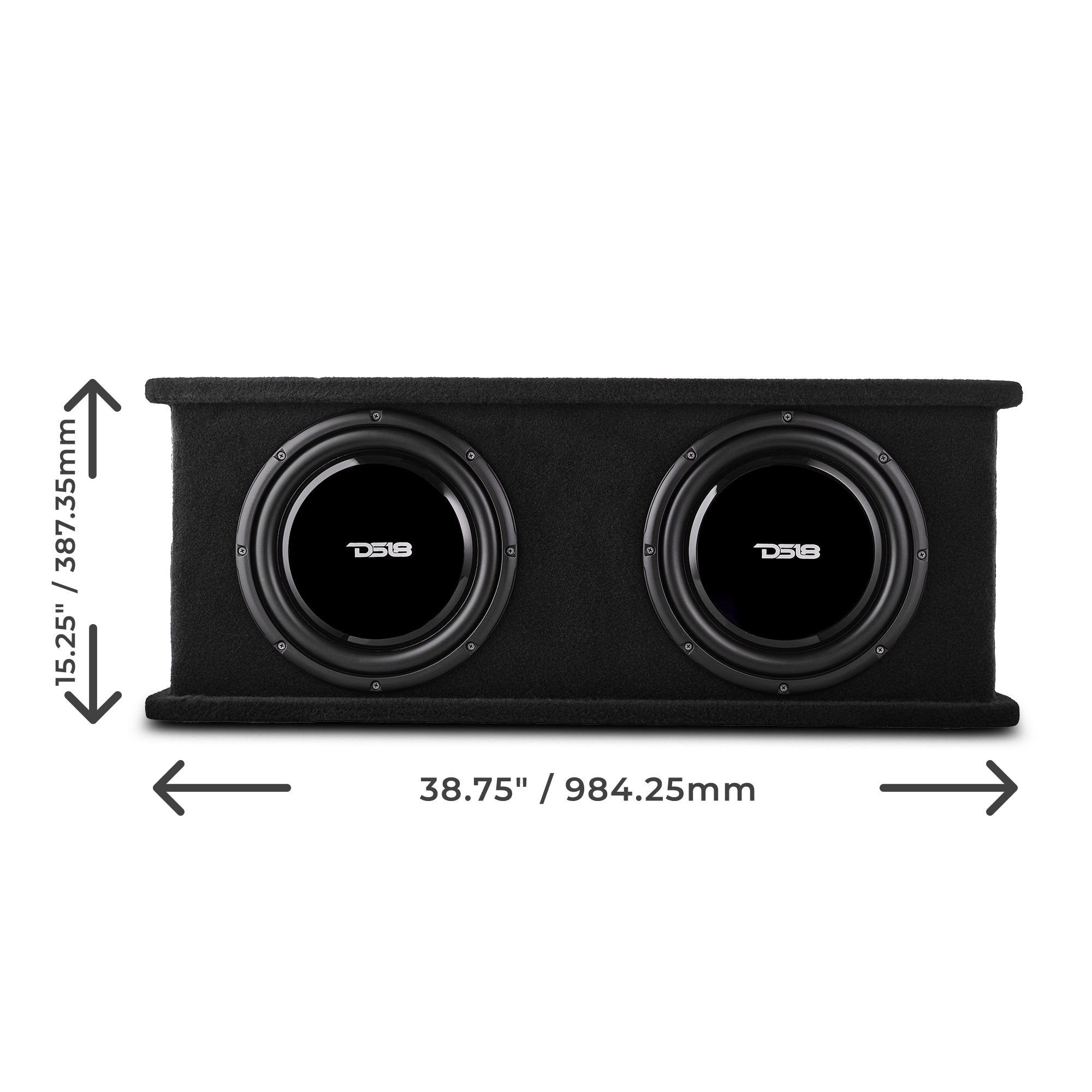

| Height | 15.25" / 387.35mm |
| Length | 38.75" / 984.25mm |
| Depth 1 | 5.25" / 133.35mm |
| Depth 2 | 7.5" / 190.5mm |
| Gross Single Unit Weight | 39LBs / 17.7KG |
| Master Carton Dimensions - W x L x H | 10" x 41" x 18" - 254mm x 1041.4mm x 457.2mm |
| Gross Master Carton Weight | 43LBs / 19.5KG |
| Quantity of Units in Master Carton | 1 Pc |
