12" Loaded Shallow Subwoofer Enclosure 350 Watts Rms @ 2 ohm
12" Loaded Shallow Subwoofer Enclosure 350 Watts Rms @ 2 ohm
Product Overview

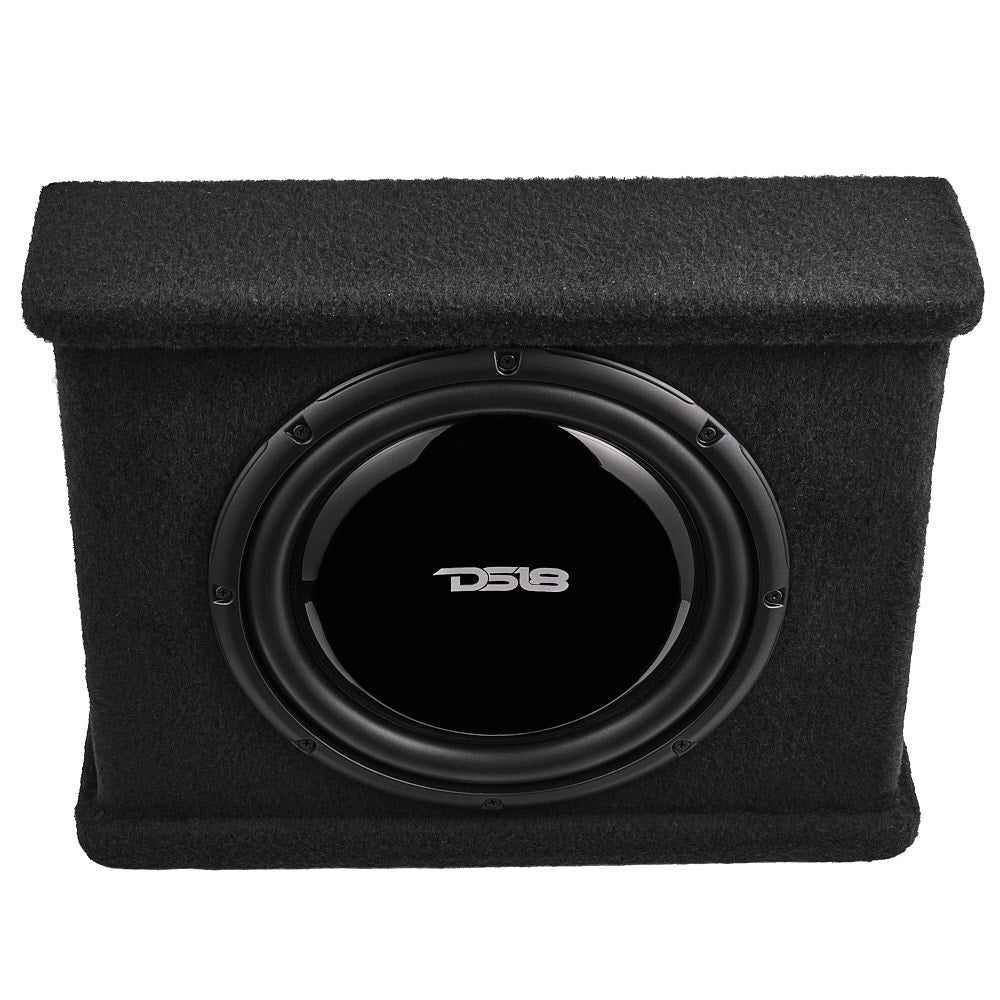

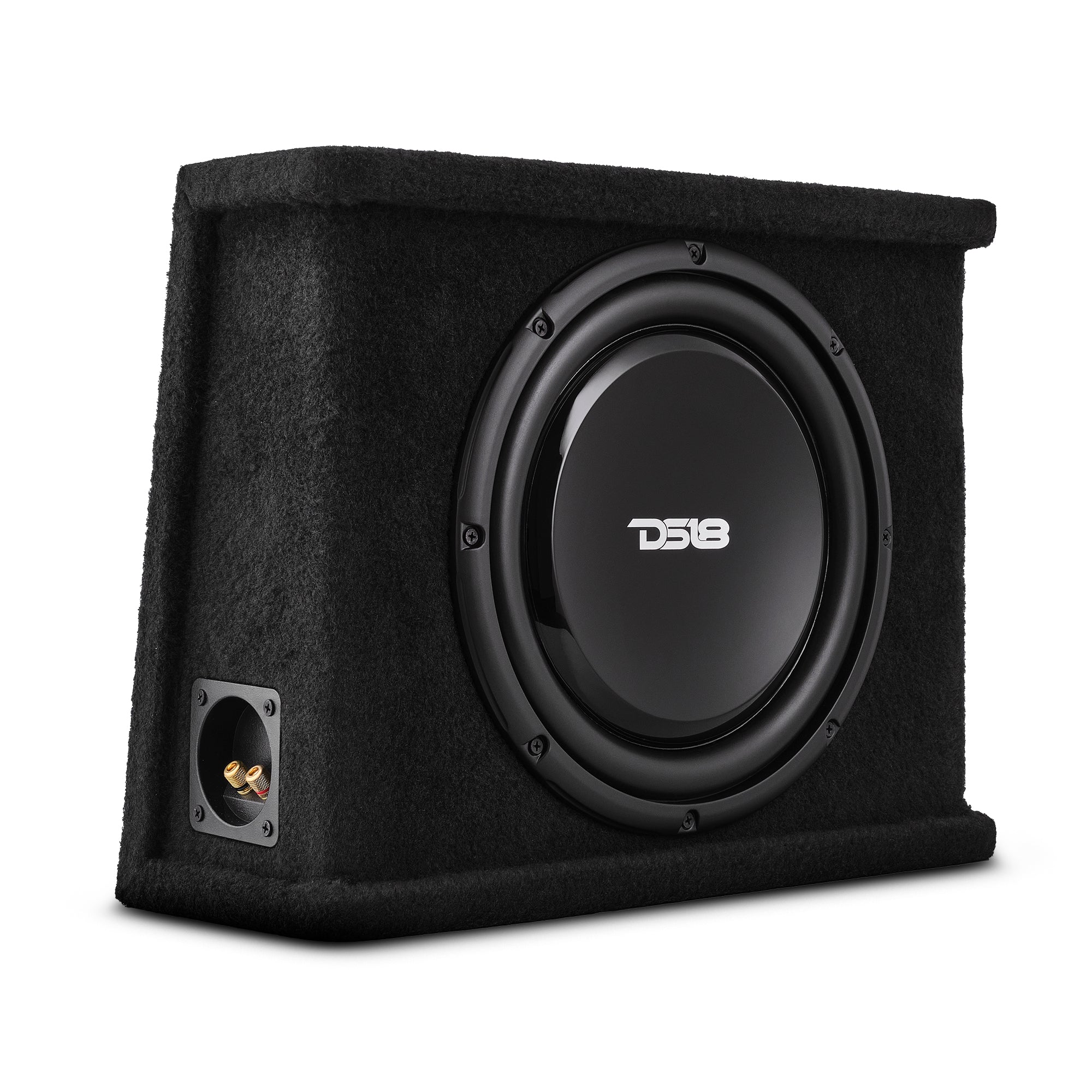

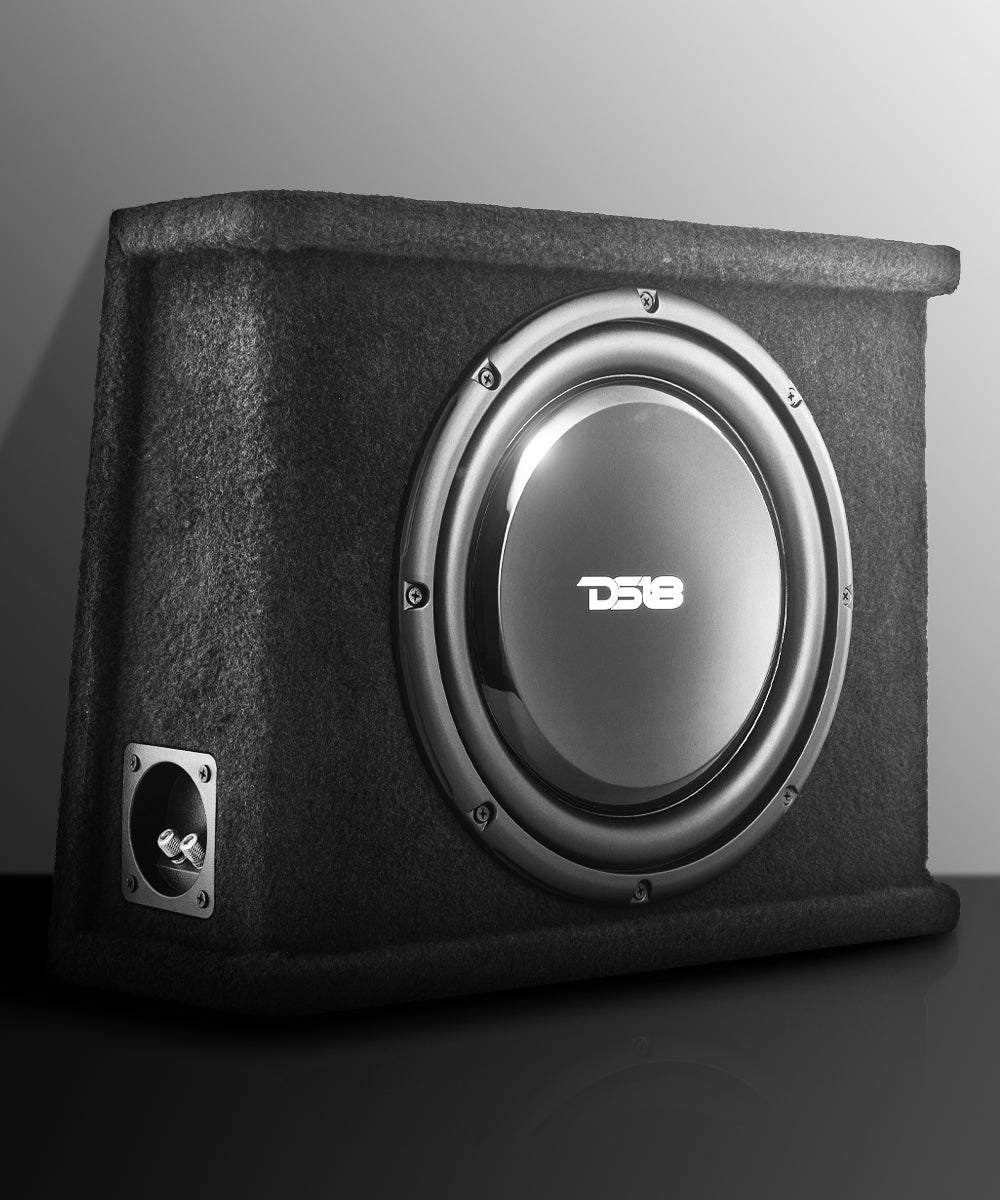

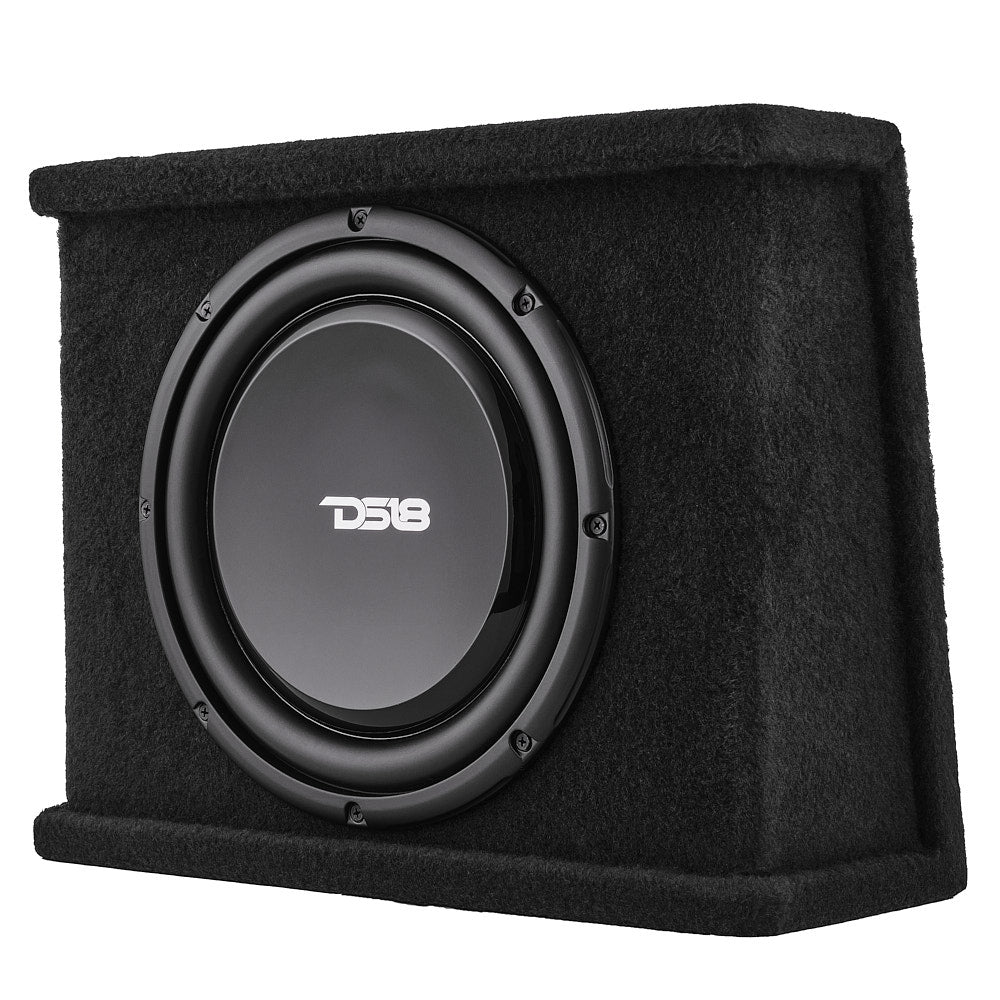

DS18 SB12 12" Loaded Shallow Subwoofer Enclosure
350 Watts Rms @ 2 ohm
DS18’s SB12 is designed to bring earth-shattering bass to any tight space.
This slim 12-inch subwoofer housed in a compact sealed box defies expectations with chest-thumping bass in a package that fits into any vehicle. Crafted from rugged .6-inch MDF, the SB12 is built for everyday use and optimum sound quality.
With an internal volume of 0.56 ft3, the SB12 strikes the perfect balance in compact performance. Its impressive frequency response ranging from 30Hz to 250Hz gets even richer and deeper bass, thanks to the control allowed by the sealed box.

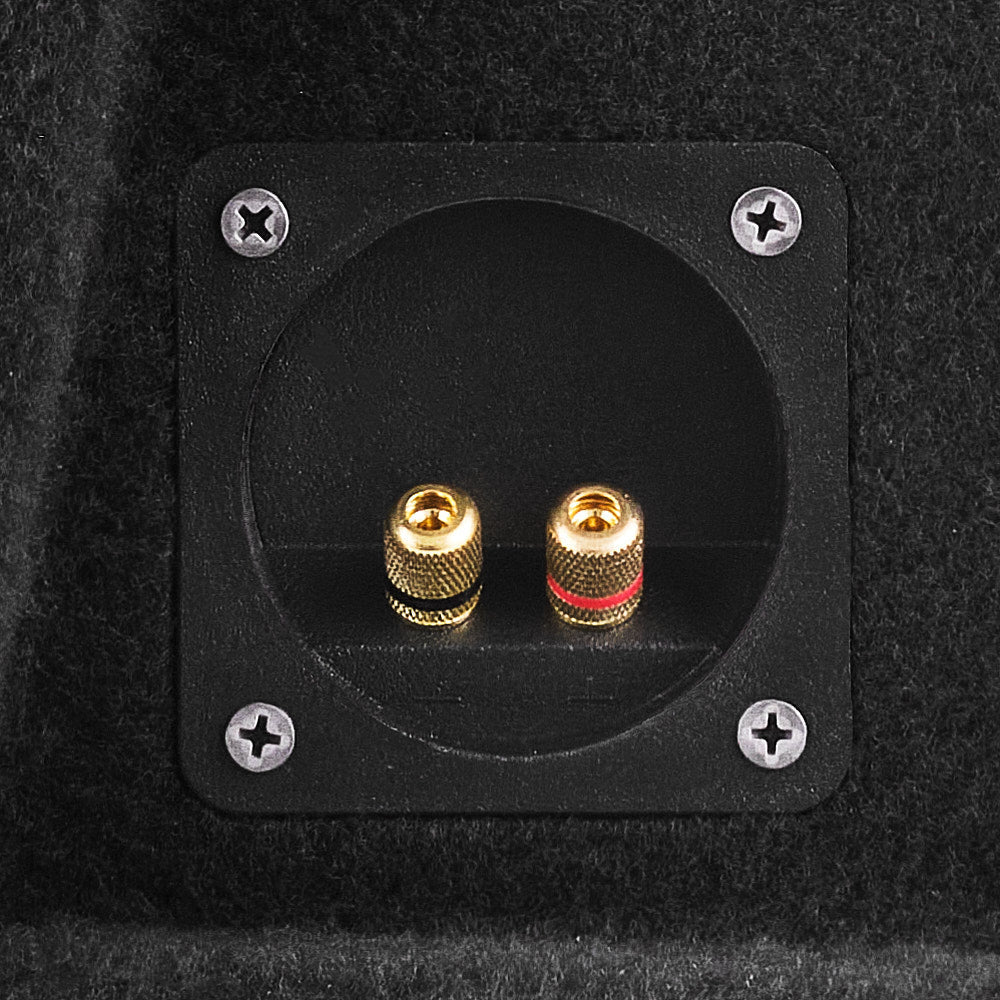

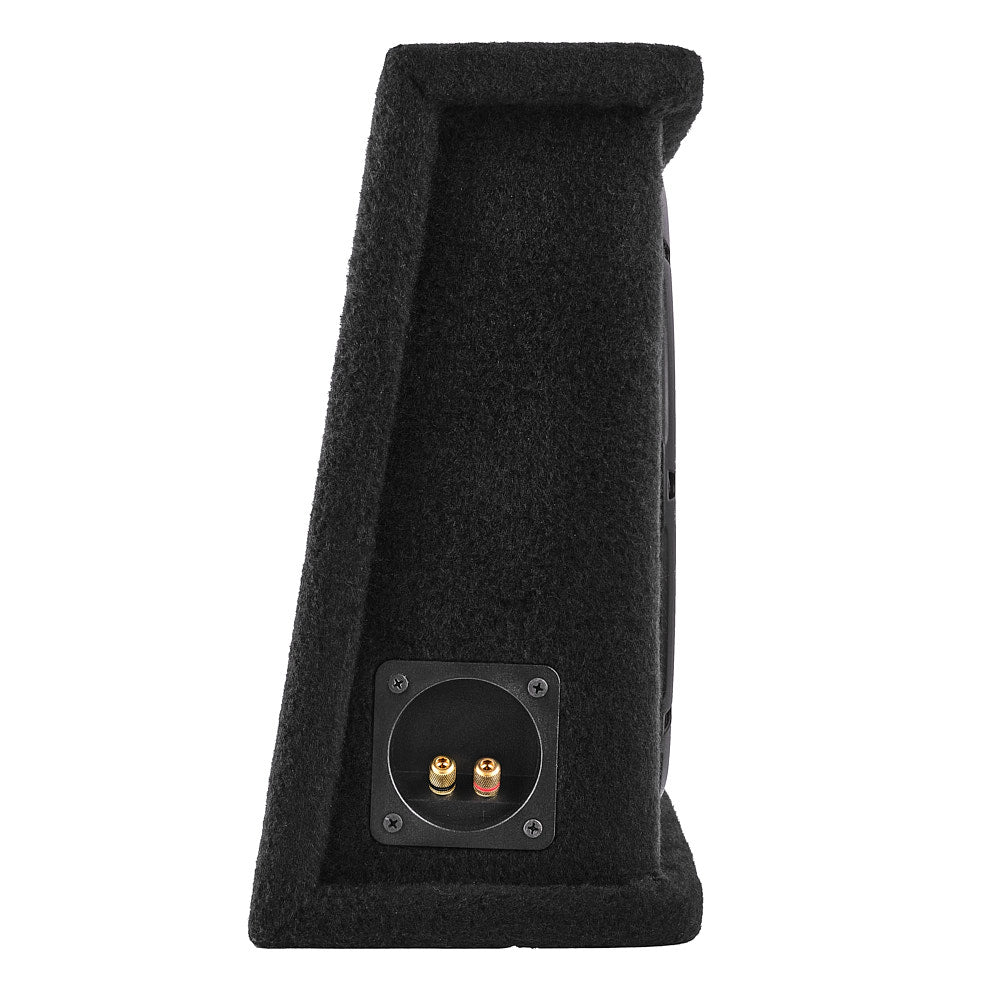

Connectivity options are limitless with the SB12. It offers high-level inputs or RCA jacks, for effortless integration into any existing audio system. Simply hook it up, sit back, and Get LOUD!
Get Your SB12 today for a BOOM that fits anywhere!
Key Features
- Subwoofer Enclosure
- 1 X 12" Shallow Mount
- RMS Power: 350 Watts(700 Watts Peak)
- Impedance: 2 Ohm
- 1/2" MDF with Black Carpet
- 87dB
Specifications
| SKU | SB12 |
|---|---|
| Speaker Type / Size | Single 12" / 312mm |
| Total Impedance | 2 ohm |
| Total RMS Power Handling | 350W |
| Total MAX Power Handling | 700W |
| Sensitivity (1w/1m) | 87dB |
| Frequency Response | 30-250Hz |
| Recommended Lo Pass Crossover | 80Hz |
| Voice Coil Diameter | 1.75" / 44.43mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | EISV |
| Cone Material | IPP |
| Dust Cap Material | N/A |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 50 Oz |
| Internal Volume | 16L / 0.56ft3 |
| Port Tune (Fb) | N/A |
| Load Configuration | parallel in |
| Box Type | Sealed Box |
| Box Material | 0.59" MDF |
| Finish Material | Black Carpet |
| -3Db Dropping Point (F3) | 45Hz |

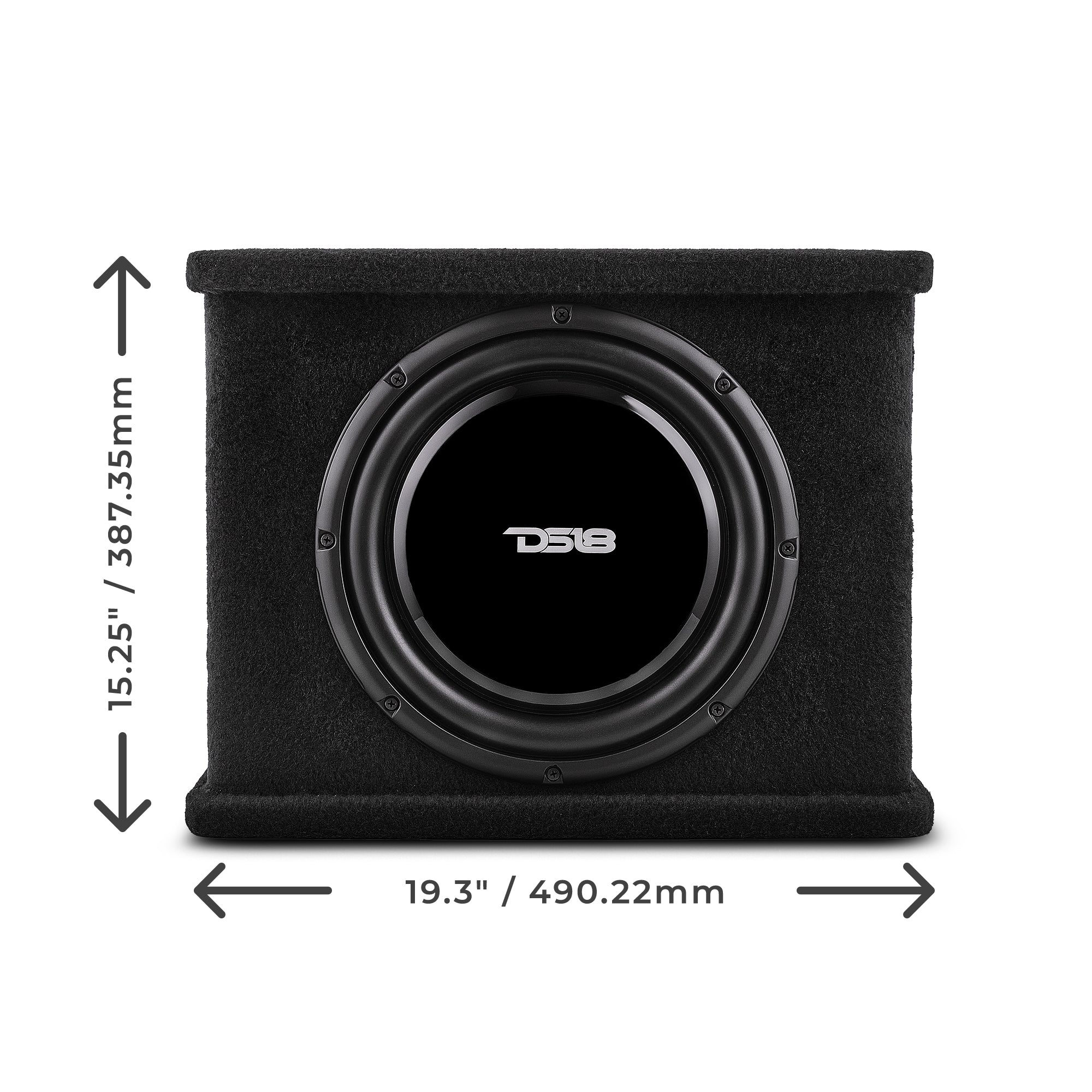

| Height | 15.25" / 387.35mm |
| Length | 19.3" / 490.22mm |
| Depth 1 | 5.25" / 133.35mm |
| Depth 2 | 7.5" / 190.5mm |
| Gross Single Unit Weight | 19LB / 8.6KG |
| Master Carton Dimensions - W x L x H | 10" x 21" x 18" - 254mm x 533.4mm x 457.2mm |
| Gross Master Carton Weight | 23LBs / 10.43KG |
| Quantity of Units in Master Carton | 1 Pc |
